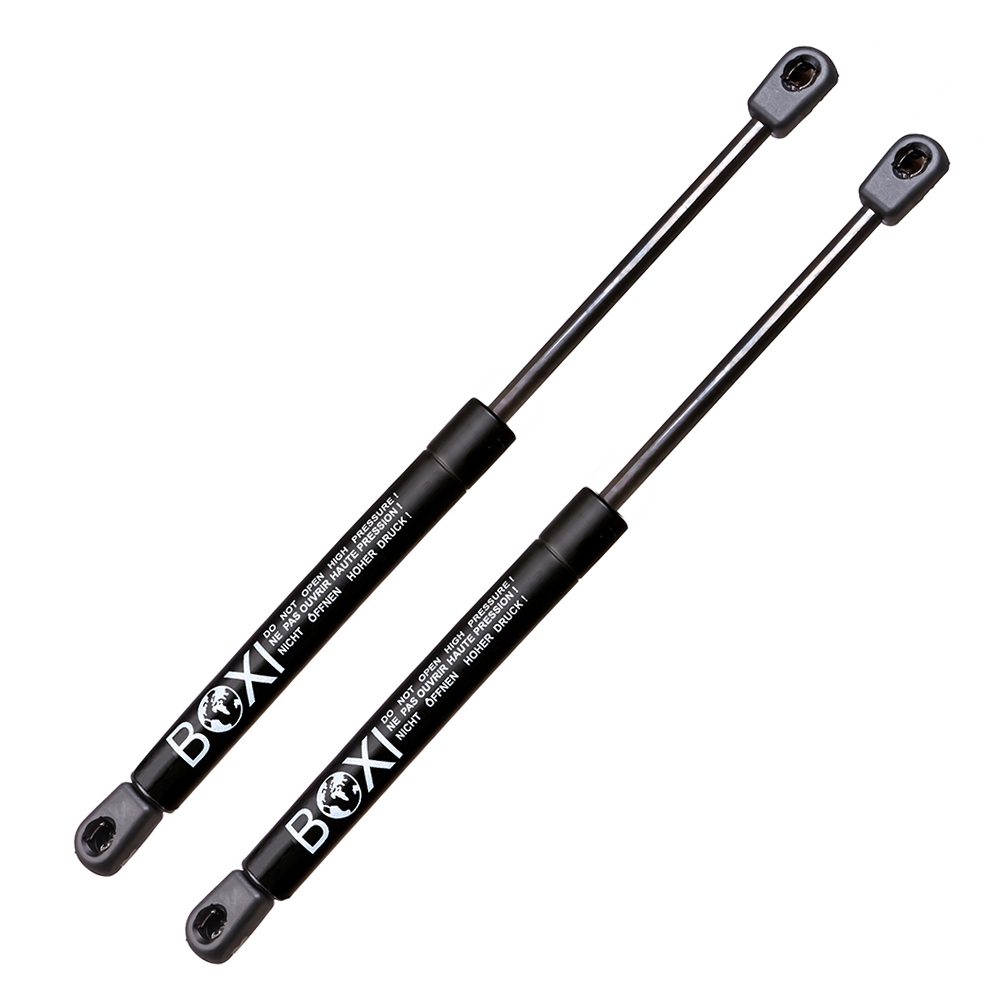

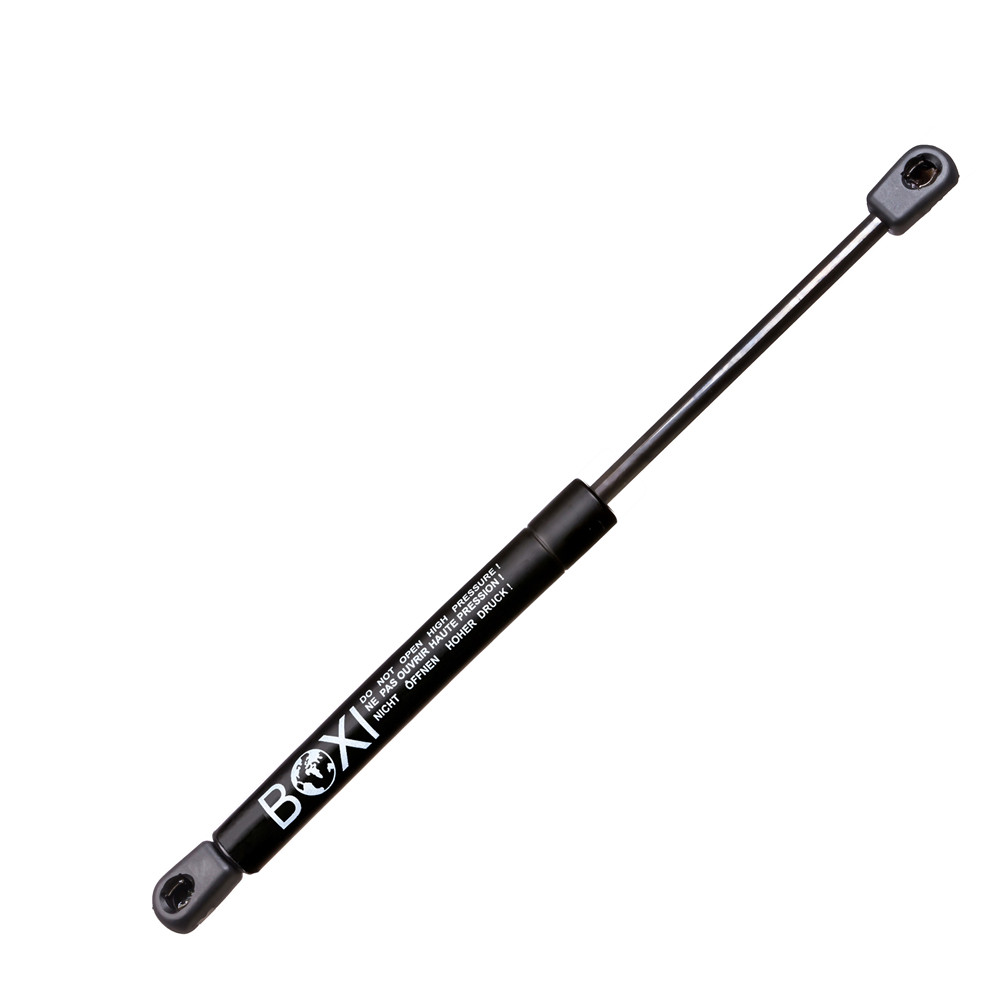

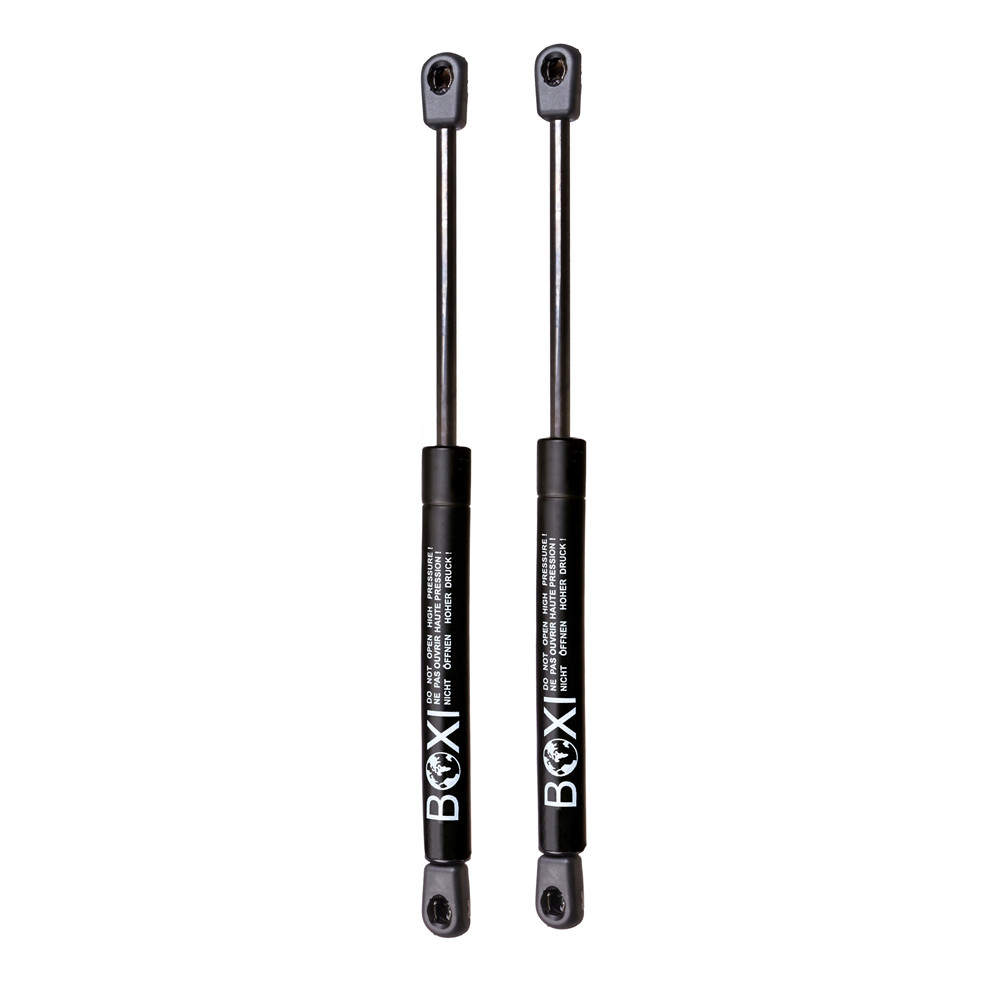

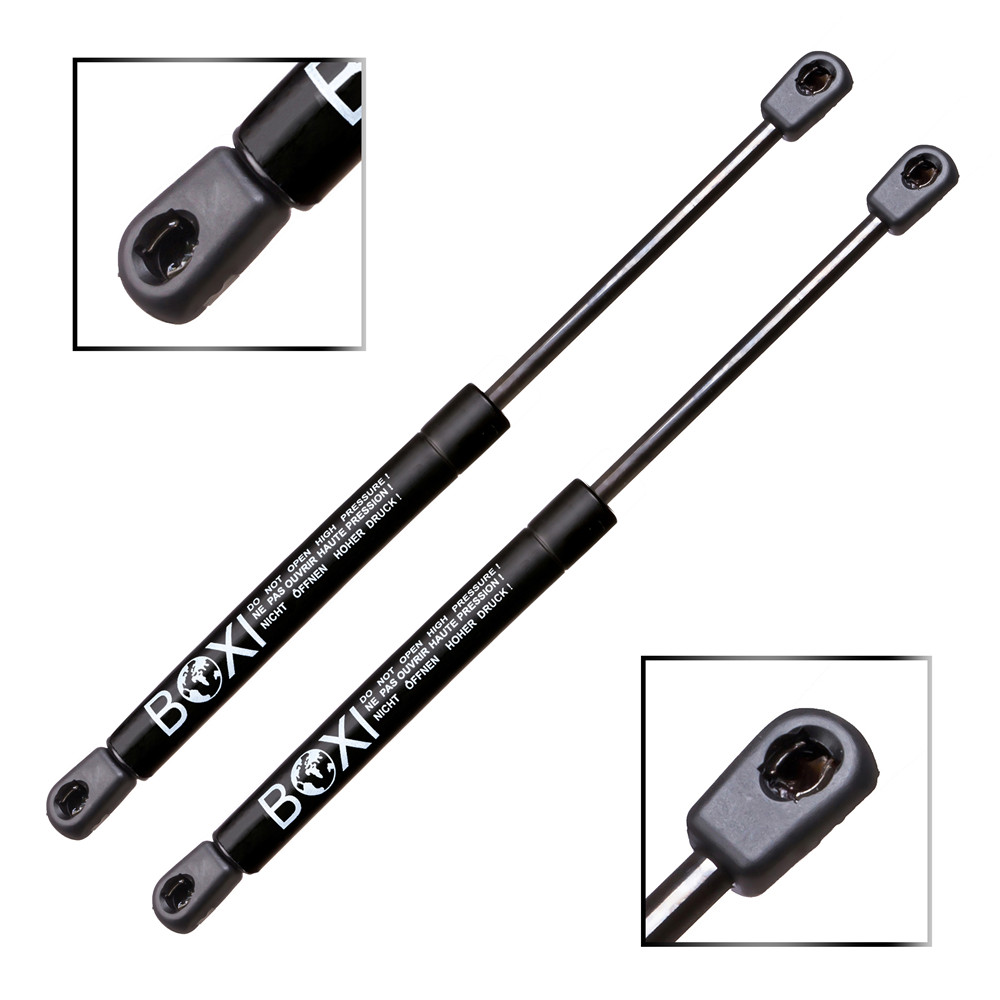

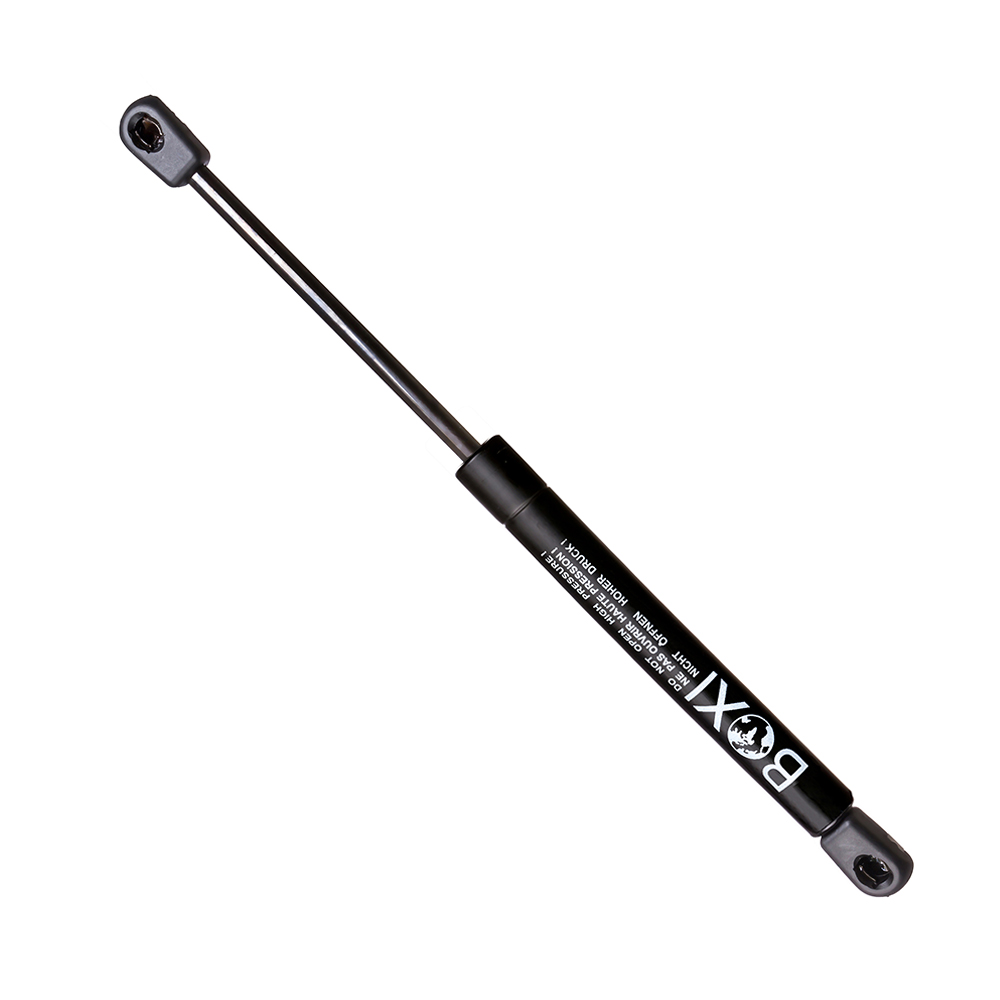

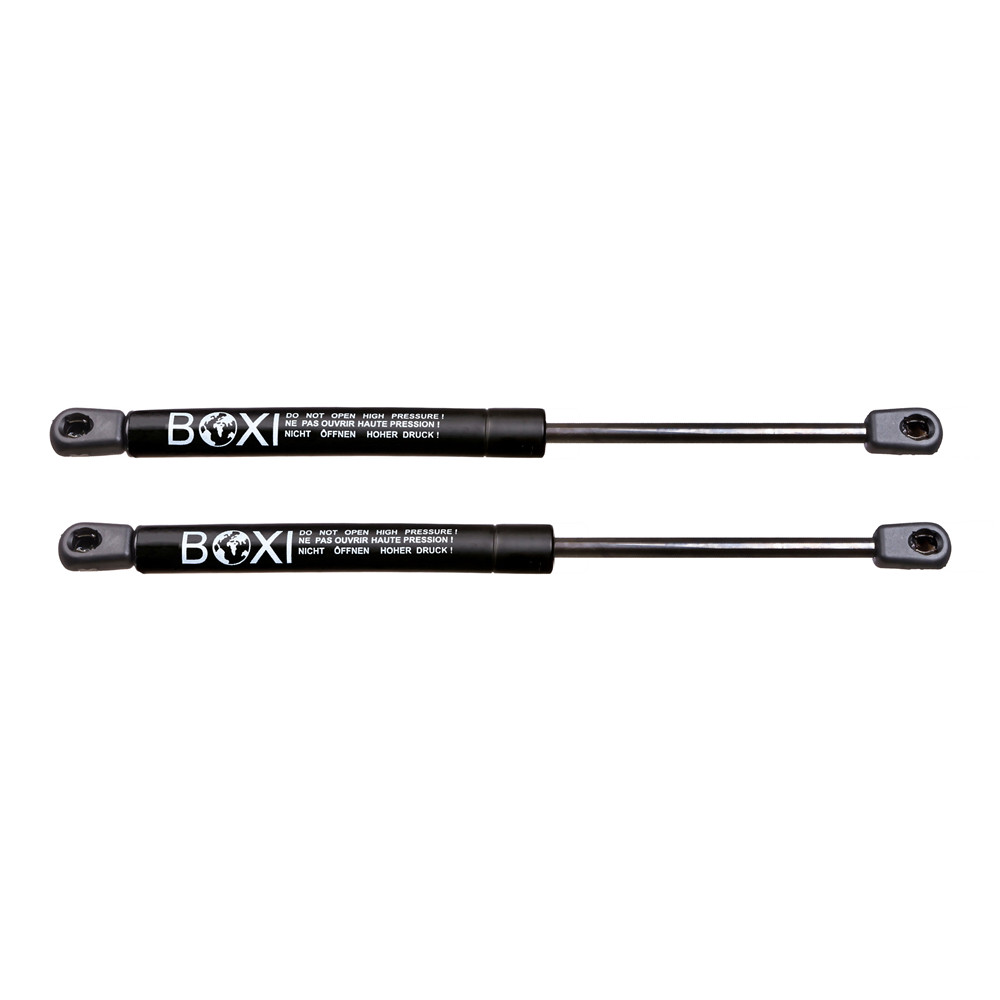

Qty(2) BOXI Liftgate Lift Supports Struts Shocks for Mazda 5 Mini Passenger Van 2012-2013 Liftgate,6685,612344

BOXI SKU#: BXC300030092-2

$20.89

BOXI liftgate lift supports for Mazda 5 Mini Passenger Van (2012-2013). Replaces OE 6685 and 612344. Includes a pair of struts. Verify fitment before ordering.

OE / Interchange Part Numbers: 96685, D96685

  • 5 Years Warranty

23 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fit: Mazda 5 Mini Passenger Van 2012 – 2013 Liftgate
Extended Length [in] 19.94
Compressed Length [in] 14.19

Fits the following Mazda 5 Years:
2012-2013 | Base Mini Passenger Van
2012-2013 | GS Mini Passenger Van
2012-2013 | GT Mini Passenger Van
2012-2013 | Grand Touring Mini Passenger Van
2012-2013 | Sport Mini Passenger Van
2012-2013 | Touring Mini Passenger Van

Weight 1.65 lbs
Dimensions 21.65 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

506
Stroke (in):

6.32
Stroke (mm):

160
Compressed Length (in)

Compressed Length (mm):

346
Force (Lbs)

Force (Newtons)

720
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

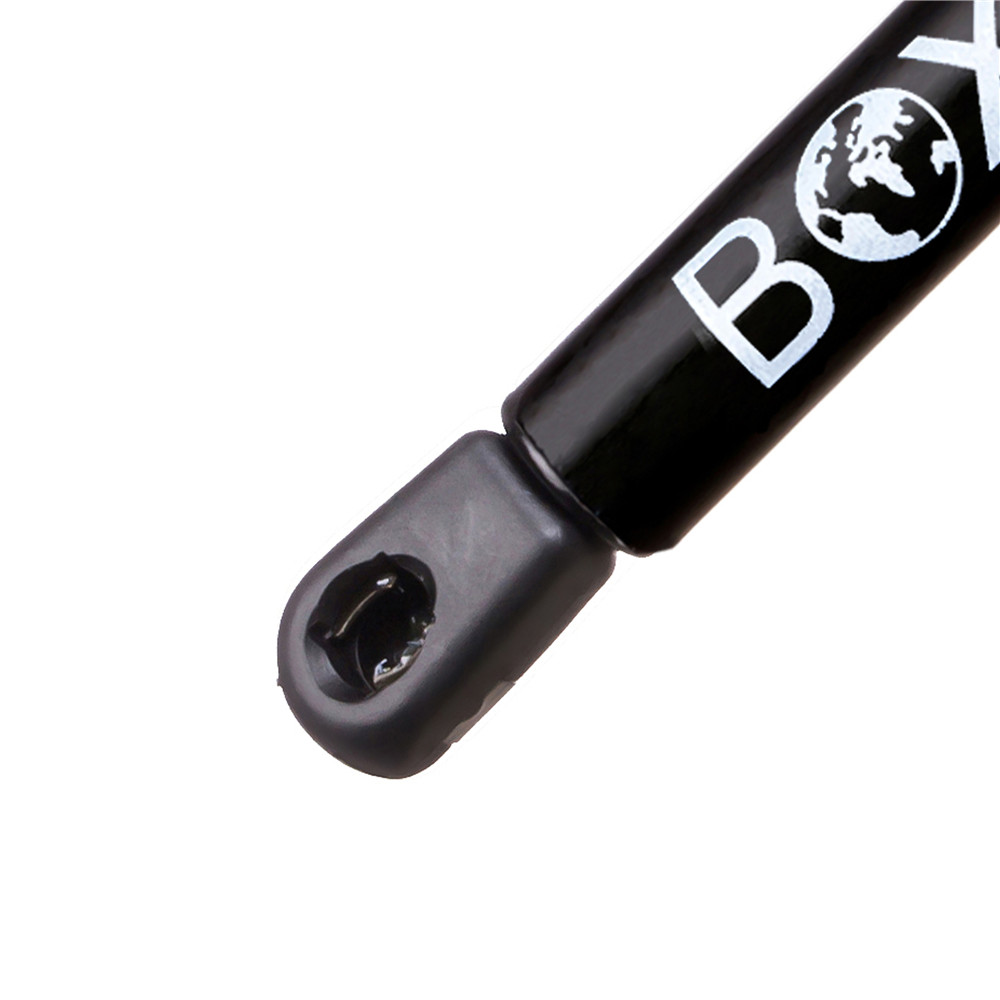

Body Connection:

Ball Socket

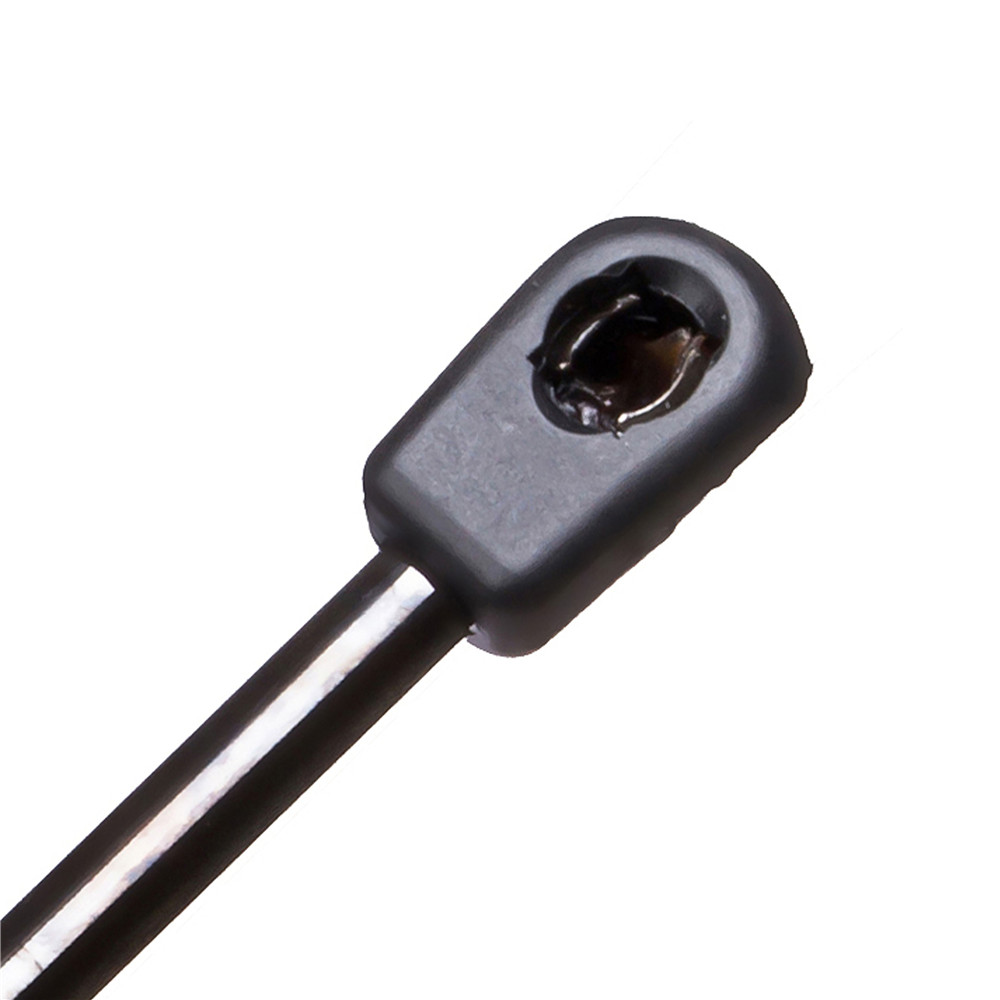

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

C513-62-620C, C513-63-620C, C51362620E, C51363620E, 819-8187, D96685, 6685, D6685
YearMakeModelSubmodelEngine
2012 – 2013Mazda5GS Mini Passenger Van 4-Door
GT Mini Passenger Van 4-Door
Grand Touring Mini Passenger Van 4-Door
Sport Mini Passenger Van 4-Door
Touring Mini Passenger Van 4-Door		2.5L 2488CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
