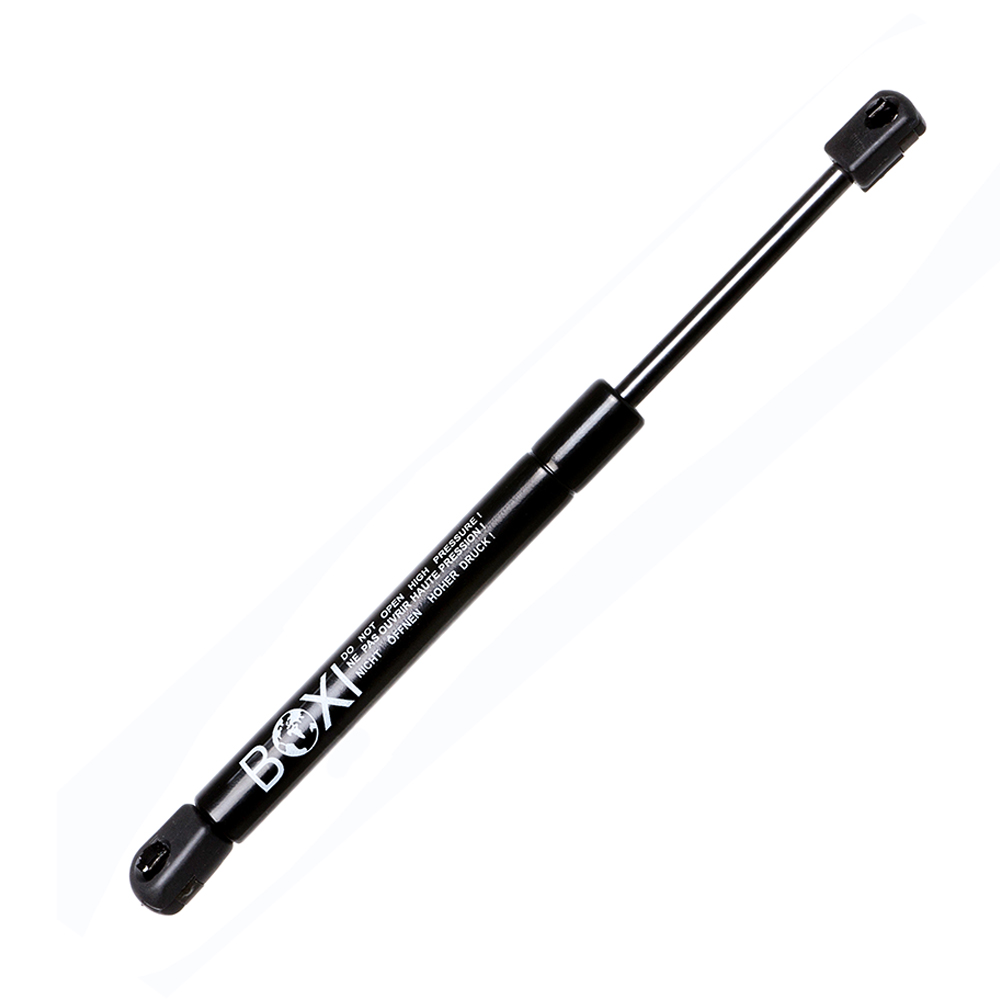

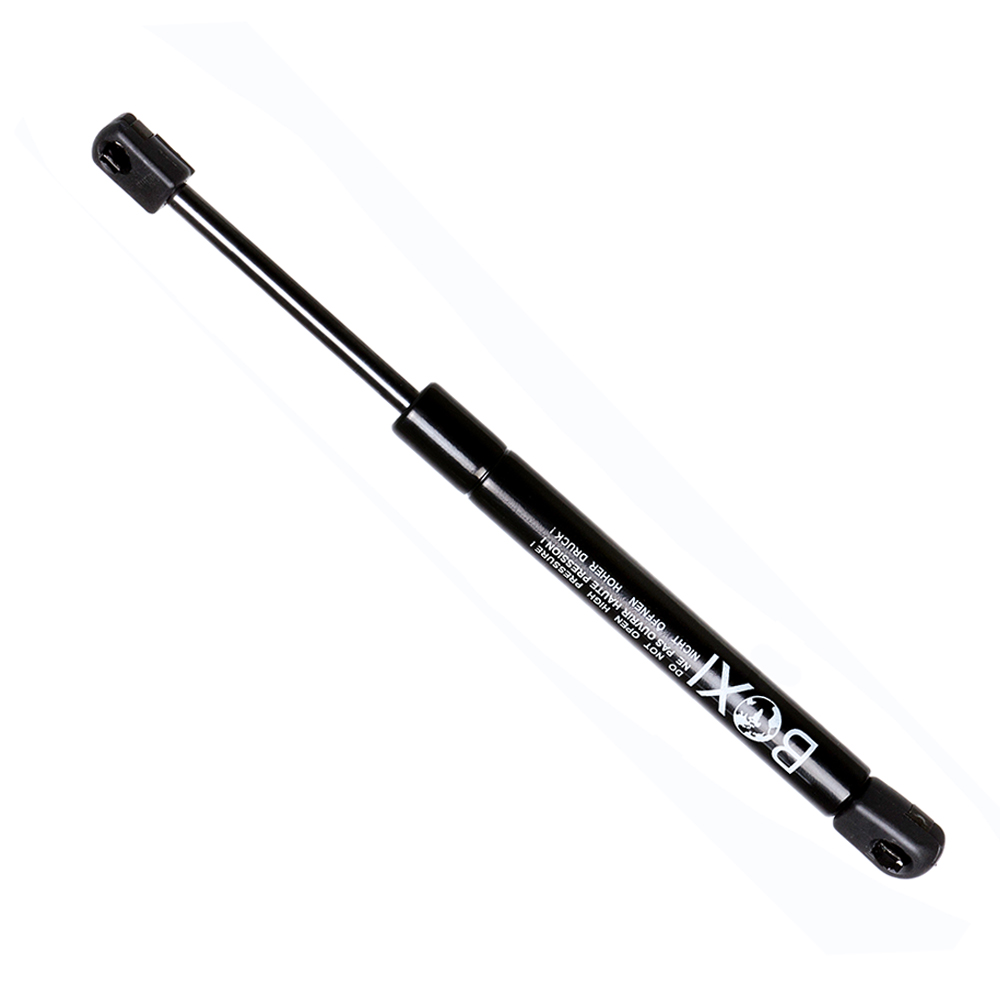

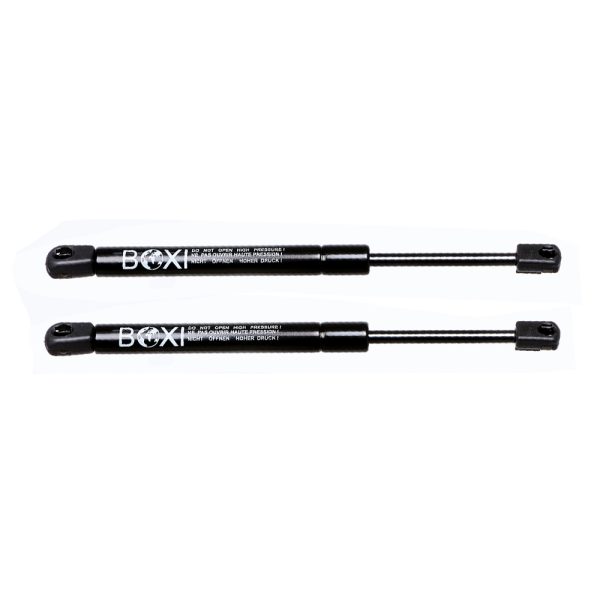

BOXI Lift Support for 1994-2002 Chevrolet Camaro | Replaces OE #10193275
BOXI SKU#: BXC300027059-2
$24.68
20 in stock
- Placement on Vehicle
- Trunk
- Package Included

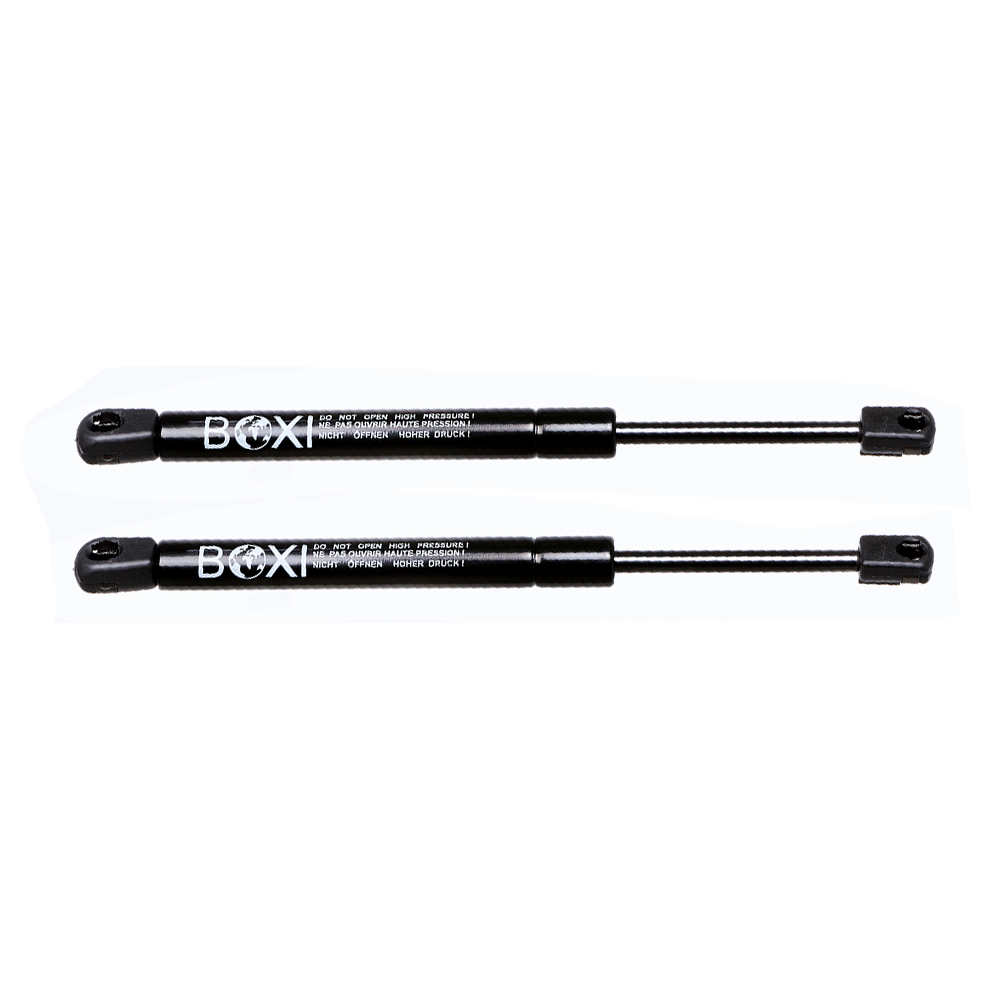

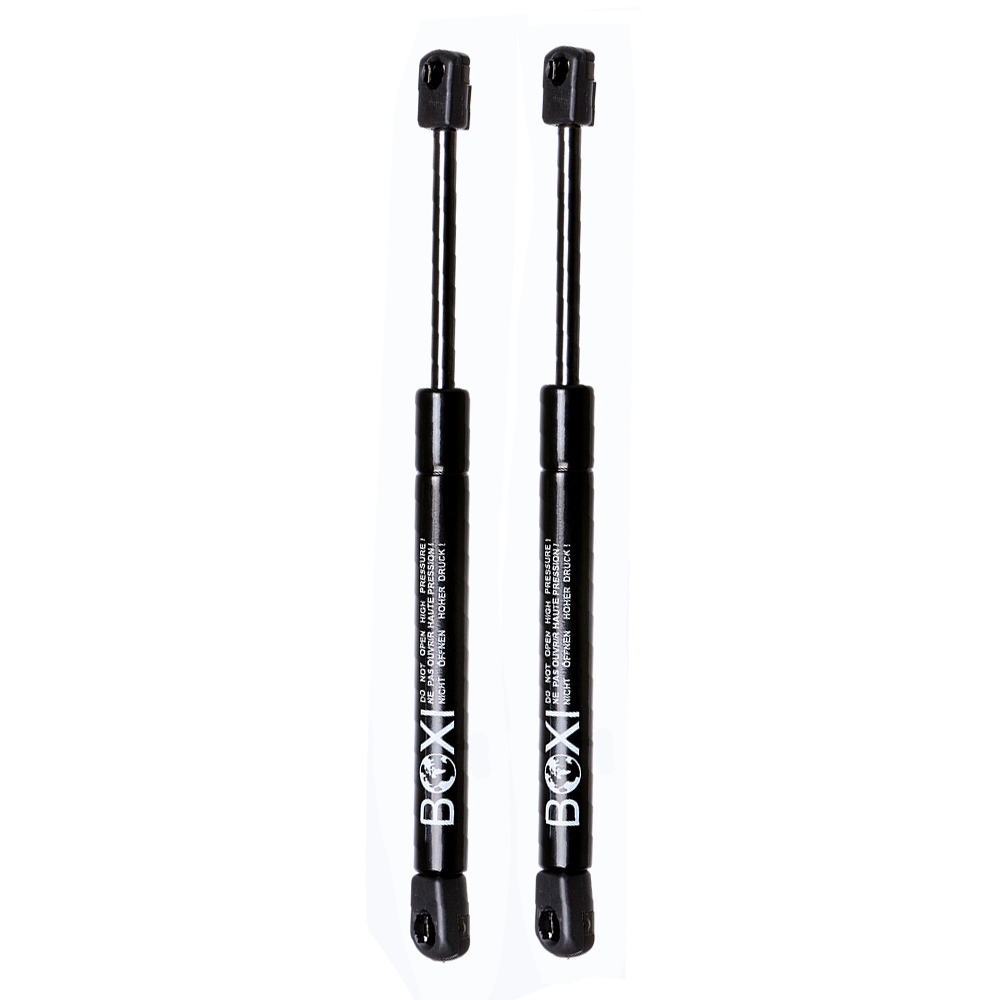

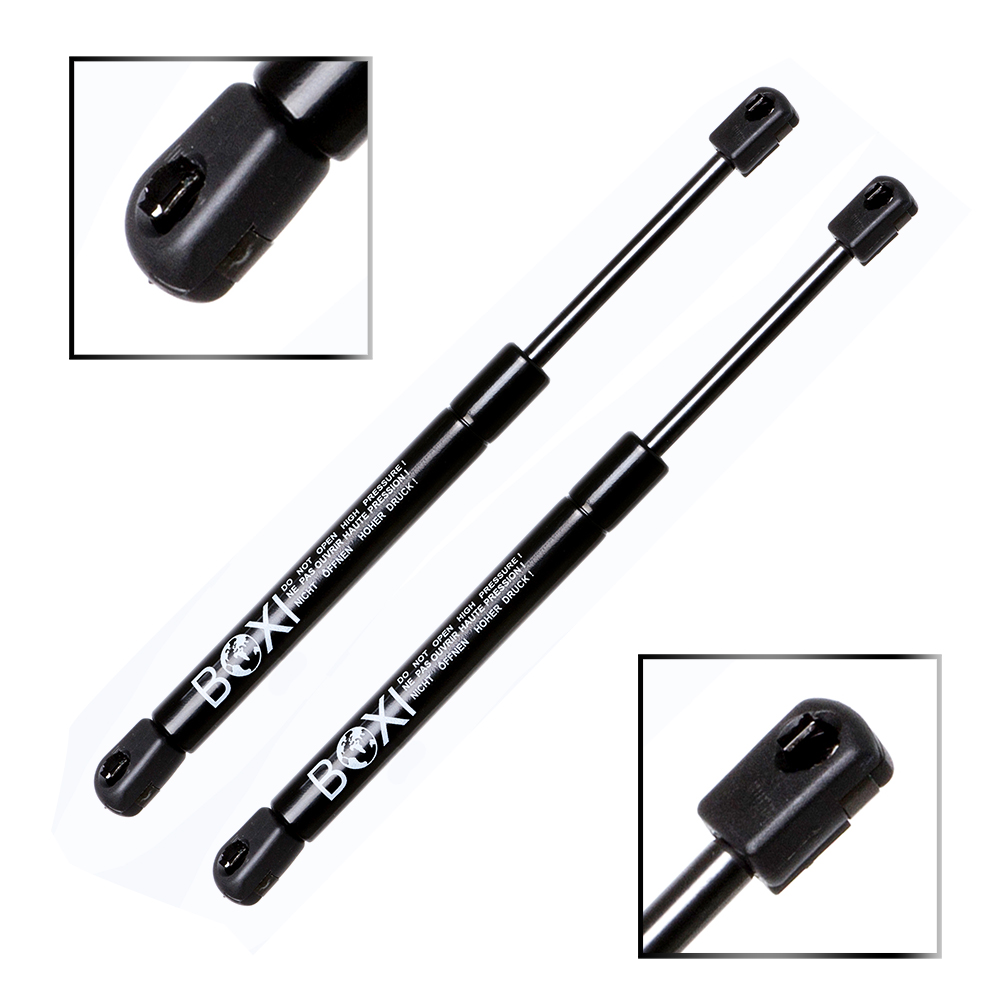

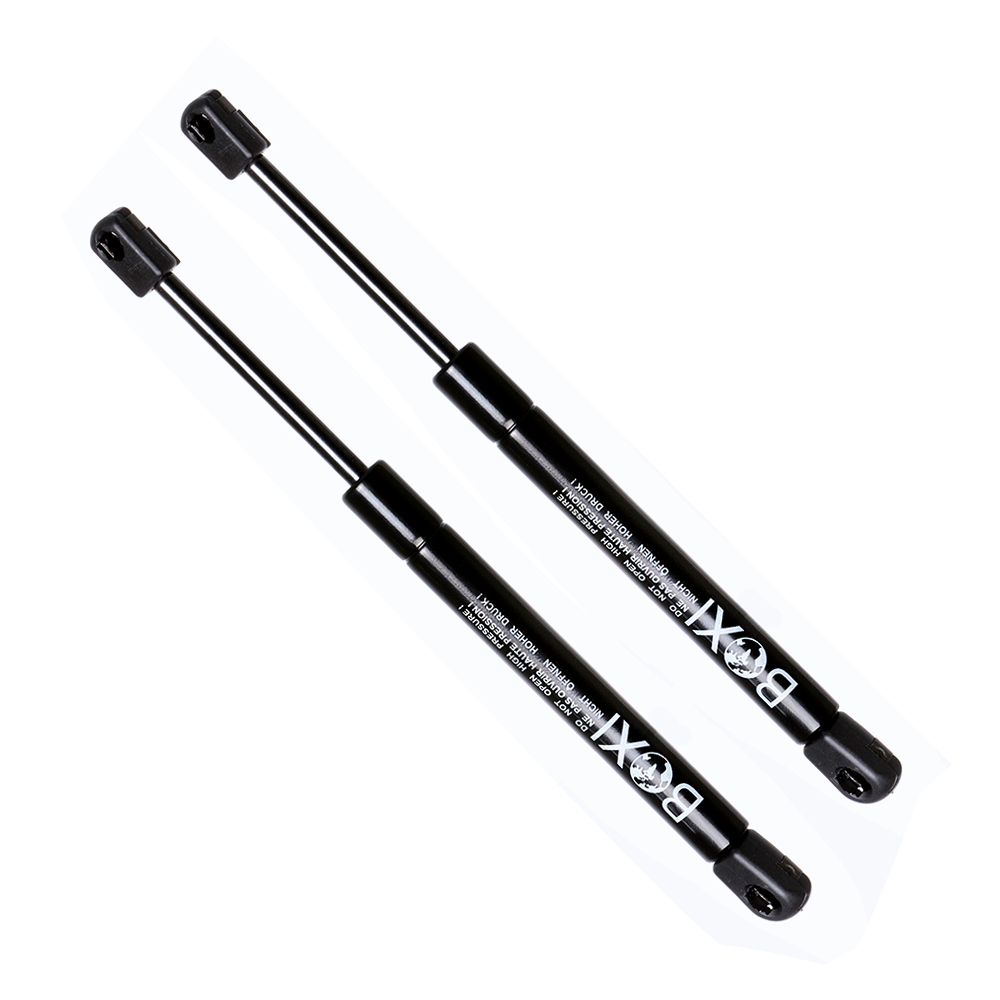

- 2pcs Trunk Lift Supports
- Fit
- Chevrolet Camaro Convertible 1993 – 2002, Pontiac Firebird Convertible 1994 – 2002 Trunk
- Hardware Included:
- No
- Extended Length (in)
- 13.82
Direct-fit BOXI replacement part compatible with 1994-1995 Chevrolet Camaro Base, 1995-2002 Chevrolet Camaro Base, 1997 Chevrolet Camaro Lujo, 1996-1997 Chevrolet Camaro RS and additional configurations. Replaces OE / interchange part numbers: 10193275, 10230356, 13612, 4529, 613729, 72904, 8194189, 8435IW. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Position & Application Summary
See Full Submodel & Engine Table →- 1993-2002 | Base Convertible | Fits Convertible Only
- 1996-1997 | RS Convertible | Fits Convertible Only
- 1997 | Z28 30th Anniversary Edition Convertible | Fits Convertible Only
- 1993-2002 | Z28 Convertible | Fits Convertible Only
- 1997 | Z28 SS 30th Anniversary Edition Convertible | Fits Convertible Only
- 1998-2002 | Z28 SS Convertible | Fits Convertible Only
- 1994-2002 | Base Convertible | Fits Convertible Only
- 1994-2002 | Formula Convertible | Fits Convertible Only
- 1994-2002 | Trans Am Convertible | Fits Convertible Only
- 1994 | Trans Am GT Covertible | Fits Convertible Only
| Weight | 0.66 lbs |
|---|---|
| Dimensions | 15.75 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 351 |
| Stroke (in): | 5.12 |
| Stroke (mm): | 130 |
| Compressed Length (in) | |
| Compressed Length (mm): | 221 |
| Force (Lbs) | |
| Force (Newtons) | 400 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |

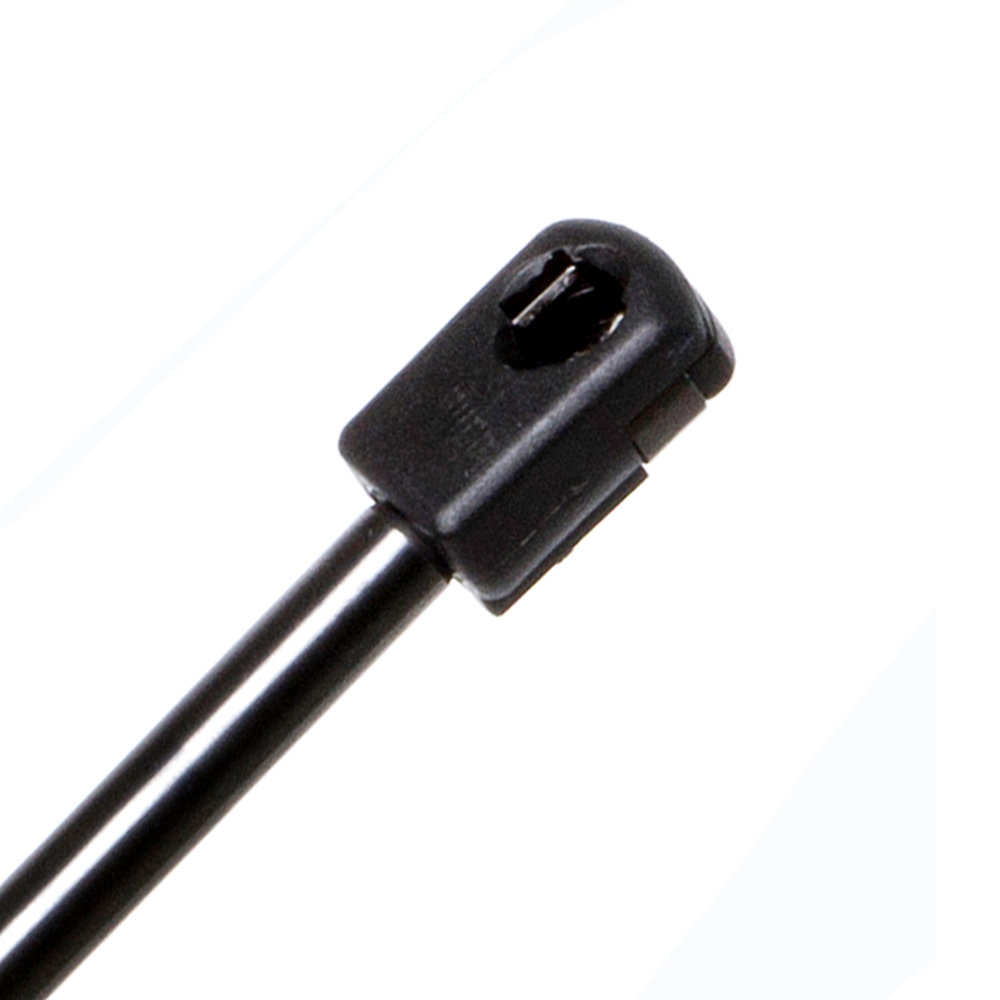

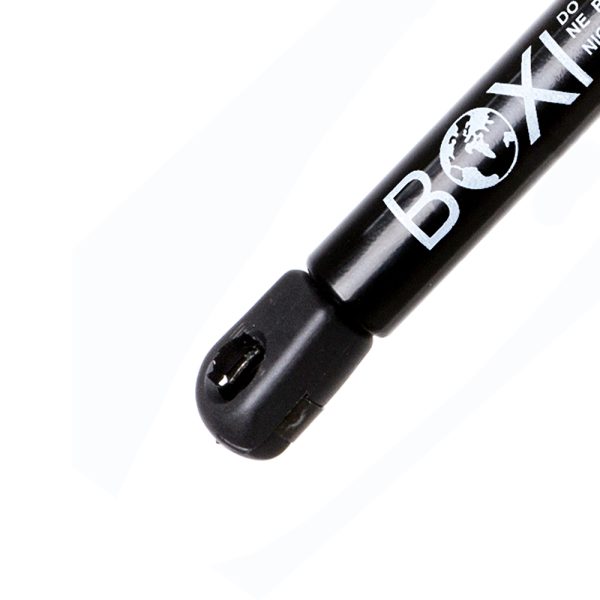

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1994 – 1995 | Chevrolet | Camaro | Base | V6 – 3.4L 207ci GAS MFI vin S type L32 – 2 valve OHV |
| 1995 – 2002 | Chevrolet | Camaro | Base | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 1997 | Chevrolet | Camaro | Lujo | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 1996 – 1997 | Chevrolet | Camaro | RS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 1998 – 2002 | Chevrolet | Camaro | Z28 Z28 SS | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1994 – 1997 | Chevrolet | Camaro | Z28 | V8 – 5.7L 350ci GAS MFI vin P – 2 valve OHV |
| 1994 – 1995 | Pontiac | Firebird | Base | V6 – 3.4L 207ci GAS MFI vin S type L32 – 2 valve OHV |
| 1995 – 2002 | Pontiac | Firebird | Base | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 1998 – 2000 | Pontiac | Firebird | Formula | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1994 – 1997 | Pontiac | Firebird | Formula Trans Am | V8 – 5.7L 350ci GAS MFI vin P – 2 valve OHV |
| 1998 – 2002 | Pontiac | Firebird | Trans Am | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1994 | Pontiac | Firebird | Trans Am GT | V8 – 5.7L 350ci GAS MFI vin P – 2 valve OHV |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Chevrolet / GM (OEM) | 10193275, 10230356, 88985455 | BXC300027059-2, 13612, 4529 |
| StrongArm | 10193275, 10230356, 88985455 | 4529, 95593 |
| Sachs / Stabilus | 10193275, 10230356, 88985455 | SG330014, SG430036, SG130014 |
| Tuff Support | 10193275, 10230356, 88985455 | TFS613729 |
| Dorman | 10193275, 10230356, 88985455 | 510-174 |
| Aftermarket Interchange | 10193275, 10230356, 88985455 | 13612, 613729, 72904, 8435IW, 901601, E95593, E4529, 8194189, G330014, GSA08893, GSA09106 |
