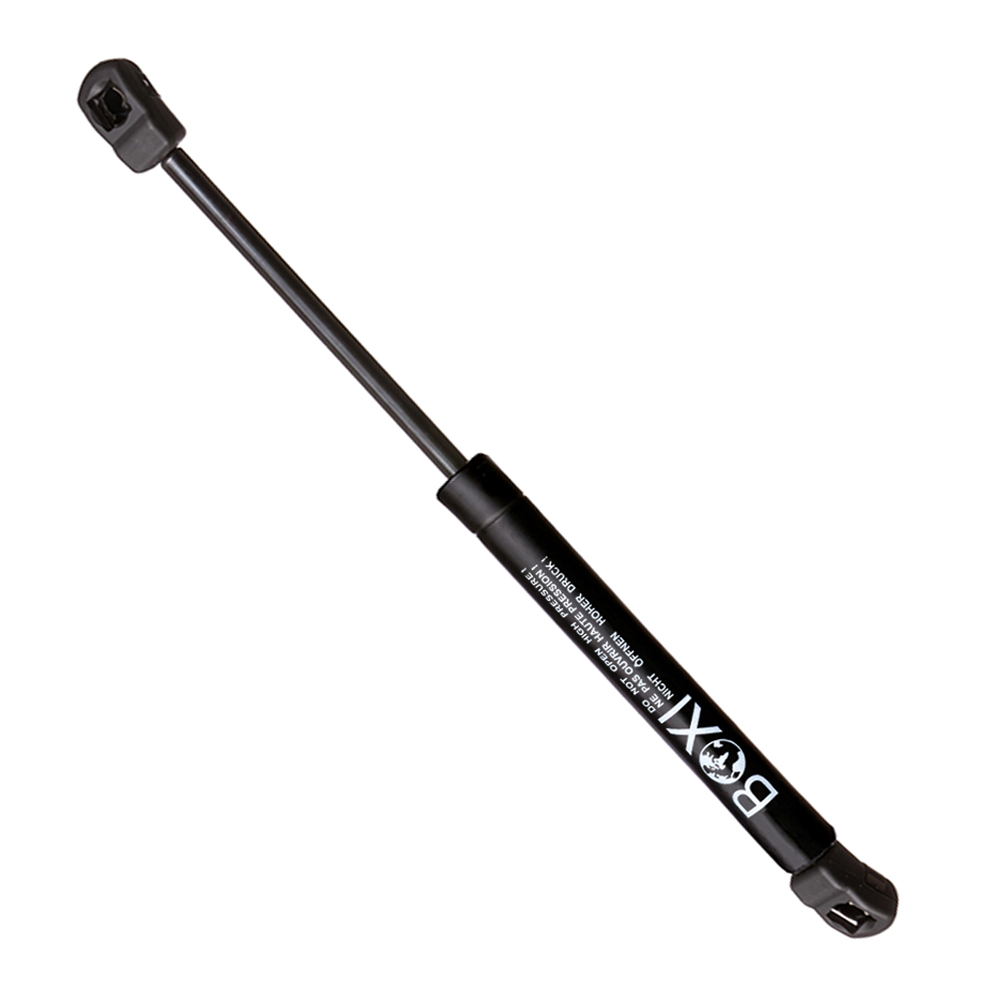

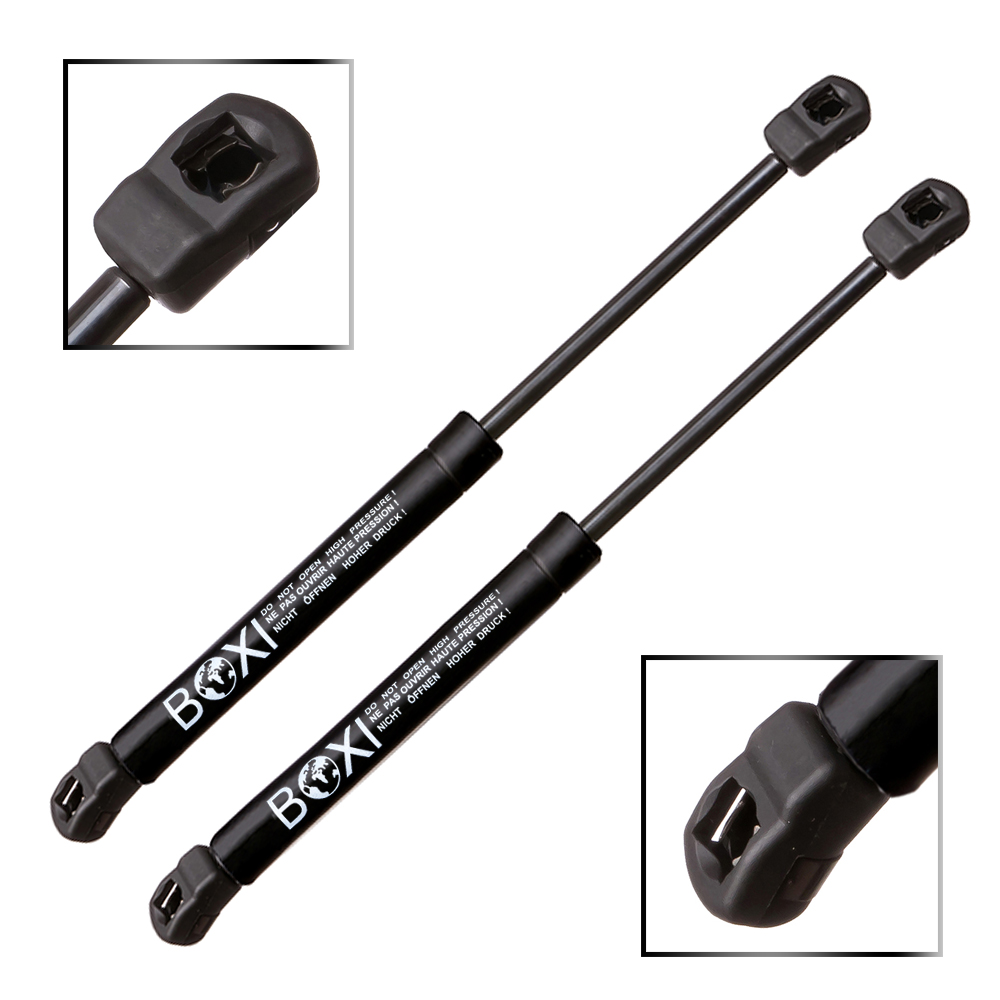

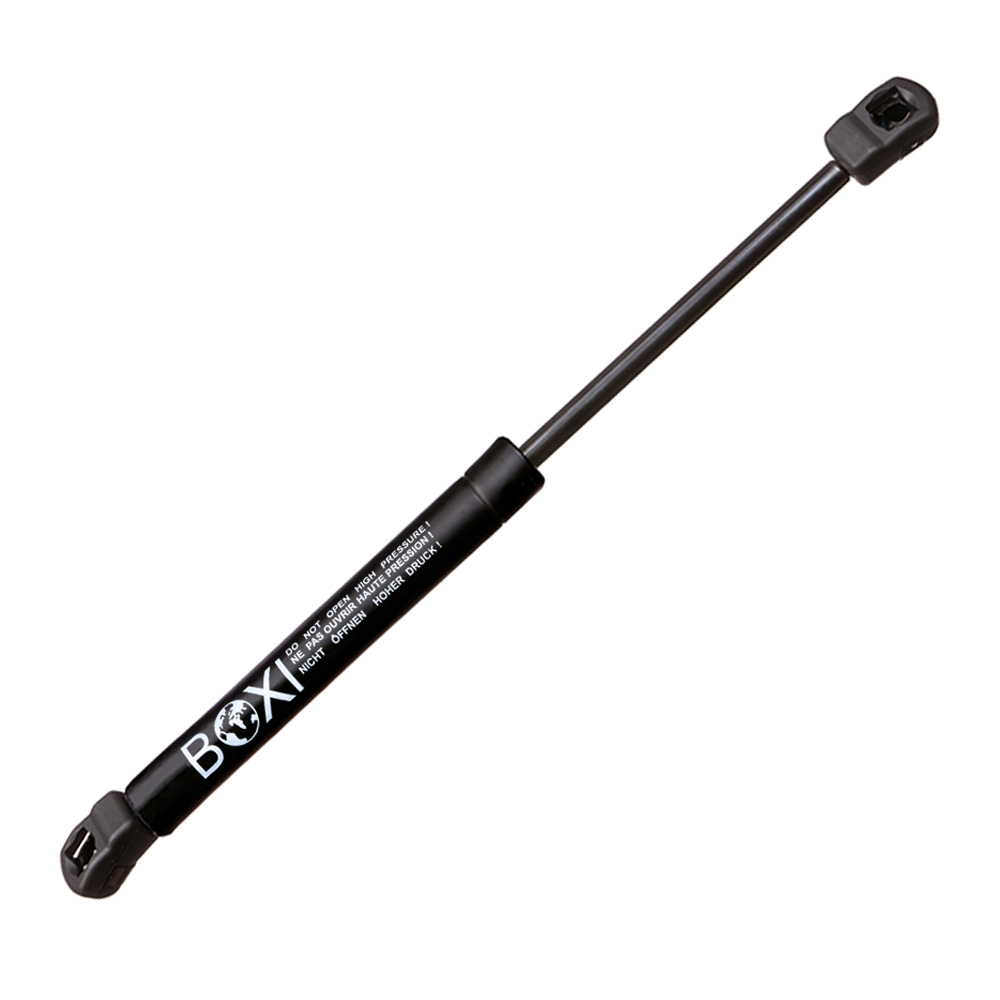

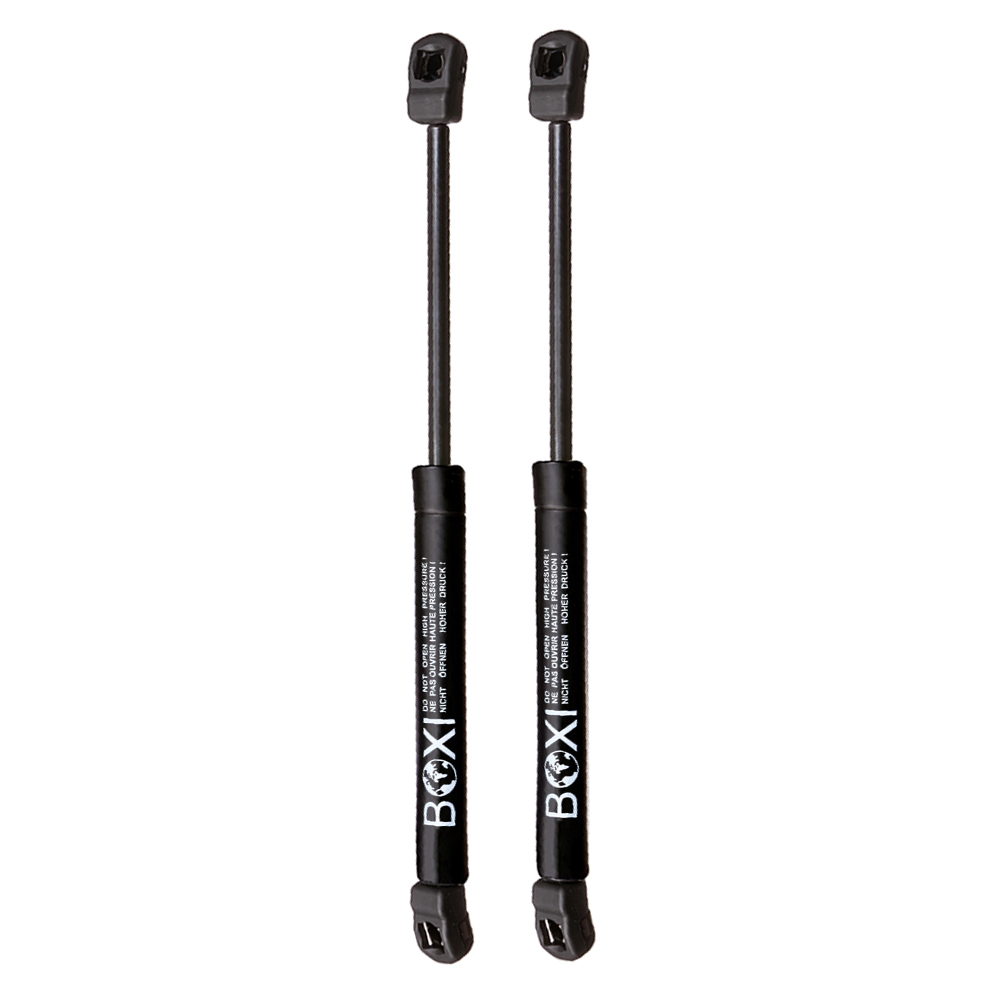

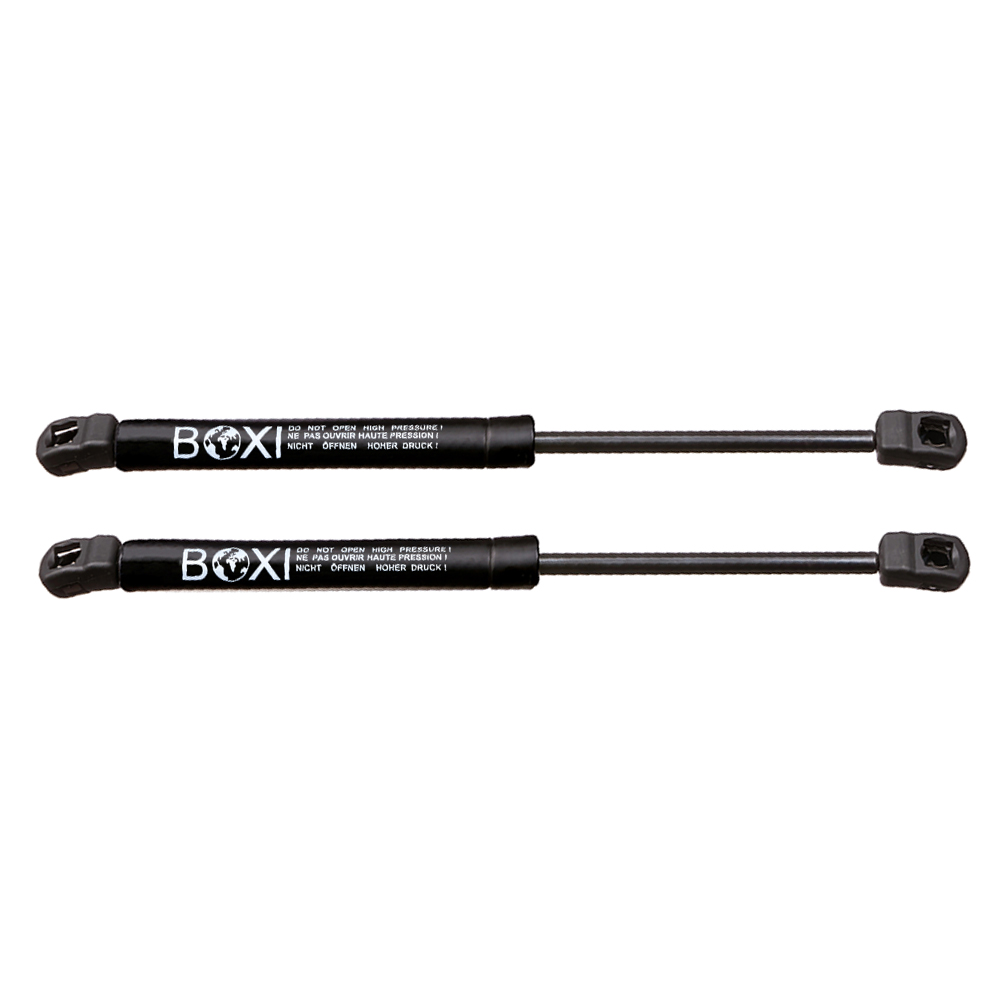

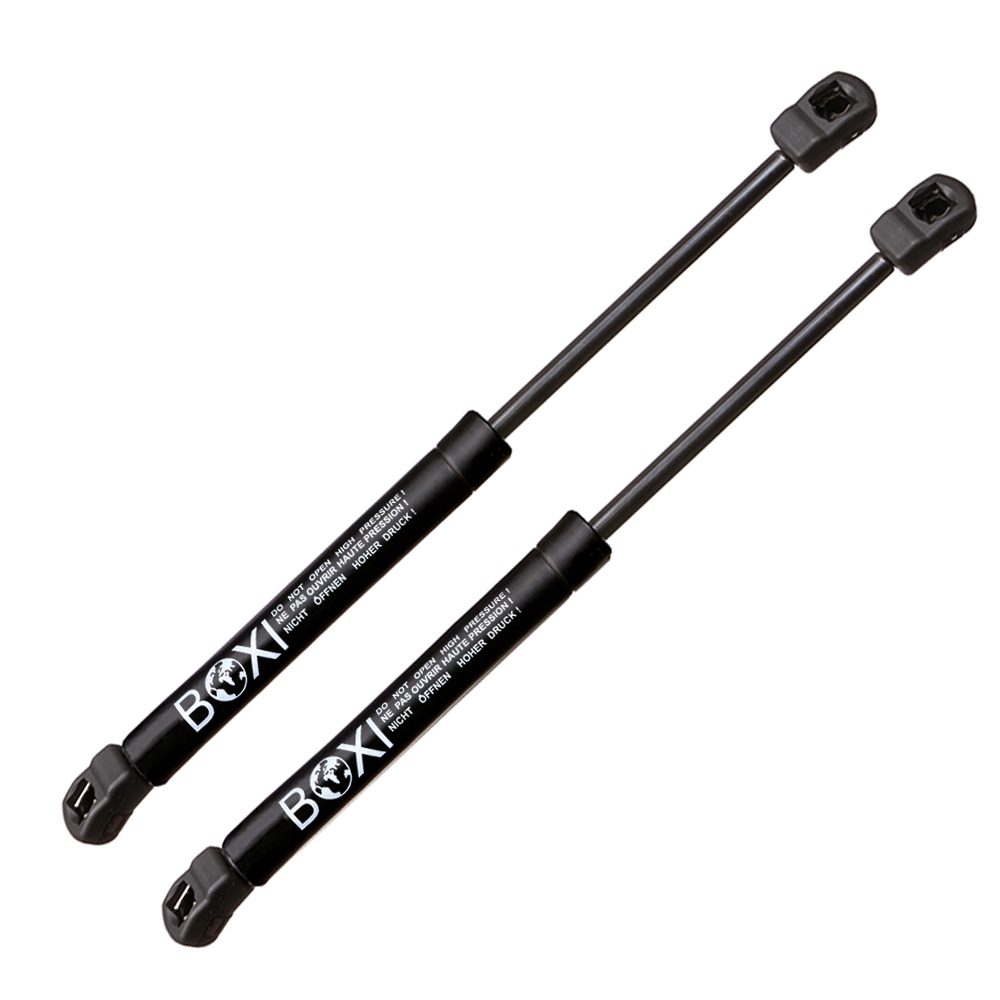

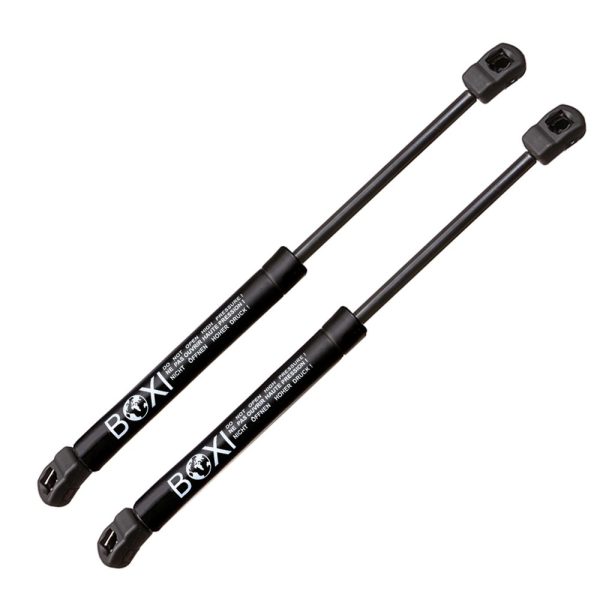

BOXI Front Hood Lift Supports Shock Struts Springs Compatible for Chevrolet Impala 2014-2020 Sedan / PM3767 6738 SG230146

BOXI SKU#: BXC300027055-2

$19.39

BOXI Front Hood Lift Supports compatible with 2014-2020 Chevrolet Impala Sedan, including LS, LT, LTZ, Premier, and Police trims. Verify fitment before ordering.

OE / Interchange Part Numbers: 1237111, 20998191, 96738, B96738, SG230146

  • 5 Years Warranty

57 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Extended Length [in] 28.25
Compressed Length [in] 17.00

Fits the following Chevy Impala Years:

2014 Chevy Impala Eco Sedan 4-Door Hood
2019 Chevy Impala LS Sedan 4-Door Hood
2019 Chevy Impala LT Sedan 4-Door Hood
2017-2020 Chevy Impala Premier Sedan 4-Door Hood
2014-2020 Chevy Impala Base Sedan 4-Door Hood
2014-2020 Chevy Impala LS Sedan 4-Door Hood
2014-2020 Chevy Impala LT Sedan 4-Door Hood
2014-2020 Chevy Impala LTZ Sedan 4-Door Hood
2014-2020 Chevy Impala Police Sedan 4-Door Hood
2014-2017 Chevy Impala Limited Base Sedan 4-Door Hood
2014-2017 Chevy Impala Limited LS Sedan 4-Door Hood
2014-2017 Chevy Impala Limited LT Sedan 4-Door Hood
2014-2017 Chevy Impala Limited LTZ Sedan 4-Door Hood
2014-2020 Chevy Impala Limited Police Sedan 4-Door Hood

Weight 1.7 lbs
Dimensions 29.53 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

718
Stroke (in):

11.99
Stroke (mm):

305
Compressed Length (in)

Compressed Length (mm):

413
Force (Lbs)

Force (Newtons)

262
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

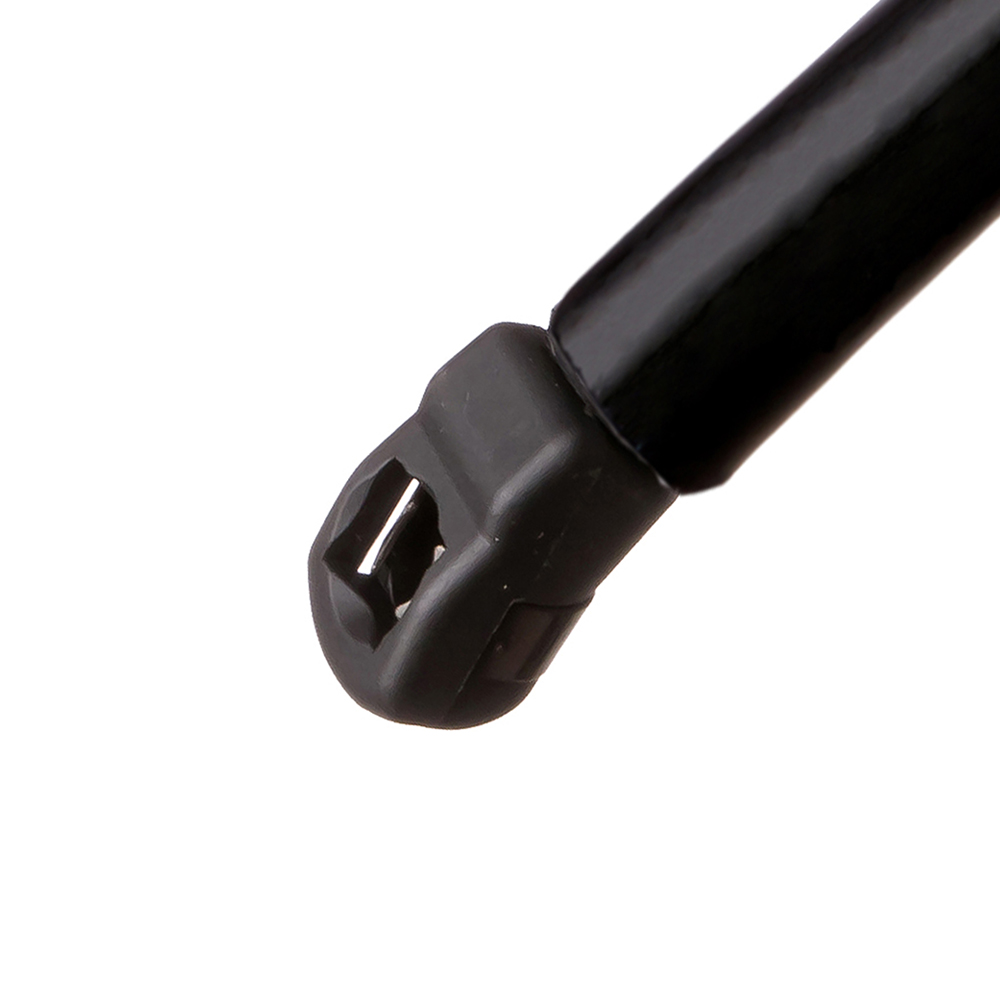

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

6738, 819-8205, B96738, SG230146, B6738, 20998191
YearMakeModelSubmodelEngine
2014ChevroletImpalaEcoL4 – 2.4L 2384cc 145ci MILD HYBRID EV-GAS DI vin R type LUK – 4 valve DOHC
2014 – 2019ChevroletImpalaLSL4 – 2.5L 2457cc 153ci FLEX DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin L type LKW – 4 valve DOHC
V6 – 3.6L 3564cc 217ci BI-FUEL SFI vin N type LFR – 4 valve DOHC
V6 – 3.6L 3564cc 217ci FLEX DI vin 3 type LFX – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin 3 type LFX – 4 valve DOHC
2014 – 2020ChevroletImpalaLTL4 – 2.5L 2457cc 153ci FLEX DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin L type LKW – 4 valve DOHC
V6 – 3.6L 3564cc 217ci BI-FUEL SFI vin N type LFR – 4 valve DOHC
V6 – 3.6L 3564cc 217ci FLEX DI vin 3 type LFX – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin 3 type LFX – 4 valve DOHC
2014 – 2016ChevroletImpalaLTZL4 – 2.5L 2457cc 153ci FLEX DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin A type LCV – 4 valve DOHC
L4 – 2.5L 2457cc 153ci GAS DI vin L type LKW – 4 valve DOHC
V6 – 3.6L 3564cc 217ci FLEX DI vin 3 type LFX – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin 3 type LFX – 4 valve DOHC
2017 – 2020ChevroletImpalaPremierV6 – 3.6L 3564cc 217ci FLEX DI vin 3 type LFX – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin 3 type LFX – 4 valve DOHC
