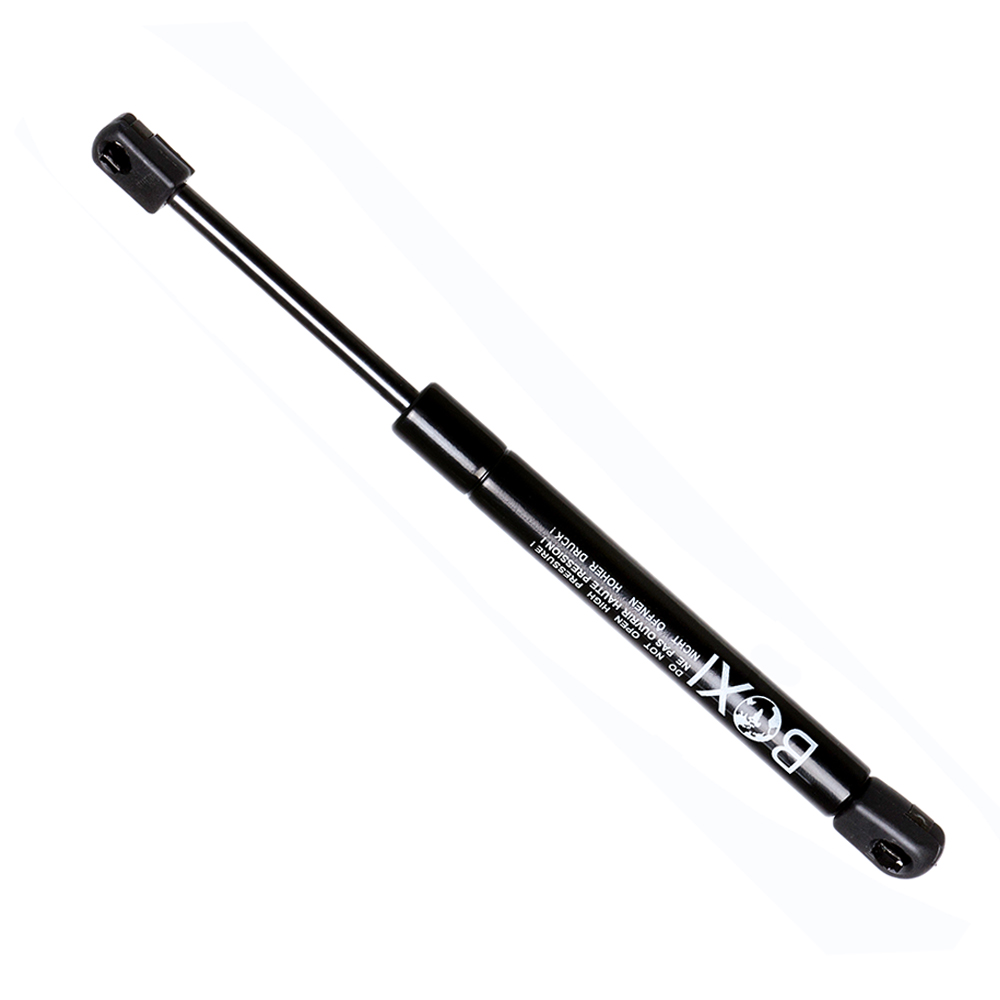

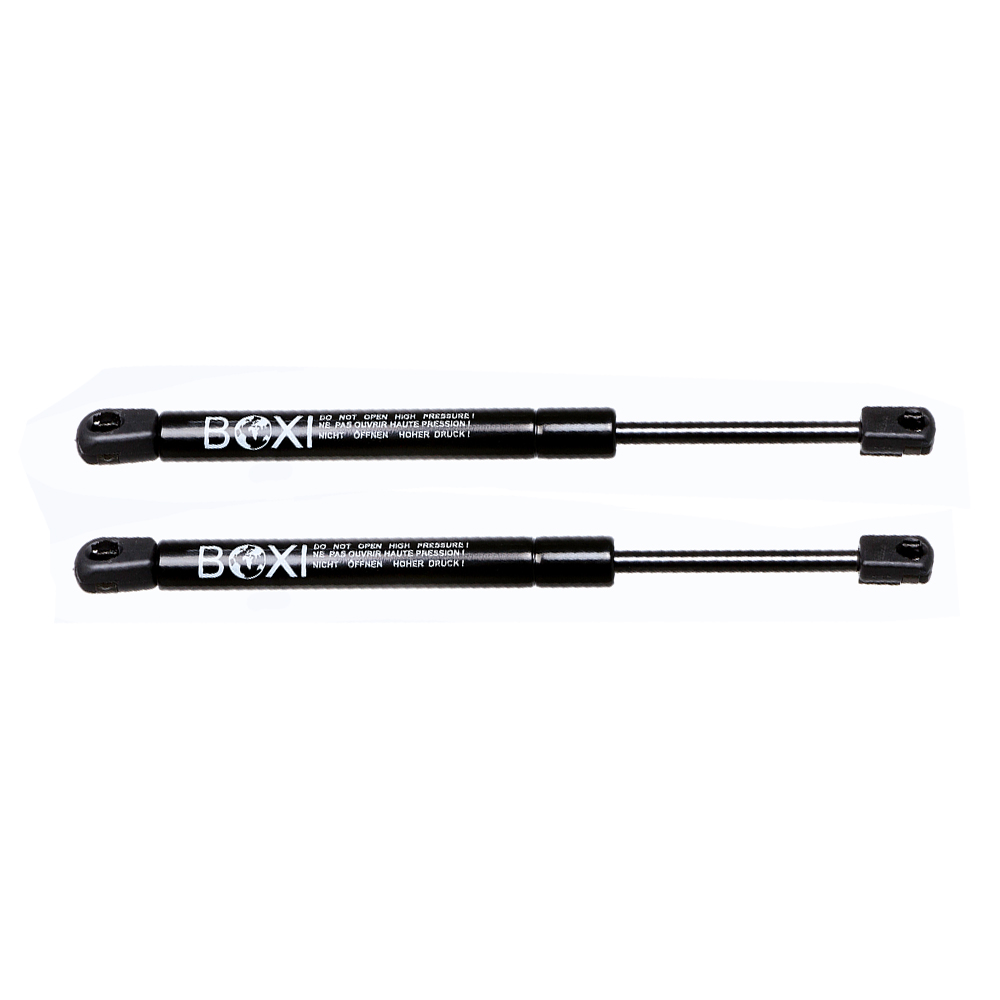

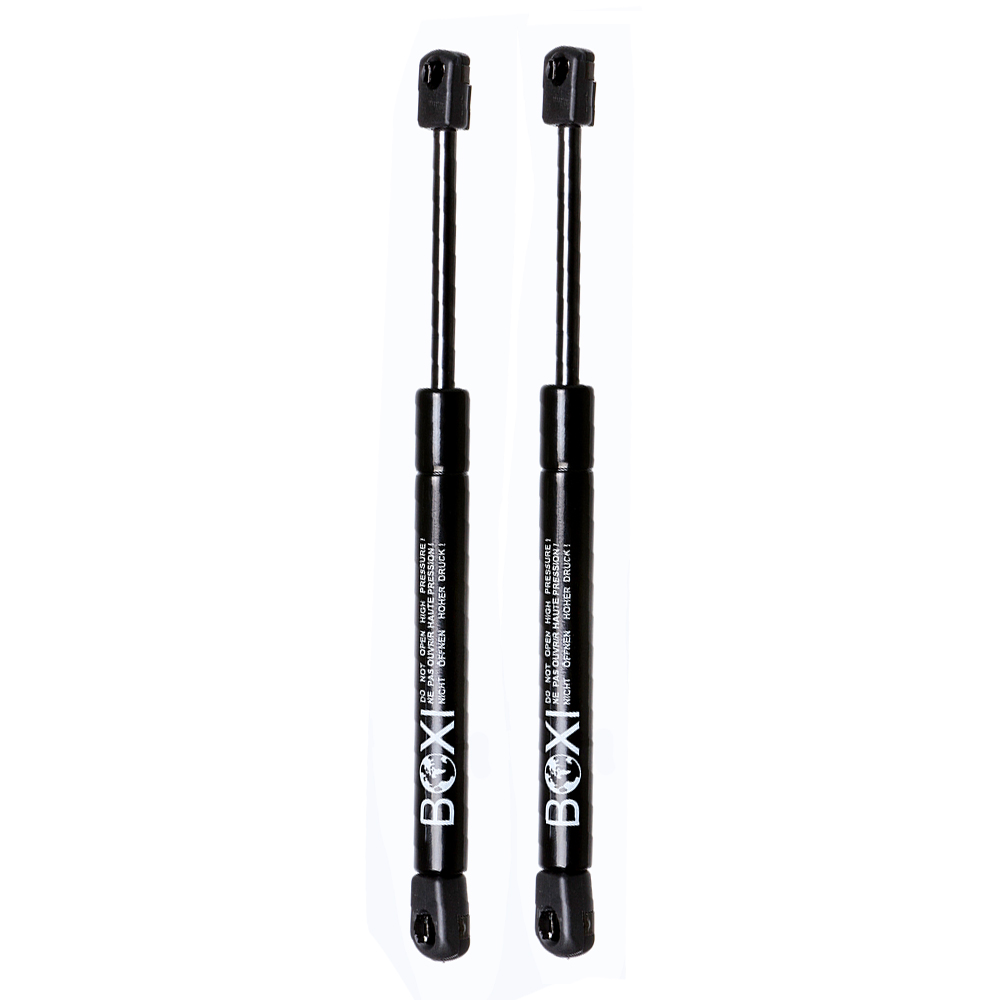

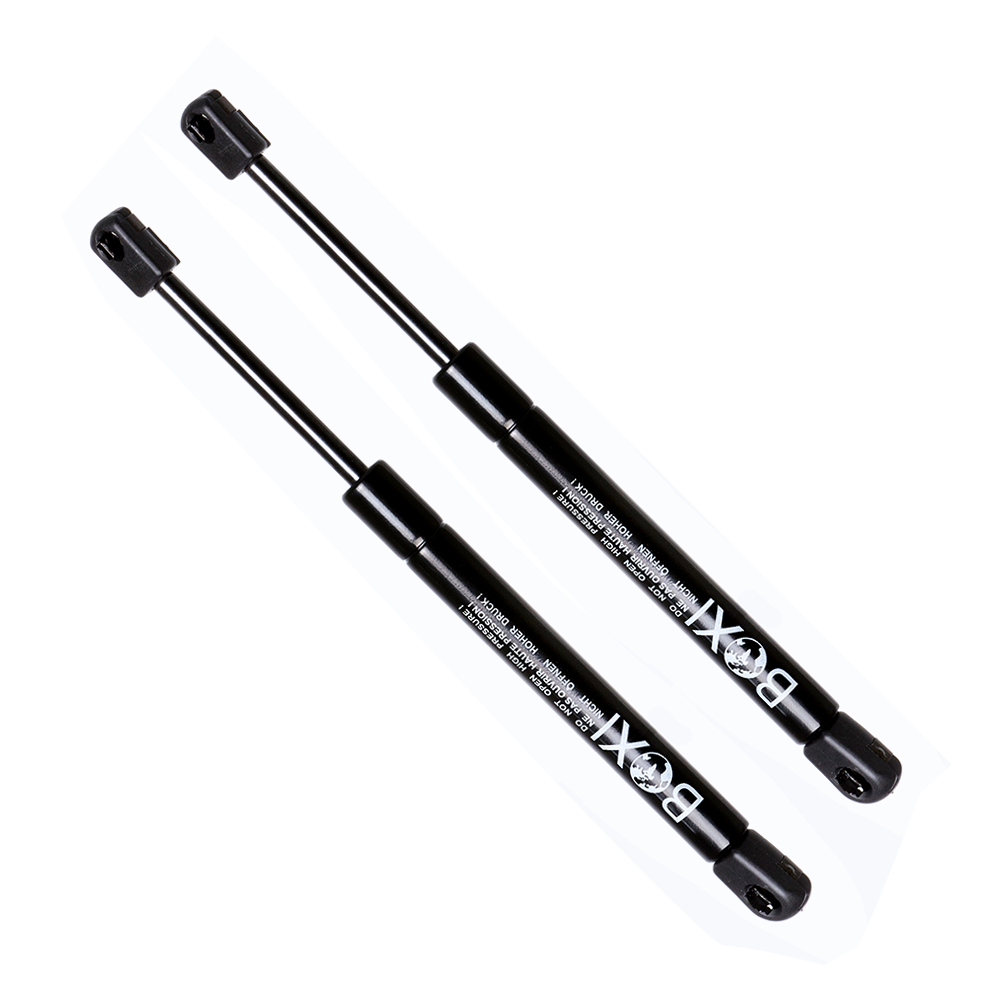

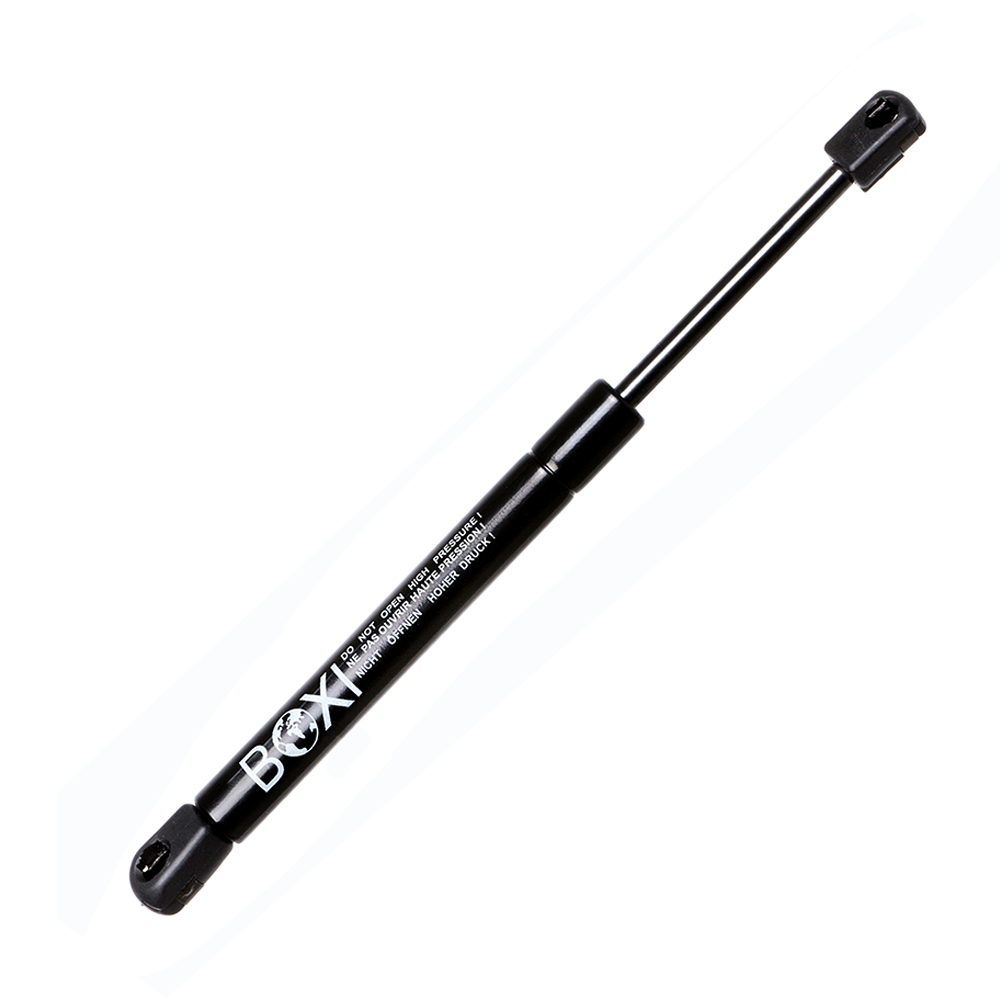

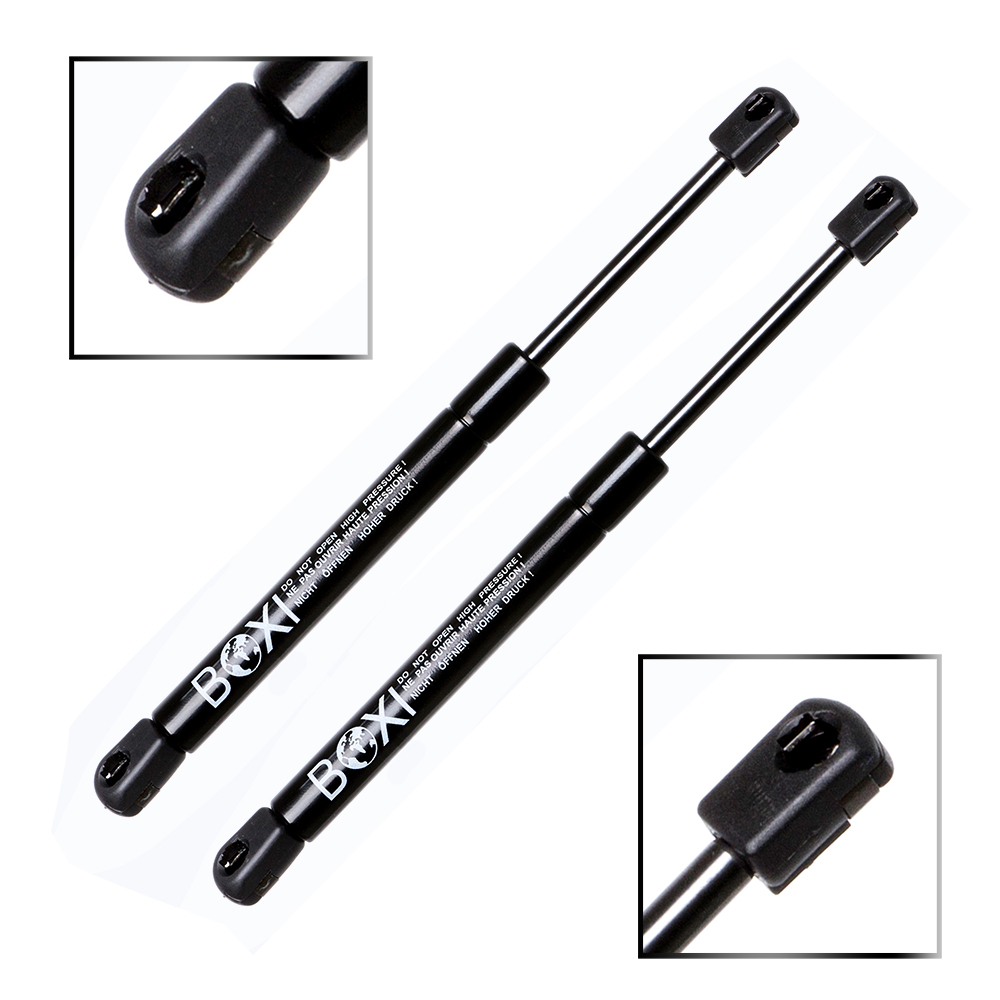

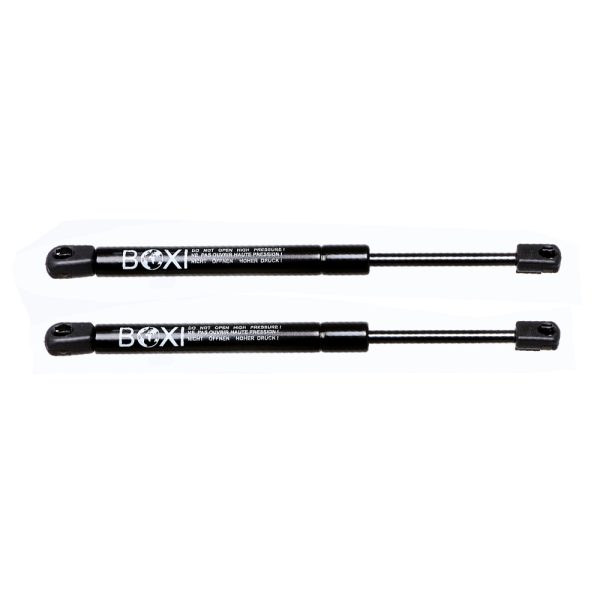

BOXI 2pcs Trunk Lift Supports Struts Shocks Gas Struts Shocks Springs for Chevy Corvette 1997 1998 1999 2000 2001 2002 2003 2004 Convertible 2-Door Convertible Cover | Replaces 4065 SG430019 10275941
BOXI SKU#: BXC300027046-2
$23.39
BOXI trunk lift supports for 1997-2004 Chevy Corvette Convertible. Replaces OE numbers 4065, SG430019, and 10275941. Verify fitment before ordering.
OE / Interchange Part Numbers: 10275941, 2787MU, 4065, 614227, 95210, F95210, SG430019
45 in stock
Placement on Vehicle:Trunk
Package Included:2pcs Trunk Lift Supports
Fit for Chevrolet Corvette 1997 – 2004 Convertible 2-Door Convertible Cover
Extended Length [in] 10.12
Compressed Length [in] 7.04
Vehicle Location – Convertible Cover
Fits the following Chevrolet Corvette Years:
2003 | 50th Anniversary Edition Convertible 2-Door
2003 | 50th Anniversary Edition Pace Car Convertible 2-Door
1997-2004 | Base Convertible 2-Door
1998 | Indianapolis 500 Pace Car Convertible 2-Door
2001-2004 | Z06 Convertible 2-Door
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 257 |
| Stroke (in): | 3.55 |
| Stroke (mm): | 90 |
| Compressed Length (in) | |
| Compressed Length (mm): | 167 |
| Force (Lbs) | |
| Force (Newtons) | 245 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |

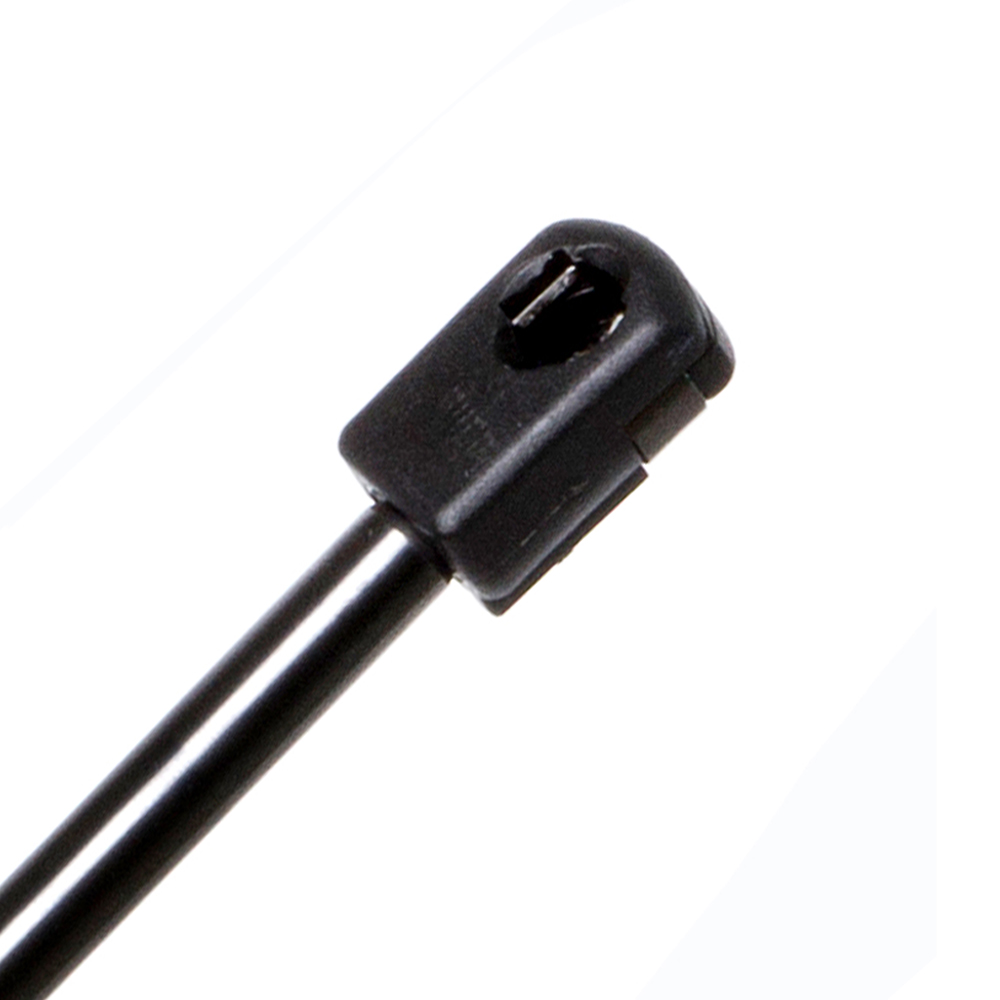

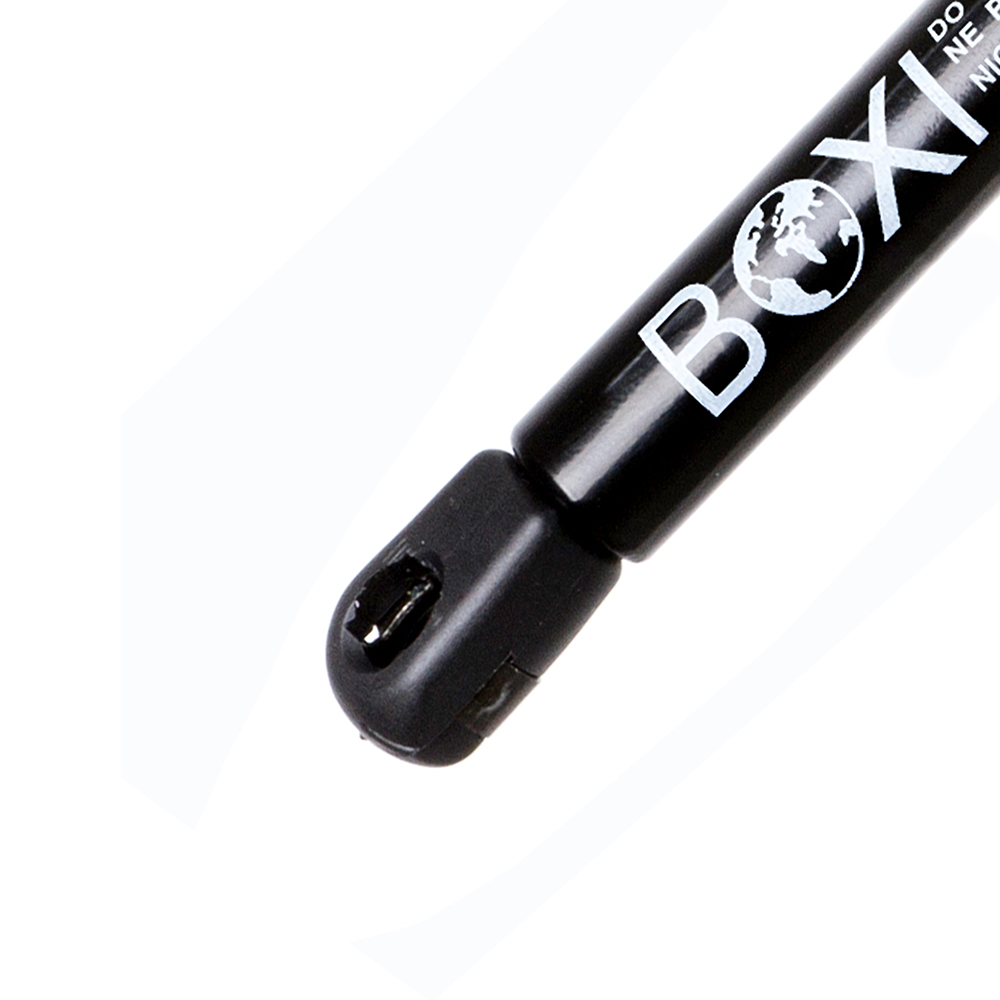

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | TFS614227, 819-6870, 614227, SG430019, F95210, F4065, 510-991, 4065, 10275941 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition 50th Anniversary Edition Pace Car | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1997 – 2004 | Chevrolet | Corvette | Base | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 2001 – 2004 | Chevrolet | Corvette | Z06 | V8 – 5.7L 350ci GAS MFI vin S – 2 valve OHV |
