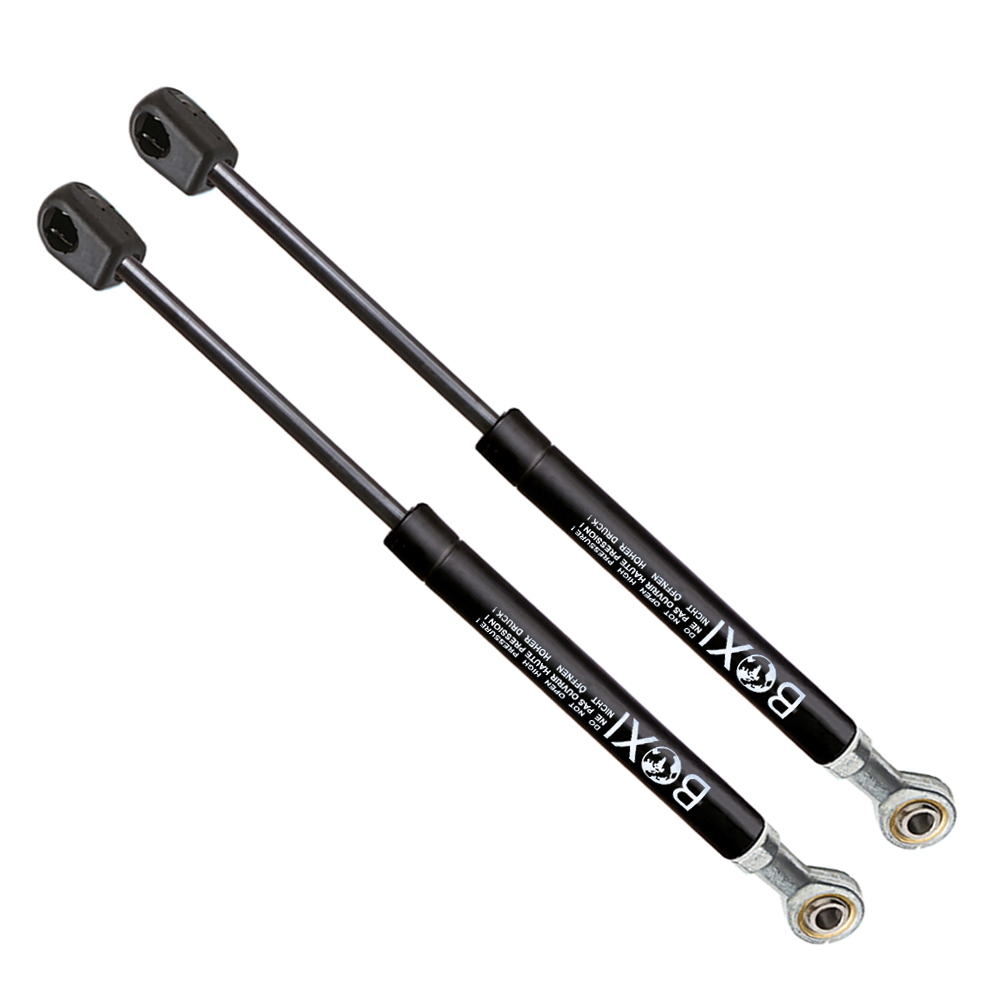

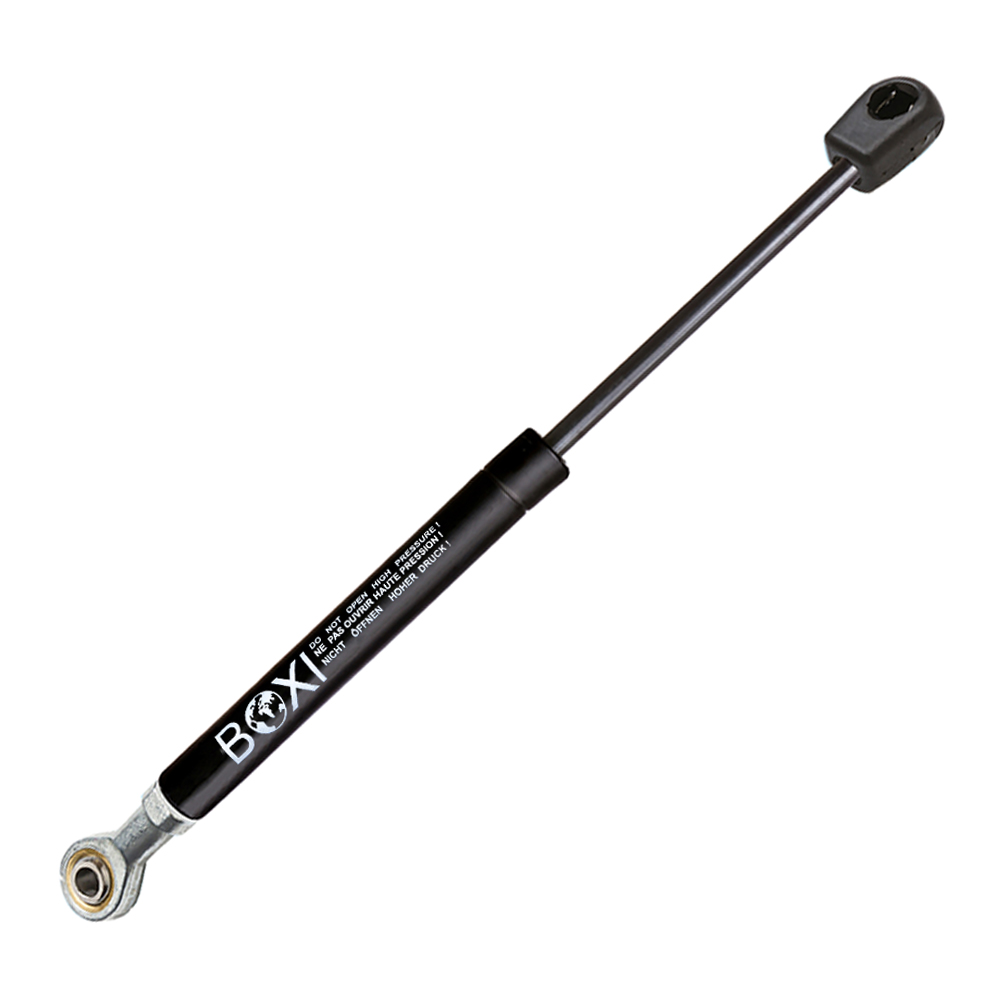

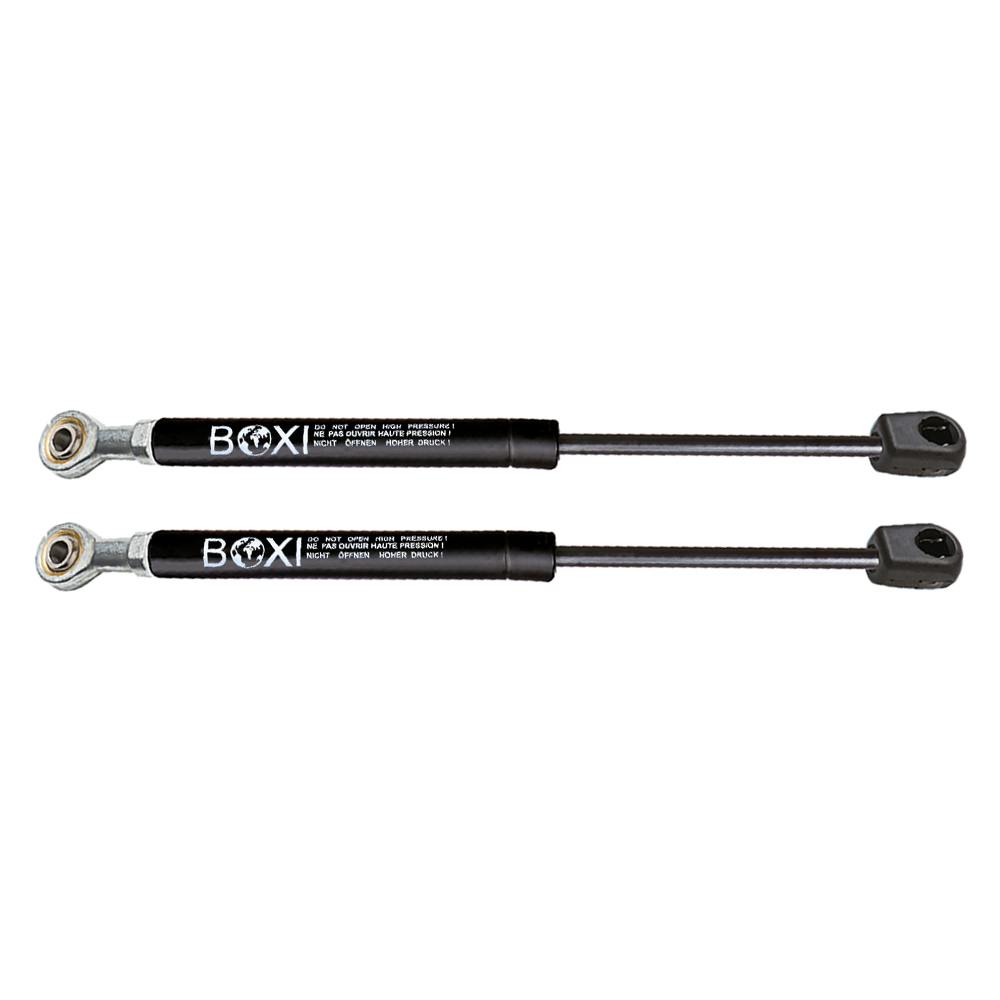

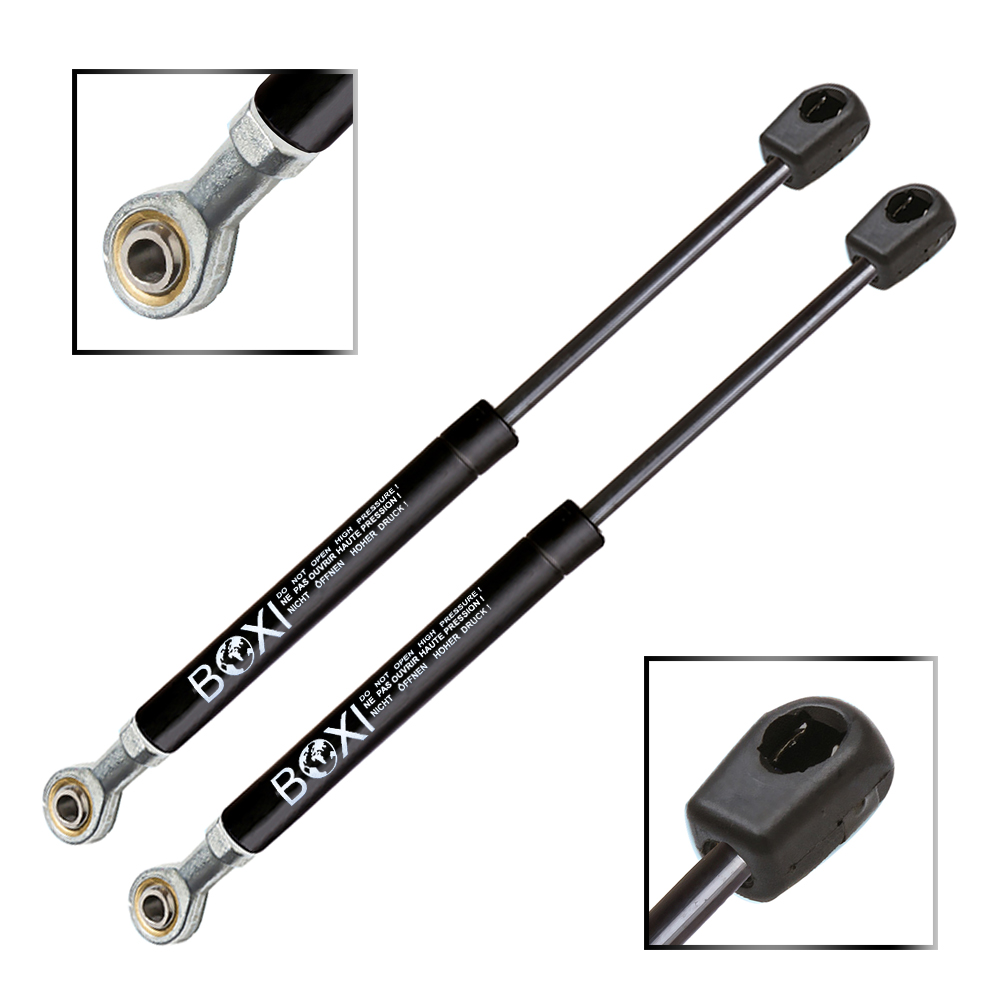

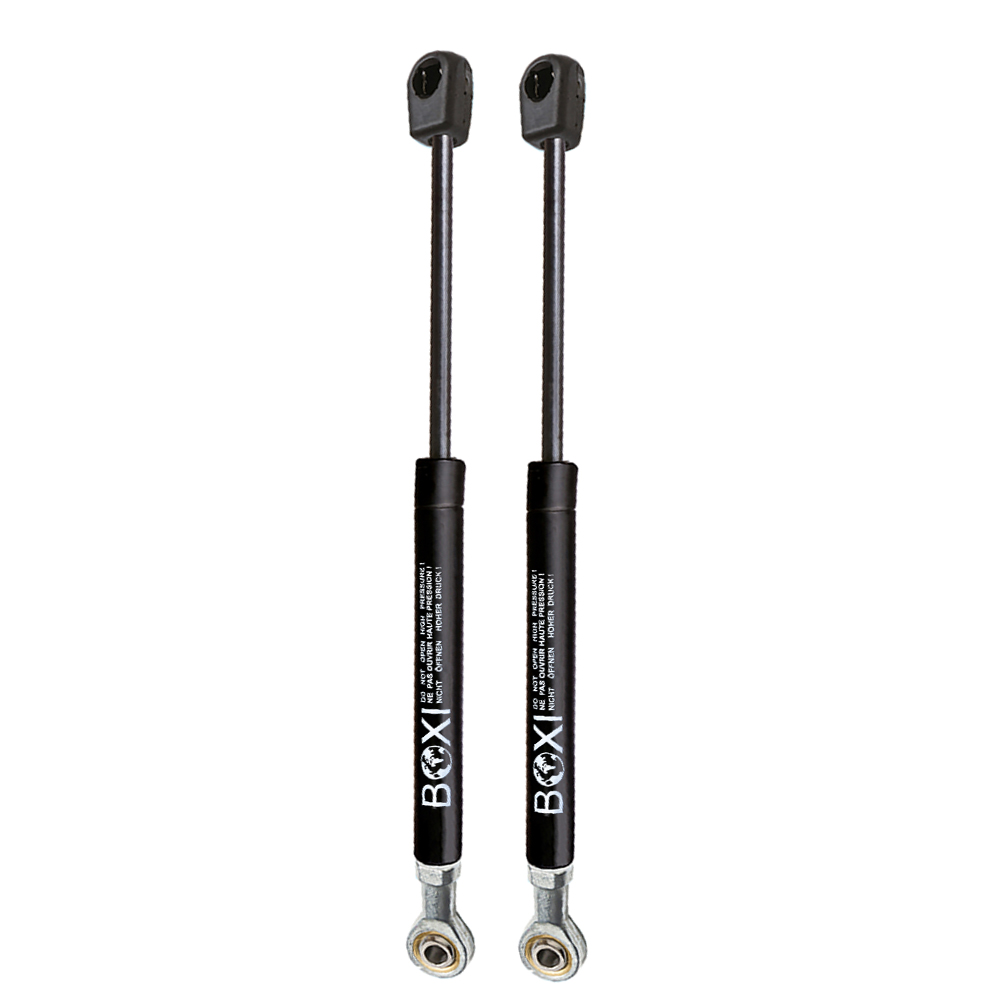

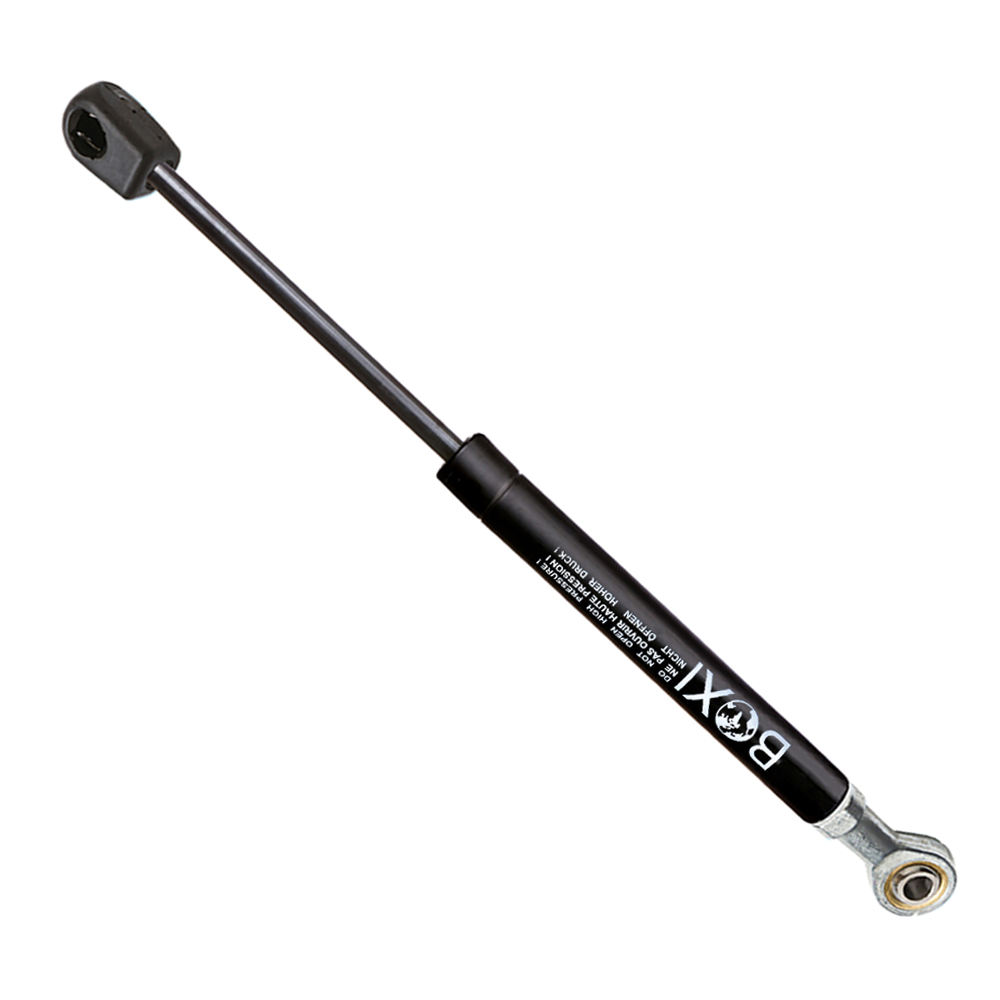

BOXI 2pcs Rear Glass Window Lift Supports Struts Shocks Gas Springs for Chevy Blazer 1995-2005 / for GMC Jimmy 1995-2000 / for Oldsmobile Bravada 1996-2000 | Replaces 4799 SG230012 15030549 15977110

BOXI SKU#: BXC300027033-2

$28.15

BOXI rear glass window lift supports (2pcs) fit 1995-2005 Chevy Blazer, 1995-2000 GMC Jimmy, 1996-2000 Oldsmobile Bravada. Replaces 4799, SG230012, 15030549. Verify fitment before ordering.

OE / Interchange Part Numbers: 10256, 11577110, 15030549, 15977110, 4799, 5456ES, 5691KI, 611037, 72331, 8195643, 901167, 9047QV

  • 5 Years Warranty

57 in stock

Placement on Vehicle:Rear Glass Window
Package Included:2pcs Rear Glass Window Lift Supports

Extended Length [in] 23.93
Compressed Length [in] 14.18

Fits the following vehicles:
2000-2005 for Chevrolet Blazer Base Sport Utility 4-Door W/ Dropgate/ 4 Doors Model
1995-1999 for Chevrolet Blazer Base Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
2000-2004 for Chevrolet Blazer LS Sport Utility 4-Door W/ Dropgate/ 4 Doors Model
1995-1999 for Chevrolet Blazer LS Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
2000-2001 for Chevrolet Blazer LT Sport Utility 4-Door W/ Dropgate/ 4 Doors Model
1995-1999 for Chevrolet Blazer LT Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
2000-2001 for Chevrolet Blazer Trailblazer Sport Utility 4-Door W/ Dropgate/ 4 Doors Model
1999 for Chevrolet Blazer Trailblazer Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)

1995-2000 for GMC Jimmy Base Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
2000 for GMC Jimmy Base Sport Utility 4-Door (Endgate Model) With Liftgate (Exc Drop Gate Type)
2000 for GMC Jimmy Diamond Edition -Door With Liftgate (Exc Drop Gate Type)
1998-2000 for GMC Jimmy Envoy Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
1995-2000 for GMC Jimmy SL Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
1995-2000 for GMC Jimmy SLE Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
1995-1998 for GMC Jimmy SLS Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)
1995-2000 for GMC Jimmy SLT Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)

1996-2000 for Oldsmobile Bravada Base Sport Utility 4-Door With Liftgate (Exc Drop Gate Type)

Weight 1.25 lbs
Dimensions 25.59 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

608
Stroke (in):

10.03
Stroke (mm):

255
Compressed Length (in)

Compressed Length (mm):

353
Force (Lbs)

Force (Newtons)

178
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6

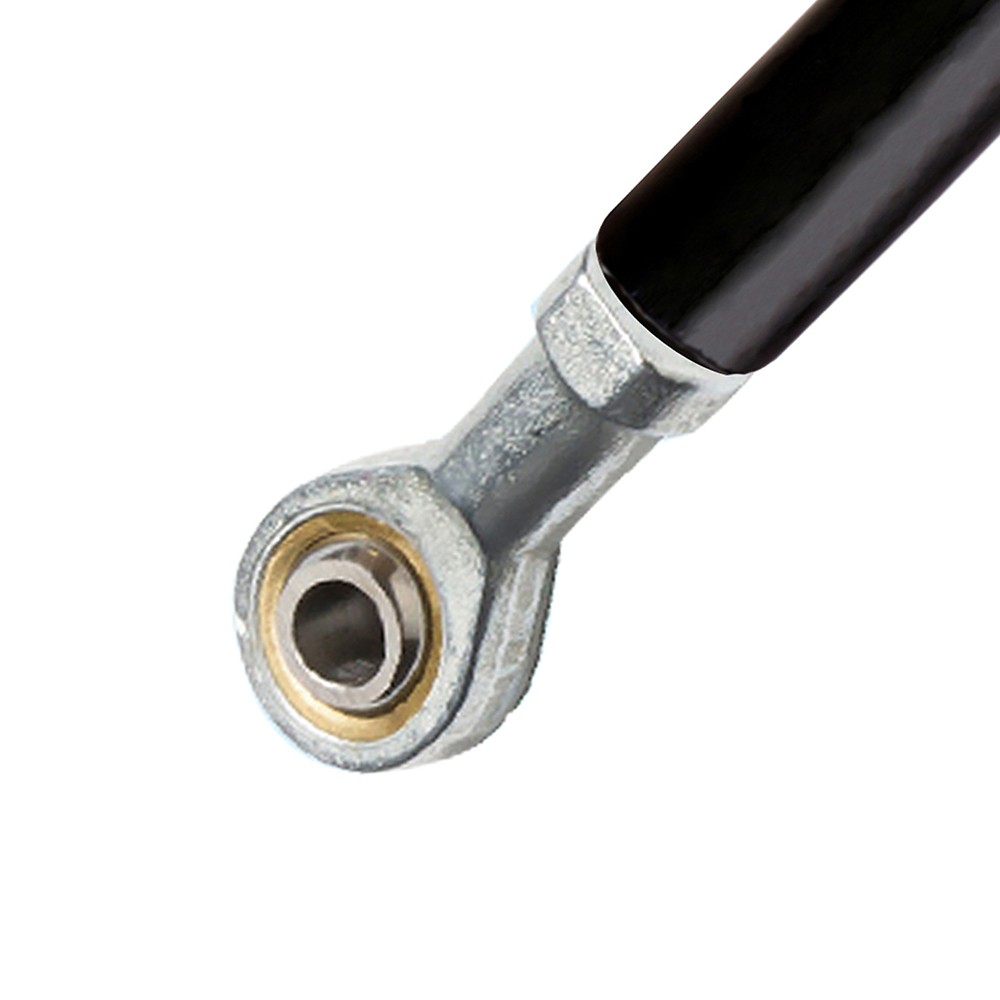

Body Connection:

Eyelet Hole

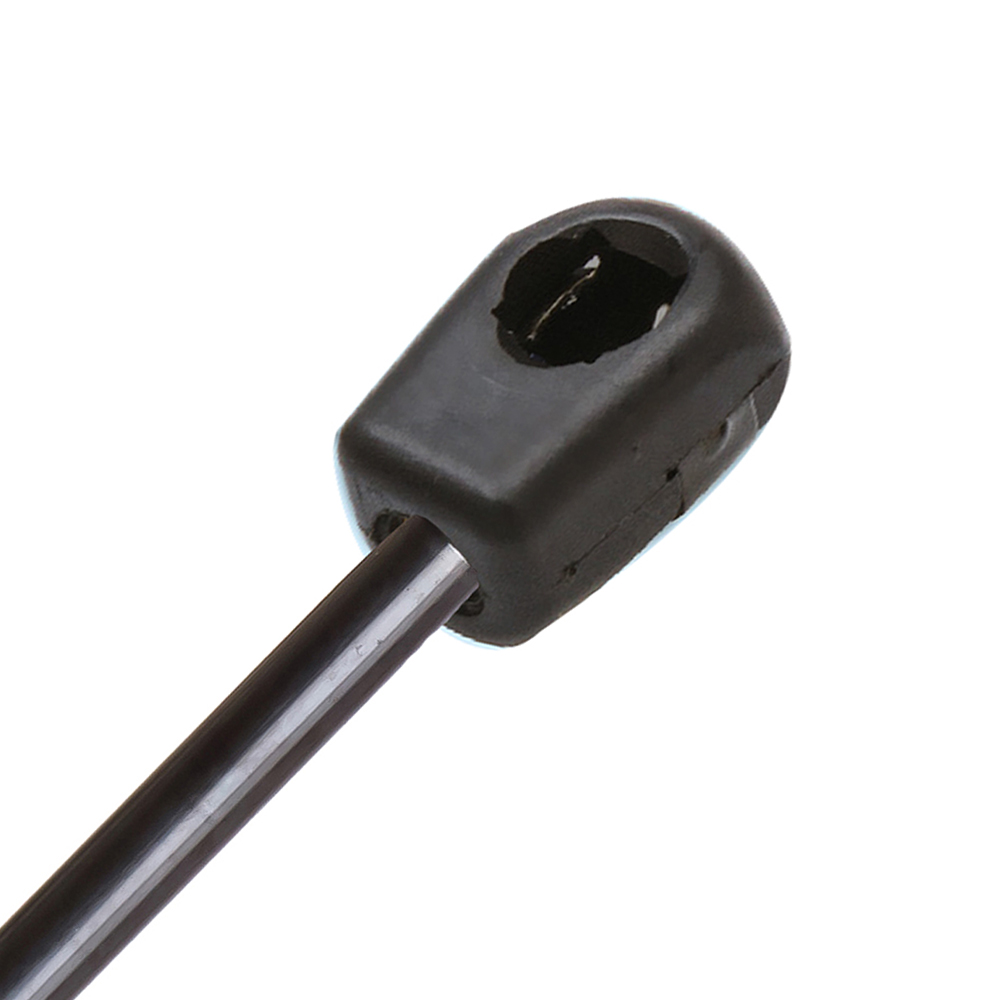

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

SACSG330019, TFS611037, SG330019, 611037, SG230051, SG230012, C4799, B95545, 901366, 901285, 901167, 819-5643, 510-645, 4799, 15977110, 15708521, 15678975, 15024181
YearMakeModelSubmodelEngine
1995 – 2005ChevroletBlazerBaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV
1995 – 1997ChevroletBlazerDeluxeV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
1997 – 2004ChevroletBlazerLSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV
1995 – 2002ChevroletBlazerLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2002ChevroletBlazerLTZL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
1999 – 2001ChevroletBlazerTRAILBLAZERV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2001 – 2005ChevroletBlazerXtremeV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV
2003 – 2005ChevroletBlazerZR2V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV
1996GMCJimmyBaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2000 – 2001GMCJimmyDiamond EditionV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
1998 – 2000GMCJimmyEnvoyV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
1996 – 2001GMCJimmySL
SLE
SLS
SLT		V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
1996 – 2001OldsmobileBravadaBaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
