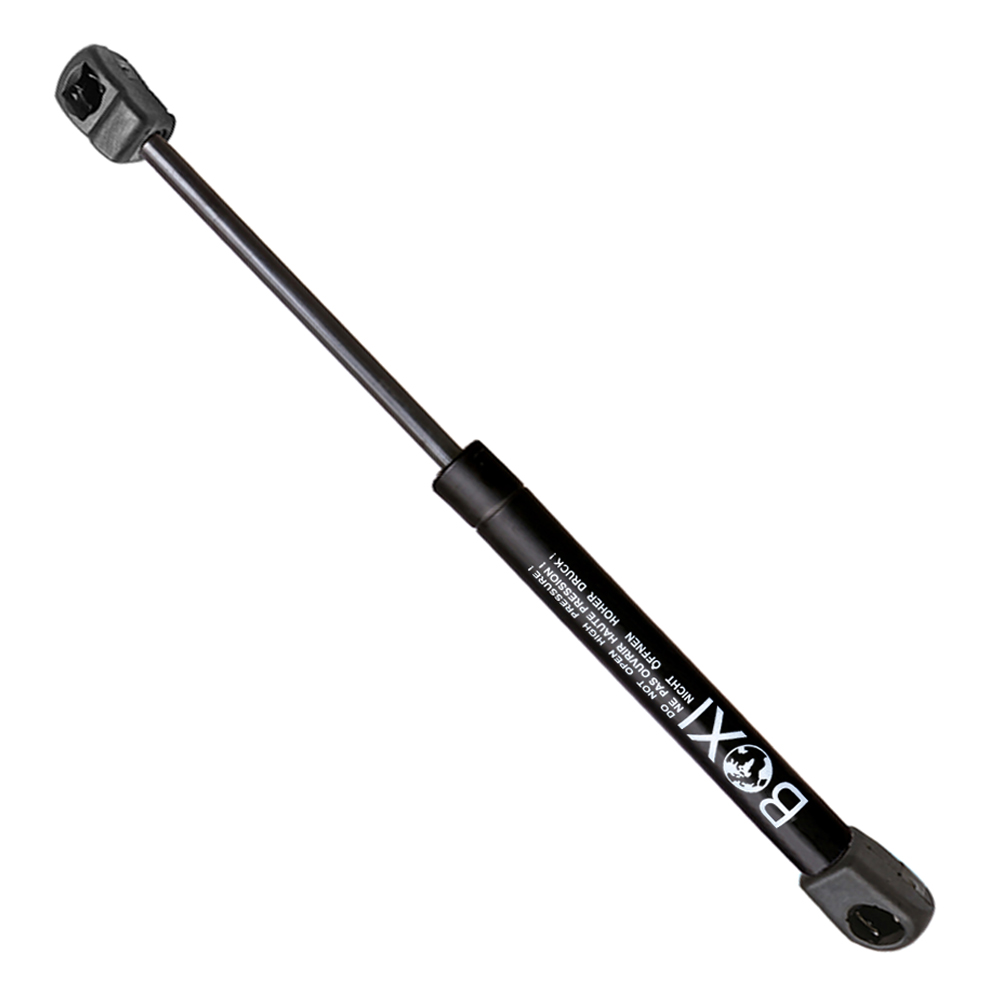

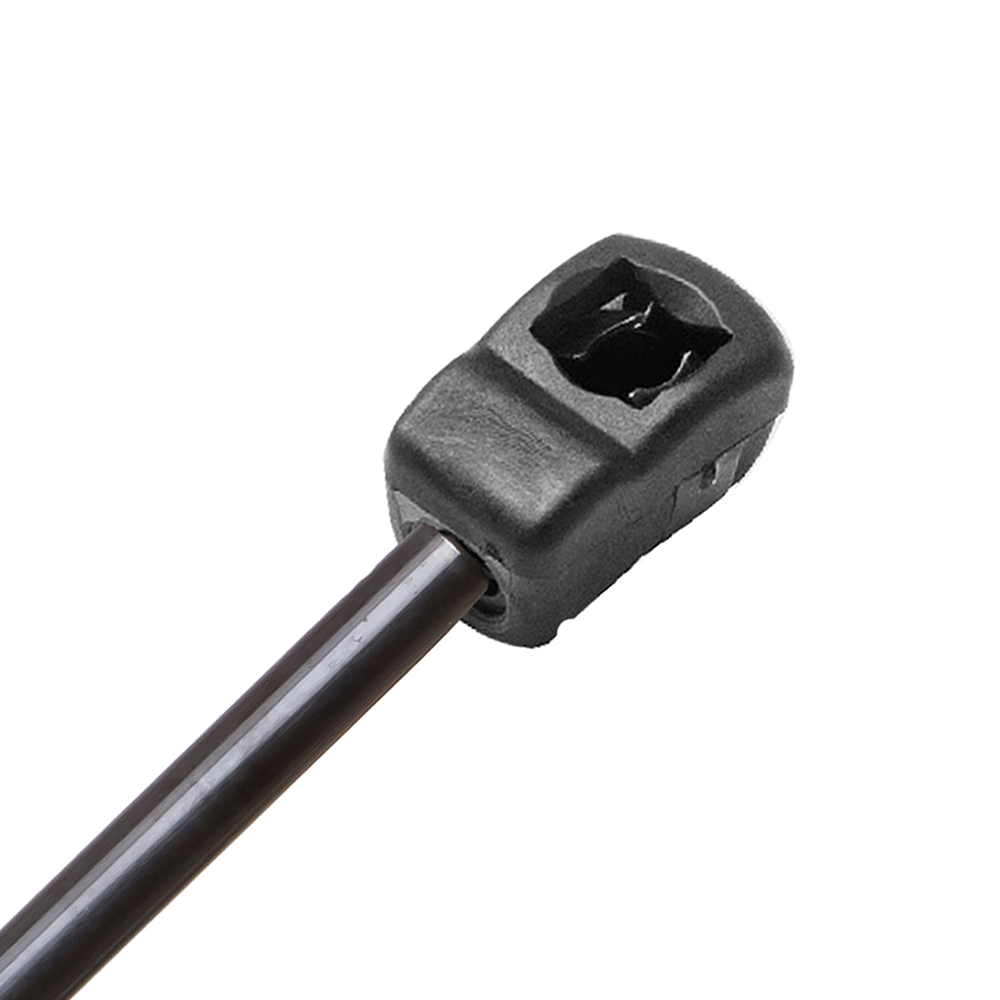

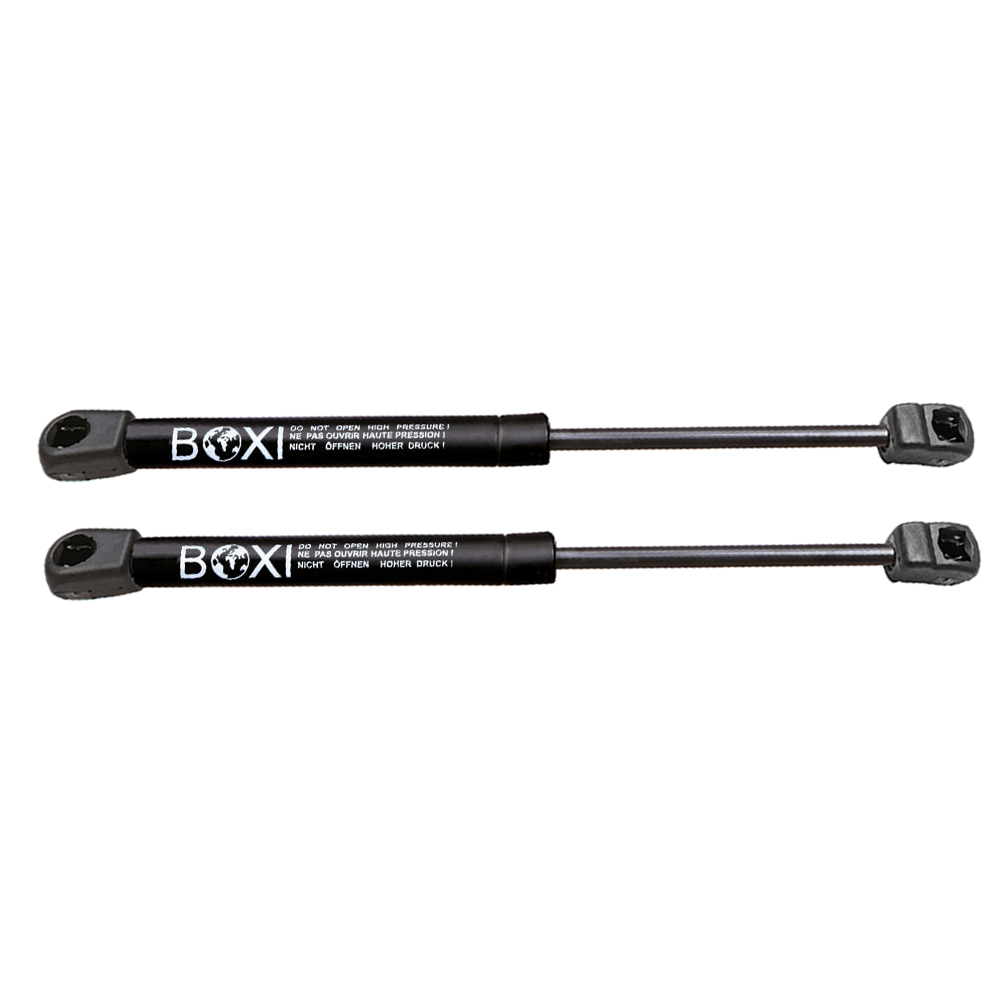

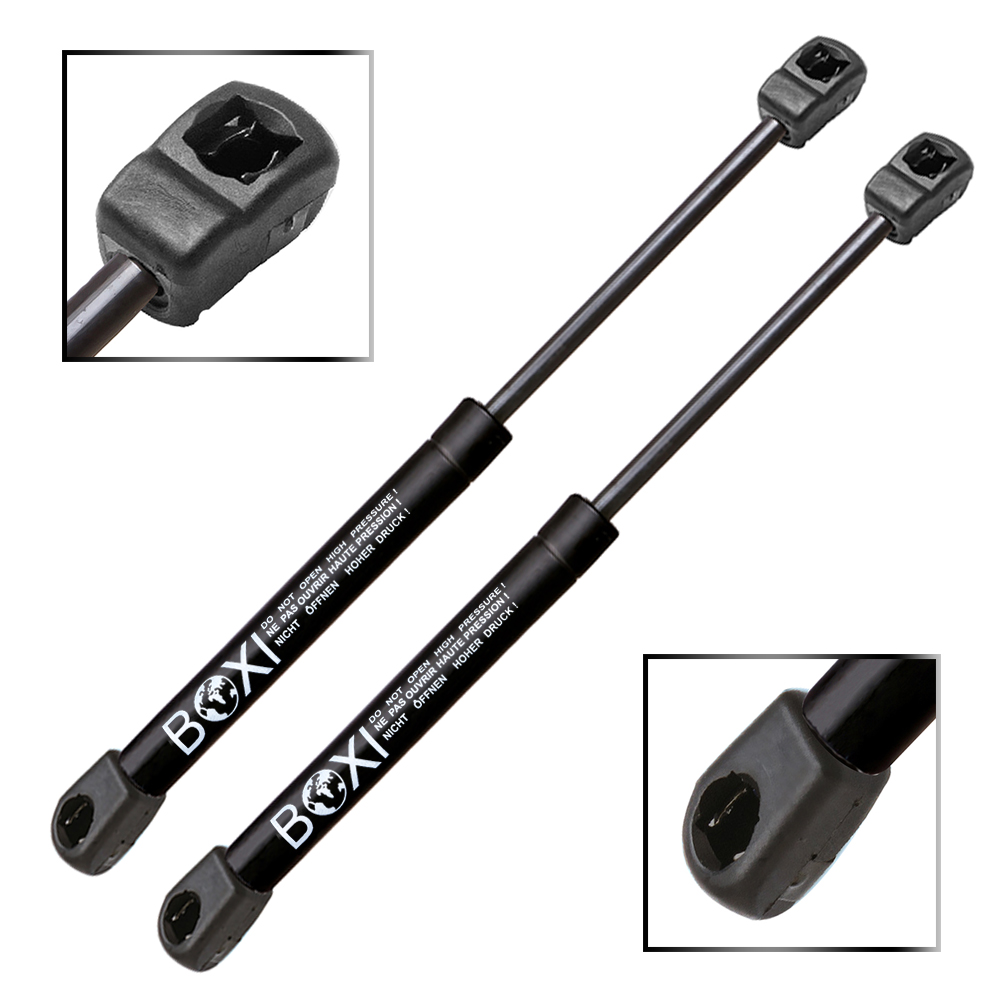

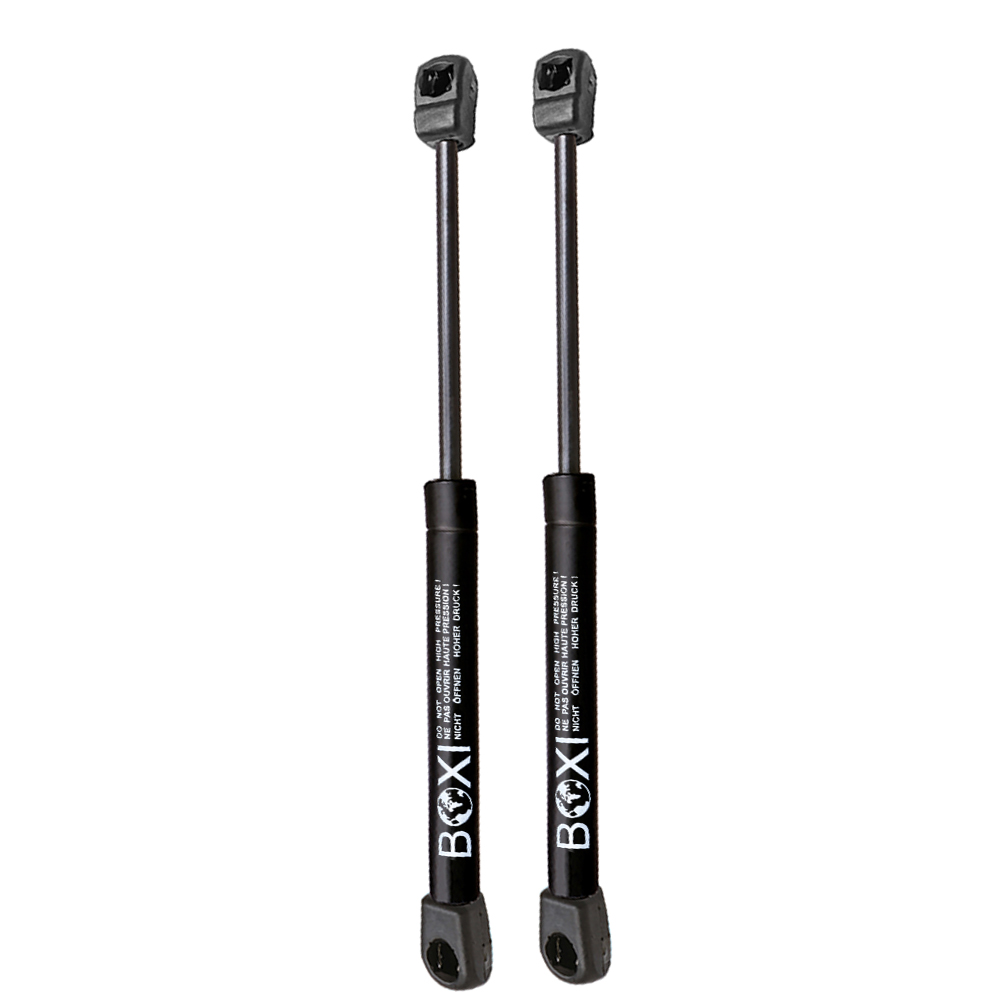

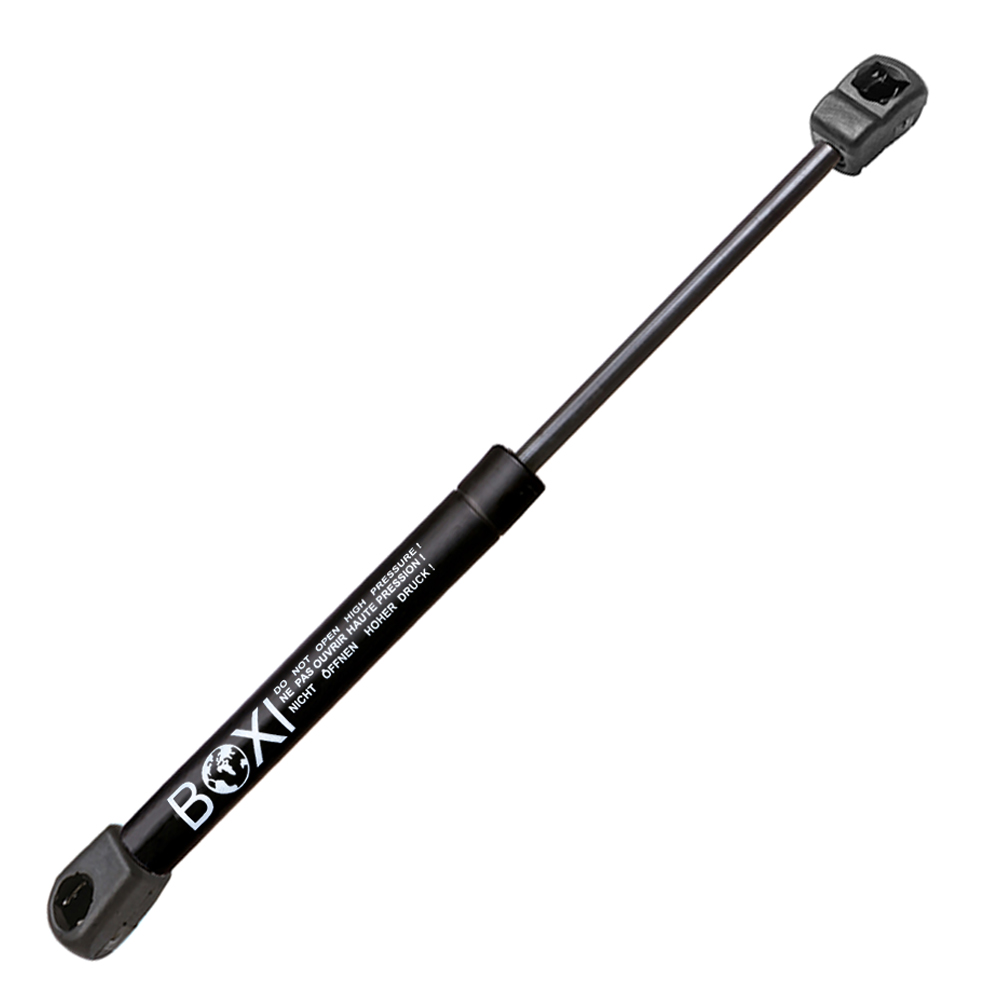

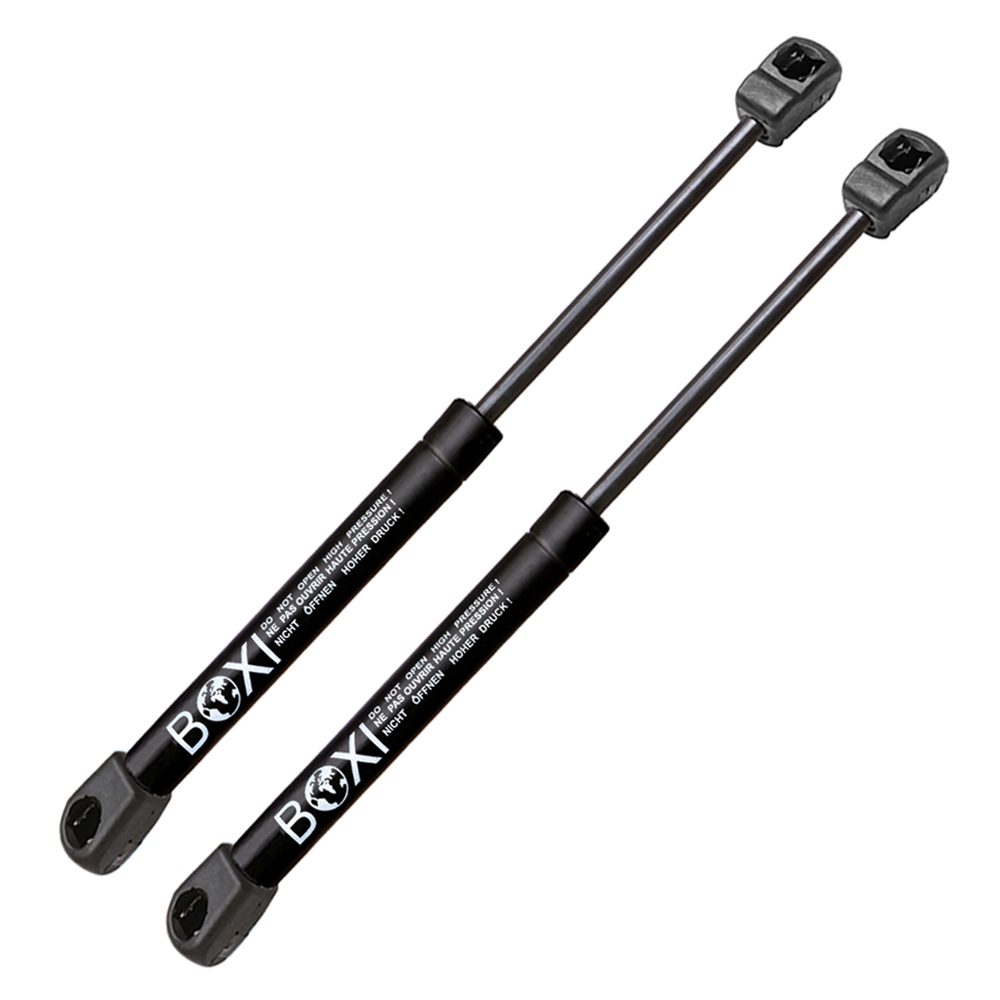

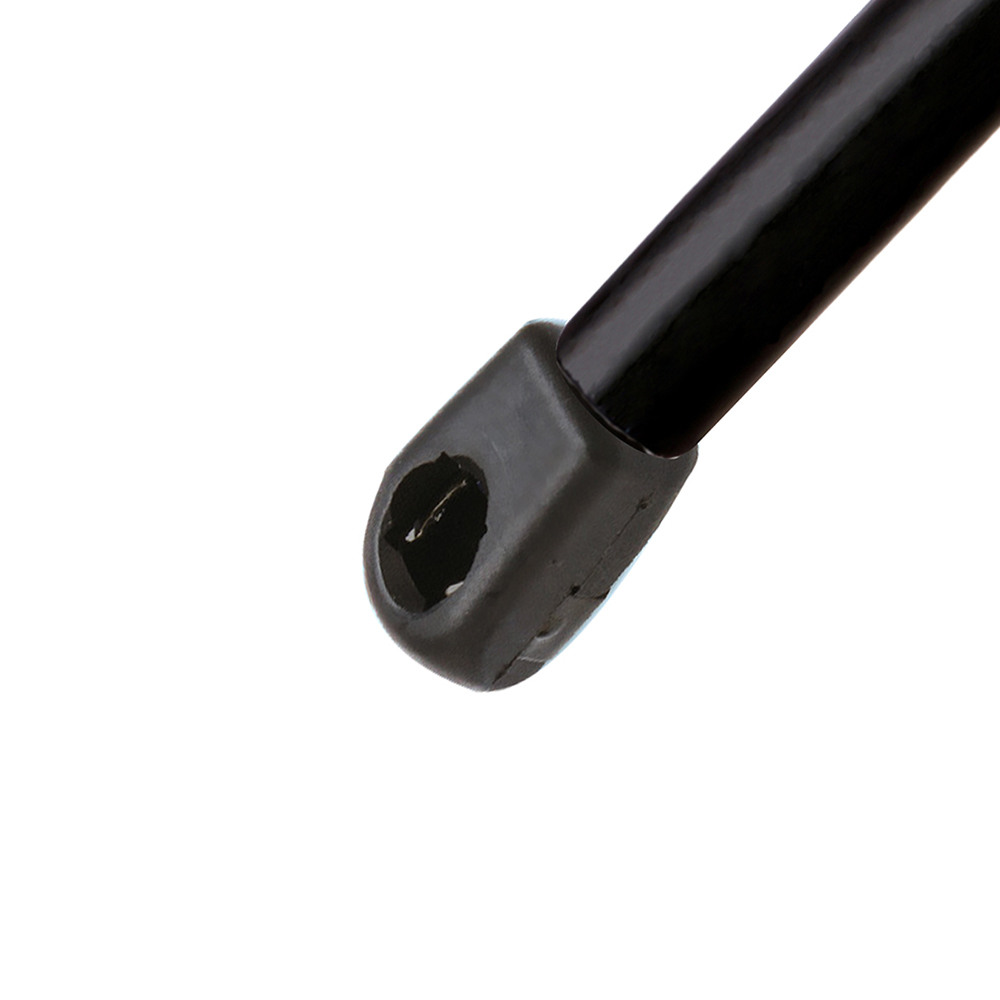

Qty(2) BOXI Rear Liftgate Hatch Lift Supports Gas Struts Shocks Fit for Chevy Trailblazer EXT 2002-2008 / for GMC Envoy XL 2002-2006 / for Isuzu Ascender 2003-2008 | SG230062 15130343 15050911 4574

BOXI SKU#: BXC300027030-2

$19.99

BOXI pair of rear liftgate lift supports (gas struts) for Chevy Trailblazer EXT, GMC Envoy XL, and Isuzu Ascender models. Replaces OE numbers SG230062, 15130343, 15050911, 4574. Verify fitment before ordering.

OE / Interchange Part Numbers: 14271, 15050911, 15050912, 15130343, 15130344, 15167999, 15168000, 4574, 8196165, 8506VD, 95155, C95155

  • 5 Years Warranty

229 in stock

Placement on Vehicle:Rear
Package Included:2pc Liftgate Lift Support

Fits XL EXT & LT (extended length body style)
Fits the following Chevrolet Trailblazer Years:
2003-2006 | EXT LS Sport Utility 4-Door Liftgate
2002-2006 | EXT LT Sport Utility 4-Door Liftgate
2006-2008 | SS Sport Utility 4-Door Liftgate
2002-2006 | EXT Base Sport Utility 4-Door Liftgate
2002 | EXT LS Sport Utility 4-Door Liftgate
2002-2006 | EXT North Face Sport Utility 4-Door Liftgate

Fits the following GMC Envoy Years:
2005-2007 | Denali Sport Utility 4-Door Liftgate
2005-2006 | XL Denali Sport Utility 4-Door Liftgate
2002-2006 | XL SLE Sport Utility 4-Door Liftgate
2002-2006 | XL SLT Sport Utility 4-Door Liftgate
2002-2006 | XUV SLE Sport Utility 4-Door Liftgate
2002-2006 | XUV SLT Sport Utility 4-Door Liftgate
2002-2006 | XL Base Sport Utility 4-Door Liftgate
2002-2004 | XL Denali Sport Utility 4-Door Liftgate
2002-2006 | XUV Base Sport Utility 4-Door Liftgate
2002-2006 | XUV Denali Sport Utility 4-Door Liftgate

Fits the following Isuzu Ascender Years:
2003 | Base Sport Utility 4-Door Liftgate
2006 | Base Sport Utility 4-Door Liftgate
2003-2006 | LS Sport Utility 4-Door Liftgate
2003-2005 | Limited Sport Utility 4-Door Liftgate
2004-2005 | S Sport Utility 4-Door Liftgate
2007 | S Sport Utility 4-Door Liftgate
2003-2008 | XL Base Sport Utility 4-Door Liftgate

Weight 2 lbs
Dimensions 25.59 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

590
Stroke (in):

7.46
Stroke (mm):

190
Compressed Length (in)

Compressed Length (mm):

400
Force (Lbs)

Force (Newtons)

850
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10
Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

TFS611310, 819-6165, 8196165, 611310, SG230062, C95155, C4574, 926 25001 810, 901627, 510-967, 4574, 15168000, 15167999
YearMakeModelSubmodelEngine
2004 – 2006ChevroletTrailblazer EXTBL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2006ChevroletTrailblazer EXTBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
LSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2006ChevroletTrailblazer EXTLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2004ChevroletTrailblazer EXTNorth FaceL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2005 – 2006GMCEnvoy XLDenaliV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2006GMCEnvoy XLSLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2004 – 2005GMCEnvoy XUVSLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2004OldsmobileBravadaBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
