BOXI Lift Support for 1990-1995 Chrysler Town & Country | Replaces OE #10326

$33.35

  • 5 Years Warranty

9 in stock

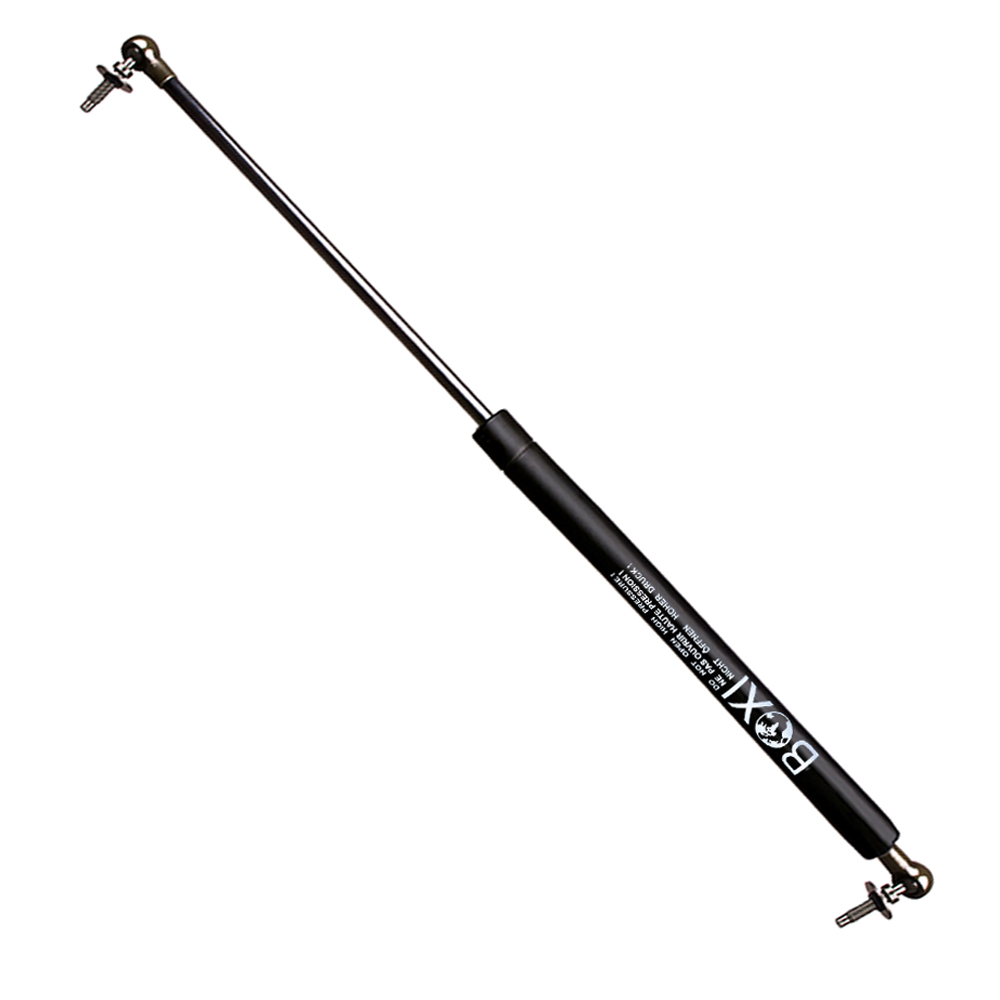

BOXIDirect-Fit OE ReplacementLift Support
Part #: BXC300026036-2|Line: BOXI|Warranty: 5 Years|In Stock (9)
Check if this part fits your vehicle Select your vehicle to check fitment (56 compatible configurations)
Ship to Home Available (9 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference View All (21) →
Replaces OE #: 10326, 4018QU, 4673462, 4673465, 4837 +16 more
5 Years Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Placement on Vehicle
Liftgate
Package Included

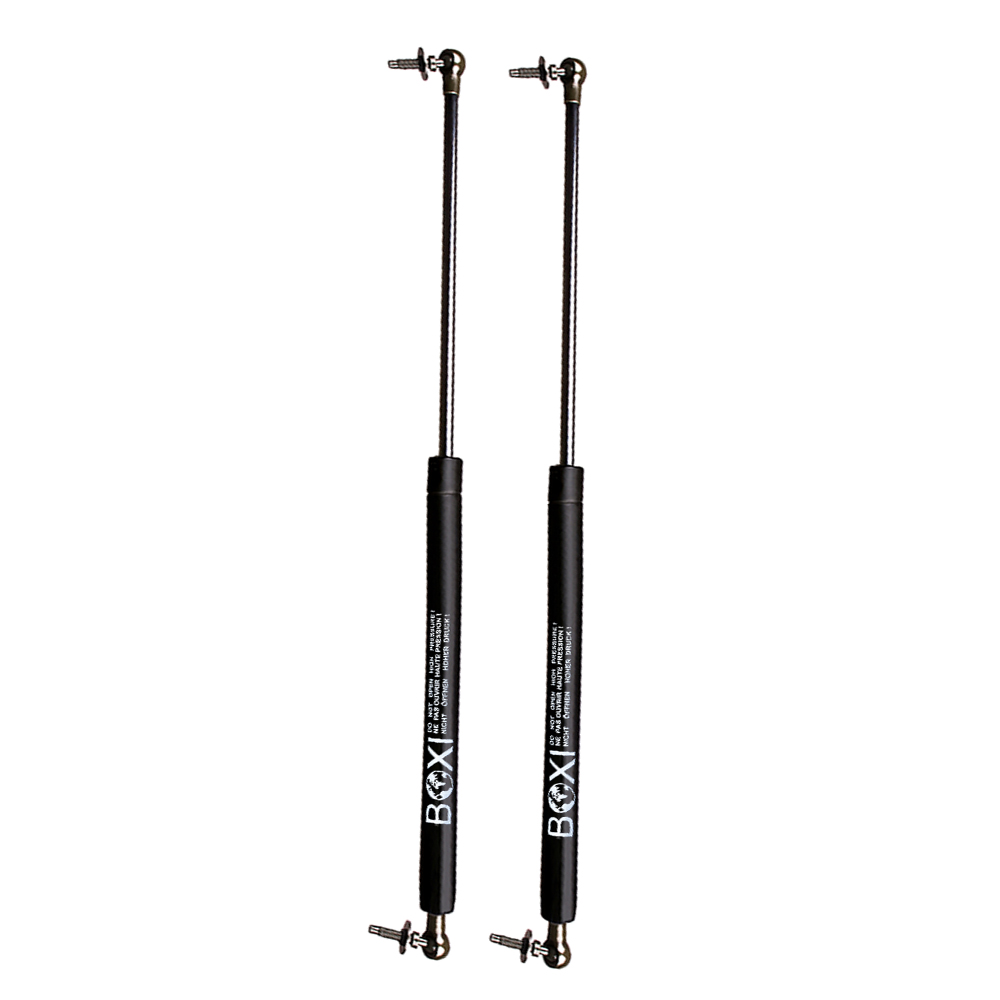

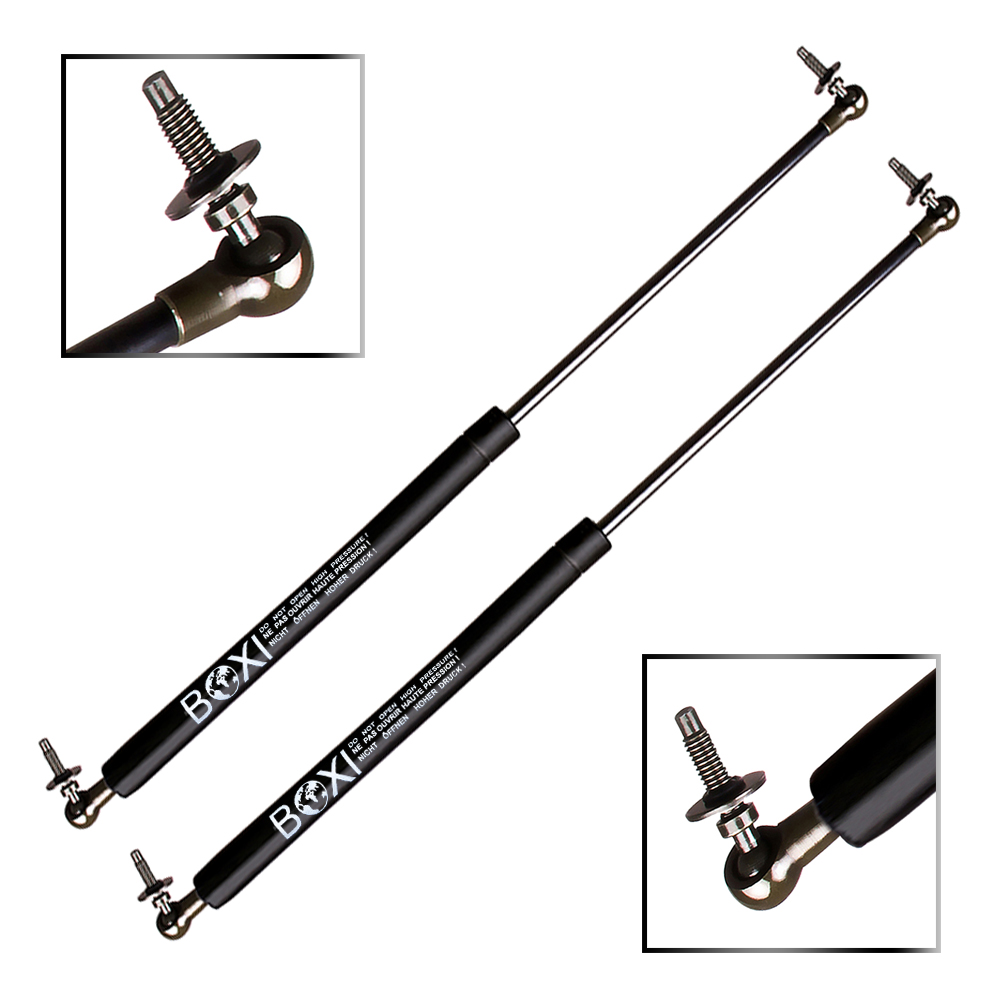

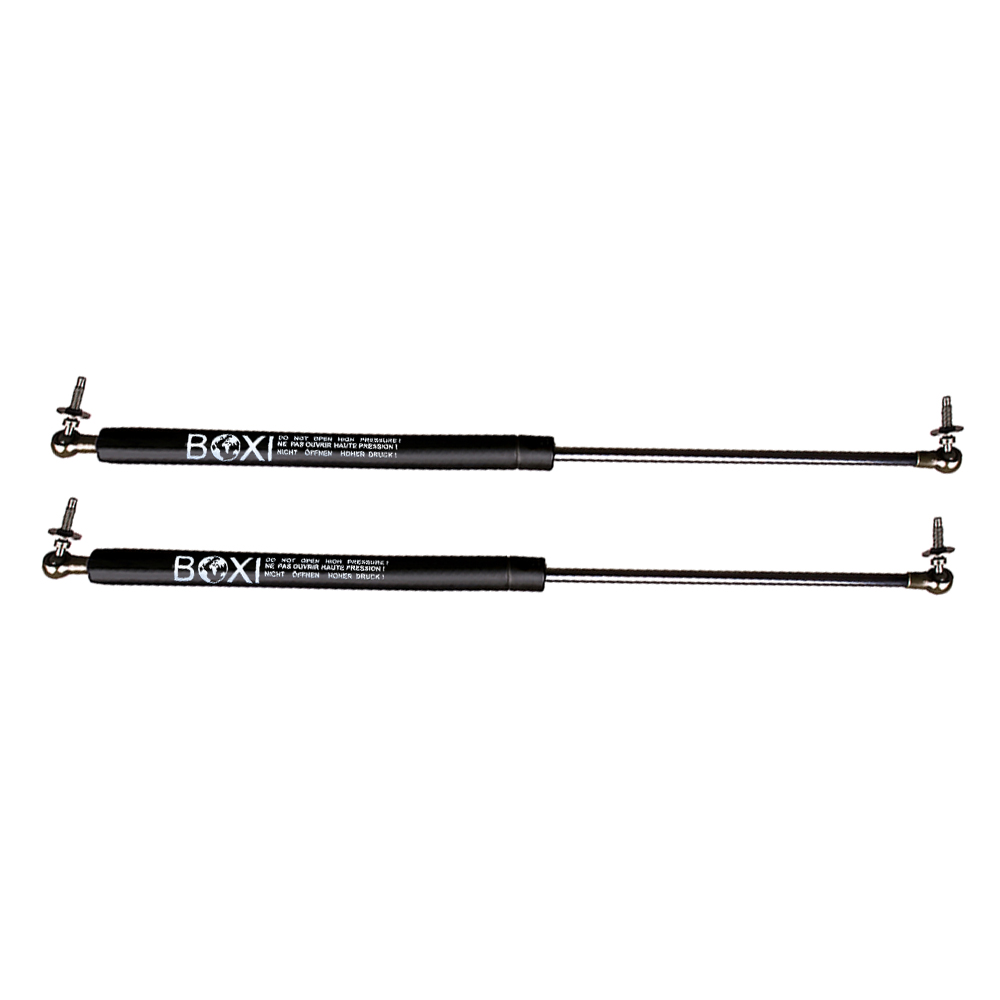

2pcs Liftgate Lift Supports
Hardware Included:
No
Extended Length (in)
26.19
Extended Length (mm):
665

Direct-fit BOXI replacement part compatible with 1994 Chrysler Grand Voyager Base, 1995 Chrysler Grand Voyager LE, 1990-1993 Chrysler Town & Country Base, 1994-1995 Chrysler Town & Country Base and additional configurations. Replaces OE / interchange part numbers: 10326, 4018QU, 4673462, 4673465, 4837, 610613, 72736, 74820SR3003. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.

Placement on Vehicle Liftgate
Package Included 2pcs Liftgate Lift Supports
Application Note Extended Length [in] 26.19
Application Note Compressed Length [in] 18.94

Position & Application Summary

See Full Submodel & Engine Table →
  • 1991-1995 | Base Mini Passenger Van | With Rear Window Wiper or Stereo
  • 1991-1995 | C/V Mini Cargo Van | With Rear Window Wiper or Stereo
  • 1991-1995 | ES Mini Passenger Van | With Rear Window Wiper or Stereo
  • 1991-1995 | LE Mini Passenger Van | With Rear Window Wiper or Stereo
  • 1991-1995 | SE Mini Passenger Van | With Rear Window Wiper or Stereo
  • 1991-1995 | LX Mini Passenger Van | With Rear Window Wiper or Stereo
Weight 3.41 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI

Hardware Included:

No

Extended Length (in)

Extended Length (mm):

665

Stroke (in):

7.88

Stroke (mm):

200

Compressed Length (in)

Compressed Length (mm):

465

Force (Lbs)

Force (Newtons)

1001

Cylinder Diameter (in):

1.1

Cylinder Diameter (mm):

28

Rod Diameter (in):

0.39

Rod Diameter (mm):

10

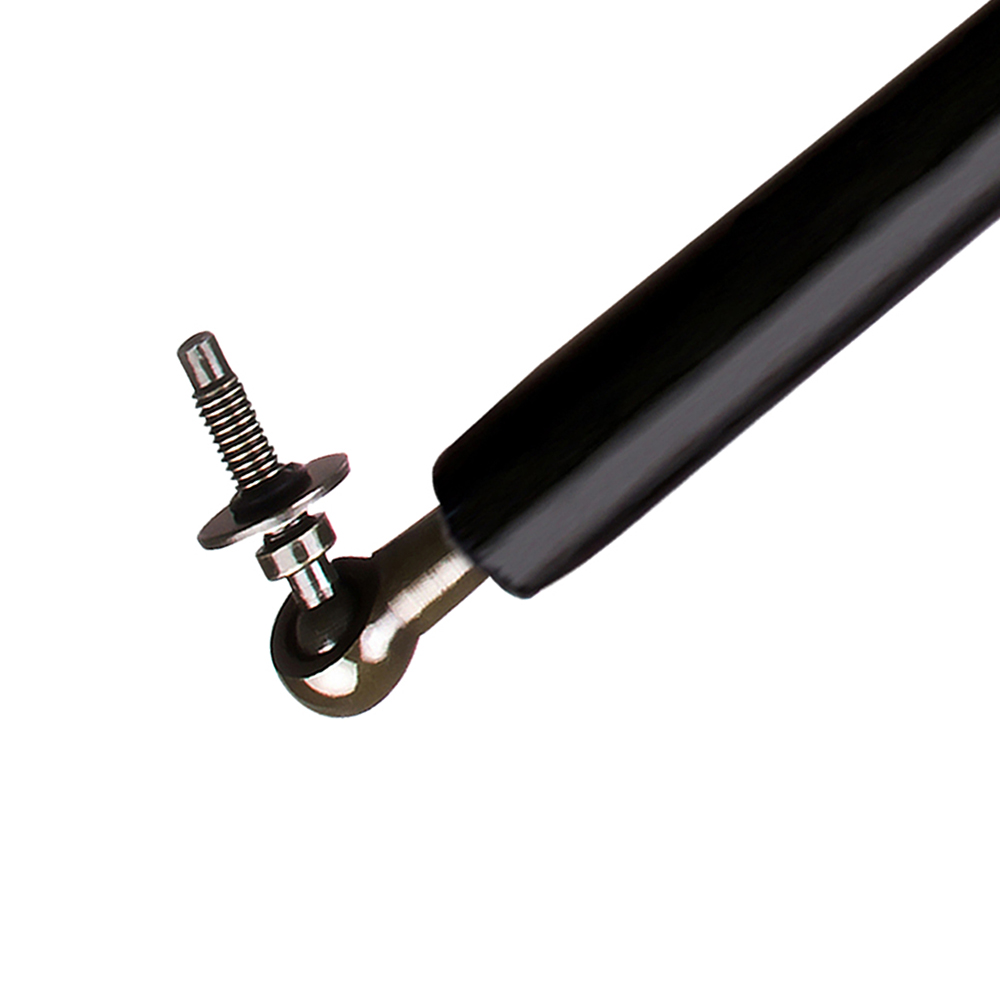

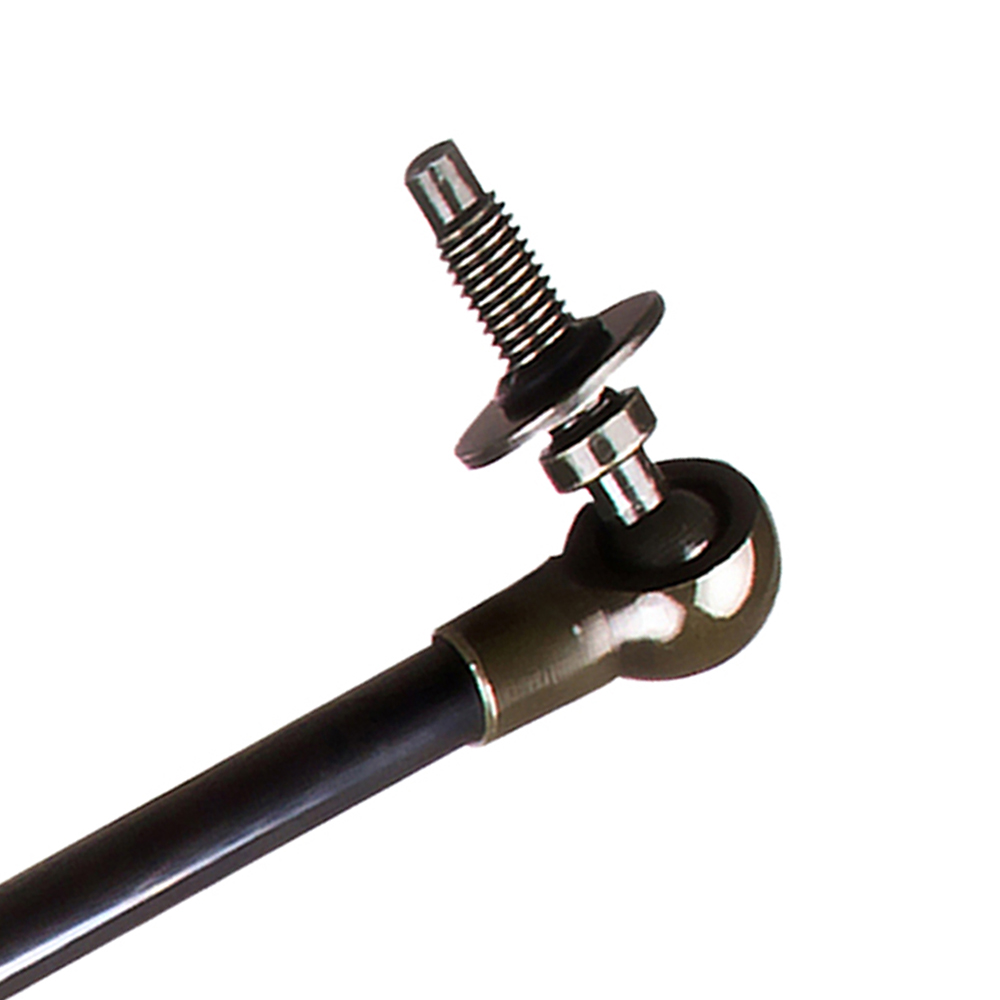

Body Connection:

Ball Socket

Shaft Connection:

Ball Socket

Type:

Gas

Material

Steel

Unit of Measure:

Each

Warranty Terms

5 Years

Compatible Vehicle Applications

Verify Year, Make, Model, Submodel, and Engine compatibility before ordering.

YearMakeModelSubmodelEngine
1994ChryslerGrand VoyagerBaseV6 – 3.8L 3778cc 231ci GAS MFI vin L – 2 valve OHV
1995ChryslerGrand VoyagerLEV6 – 3.8L 3778cc 231ci GAS MFI vin L – 2 valve OHV
1990 – 1993ChryslerTown & CountryBaseV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1994 – 1995ChryslerTown & CountryBaseV6 – 3.8L 3778cc 231ci GAS MFI vin L – 2 valve OHV
1994 – 1995ChryslerVoyagerSEV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1993 – 1995DodgeCaravanBaseBATTERY EV vin 9
1991 – 1995DodgeCaravanBase
C/V
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
Base
ES
LE
SE
V6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
C/V
ES
LE
SE
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1992 – 1995DodgeCaravanBaseV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1994 – 1995DodgeCaravanBase
C/V
SE
V6 – 3.3L 3301cc 201ci CNG MFI vin J – 2 valve OHV
1991 – 1993DodgeCaravanC/VV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
SEL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1991 – 1992DodgeCaravanESL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1991DodgeCaravanLEL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1992 – 1995DodgeGrand CaravanBaseV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
ESV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1992DodgeGrand CaravanBaseV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
SEV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1992 – 1993DodgeGrand CaravanESV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1994 – 1995DodgeGrand CaravanES
LE
V6 – 3.8L 3778cc 231ci GAS MFI vin L – 2 valve OHV
SEV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1991 – 1995DodgeGrand CaravanLE
SE
V6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1992 – 1995PlymouthGrand VoyagerBaseV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1992 – 1993PlymouthGrand VoyagerLE
SE
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1991 – 1995PlymouthGrand VoyagerLE
SE
V6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1994 – 1995PlymouthGrand VoyagerLEV6 – 3.8L 3778cc 231ci GAS MFI vin L – 2 valve OHV
1995PlymouthGrand VoyagerSEV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1994 – 1995PlymouthVoyagerBaseBATTERY EV vin 9
BaseV6 – 3.3L 3301cc 201ci CNG MFI vin J – 2 valve OHV
1991 – 1995PlymouthVoyagerBaseL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
Base
LE
SE
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
LE
SE
V6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1995PlymouthVoyagerBaseV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
1991PlymouthVoyagerLE
LX
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1991 – 1994PlymouthVoyagerLXV6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1994PlymouthVoyagerLXV6 – 3.3L 3301cc 201ci GAS MFI vin R – 2 valve OHV
SEV6 – 3.3L 3301cc 201ci CNG MFI vin J – 2 valve OHV
1991 – 1993PlymouthVoyagerSEL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC

OEM & Aftermarket Interchange Cross-Reference

Click any highlighted OE number to view all compatible replacement parts for that factory number.

OEM & Aftermarket Interchange Part Numbers

BrandOEM Part NumberAftermarket Interchange Number
Chrysler (OEM)4673462, 4673465, 74820SR3003, 8195524, G0004837BXC300026036-2, 10326, 4018QU
StrongArm4673462, 4673465, 74820SR30034837, 95257, C4837
Tuff Support4673462, 4673465, 74820SR3003610613, TFS610617, 610617
Sachs / Stabilus4673462, 4673465, 74820SR3003SG214004
Dorman4673462, 4673465, 74820SR3003510-613
Aftermarket Interchange4673462, 4673465, 74820SR300310326, 4018QU, 72736, 901147, B95257, 901498
