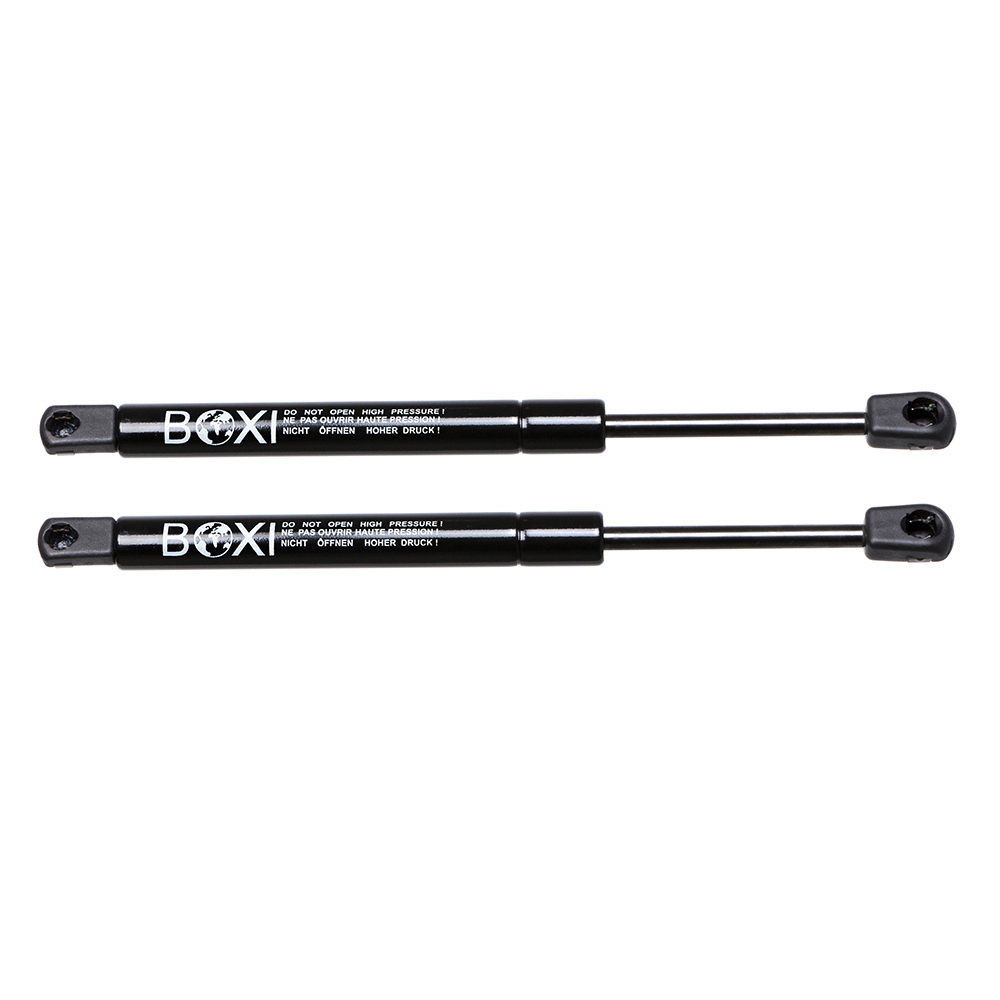

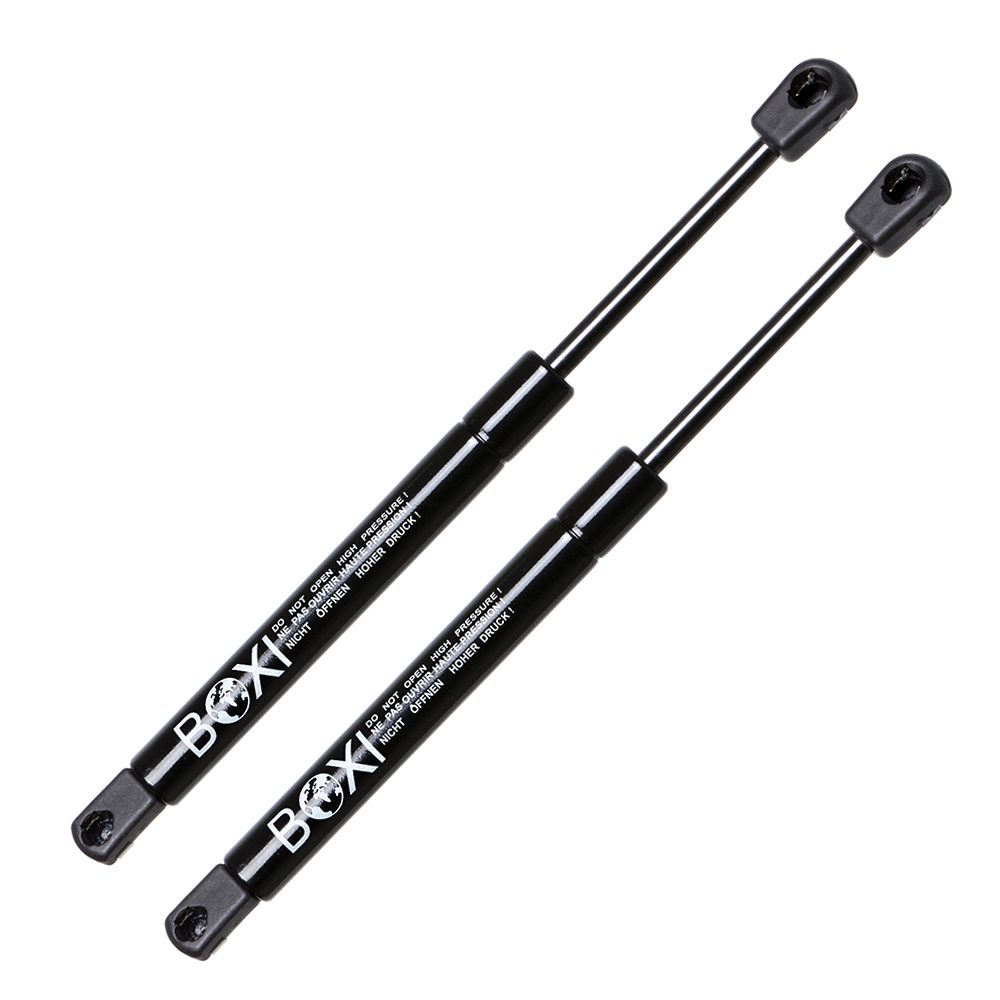

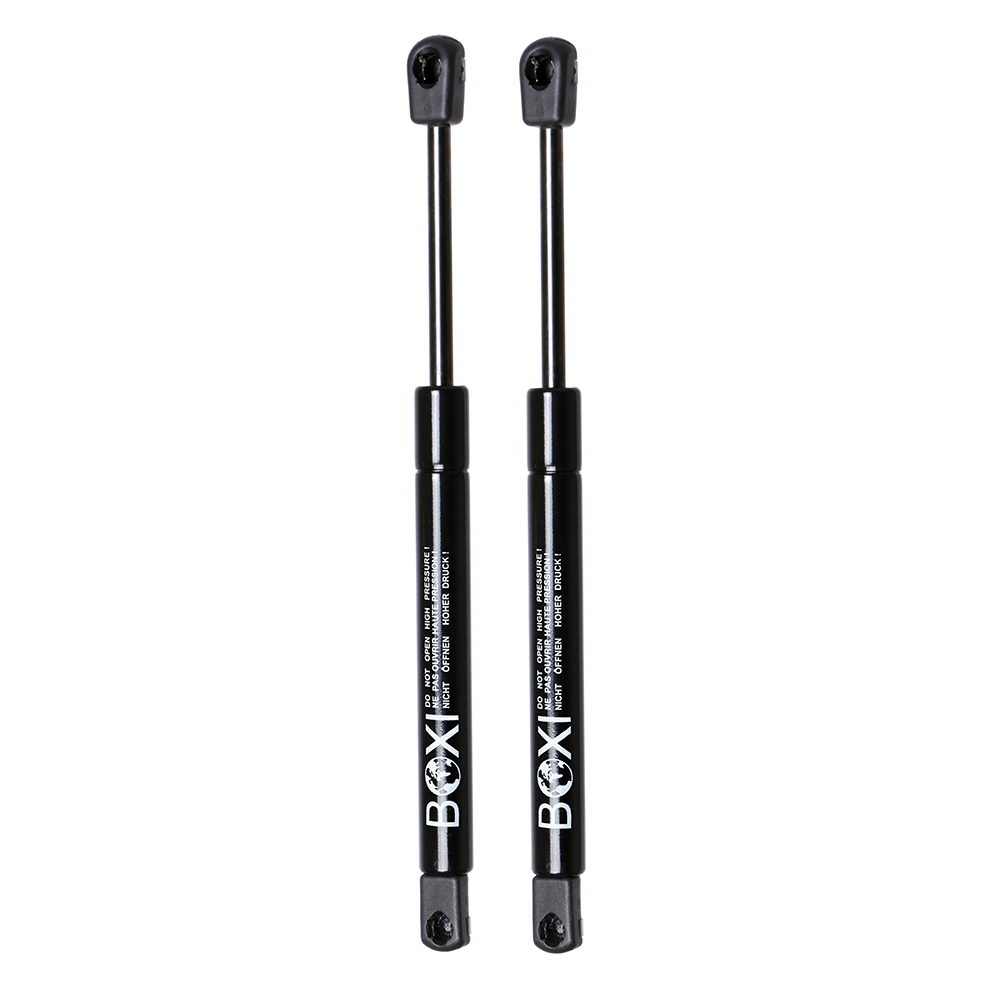

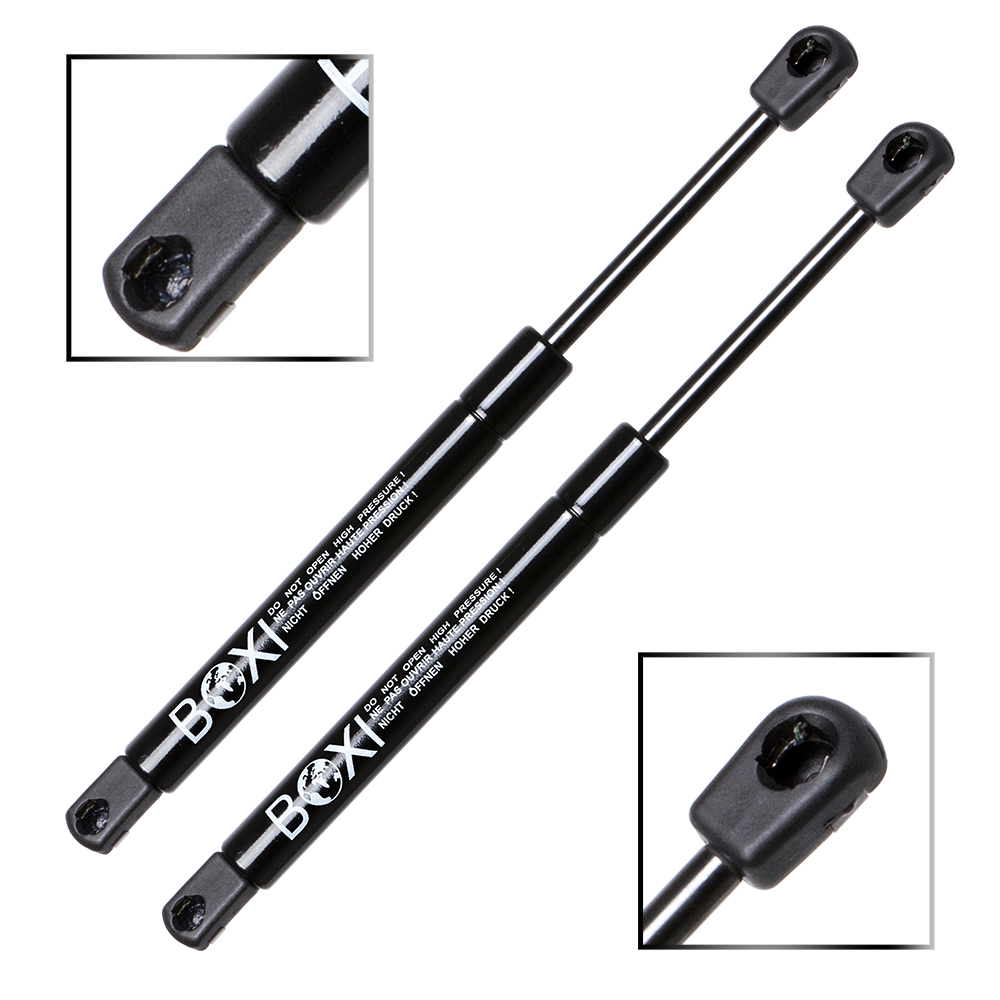

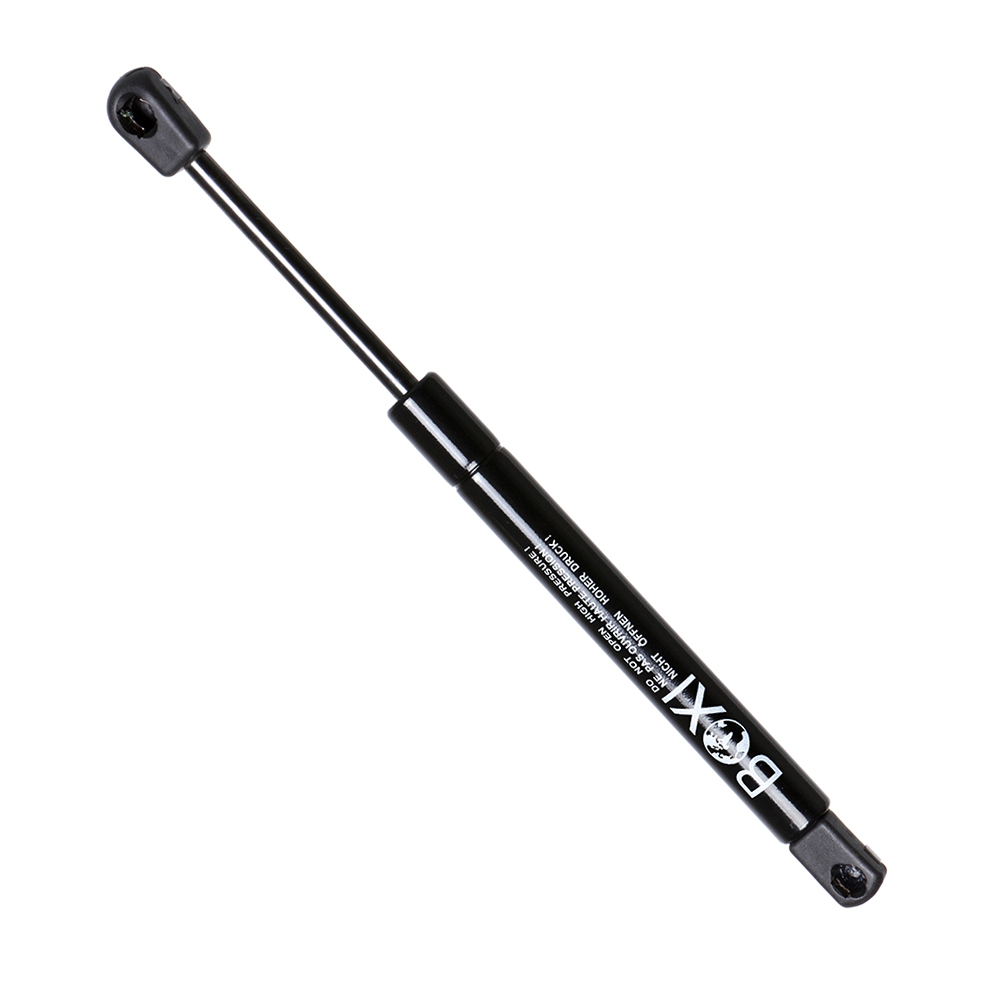

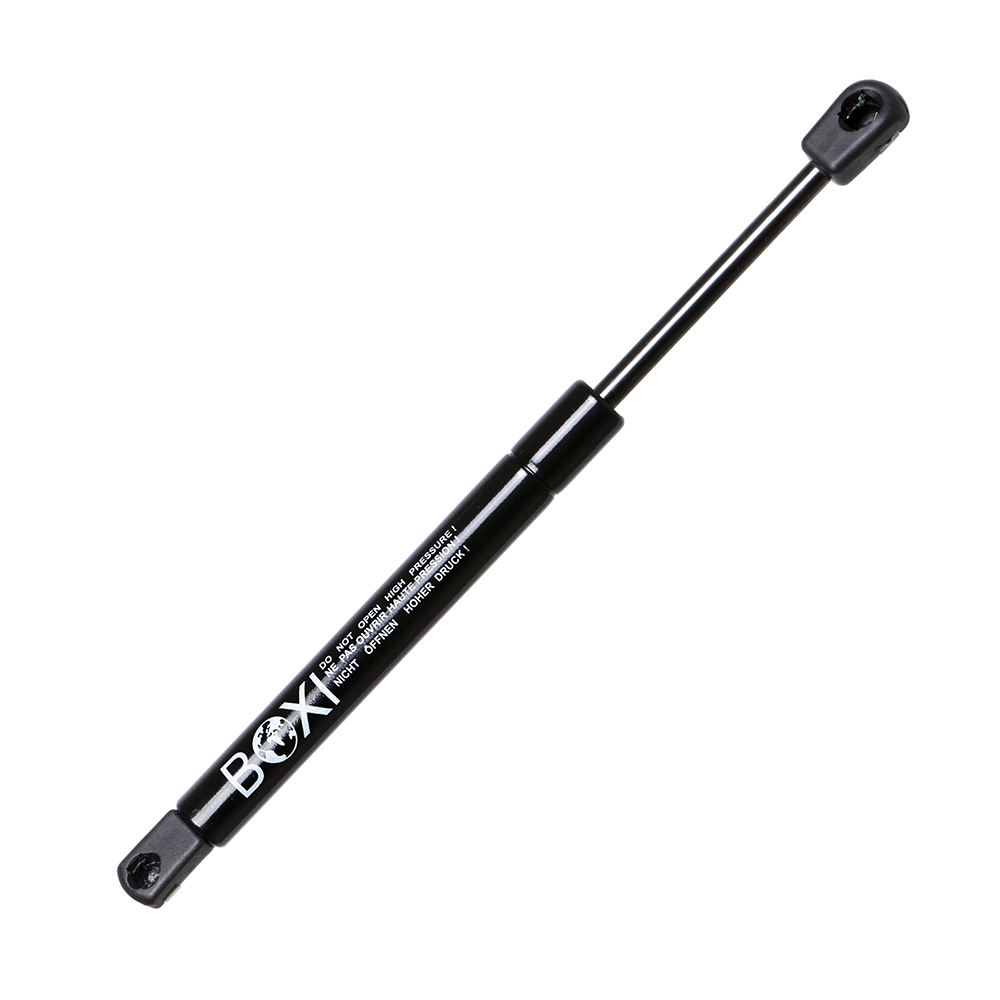

BOXI 2pcs Convertible Trunk Lift Supports Struts Gas Struts Shocks Springs Fit for Chrysler PT Cruiser 2005 2006 2007 2008 Convertible 2-Door Trunk | Replaces 6286 SG314035 5067236AB
BOXI SKU#: BXC300026032-2
$19.39
BOXI Trunk Lift Supports Struts for Chrysler PT Cruiser Convertible 2005-2008. Replaces OE 6286, SG314035, 5067236AB. Verify fitment before ordering.
OE / Interchange Part Numbers: 6286, 96286, D96286, SG314035
39 in stock
Placement on Vehicle:Rear Trunk
Package Included:2pcs Trunk Lift Supports
Fit: Chrysler PT Cruiser Convertible 2005 – 2008 Trunk
Extended Length [in] 18.00
Compressed Length [in] 14.75
Fits the following Chrysler PT Cruiser Years:
2005-2008 | Base Convertible 2-Door
2005-2008 | GT Convertible 2-Door
2005-2008 | Touring Convertible 2-Door
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 19.69 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 457 |
| Stroke (in): | 3.94 |
| Stroke (mm): | 100 |
| Compressed Length (in) | |
| Compressed Length (mm): | 357 |
| Force (Lbs) | |
| Force (Newtons) | 351 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

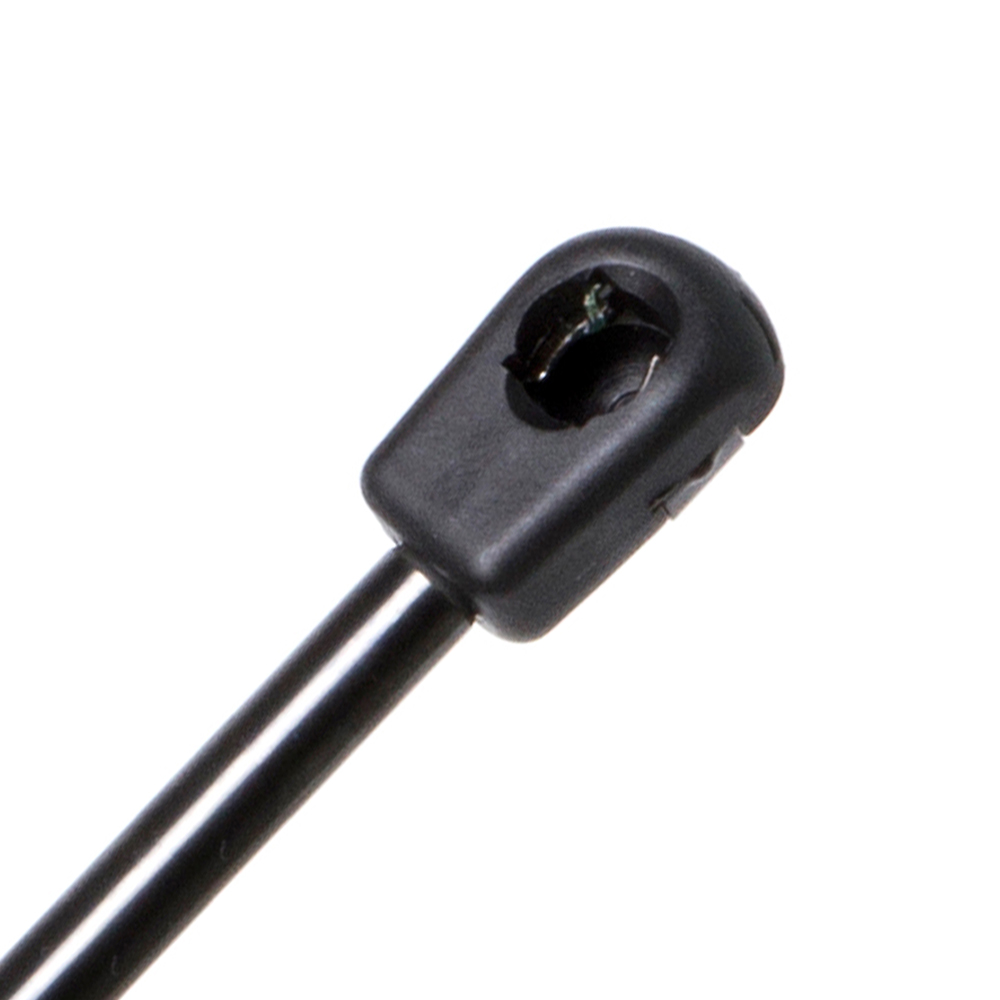

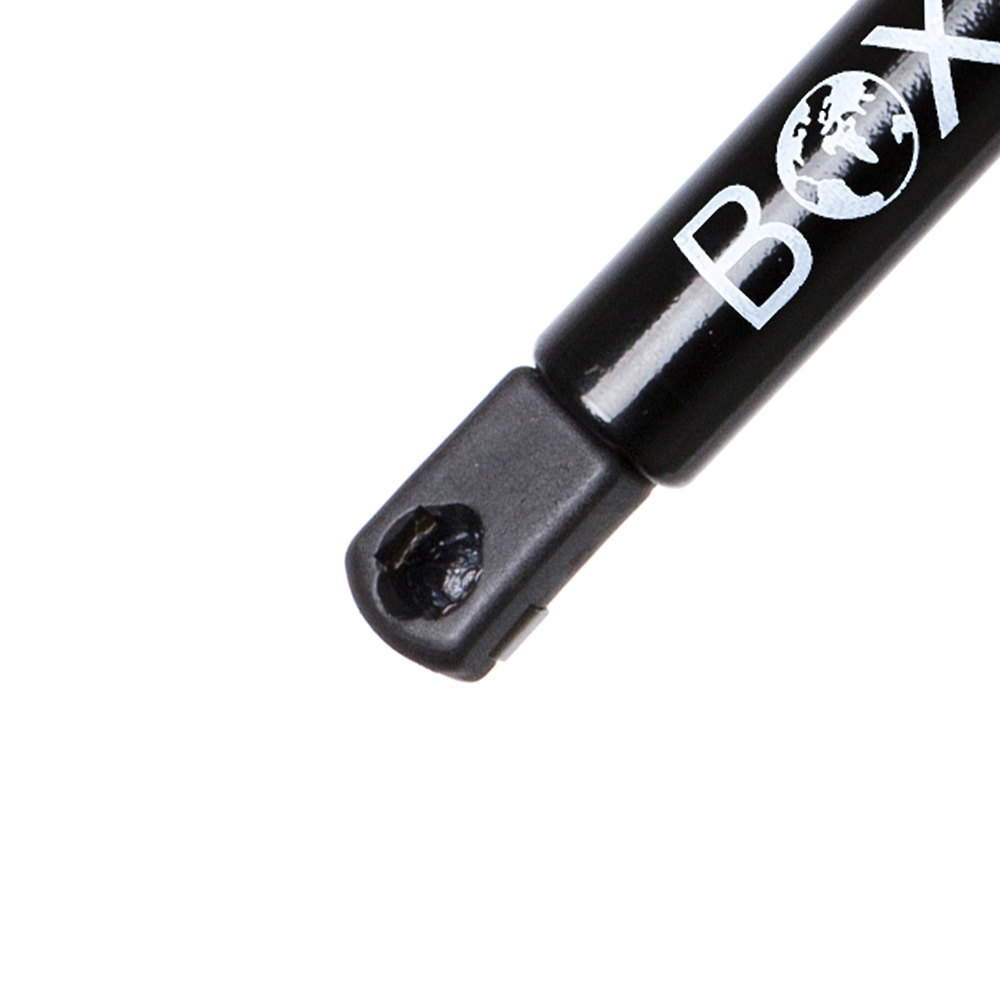

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 4724 743AE, TFS613062, SG314035, D96286, D6286, 819-6243, 5067 236AB, 5067 236AA, 4724743AE |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 | Chrysler | PT Cruiser | GT | L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged vin G – 4 valve DOHC |
| L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged vin S – 4 valve DOHC | ||||
| Touring | L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged vin 8 – 4 valve DOHC | |||
| L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged vin E – 4 valve DOHC | ||||
| L4 – 2.4L 2429cc 148ci GAS MFI vin B – 4 valve DOHC | ||||
| L4 – 2.4L 2429cc 148ci GAS MFI vin X type EDZ – 4 valve DOHC |
