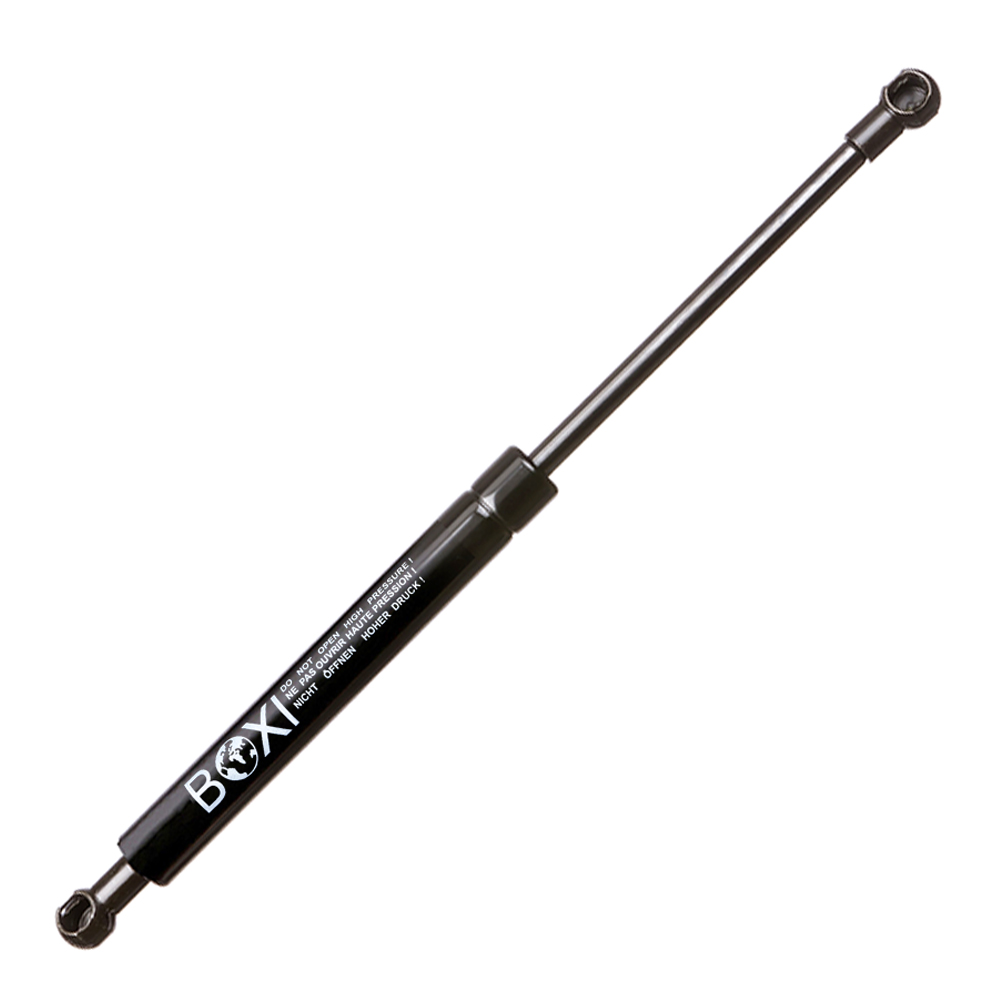

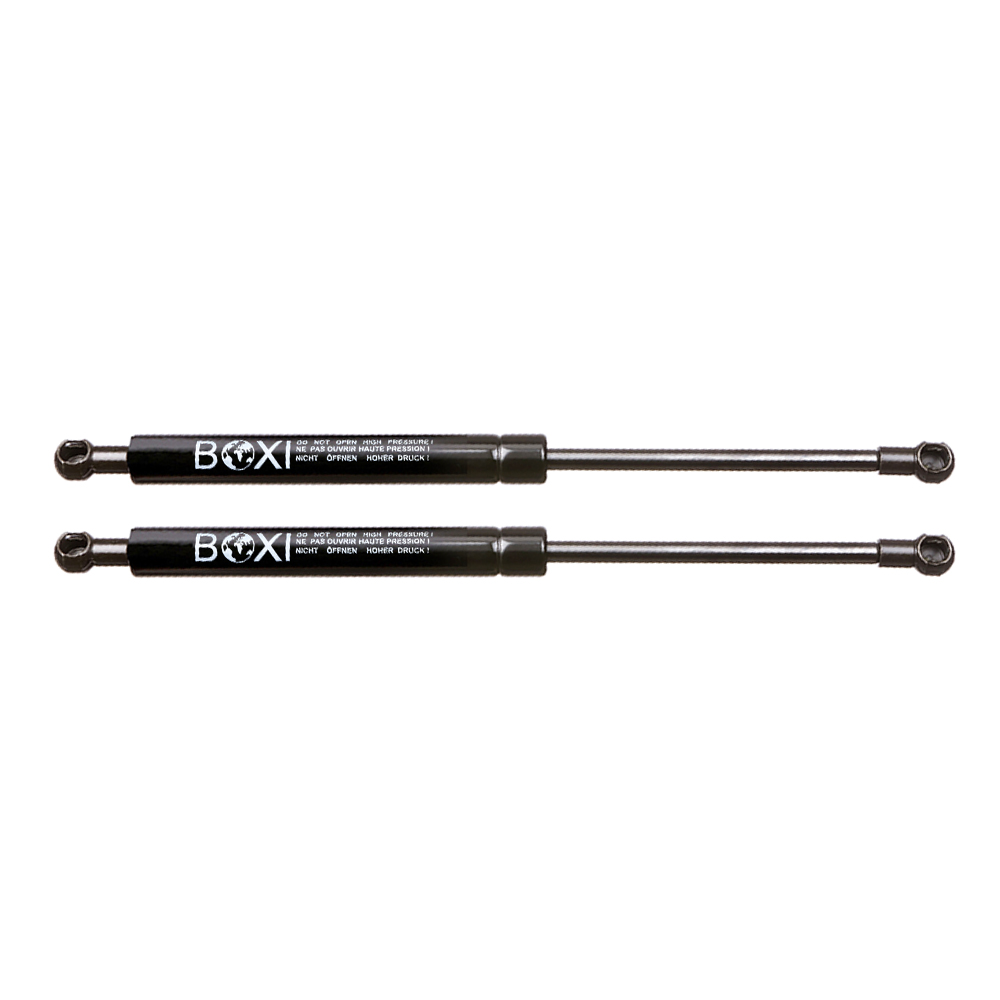

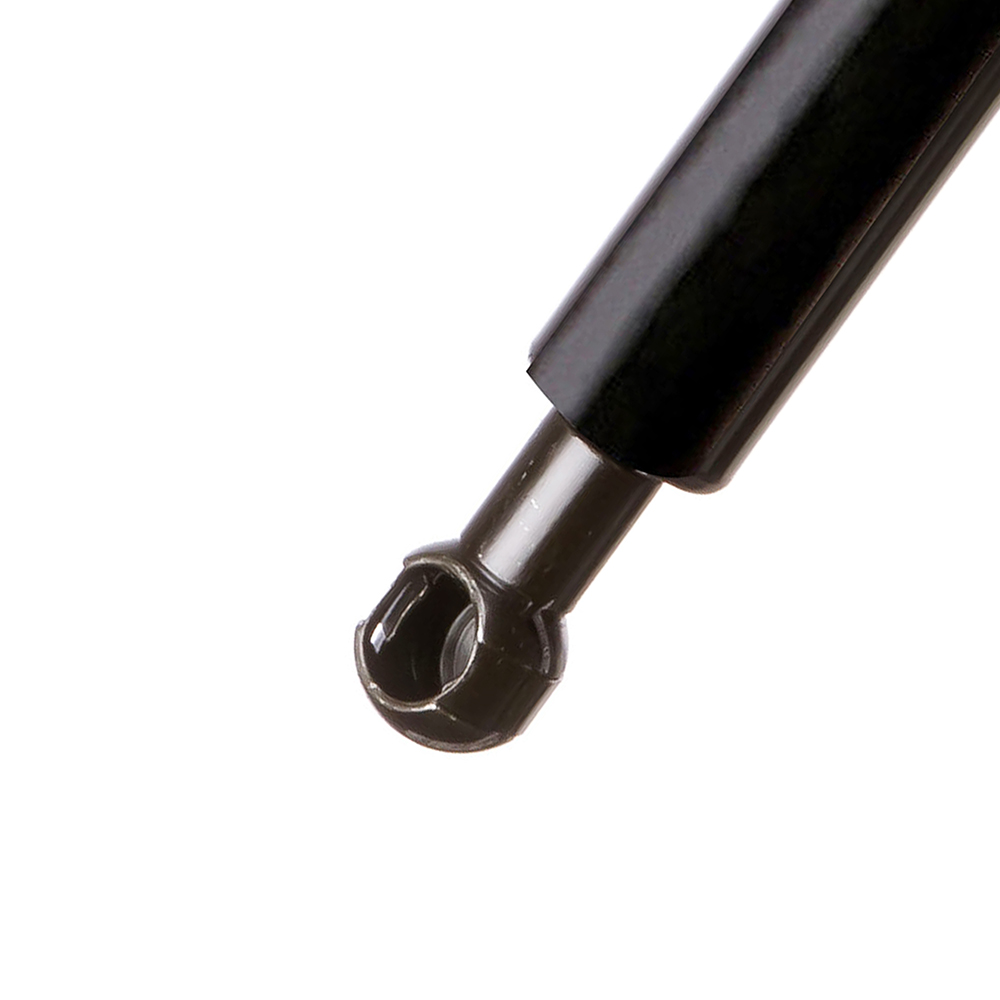

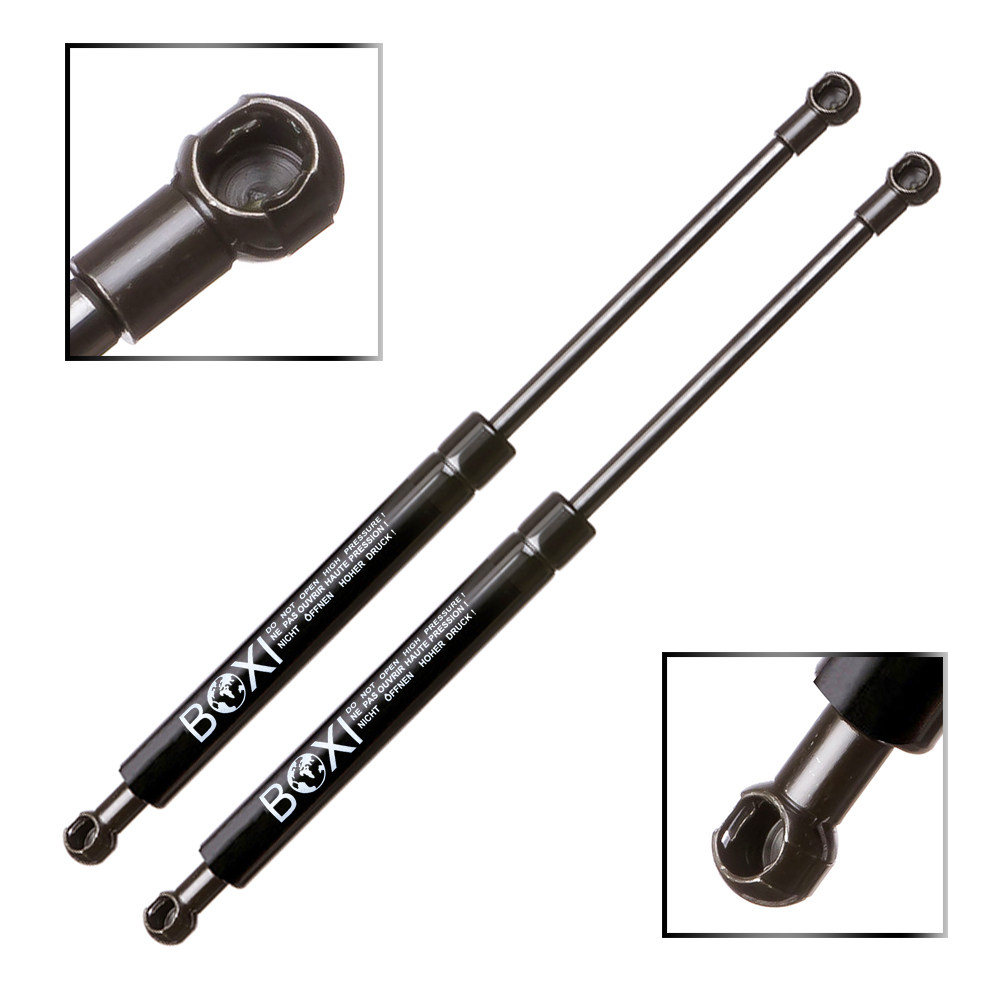

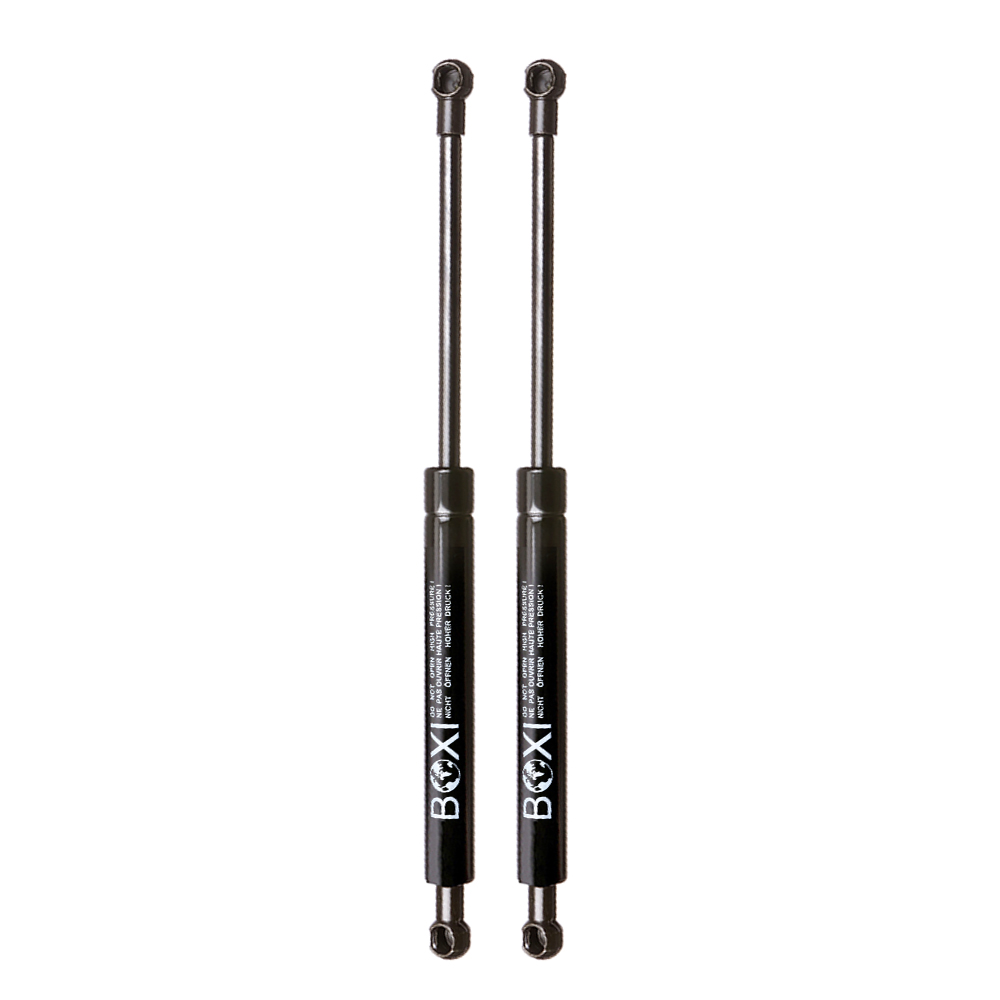

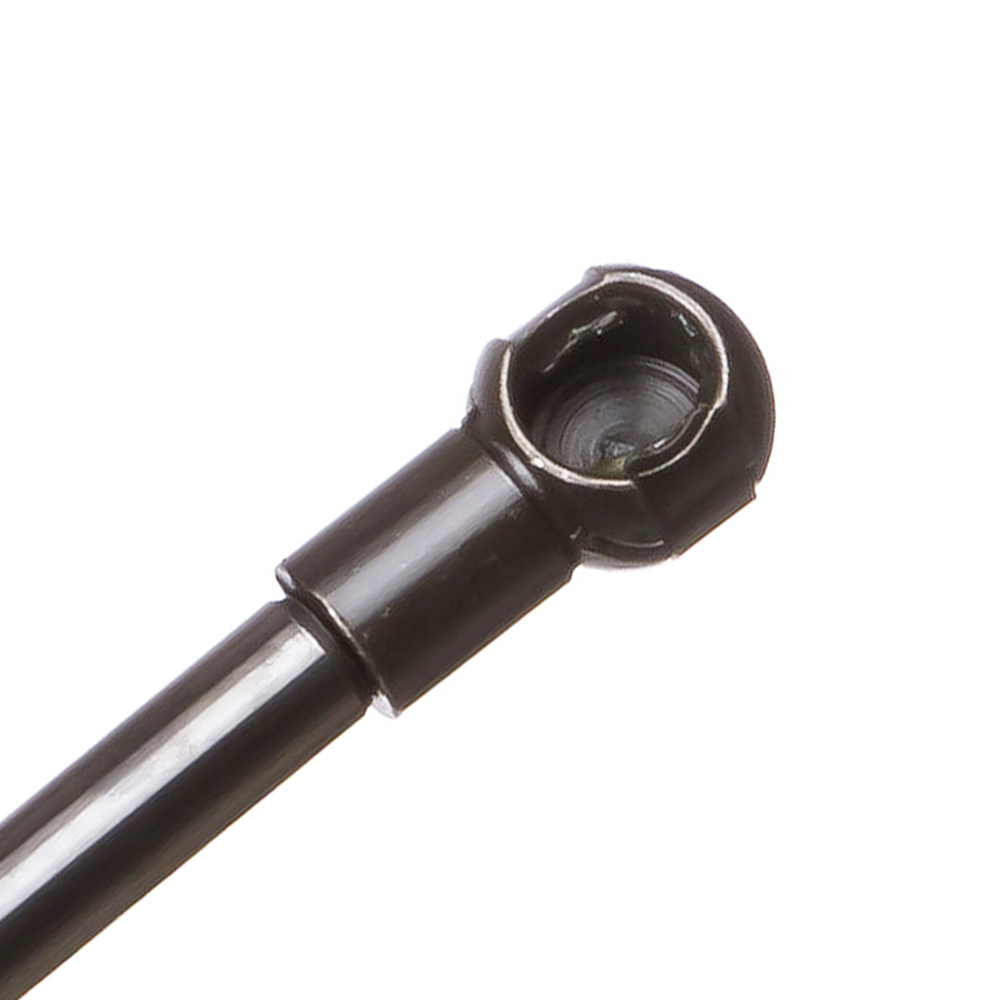

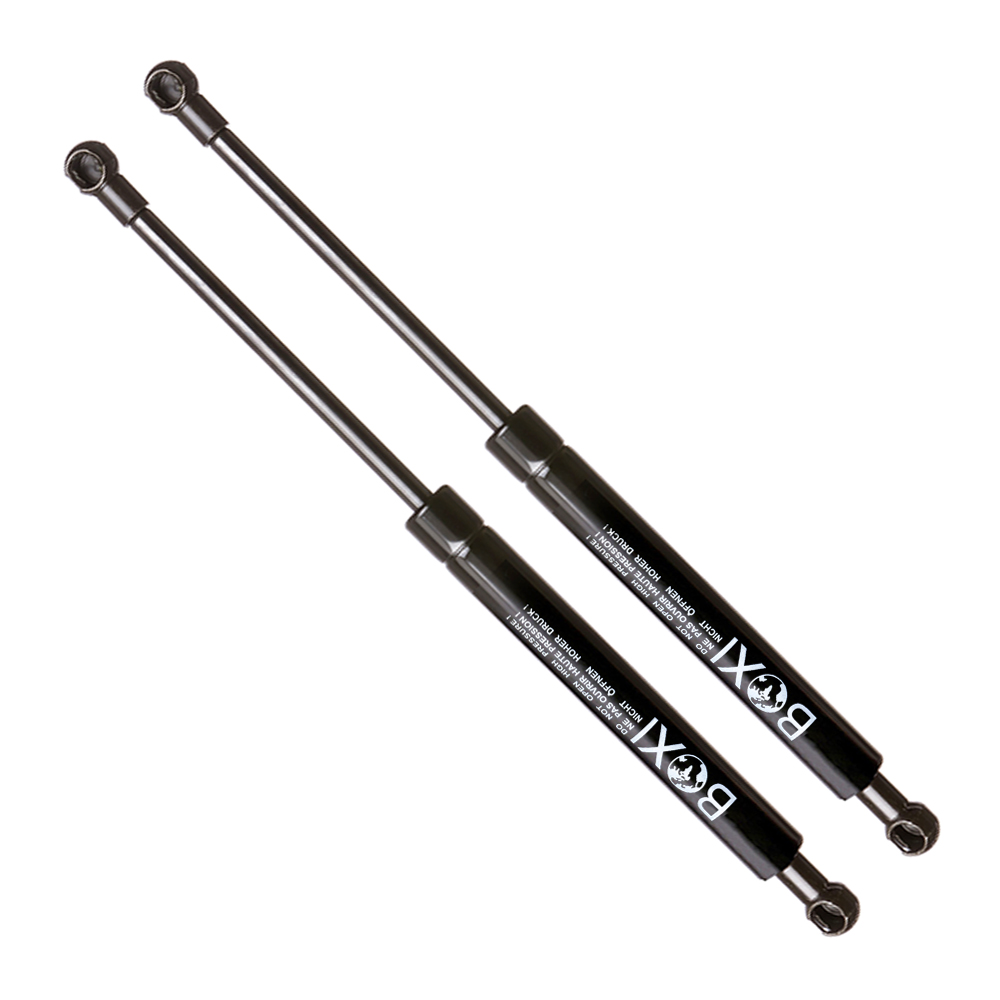

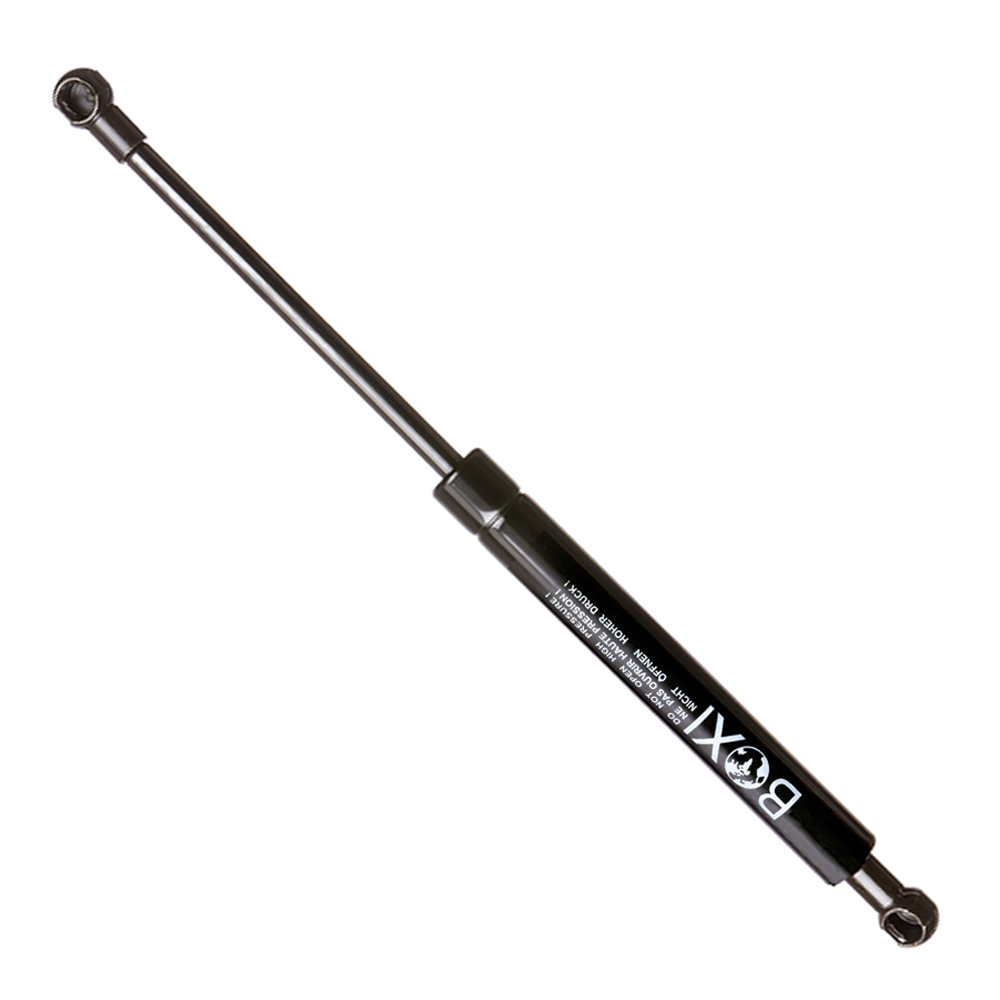

2pcs BOXI Rear Trunk Gas Charged Lift Support Struts Shocks Gas Struts Shocks Gas Springs Support Lift Struts for BMW Z3 1996 1997 1998 1999 2000 2001 2002 Trunk | Replaces SG402033 51248410755 403
BOXI SKU#: BXC300002077-2
$20.99
BOXI gas charged lift support struts for BMW Z3 1996-2002. Replaces OE SG402033, 51248410755, 403. Verify fitment before ordering.
OE / Interchange Part Numbers: 2599MS, 4030, 51248410755, 614416, 8196372, 8795702, SG402033, SG402044
48 in stock
Placement on Vehicle:Rear Trunk
Package Included:2pcs Rear Trunk Lift Supports
Vehicle Location – REAR Trunk – LEFT + RIGHT Side
Extended Length [in] 8.48
Compressed Length [in] 6.46
1996-1997 B-M-W Z3 Base Coupe 2-Door Trunk-E36 Excluding Hatchback
1998-2002 B-M-W Z3 M Roadster Convertible 2-Door Trunk-E36 Excluding Hatchback
1996-2002 B-M-W Z3 Roadster Convertible 2-Door Trunk-E36 Excluding Hatchback
| Weight | 0.95 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 215 |
| Stroke (in): | 2.18 |
| Stroke (mm): | 55 |
| Compressed Length (in) | |
| Compressed Length (mm): | 160 |
| Force (Lbs) | |
| Force (Newtons) | 660 |
| Cylinder Diameter (in): | 0.75 |
| Cylinder Diameter (mm): | 19 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |
| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 51242497679, 51 24 2 497 679, TFS614416, 8194701, 614413, 614416, SG402033, SG402025, F4030, D95702, 901608, 819-4701, 51248410755, 510-152, 51 24 8 399 087, 41628398668, 4030 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2000 – 2002 | BMW | Z3 | M Roadster | L6 – 3.2L 3152cc GAS MFI type S52 – 4 valve DOHC |
| L6 – 3.2L 3246cc GAS MFI type S54 – 4 valve DOHC | ||||
| 1999 – 2002 | BMW | Z3 | Roadster | L6 – 2.5L 2494cc 152ci GAS MFI type M52 – 4 valve DOHC |
| L6 – 2.5L 2494cc 152ci GAS MFI type M54 – 4 valve DOHC | ||||
| L6 – 2.8L 2793cc GAS MFI type M52TU – 4 valve DOHC | ||||
| L6 – 3.0L 2979cc GAS MFI type M54 – 4 valve DOHC |
