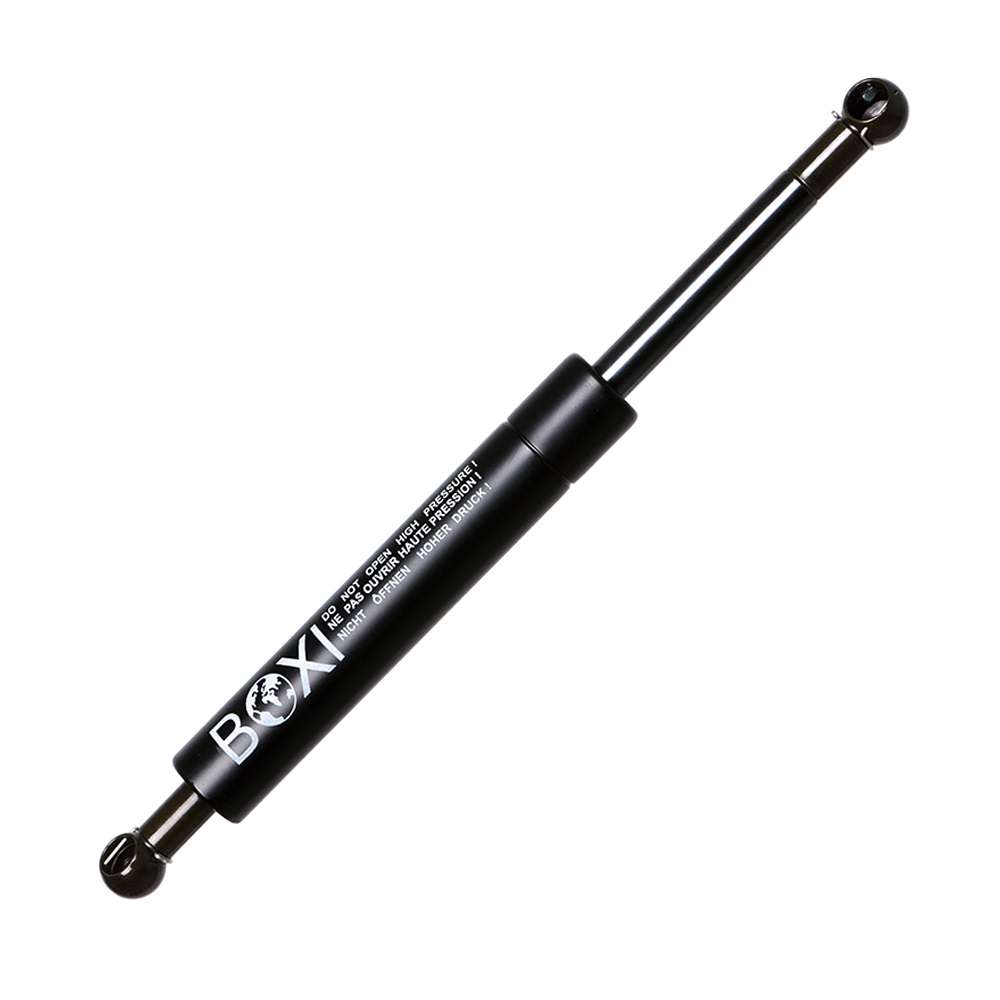

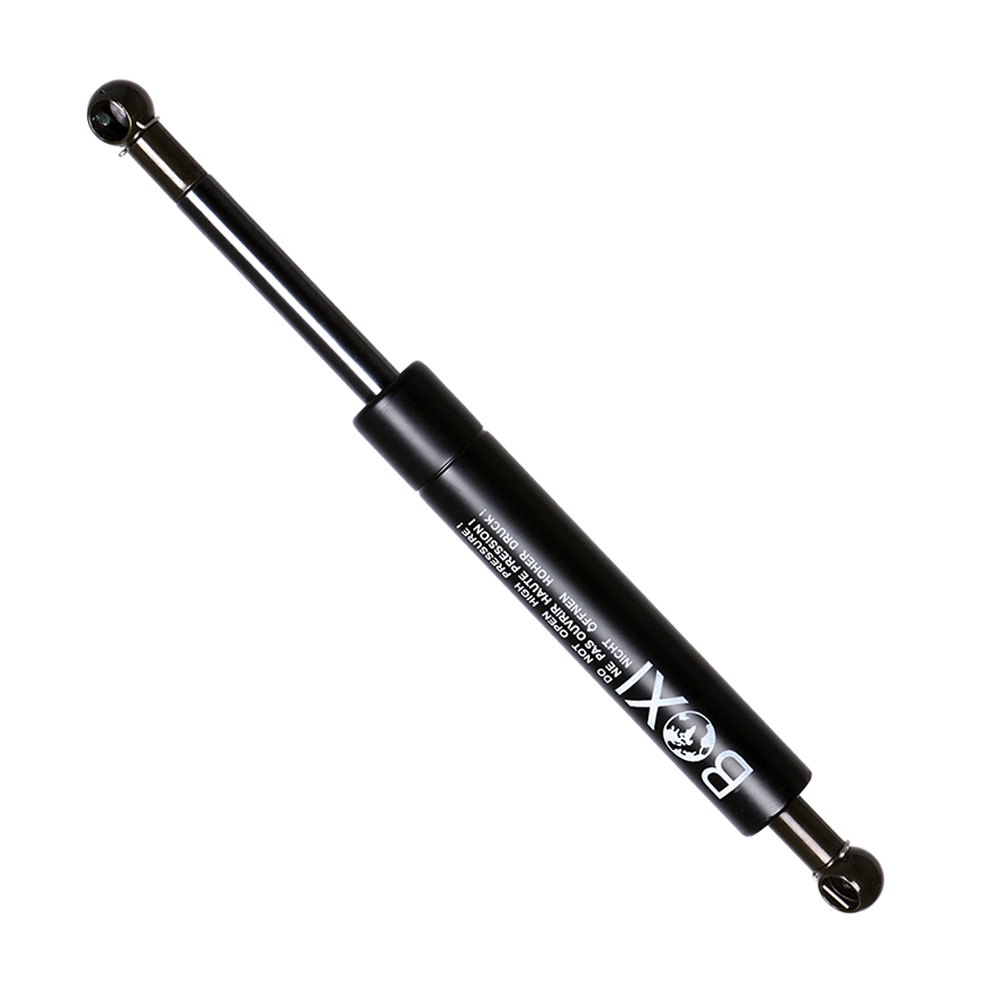

Qty(2) BOXI Liftgate Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Volvo XE60 2010-2017 / Volvo XC60 2008-2017 with Out Power Liftgate | Replaces 6677 31297156

BOXI SKU#: BXC300014065-2

$22.73

BOXI Liftgate Lift Supports Struts for Volvo XC60 (2008-2017) and XE60 (2010-2017) without power liftgate. Replaces OE 6677 and 31297156. Verify fitment before ordering.

OE / Interchange Part Numbers: 30779, 30779343, 96677, C96677

  • 5 Years Warranty

68 in stock

Placement on Vehicle:Liftgate

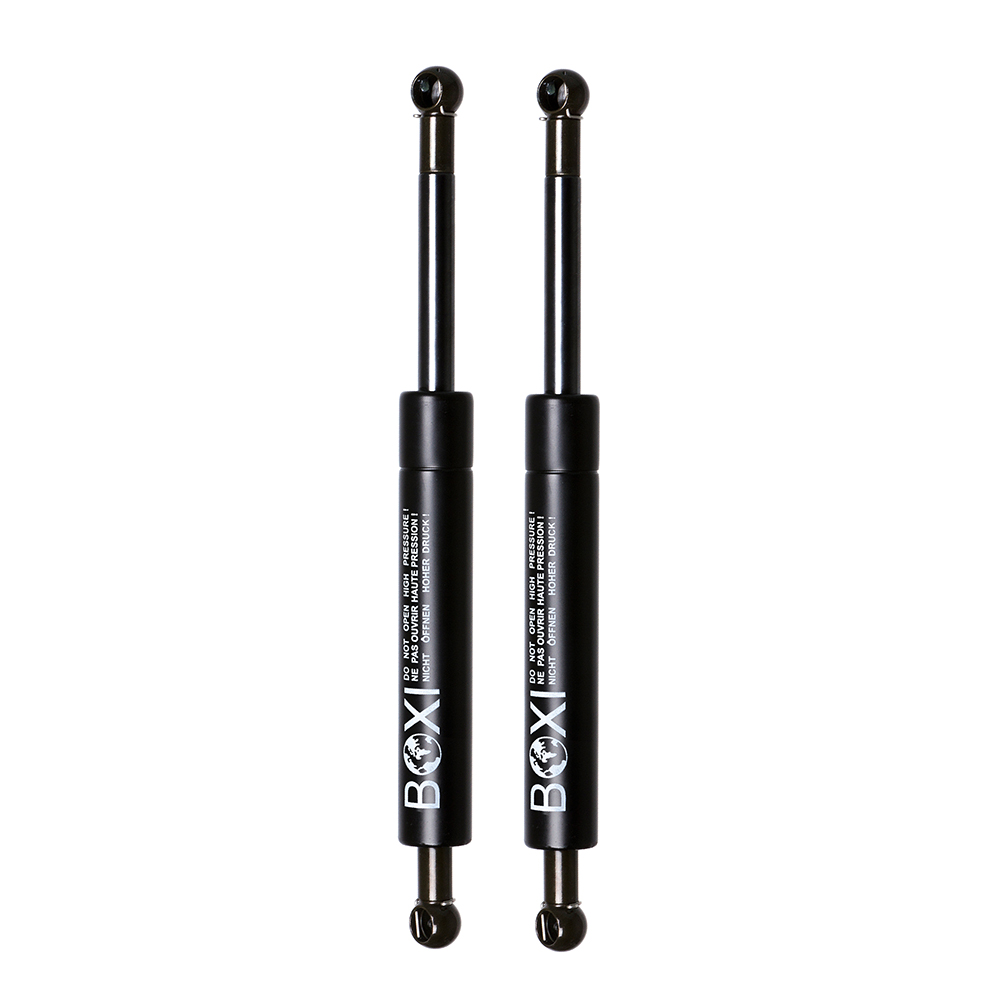

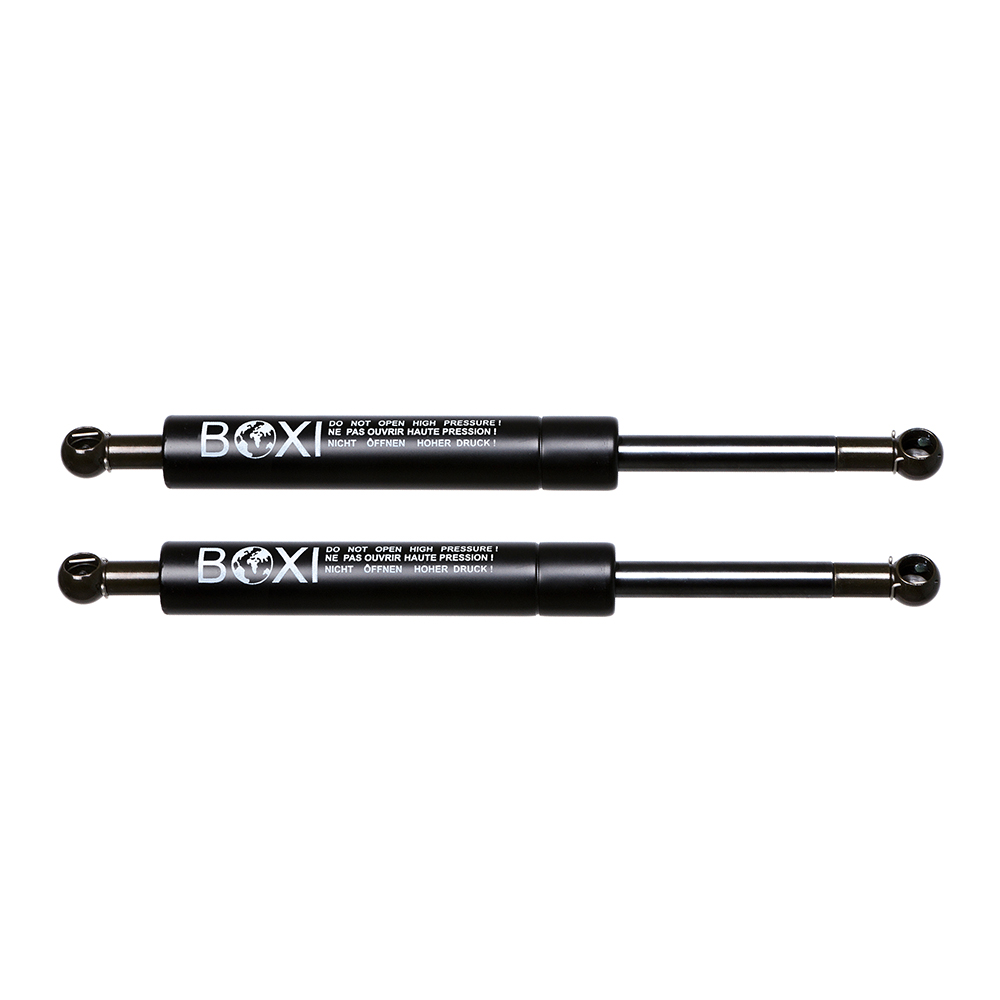

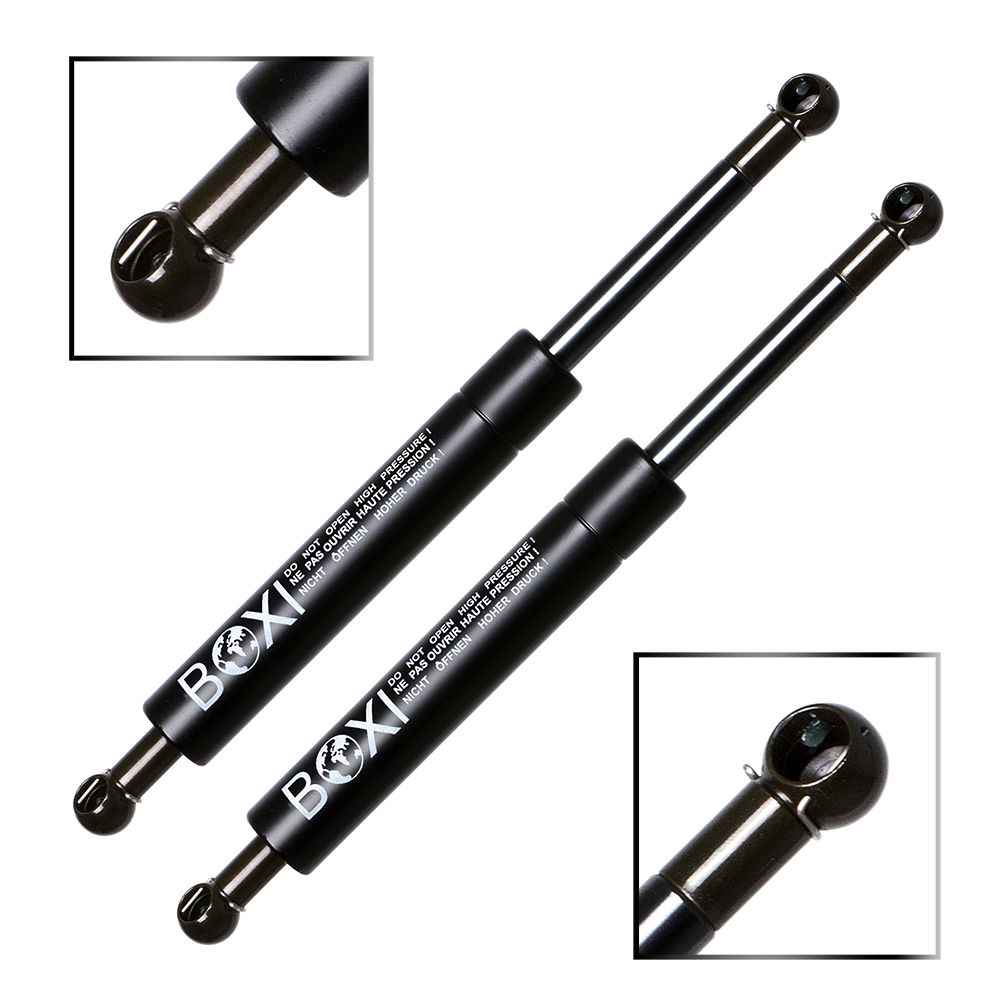

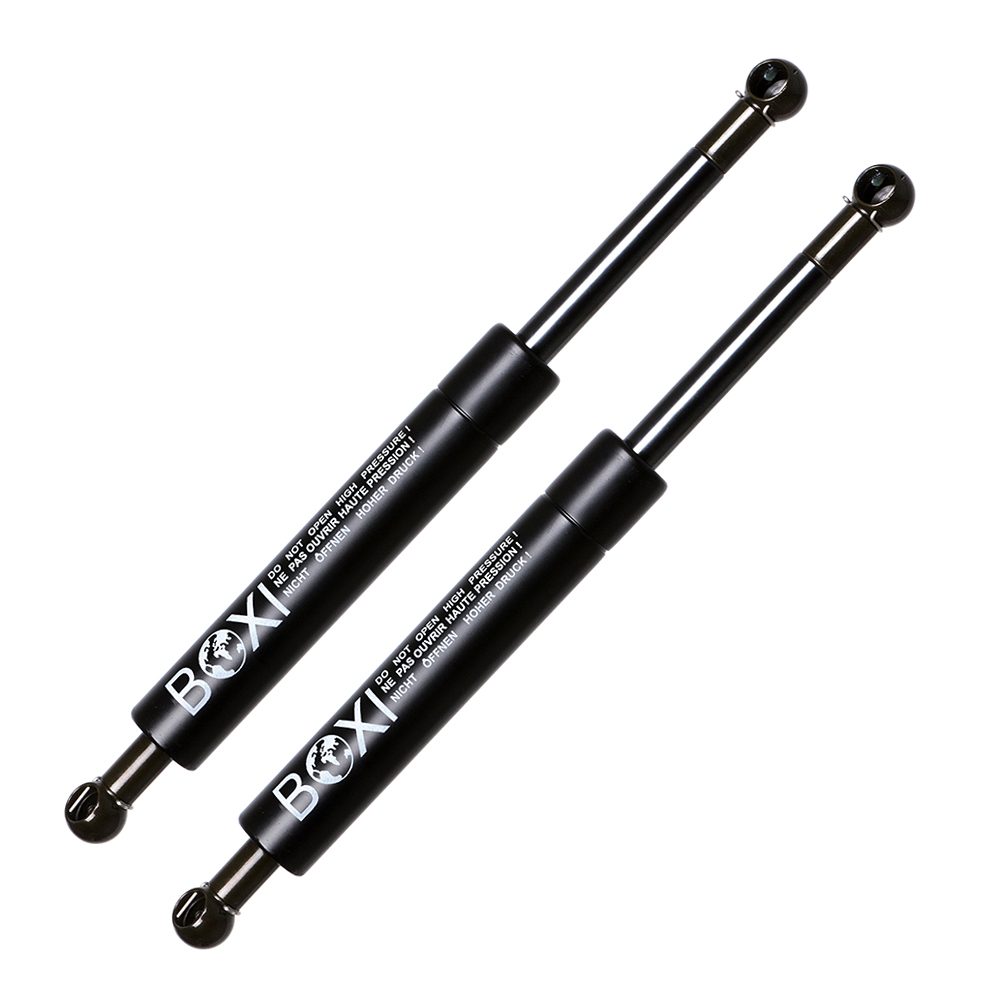

Package Included:2pcs Liftgate Lift Supports

Extended Length [in] 22.18
Compressed Length [in] 16.18

Fits the following Volvo XC60 Years:
2008-2017 | 3.2 R-Design Sport Utility | With Out Power Liftgate
2008-2017 | 3.2 Sport Utility | With Out Power Liftgate
2010-2017 | Addition Plus Sport Utility | With Out Power Liftgate
2010-2017 | Addition Sport Utility | With Out Power Liftgate
2008-2017 | Base Sport Utility | With Out Power Liftgate
2010 | Basic Sport Utility | With Out Power Liftgate
2010-2017 | Evolution Sport Utility | With Out Power Liftgate
2010-2017 | Inspiration Sport Utility | With Out Power Liftgate
2013-2014 | Kinetic Sport Utility | With Out Power Liftgate
2010-2017 | Momentum RD Sport Utility | With Out Power Liftgate
2010-2017 | Ocean Race Sport Utility | With Out Power Liftgate
2010-2017 | R-Design Sport Utility | With Out Power Liftgate
2010-2017 | T5 Addition Sport Utility | With Out Power Liftgate
2010-2017 | T5 Dynamic Sport Utility | With Out Power Liftgate
2010-2017 | T5 Inscription Sport Utility | With Out Power Liftgate
2010-2017 | T5 Platinum Sport Utility | With Out Power Liftgate
2010-2017 | T5 Premier Sport Utility | With Out Power Liftgate
2010-2017 | T5 R-Design Sport Utility | With Out Power Liftgate
2010-2017 | T5 Special Edition Sport Utility | With Out Power Liftgate
2010-2017 | T5 Sport Utility | With Out Power Liftgate
2010-2017 | T6 Dynamic Sport Utility | With Out Power Liftgate
2010-2017 | T6 Inscription Sport Utility | With Out Power Liftgate
2008-2017 | T6 R-Design Sport Utility | With Out Power Liftgate
2008-2017 | T6 Sport Utility | With Out Power Liftgate

Fits the following Volvo XE60 Years:
2010-2017 | Base Sport Utility | With Out Power Liftgate

Weight 1.95 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

563
Stroke (in):

6.9
Stroke (mm):

175
Compressed Length (in)

Compressed Length (mm):

388
Force (Lbs)

Force (Newtons)

632
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

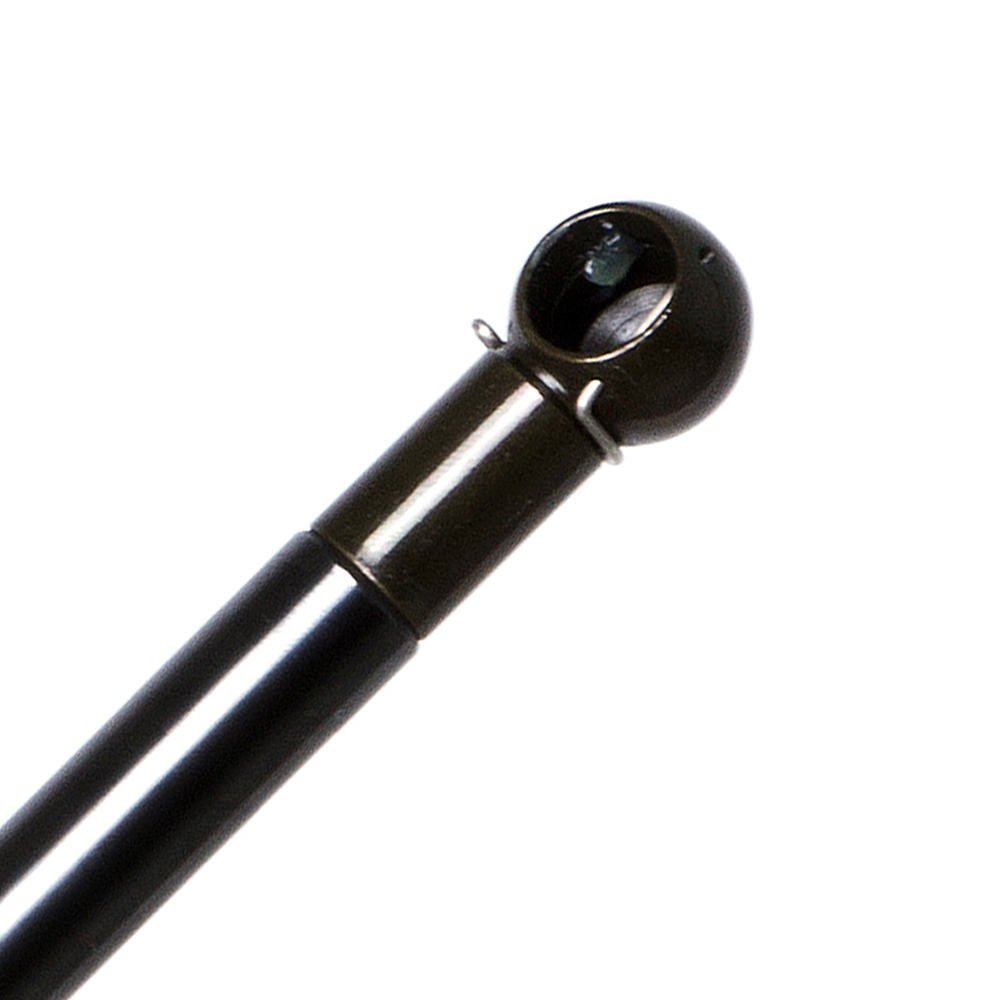

Body Connection:

Ball Socket

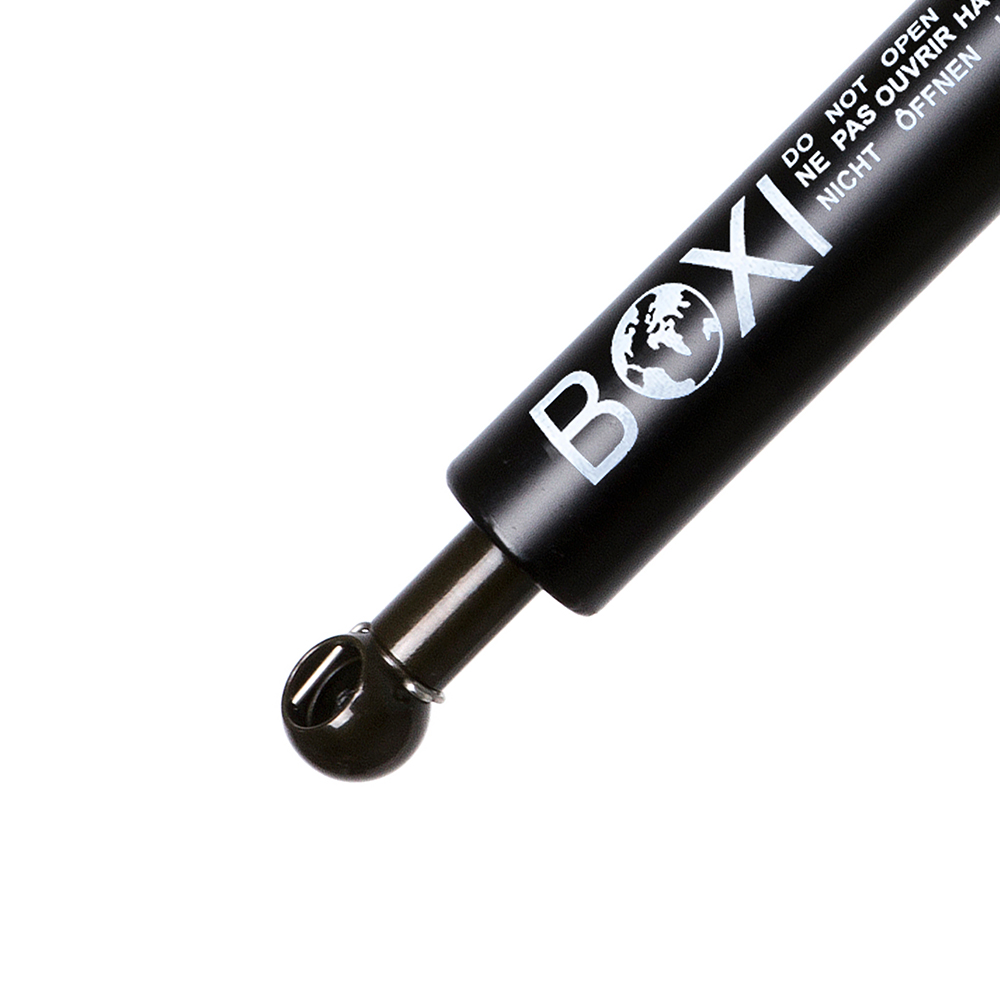

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

31297156-0, 31335392-0, AE9Z74406A10A, AE9Z74406A11A, 6677, 819-8185, C96677, C6677
YearMakeModelSubmodelEngine
2010 – 2012VolvoXC603.2L6 – 3.2L 3192cc GAS MFI vin 94 type B6324S4 – 4 valve DOHC
L6 – 3.2L 3192cc GAS MFI vin 95 type B6324S5 – 4 valve DOHC
L6 – 3.2L 3192cc GAS MFI vin 96 type B6324S2 – 4 valve DOHC
L6 – 3.2L 3192cc GAS MFI vin 98 type B6324S – 4 valve DOHC
BaseL6 – 3.0L 2953cc 180ci GAS DI Turbocharged – 4 valve DOHC
L6 – 3.0L 2953cc 180ci GAS MPI Turbocharged type 99 – 4 valve DOHC
L6 – 3.0L 2953cc GAS MFI Turbocharged type B6304T2 – 4 valve DOHC
L6 – 3.2L 3192cc GAS MFI vin 98 type B6324S – 4 valve DOHC
T6
T6 R-Design		L6 – 3.0L 2953cc GAS MFI Turbocharged type B6304T2 – 4 valve DOHC
L6 – 3.0L 2953cc GAS MFI Turbocharged vin 90 type B6304T4 – 4 valve DOHC
2011VolvoXC603.2 R-DesignL6 – 3.2L 3192cc GAS MFI vin 94 type B6324S4 – 4 valve DOHC
L6 – 3.2L 3192cc GAS MFI vin 95 type B6324S5 – 4 valve DOHC
InspirationL6 – 3.0L 2953cc 180ci GAS MPI Turbocharged type 99 – 4 valve DOHC
KineticL6 – 3.2L 3192cc GAS MFI vin 94 type B6324S4 – 4 valve DOHC
T6 AdditionL6 – 3.0L 2953cc GAS MFI Turbocharged vin 90 type B6304T4 – 4 valve DOHC
2012VolvoXC60Addition
Evolution		L4 – 2.0L 1999cc 122ci GAS DI Turbocharged – 4 valve DOHC
2010VolvoXC60BasicL6 – 3.2L 3192cc GAS MFI vin 98 type B6324S – 4 valve DOHC
