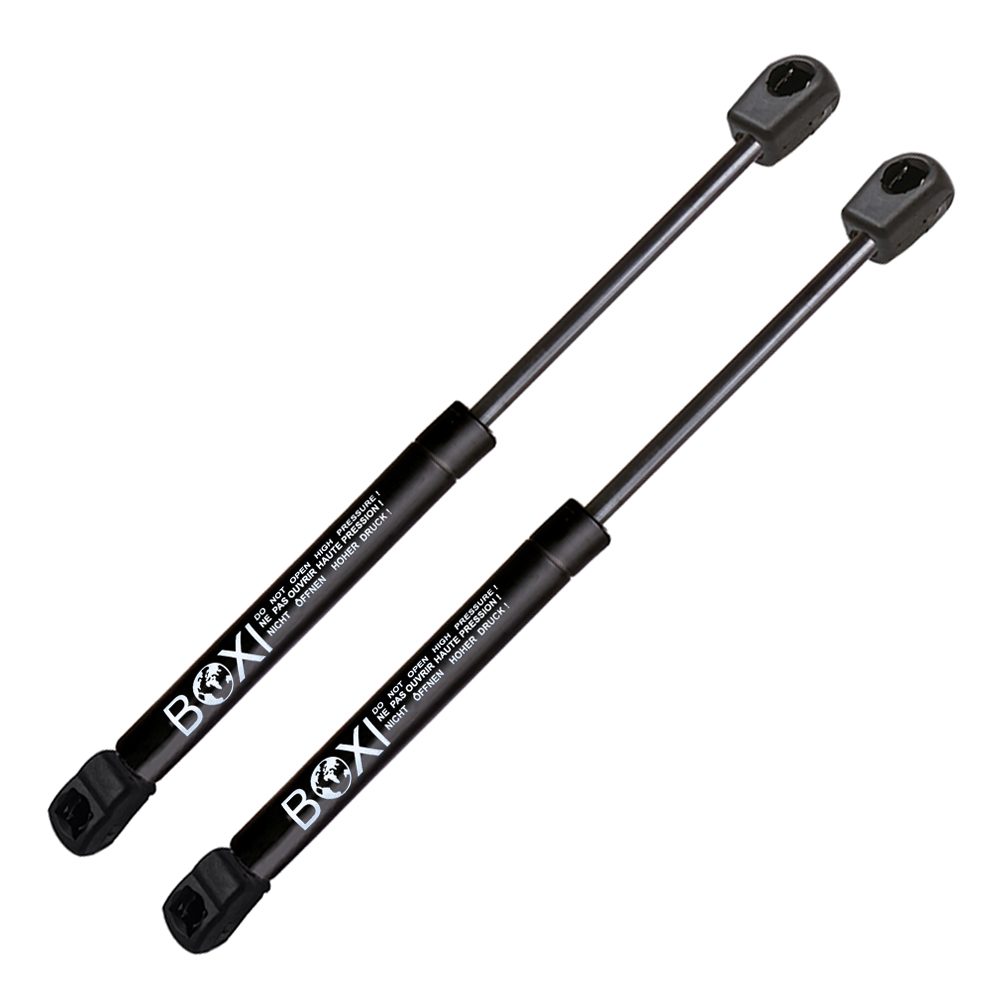

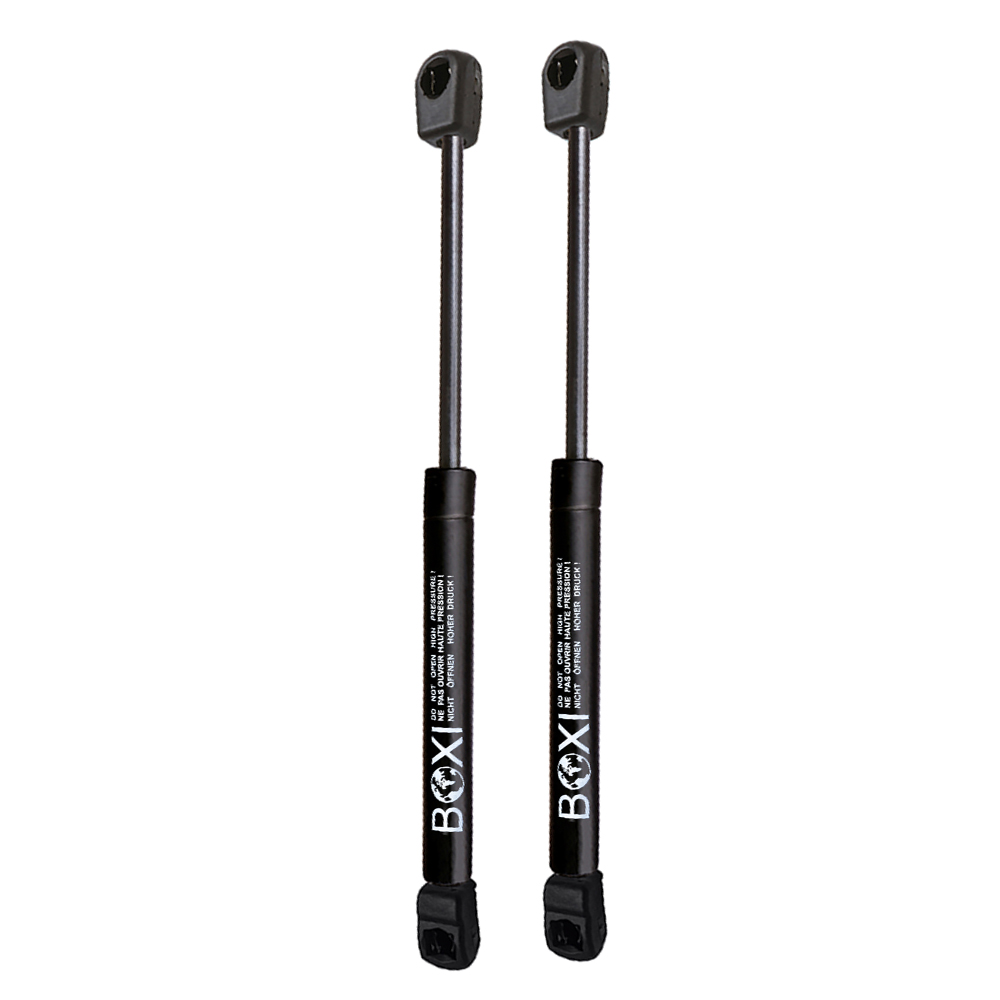

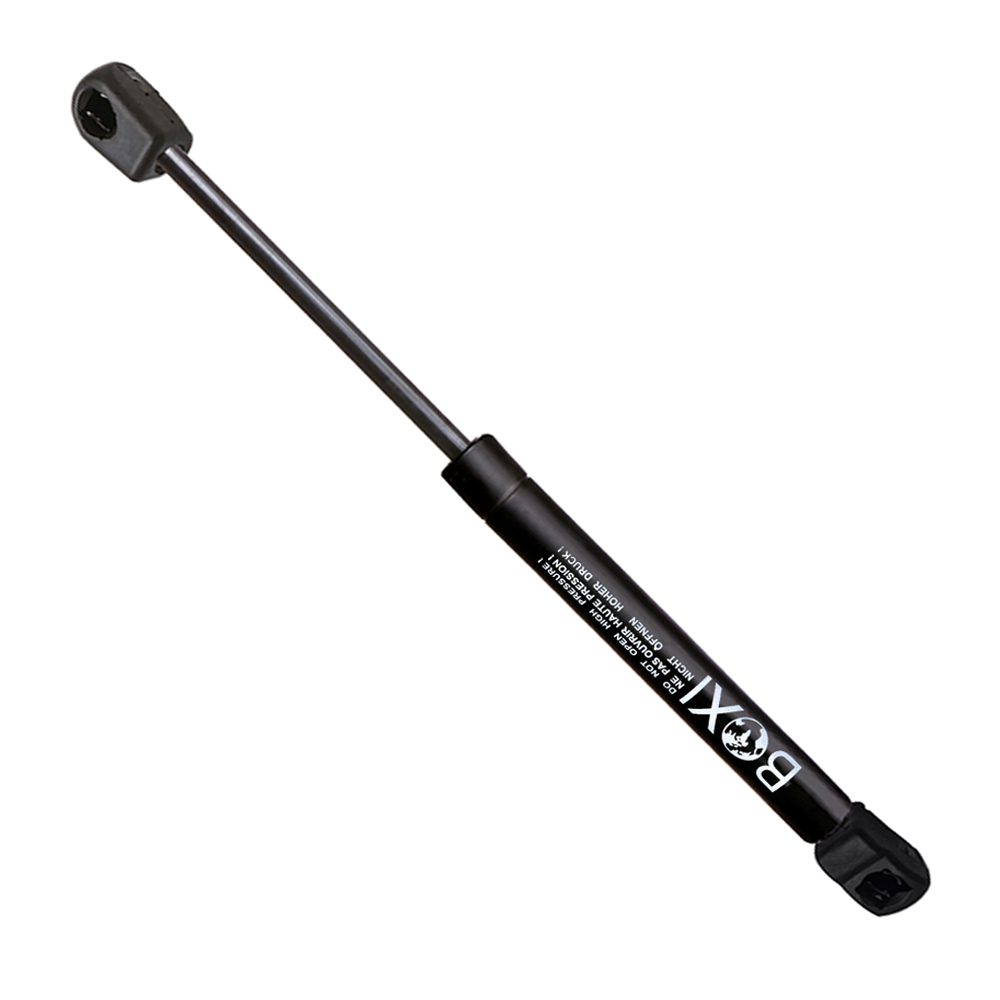

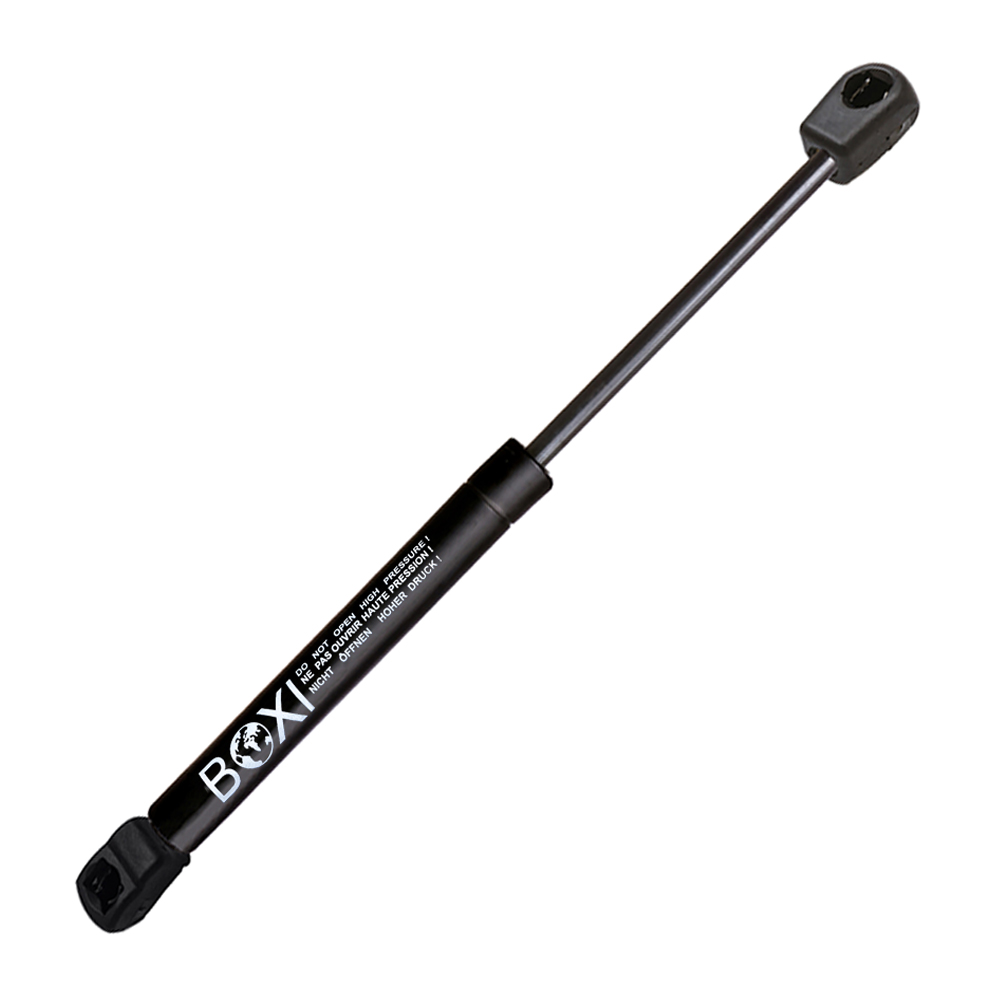

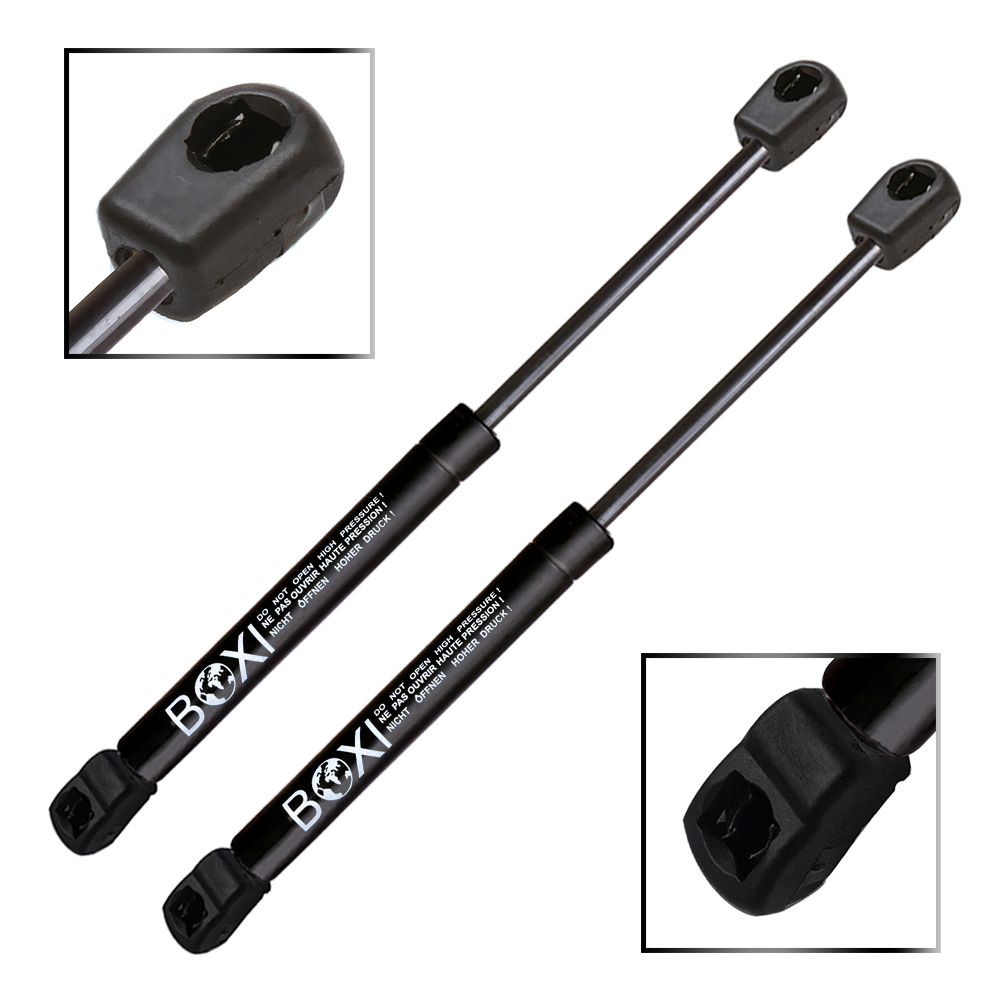

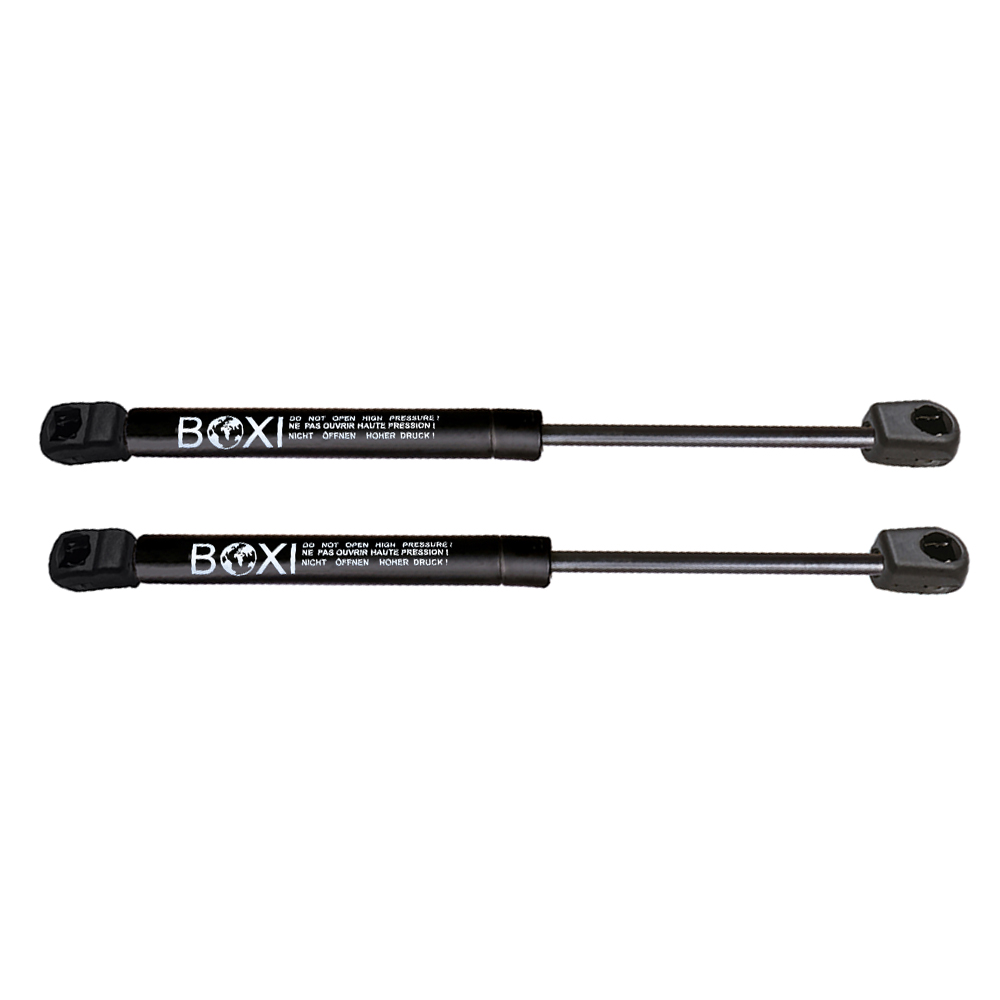

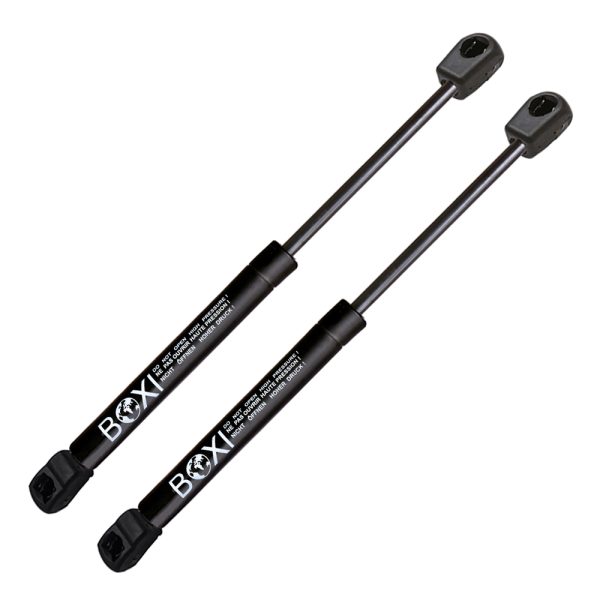

BOXI Qty(2) Liftgate Lift Supports Gas Shocks Springs Struts Fits for Volkswagen Routan 2009-2014 W/O Power Liftgate / PM3272 05109824AC 4589655AD

BOXI SKU#: BXC300009208-2

$28.49

BOXI Liftgate Lift Supports for 2009-2014 VW Routan models without power liftgate. Interchangeable OEM numbers include PM3272 and 05109824AC. Verify fitment before ordering.

  • 5 Years Warranty

22 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fits the following vehicles:
Fits for Volkswagen Routan:
2009-2014 Base Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Comfortline Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Exclusive Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Execline Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Highline Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Prestige Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 S Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 SE Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 SEL Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 SEL Premium Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate
2009-2014 Trendline Mini Passenger Van 4-Door Liftgate – W/O Power Liftgate

Interchangable OEM Numbers: 05109824AC, 05109825AC, 414431, 4589654AC, 4589655AD, 474211, 68089034AB, 7B0 827 551, 7B0 827 551 A, 7B0 827 551 C, 7B0 827 552, 7B0827551, 7B0827551A, 7B0827551C, 7B0827552, PM3272
Extended Length [Inches]: 25.98”
Compressed Length [Inches]: 18.43”
Package including:
2pcs Liftgate Lift Supports

Weight 0.88 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

660
Stroke (in):

8.07
Stroke (mm):

205
Compressed Length (in)

Compressed Length (mm):

455
Force (Lbs)

Force (Newtons)

818
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

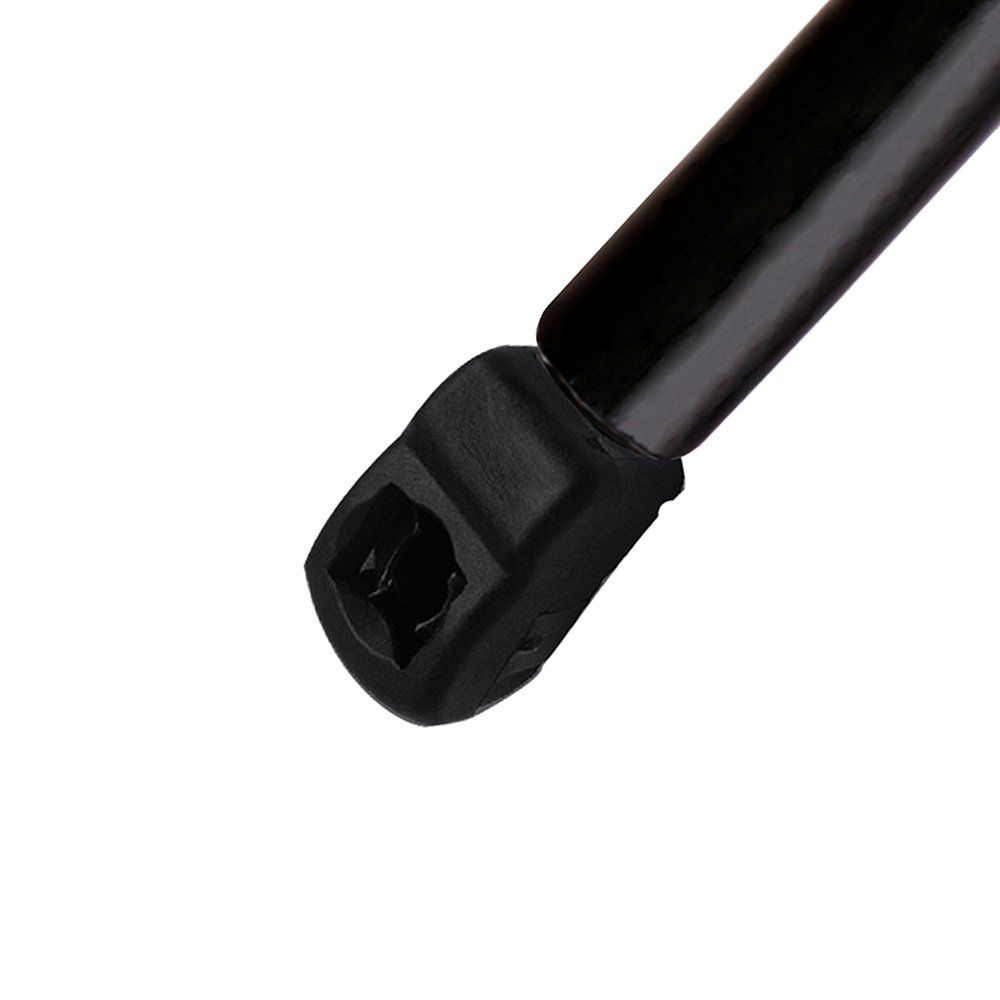

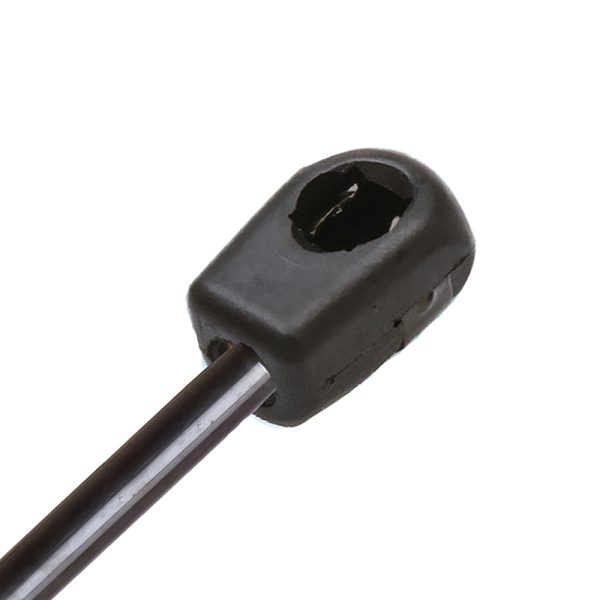

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

05109824AC, 05109825AC, 414431, 4589654AC, 4589655AD, 474211, 68089034AB, 7B0 827 551, 7B0 827 551 A, 7B0 827 551 C, 7B0 827 552, 7B0827551, 7B0827551A, 7B0827551C, 7B0827552, PM3272
YearMakeModelSubmodelEngine
2009 – 2014VolkswagenRoutanComfortline
Trendline		V6 – 3.6L 3604cc 220ci GAS MFI vin G type CJRA – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type CGUA – 2 valve OHV
HighlineV6 – 3.6L 3604cc 220ci GAS MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
S
SE		V6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type CGUA – 2 valve OHV
2009 – 2012VolkswagenRoutanExclusive
PRESTIGE		V6 – 3.6L 3604cc 220ci GAS MFI vin G type CJRA – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type CGUA – 2 valve OHV
SELV6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
2009 – 2010VolkswagenRoutanExeclineV6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
2010 – 2014VolkswagenRoutanSEL PremiumV6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
