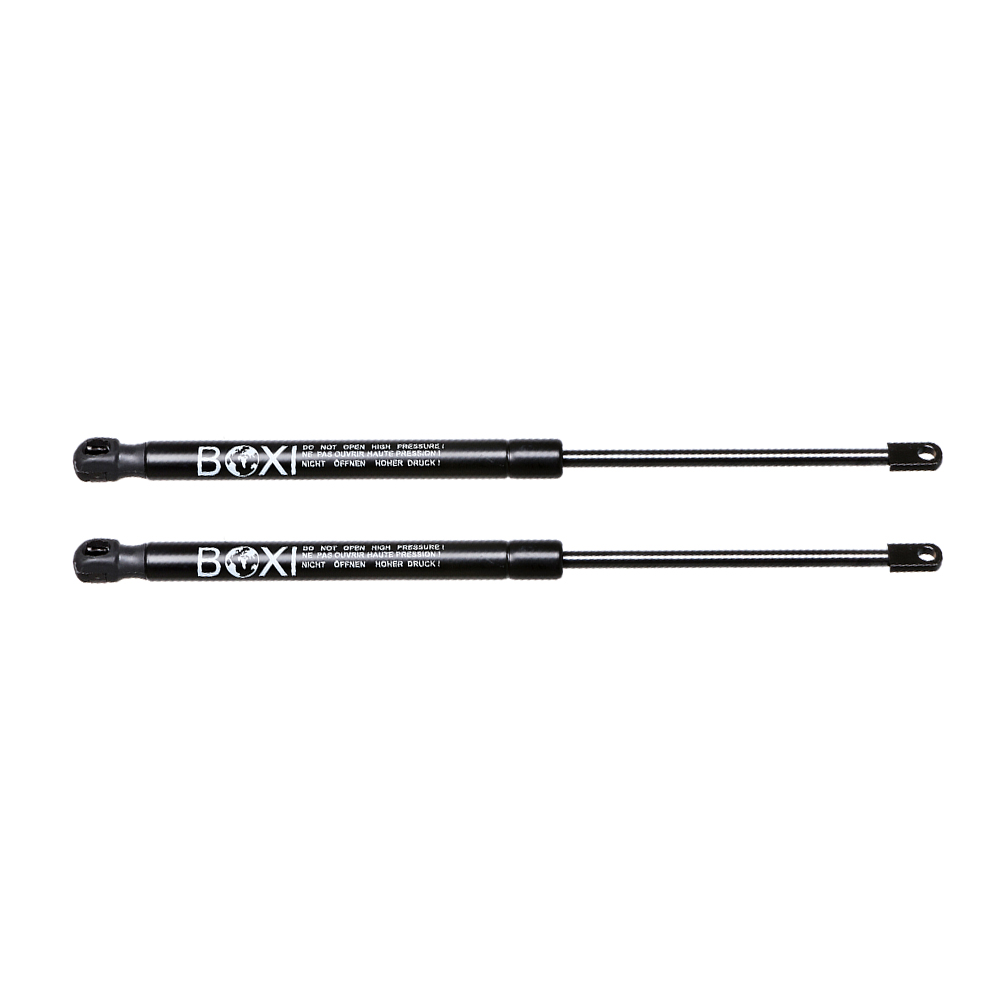

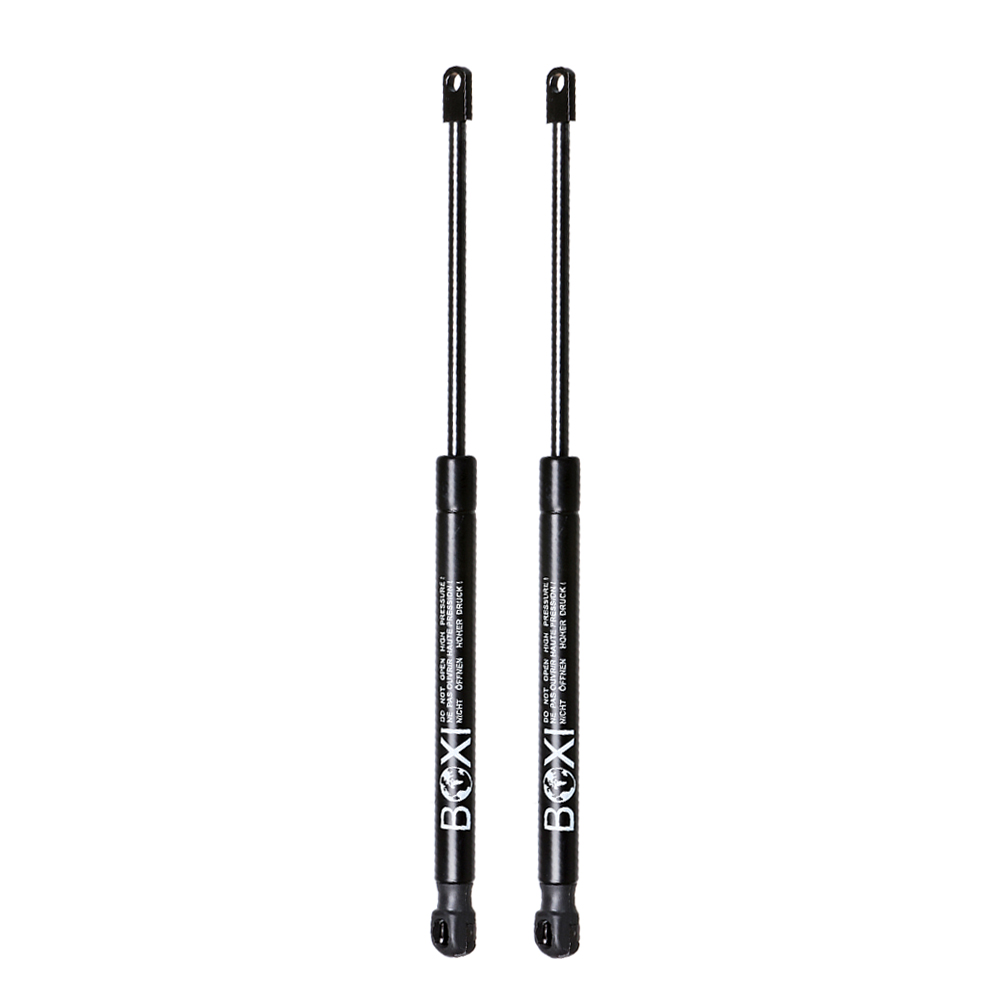

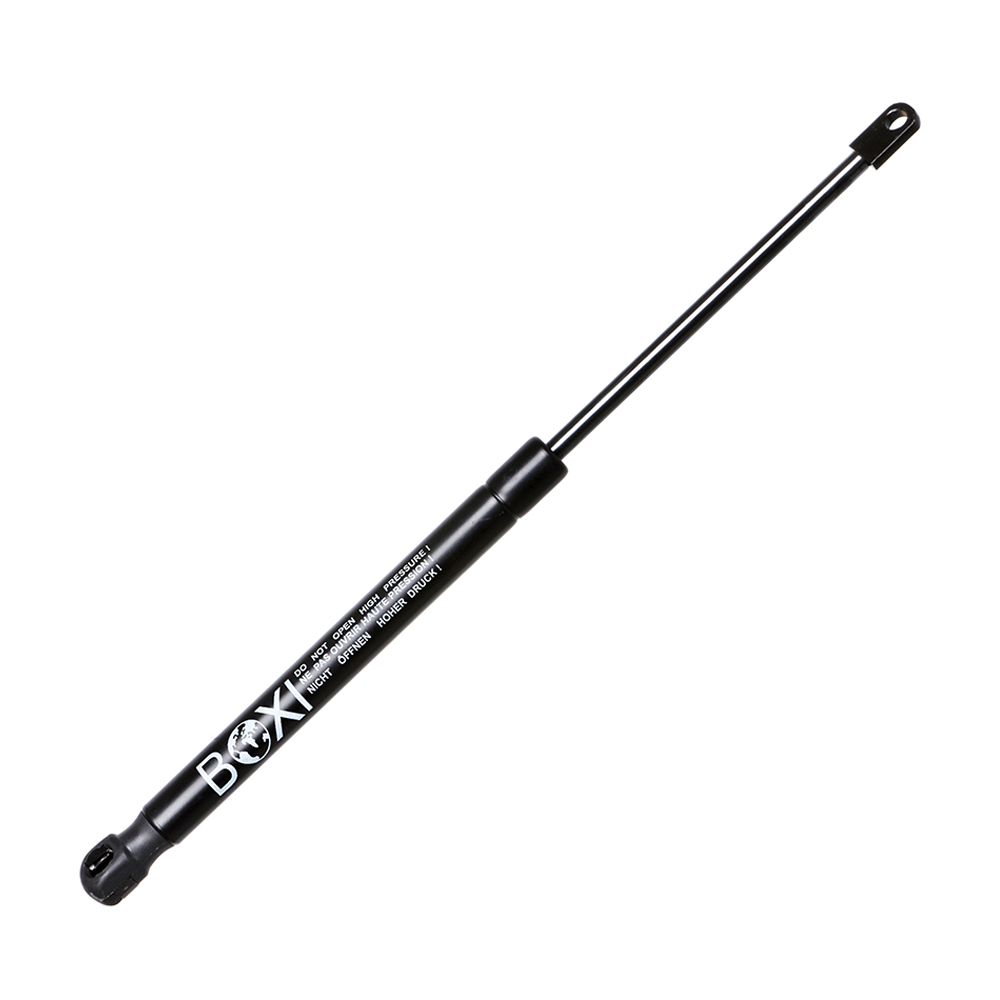

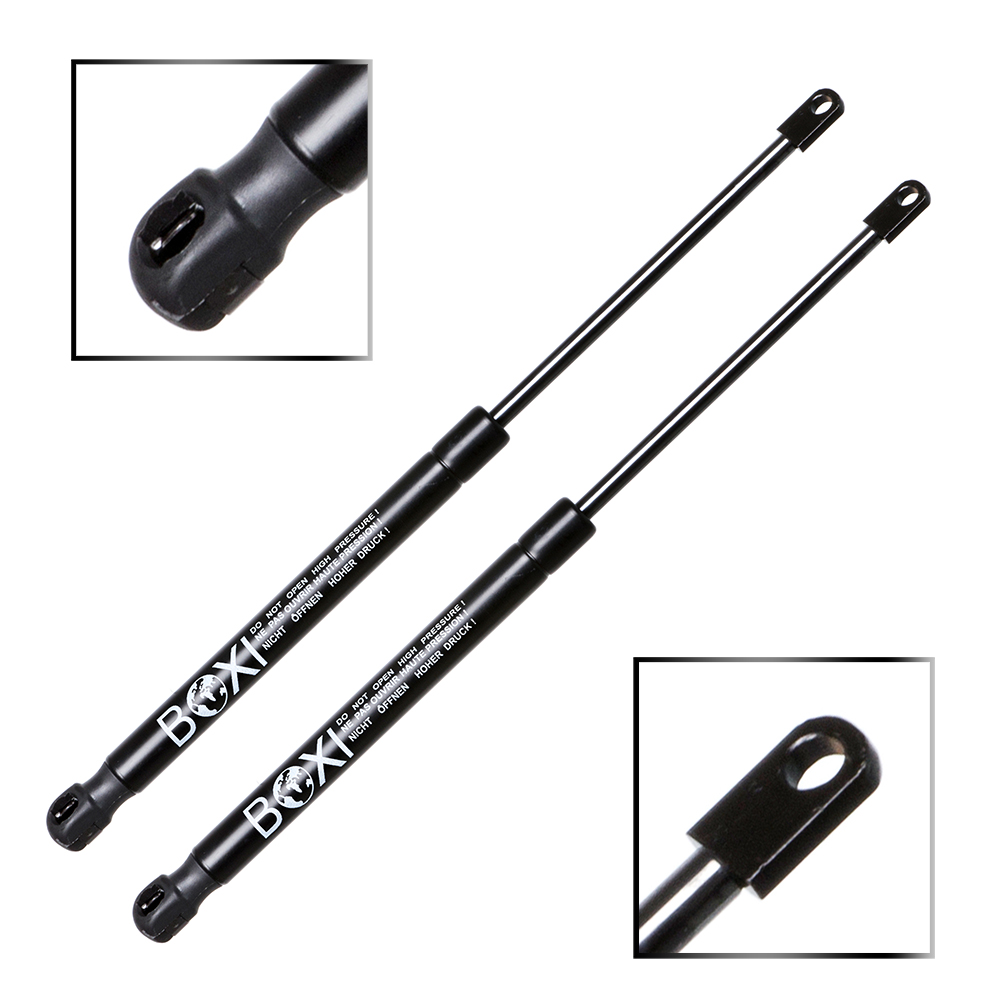

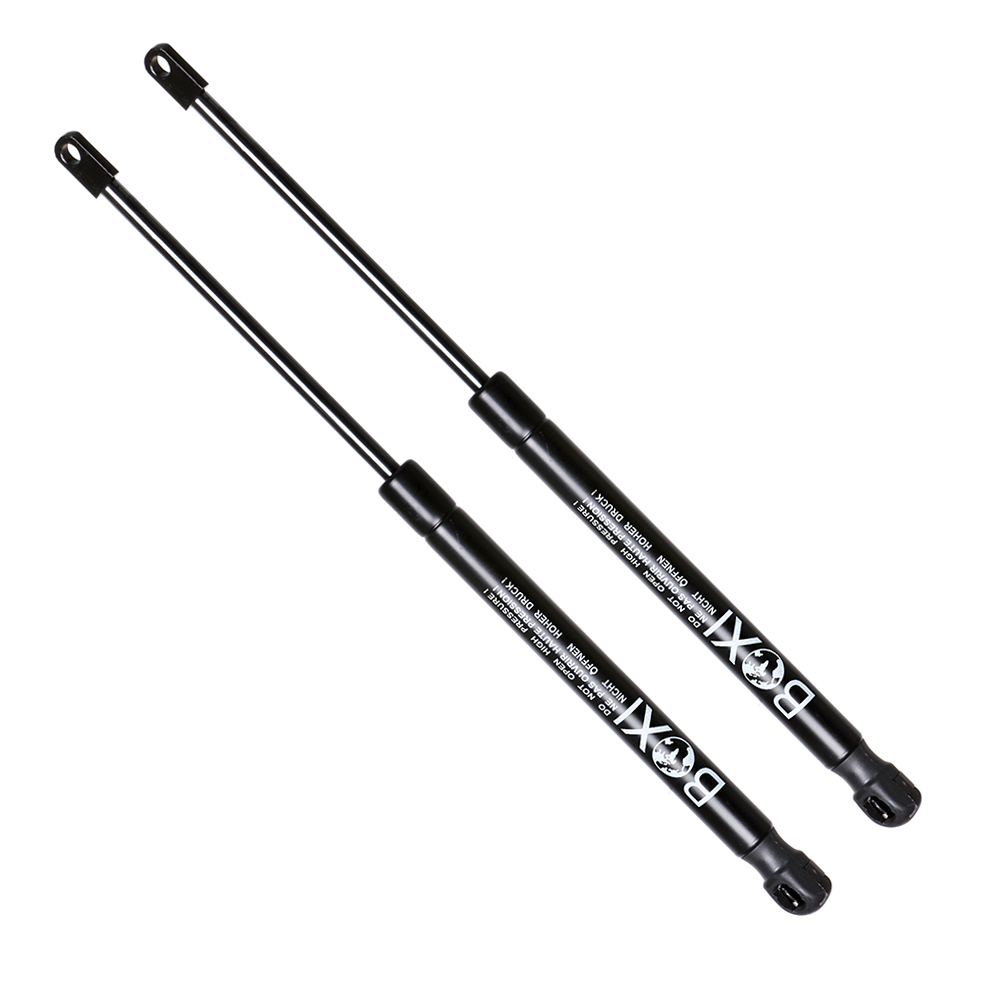

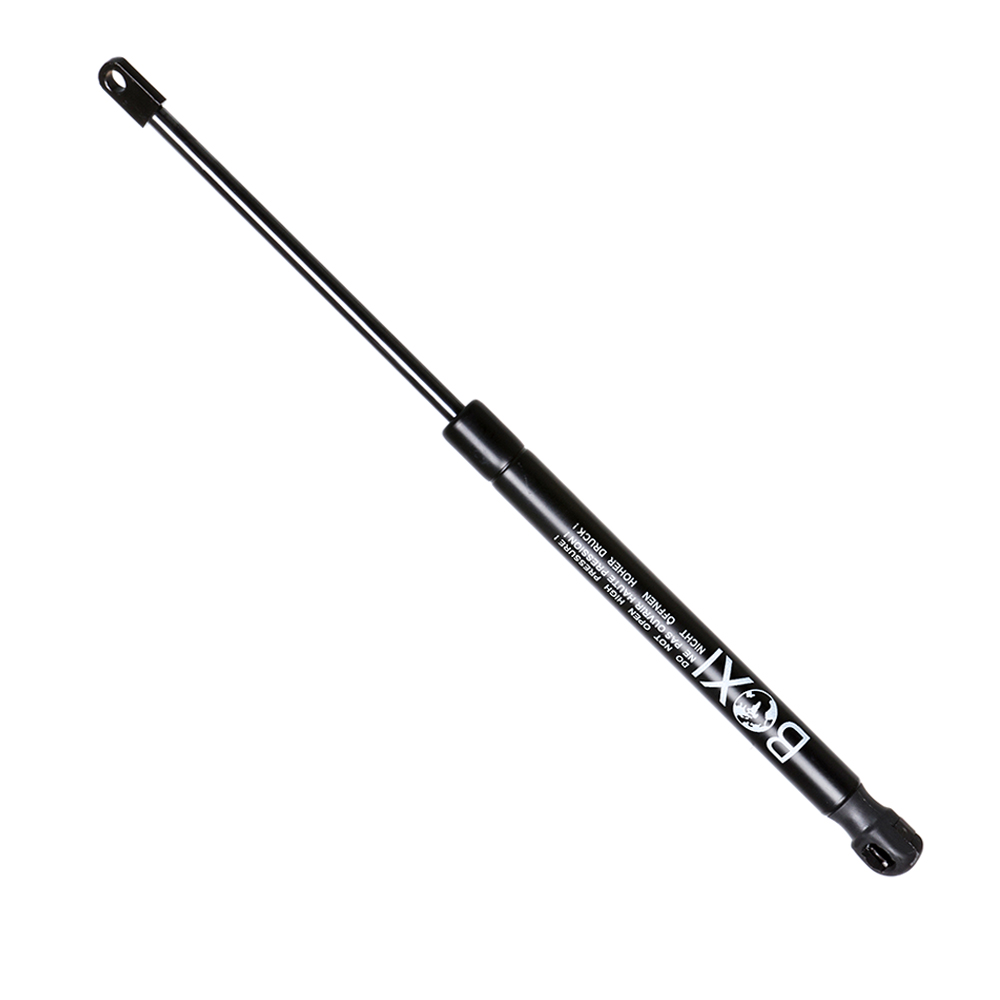

BOXI 2pcs Liftgate Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Volkswagen Transporter 1979 1985-1993 / for Volkswagen Vanagon 1980-1991 | 3-Door Liftgate | SG301001 PM1093

BOXI SKU#: BXC300009165-2

$22.91

BOXI 2-piece liftgate lift support strut set for Volkswagen Transporter (1979, 1985-1993) and Vanagon (1980-1991) 3-door models. Verify fitment before ordering.

OE / Interchange Part Numbers: SG301001PM1093

  • 5 Years Warranty

29 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fit for Volkswagen Transporter 1979, 1985-1993; for Volkswagen Vanagon 1980-1991 — 3-Door Liftgate
Extended Length [in] 19.88
Compressed Length [in] 11.77

Fits the following Volkswagen Transporter Years:
1979 | Base Standard Passenger Van 3-Door
1985-1993 | Base Standard Passenger Van 3-Door
1985-1989 | Base Van 3-Door

Fits the following Volkswagen Vanagon Years:
1980-1991 | Base Standard Passenger Van 3-Door
1981 | Base Van Camper 3-Door
1982-1991 | Bus Standard Passenger Van 3-Door
1982-1991 | Campmobile Standard Passenger Van 3-Door
1980-1991 | Campmobile Van Camper 3-Door
1988-1991 | Carat Standard Passenger Van 3-Door
1980-1991 | GL Standard Passenger Van 3-Door
1980-1991 | Kombi Standard Passenger Van 3-Door
1980-1981 | Kombi Van Camper 3-Door
1982-1991 | L Standard Passenger Van 3-Door
1980-1991 | Syncro Standard Passenger Van 3-Door

Weight 1.3 lbs
Dimensions 21.65 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

505
Stroke (in):

8.38
Stroke (mm):

213
Compressed Length (in)

Compressed Length (mm):

292
Force (Lbs)

Force (Newtons)

621
Cylinder Diameter (in):

0.75
Cylinder Diameter (mm):

19
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

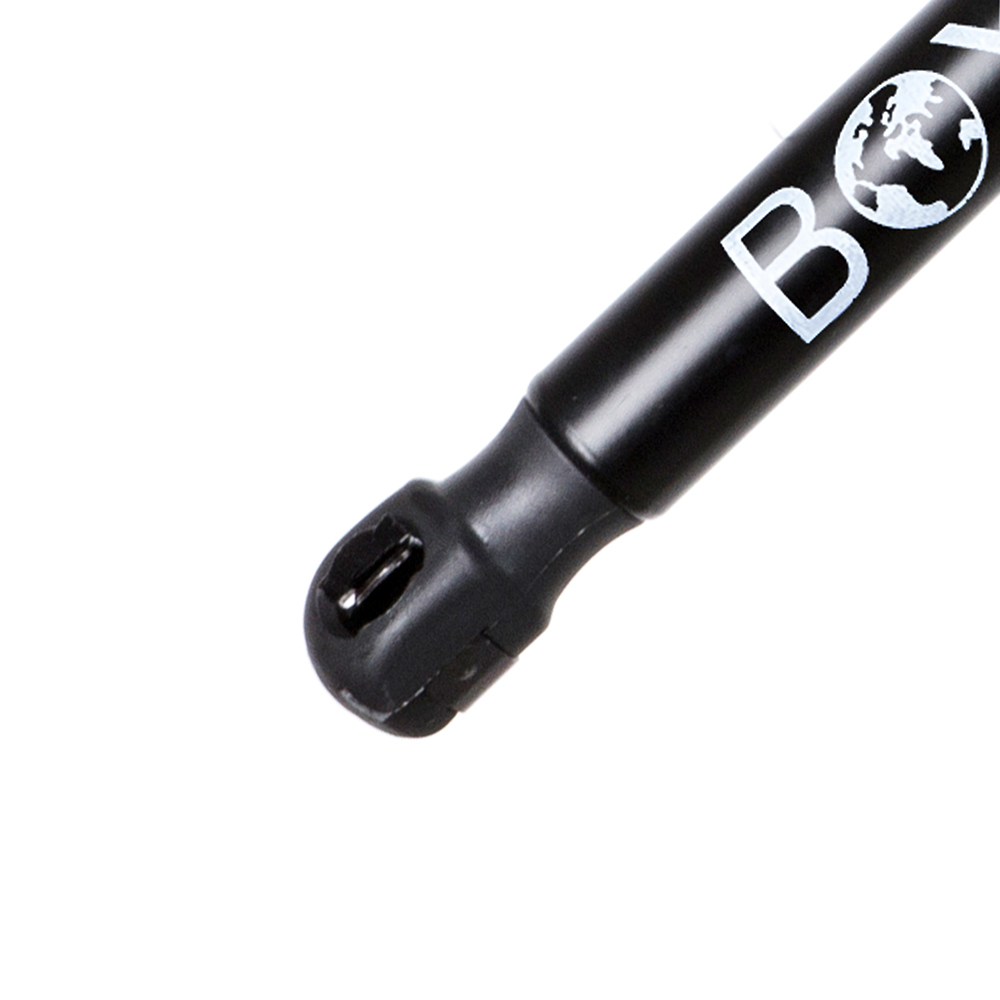

Ball Socket
Shaft Connection:

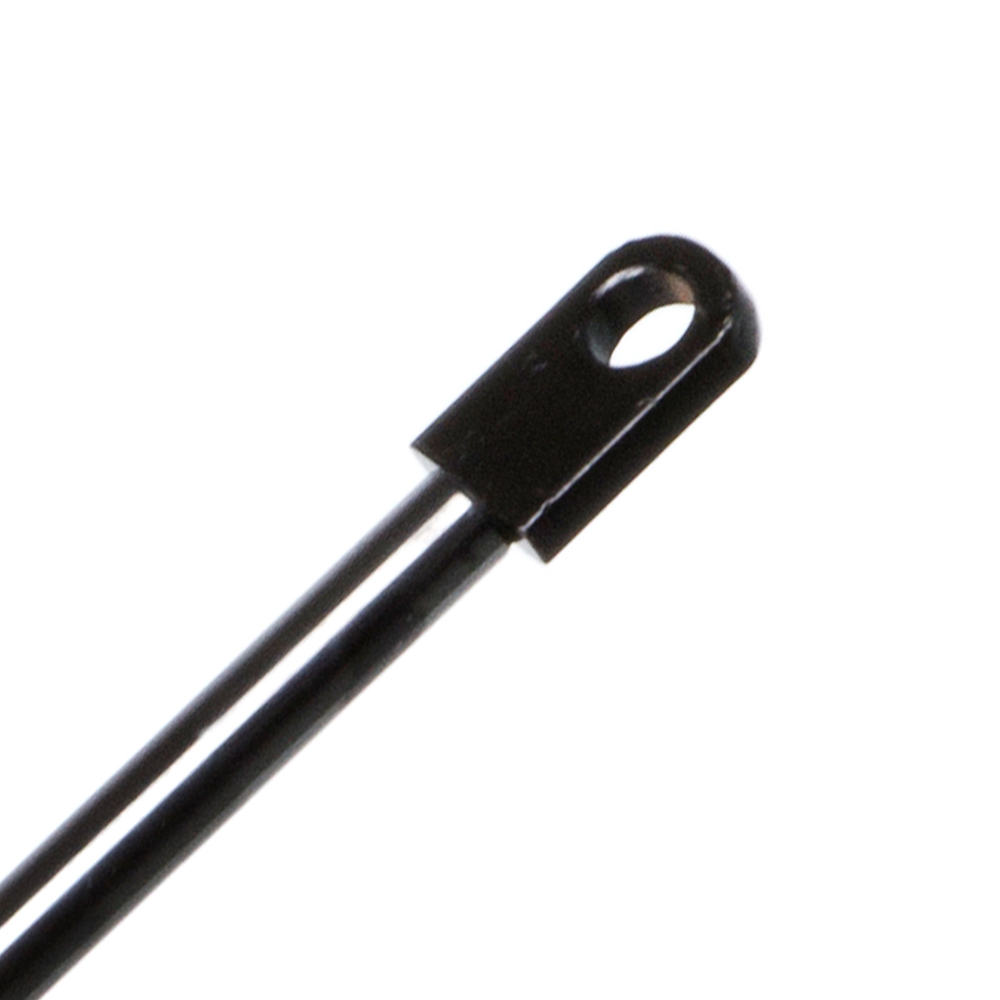

Eyelet Hole
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

251 829 332, 251829332, TFS612209, 901295, SG301001, D95567, D6247, 251829331B
YearMakeModelSubmodelEngine
1990 – 1991VolkswagenVanagonBaseH4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
1986VolkswagenVanagonBusH4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
1982 – 1991VolkswagenVanagonCampmobile
GL		H4 – 1.9L 1915cc GAS MFI vin B type DH – 2 valve OHV
H4 – 2.0L 1970cc GAS MFI type CV – 2 valve OHV
H4 – 2.0L 1970cc GAS MFI vin A type CV – 2 valve OHV
H4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
L4 – 1.6L 1588cc 97ci DIESEL MFI vin G type CS – 2 valve SOHC
1989 – 1991VolkswagenVanagonCaratH4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
1982 – 1986VolkswagenVanagonLH4 – 1.9L 1915cc GAS MFI vin B type DH – 2 valve OHV
H4 – 2.0L 1970cc GAS MFI type CV – 2 valve OHV
H4 – 2.0L 1970cc GAS MFI vin A type CV – 2 valve OHV
H4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
L4 – 1.6L 1588cc 97ci DIESEL MFI vin G type CS – 2 valve SOHC
1986 – 1991VolkswagenVanagonSyncroH4 – 2.1L 2109cc GAS MFI vin B type MV – 2 valve OHV
