BOXI 2pcs Rear Trunk Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Volkswagen Passat 2006 2007 2008 2009 2010 2011 Sedan 4-Door Rear Trunk | Replaces PM1003 3C5827550A

BOXI SKU#: BXC300009158-2

$21.11

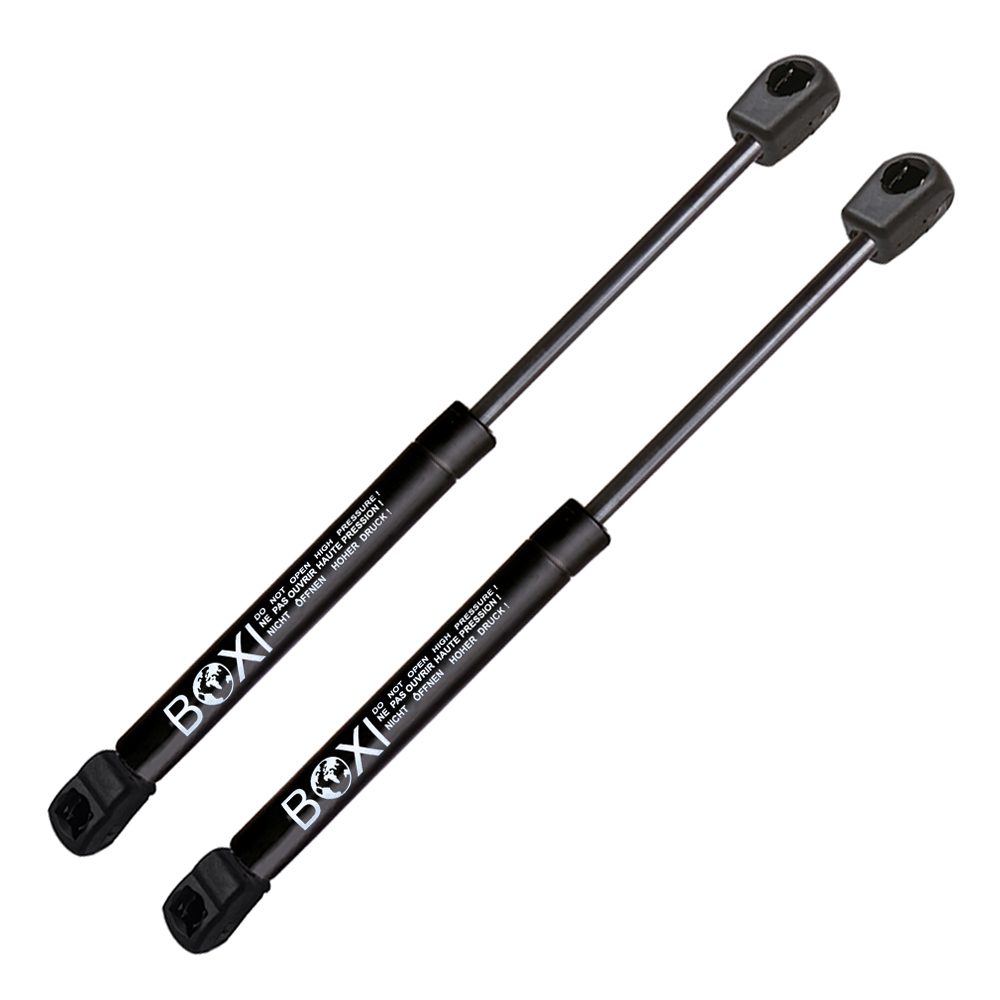

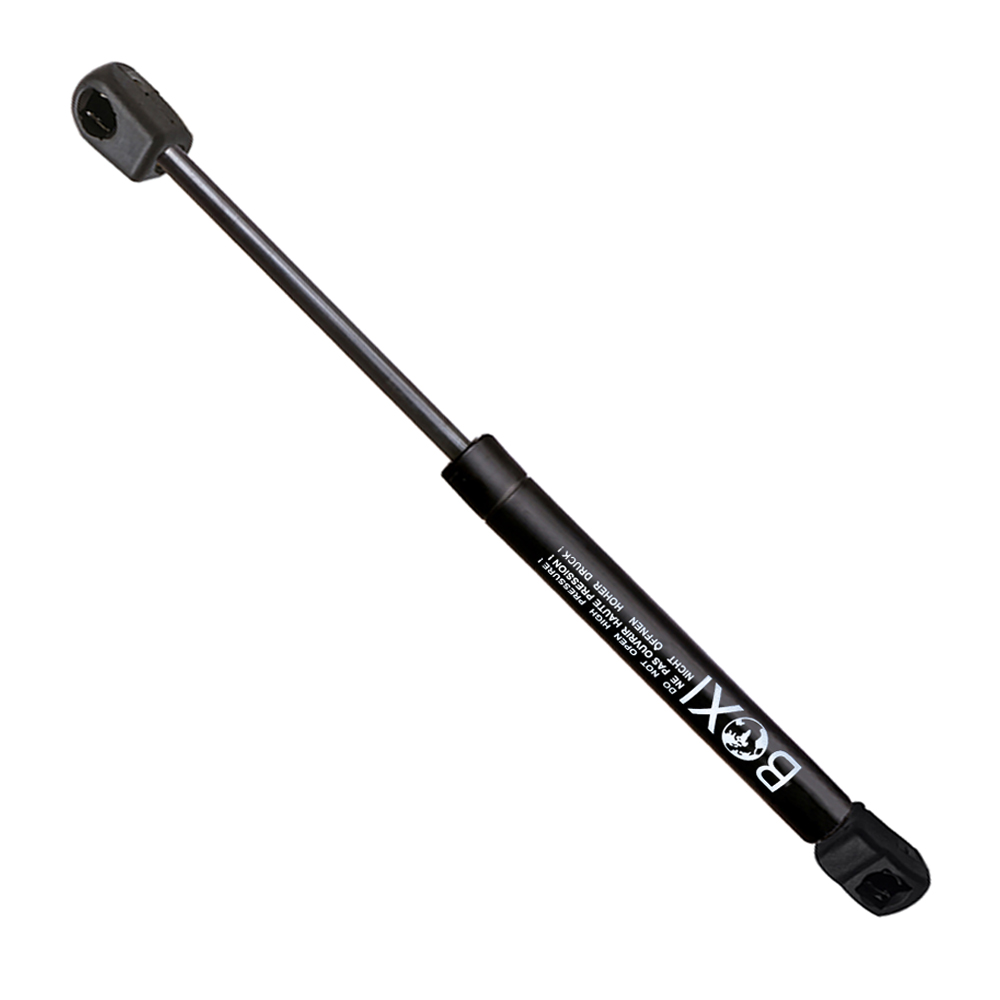

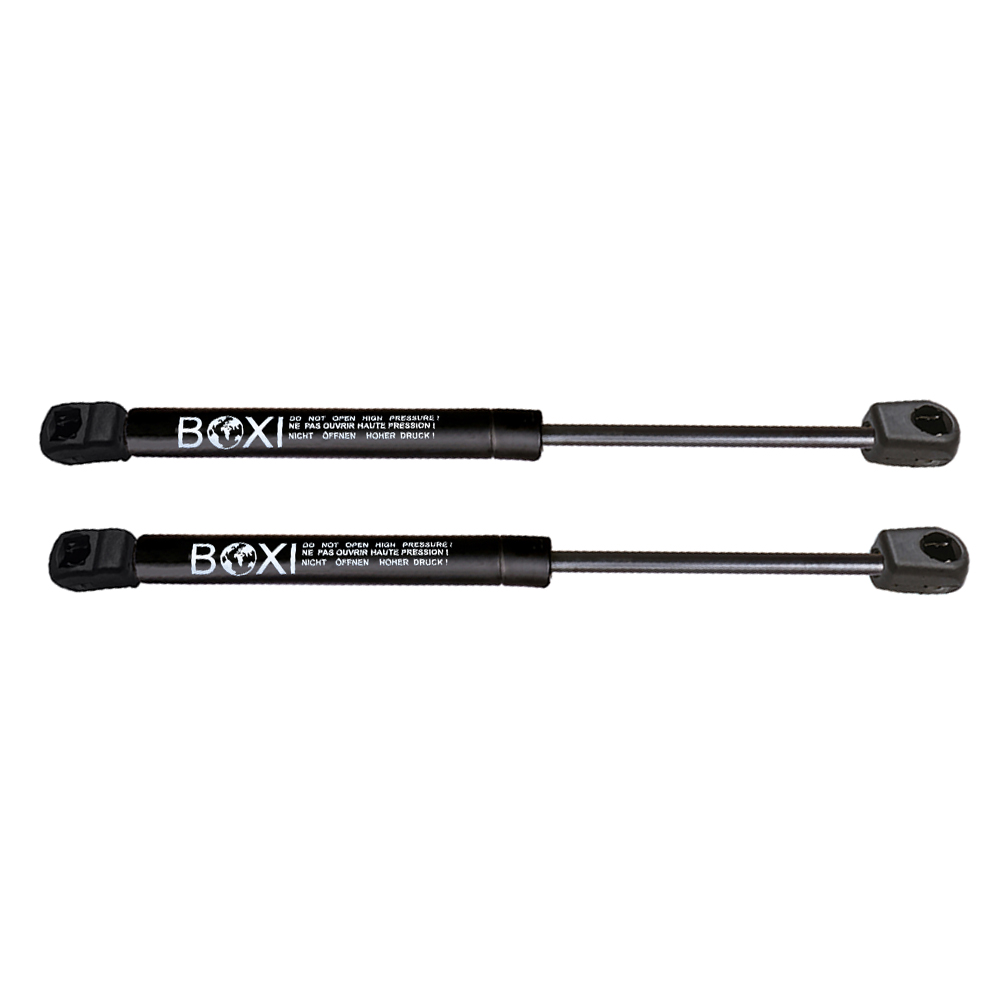

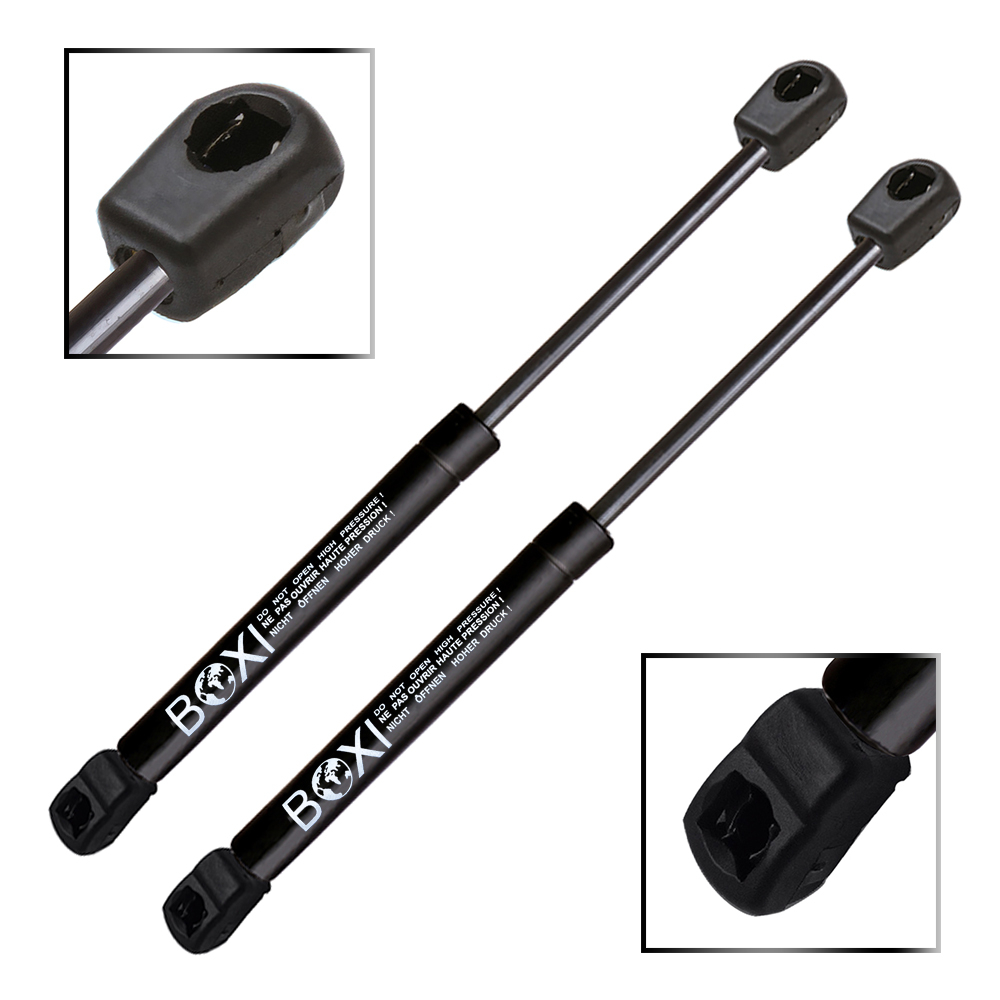

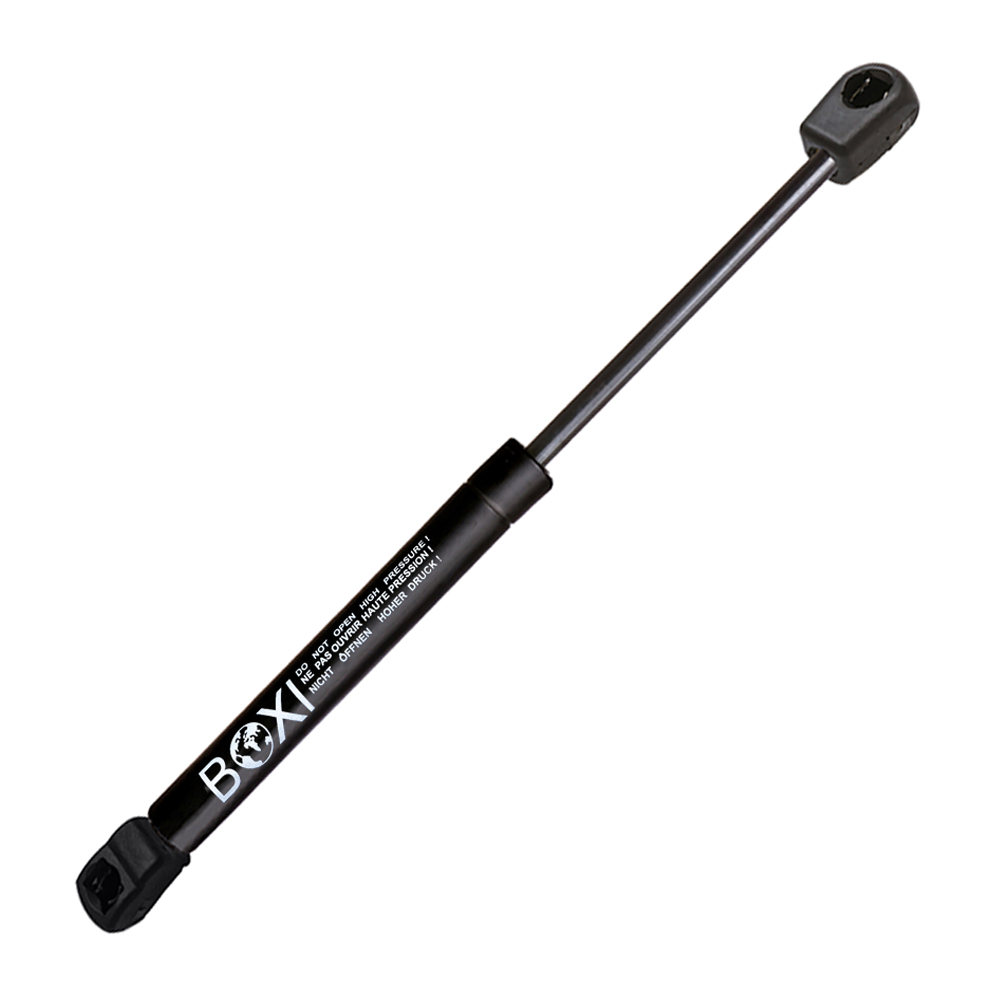

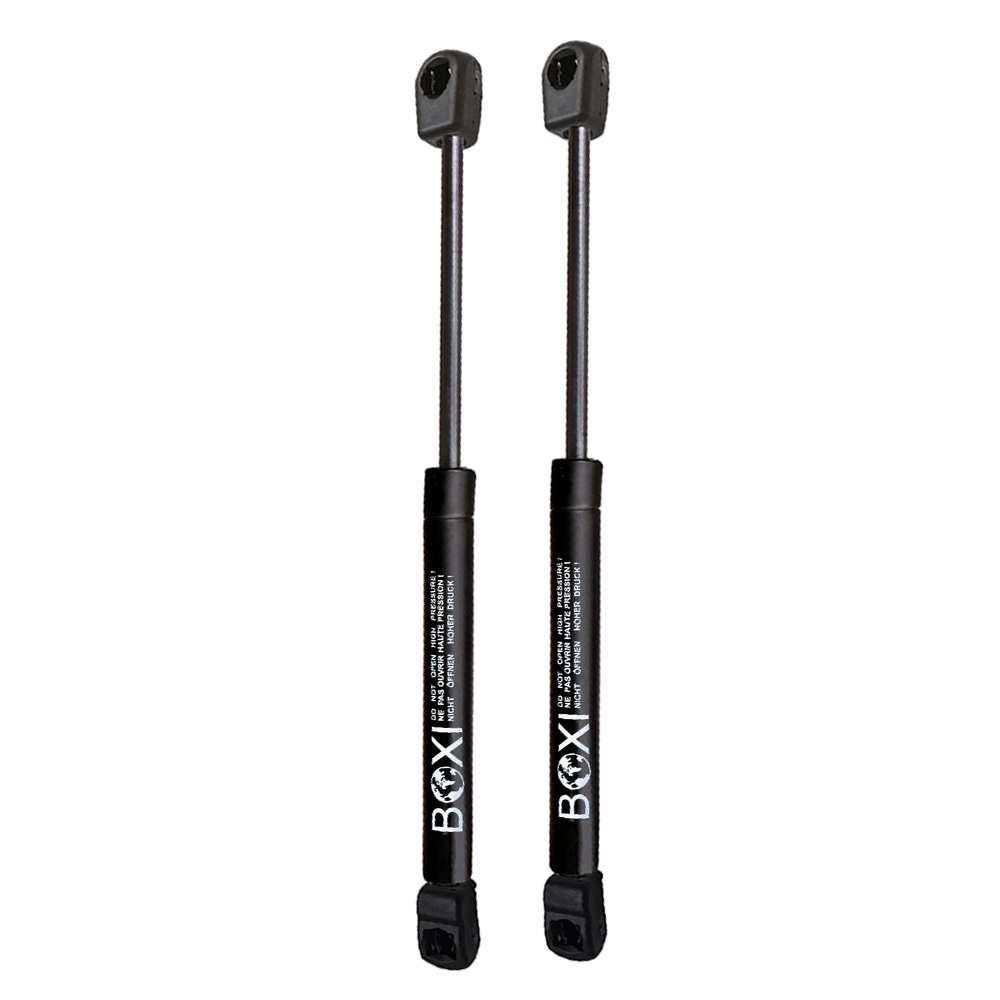

BOXI rear trunk lift supports (set of 2) for 2006-2011 VW Passat 4-door sedans. Replaces OE# 3C5827550A. Verify fitment before ordering.

OE / Interchange Part Numbers: 17085, 3C5827, 3C5827550A, 3C5827550B, 3C5827550C, 3C5827550D, PM1003, SG201069

  • 5 Years Warranty

10 in stock

Placement on Vehicle:Rear Trunk
Package Included:2pcs Rear Trunk Lift Supports

Extended Length [in] 14.76
Compressed Length [in] 9.25

Fits the following Volkswagen Passat Years:
2006-2011 Volkswagen Passat 2.0T Sedan 4-Door Trunk
2006-2011 Volkswagen Passat 3.6 Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Base Sedan 4-Door Trunk
2009-2010 Volkswagen Passat Comfortline Sedan 4-Door Trunk
2009-2010 Volkswagen Passat Highline Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Komfort Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Lux Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Trendline Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Turbo Sedan 4-Door Trunk
2007-2011 Volkswagen Passat VR6 Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Value Edition Sedan 4-Door Trunk
2006-2011 Volkswagen Passat Wolfsburg Edition Sedan 4-Door Trunk

REAR – LEFT + RIGHT Side

Weight 1 lbs
Dimensions 17.72 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

375
Stroke (in):

5.7
Stroke (mm):

145
Compressed Length (in)

Compressed Length (mm):

230
Force (Lbs)

Force (Newtons)

390
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

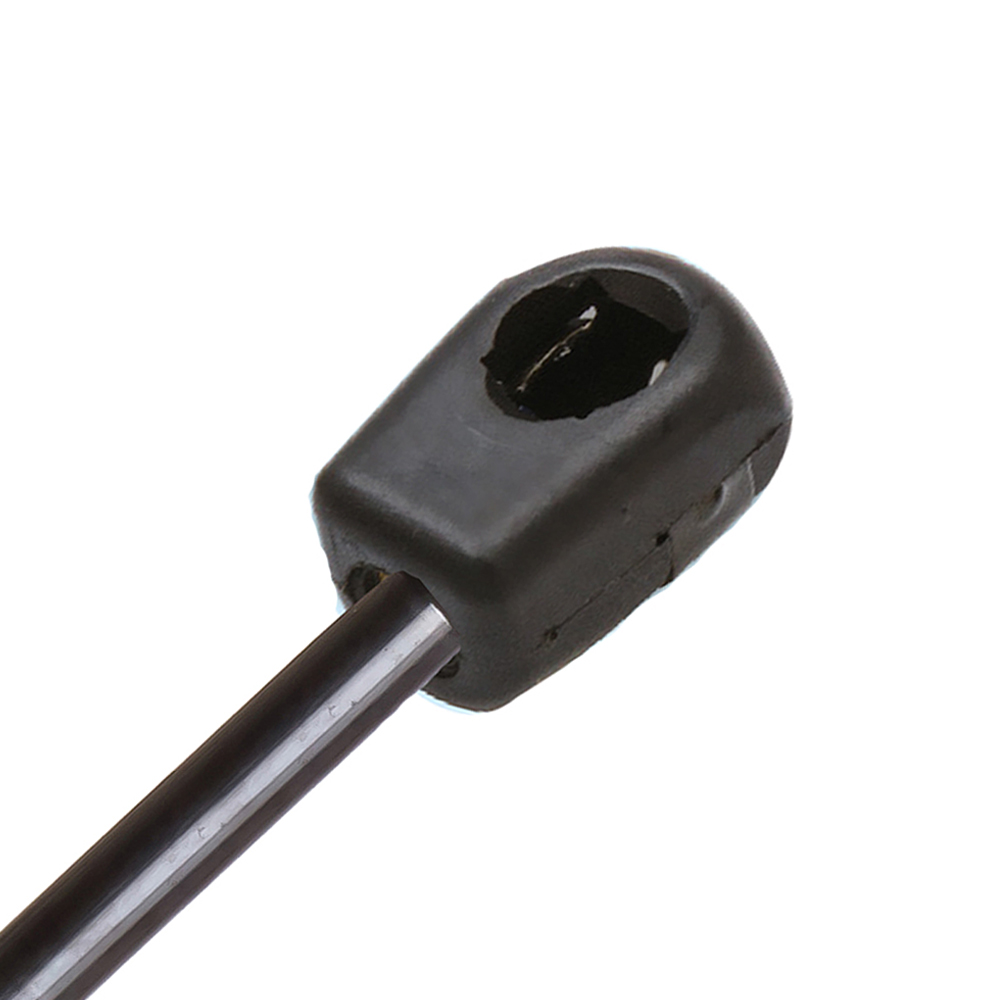

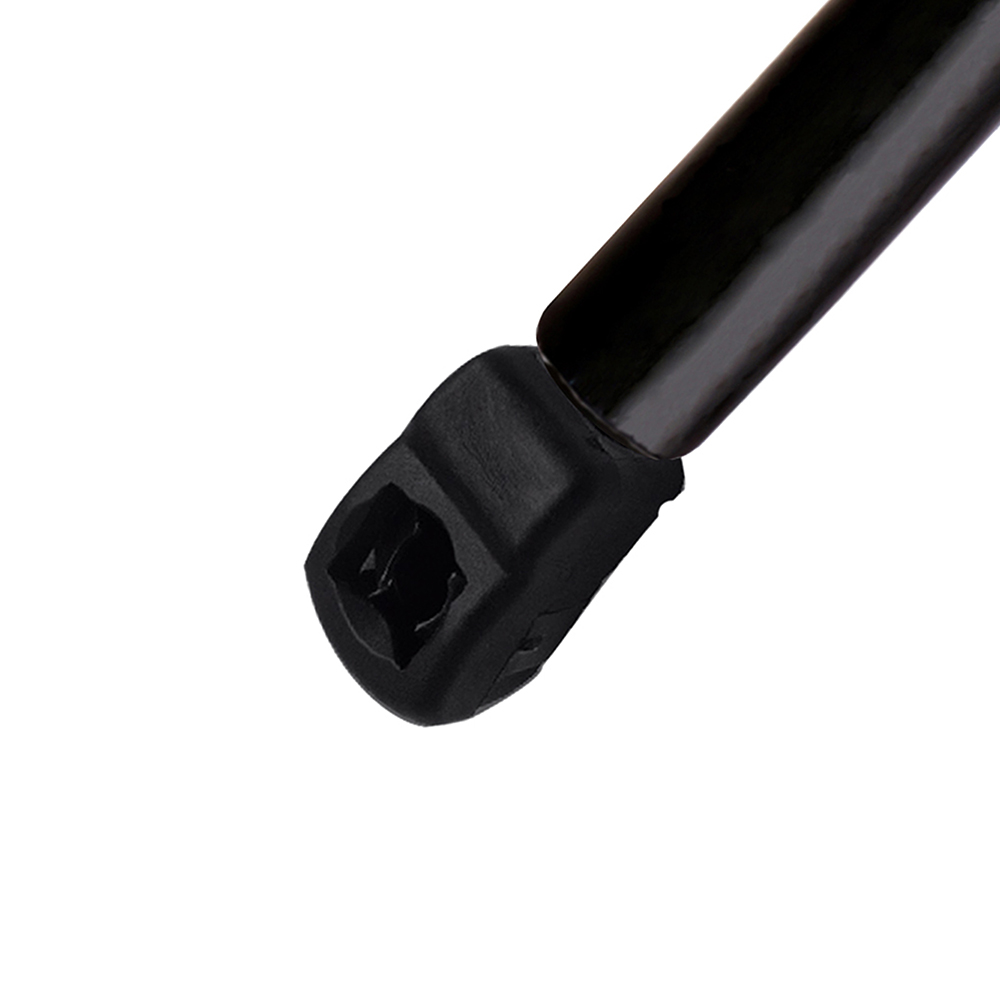

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

613551, SG201069, 3C5827550D, 3C5827550C, 3C5827550B, 3C5827550A
YearMakeModelSubmodelEngine
2006 – 2009VolkswagenPassat2.0TL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
3.6V6 – 3.6L 3597cc 219ci GAS DI type BLV – 4 valve DOHC
2008 – 2010VolkswagenPassatBaseL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
KomfortL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CBFA – 4 valve DOHC
2009 – 2010VolkswagenPassatComfortline
Trendline		L4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
HighlineL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
V6 – 3.6L 3597cc 219ci GAS DI type BLV – 4 valve DOHC
2010VolkswagenPassatHighline V6V6 – 3.6L 3597cc 219ci GAS DI type BLV – 4 valve DOHC
2008VolkswagenPassatLux
Turbo		L4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
VR6V6 – 3.6L 3597cc 219ci GAS DI type BLV – 4 valve DOHC
2006 – 2007VolkswagenPassatValue EditionL4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
2007VolkswagenPassatWolfsburg EditionL4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
