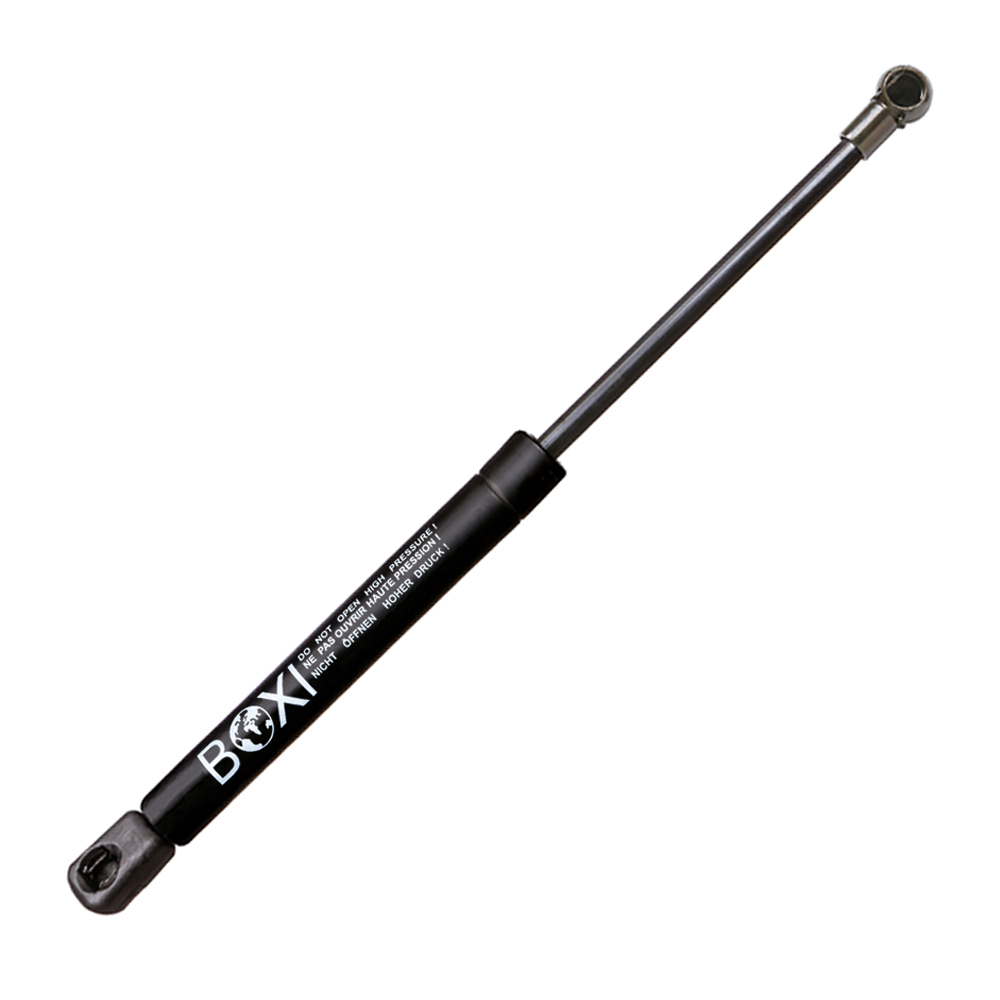

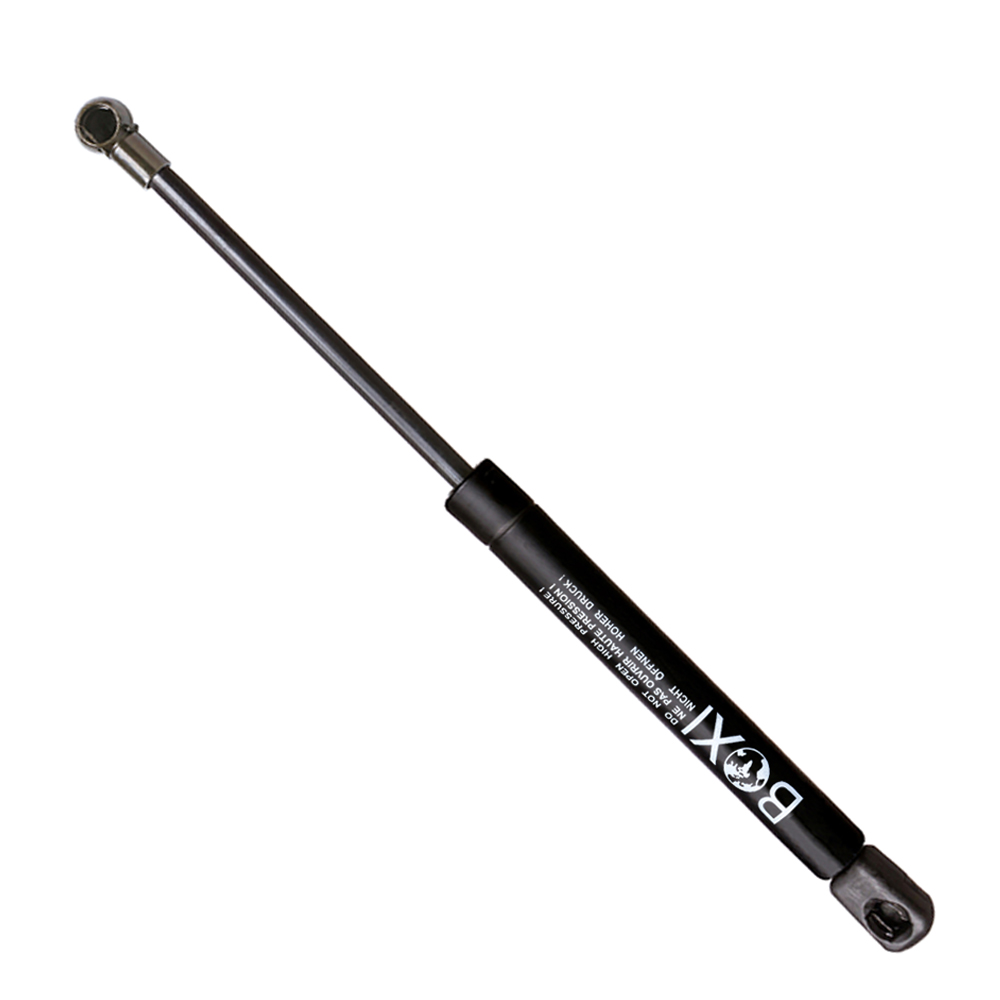

BOXI Lift Support BXC300009120-1

BOXI SKU#: BXC300009120-1

$12.99

Direct-fit BOXI Lift Support (SKU: BXC300009120-1) engineered for 2005-2010 Volkswagen Jetta, 2005-2010 Volkswagen Bora, 2007 Volkswagen Golf.

  • 5 Years Warranty

1 in stock

Placement on Vehicle:Rear Trunk
Package Included:1pc Rear Trunk Lift Support

Weight 0.56 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

298
Stroke (in):

2.94
Stroke (mm):

75
Compressed Length (in)

Compressed Length (mm):

223
Force (Lbs)

Force (Newtons)

710
Cylinder Diameter (in):

0.75
Cylinder Diameter (mm):

19
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

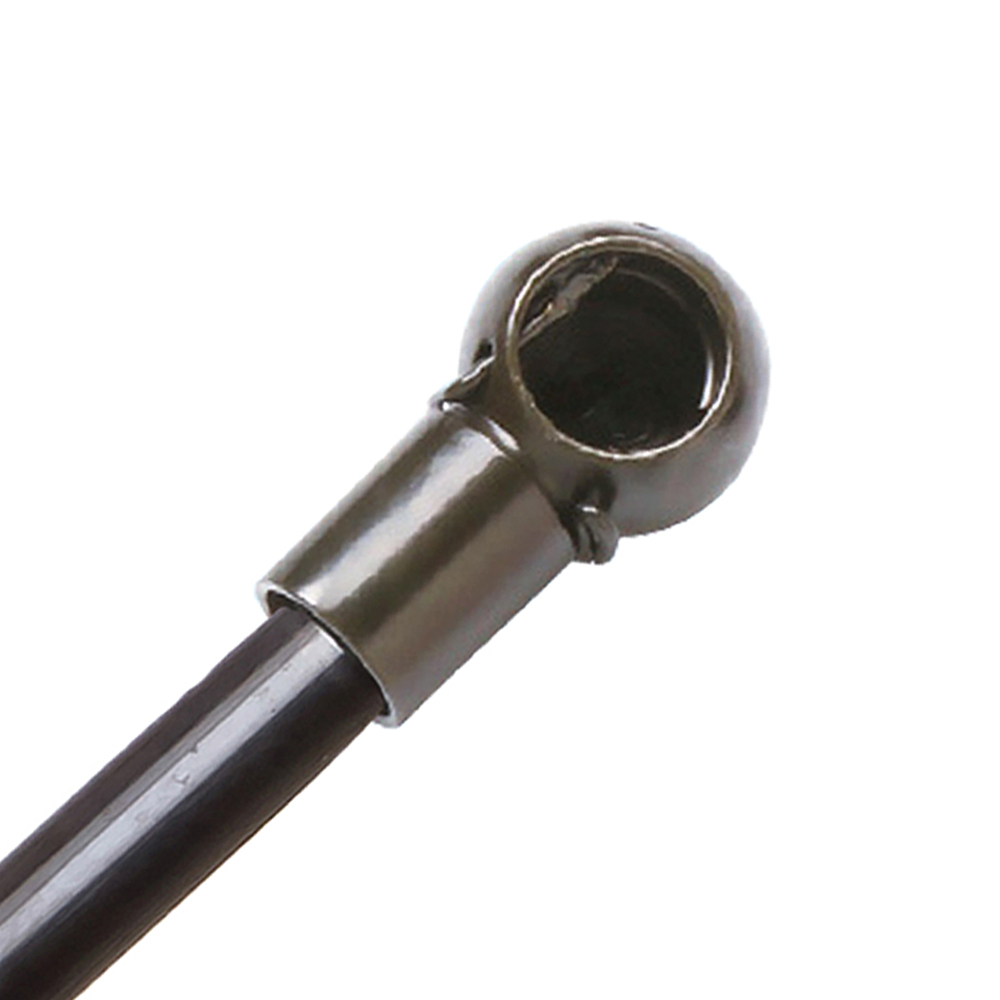

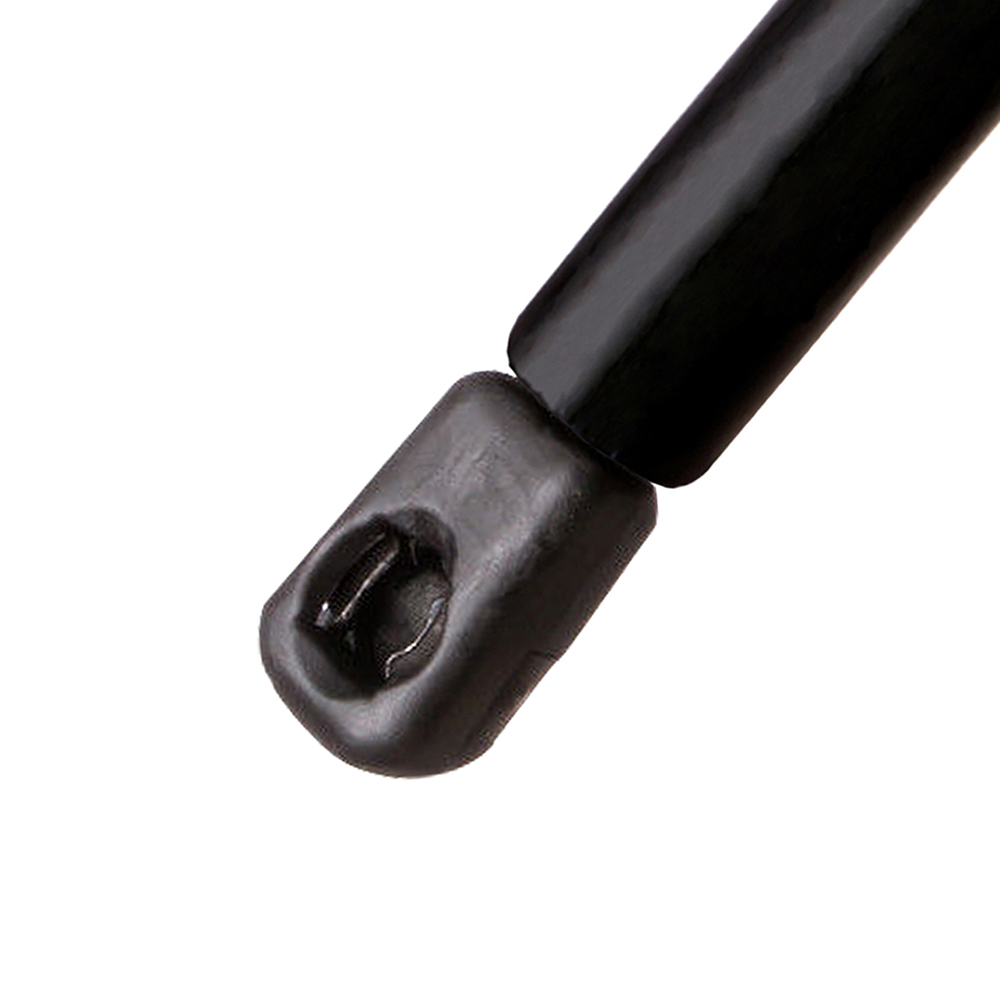

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

1K5 827 550 C, 1K5827550C, 3B5827550G, TFS613916, GSA08915, GSA09131, 613916, SG401052, E95474, E6430, 901820, 819-6649, 6430, 1JM 827 550
YearMakeModelSubmodelEngine
2006 – 2010VolkswagenBoraActiveL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2005 – 2006VolkswagenBoraExclusive
PRESTIGE		L5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2006 – 2009VolkswagenBoraGLIL4 – 2.0L 1984cc 121ci GAS DI Turbocharged – 4 valve DOHC
2007 – 2010VolkswagenBoraSportL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
TDIL4 – 1.9L 1896cc 116ci DIESEL DI Turbocharged type EA188 – 4 valve DOHC
2009VolkswagenBoraSportwagenL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2005 – 2010VolkswagenBoraStyleL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2006VolkswagenBoraTurboL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2010VolkswagenBoraWolfsburgL5 – 2.5L 2480cc 151ci GAS MPI – 4 valve DOHC
2007VolkswagenGolfEuropaL4 – 2.0L 1984cc 121ci GAS MFI type BEV – 2 valve SOHC
2006 – 2008VolkswagenJetta2.0TL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CBFA – 4 valve DOHC
2005 – 2008VolkswagenJetta2.5L5 – 2.5L 2480cc 151ci GAS MFI type BGP – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type BGQ – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBTA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBUA – 4 valve DOHC
2006VolkswagenJetta475 Aniversario
Soccer 1
Soccer 2
Winter 1
Winter 2		L4 – 2.0L 1984cc 121ci GAS MPI – 2 valve SOHC
Value EditionL5 – 2.5L 2480cc 151ci GAS MFI type BGP – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type BGQ – 4 valve DOHC
2010VolkswagenJettaBaseL4 – 1.9L 1896cc 116ci DIESEL DI Turbocharged type EA188 – 4 valve DOHC
ClasicoL4 – 2.0L 1984cc 121ci GAS MPI – 2 valve SOHC
TDI Cup EditionL4 – 2.0L 1968cc 120ci DIESEL MFI Turbocharged type CJAA – 4 valve DOHC
2008 – 2010VolkswagenJettaCityL4 – 2.0L 1984cc 121ci GAS MFI type BEV – 2 valve SOHC
L4 – 2.0L 1984cc 121ci GAS MPI – 2 valve SOHC
S
SE		L5 – 2.5L 2480cc 151ci GAS MFI type CBTA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBUA – 4 valve DOHC
SELL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CBFA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBTA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBUA – 4 valve DOHC
2009 – 2010VolkswagenJettaComfortline
Highline		L5 – 2.5L 2480cc 151ci GAS MFI type CBTA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBUA – 4 valve DOHC
2006 – 2010VolkswagenJettaEuropaL4 – 2.0L 1984cc 121ci GAS MPI – 2 valve SOHC
GLIL4 – 1.8L 1781cc GAS MPI Turbocharged type EA188 – 2 valve SOHC
L4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CBFA – 4 valve DOHC
TrendlineL4 – 2.0L 1984cc 121ci GAS MPI – 2 valve SOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBTA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type CBUA – 4 valve DOHC
2005 – 2010VolkswagenJettaTDIL4 – 1.9L 1896cc 116ci DIESEL DI Turbocharged type EA188 – 4 valve DOHC
L4 – 1.9L 1896cc 116ci DIESEL MFI Turbocharged type BRM – 2 valve SOHC
L4 – 2.0L 1968cc 120ci DIESEL MFI Turbocharged type CBEA – 4 valve DOHC
L4 – 2.0L 1968cc 120ci DIESEL MFI Turbocharged type CJAA – 4 valve DOHC
2007 – 2010VolkswagenJettaWolfsburg EditionL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type CCTA – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type BPY – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CBFA – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type BGP – 4 valve DOHC
L5 – 2.5L 2480cc 151ci GAS MFI type BGQ – 4 valve DOHC
