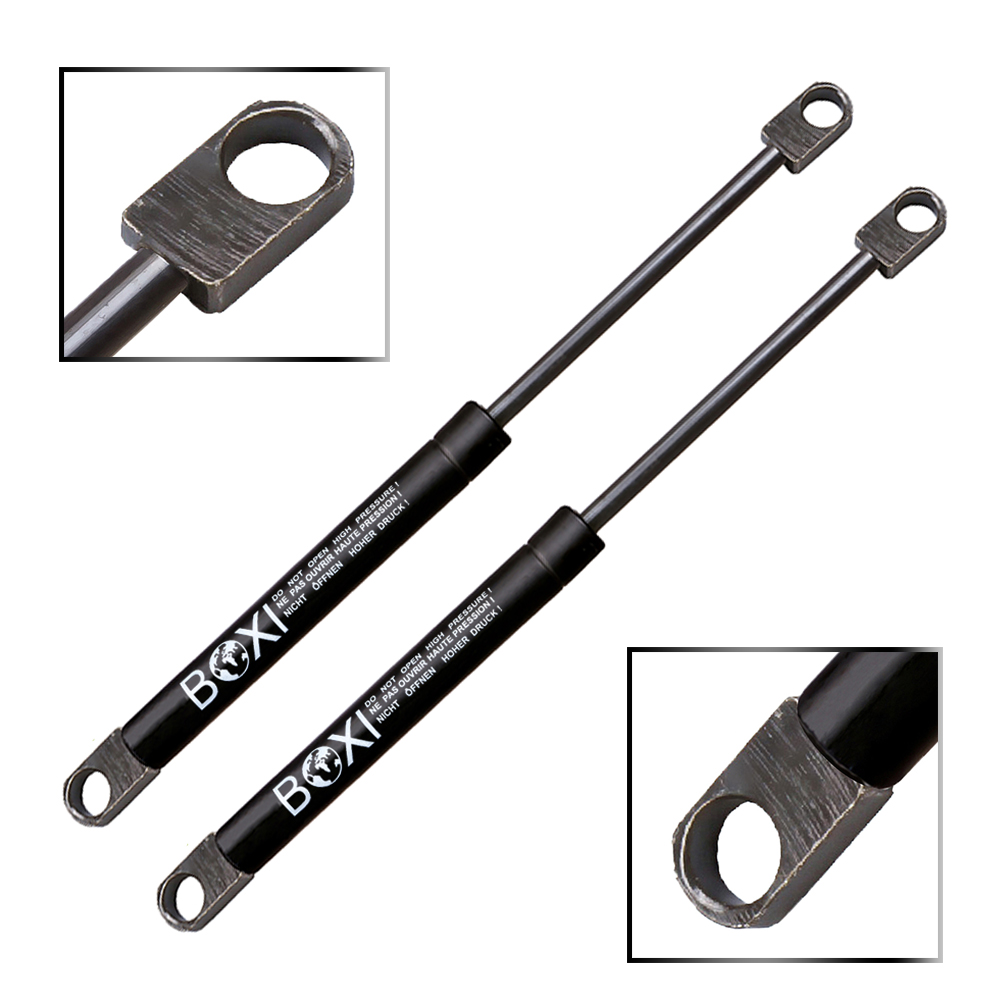

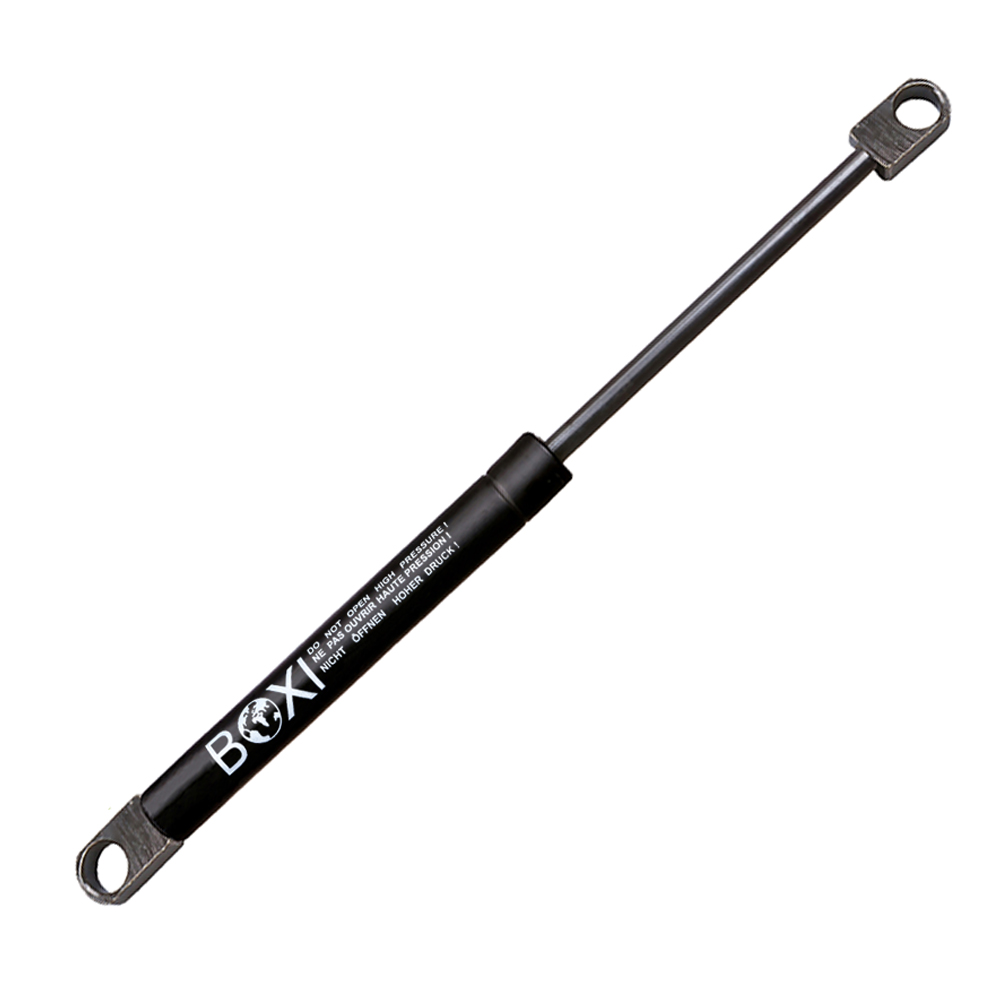

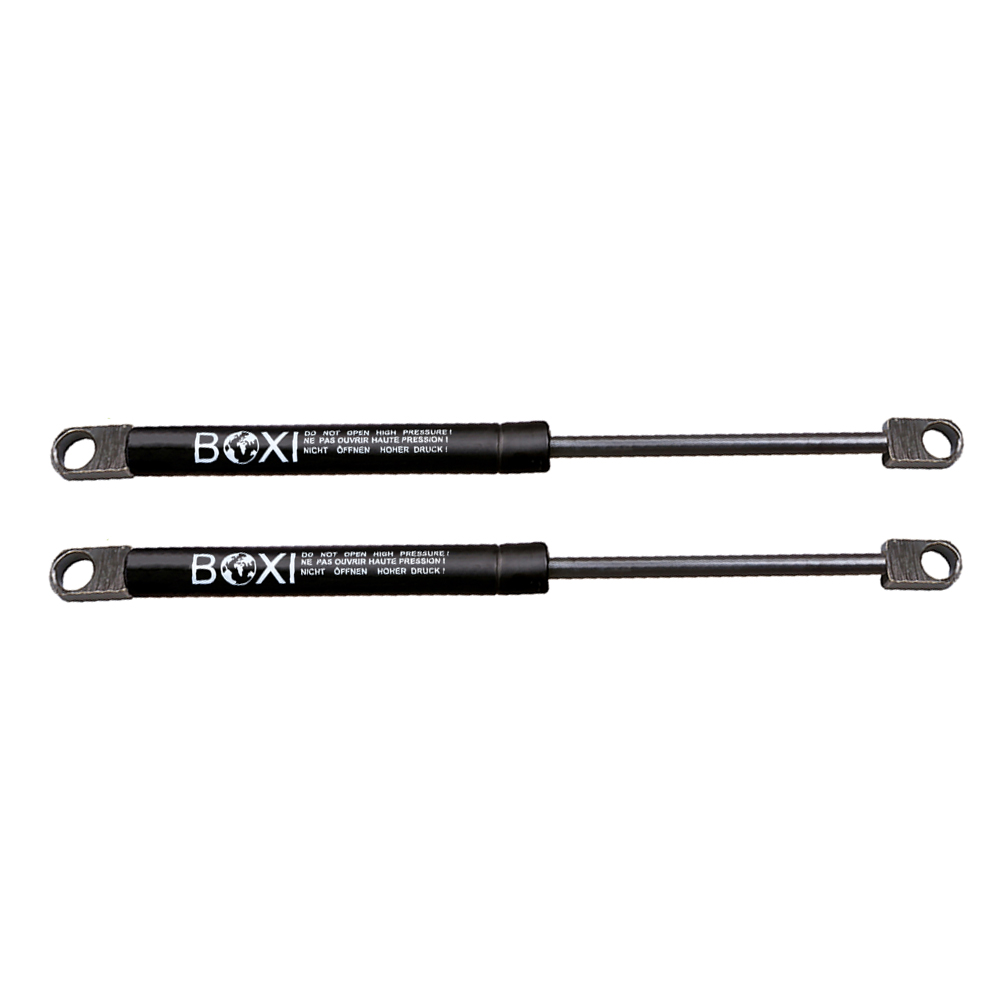

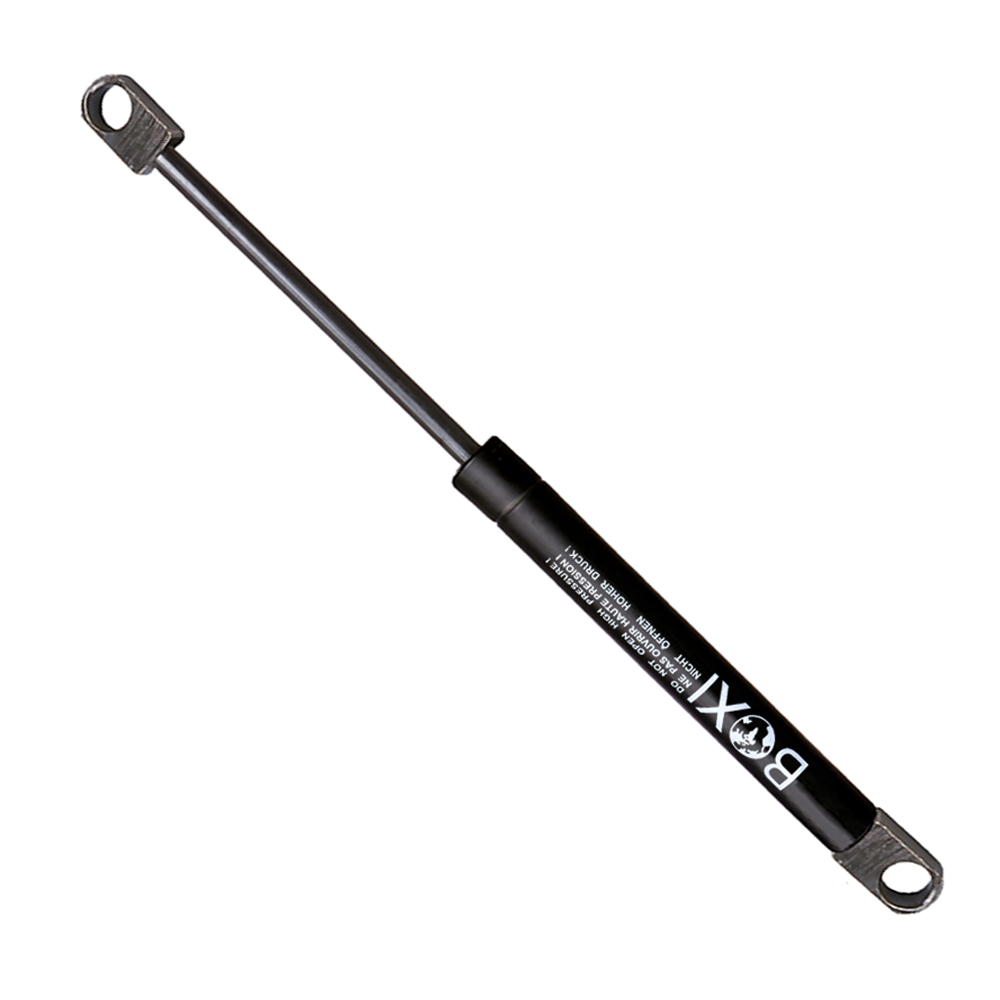

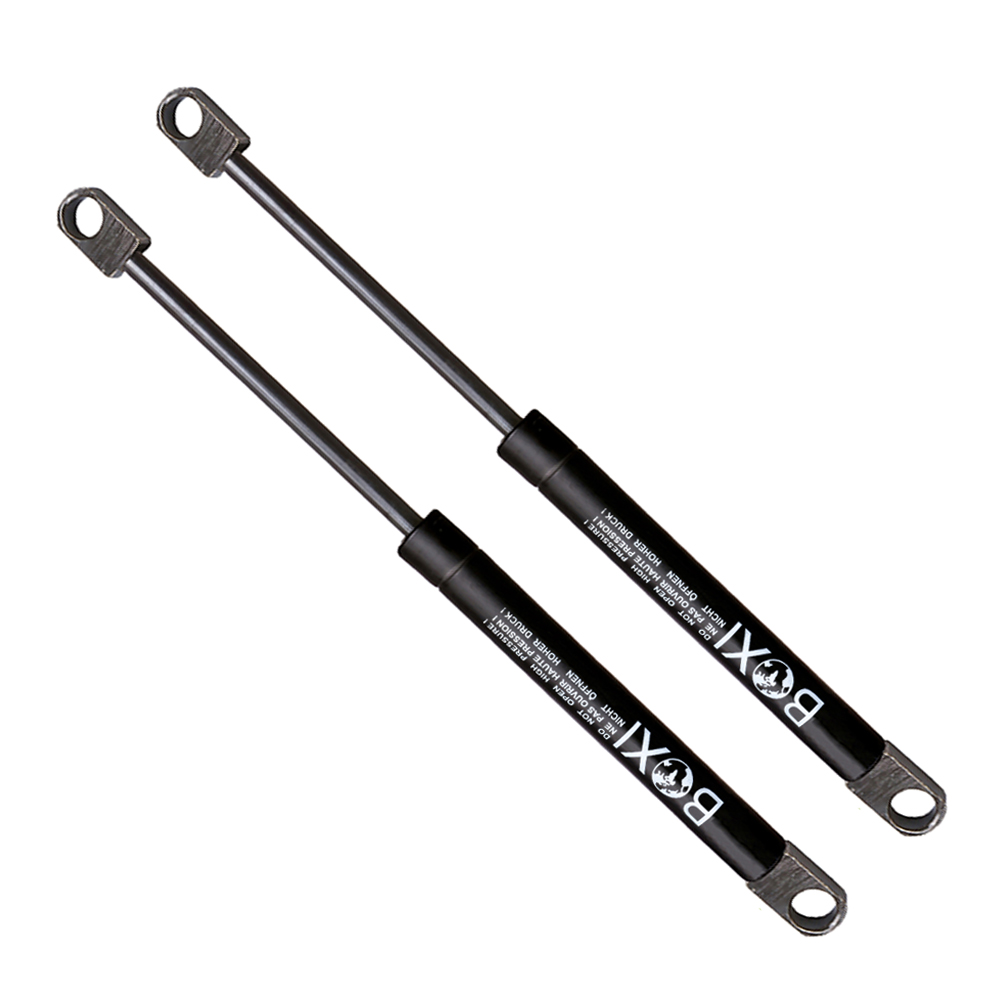

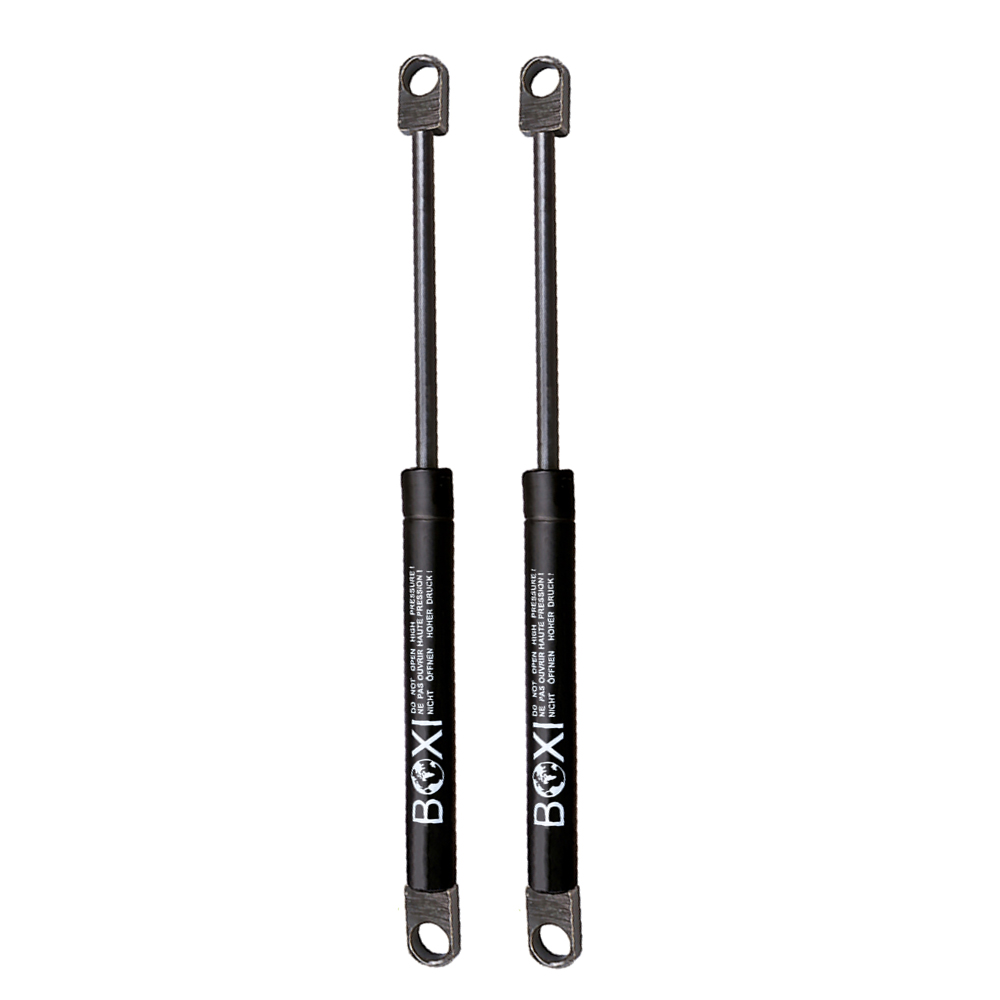

2pcs BOXI Front Hood Lift Support for BMW 525i 1989-1995/ 525iT 1993/ 530i 1994-1995/ 535i 1989-1993/ 540i 1994-1995/ M5 1988 1991-1993 | Replaces SG402013 51231944119 4024

BOXI SKU#: BXC300002068-2

$15.15

BOXI Front Hood Lift Support for BMW 525i, 535i, 540i, and M5 (1988-1995). Replaces OE numbers SG402013, 51231944119, and 4024. Verify fitment before ordering.

OE / Interchange Part Numbers: 4024, 51231944119, SG402013

  • 5 Years Warranty

86 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Extended Length [in] 9.47
Compressed Length [in] 6.12

Fits the following BMW Years:
1989-1995 | 525i Base Sedan 4-Door
1993 | 525iT Base Wagon 4-Door
1994-1995 | 530i Base Sedan 4-Door
1989-1993 | 535i Base Sedan 4-Door
1994-1995 | 540i Base Sedan 4-Door
1988 | M5 Base Sedan 4-Door
1991-1993 | M5 Base Sedan 4-Door

Weight 0.8 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

240
Stroke (in):

3.56
Stroke (mm):

90
Compressed Length (in)

Compressed Length (mm):

150
Force (Lbs)

Force (Newtons)

380
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

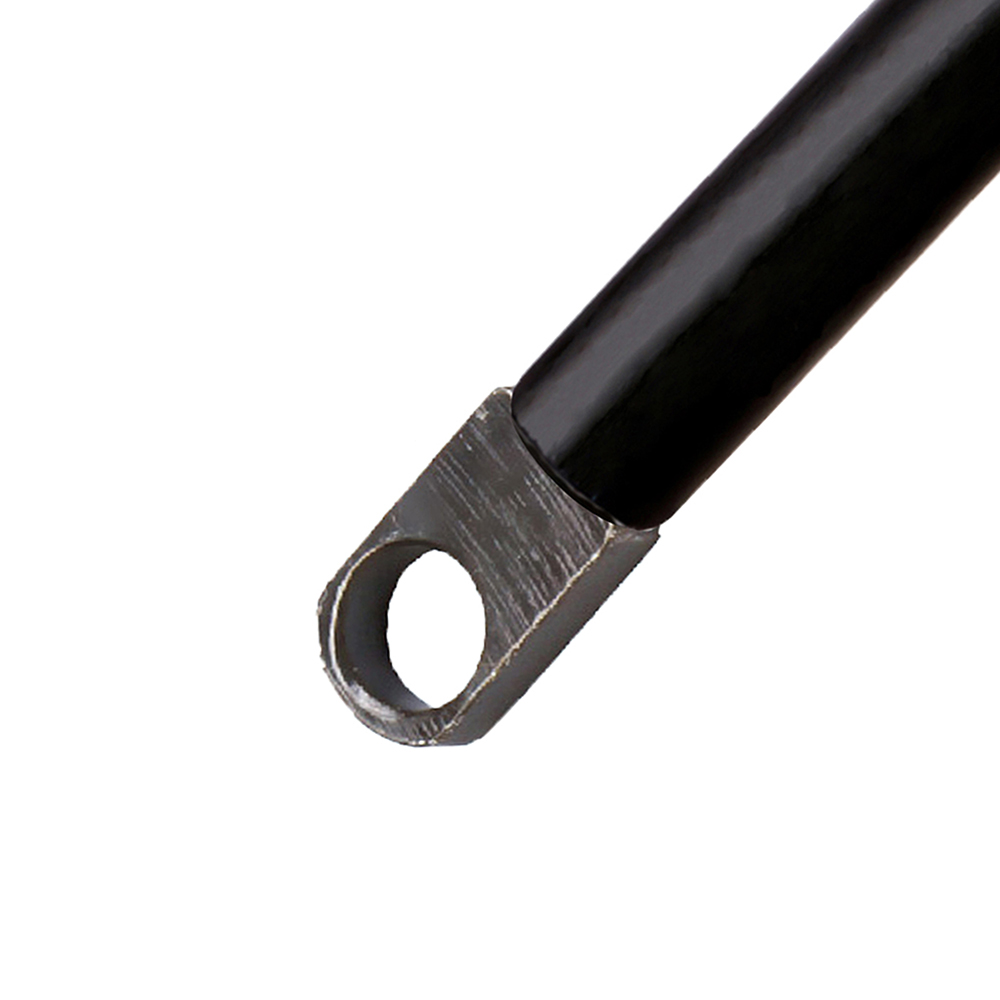

Body Connection:

Eyelet Hole

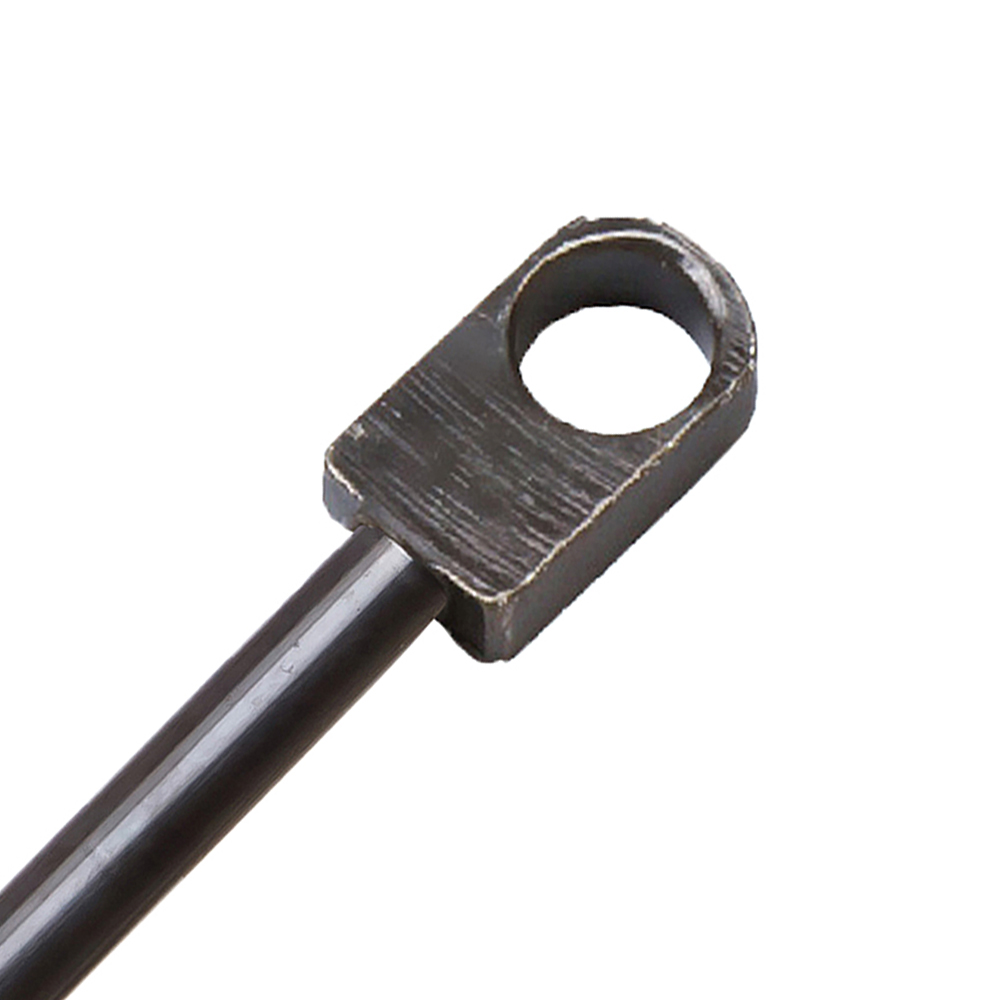

Shaft Connection:

Eyelet Hole
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

TFS614397, 614381, 614397, SG402013, F4024, D95596, 901606, 819-5594, 5123960852, 51231944119, 510-369, 4024
YearMakeModelSubmodelEngine
1989 – 1995BMW525iBaseL6 – 2.5L 2494cc 152ci GAS MFI type M20 – 2 valve SOHC
L6 – 2.5L 2494cc 152ci GAS MFI type M50 – 4 valve DOHC
L6 – 2.5L 2494cc 152ci GAS MFI type M50TU – 4 valve DOHC
1993BMW525iTBaseL6 – 2.5L 2494cc 152ci GAS MFI type M50TU – 4 valve DOHC
1996BMW528iBaseL6 – 2.8L 2793cc GAS MFI type M52 – 4 valve DOHC
1994 – 1995BMW530iBaseV8 – 3.0L 2997cc GAS MFI type M60 – 4 valve DOHC
1989 – 1993BMW535iBaseL6 – 3.5L 3430cc GAS MFI type M30 – 2 valve SOHC
1994 – 1995BMW540iBaseV8 – 4.0L 3982cc GAS MFI type M60 – 4 valve DOHC
1991 – 1993BMWM5BaseL6 – 3.6L 3553cc GAS MFI type S38 – 4 valve DOHC
