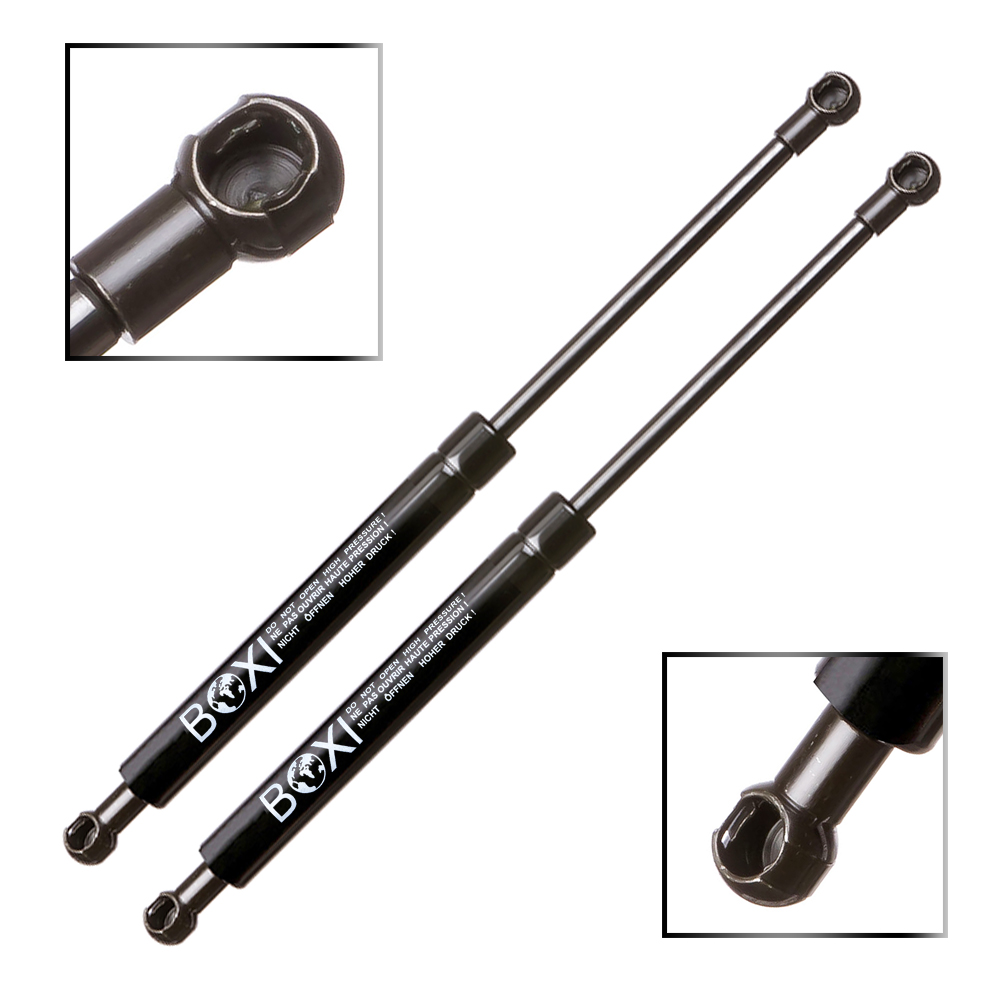

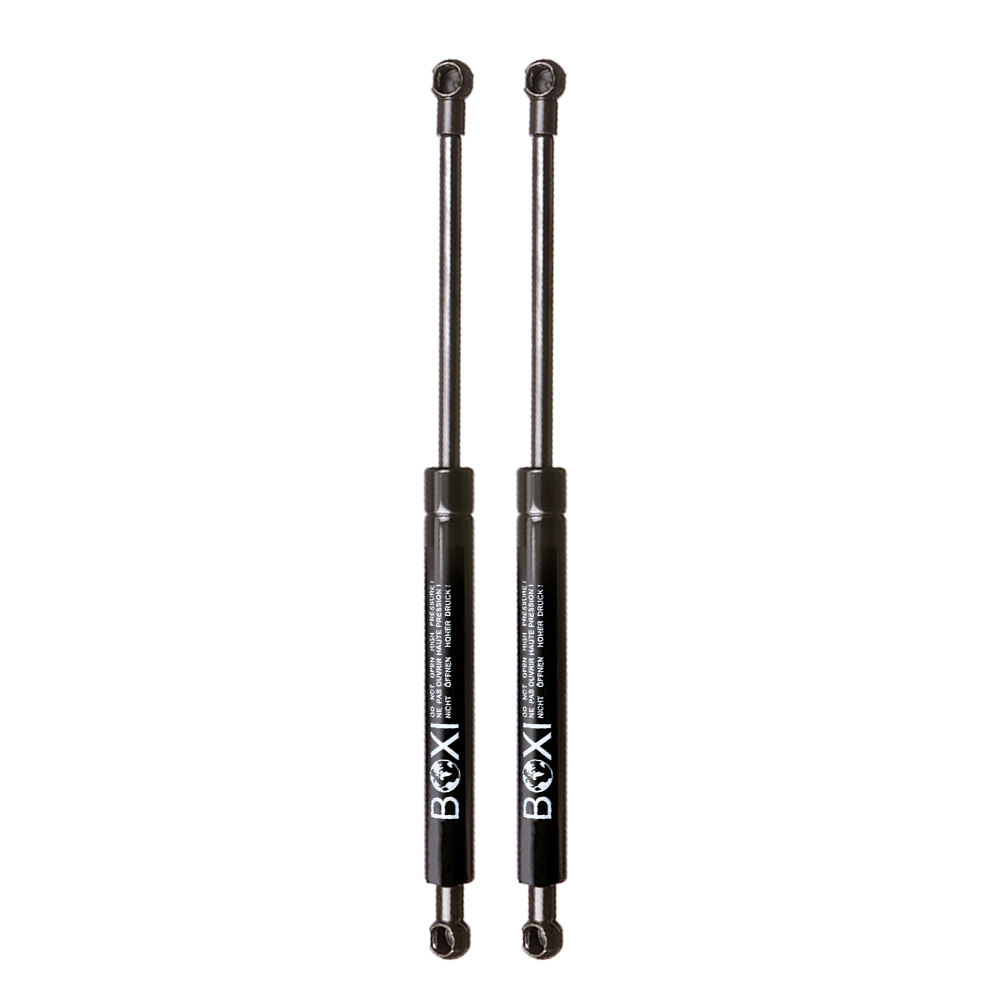

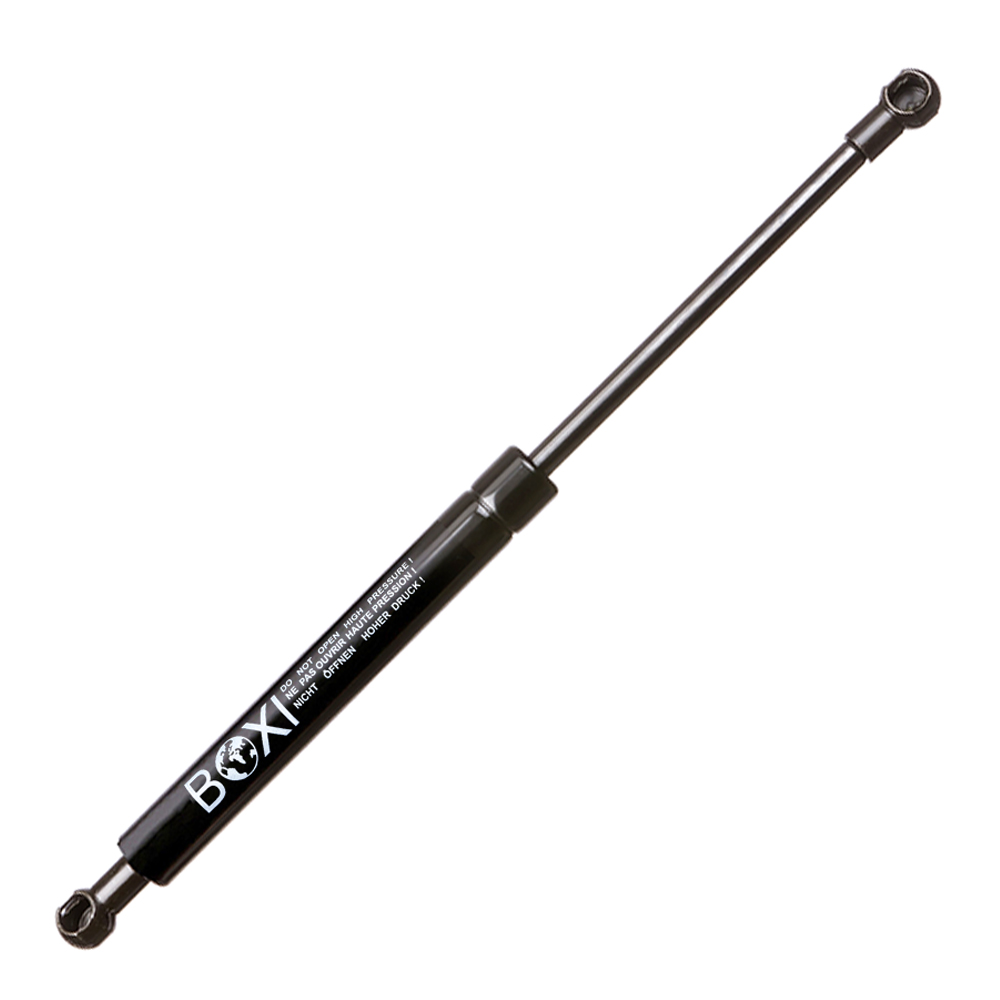

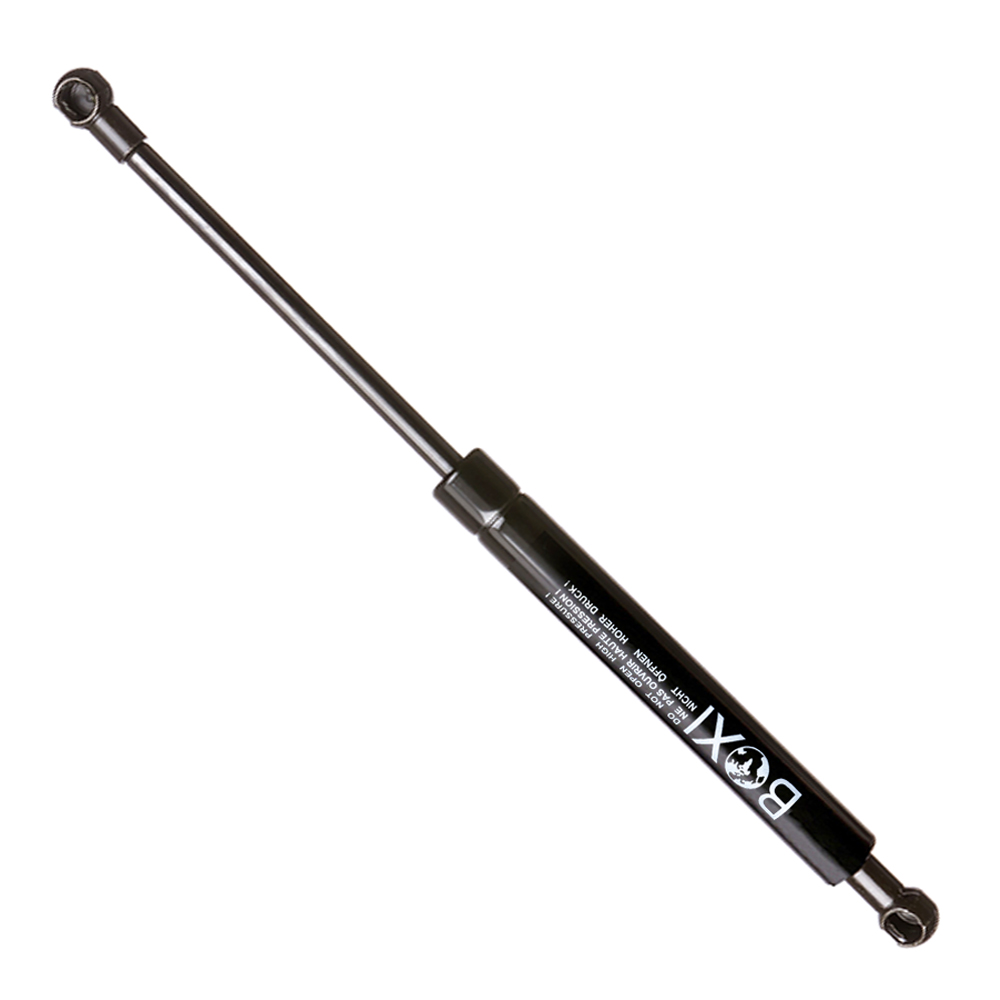

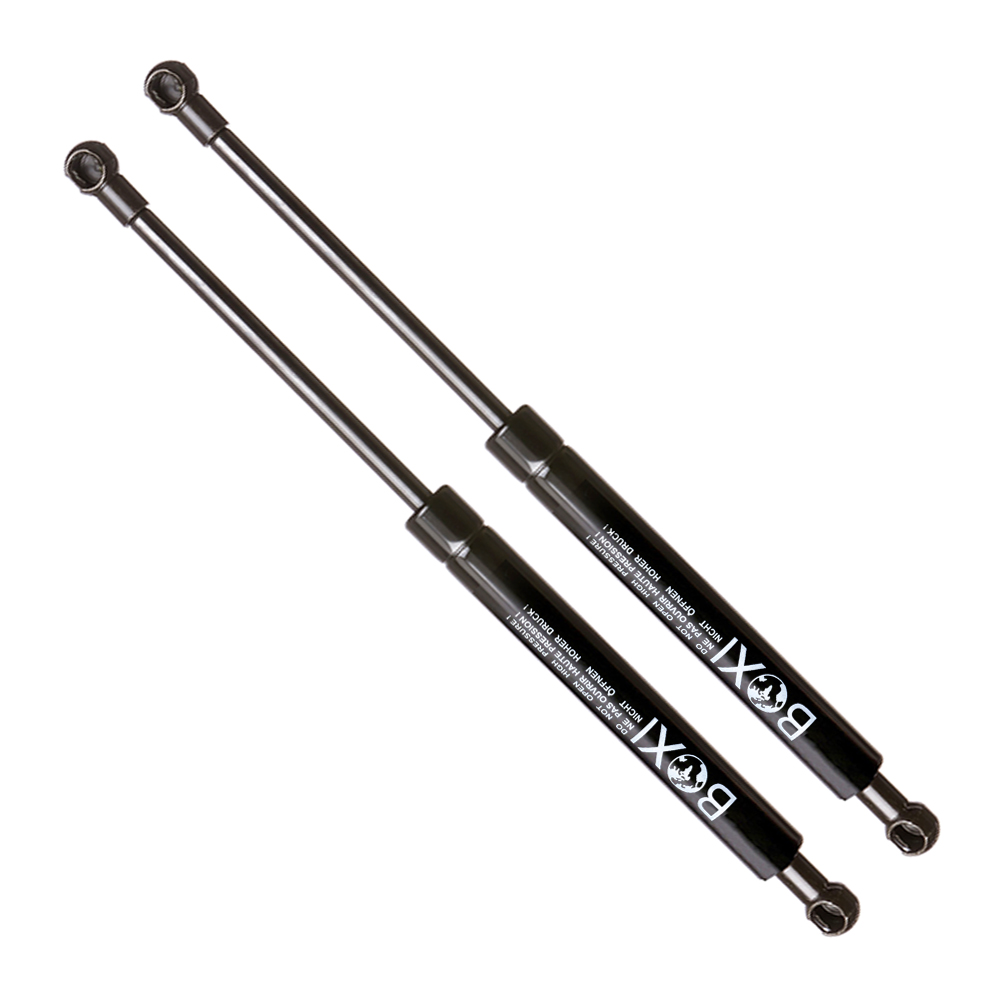

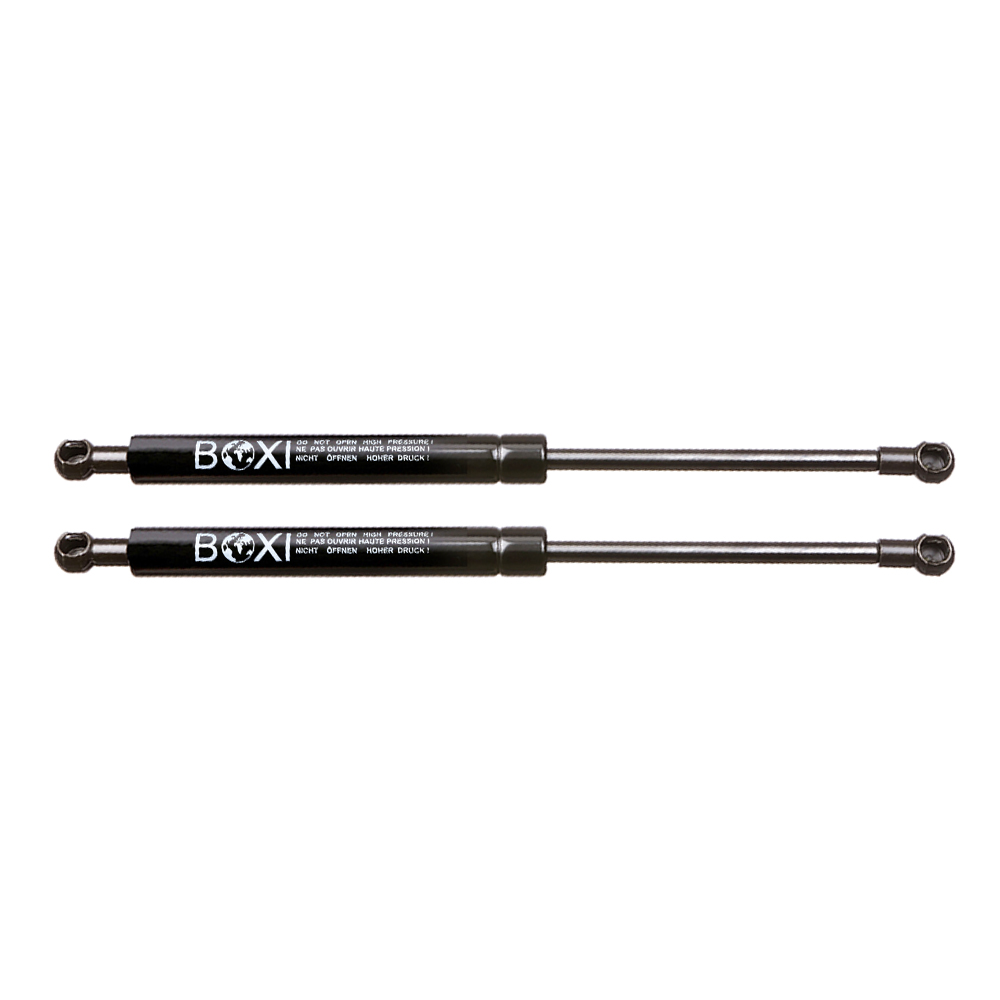

Qty(2) BOXI Rear Tailgate Trunk Lift Supports Gas Shocks Struts Compatible for BMW for Z3 Base 1996-1997 / for Z3 M Roadster 1998-2002 / for Z3 Roadster 1996-2002 / Replaces 4030 SG402025

BOXI SKU#: BXC300002064-2

$16.59

BOXI rear trunk lift supports gas shocks for BMW Z3 (1996-2002). Fits Base, M Roadster, Roadster models. Replaces OE 4030, SG402025. Verify fitment before ordering.

OE / Interchange Part Numbers: 10172, 3366LH, 4030, 51248399087, 72826, 8194701, 901608, 95702, D95702, SG402025

  • 5 Years Warranty

128 in stock

Placement on Vehicle:Rear Trunk
Package Included:2pcs Rear Trunk Lift Supports

Extended Length [in] 8.48
Compressed Length [in] 6.45

Fits the following BMW Z3 Years:

1996 – 1997 for BMW Z3 Base Convertible 2-Door E36 Convertible Only
1996 – 1997 for BMW Z3 Base Coupe 2-Door
1996 – 1997 for BMW Z3 Base Coupe 2-Door W/ Composite End Fittingsexc. Hatchback
1998 – 2002 for BMW Z3 M Roadster Convertible 2-Door W/ Composite End Fittings
1996 – 2002 for BMW Z3 Roadster Convertible 2-Door E36 Convertible Only
1996 – 2002 for BMW Z3 Roadster Convertible 2-Door W/ Composite End Fittings

Weight 0.79 lbs
Dimensions 11.81 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

215
Stroke (in):

2.18
Stroke (mm):

55
Compressed Length (in)

Compressed Length (mm):

160
Force (Lbs)

Force (Newtons)

660
Cylinder Diameter (in):

0.75
Cylinder Diameter (mm):

19
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

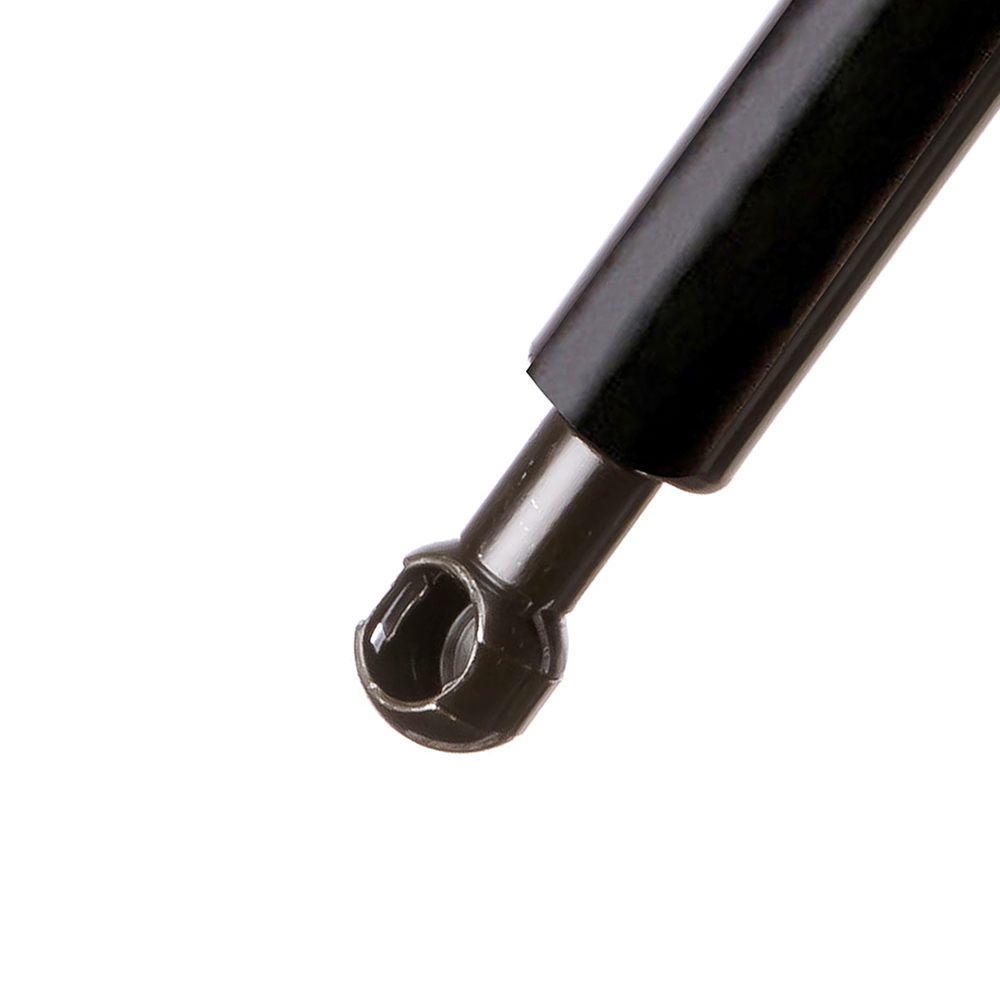

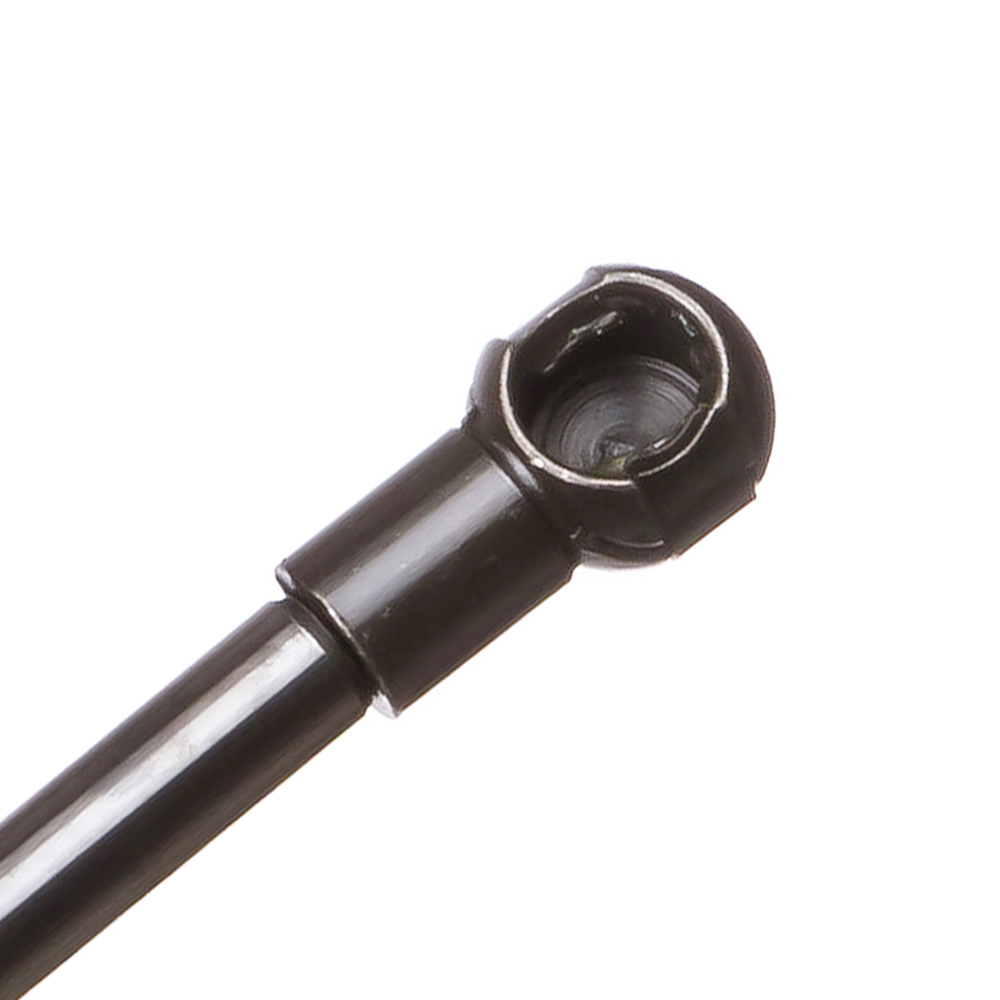

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

51242497679, 51 24 2 497 679, TFS614416, 8194701, 614413, 614416, SG402033, SG402025, F4030, D95702, 901608, 819-4701, 51248410755, 510-152, 51 24 8 399 087, 41628398668, 4030
YearMakeModelSubmodelEngine
1998BMWZ3M RoadsterL6 – 3.2L 3152cc GAS MFI type S52 – 4 valve DOHC
1996 – 1998BMWZ3RoadsterL4 – 1.9L 1895cc GAS MFI type M44 – 4 valve DOHC
L6 – 2.8L 2793cc GAS MFI type M52 – 4 valve DOHC
