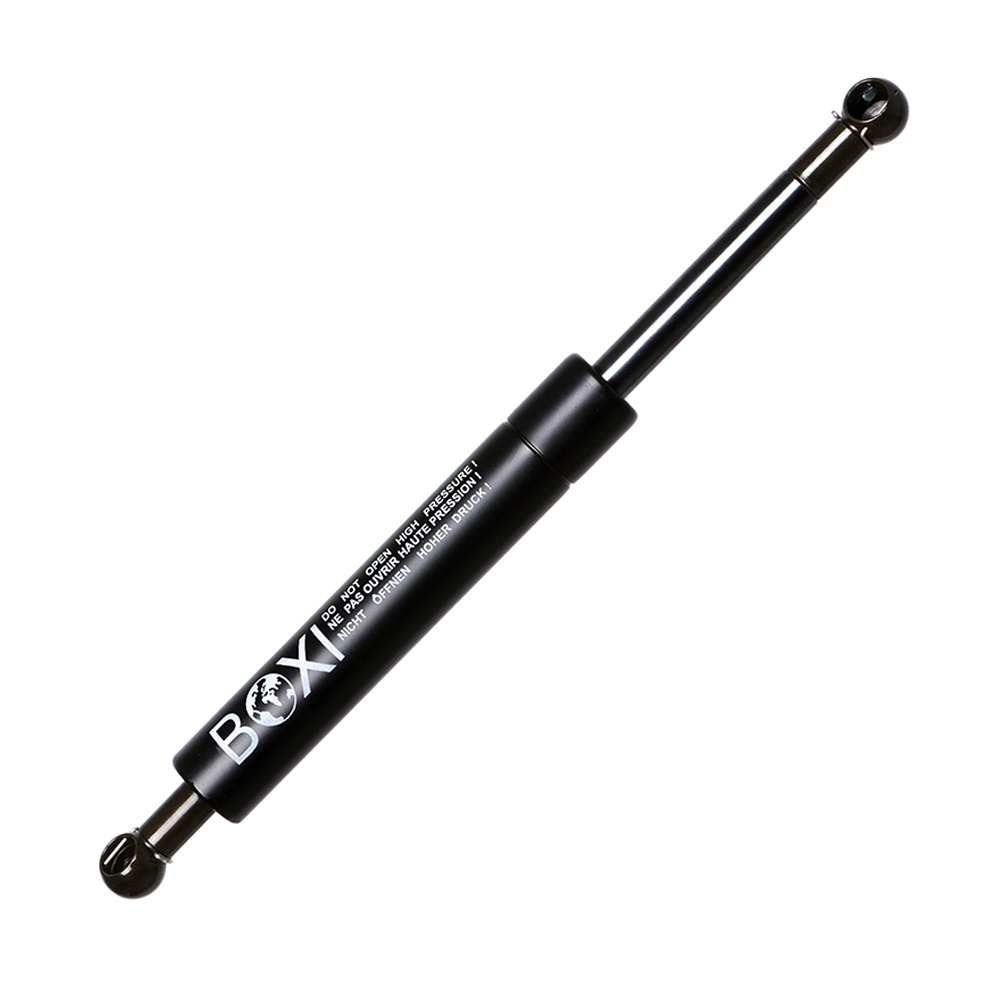

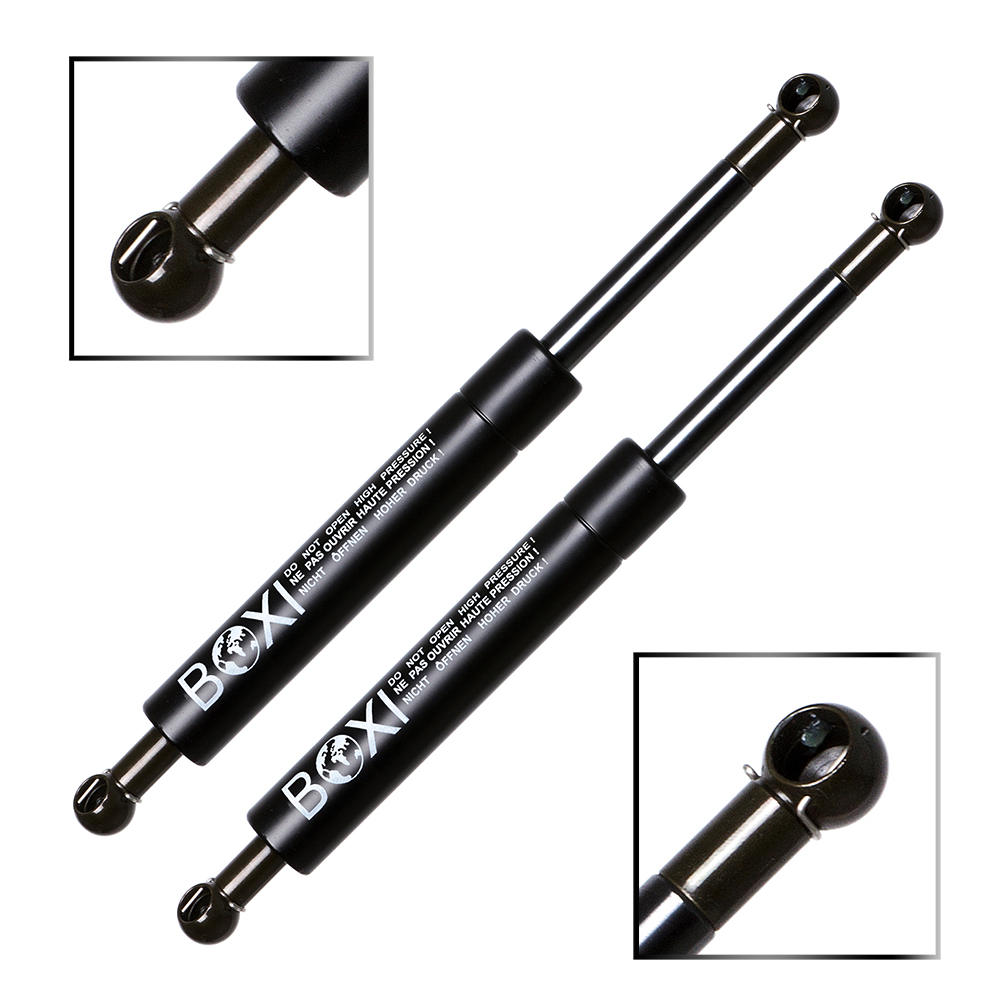

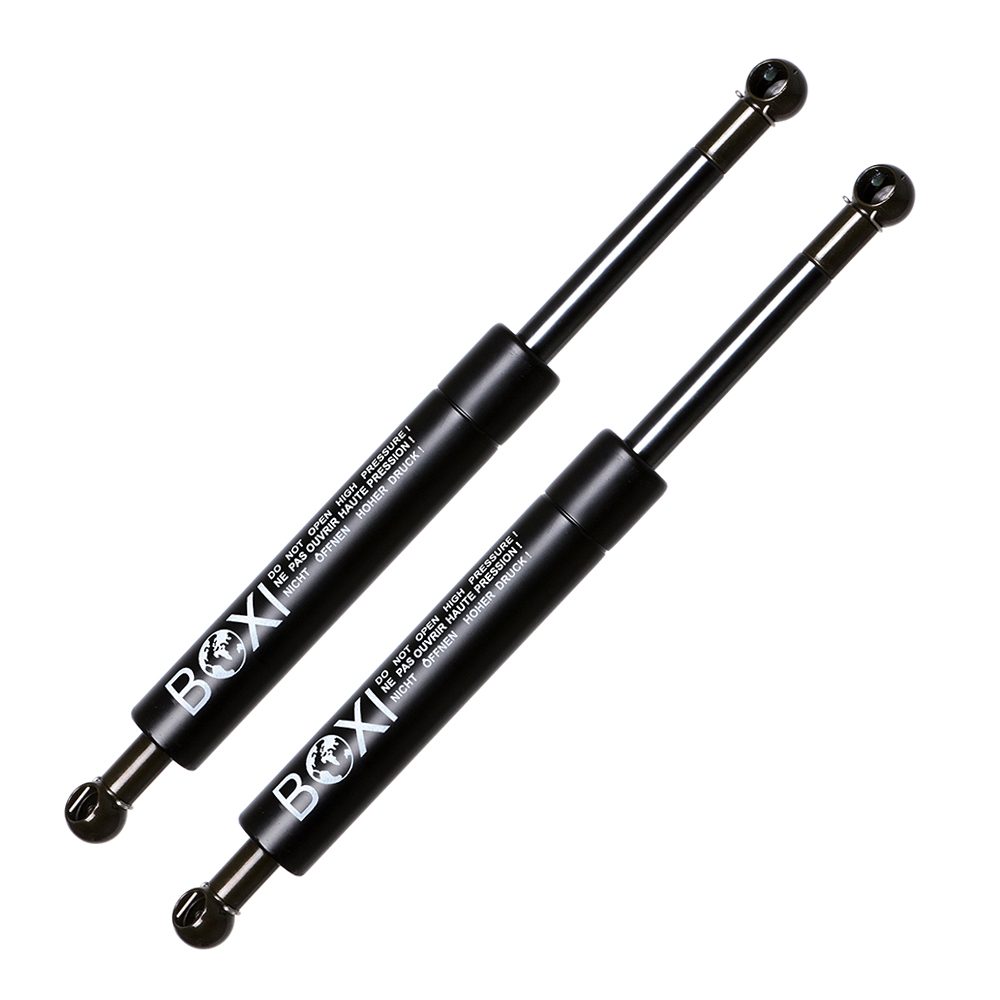

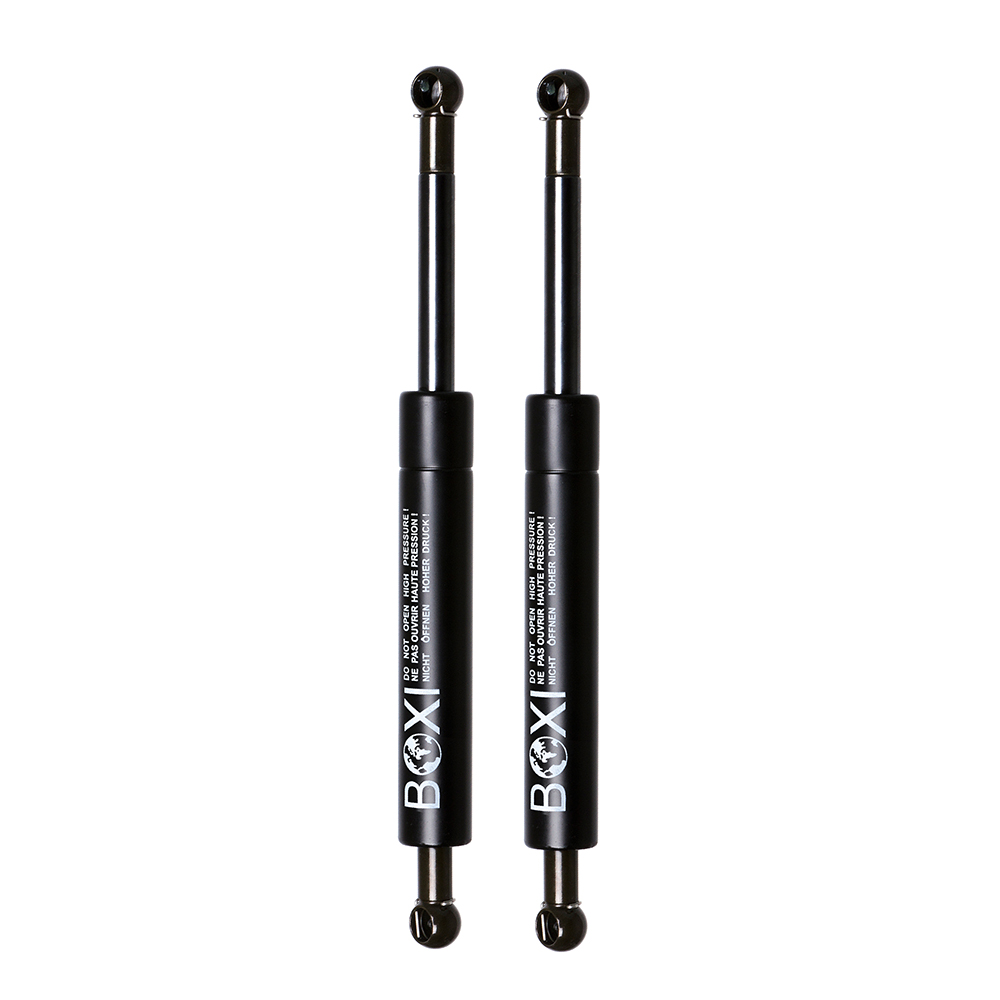

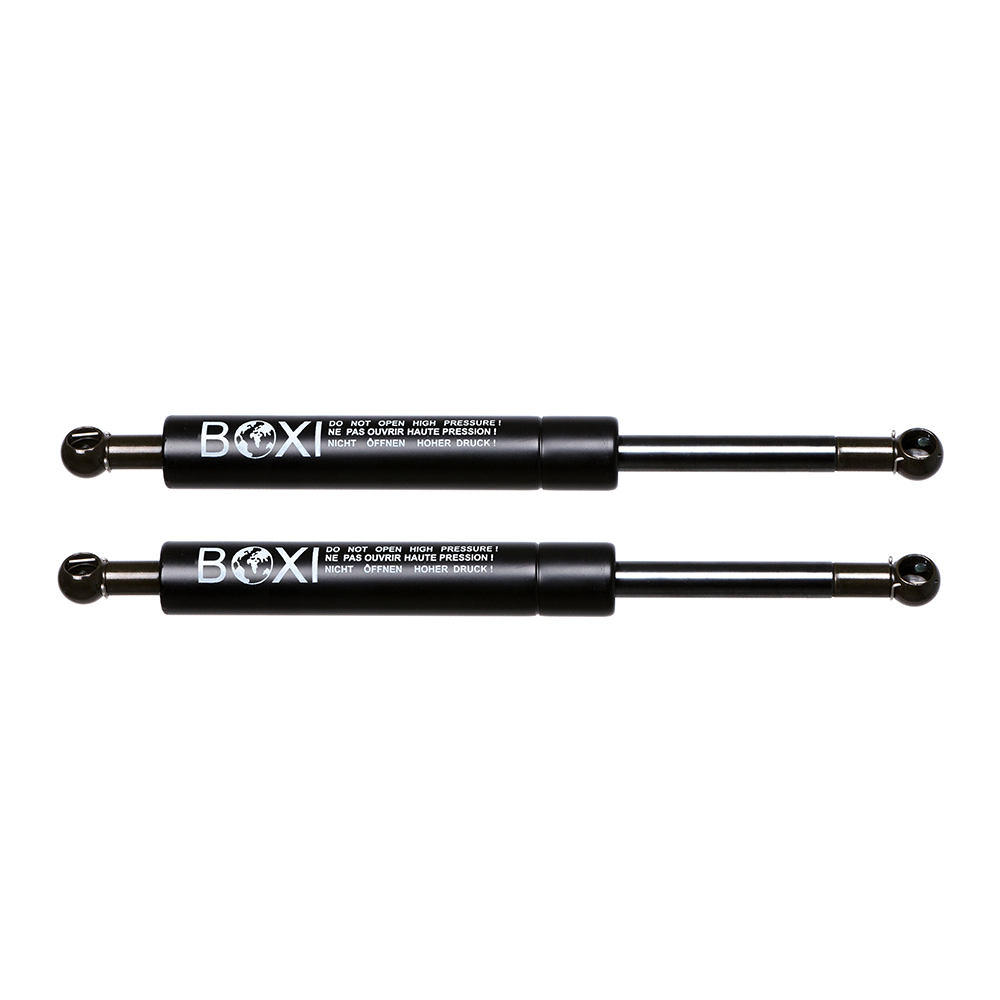

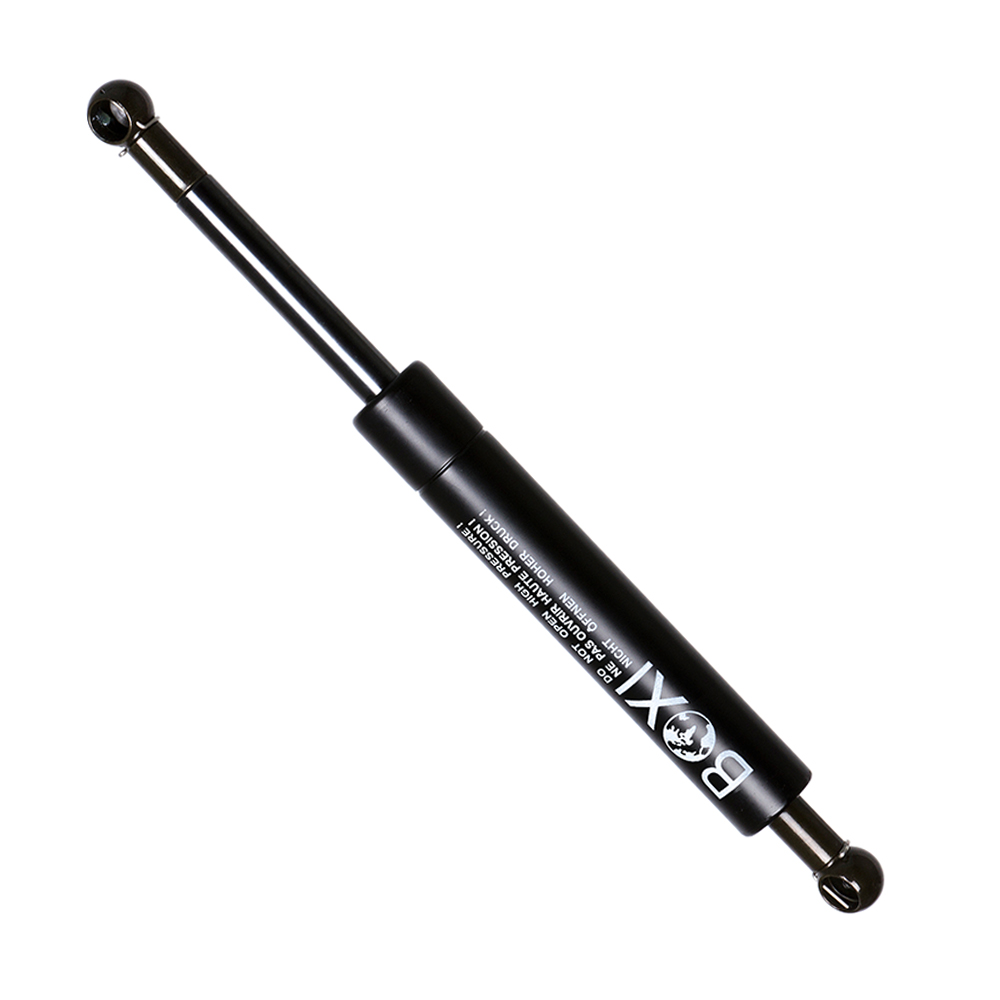

Qty(2) BOXI Tailgate lift supports struts gas shocks springs for Mercedes E320 E500 2004-2006/ E55 AMG 2006/ E63 AMG 2007 Wagon Tailgate With Power or Manual Opening |Replaces 6594 SG403060 2119800364

BOXI SKU#: BXC300005062-2

$19.94

BOXI tailgate lift supports for Mercedes E320, E500 2004-2006, E55 AMG 2006, E63 AMG 2007 Wagon. Replaces OE numbers 6594, SG403060, 2119800364. Verify fitment before ordering.

OE / Interchange Part Numbers: 2119800364, 6594SG403060

  • 5 Years Warranty

59 in stock

Placement on Vehicle:Tailgate
Package included:2pcs Tailgate Lift Supports

Fit: Mercedes – Benz E320 2004 – 2006, Mercedes – Benz E500 2004 – 2006, Mercedes – Benz E55 AMG 2006, Mercedes – Benz E63 AMG 2007 Wagon Tailgate With Power or Manual Opening
Extended Length [in] 13.68
Compressed Length [in] 10.18

Fits the following Mercedes-Benz E320 Years:
2004-2006 | 4Matic Wagon | Wagon,Wirth Power or Manual Opening
2004-2006 | Base Wagon | Wagon,Wirth Power or Manual Opening

Fits the following Mercedes-Benz E500 Years:
2004-2006 | 4Matic Wagon | Wagon,Wirth Power or Manual Opening
2004-2006 | Base Wagon | Wagon,Wirth Power or Manual Opening

Fits the following Mercedes-Benz E55 AMG Years:
2006 | 4Matic Wagon | Wagon,Wirth Power or Manual Opening
2006 | Base Wagon | Wagon,Wirth Power or Manual Opening

Fits the following Mercedes-Benz E63 AMG Years:
2007 | 4Matic Wagon | Wagon,Wirth Power or Manual Opening
2007 | Base Wagon | Wagon,Wirth Power or Manual Opening

Weight 2 lbs
Dimensions 15.75 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

347
Stroke (in):

3.96
Stroke (mm):

100
Compressed Length (in)

Compressed Length (mm):

247
Force (Lbs)

Force (Newtons)

1438
Cylinder Diameter (in):

1.1
Cylinder Diameter (mm):

28
Rod Diameter (in):

0.55
Rod Diameter (mm):

14

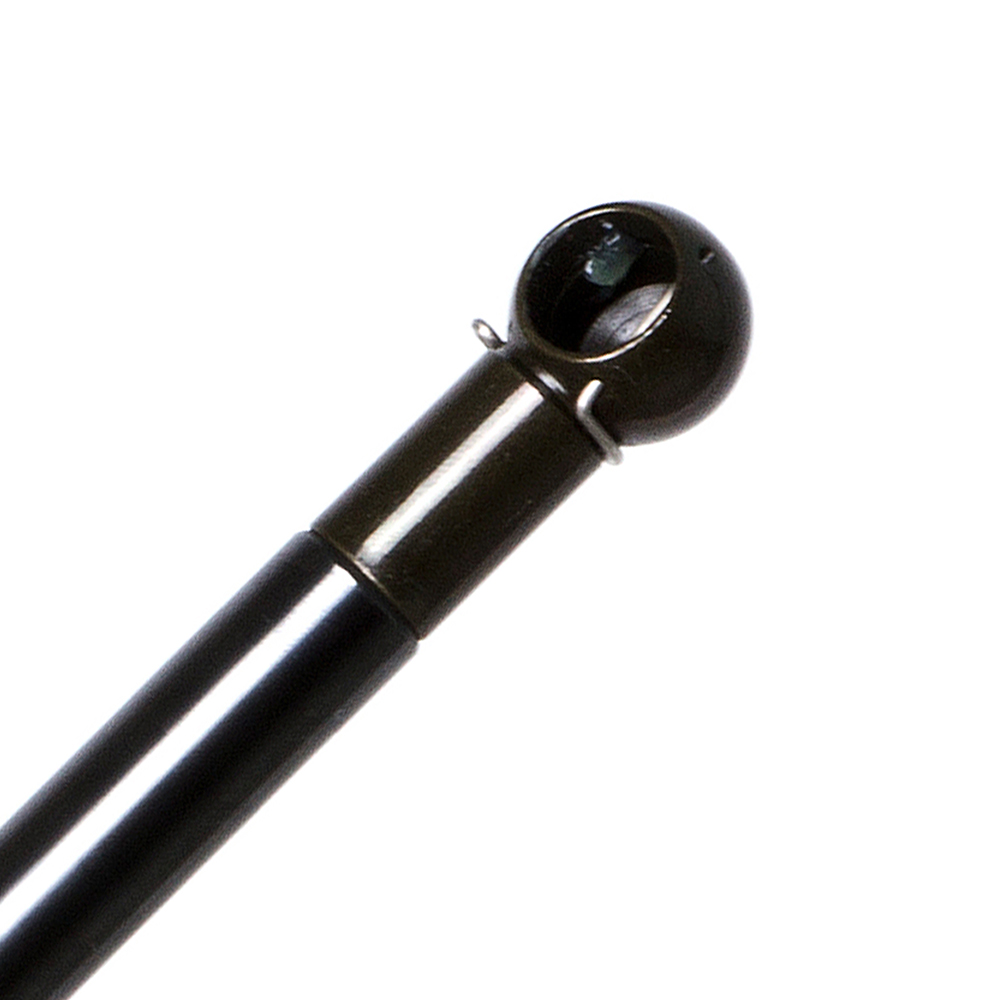

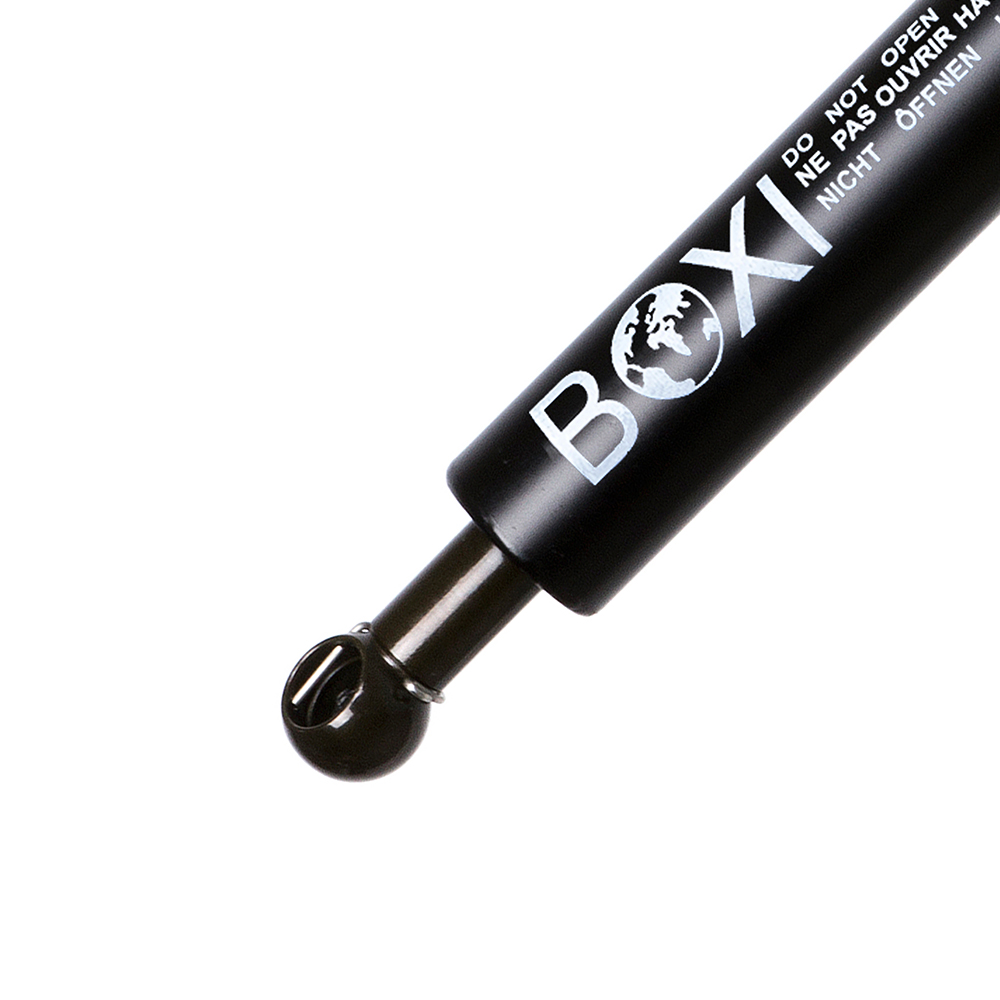

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

2119800364, 2119800464, 211980046464, 211 980 03 64, 211 980 04 64, 211 980 07 64, 211 980 11 64, 613742, SG403060, E96594, E6594, 819-6379
YearMakeModelSubmodelEngine
2007Mercedes-BenzE2804MaticV6 – 3.0L 2996cc GAS MFI type 272.944 – 4 valve DOHC
2007 – 2008Mercedes-BenzE280BaseV6 – 3.0L 2996cc GAS MFI type 272.944 – 4 valve DOHC
2004 – 2005Mercedes-BenzE3204MaticV6 – 3.2L 3199cc GAS MFI type 112.954 – 3 valve SOHC
BaseV6 – 3.2L 3199cc GAS MFI type 112.949 – 3 valve SOHC
2005Mercedes-BenzE320CDIL6 – 3.2L 3222cc DIESEL CDI Turbocharged type 648.961 – 4 valve DOHC
2006Mercedes-BenzE5004MaticV8 – 5.0L 4966cc GAS MFI type 113.969 – 3 valve SOHC
BaseV8 – 5.0L 4966cc GAS MFI type 113.967 – 3 valve SOHC
2006Mercedes-BenzE55 AMGBaseV8 – 5.4L 5439cc 332ci GAS MPI Supercharged – 3 valve SOHC
V8 – 5.5L 5439cc 332ci GAS MFI Supercharged type 113.990 – 3 valve SOHC
2007Mercedes-BenzE63 AMGBaseV8 – 6.3L 6208cc GAS MFI type 156.983 – 4 valve DOHC
