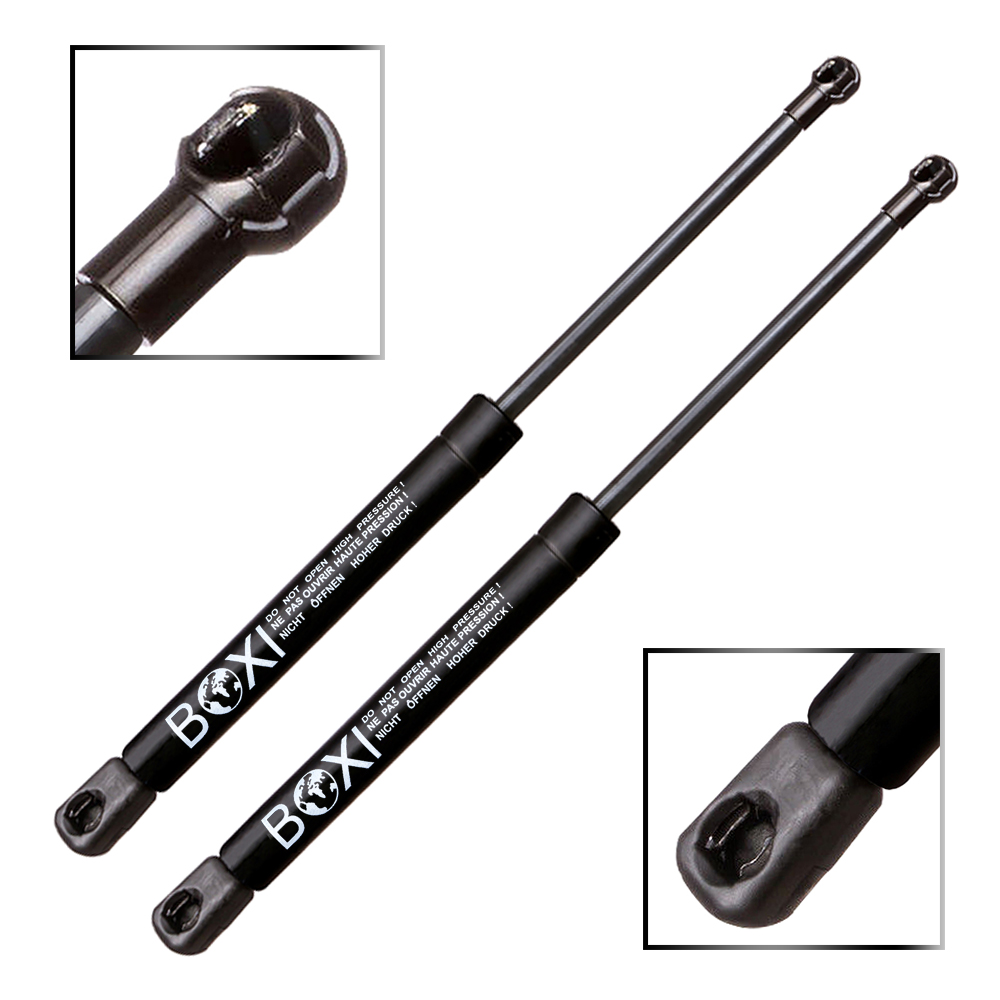

BOXI 2pcs Front Hood Lift Supports Struts Gas Struts Shocks Gas Springs Supports for Mercedes – Benz ML320 2000-2003/ ML350 2003-2005/ ML430 1998-2001/ ML500 AMG 2002-2005 | OE# SG403062 1638800029

BOXI SKU#: BXC300005005-2

$18.59

BOXI 2-piece front hood lift supports (gas struts) for 1998-2005 Mercedes-Benz ML-Class models including ML320, ML350, ML430, ML500 & ML55 AMG. Replaces OE# SG403062 (1638800029). Verify fitment before ordering.

OE / Interchange Part Numbers: 0488VQ, 14252, 1638800029, 614399, 6319, 8196146, 95464, F95464, SG403062

  • 5 Years Warranty

93 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Extended Length [in] 9.15
Compressed Length [in] 7.05

Fits the following Mercedes – Benz Years:
2000-2003 | ML320 Base Sport Utility 4-Door
2003-2005 | ML350 Base Sport Utility 4-Door
2004-2005 | ML350 Special Edition Sport Utility 4-Door
1998-2001 | ML430 Base Sport Utility 4-Door
2002-2005 | ML500 Base Sport Utility 4-Door
2004-2005 | ML500 Special Edition Sport Utility 4-Door
2000-2003 | ML55 AMG Base Sport Utility 4-Door

Weight 0.99 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

234
Stroke (in):

2.69
Stroke (mm):

70
Compressed Length (in)

Compressed Length (mm):

164
Force (Lbs)

Force (Newtons)

850
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10
Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

1201-288315, TFS614399, 614399, SG403062, F95464, F6319, 901678, 819-6146, 6319, 1638800029
YearMakeModelSubmodelEngine
2007Mercedes-BenzGL450BaseV8 – 4.7L 4663cc 285ci GAS MFI type 273.923 – 4 valve DOHC
1998 – 2003Mercedes-BenzML320BaseV6 – 3.2L 3199cc GAS MFI type 112.942 – 3 valve SOHC
2003 – 2005Mercedes-BenzML350BaseV6 – 3.7L 3699cc GAS MFI type 112.970 – 3 valve SOHC
2004 – 2005Mercedes-BenzML350Special EditionV6 – 3.7L 3699cc GAS MFI type 112.970 – 3 valve SOHC
1998 – 2001Mercedes-BenzML430BaseV8 – 4.3L 4266cc GAS MFI type 113.942 – 3 valve SOHC
2002 – 2007Mercedes-BenzML500BaseV8 – 5.0L 4966cc 303ci GAS MFI type 113.964 – 3 valve SOHC
V8 – 5.0L 4966cc 303ci GAS MPI – 3 valve SOHC
V8 – 5.0L 4966cc GAS MFI type 113.964 – 3 valve SOHC
V8 – 5.0L 4966cc GAS MFI type 113.965 – 3 valve SOHC
V8 – 5.0L 4973cc GAS MFI type 113.964 – 3 valve SOHC
2006Mercedes-BenzML500Introduction
Premium		V8 – 5.0L 4966cc 303ci GAS MPI – 3 valve SOHC
2004 – 2005Mercedes-BenzML500Special EditionV8 – 5.0L 4966cc GAS MFI type 113.965 – 3 valve SOHC
2000 – 2003Mercedes-BenzML55 AMGBaseV8 – 5.4L 5439cc 332ci GAS MPI – 3 valve SOHC
V8 – 5.5L 5439cc 332ci GAS MFI type 113.981 – 3 valve SOHC
V8 – 5.5L 5439cc 332ci GAS MFI type 113.984 – 3 valve SOHC
