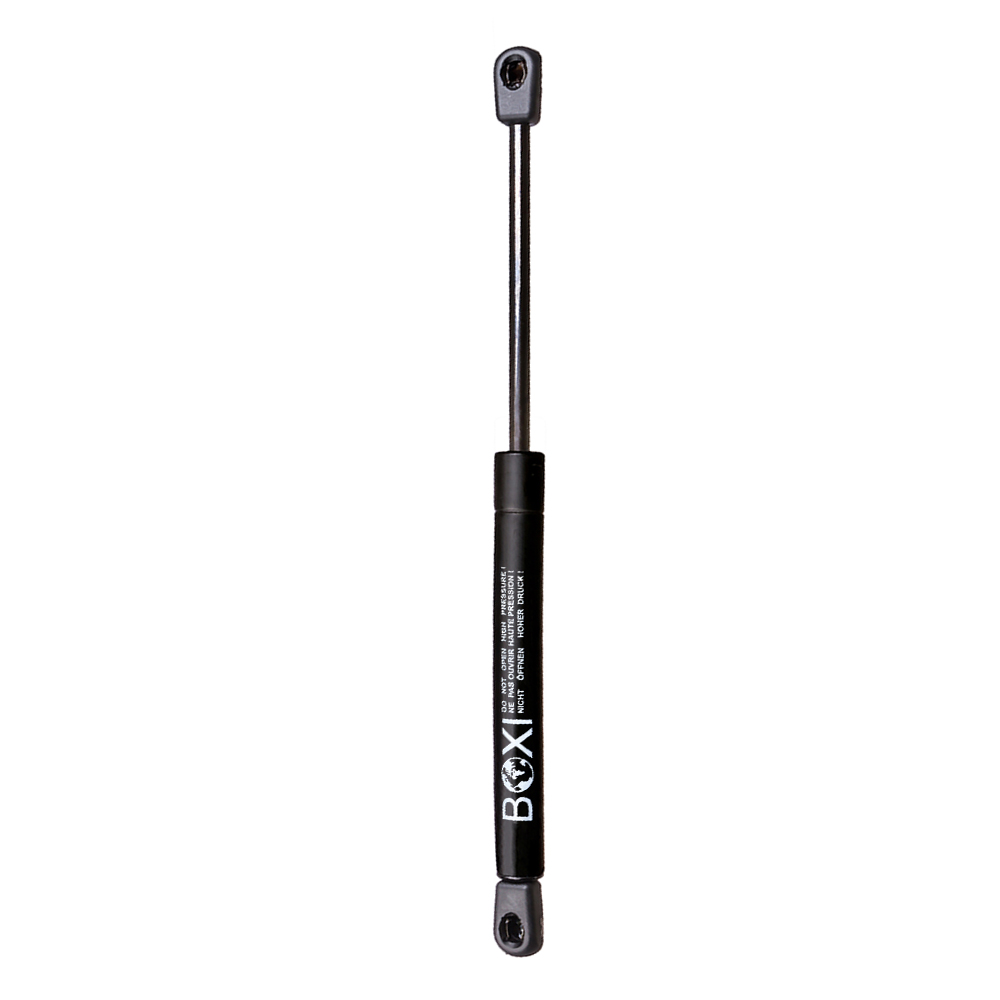

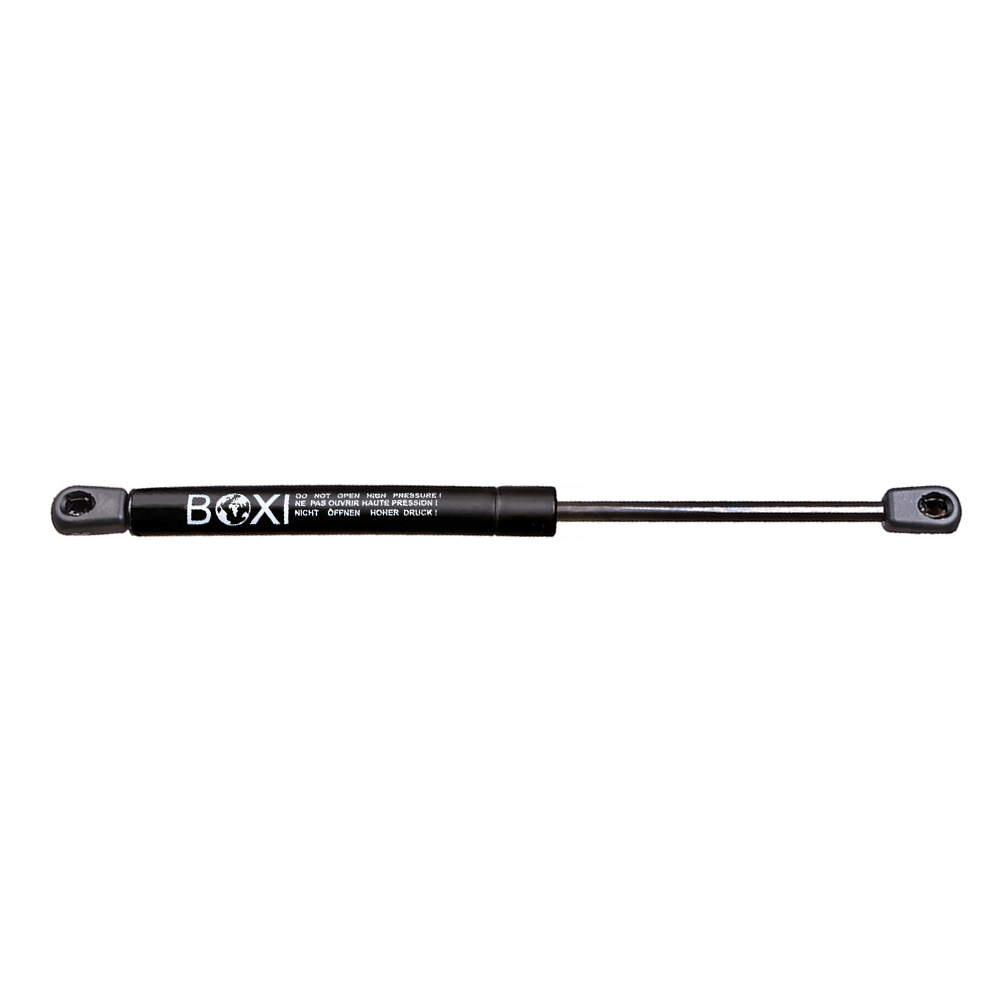

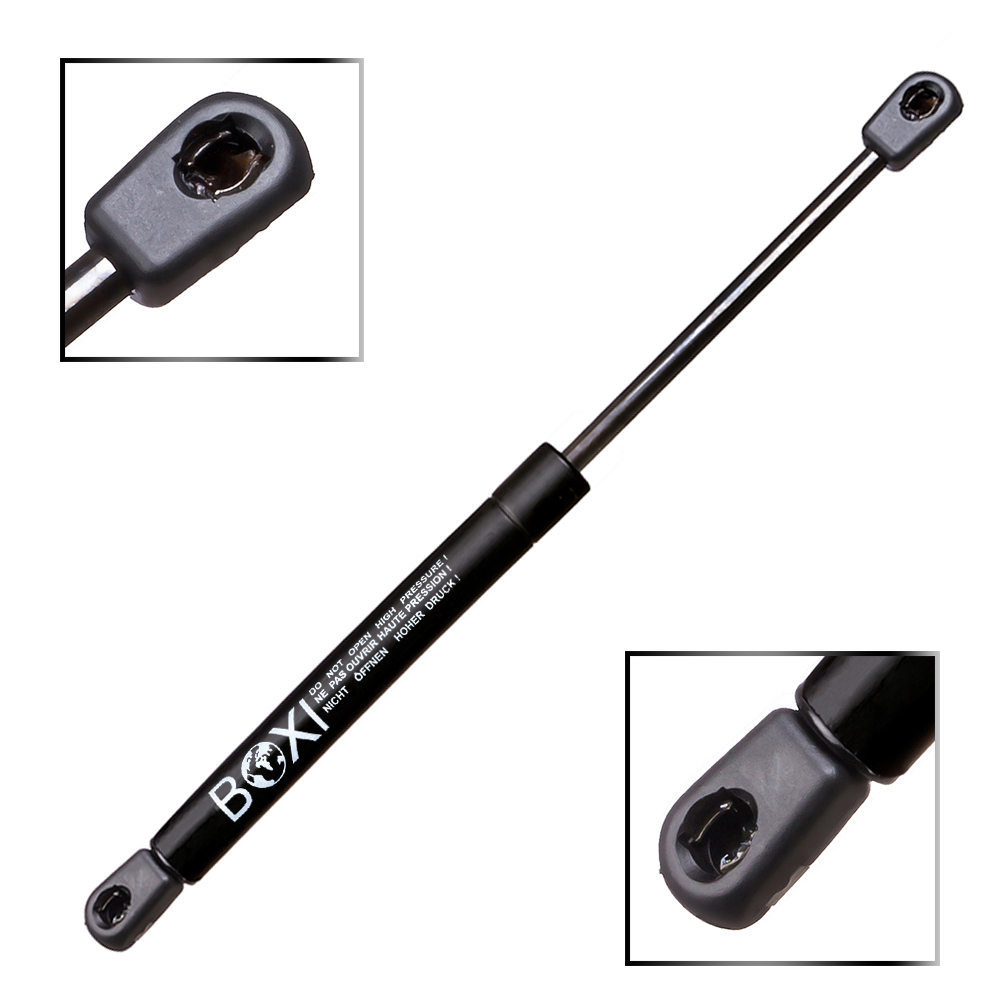

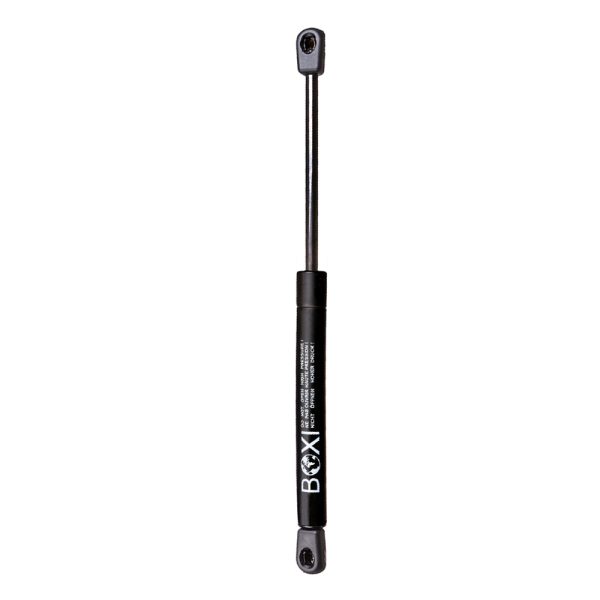

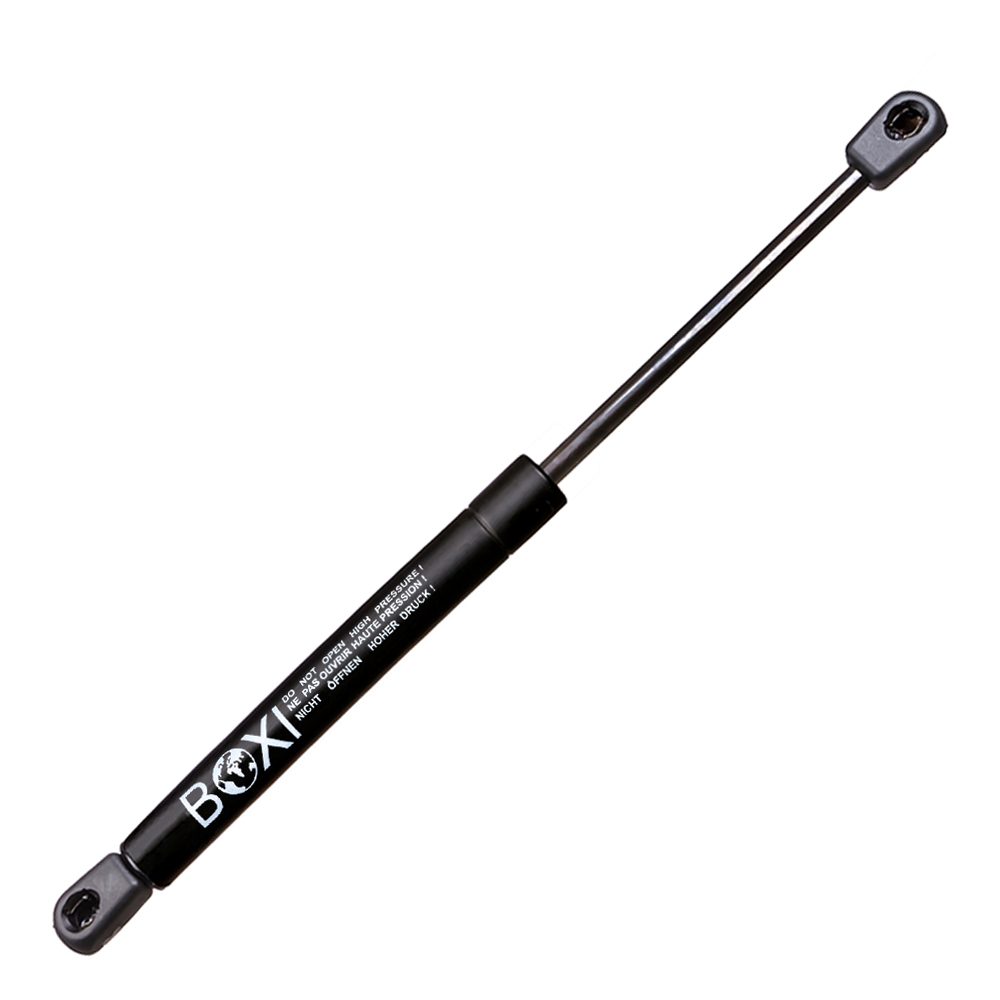

BOXI Qty (1) Rear Seat Lift Support Gas Shock Spring Strut Fit for Fo-rd F-150 2009-2019, F-250 F-350 2009-2019 Super Duty,F-450 F-550 2009-2018 Super Duty | Replaces 4B-849445 9L3Z 16624B75A

BOXI SKU#: BXC300004308-1

$20.90

BOXI rear seat lift support strut for Ford F-150 2009-2019 and Super Duty models. Replaces OE 4B-849445 and 9L3Z 16624B75A. Verify fitment before ordering.

  • 5 Years Warranty

39 in stock

Placement on Vehicle:Rear Seat
Package Included:1pcs Rear Seat Lift Support

Fits the following vehicles:
Fo-rd F-150 2009-2019
Fo-rd F-250 Super Duty 2009-2019
Fo-rd F-350 Super Duty 2009-2019
Fo-rd F-450 Super Duty 2009-2018
Fo-rd F-550 Super Duty 2009-2018

Weight 0.88 lbs
Dimensions 17.72 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

429
Stroke (in):

6.89
Stroke (mm):

175
Compressed Length (in)

Compressed Length (mm):

254
Force (Lbs)

Force (Newtons)

138
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

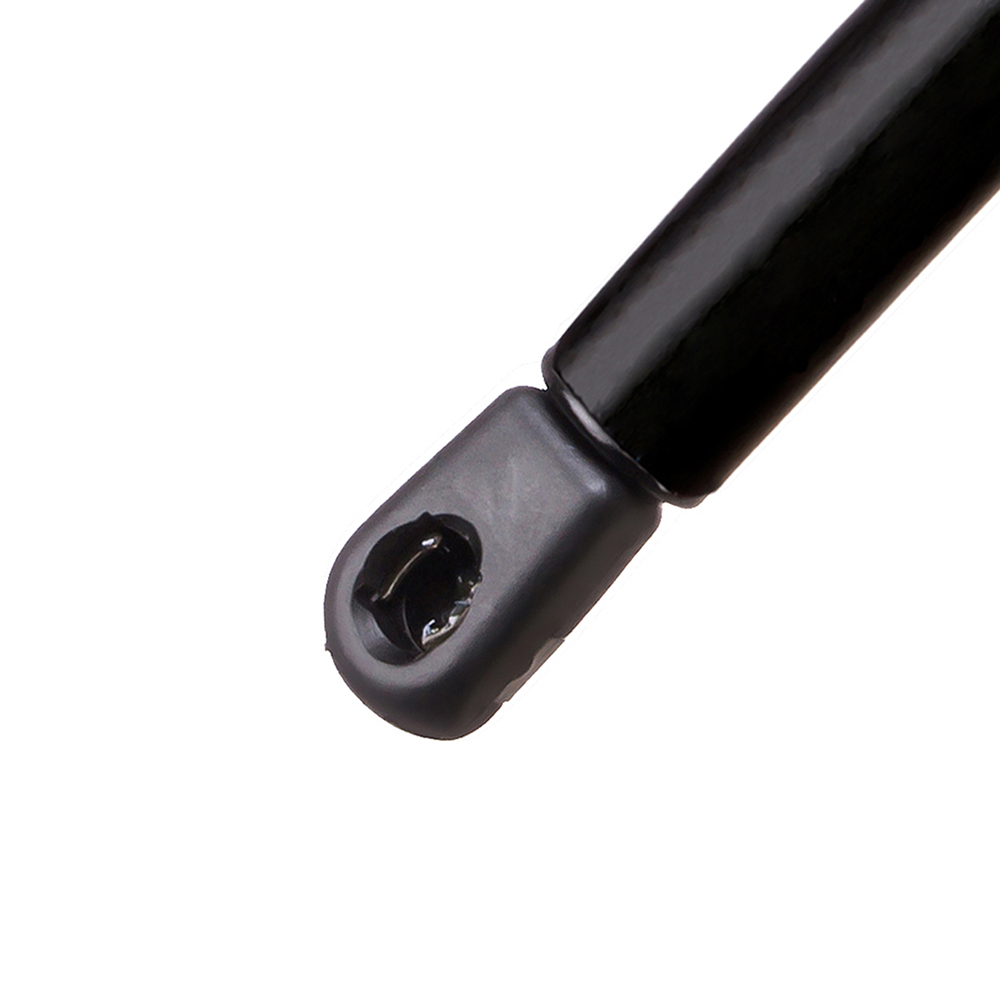

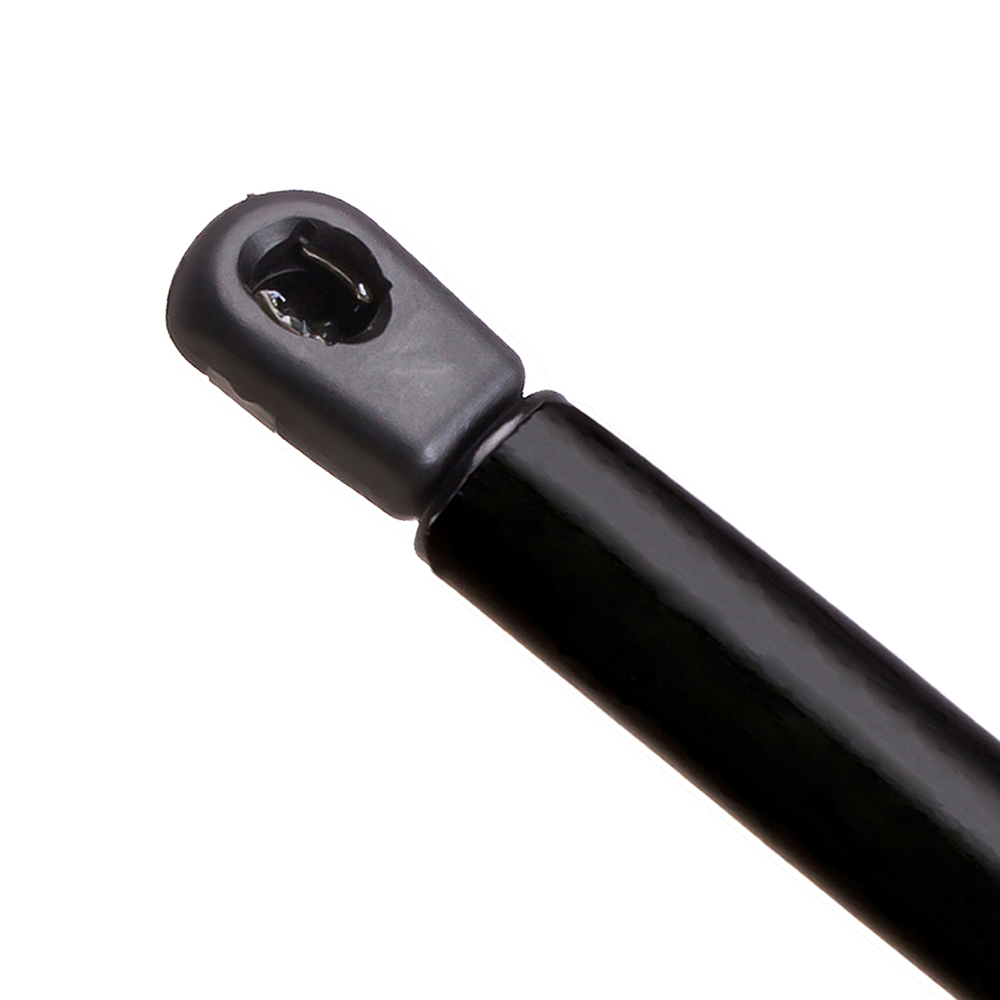

Body Connection:

Ball Socket

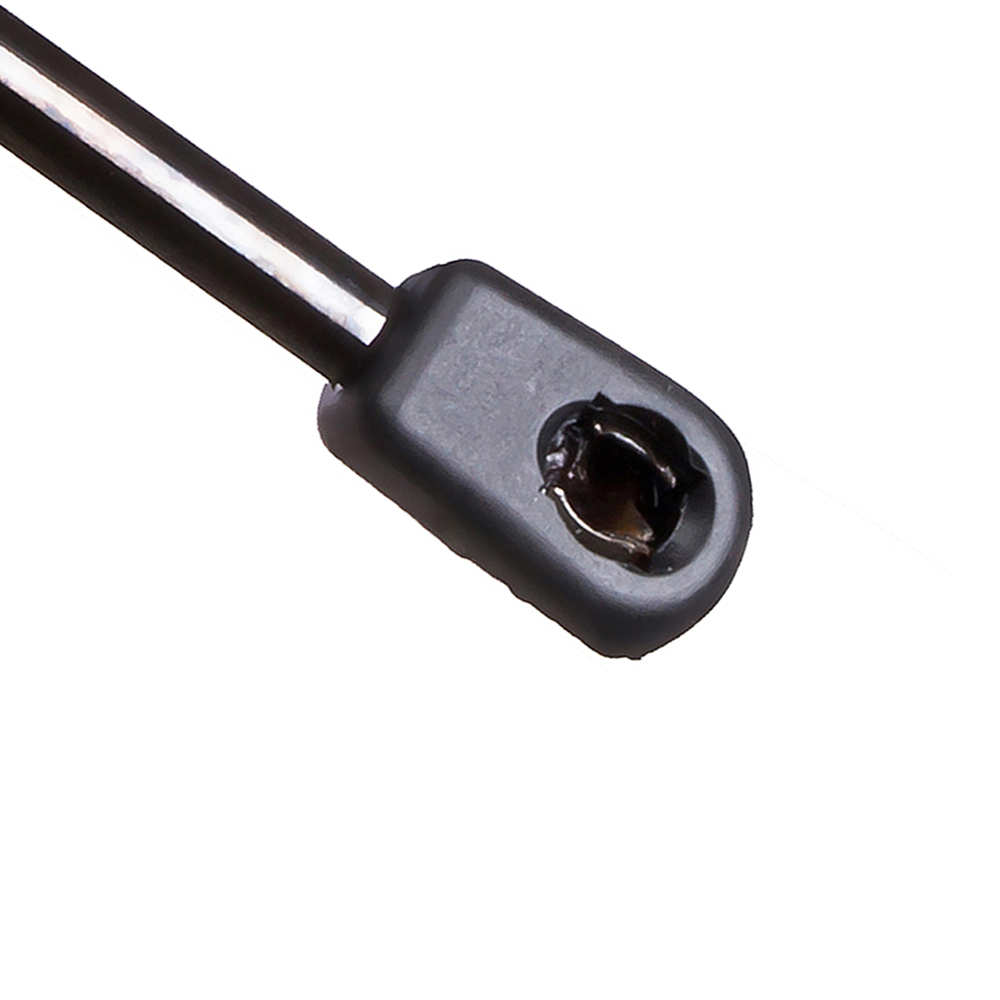

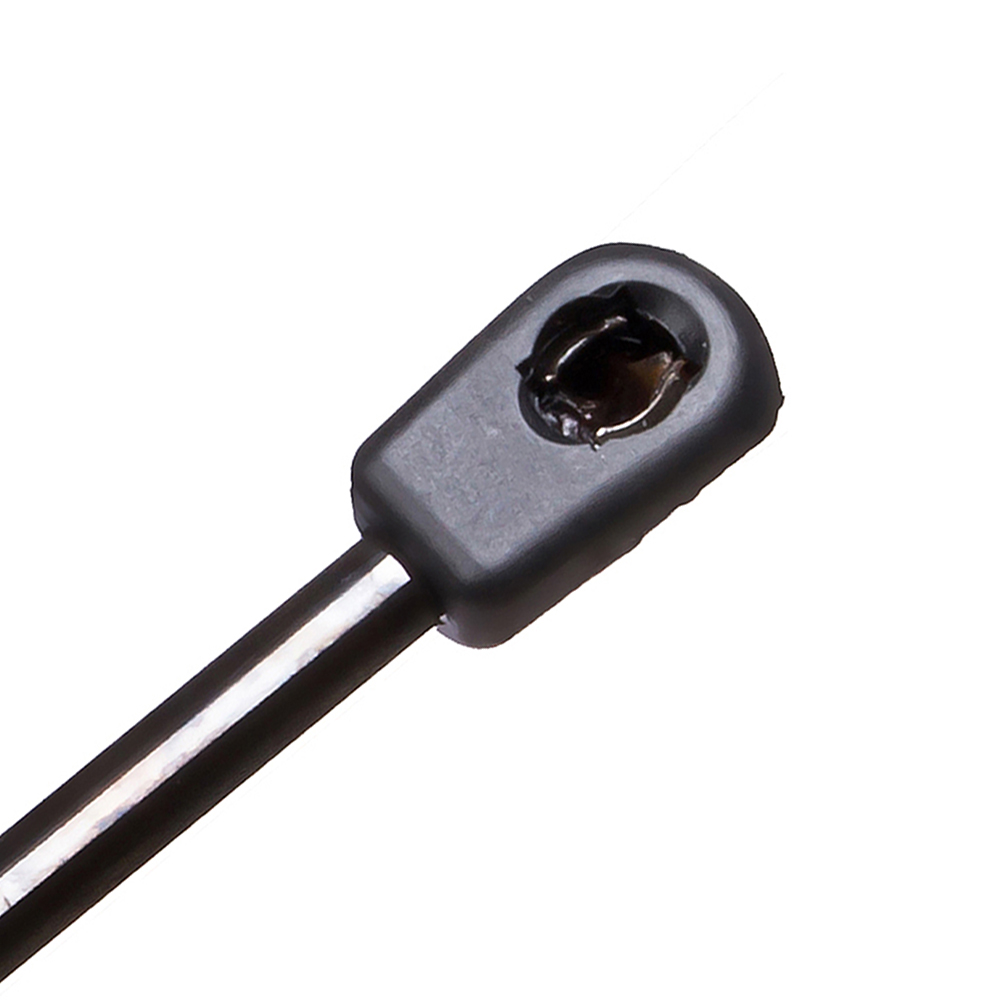

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

4B-849445, 4B849445, 9L3Z-16624B75-A, 9L3Z16624B75A, 9L3Z 16624B75-A, 9L3Z 16624B75A, 9L3416624B75AB
YearMakeModelSubmodelEngine
2010 – 2014FordF-150FX2V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V8 – 4.6L 281ci GAS MFI vin 8 – 3 valve SOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
SVT RaptorV8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
2009 – 2014FordF-150FX4V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
STXV6 – 3.7L 3726cc 227ci CNG MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci FLEX MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci LPG MFI vin M type 99M – 4 valve DOHC
V8 – 4.6L 281ci GAS MFI vin 8 – 3 valve SOHC
V8 – 4.6L 281ci GAS MFI vin W – 2 valve SOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
2009FordF-150FlotilleraV6 – 4.2L 256ci GAS MFI vin 2 – 2 valve OHV
2010 – 2012FordF-150Harley-Davidson EditionV8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
2009 – 2019FordF-150King RanchV6 – 3.0L 2993cc 183ci DIESEL DI Turbocharged vin 1 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
LariatV6 – 2.7L 164ci GAS DI Turbocharged vin P – 4 valve DOHC
V6 – 2.7L 164ci GAS DPI Turbocharged vin P – 4 valve DOHC
V6 – 3.0L 2993cc 183ci DIESEL DI Turbocharged vin 1 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
PlatinumV6 – 3.0L 2993cc 183ci DIESEL DI Turbocharged vin 1 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
XLV6 – 2.7L 164ci GAS DI Turbocharged vin P – 4 valve DOHC
V6 – 2.7L 164ci GAS DPI Turbocharged vin P – 4 valve DOHC
V6 – 3.0L 2993cc 183ci DIESEL DI Turbocharged vin 1 – 4 valve DOHC
V6 – 3.3L 3343cc 204ci FLEX DPI vin B – 4 valve DOHC
V6 – 3.3L 3343cc 204ci GAS DPI vin B – 4 valve DOHC
V6 – 3.5L 3496cc 213ci FLEX MFI vin 8 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI vin 8 – 4 valve DOHC
V6 – 3.7L 3726cc 227ci CNG MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci FLEX MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci LPG MFI vin M type 99M – 4 valve DOHC
V6 – 4.2L 256ci GAS MFI vin 2 – 2 valve OHV
V8 – 4.6L 281ci GAS MFI vin 8 – 3 valve SOHC
V8 – 4.6L 281ci GAS MFI vin W – 2 valve SOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.0L 4951cc 302ci GAS DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci GAS MFI vin F – 4 valve DOHC
V8 – 5.0L 4951cc 302ci GAS MPI type 99F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
XLTV6 – 2.7L 164ci GAS DI Turbocharged vin P – 4 valve DOHC
V6 – 2.7L 164ci GAS DPI Turbocharged vin P – 4 valve DOHC
V6 – 3.0L 2993cc 183ci DIESEL DI Turbocharged vin 1 – 4 valve DOHC
V6 – 3.3L 3343cc 204ci FLEX DPI vin B – 4 valve DOHC
V6 – 3.5L 3496cc 213ci FLEX MFI vin 8 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V6 – 3.7L 3726cc 227ci CNG MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci FLEX MFI vin M type 99M – 4 valve DOHC
V6 – 3.7L 3726cc 227ci LPG MFI vin M type 99M – 4 valve DOHC
V6 – 4.2L 256ci GAS MFI vin 2 – 2 valve OHV
V8 – 4.6L 281ci GAS MFI vin 8 – 3 valve SOHC
V8 – 4.6L 281ci GAS MFI vin W – 2 valve SOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
V8 – 5.4L 330ci FLEX MFI vin V – 3 valve SOHC
V8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
2011FordF-150Lariat LimitedV8 – 6.2L 6210cc 379ci GAS MFI vin 6 – 2 valve SOHC
2013 – 2019FordF-150LimitedV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
2018 – 2019FordF-150Police ResponderV6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
2017 – 2019FordF-150RAPTORV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
2016 – 2019FordF-150SSVV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin G – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin 4 – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS DPI Turbocharged vin G – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX DPI vin 5 – 4 valve DOHC
V8 – 5.0L 4951cc 302ci FLEX MFI vin F – 4 valve DOHC
2014FordF-150TremorV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2017 – 2019FordF-250 Super DutyKing Ranch
Lariat
Platinum
XL
XLT		V8 – 6.2L 6210cc 379ci FLEX MFI vin 6 – 2 valve SOHC
V8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
2018 – 2019FordF-250 Super DutyLimitedV8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
2017 – 2019FordF-350 Super DutyKing Ranch
Lariat
Platinum
XL
XLT		V8 – 6.2L 6210cc 379ci FLEX MFI vin 6 – 2 valve SOHC
V8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
XL PlusV8 – 6.2L 6210cc 379ci FLEX MFI vin 6 – 2 valve SOHC
2018 – 2019FordF-350 Super DutyLimitedV8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
2017 – 2019FordF-450 Super DutyXLV10 – 6.8L 415ci GAS MFI vin Y – 3 valve SOHC
V8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
2017 – 2018FordF-550 Super DutyLariat
XL
XLT		V10 – 6.8L 415ci GAS MFI vin Y – 3 valve SOHC
V8 – 6.7L 6651cc 406ci DIESEL MFI Turbocharged vin T – 4 valve OHV
