Qty(2) BOXI Front Hood Lift Supports Struts Gas Struts Shocks Gas Springs Supports Lift Shocks for Ford F-150 Raptor Extended Cab/Crew Cab Pickup 2017-2019 4-Door | Replaces # H4B-806903 L3Z16C826A
BOXI SKU#: BXC300004302-2
$16.69

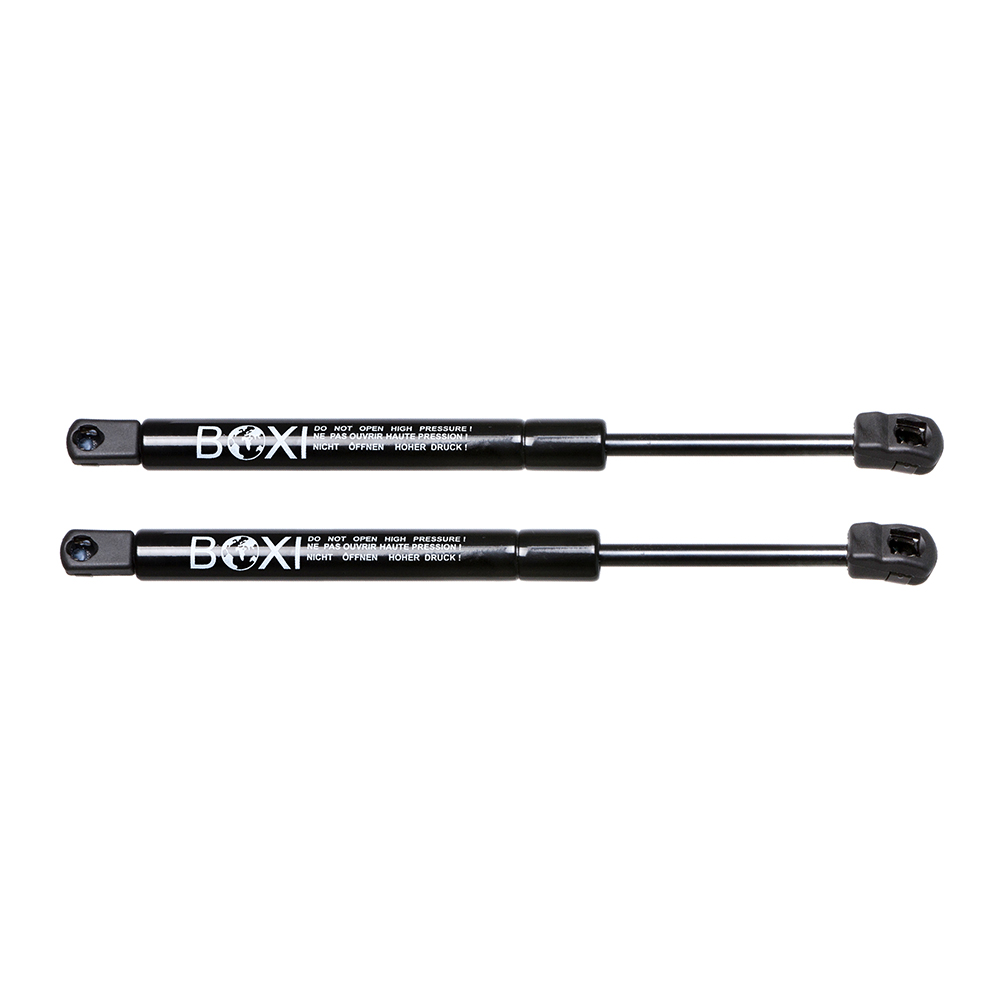

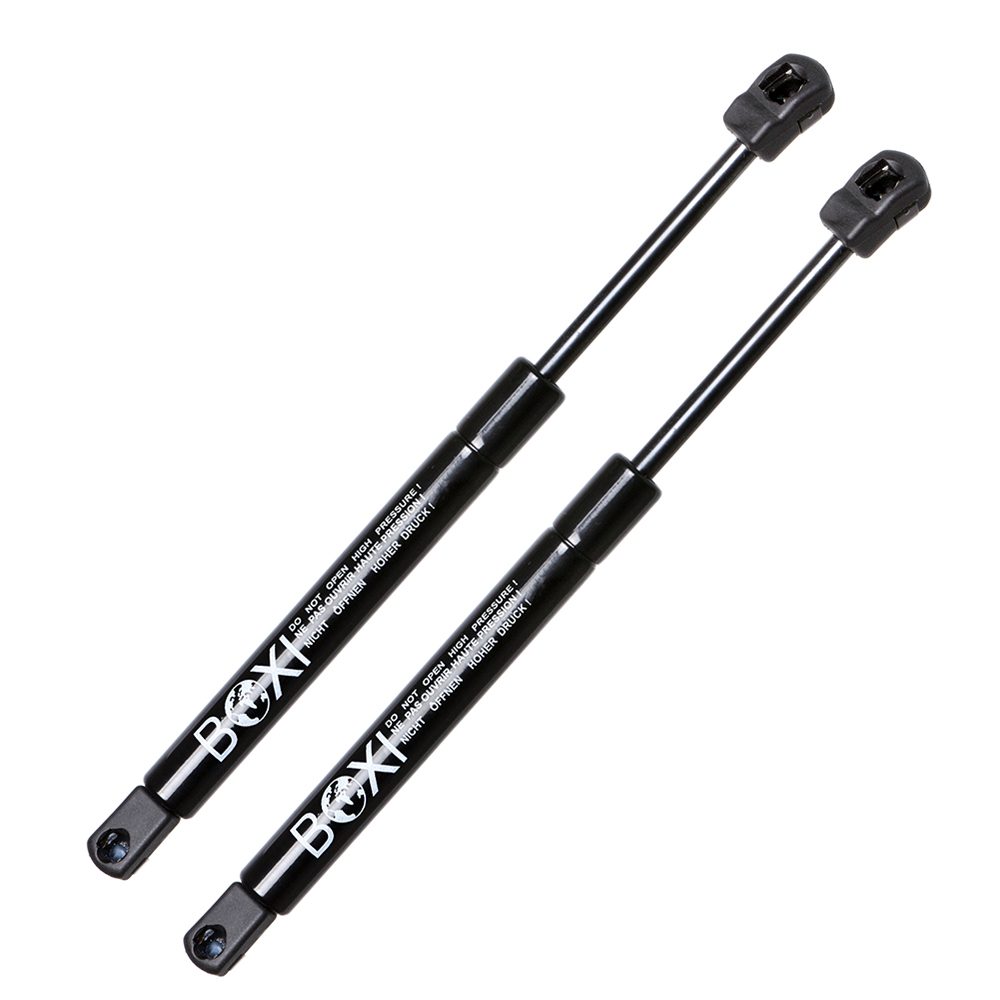

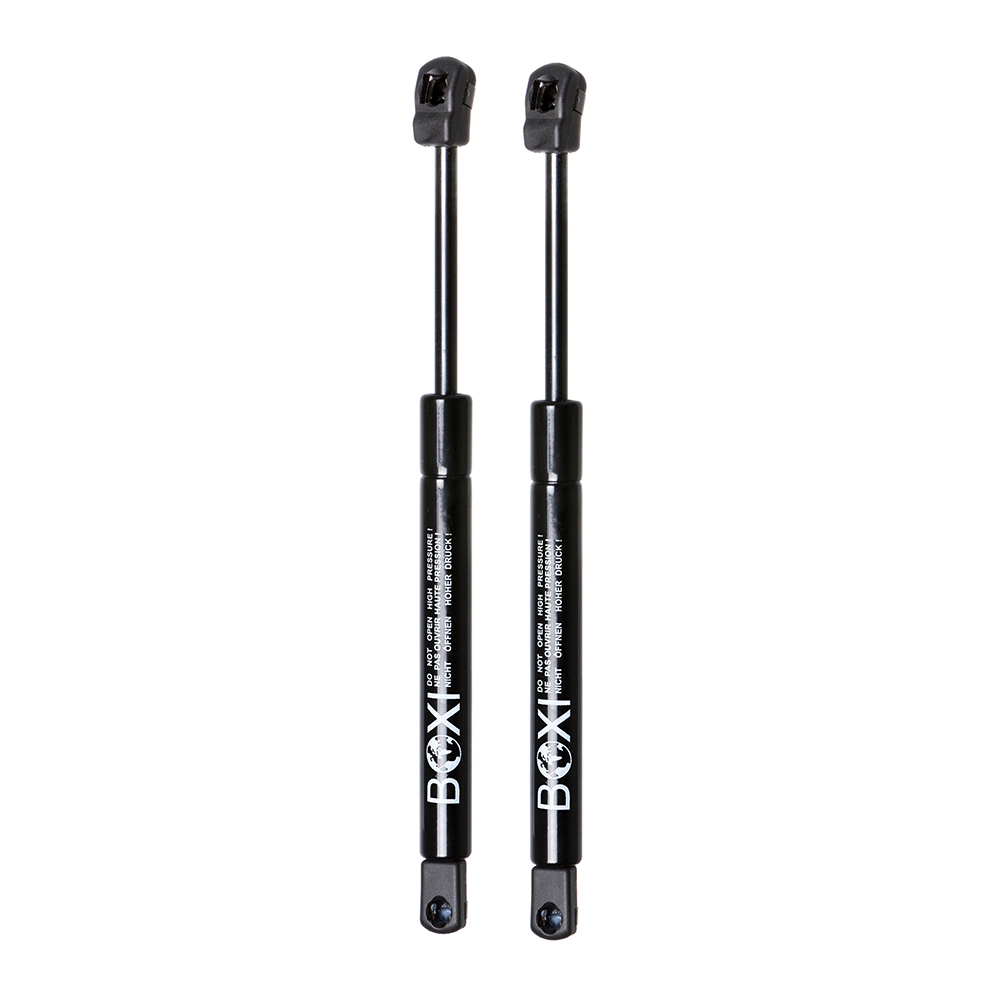

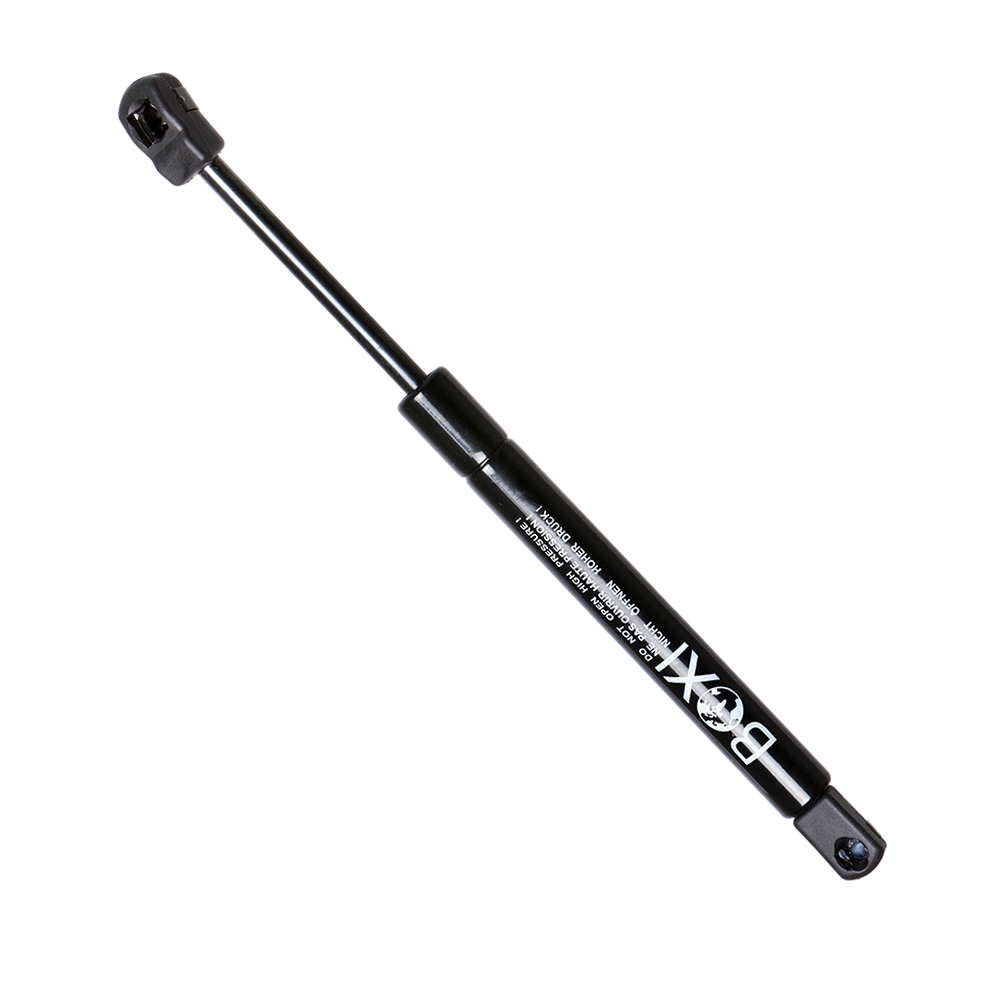

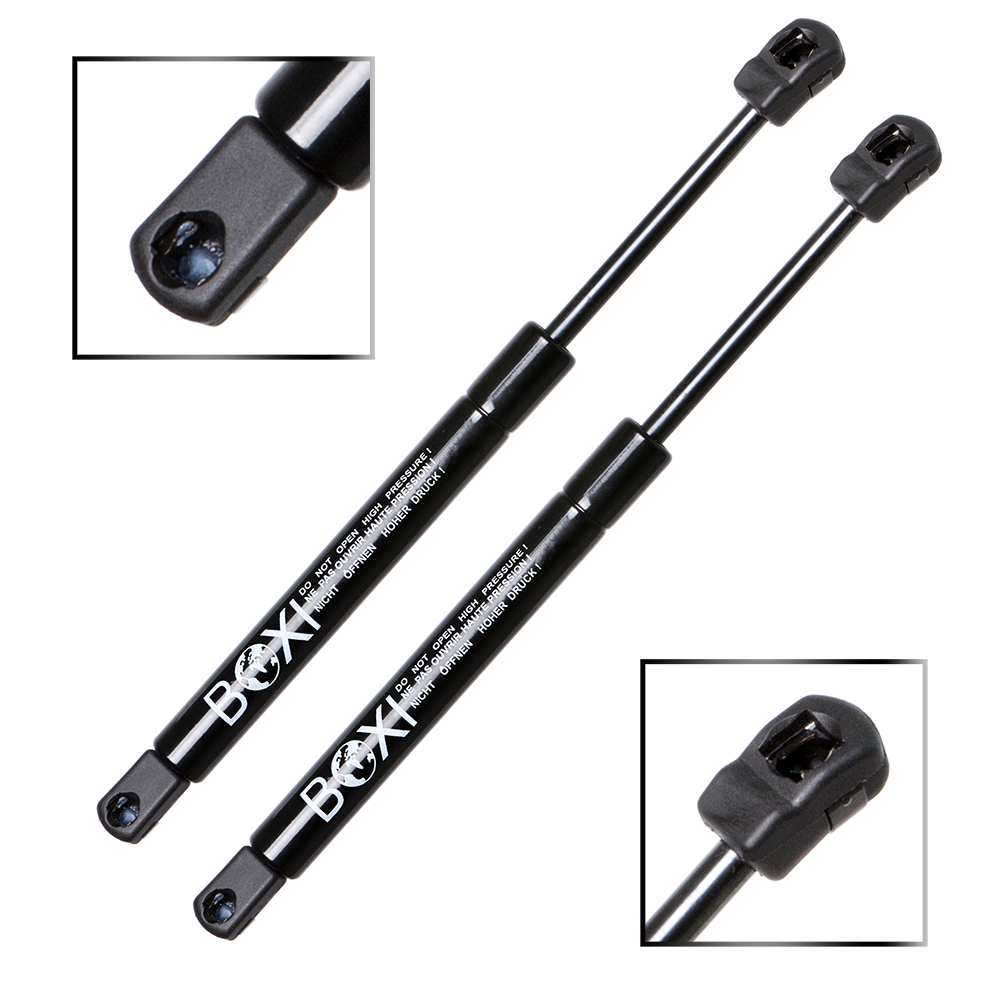

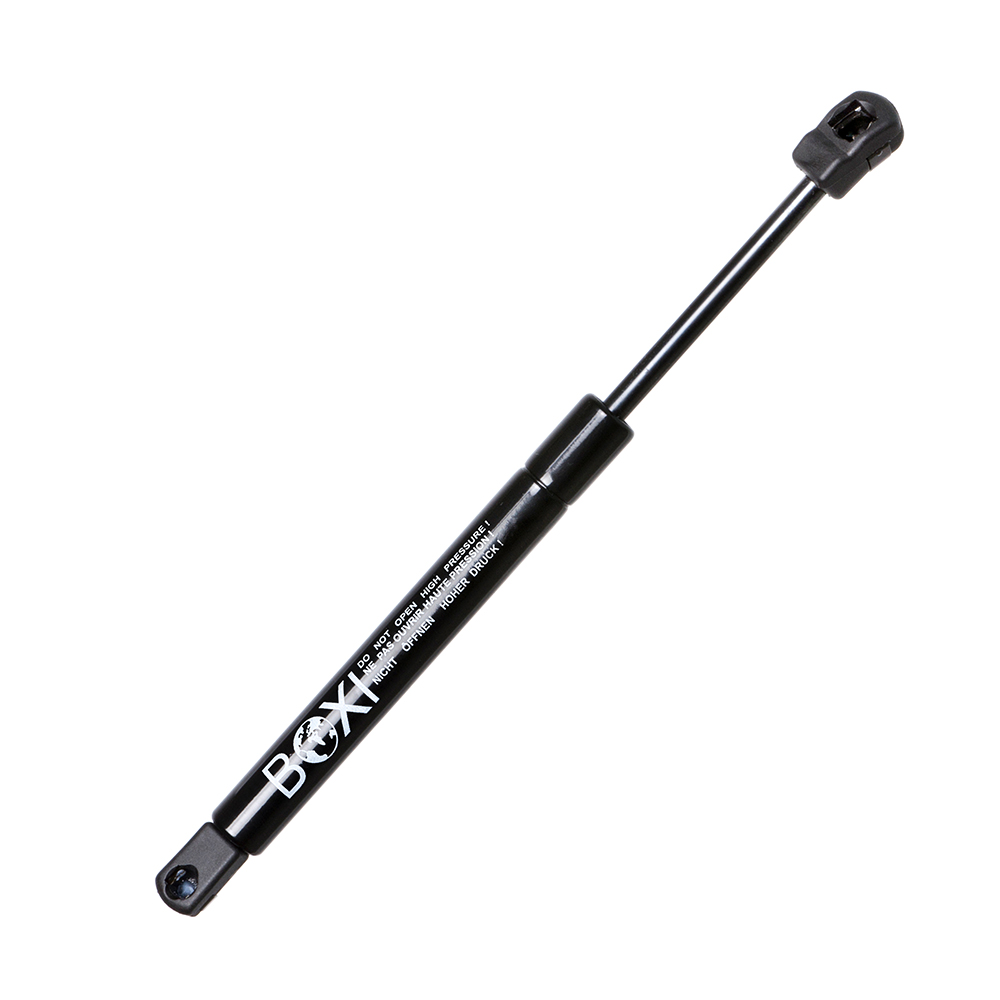

Pair of BOXI front hood lift supports (gas struts) for 2017-2019 Ford F-150 Raptor 4-Door Extended and Crew Cab pickups. Replaces OE numbers H4B-806903, L3Z16C826A. Verify fitment before ordering.
113 in stock
Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports
Fitment:
2017-2019 F-ord F–150 Raptor Crew Cab Pickup 4-Door Front Hood
2017-2019 F-ord F–150 Raptor Extended Cab Pickup 4-Door Front Hood
| Weight | 1 lbs |
|---|---|
| Dimensions | 17.72 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 389 |
| Stroke (in): | 6.2 |
| Stroke (mm): | 157 |
| Compressed Length (in) | |
| Compressed Length (mm): | 232 |
| Force (Lbs) | |
| Force (Newtons) | 380 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

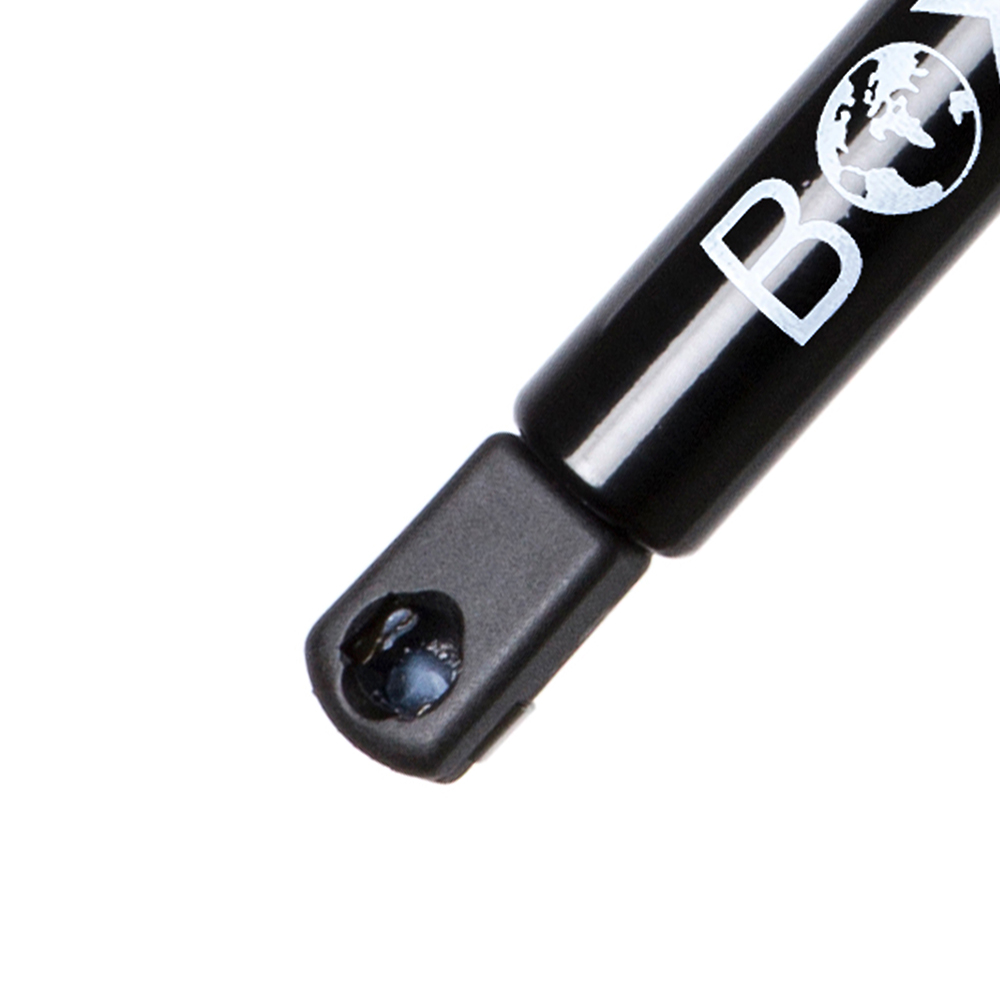

| Body Connection: | Ball Socket |

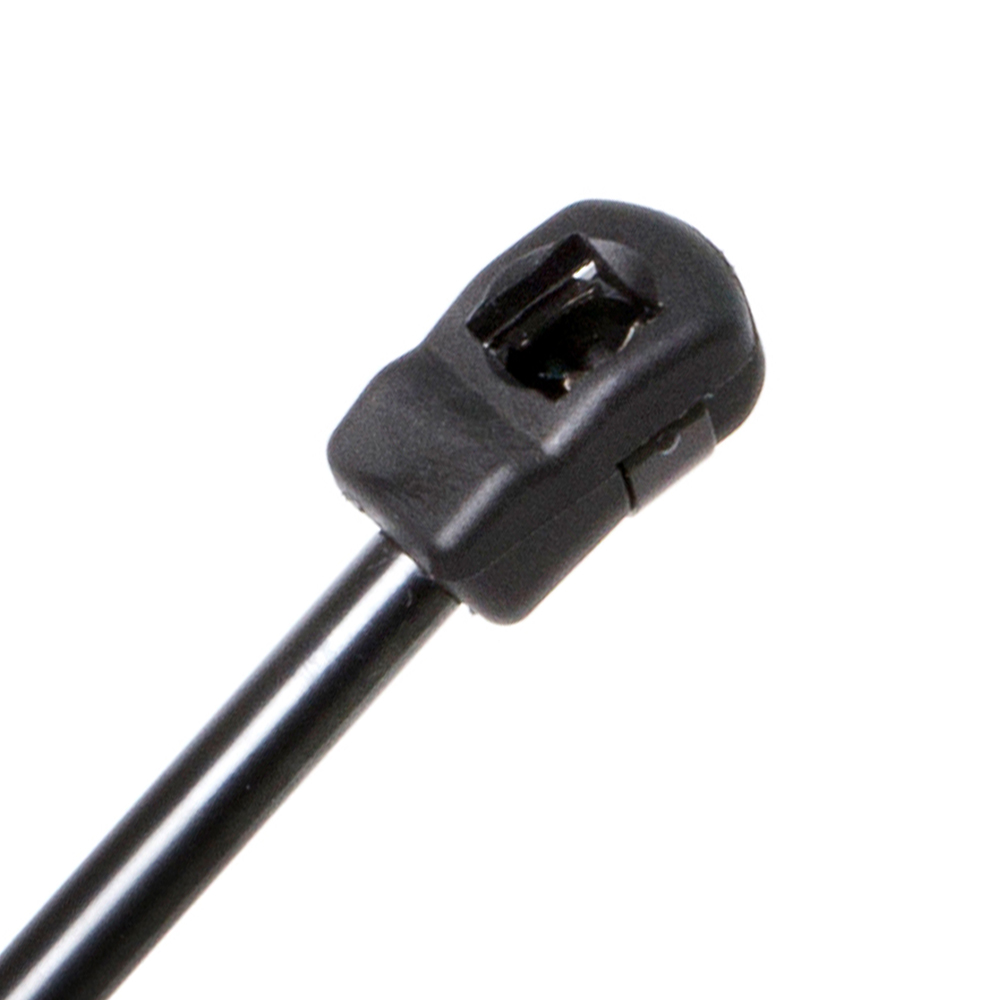

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 806903, 4B-806903, HL3Z-16C826-A, HL3Z16C826A, HL3Z 16C826-A |
