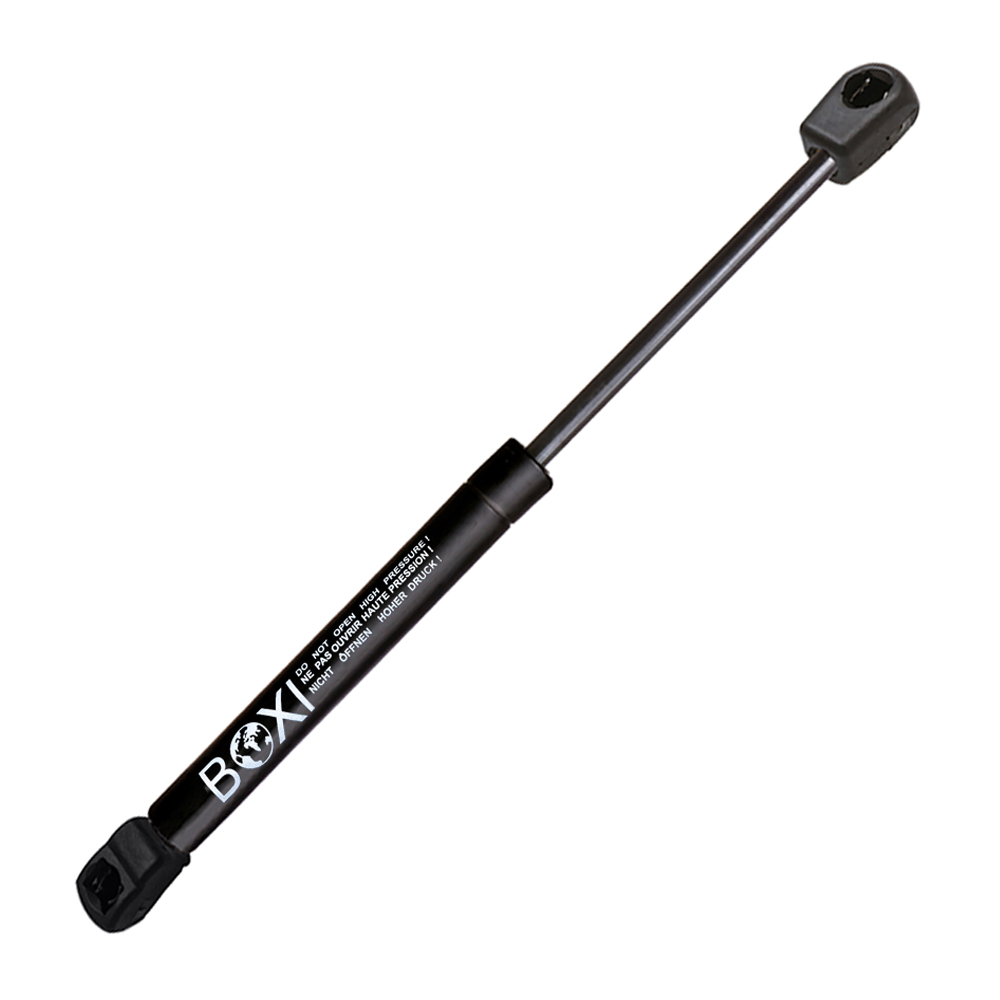

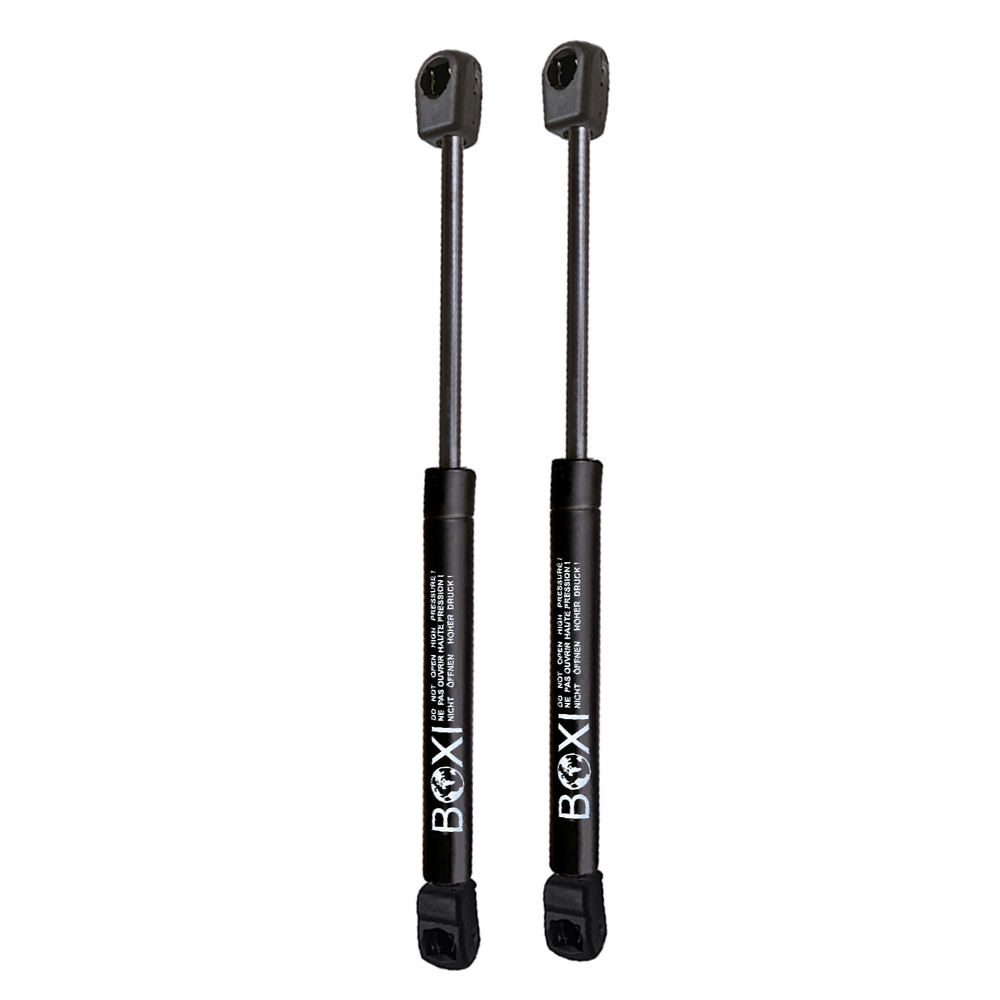

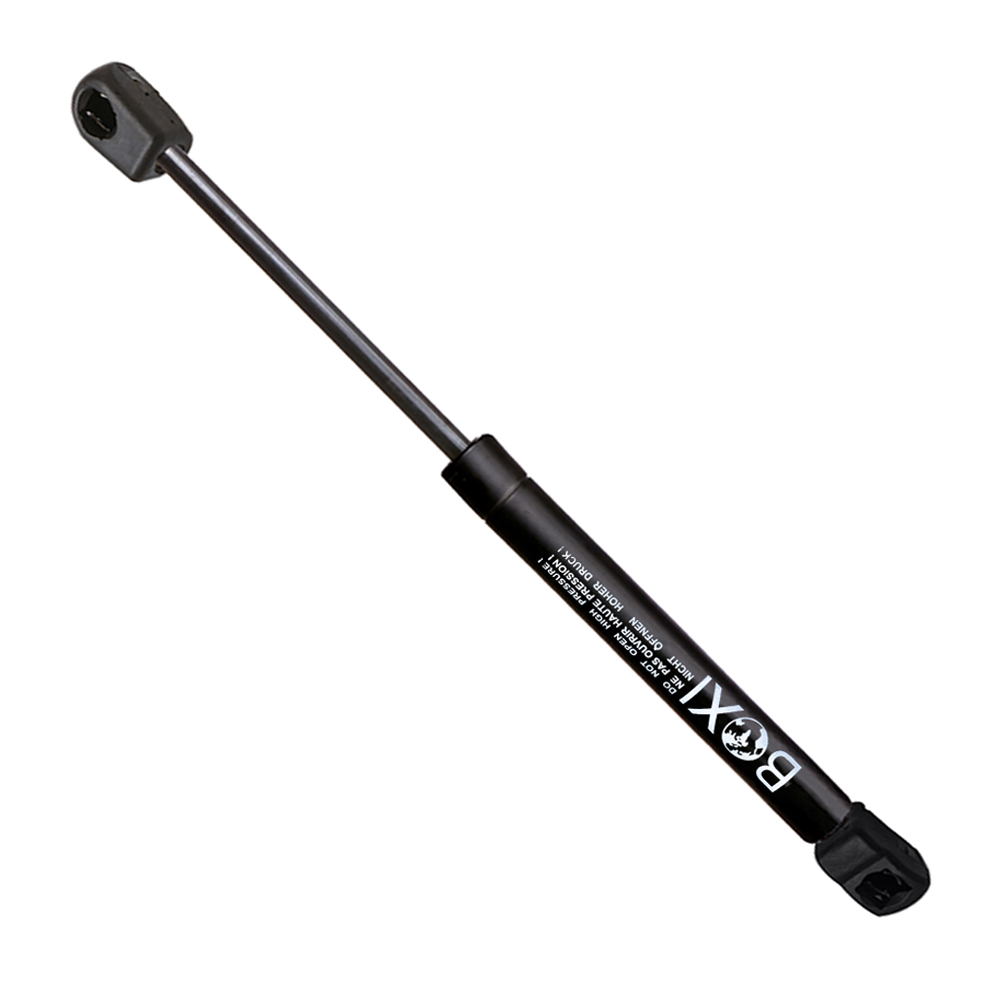

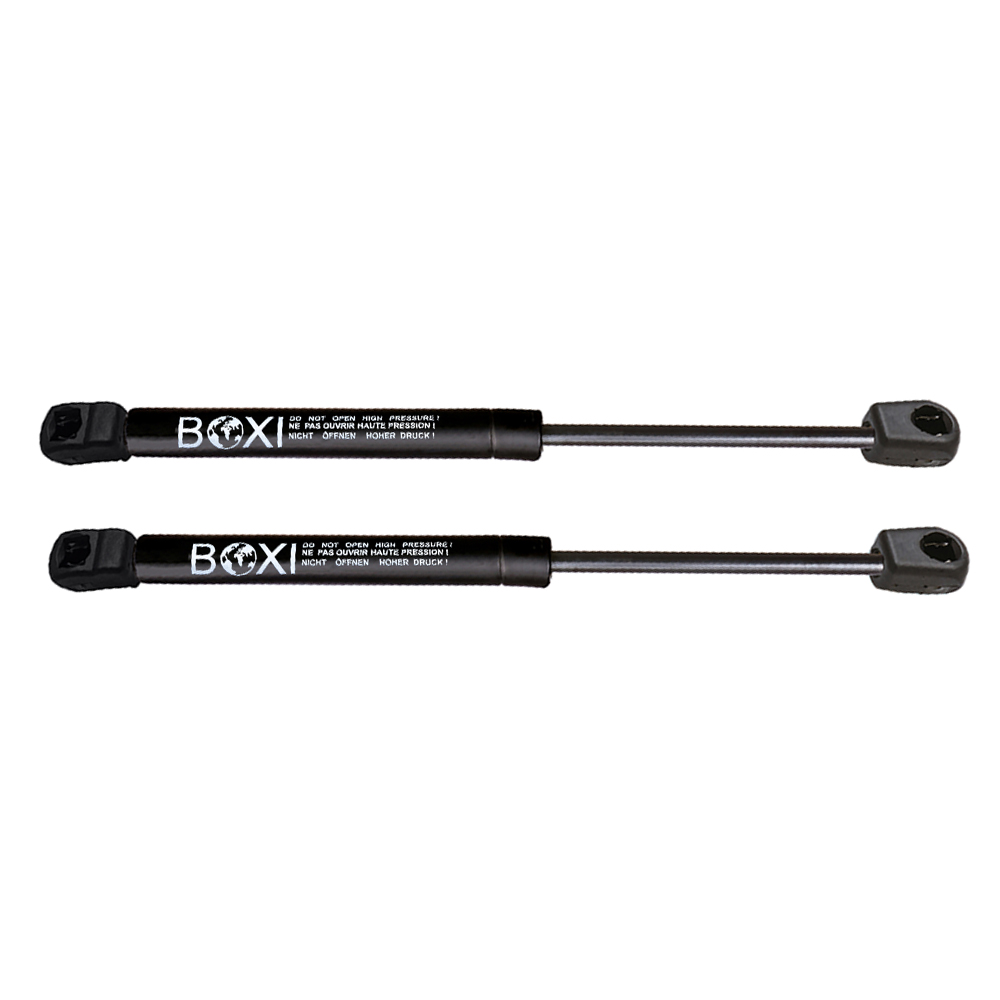

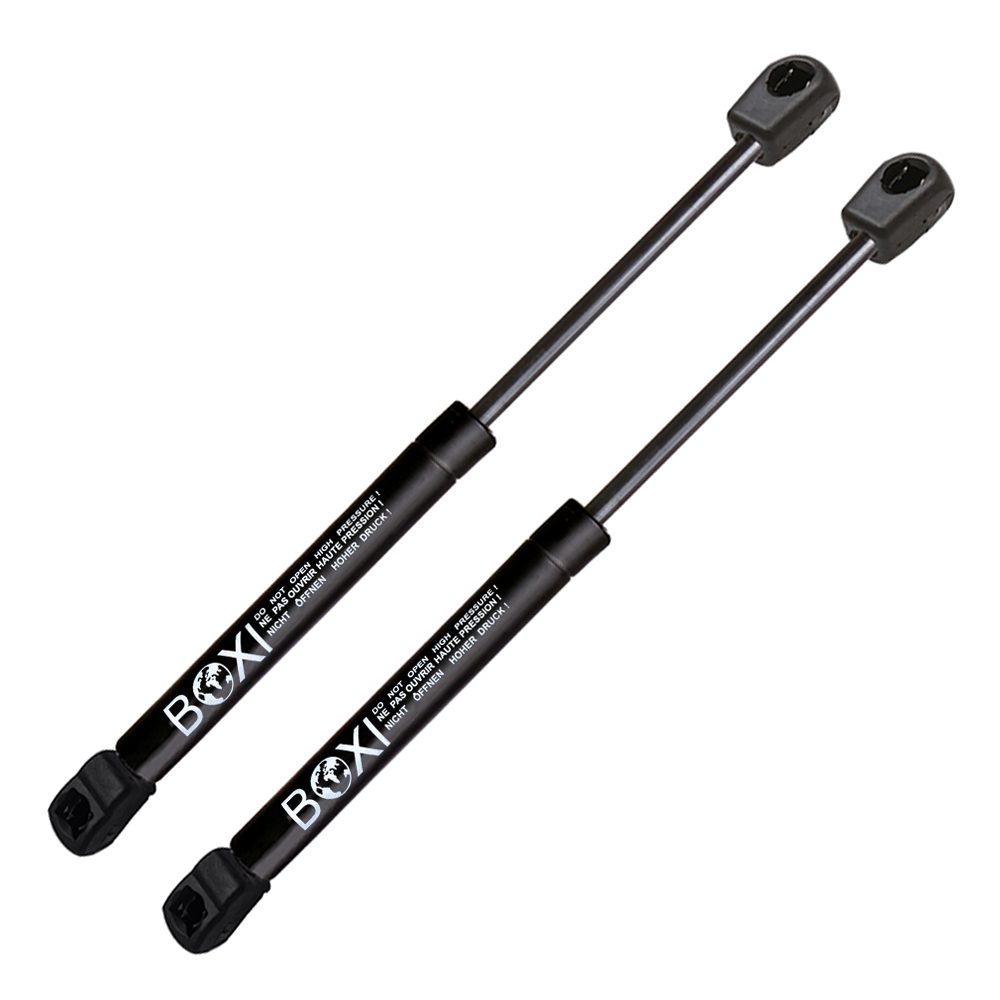

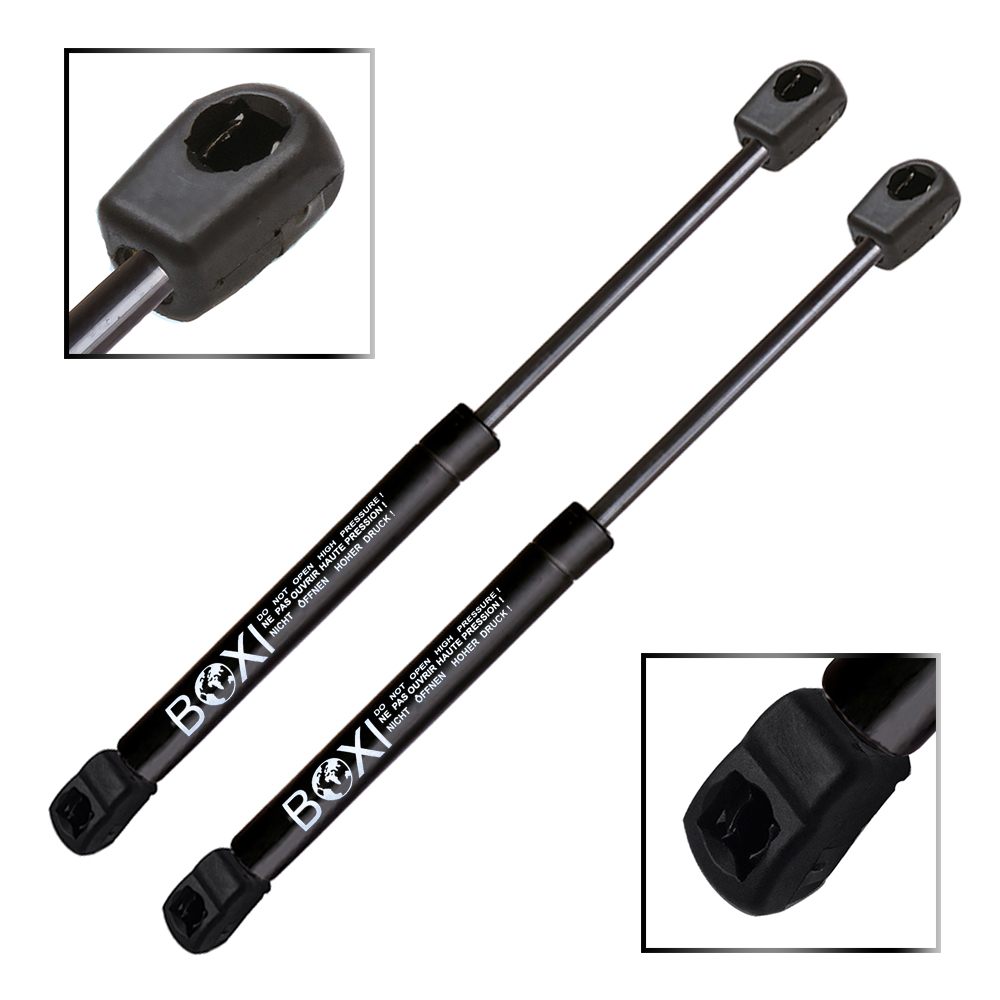

BOXI Qty(2) Liftgate Lift Support Gas Struts Shocks Gas Springs Fit for Ford Edge 2007 2008 2009 2010 2011 2012 2013 2014 Hatch/Replaces SG304084 6120 7A1Z78406A10A PM3116
BOXI SKU#: BXC300004178-2
$23.59
Two BOXI liftgate gas struts for Ford Edge 2007-2014, replacing OE parts like SG304084 and PM3116. Verify fitment before ordering.
OE / Interchange Part Numbers: 237330, 6120, 95485, C95485, SG304084
256 in stock
Placement on Vehicle: Liftgate
Package included: 2pcs Liftgate Lift Supports
Vehicle Location – Liftgate
Extended Length [in] 22.06
Compressed Length [in] 14.31
Fits the following Ford Edge Years:
2008-2014 | Limited Sport Utility 4-Door
2007-2014 | SE Sport Utility 4-Door
2007 | SEL Plus Sport Utility 4-Door
2007-2014 | SEL Sport Utility 4-Door
2009-2014 | Sport Sport Utility 4-Door
| Weight | 1.7 lbs |
|---|---|
| Dimensions | 23.62 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 560 |
| Stroke (in): | 8.08 |
| Stroke (mm): | 205 |
| Compressed Length (in) | |
| Compressed Length (mm): | 355 |
| Force (Lbs) | |
| Force (Newtons) | 641 |
| Cylinder Diameter (in): | 0.87 |
| Cylinder Diameter (mm): | 22 |
| Rod Diameter (in): | 0.39 |
| Rod Diameter (mm): | 10 |

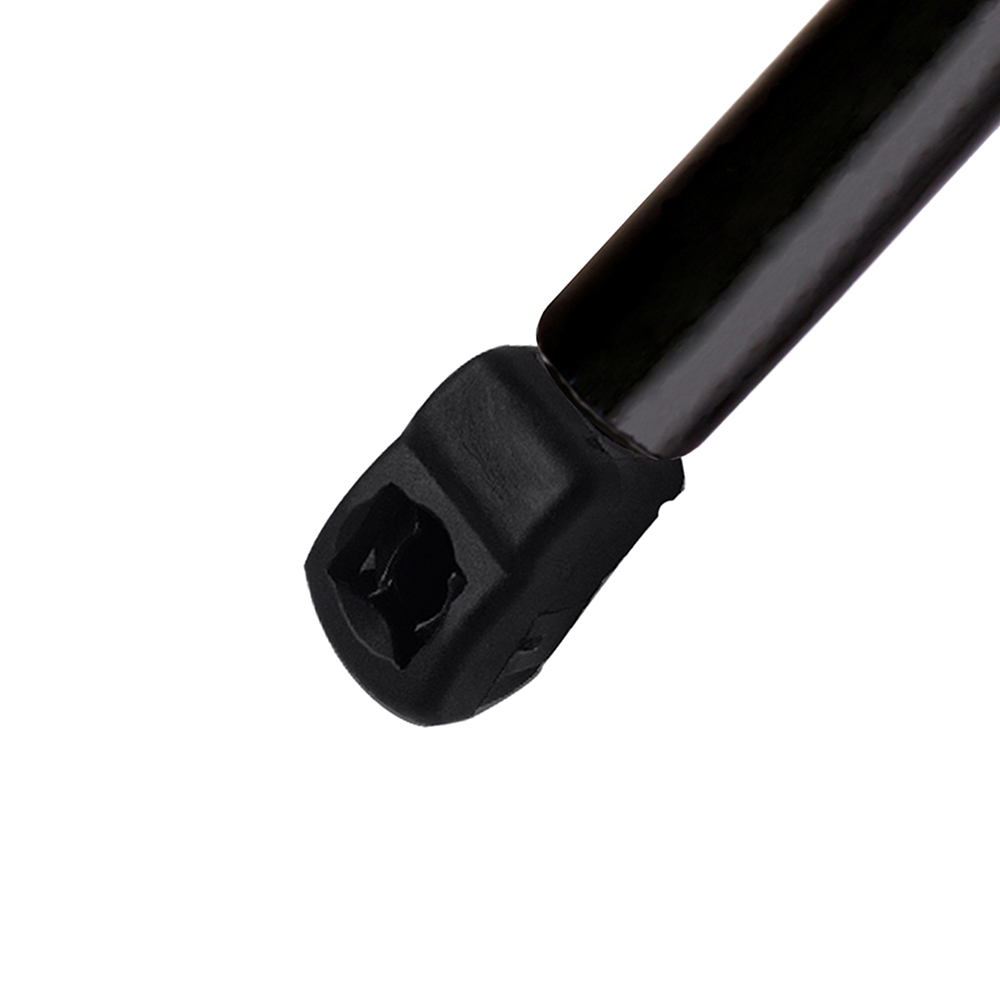

| Body Connection: | Ball Socket |

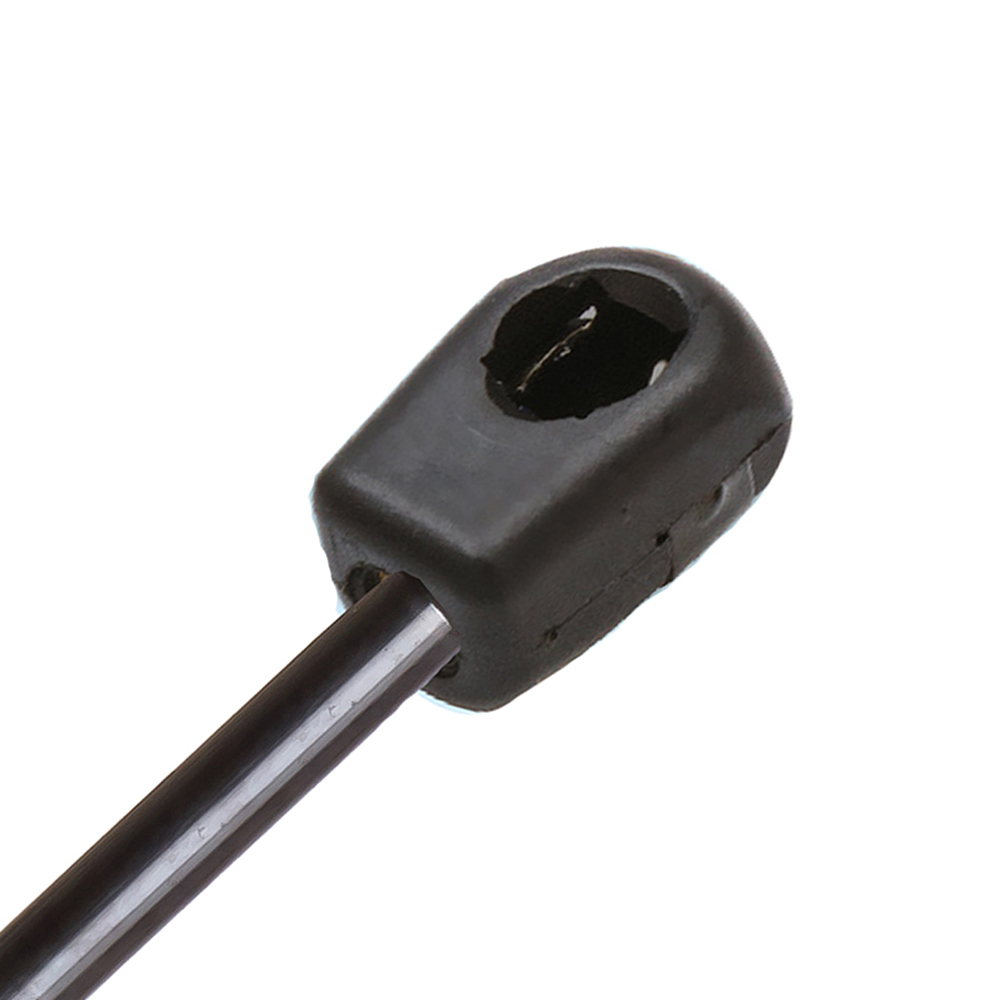

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 7T4Z 78406A10-A, 7T4Z 78406A11-A, TFS611718, GSA08979, GSA09203, 611718, SG304084, C95485, C6120, 901848, 819-6569, 7T4Z78408A10A, 6120 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2008 – 2014 | Ford | Edge | Limited | L4 – 2.0L 1999cc 122ci GAS MFI Turbocharged vin 9 – 4 valve DOHC |
| V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC | ||||
| 2007 – 2014 | Ford | Edge | SE SEL | L4 – 2.0L 1999cc 122ci GAS MFI Turbocharged vin 9 – 4 valve DOHC |
| V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC | ||||
| 2007 | Ford | Edge | SEL Plus | V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC |
| 2009 – 2014 | Ford | Edge | Sport | V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC |
| V6 – 3.7L 3726cc 227ci GAS MFI vin K – 4 valve DOHC |
