BOXI Qty(2) Hood Lift Supports Gas Shocks Springs Struts Fits for Aston Martin DB9 2005-2017 / DBS 2008-2012 2019 / 4G4316C826AB 4G43-16C826-AB PM3809
BOXI SKU#: BXC300056303-2
$20.99

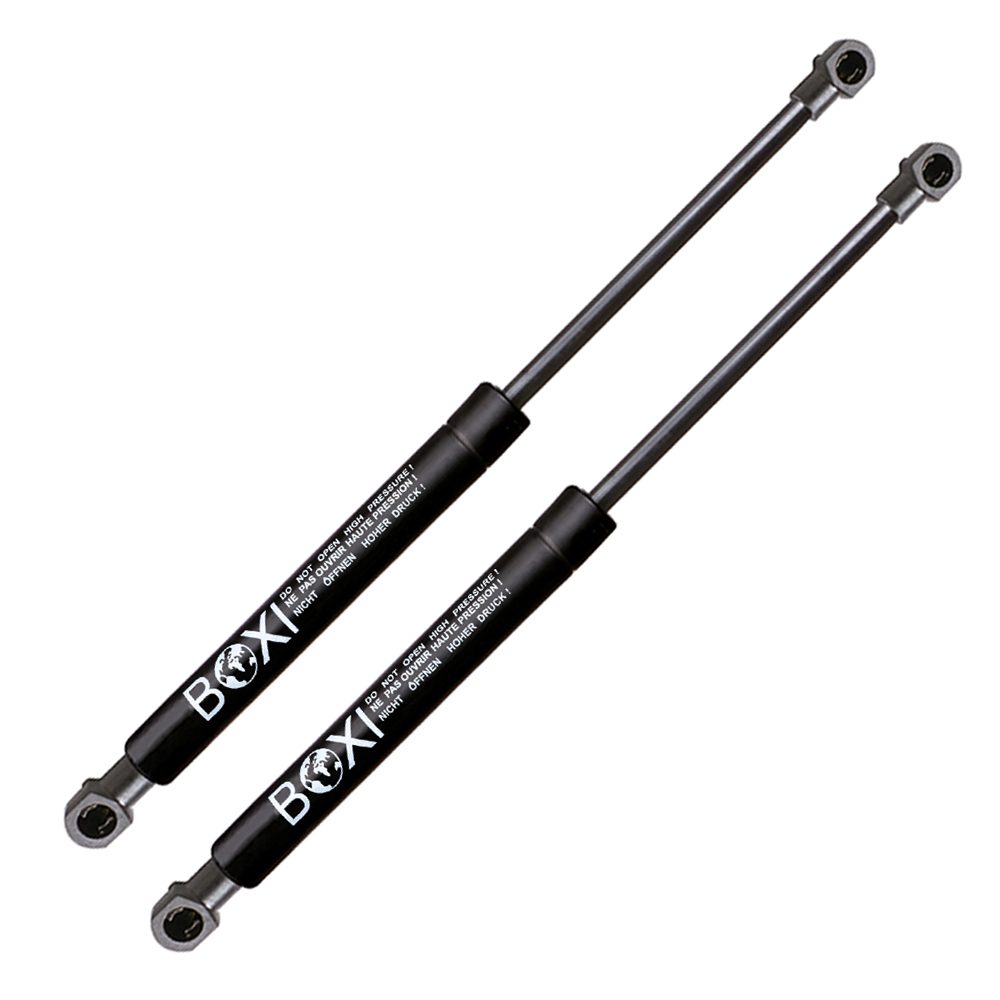

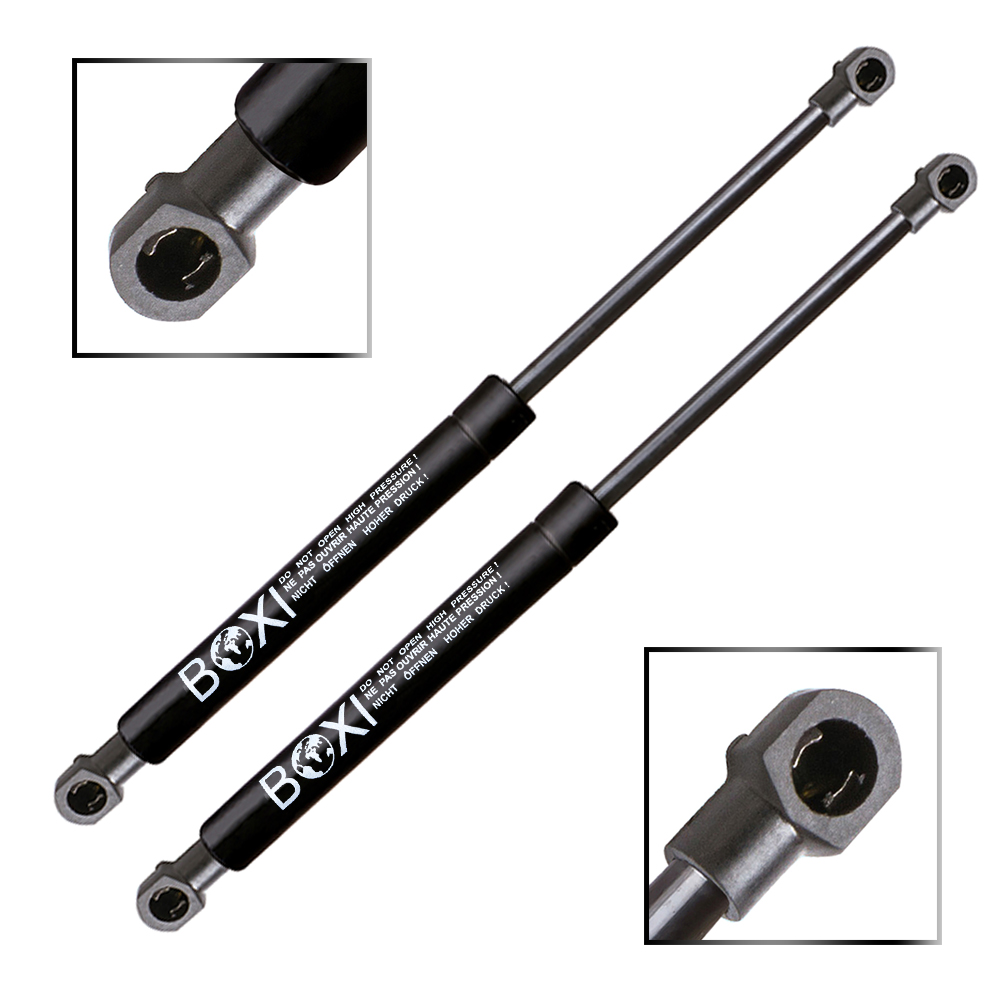

BOXI pair of hood lift supports (gas struts) for Aston Martin DB9 (2005-2017), DBS (2008-2019), and Virage (2012). Interchanges with OEM #4G4316C826AB, PM3809. Verify fitment before ordering.
45 in stock
Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports
Fits the following vehicles:
Fits for Aston Martin:
2005-2017 DB9 BASE COUPE 2-DOOR
2005-2017 DB9 BASE HATCHBACK 2-DOOR
2016 DB9 GT CONVERTIBLE 2-DOOR
2005-2017 DB9 VOLANTE CONVERTIBLE 2-DOOR
2008-2012 DBS BASE COUPE 2-DOOR
2019 DBS SUPERLEGGERA COUPE 2-DOOR
2010-2012 DBS VOLANTE CONVERTIBLE 2-DOOR
2012 VIRAGE BASE COUPE 2-DOOR
2012 VIRAGE VOLANTE CONVERTIBLE 2-DOOR
Interchangable OEM Numbers: 0042TZ, 4G4316C826AB, 4G43-16C826-AB, PM3809
Extended Length [Inches]: 13.54”
Package including:
2pcs Hood Lift Supports
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 15.75 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 344 |
| Stroke (in): | 4.92 |
| Stroke (mm): | 125 |
| Compressed Length (in) | |
| Compressed Length (mm): | 219 |
| Force (Lbs) | |
| Force (Newtons) | 310 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |
| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 4G43-16C826-AB |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 – 2016 | Aston Martin | DB9 | Base Coupe 2-Door Volante Convertible 2-Door | 6.0L 5935CC V12 GAS DOHC Naturally Aspirated |
| 2016 | Aston Martin | DB9 | GT Convertible 2-Door | 6.0L 5935CC V12 GAS DOHC Naturally Aspirated |
| 2008 – 2012 | Aston Martin | DBS | Base Coupe 2-Door | 6.0L 5935CC V12 GAS DOHC Naturally Aspirated |
| 2019 | Aston Martin | DBS | Superleggera Coupe 2-Door | 5.2L 5204CC V12 GAS DOHC Turbocharged |
| 2010 – 2012 | Aston Martin | DBS | Volante Convertible 2-Door | 6.0L 5935CC V12 GAS DOHC Naturally Aspirated |
| 2012 | Aston Martin | Virage | Base Coupe 2-Door Volante Convertible 2-Door | 6.0L 5935CC V12 GAS DOHC Naturally Aspirated |
