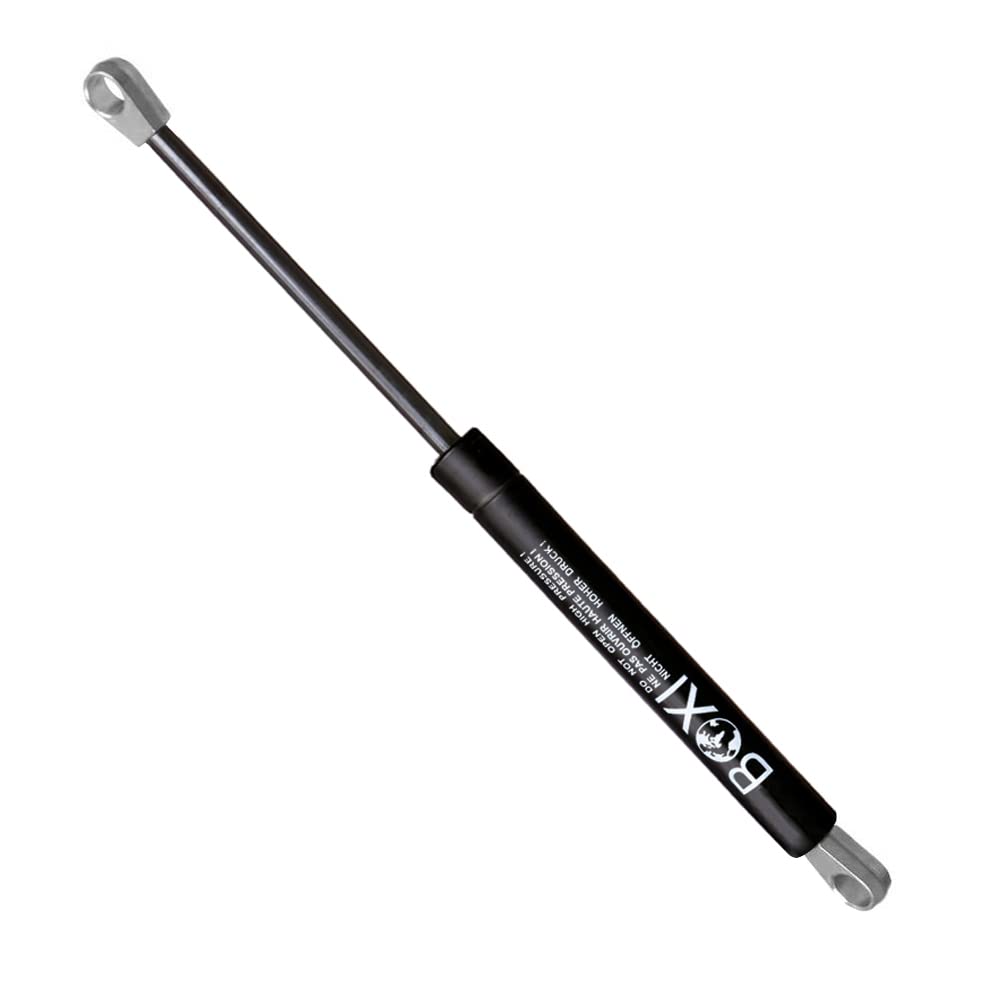

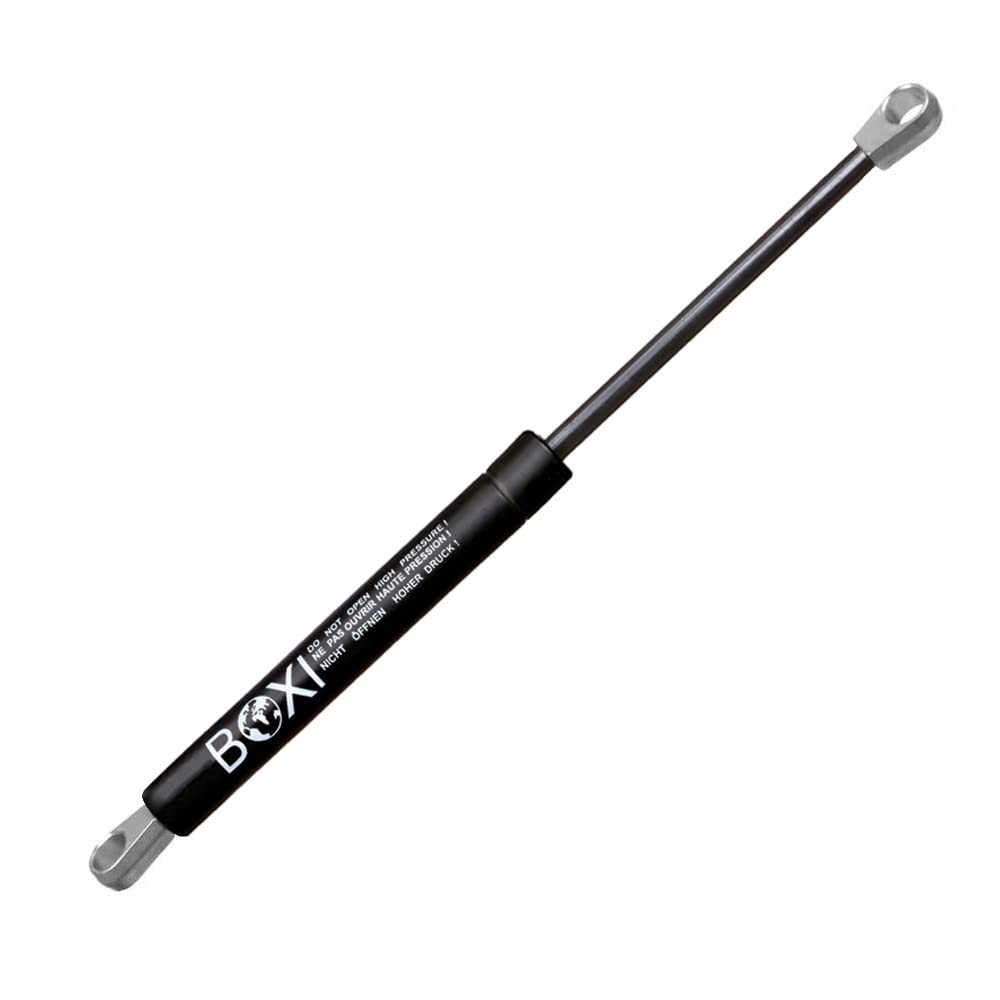

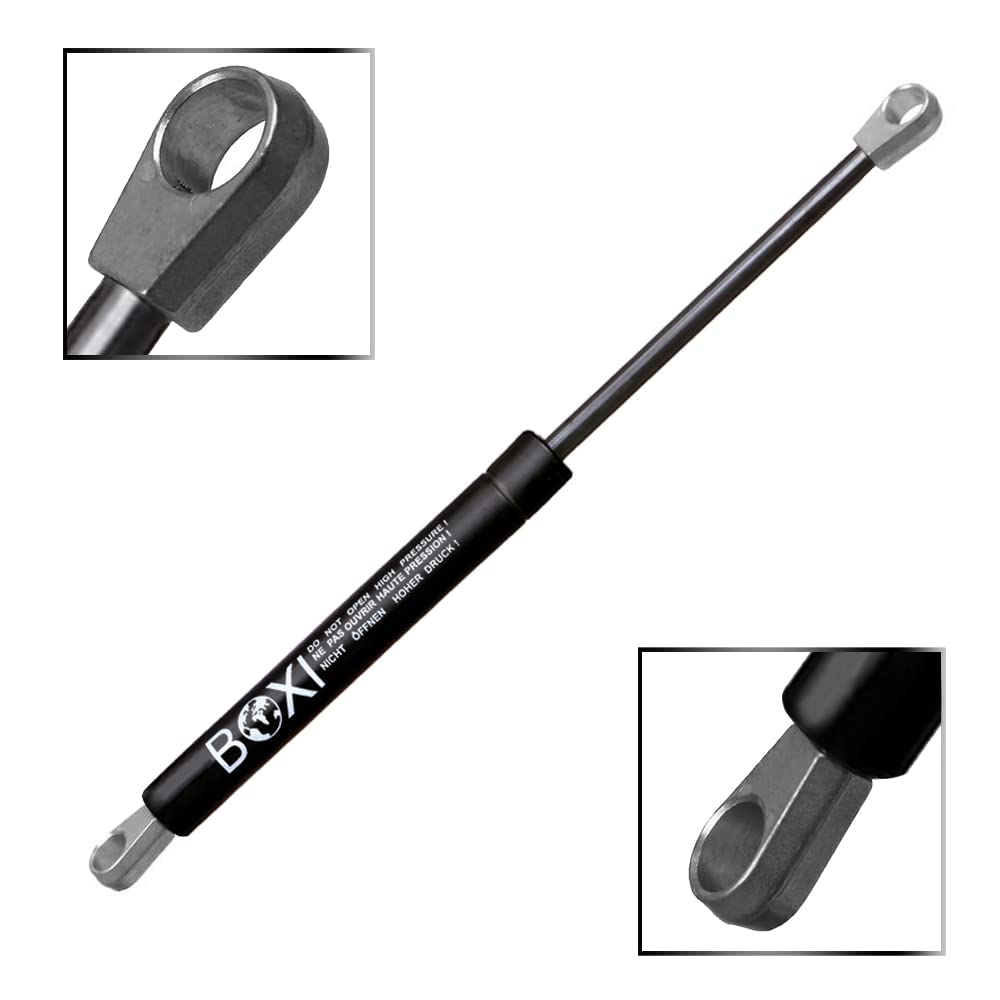

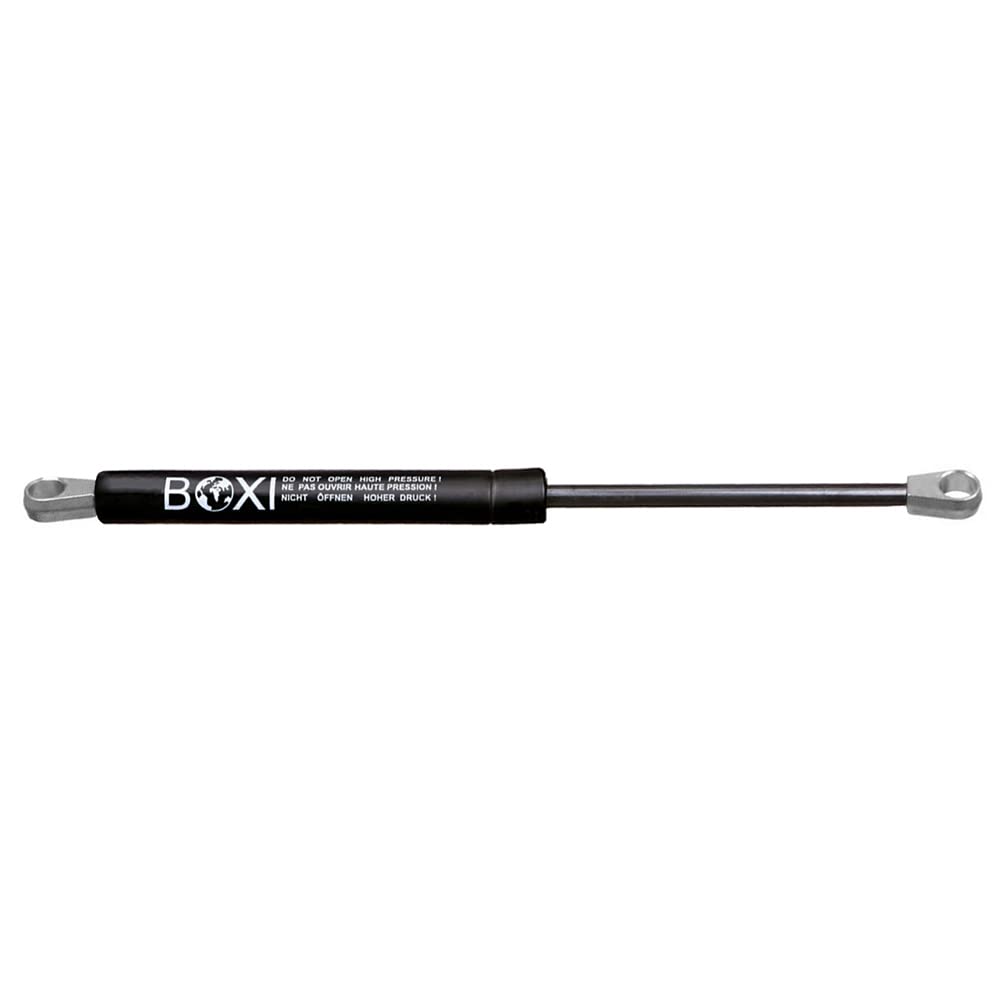

BOXI Qty (1) UTV Dump Box Bed Shock Lift Support Gas Shock Spring Strut for Polaris Ranger 700 2007-09 / Ranger 800 2010-2012 2014 2016 / Sportsman 800 2009-13 | Replaces P10185 7043232 P10185 P6417

BOXI SKU#: BXC300056203-1

$20.59

BOXI gas shock spring strut for Polaris Ranger 700 (2007-09), Ranger 800 (2010-16), and Sportsman 800 (2009-13) dump box beds. Replaces OE numbers P10185, 7043232, P6417. Verify fitment before ordering.

OE / Interchange Part Numbers: 7043232, P10185, P6417

  • 5 Years Warranty

116 in stock

Placement on Vehicle:UTV Dump Box Bed Shock
Package included:1pcs UTV Dump Box Bed Shock Lift Support

Fits the following vehicles:
2007 Polaris Ranger 700 4×4 EFI Dump Body
2007 Polaris Ranger 700 4×4 MVRS Dump Body
2007-2009 Polaris Ranger 700 6×6 EFI Dump Body
2012 Polaris Ranger 800 6×6 Dump Body
2016 Polaris Ranger 800 6×6 Dump Body
2010-2011 Polaris Ranger 800 6×6 EFI Dump Body
2014 Polaris Ranger 800 6×6 EFI Dump Body
2014 Polaris Ranger 800 EFI Dump Body
2014 Polaris Ranger 800 LE EFI EPS Dump Body
2014 Polaris Ranger 800 Midsize EFI Dump Body
2014 Polaris Ranger 800 Midsize LE EFI EPS Dump Body
2014 Polaris Ranger 800 Midsize Pursuit EFI Dump Body
2014 Polaris Ranger 800 Pursuit EFI Dump Body
2009-2013 Polaris Sportsman 800 6×6 EFI Dump Body
2012-2013 Polaris Sportsman 800 6×6 Forest Dump Body
2009 Polaris Sportsman 800 EFI Dump Body
2011-2013 Polaris Sportsman 800 EFI Dump Body
2010 Polaris Sportsman 800 EFI HO Dump Body
2012-2013 Polaris Sportsman 800 Forest Dump Body
2009 Polaris Sportsman 800 HO EFI Dump Body
2009 Polaris Sportsman 800 Touring EFI Dump Body

Weight 1.25 lbs
Dimensions 31.5 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

711
Stroke (in):

12.02
Stroke (mm):

305
Compressed Length (in)

Compressed Length (mm):

406
Force (Lbs)

Force (Newtons)

334
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

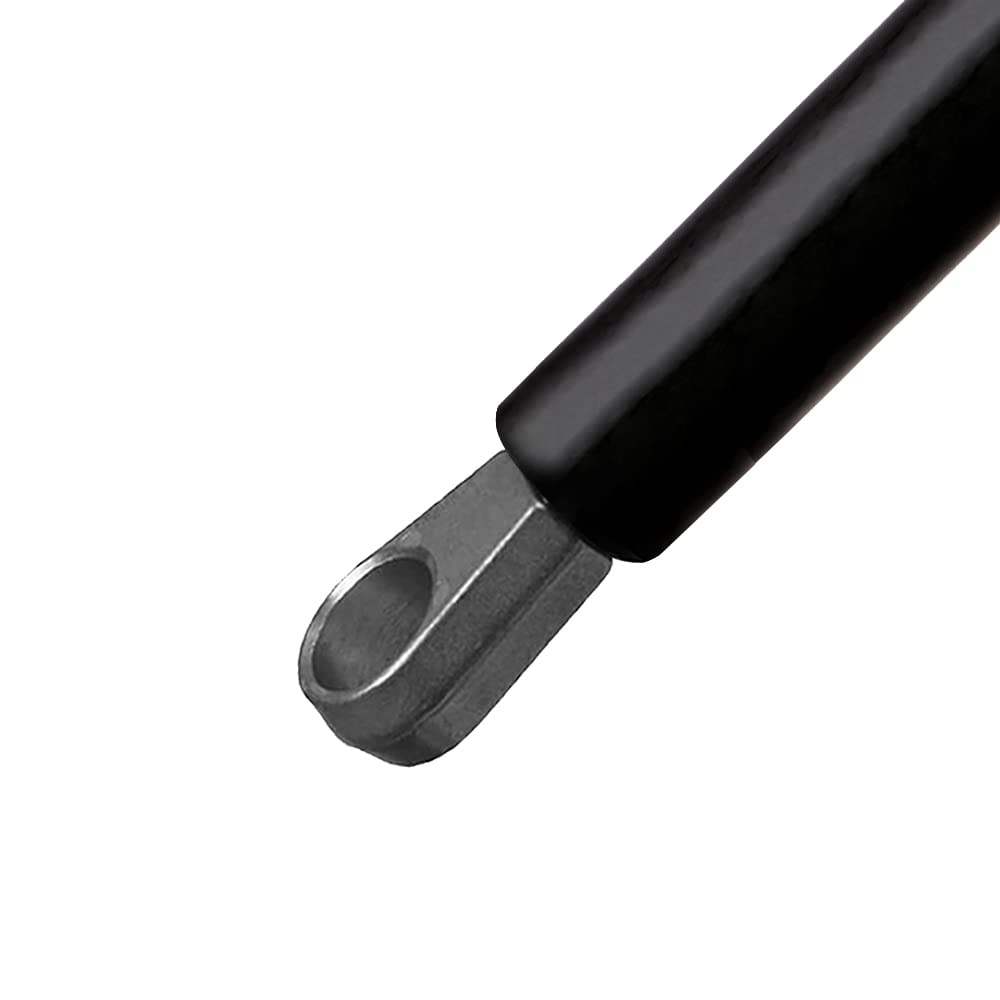

Body Connection:

Eyelet Hole

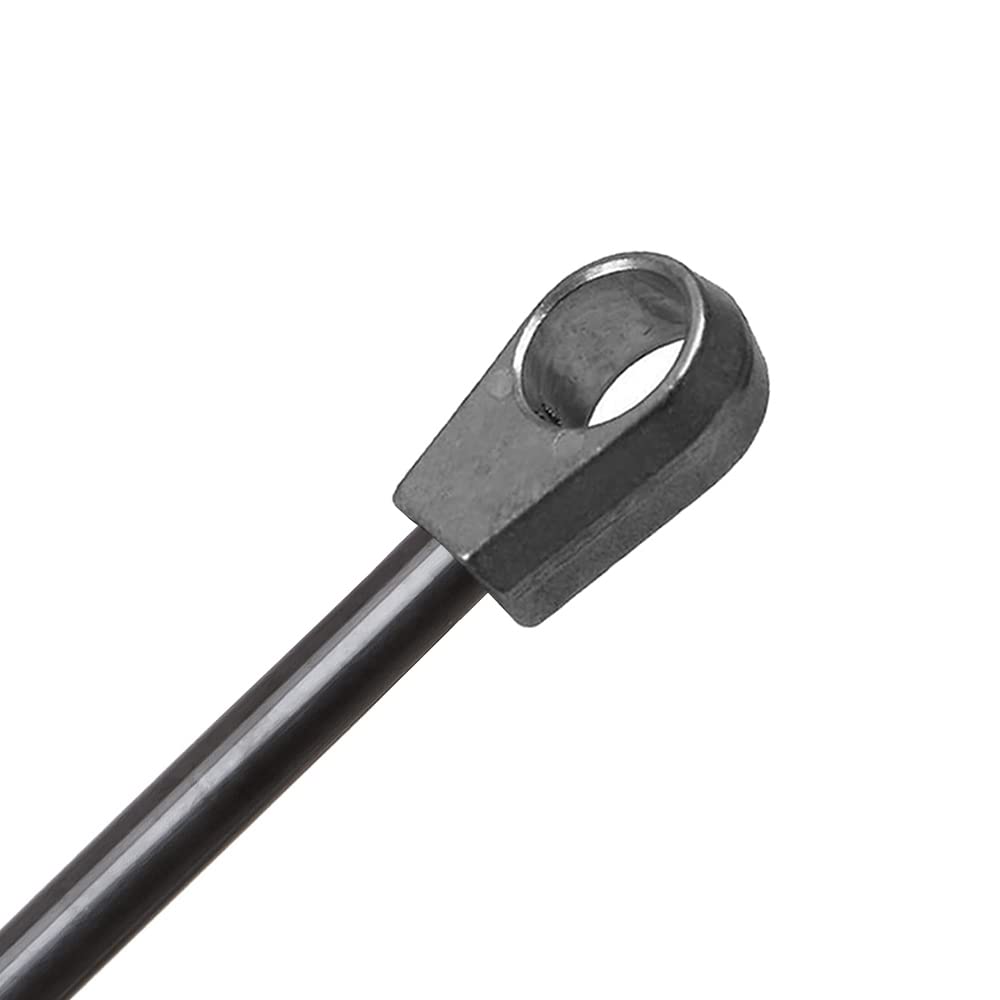

Shaft Connection:

Eyelet Hole
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

7043232, P6417, P10185
YearMakeModelSubmodelEngine
2012 – 2016PolarisRanger 8006×6
2010 – 2014PolarisRanger 8006×6 EFI
2013 – 2014PolarisRanger 800EFI
LE EFI EPS
Midsize EFI
2013PolarisRanger 800EFI EPS
LE EFI
LE Midsize EFI
2014PolarisRanger 800Midsize LE EFI EPS
Midsize Pursuit EFI
Pursuit EFI

Reviews

There are no reviews yet.

Be the first to review “BOXI Qty (1) UTV Dump Box Bed Shock Lift Support Gas Shock Spring Strut for Polaris Ranger 700 2007-09 / Ranger 800 2010-2012 2014 2016 / Sportsman 800 2009-13 | Replaces P10185 7043232 P10185 P6417”
