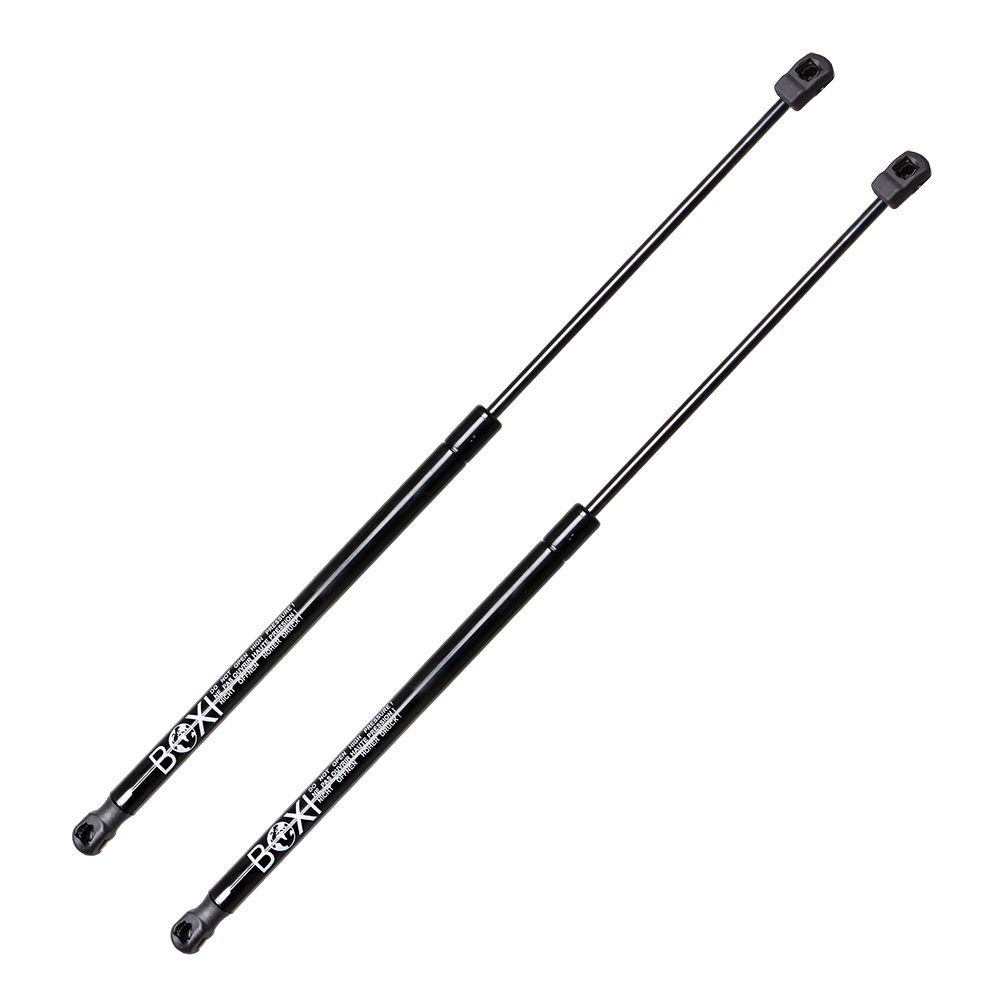

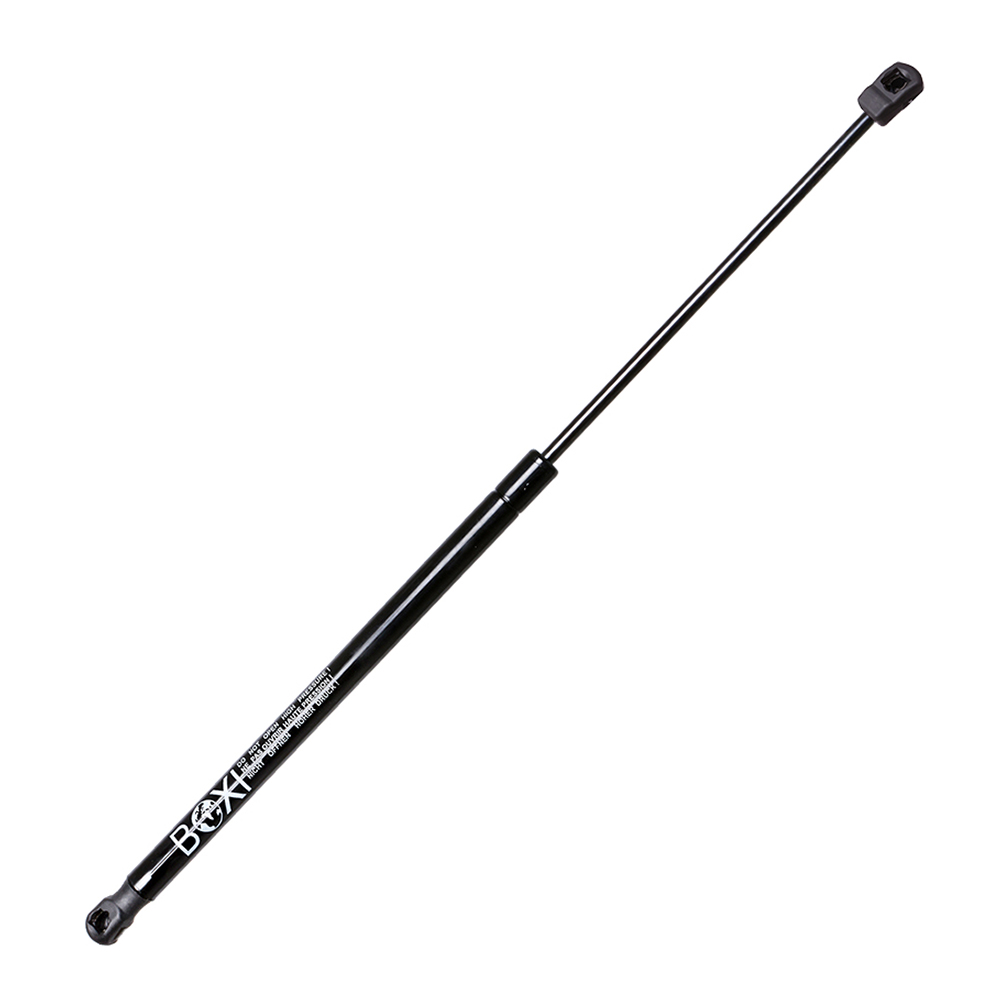

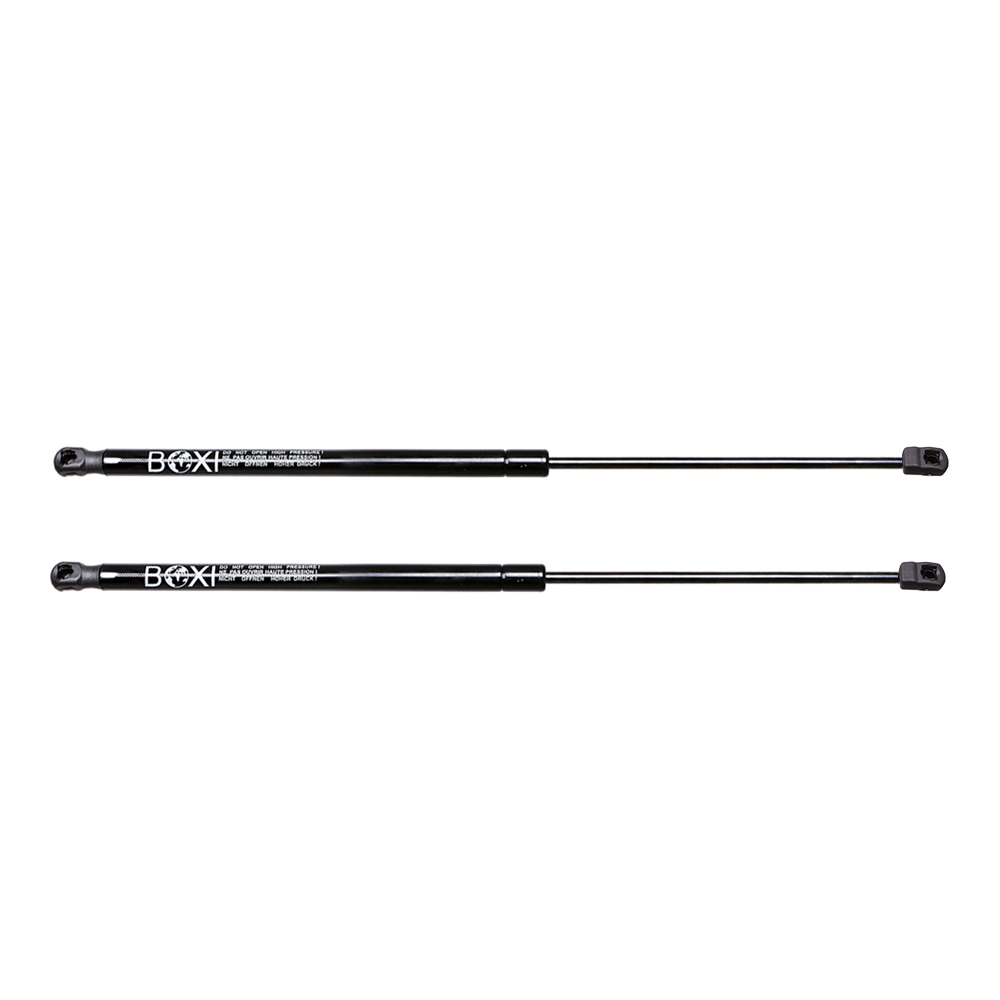

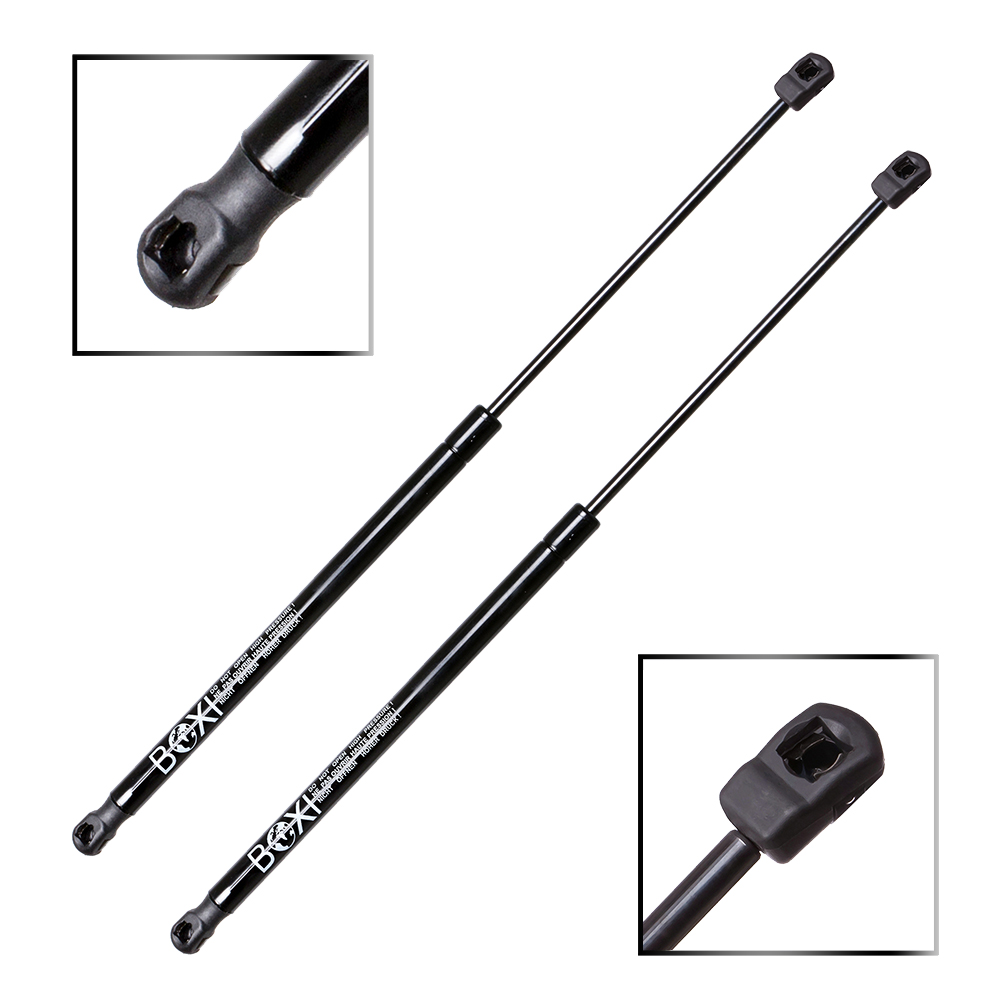

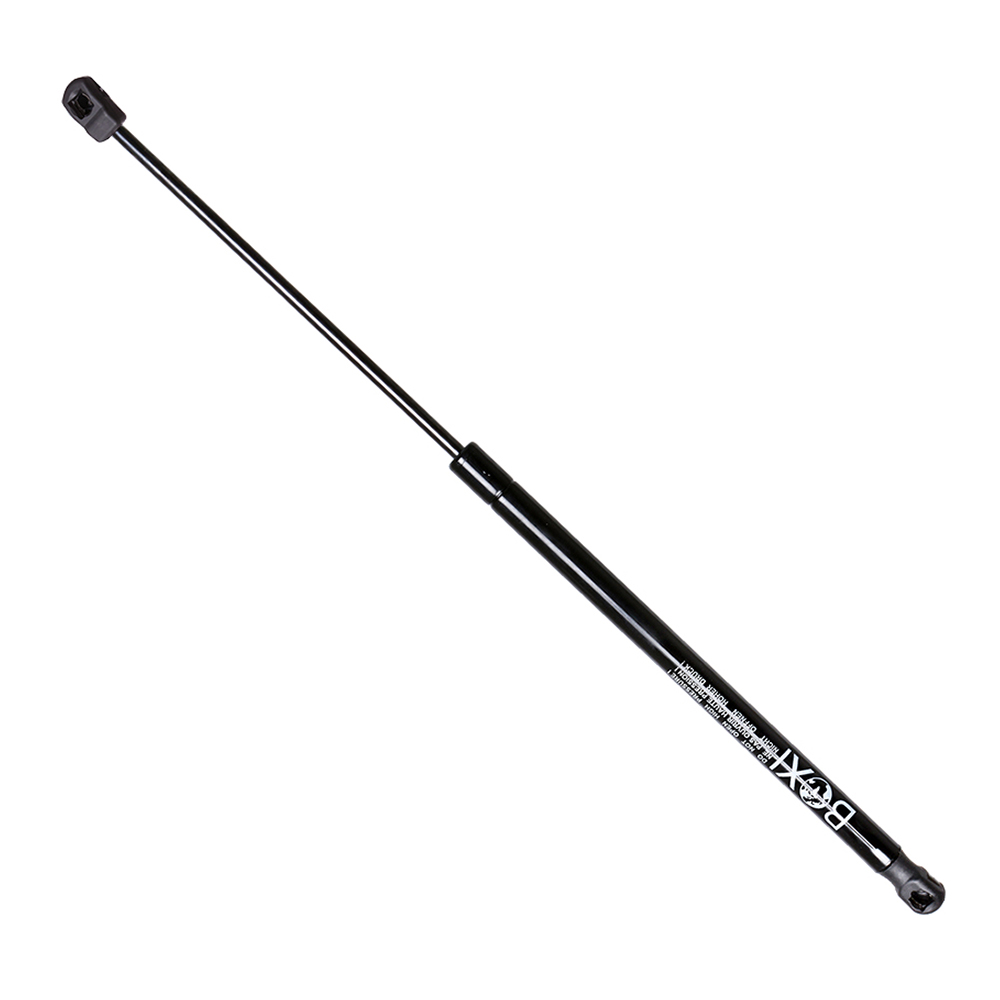

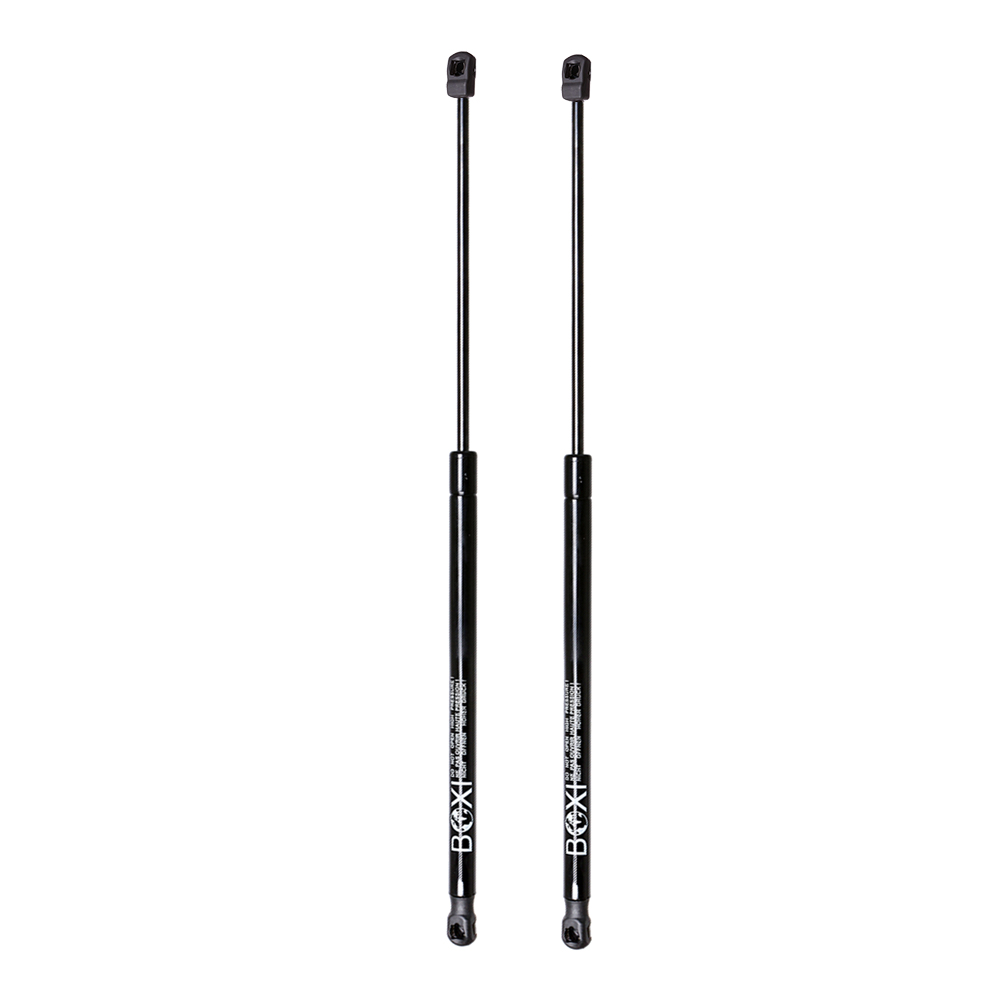

BOXI Qty(2) Rear Liftgate Lift Supports Shocks Gas Spring Struts Fits for Audi Q7 SQ7 2016 2017 2018 2019 2020 2021 2022 Sport Utility 4-Door/Replaces SG301083 PM3868 4B-684046 4M0827552A

BOXI SKU#: BXC300003192-2

$22.99

BOXI rear liftgate lift supports for Audi Q7 and SQ7 (2016-2022). Replaces OEM 4M0827552A, SG301083, PM3868. Verify fitment before ordering.

  • 5 Years Warranty

2 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fits the following vehicles:
Fits for Audi:
2016 Q7 Dynamic Sport Utility 4-Door Liftgate
2016-2022 Q7 Elite Sport Utility 4-Door Liftgate
2017-2022 Q7 Komfort Sport Utility 4-Door Liftgate
2016 Q7 Launch Edition Sport Utility 4-Door Liftgate
2017-2022 Q7 Premium Plus Sport Utility 4-Door Liftgate
2017-2022 Q7 Premium Sport Utility 4-Door Liftgate
2017-2022 Q7 Prestige Sport Utility 4-Door Liftgate
2017-2022 Q7 Progressiv Sport Utility 4-Door Liftgate
2016-2022 Q7 S Line Sport Utility 4-Door Liftgate
2016-2022 Q7 Select Sport Utility 4-Door Liftgate
2017-2022 Q7 Technik Sport Utility 4-Door Liftgate
2017-2022 SQ7 Base Sport Utility 4-Door Liftgate
2016 SQ7 Dynamic Sport Utility 4-Door Liftgate
2016-2017 SQ7 Elite Sport Utility 4-Door Liftgate
2017 SQ7 Komfort Sport Utility 4-Door Liftgate
2017-2022 SQ7 Premium Plus Sport Utility 4-Door Liftgate
2017-2022 SQ7 Premium Sport Utility 4-Door Liftgate
2017-2022 SQ7 Prestige Sport Utility 4-Door Liftgate
2017 SQ7 Progressiv Sport Utility 4-Door Liftgate
2016-2017 SQ7 S Line Sport Utility 4-Door Liftgate
2016-2017 SQ7 Select Sport Utility 4-Door Liftgate
2017 SQ7 Technik Sport Utility 4-Door Liftgate

Interchangable OEM Numbers: PM3868, 4B684046, 4B-684046, 4M0 827 552 A, 4M0 827 552 C, 4M0827552A, 4M0827552C, 684046, SG301083
Extended Length [Inches]: 21.73”
Compressed Length [Inches]: 14.21”
Package including: 2pcs Liftgate Lift Supports

Weight 0.88 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

552
Stroke (in):

9.25
Stroke (mm):

235
Compressed Length (in)

Compressed Length (mm):

317
Force (Lbs)

Force (Newtons)

601
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

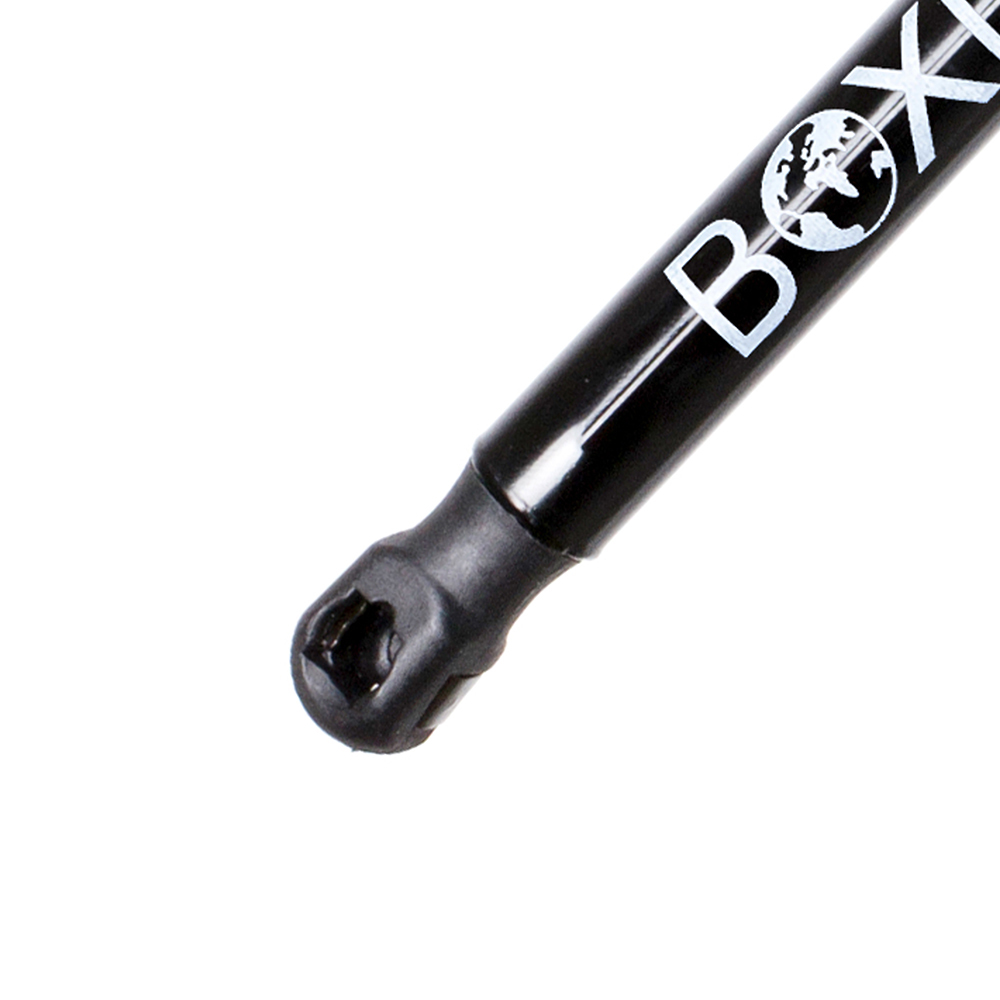

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

4M0 827 552 A, 4M0827552C, LS12420, 635068, 684046, 766266, 62876, 498816
YearMakeModelSubmodelEngine
2016AudiQ7DynamicL4 – 2.0L 1984cc 121ci GAS DI Turbocharged – 4 valve DOHC
Launch EditionV6 – 3.0L 2995cc GAS DI Supercharged type CJTB – 4 valve DOHC
2016 – 2023AudiQ7EliteV6 – 3.0L 2967cc 181ci DIESEL Common Rail Turbocharged – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CJTB – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBE – 4 valve DOHC
S LineV6 – 3.0L 2995cc GAS DI Supercharged type CJTB – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBE – 4 valve DOHC
2017 – 2023AudiQ7Komfort
Premium
Premium Plus		L4 – 2.0L 1984cc 121ci GAS DI Turbocharged type DMFB – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CYMC – 4 valve DOHC
L4 – 2.0L 1984cc 121ci MILD HYBRID EV-GAS DI Turbocharged type DUVA – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
PRESTIGEL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type DMFB – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
ProgressivL4 – 2.0L 1984cc 121ci GAS DI Turbocharged type DMFB – 4 valve DOHC
L4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CYMC – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
TechnikL4 – 2.0L 1984cc 121ci GAS MFI Turbocharged type CYMC – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
2016 – 2021AudiQ7SelectV6 – 3.0L 2995cc GAS DI Supercharged type CJTB – 4 valve DOHC
V6 – 3.0L 2995cc GAS DI Supercharged type CREC – 4 valve DOHC
V6 – 3.0L 2995cc MILD HYBRID EV-GAS DI Turbocharged type DCBD – 4 valve DOHC
2020 – 2023AudiSQ7Base
PRESTIGE
Premium Plus		V8 – 4.0L 3996cc 244ci MILD HYBRID EV-GAS DI Turbocharged type DCUE – 4 valve DOHC
V8 – 4.0L 3996cc 244ci MILD HYBRID EV-GAS DI Turbocharged type DWRB – 4 valve DOHC
