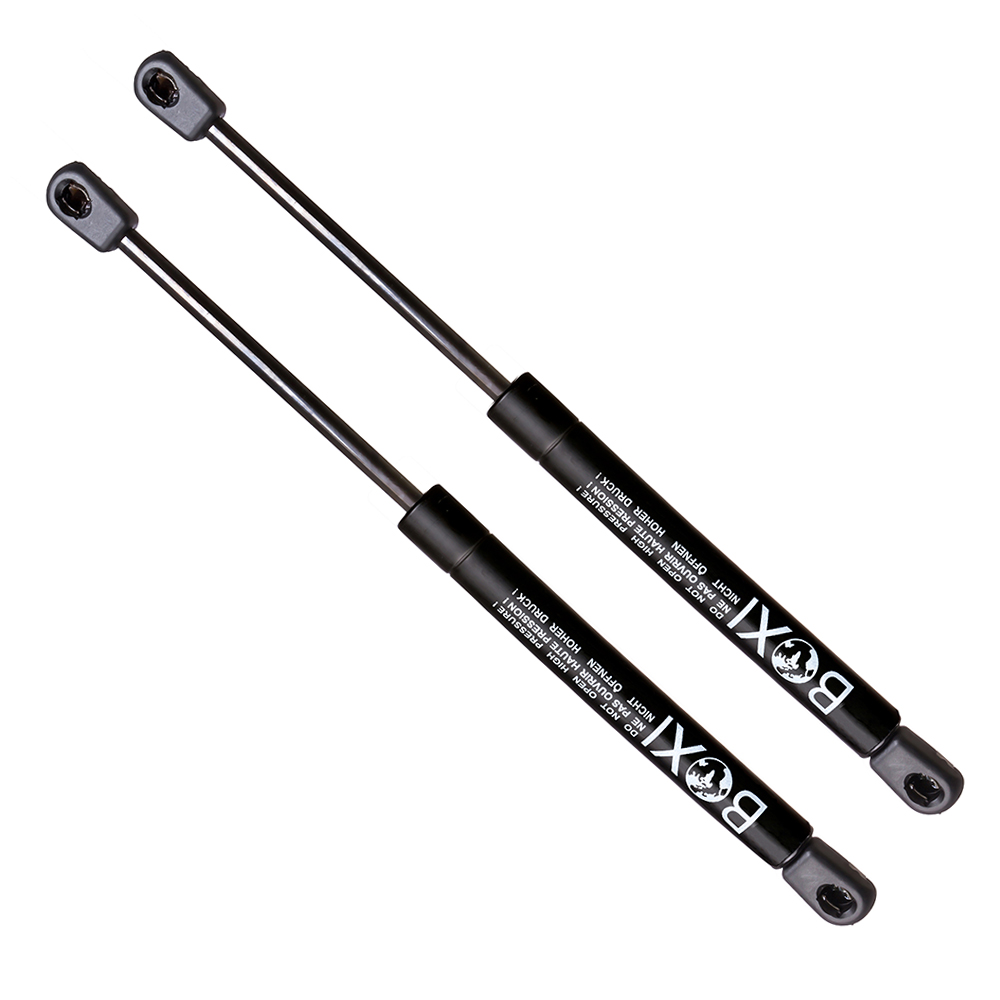

BOXI 2pcs Universal Lift Supports Extended Length: 10.00″ Compressed Length: 6.60″ Force: 25 Lbs 10mm Ball Socket Struts Shocks for Tool Box Lid Boat Storage Lids Truck Topper Truck Cap | 4057

BOXI SKU#: BXC300054664-2

$12.82

BOXI universal lift supports, part number 4057, extended length 10.00″, compressed length 6.60″, 25 lbs force. Suitable for tool box lids, truck caps, and more. Verify fitment before ordering.

OE / Interchange Part Numbers: 12169, 4057, 8195583, 870110, CS100030SA, ML1025, ML125, ML3025, SL1025, SL10251, SL10255

  • 5 Years Warranty

696 in stock

Package included:
2pcs Universal Lift Supports

Qty(2) BOXI 4057 Universal Lift Supports Struts
Extended Length: 10.00 Inches
Compressed Length: 6.60 Inches

Force: 111N = 25 Lbs.

Shaft End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.53 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

254
Stroke (in):

3.4
Stroke (mm):

86
Compressed Length (in)

Compressed Length (mm):

168
Force (Lbs)

Force (Newtons)

111
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

12169, 4057, 8195583, 870110, CS10030SA, CS100-30SA, ML1025, ML10-25, ML-10-25, ML125, ML1-25, ML-1-25, ML3025, ML30-25, ML-30-25, SL1025, SL10-25, SL-1025, SL-10-25, SL10251, SL10-25-1, SL-10251, SL-10-25-1, SL10255
