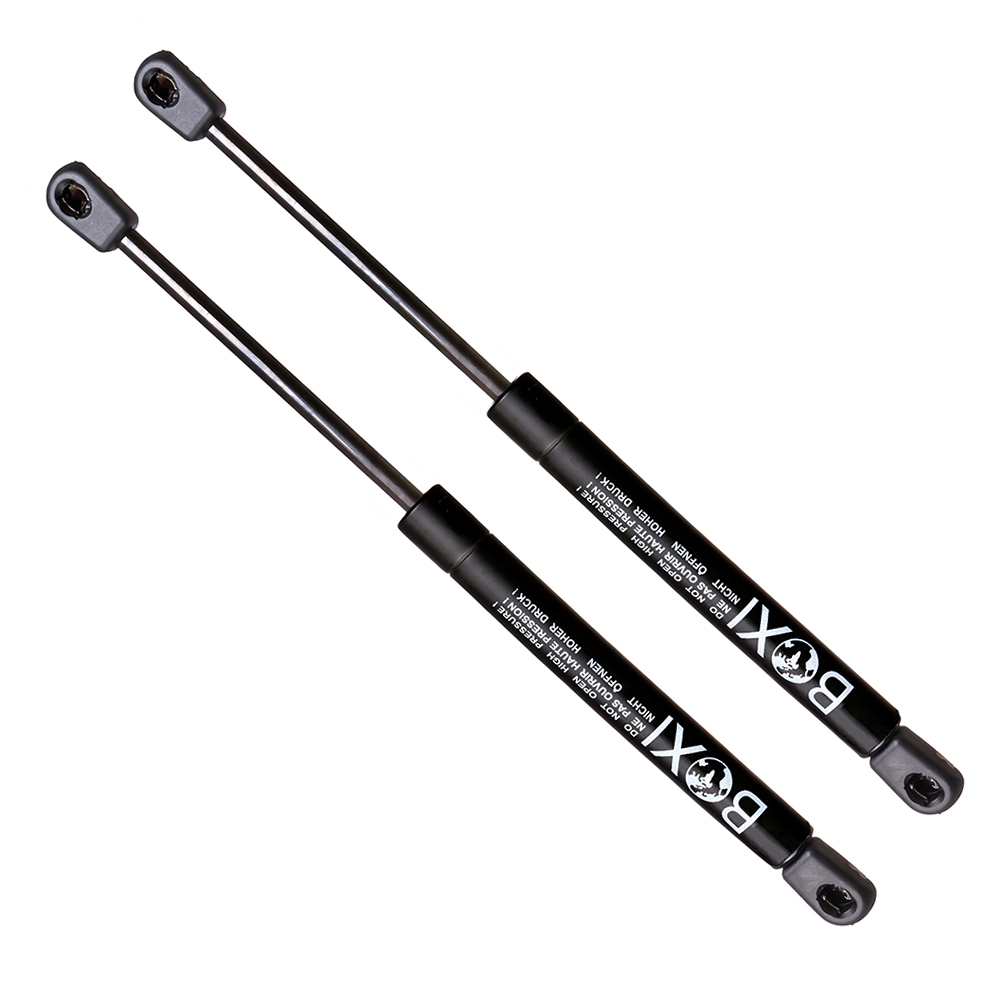

BOXI 2pcs Gas Charged Universal Lift Supports Struts Shocks Springs Dampers Extended Length 17.20 inches, Compressed Length 10.60 inches, 55 lbs Force, 10mm Ball Socket 4514, BX54657

BOXI SKU#: BXC300054657-2

$17.50

BOXI 2-piece gas charged lift supports with a 17.20-inch extended length and 55 lbs force. These universal struts fit various automotive and industrial applications. Verify fitment before ordering.

OE / Interchange Part Numbers: 1595EY, 4514, 8195565, 95779, AH8650, D95779, ML1650, ML3650, P2032, SE172P55, SE618A45PS130PM3, SE630V55

  • 5 Years Warranty

381 in stock

Package included:
2pcs Universal Lift Supports

Extended Length [in] 17.20
Compressed Length [in] 10.60
ext.ser.num 245N
Force (lbs) 55.00

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.95 lbs
Dimensions 19.69 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

437
Stroke (in):

6.6
Stroke (mm):

168
Compressed Length (in)

Compressed Length (mm):

269
Force (Lbs)

Force (Newtons)

245
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95779, 107961005, 1595EY, 4514, 4853QT, 8195565, AH8650, D95779, ML1650, ML16-50, ML-16-50, ML3650, ML36-50, ML-36-50, P2032, SE172P55, SE618A45PS130PM3, SE630V55, SE630V-55, SL1650, SL16-50, SL-1650, SL-16-50, SL16501
