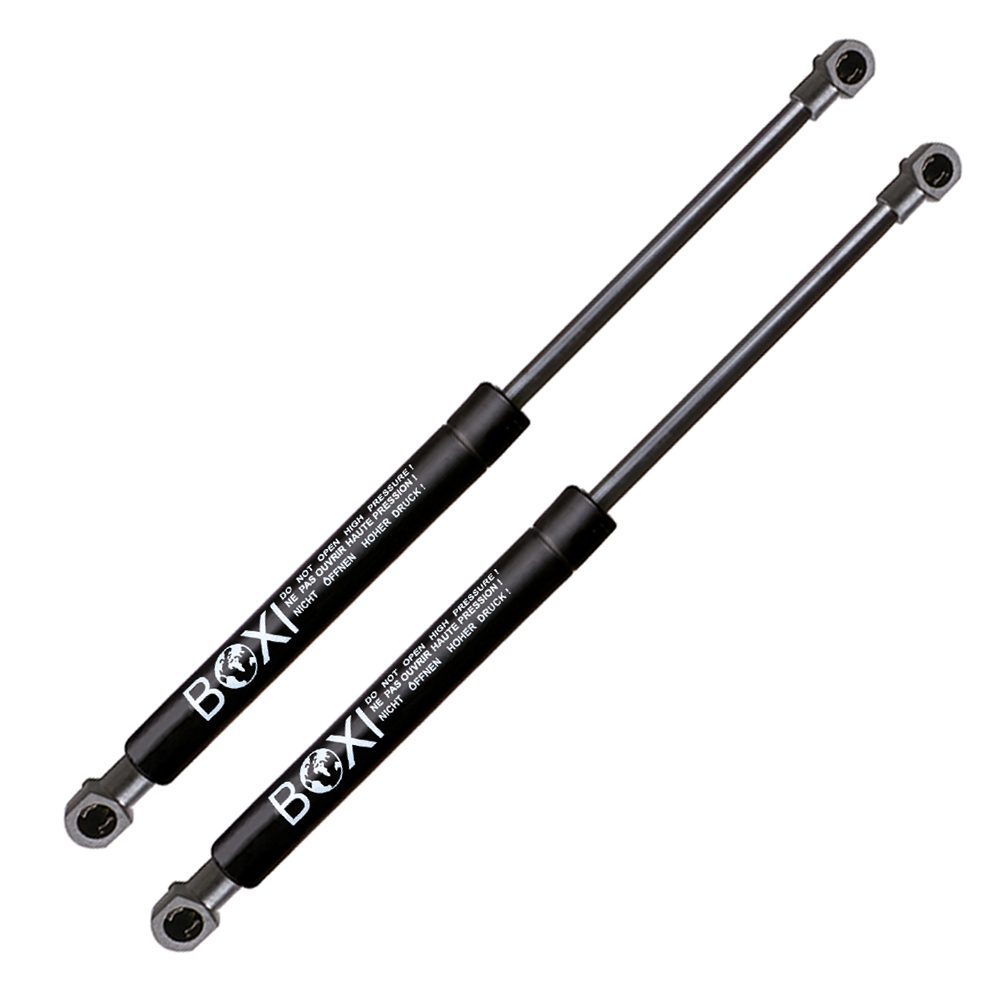

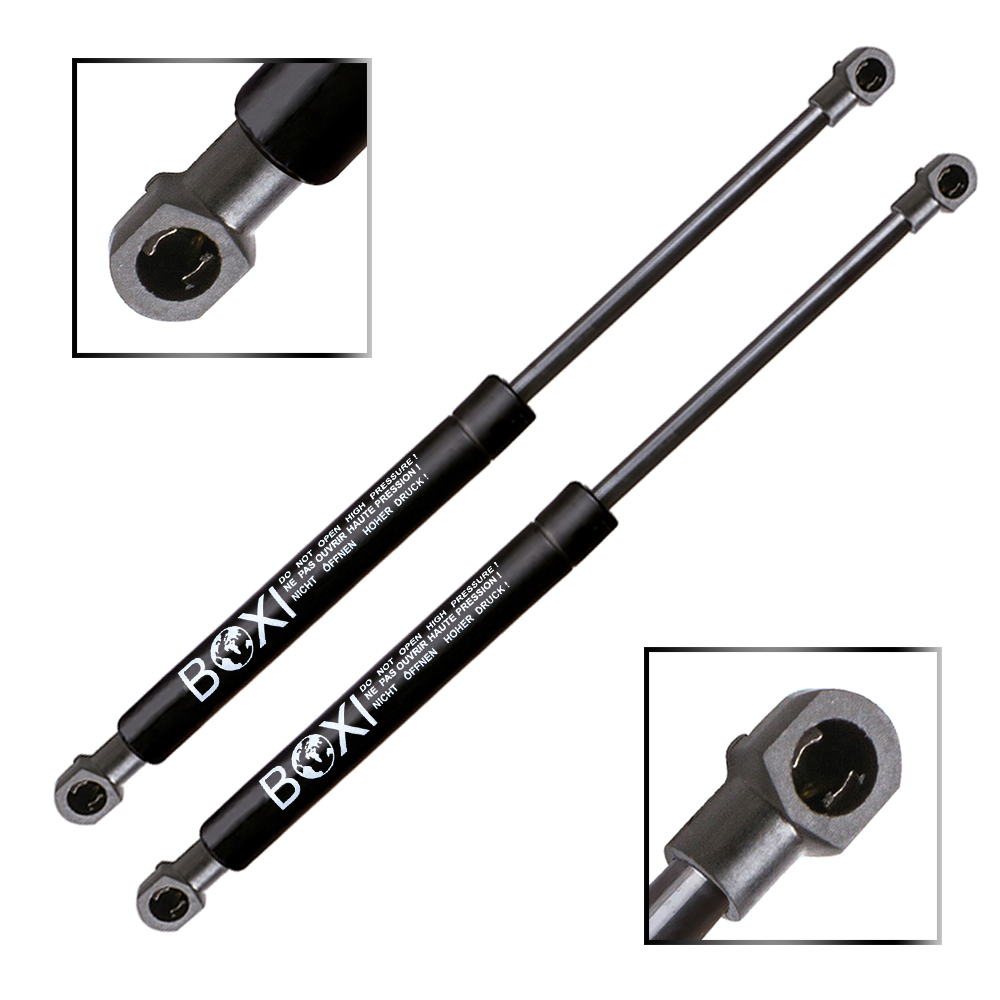

BOXI 2 Pcs Rear Window Glass Lift Supports Fit Land Rover LR3 2005-2013, Land Rover LR4 2009-2016 Rear Window, Note: These are for the Upper Window, not the Tailgate 6614,SG387005,BHE780012

BOXI SKU#: BXC300054504-2

$19.49

BOXI Rear Window Glass Lift Supports (2 pcs) for Land Rover LR3 (2005-2013) & LR4 (2009-2016). Replaces OE 6614, SG387005, BHE780012. Verify fitment before ordering.

OE / Interchange Part Numbers: 351333, 95682, D95682, SG387005

  • 5 Years Warranty

117 in stock

Placement on Vehicle:Rear Window Glass Lift Supports
Package Included:2pcs Rear Window Glass Lift Supports

Vehicle Location – Rear Window Glass-Note: These are for the upper window, not the tailgate
Fits the following Land Rover LR3 Years:
2005-2013 | Base Sport Utility 4-Door
2009 | HSE Lux Sport Utility 4-Door
2005-2013 | HSE Sport Utility 4-Door
2005-2013 | SE Sport Utility 4-Door

Fits the following Land Rover LR4 Years:
2009-2016 | Base Sport Utility 4-Door
2012-2016 | HSE Lux Sport Utility 4-Door
2009-2016 | HSE Sport Utility 4-Door
2010-2013 | SE Sport Utility 4-Door
2009-2013 | V8 Sport Utility 4-Door

Weight 1.2 lbs
Dimensions 19.69 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

480
Stroke (in):

7.26
Stroke (mm):

185
Compressed Length (in)

Compressed Length (mm):

295
Force (Lbs)

Force (Newtons)

480
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

LR086368, BHE 780060, TFS612894, SG287005, 612883, 612894, SG387005, D95682, D6614, BHE 780012, 819-6599, 6614
YearMakeModelSubmodelEngine
2014 – 2016Land RoverDiscoveryHSE
SE		V6 – 3.0L 2995cc 183ci GAS MPI Supercharged type SCV6 – 4 valve DOHC
2014Land RoverDiscoverySE PlusV6 – 3.0L 2995cc 183ci GAS MPI Supercharged type SCV6 – 4 valve DOHC
2006Land RoverLR3BaseV6 – 4.0L 245ci GAS MFI vin 4 – 2 valve SOHC
2005 – 2009Land RoverLR3HSEV8 – 4.4L 4394cc GAS MFI vin 5 – 4 valve DOHC
SEV6 – 4.0L 245ci GAS MFI vin 4 – 2 valve SOHC
V8 – 4.4L 4394cc GAS MFI vin 5 – 4 valve DOHC
2009Land RoverLR3HSE LuxV8 – 4.4L 4394cc GAS MFI vin 5 – 4 valve DOHC
2011 – 2016Land RoverLR4BaseV6 – 3.0L 2995cc 183ci GAS DI Supercharged vin V – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2010 – 2016Land RoverLR4HSEV6 – 3.0L 2995cc 183ci GAS DI Supercharged vin V – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2012 – 2016Land RoverLR4HSE LuxV6 – 3.0L 2995cc 183ci GAS DI Supercharged vin V – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2010 – 2013Land RoverLR4SEV8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2010Land RoverLR4V8V8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
