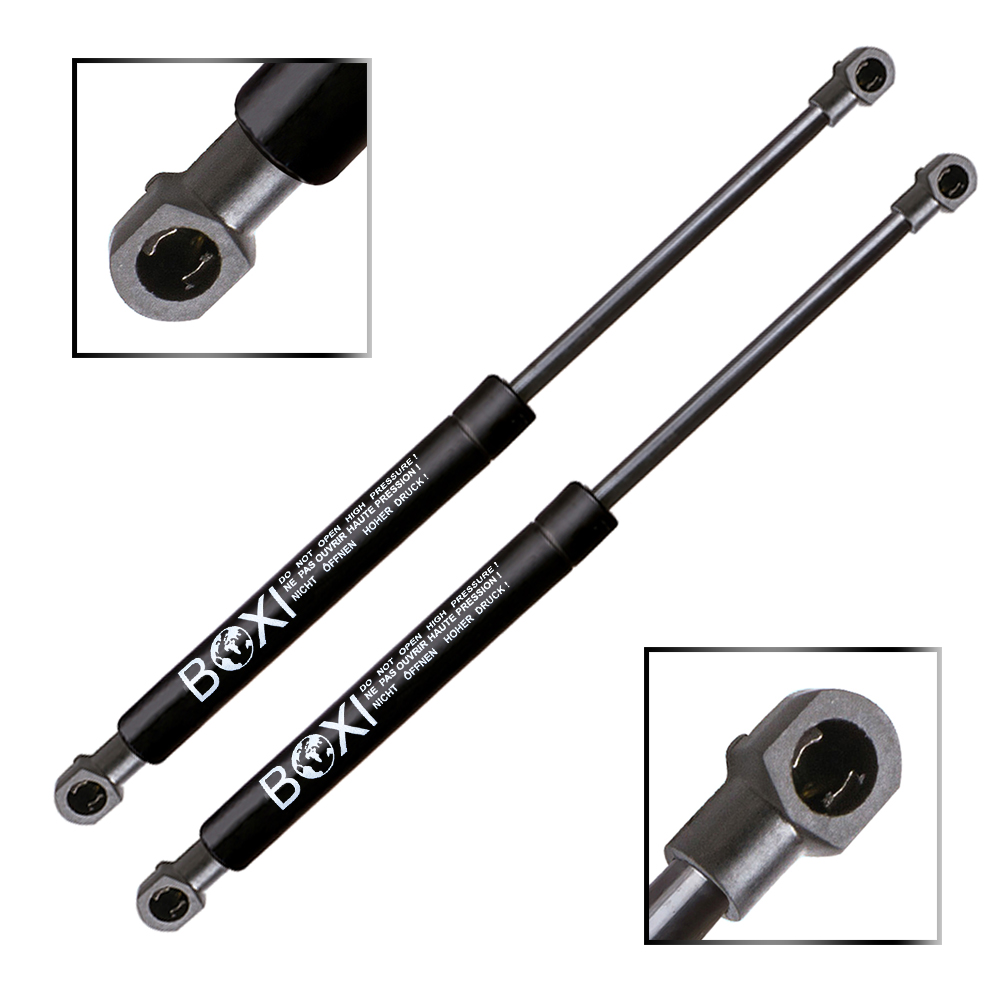

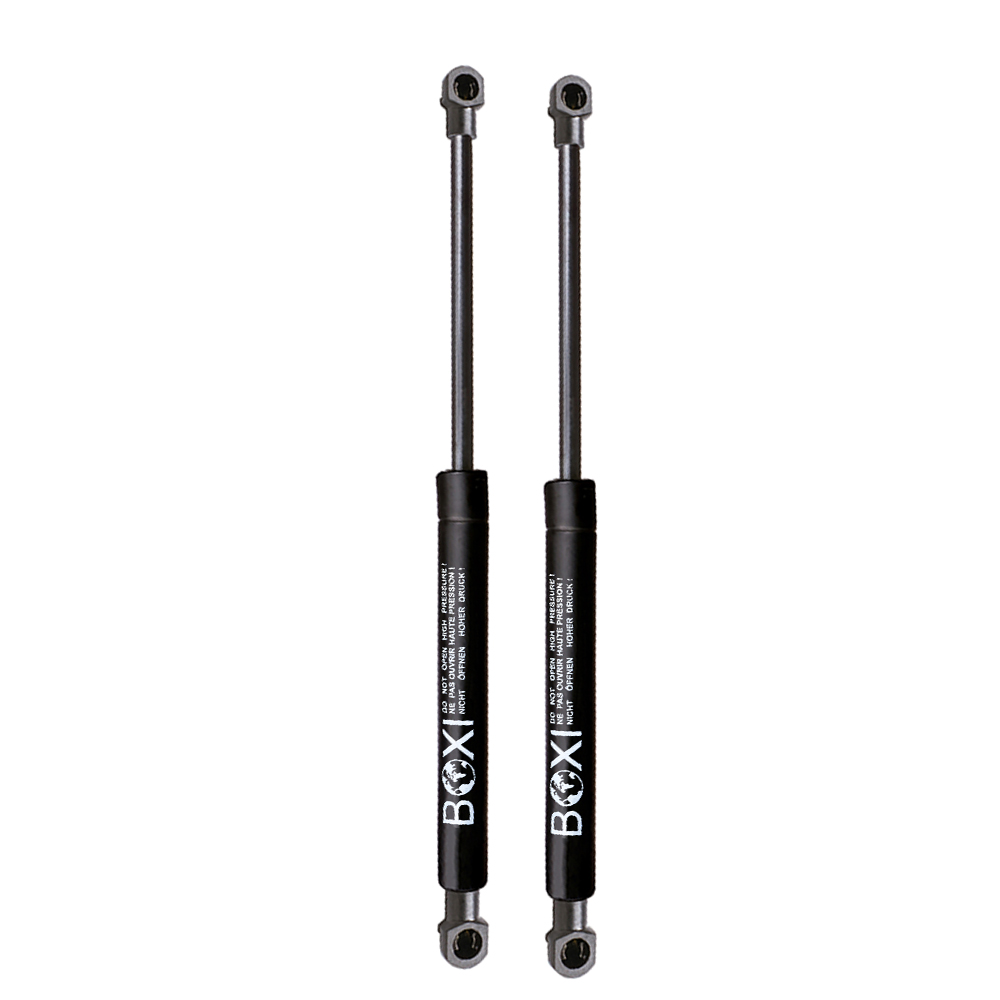

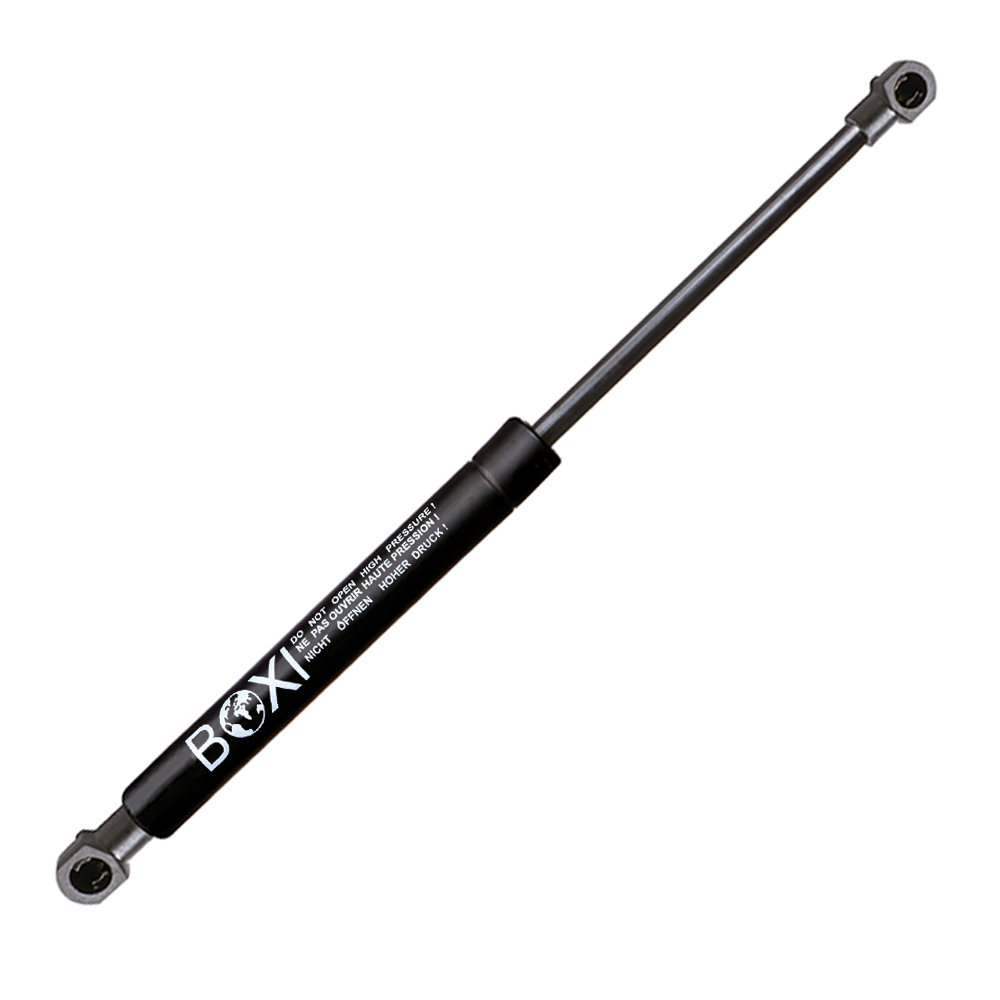

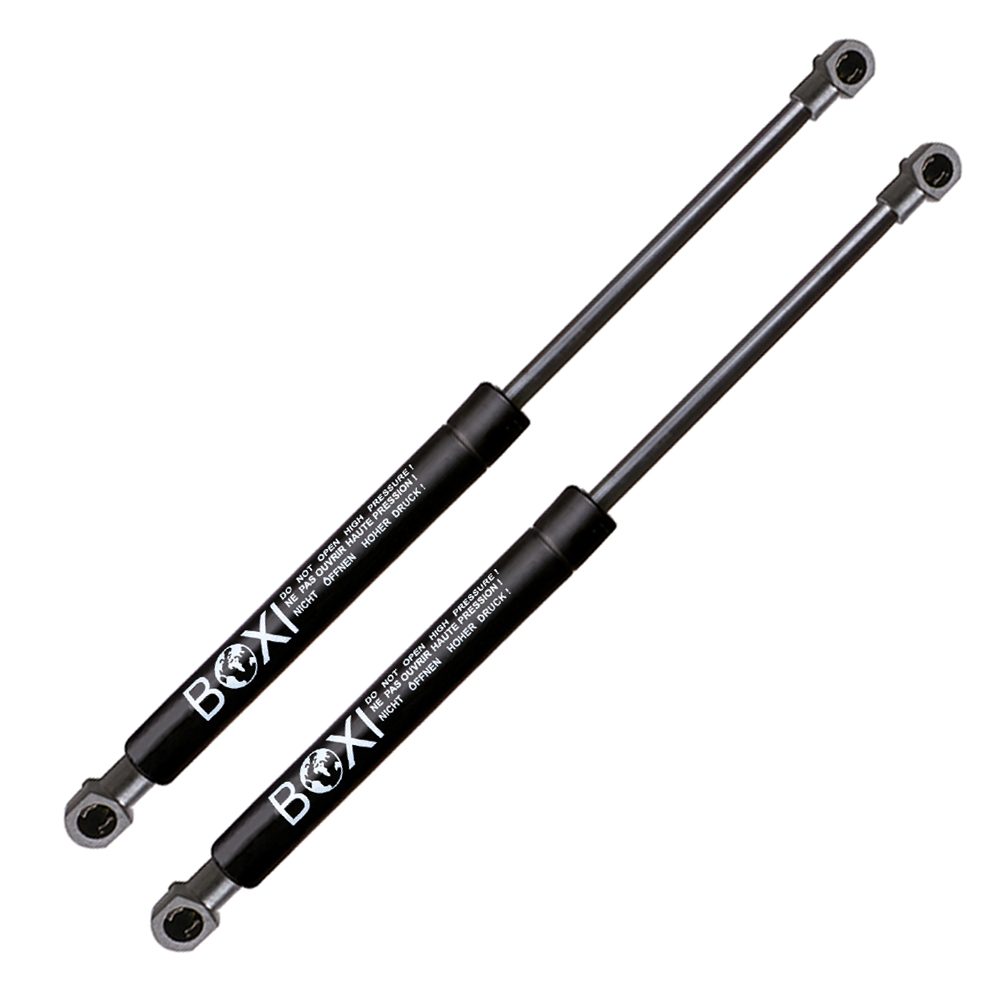

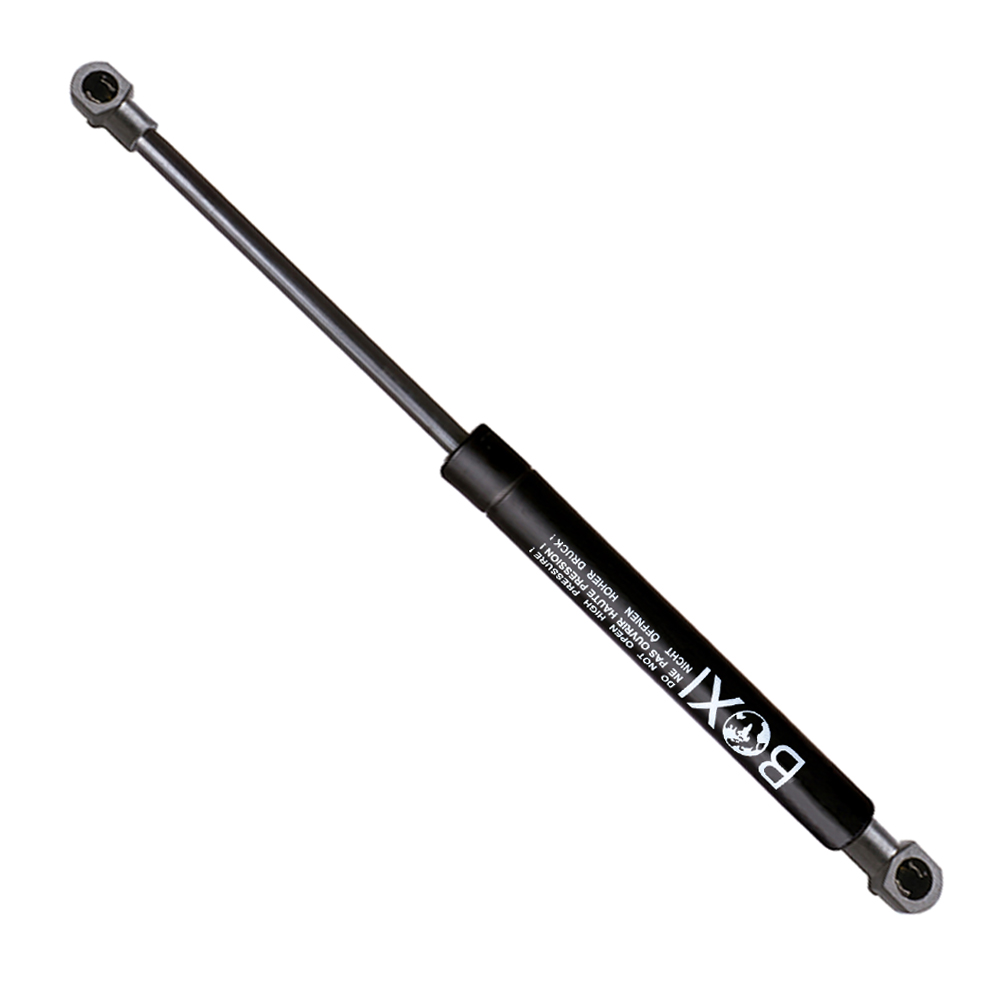

BOXI 2pc Liftgate Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Land Rover Range Rover 2003-2012 Sport Utility 4-Door (Does Not Fit Sport Model Or Mark IV) | SG387003 BHE760020

BOXI SKU#: BXC300054502-2

$24.16

BOXI 2-piece liftgate lift support struts for 2003-2012 Land Rover Range Rover (excludes Sport & Mark IV). Replaces OE SG387003 & BHE760020. Verify fitment before ordering.

OE / Interchange Part Numbers: 1169PG, 14979, 8196363, 96619, BHE760020, D96619, SG387003

  • 5 Years Warranty

65 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Vehicle Location – Liftgate-Does Not Fit Sport Model Or Mark IV
Extended Length [in] 20.31
Compressed Length [in] 15.06

Fits the following Land Rover Range Rover Years:
2011-2012 | Autobiography Sport Utility 4-Door
2003-2012 | Base Sport Utility 4-Door
2012 | HSE Lux Sport Utility 4-Door
2003-2012 | HSE Sport Utility 4-Door
2003-2012 | LE Sport Utility 4-Door
2003-2012 | SE Sport Utility 4-Door
2003-2012 | Supercharged Sport Utility 4-Door

Weight 1.2 lbs
Dimensions 21.65 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

516
Stroke (in):

11.02
Stroke (mm):

280
Compressed Length (in)

Compressed Length (mm):

351
Force (Lbs)

Force (Newtons)

579
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

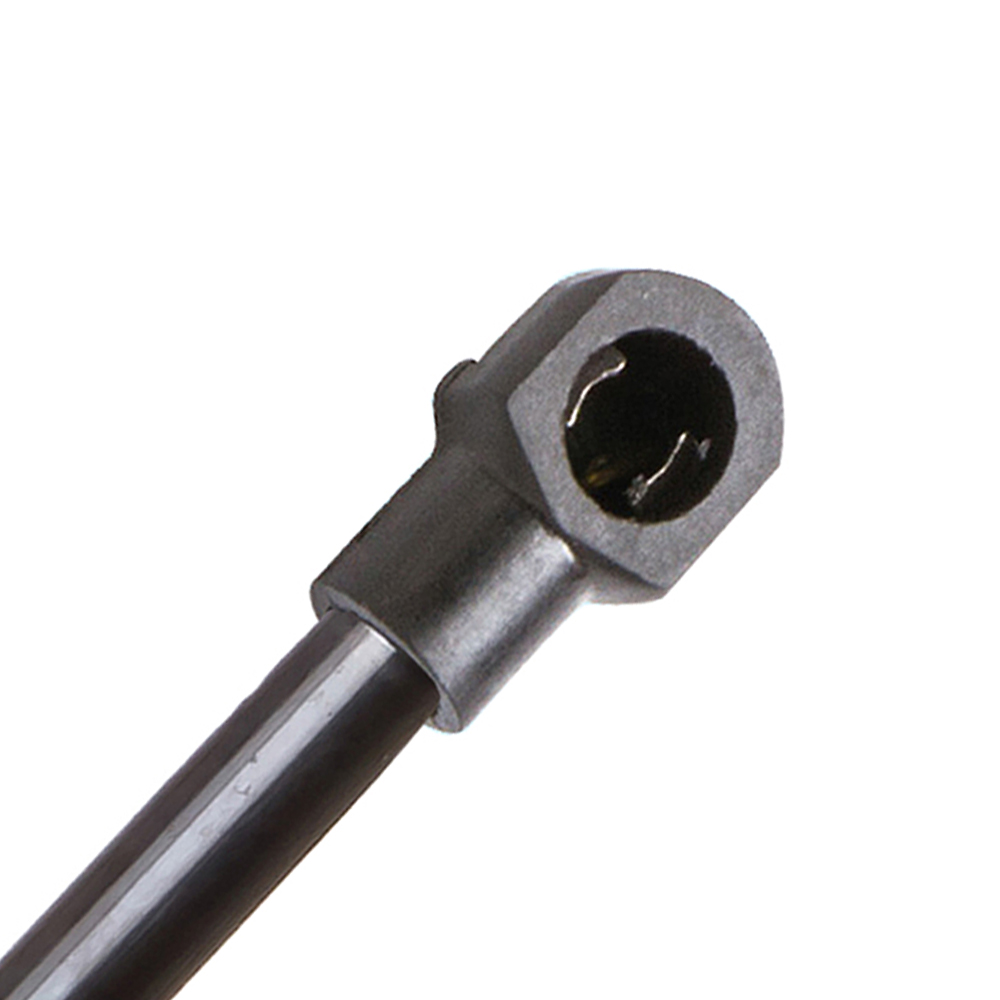

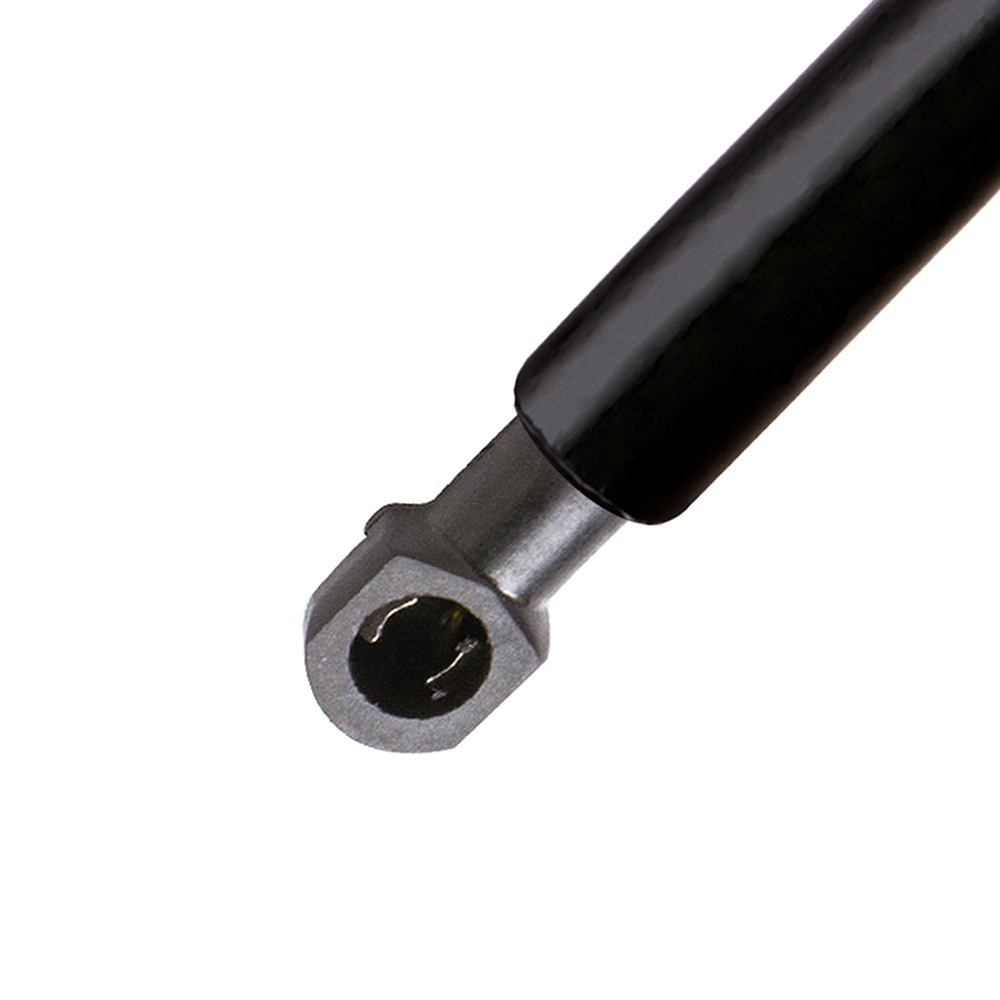

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

BHE 760020, TFS612204, 819-8168, GSA08914, GSA09130, SG387003, D96619, D6619
YearMakeModelSubmodelEngine
2011 – 2012Land RoverRange RoverAutobiographyV8 – 5.0L 5000cc 305ci GAS DI Supercharged vin E – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI Supercharged vin E – 4 valve DOHC
2003 – 2012Land RoverRange RoverBaseV8 – 4.4L 4394cc GAS MFI – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI Supercharged vin E – 4 valve DOHC
HSEV8 – 4.4L 4394cc GAS MFI vin 5 – 4 valve DOHC
V8 – 4.4L 4398cc GAS MFI – 4 valve DOHC
V8 – 4.4L 4398cc GAS MFI vin 1 type M62 – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2012Land RoverRange RoverHSE LuxV8 – 5.0L 5000cc GAS MFI vin D – 4 valve DOHC
2006 – 2012Land RoverRange RoverSuperchargedV8 – 4.2L 4196cc 256ci GAS MFI Supercharged vin 3 – 4 valve DOHC
V8 – 5.0L 5000cc GAS MFI Supercharged vin E – 4 valve DOHC
2008Land RoverRange RoverWestminster EditionV8 – 4.2L 4196cc 256ci GAS MFI Supercharged vin 3 – 4 valve DOHC
