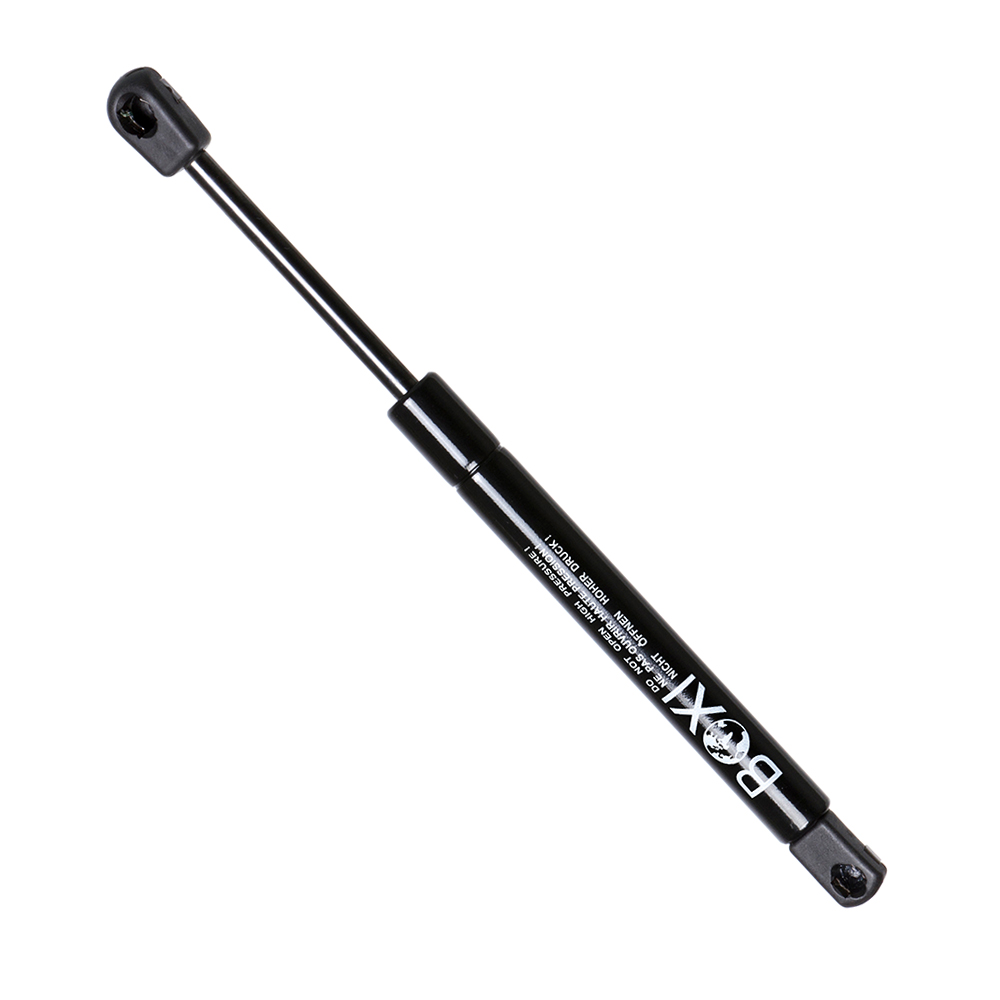

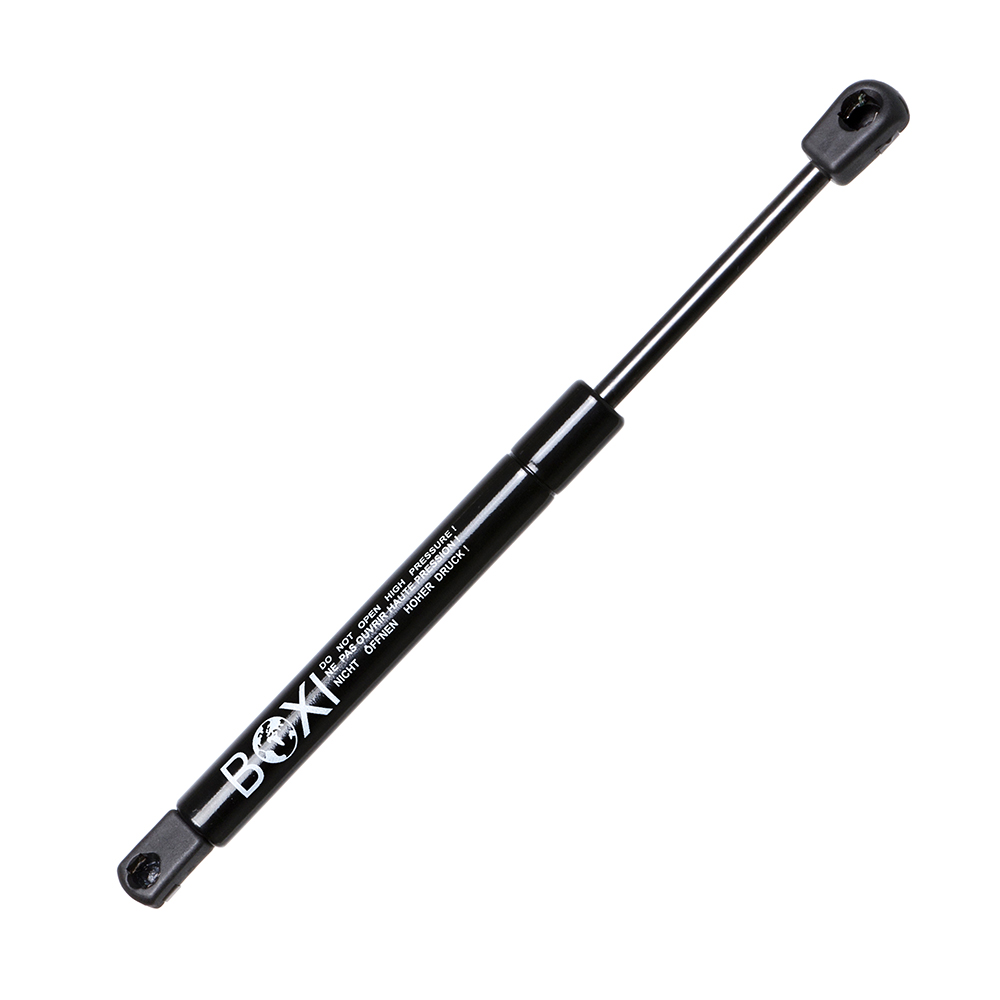

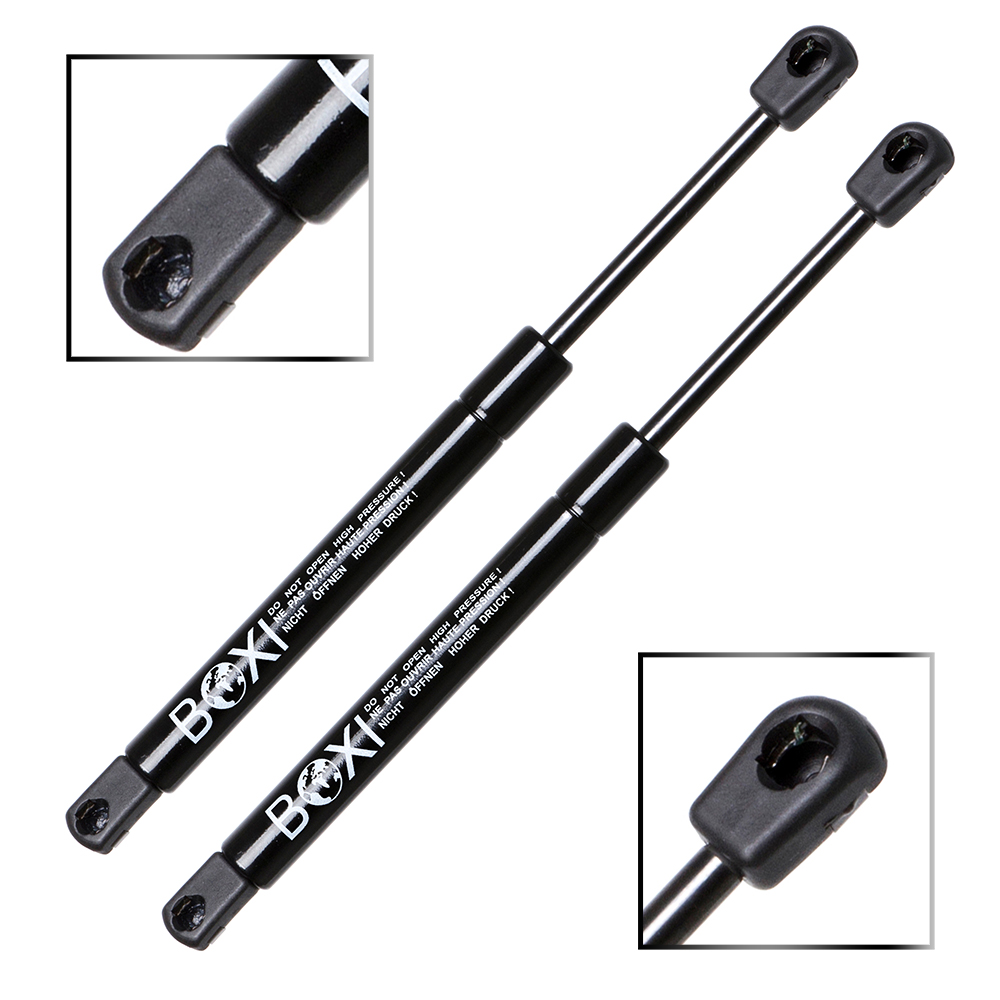

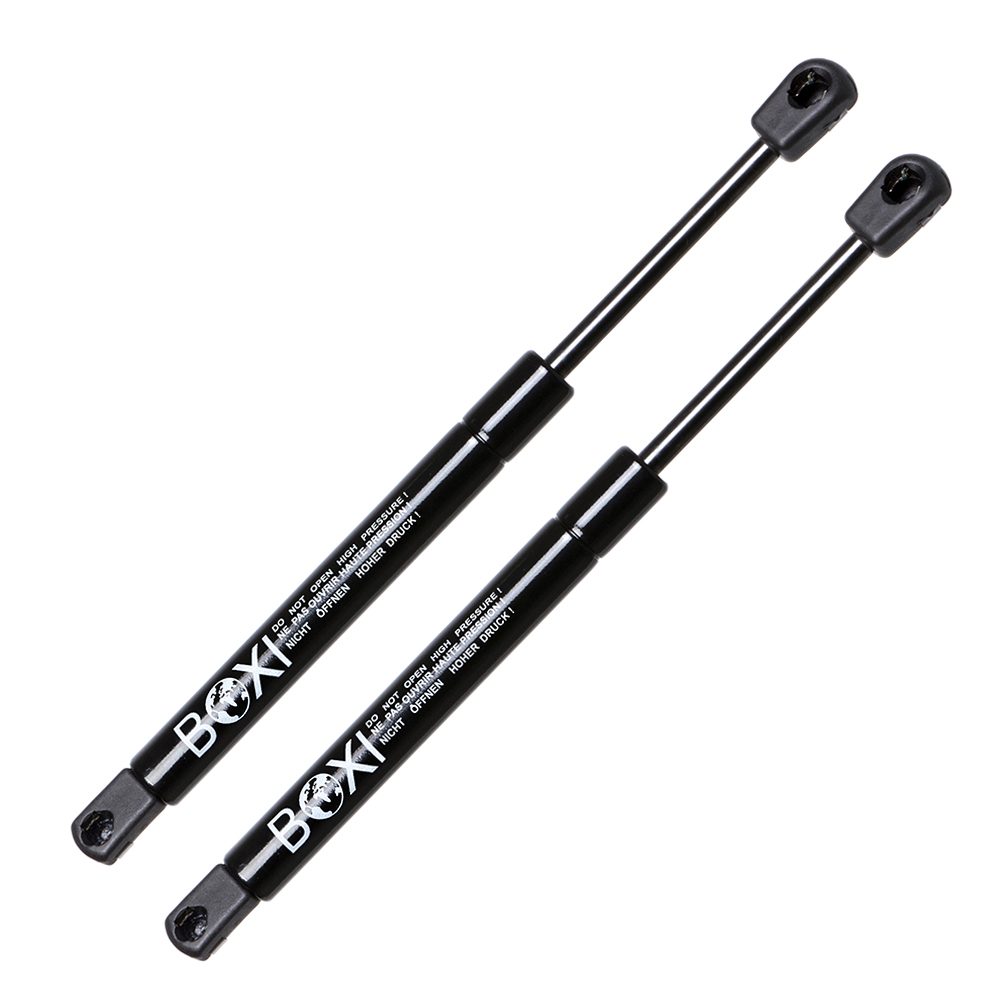

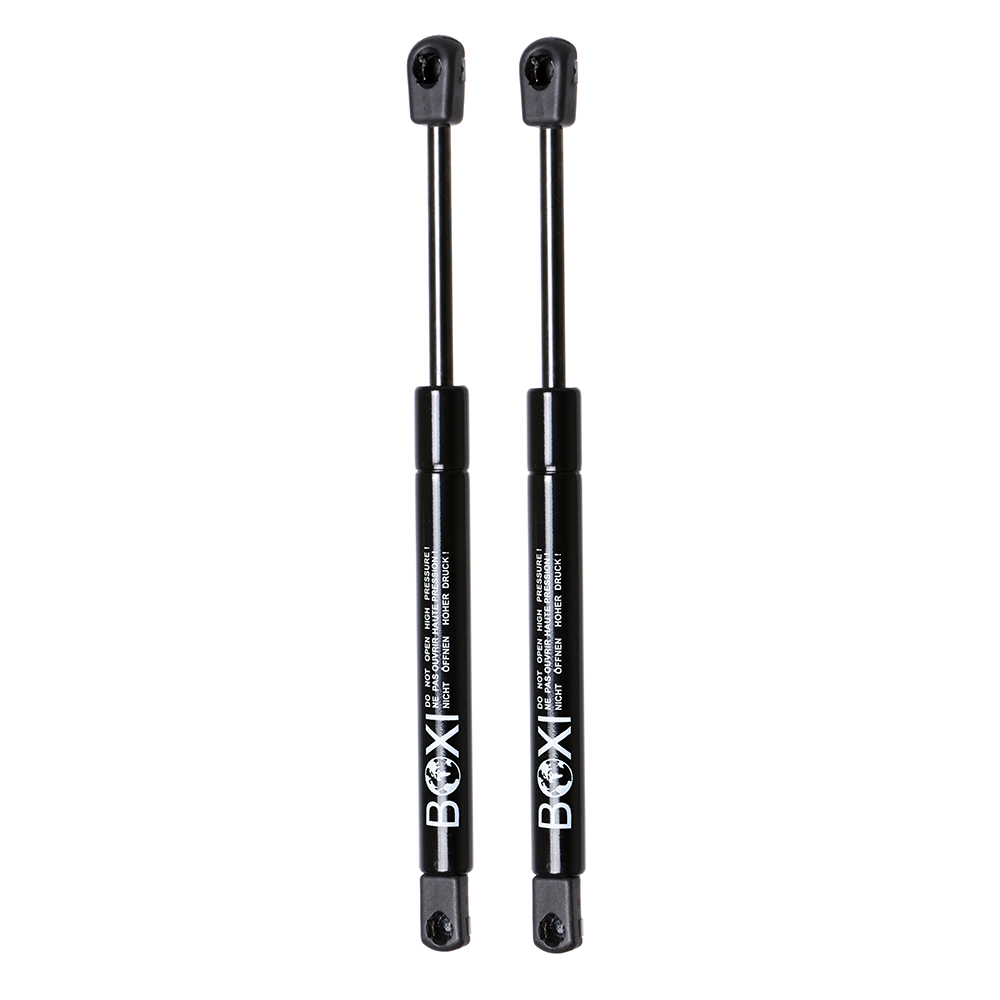

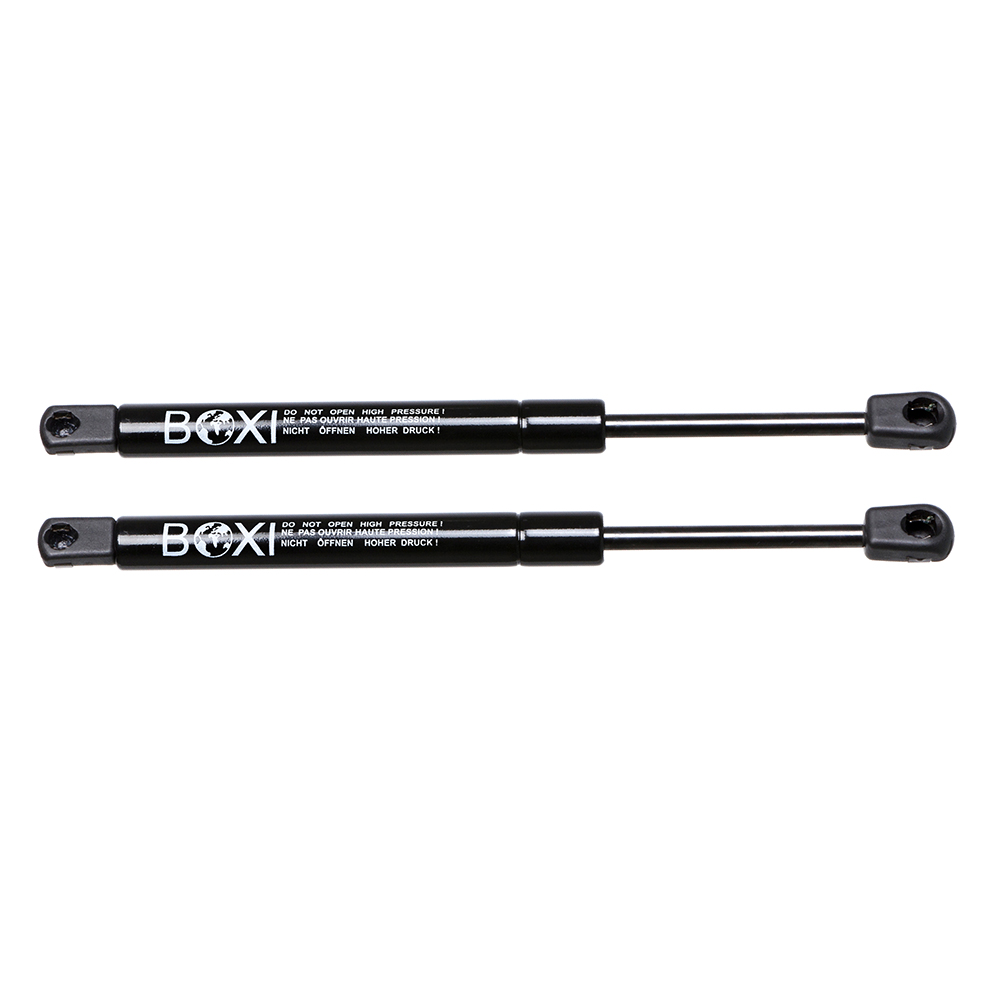

BOXI 2pcs Trunk Lift Supports Gas Struts Shocks Springs Fit for Pontiac Grand Prix 2004 2005 2006 2007 2008 Sedan Trunk | Replaces 4072 SG430048 10342308
BOXI SKU#: BXC300054208-2
$16.15
BOXI trunk lift supports gas struts for Pontiac Grand Prix 2004-2008, fits Base, GT, GXP trims. Replaces OE 4072, SG430048, 10342308. Verify fitment before ordering.
OE / Interchange Part Numbers: 10342308, 10388413, 4072, 5475RN, 8066XV, 8196290, 95428, E95428, SG430048
39 in stock
Placement on Vehicle:Rear Trunk
Package included:2pcs Rear Trunk Lift Supports
Fit: Pontiac Grand Prix 2004 – 2008 Sedan Trunk
Extended Length [in] 12.29
Compressed Length [in] 8.29
Fits the following Pontiac Grand Prix Years:
2005-2008 | Base Sedan
2005-2007 | GT Sedan
2004 | GT1 Sedan
2004 | GT2 Sedan
2004-2005 | GTP Sedan
2004-2008 | GXP Sedan
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 312 |
| Stroke (in): | 4.53 |
| Stroke (mm): | 115 |
| Compressed Length (in) | |
| Compressed Length (mm): | 197 |
| Force (Lbs) | |
| Force (Newtons) | 489 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

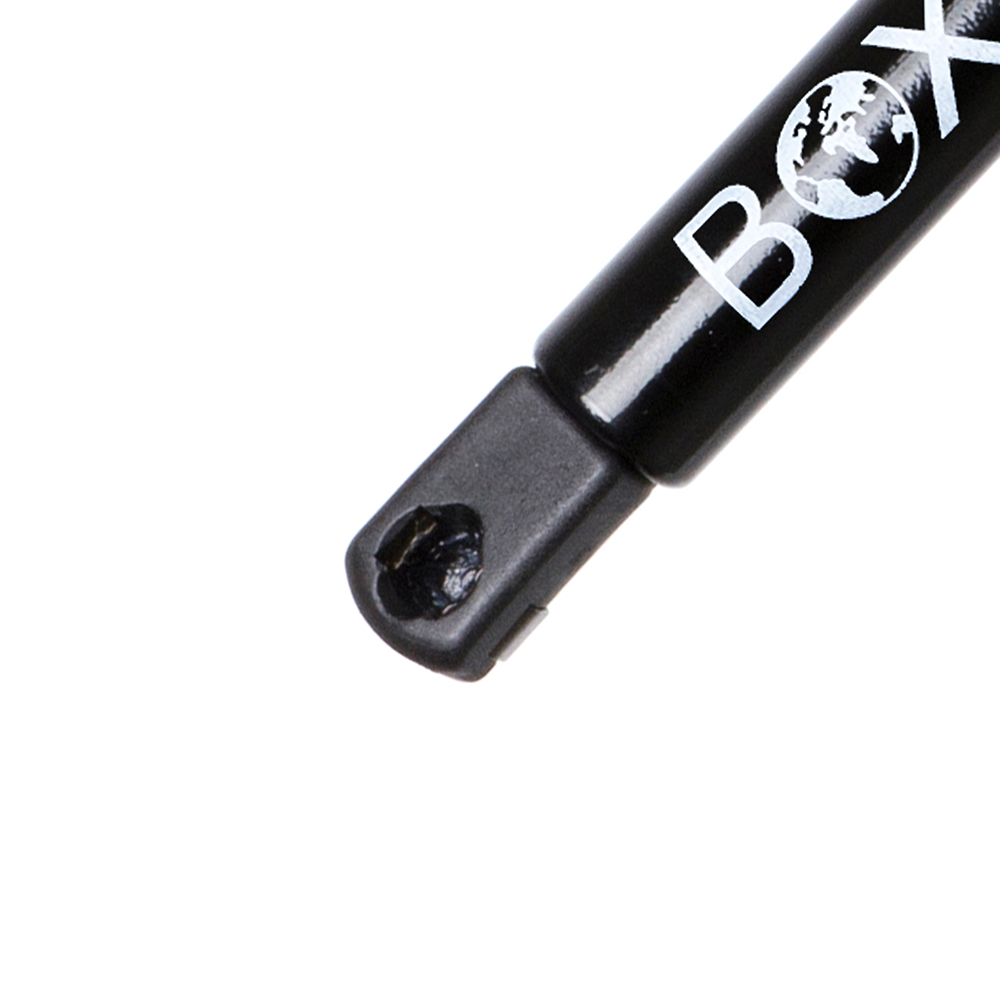

| Body Connection: | Ball Socket |

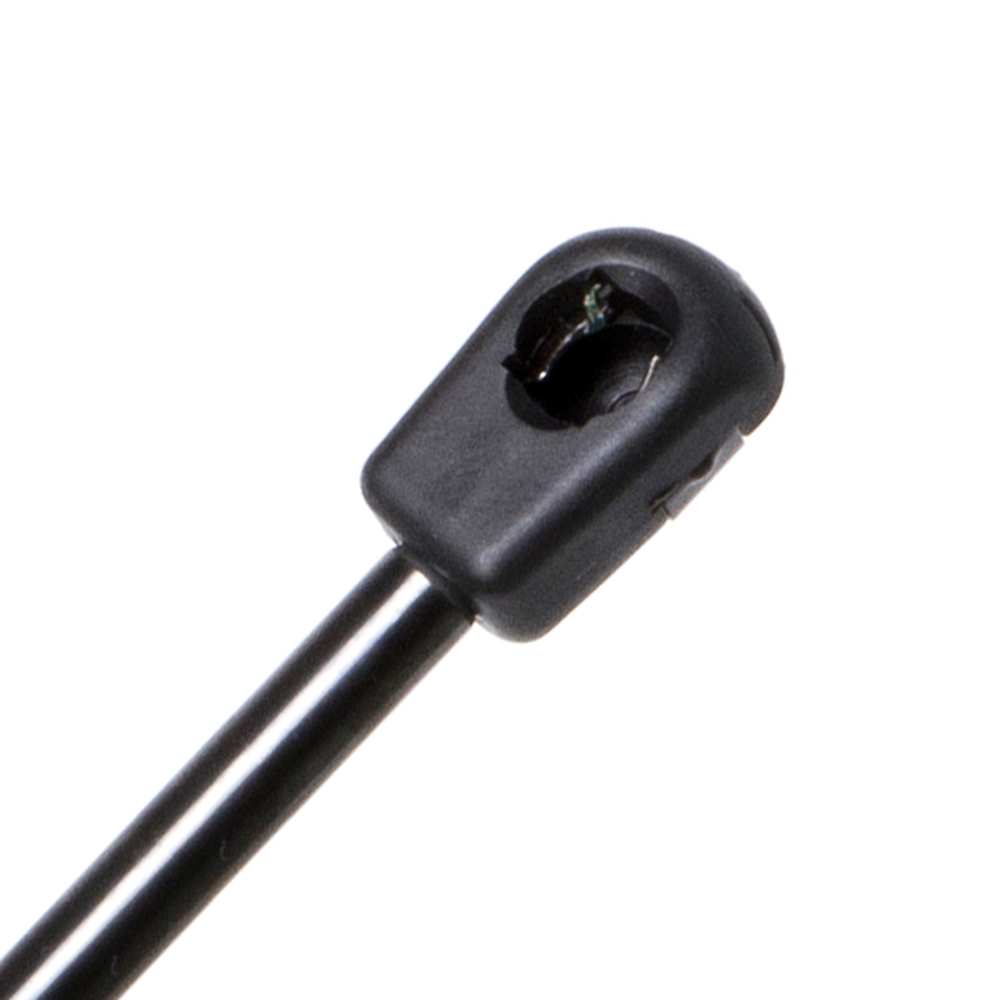

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | TFS613863, 613863, SG430048, E95428, E4072, 901677, 819-6290, 510-1014, 4072, 10342308 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 – 2008 | Pontiac | Grand Prix | Base | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| GXP | V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV | |||
| 2005 – 2007 | Pontiac | Grand Prix | GT | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV |
| V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV | ||||
| 2004 | Pontiac | Grand Prix | GT1 GT2 | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2004 – 2005 | Pontiac | Grand Prix | GTP | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV |
