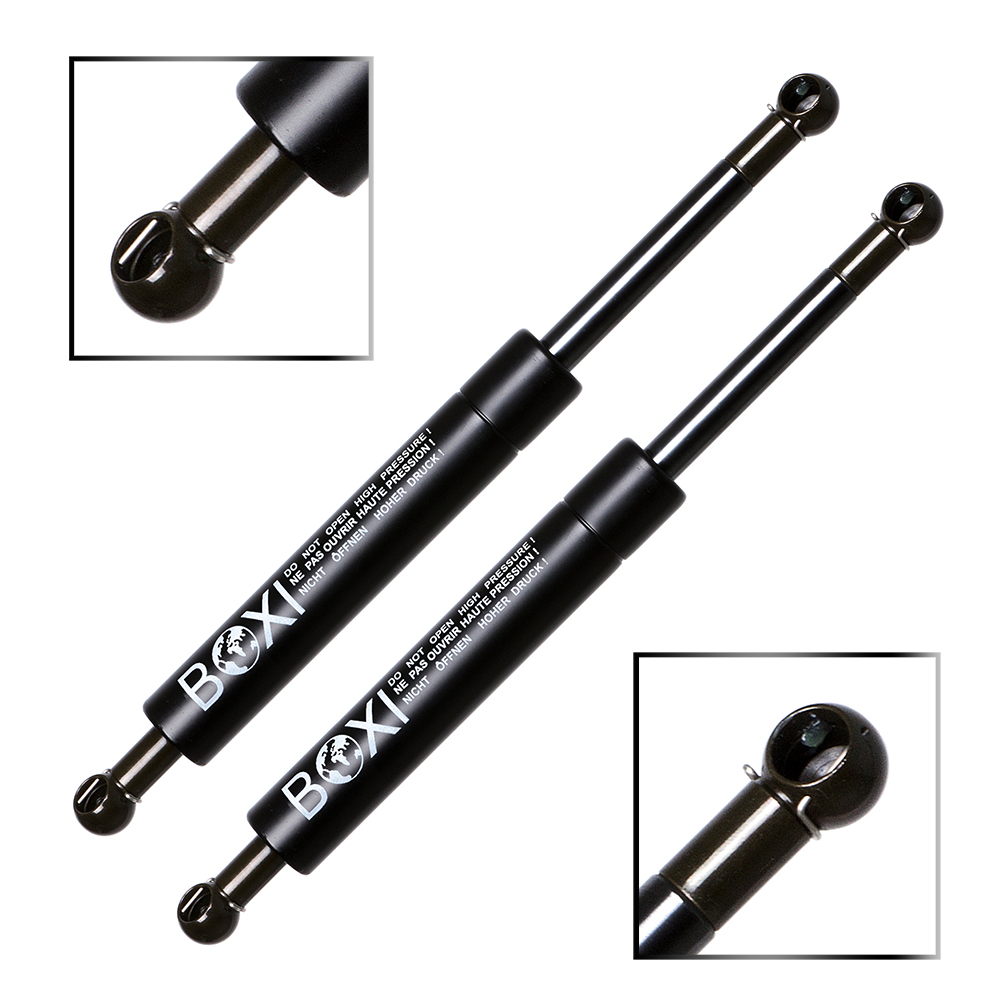

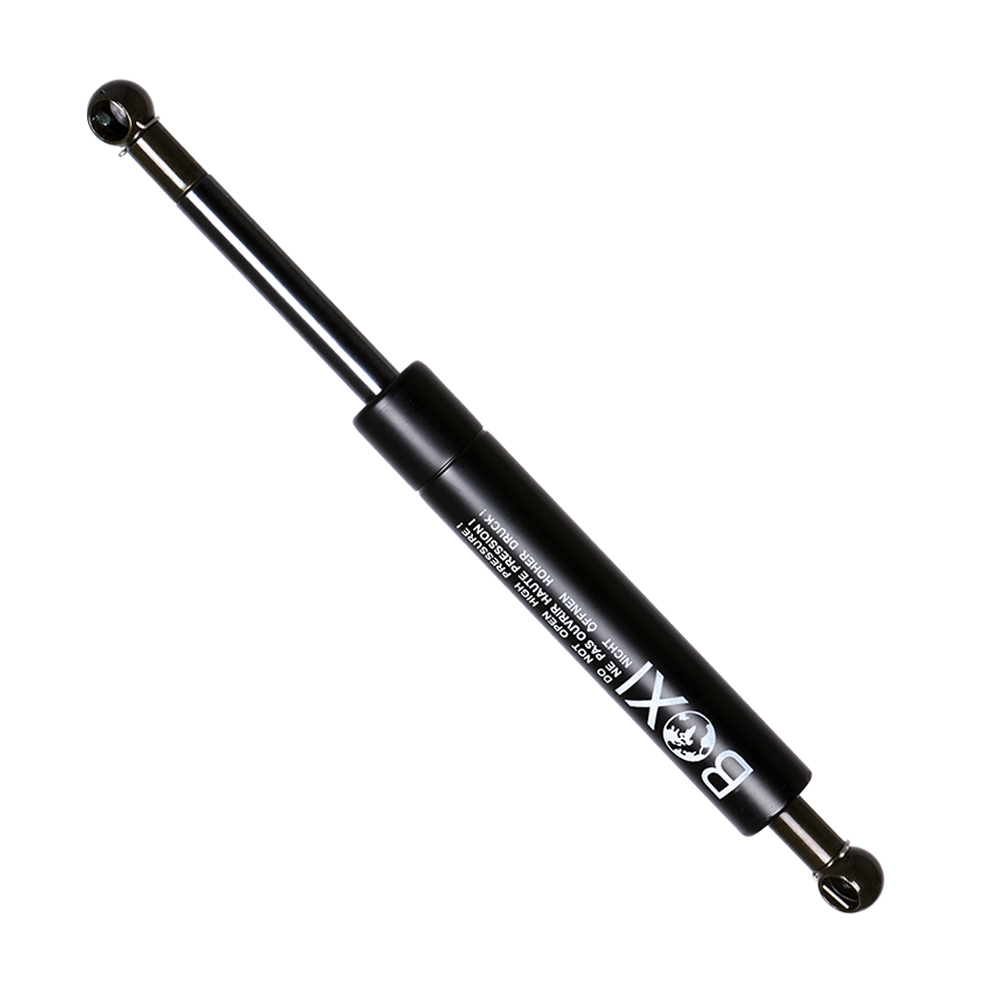

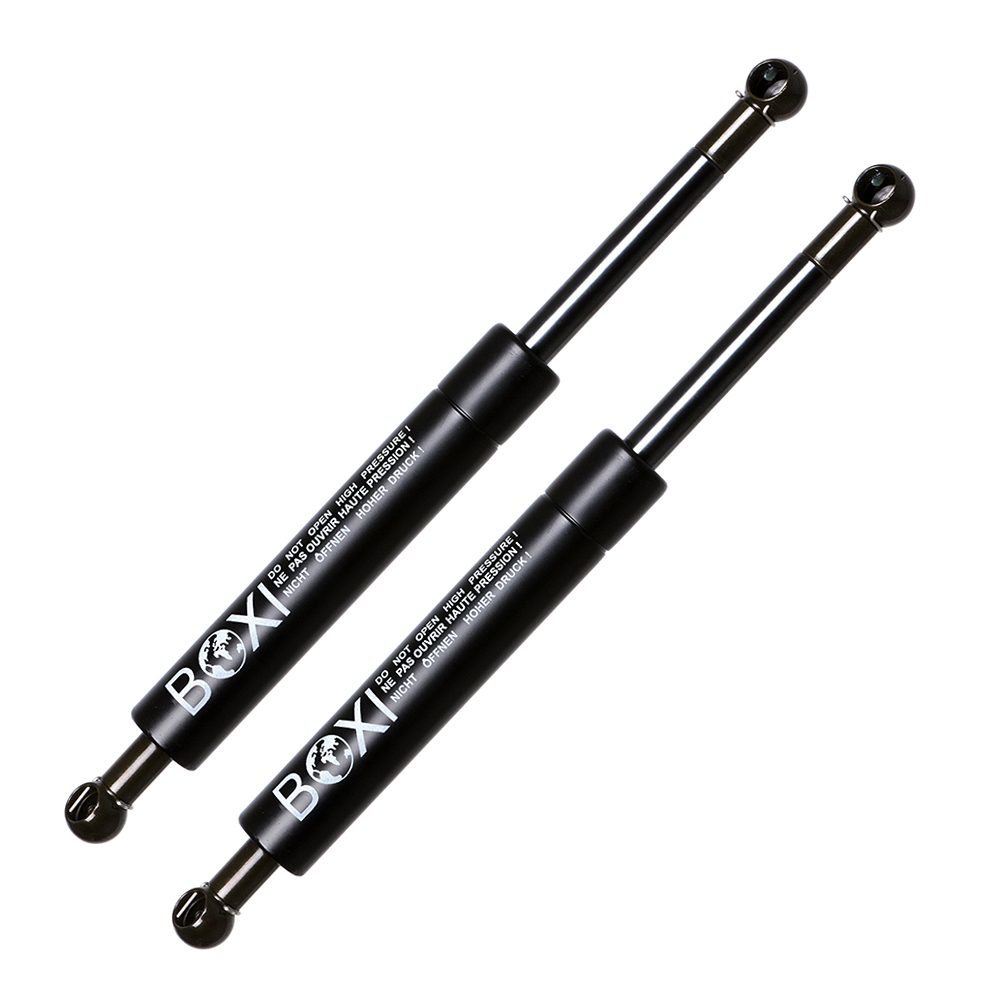

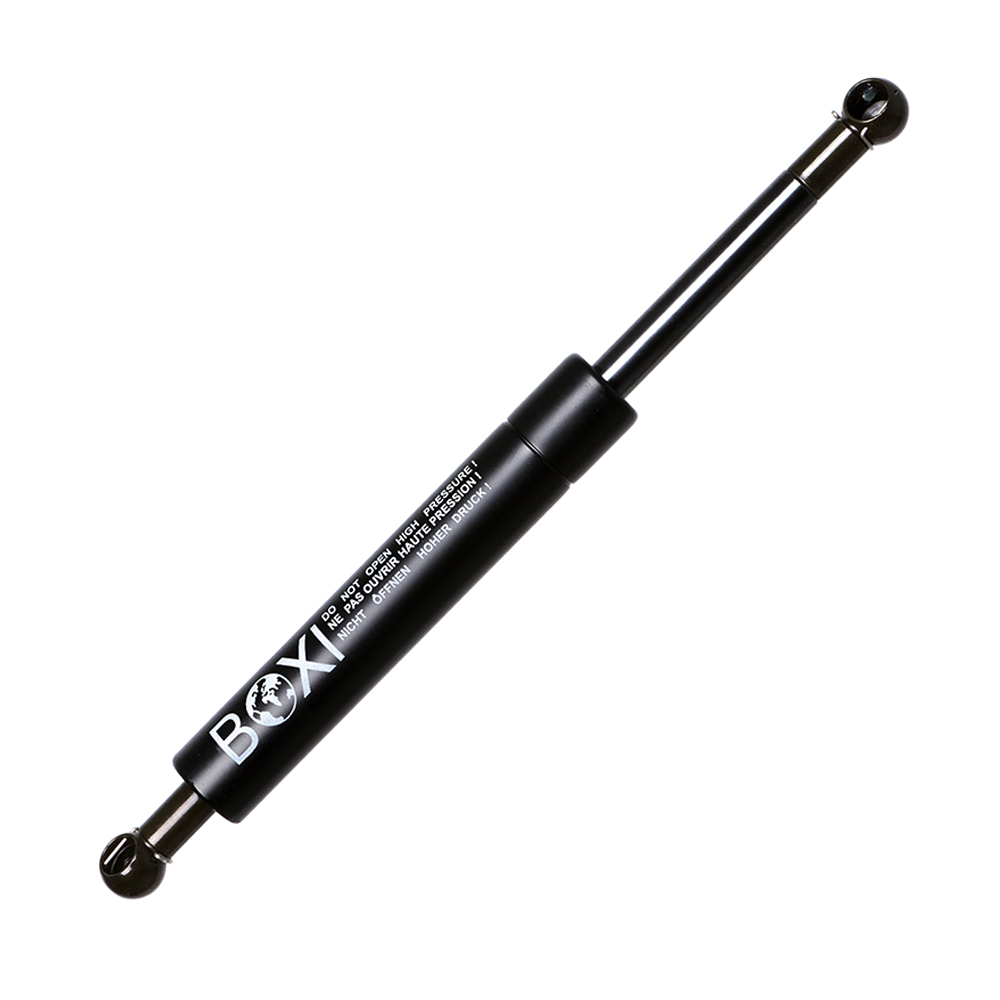

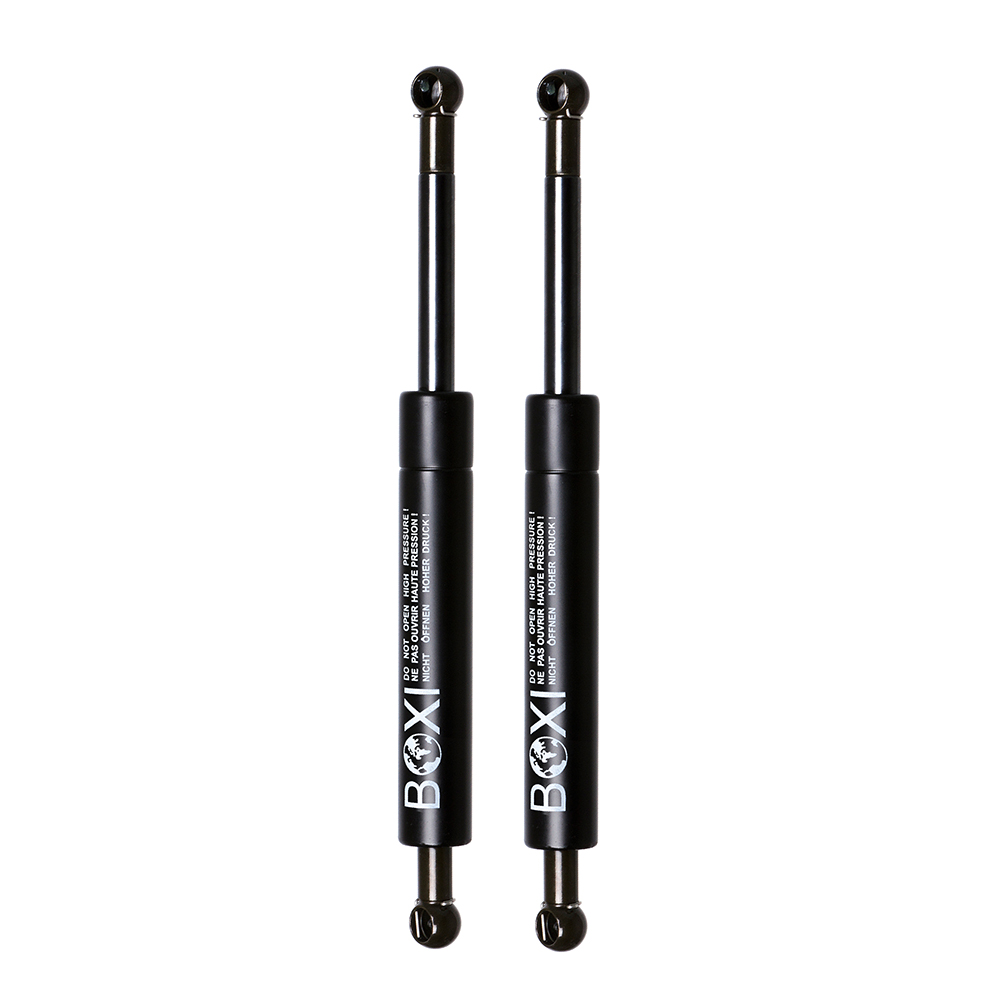

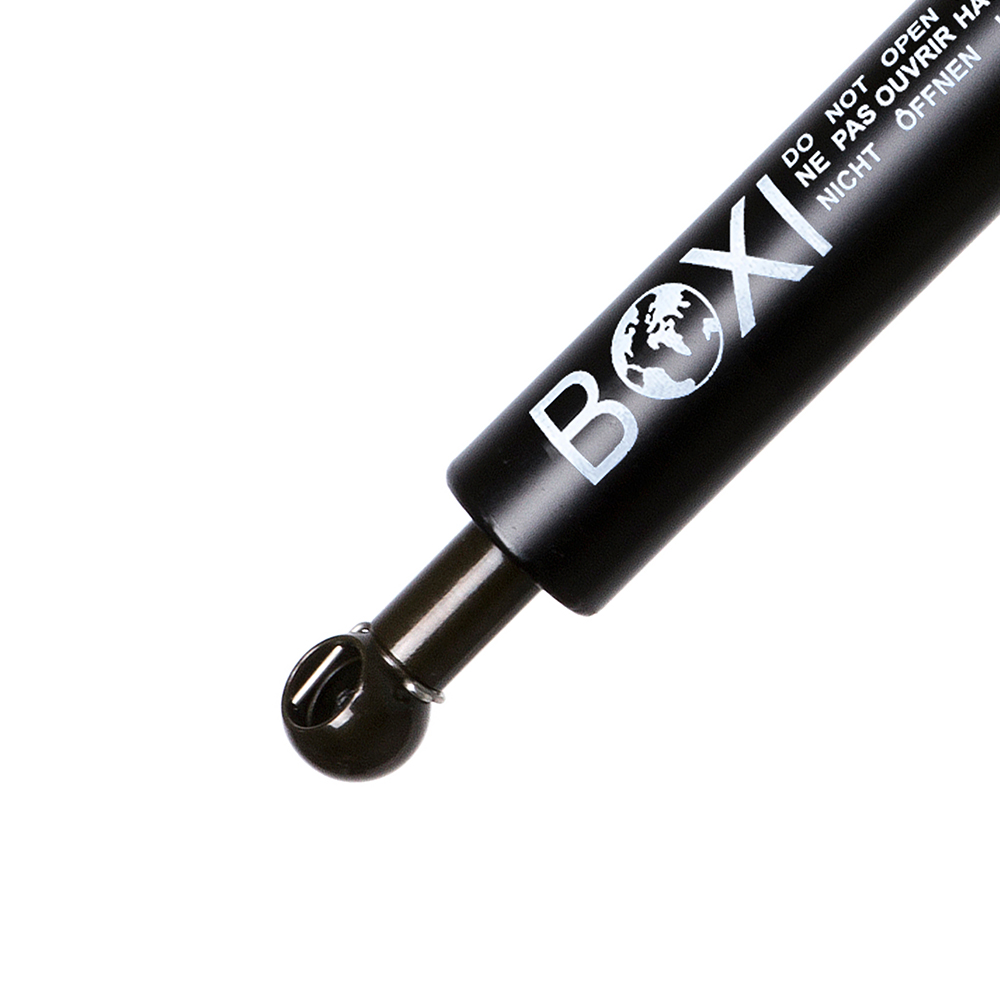

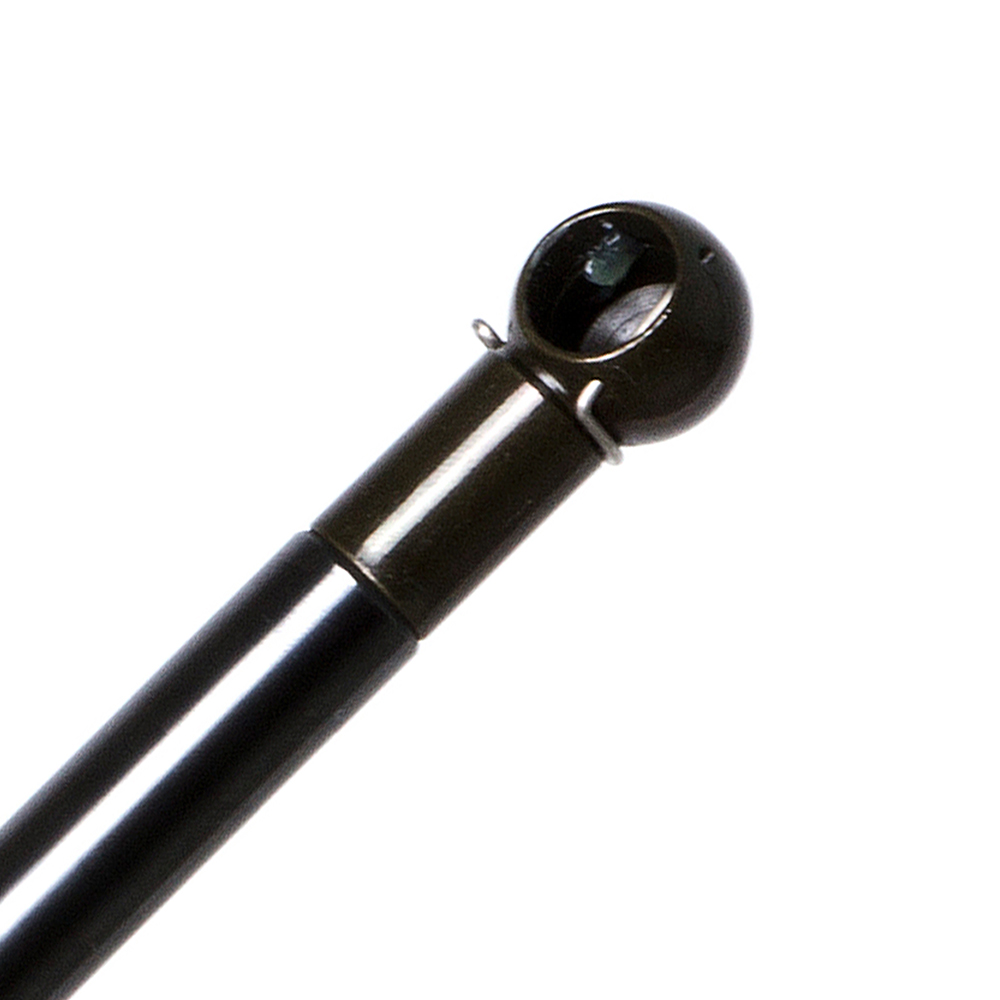

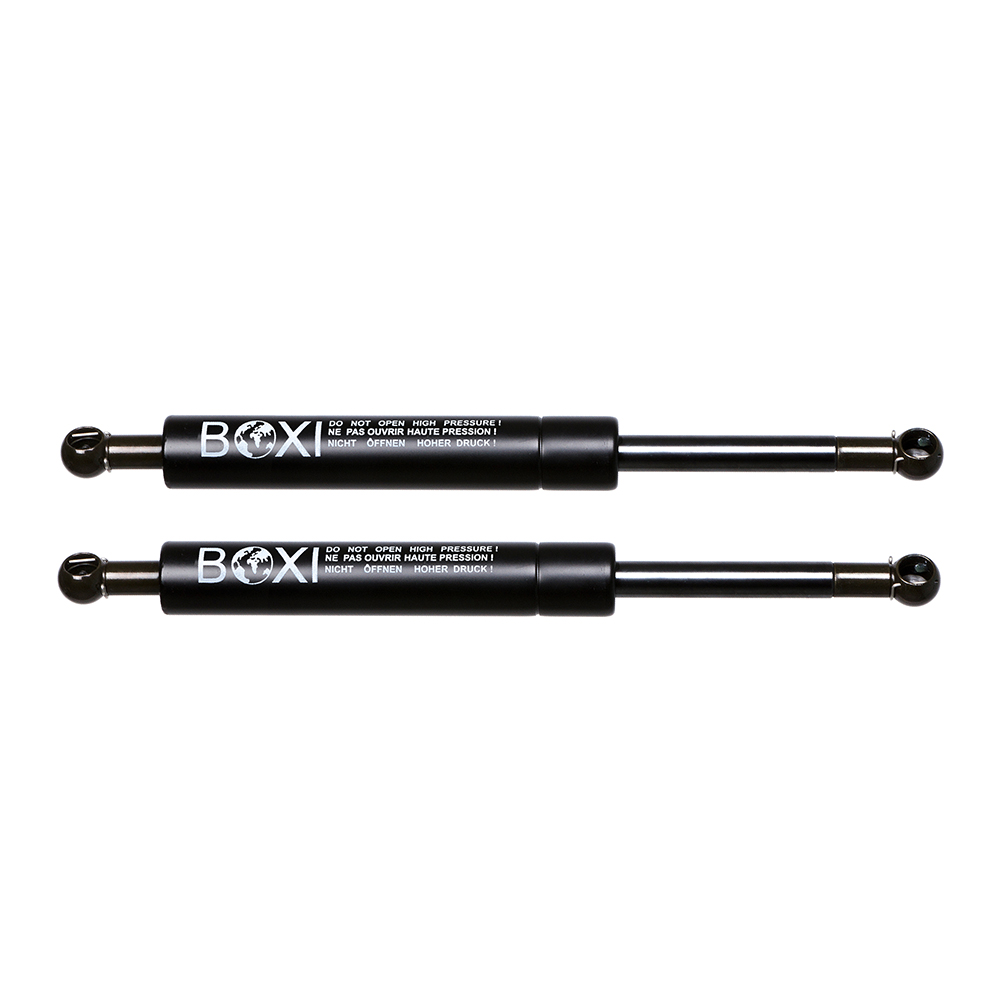

BOXI 2pcs Rear Trunk Lift Supports Struts Shocks Gas Struts Shocks Springs Supports Fit for Pontiac G6 2006 2007 2008 2009 Convertible 2-Door Trunk-Fits Convertible Only | Replaces 15946803 PM1028
BOXI SKU#: BXC300054202-2
$22.99
Set of two BOXI rear trunk lift supports for 2006-2009 Pontiac G6 Convertible models including Base, GT, GTP, and SE. Gas struts replace OE #15946803 and PM1028. Verify fitment before ordering.
OE / Interchange Part Numbers: PM1028
58 in stock
Placement on Vehicle:Rear Trunk
Package included:2pcs Rear Trunk Lift Supports
Extended Length [in] 9.45
Compressed Length [in] 6.80
Fit for Pontiac G6 2006 – 2009 Convertible Only
Fits the following Pontiac G6 Years:
2006-2009 | Base Convertible 2-Door Trunk-Fits Convertible Only
2006-2009 | GT Convertible 2-Door Trunk-Fits Convertible Only
2006-2009 | GTP Convertible 2-Door Trunk-Fits Convertible Only
2006-2009 | SE Convertible 2-Door Trunk-Fits Convertible Only
| Weight | 1.04 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 240 |
| Stroke (in): | 2.84 |
| Stroke (mm): | 72 |
| Compressed Length (in) | |
| Compressed Length (mm): | 168 |
| Force (Lbs) | |
| Force (Newtons) | 1050 |
| Cylinder Diameter (in): | 0.87 |
| Cylinder Diameter (mm): | 22 |
| Rod Diameter (in): | 0.39 |
| Rod Diameter (mm): | 10 |
| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 819-8223, F96774, SG430074, SG430080, F6774, 22701436, 15946803 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2007 – 2009 | Pontiac | G6 | GT | V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| 2008 | Pontiac | G6 | SE | V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV |
