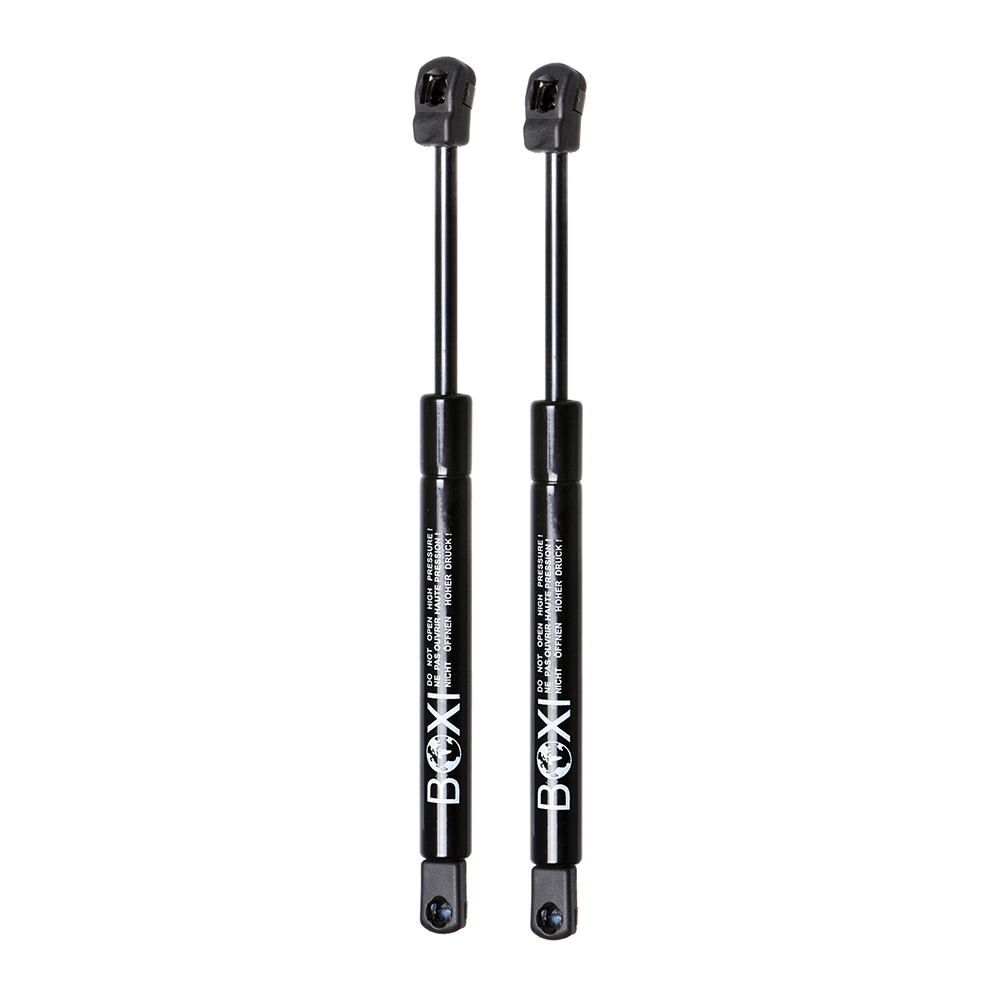

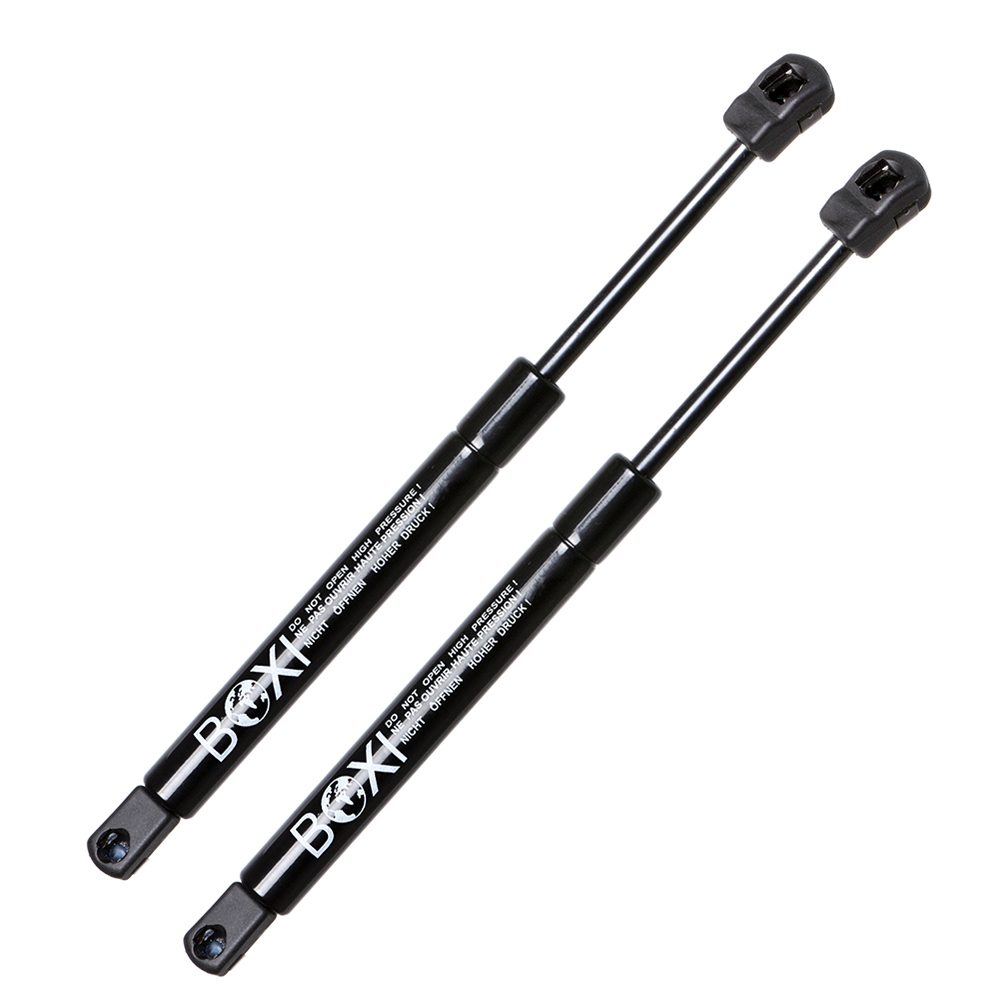

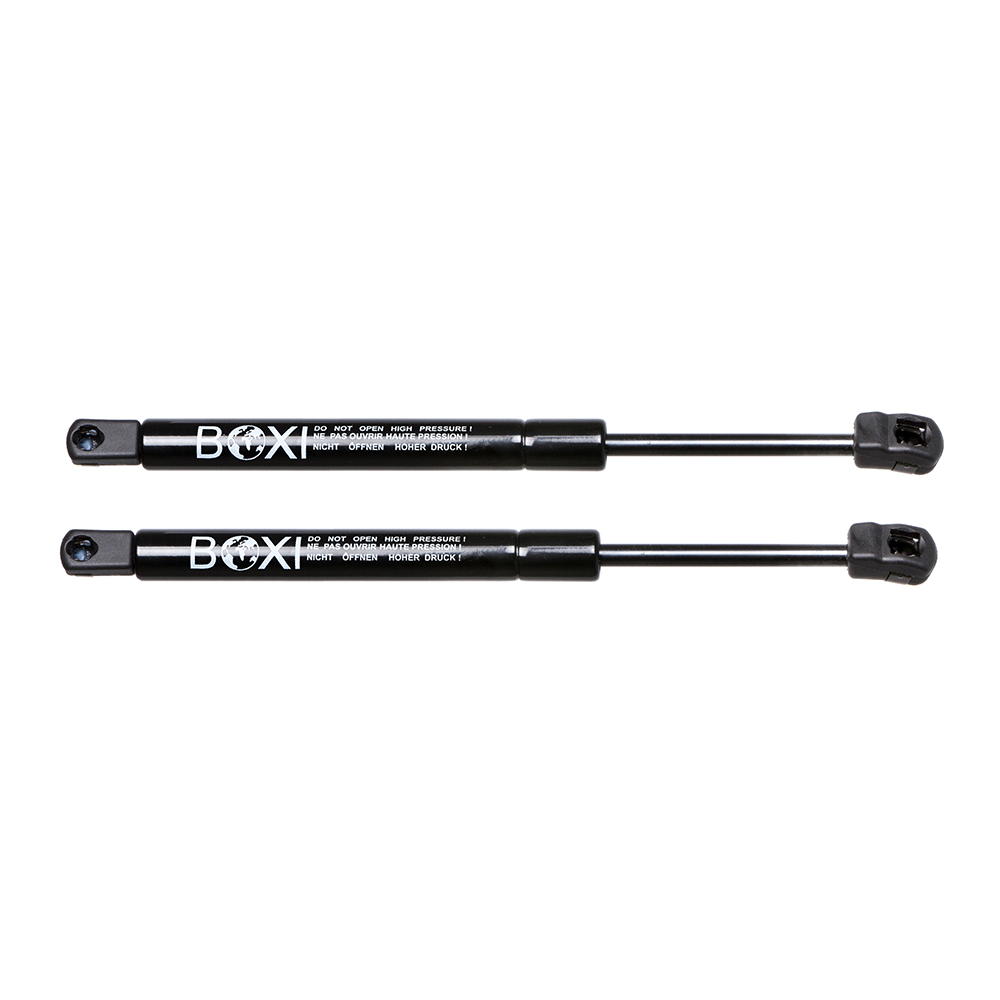

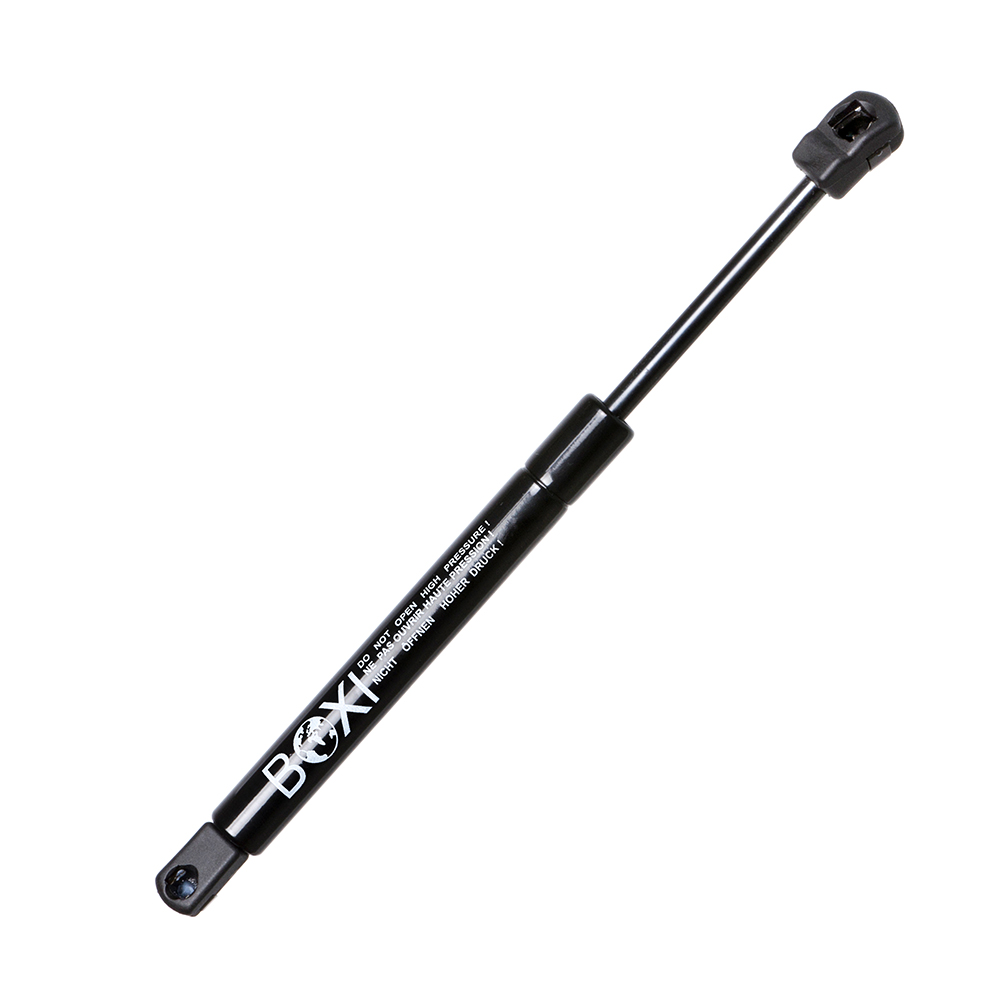

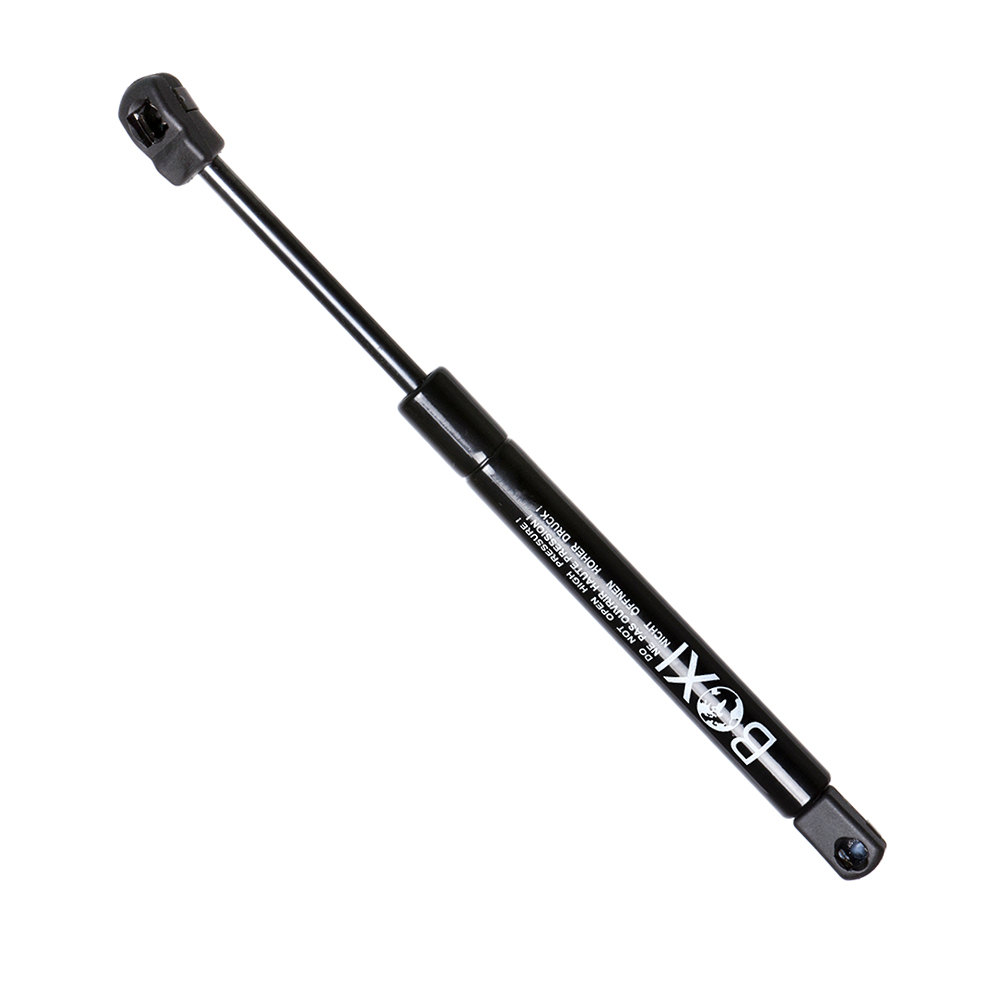

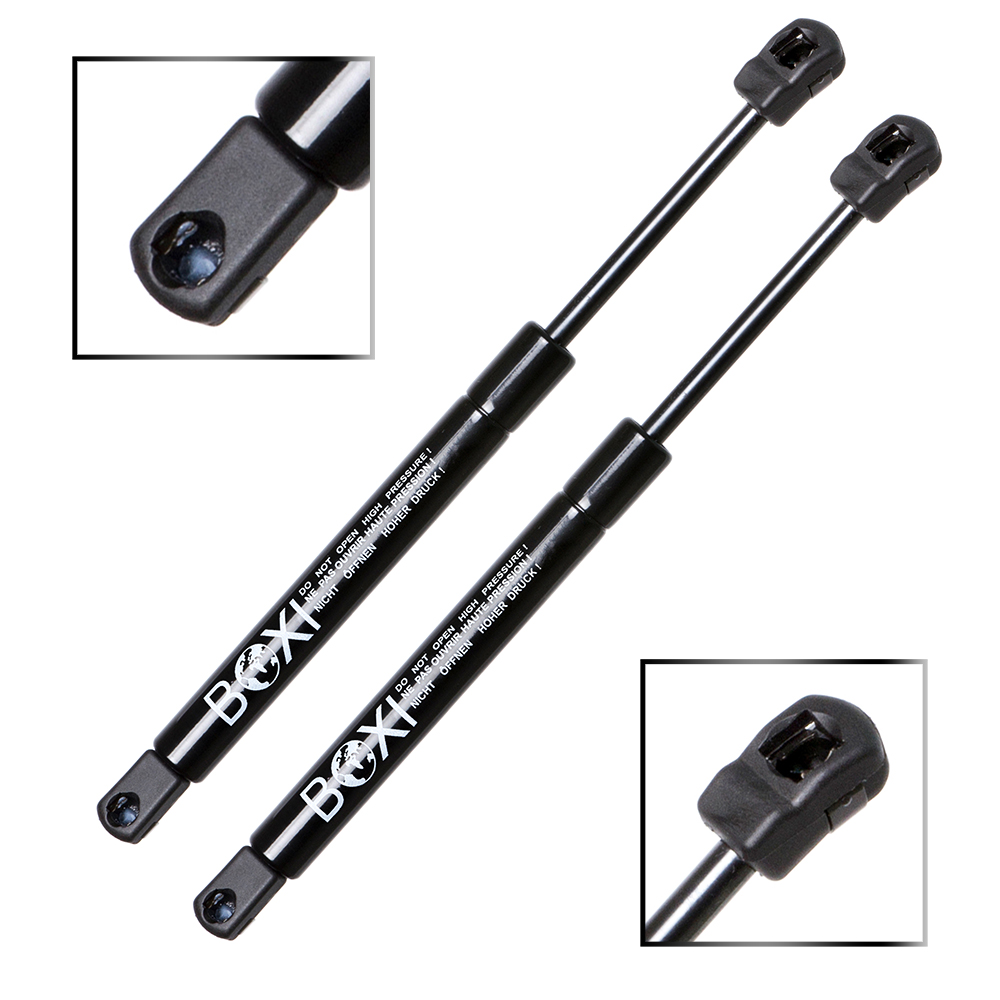

BOXI 2pcs Hood Lift Supports Struts Shocks for Cadillac STS 2005 to 2011 Sedan 4-Door Hood (Reuse Old END Fitting) SG130096, 6168

BOXI SKU#: BXC300051015-2

$19.99

BOXI hood lift supports designed for Cadillac STS 2005-2011 Sedan 4-Door. OE numbers SG130096 and 6168 included. Verify fitment before ordering.

OE / Interchange Part Numbers: 137191, 6168, 95102, B95102, SG130096

  • 5 Years Warranty

64 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Fit for Cadillac STS 2005 – 2011 Sedan 4-Door Hood
Extended Length [in] 27.00
Compressed Length [in] 16.25

Fits the following Cadillac STS Years:
2005-2011 | Base Sedan 4-Door
2005 | Elegance Sedan 4-Door
2005-2011 | Platinum Sedan 4-Door
2005-2011 | V Sedan 4-Door

Weight 1.55 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

686
Stroke (in):

11.21
Stroke (mm):

285
Compressed Length (in)

Compressed Length (mm):

401
Force (Lbs)

Force (Newtons)

231
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

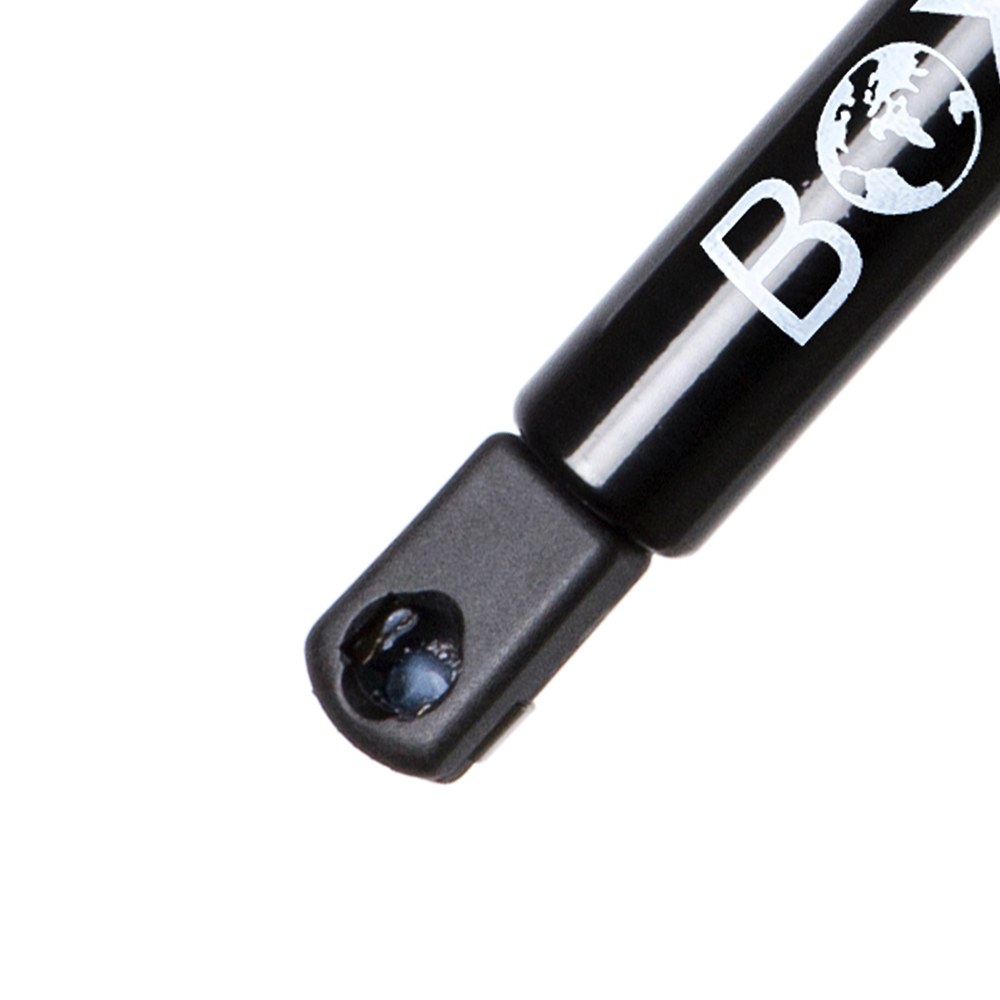

Body Connection:

Ball Socket

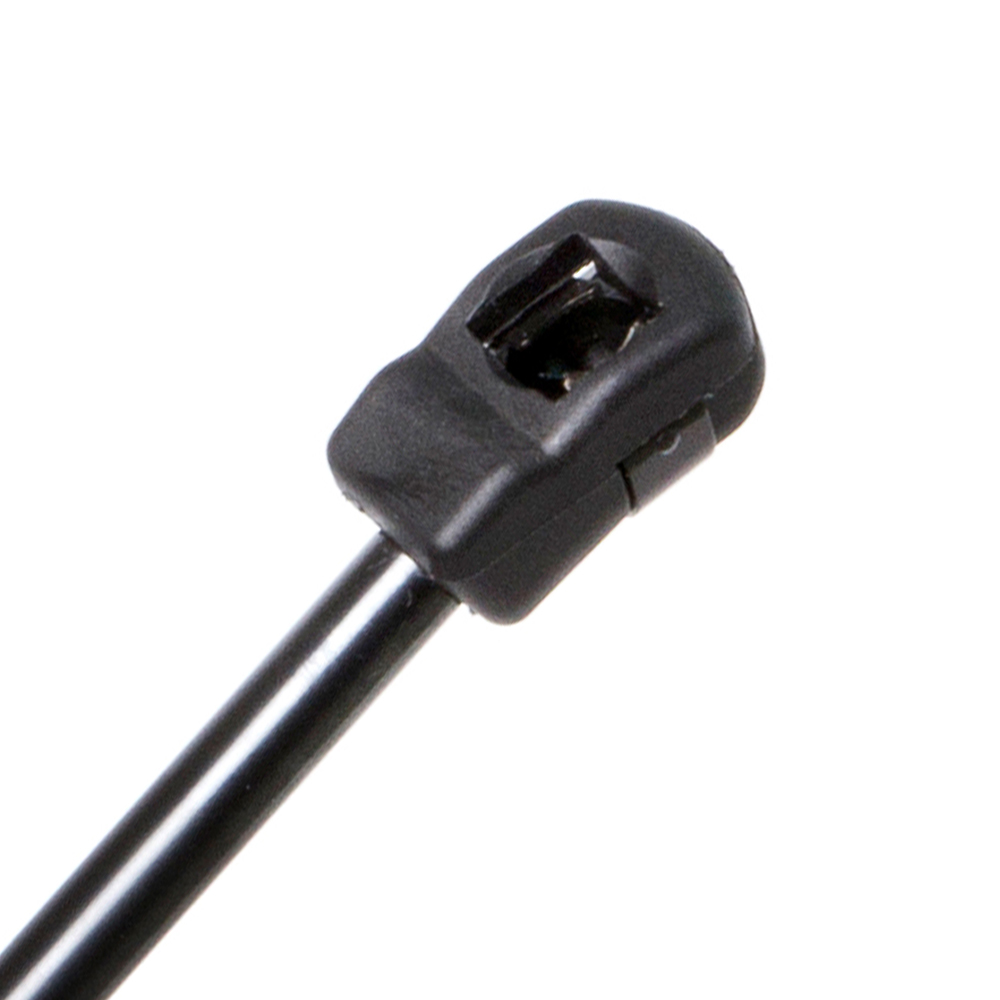

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

6168, TFS610400, 819-6840, 610400, SG130096, B95102, B6168, 901888, 510-1222, 25773321, 25767765, 15845091
YearMakeModelSubmodelEngine
2005 – 2011CadillacSTSBaseV6 – 3.6L 3564cc 217ci GAS DI vin D type LLT – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin V type LLT – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC
V8 – 4.6L 281ci GAS MFI vin A type LH2 – 4 valve DOHC
2005CadillacSTSEleganceV8 – 4.6L 281ci GAS MFI vin A type LH2 – 4 valve DOHC
2008 – 2011CadillacSTSPlatinumV6 – 3.6L 3564cc 217ci GAS DI vin D type LLT – 4 valve DOHC
V6 – 3.6L 3564cc 217ci GAS DI vin V type LLT – 4 valve DOHC
V8 – 4.6L 281ci GAS MFI vin A type LH2 – 4 valve DOHC
2006 – 2009CadillacSTSVV8 – 4.4L 4371cc 267ci GAS MFI Supercharged vin D – 4 valve DOHC
