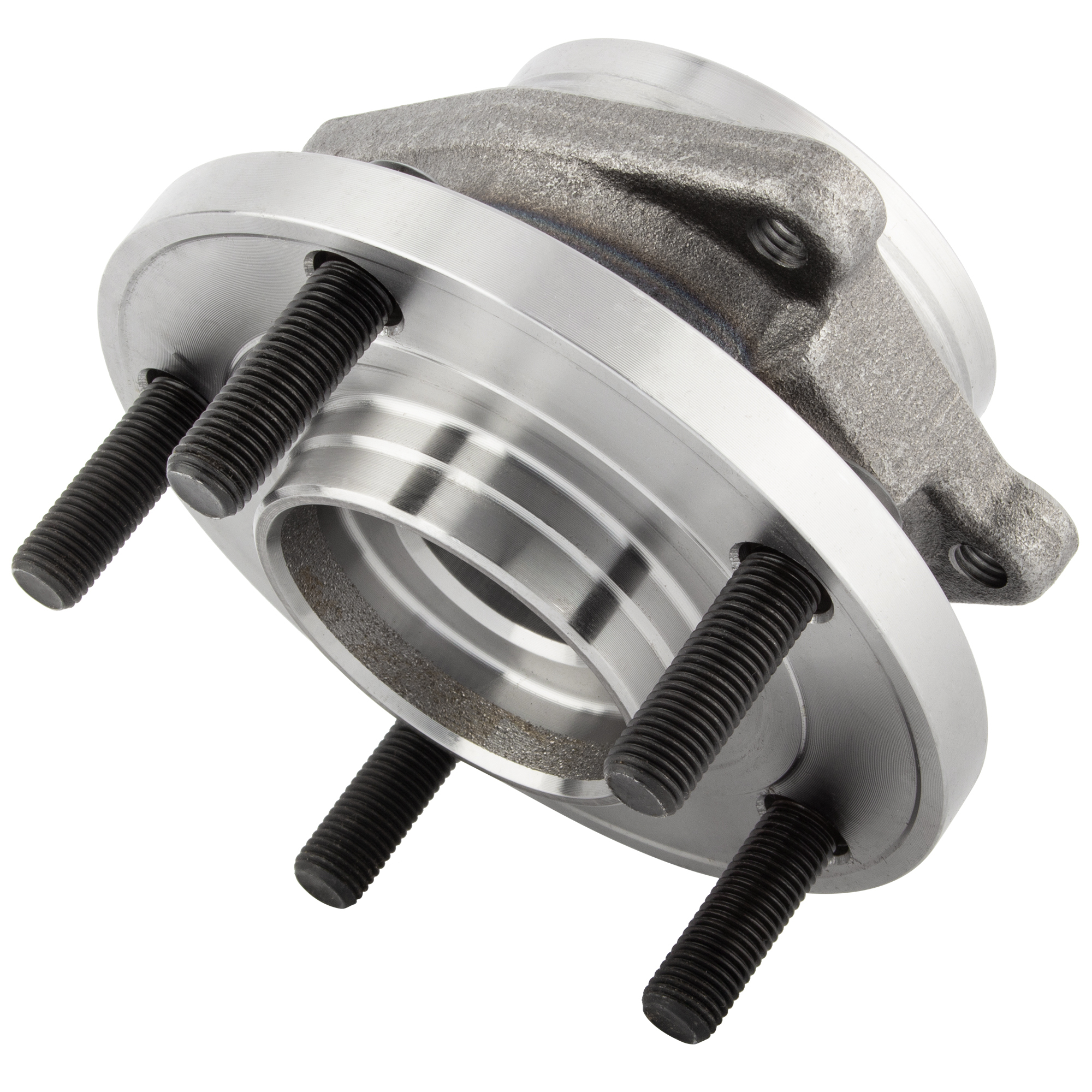

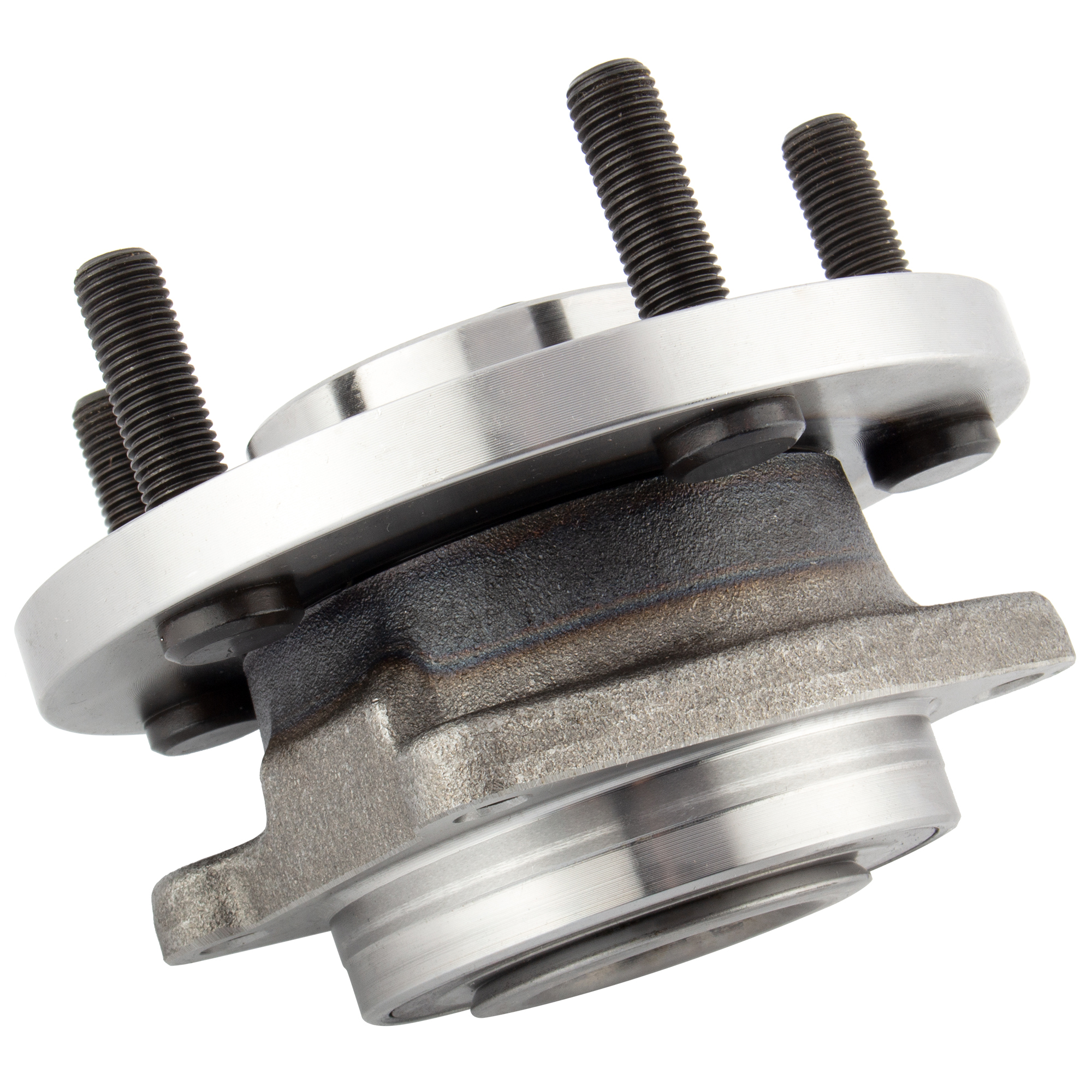

BOXI Hub Assembly BX03200018-1
BOXI SKU#: BX03200018-1
$30.72
1 in stock
Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly
| Weight | 8.28 lbs |
|---|---|
| Dimensions | 6.69 × 6.29 × 6.51 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Trapezoid |
| Wiring Harness Included | No |
| Greaseable | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.560 Inch |
| Flange Diameter (mm) | 141mm |
| Flange Offset (in) | 1.910 Inch |
| Flange Offset (mm) | 49mm |
| Hub Pilot Diameter (in) | 3.346 Inch |
| Hub Pilot Diameter (mm) | 85mm |
| Flange Outside Diameter (in) | 5.560 Inch |
| Flange Outside Diameter (mm) | 141.3mm |
| Total Hub Diameter (in) | 5.560 Inch |
| Total Hub Diameter (mm) | 141mm |
| Hub Centerbore Diameter (in) | 4.500 Inch |
| Hub Centerbore Diameter (mm) | 114mm |
| Total Hub Height (in) | 4.110 Inch |
| Total Hub Height (mm) | 104.5mm |
| Flange Bolt Size (in) | 1.400 Inch |
| Flange Bolt Size (mm) | 35.5mm |
| Number Of Splines | 32 |
| Number Of Terminals | 1 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.50 |
| Flange Bolt Thread Size | M10-1.50 |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2011 – 2014 | Chrysler | 200 | LX, Limited, S, Touring | L4 – 2.4L 2360cc 144ci GAS MFI vin B type ED3 – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type EDG – 4 valve DOHC, V6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC, V6 – 3.6L 3605cc 220ci GAS MPI type ERB – 4 valve DOHC |
| 2007 – 2010 | Chrysler | Cirrus | Base, Limited, Touring | L4 – 2.4L 2360cc 144ci GAS MFI vin K type ED3 – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type ED3 – 4 valve DOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin M – 4 valve SOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin V – 4 valve SOHC |
| 2007 – 2010 | Chrysler | Sebring | Base, LX, Limited, Touring | L4 – 2.4L 2360cc 144ci GAS MFI vin K type ED3 – 4 valve DOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin R – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin R type EER – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type ED3 – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type EDG – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin J type EDG – 4 valve DOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin D type EER – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin D type EER – 4 valve DOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin M – 4 valve SOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin V – 4 valve SOHC |
| 2008 – 2014 | Dodge | Avenger | Base, Canada Value Package, EXPRESS, GTS, Heat, Lux, Mainstreet, R/T, SE Canada Value Package, SE, SXT Plus, SXT Sport, SXT | L4 – 2.4L 2360cc 144ci GAS MFI vin B type ED3 – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type EDG – 4 valve DOHC, V6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin D type EER – 4 valve DOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin M – 4 valve SOHC, V6 – 3.5L 3497cc 215ci GAS MFI vin V – 4 valve SOHC, L4 – 2.0L 1998cc 122ci GAS MFI vin A type ECN – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI vin B – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin J type EDG – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin K type ED3 – 4 valve DOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin R – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin D type EER – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin R type EER – 4 valve DOHC |
| 2009 | Dodge | Caliber | R/T, SE, SRT-4, SXT Premium, SXT | L4 – 2.4L 2360cc 144ci GAS MFI vin B type ED3 – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI vin B type EDG – 4 valve DOHC, L4 – 1.8L 1798cc 110ci GAS MFI vin C – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI vin A type ECN – 4 valve DOHC, L4 – 2.4L 2360cc 144ci GAS MFI Turbocharged vin F type ED4 – 4 valve DOHC |
