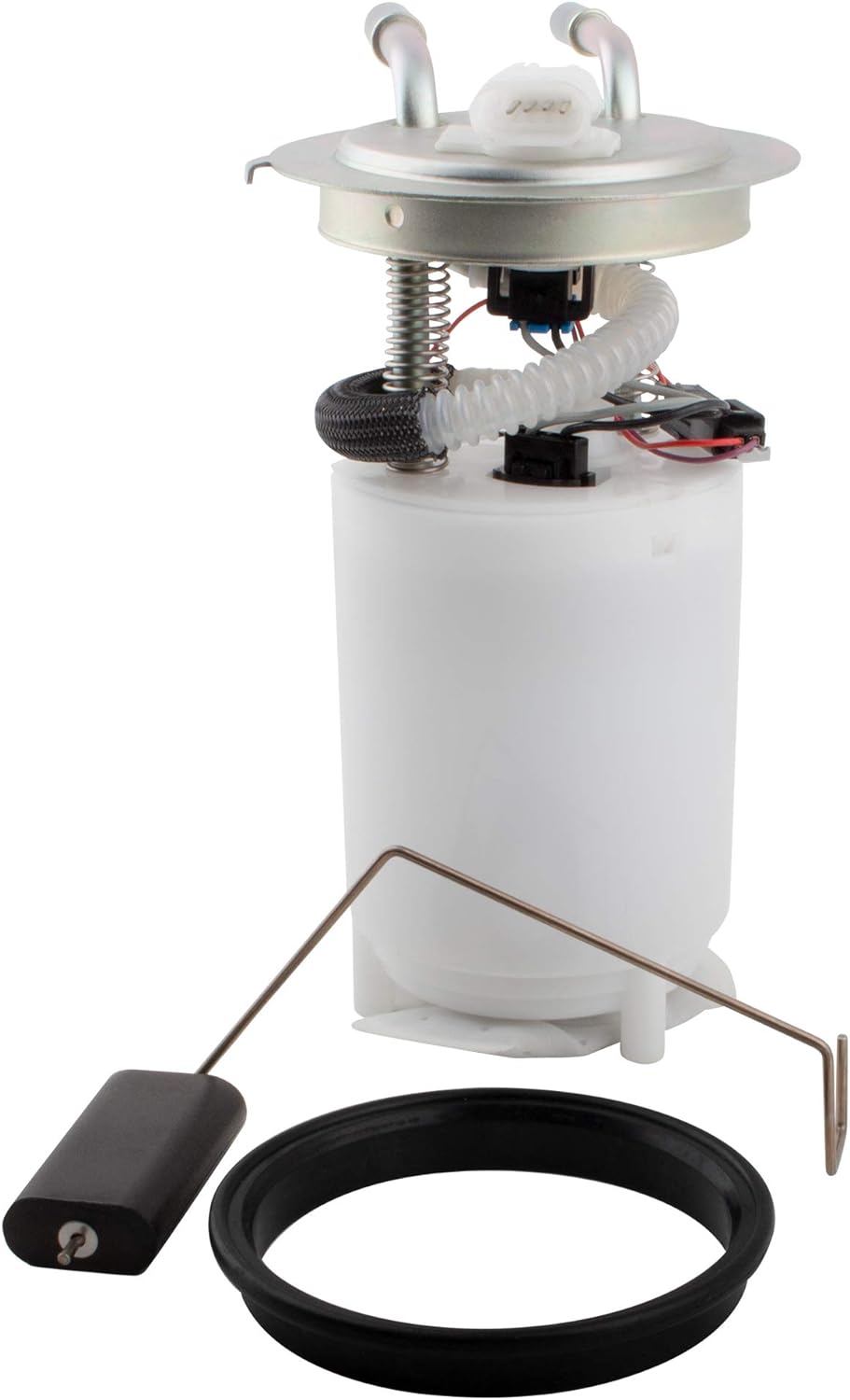

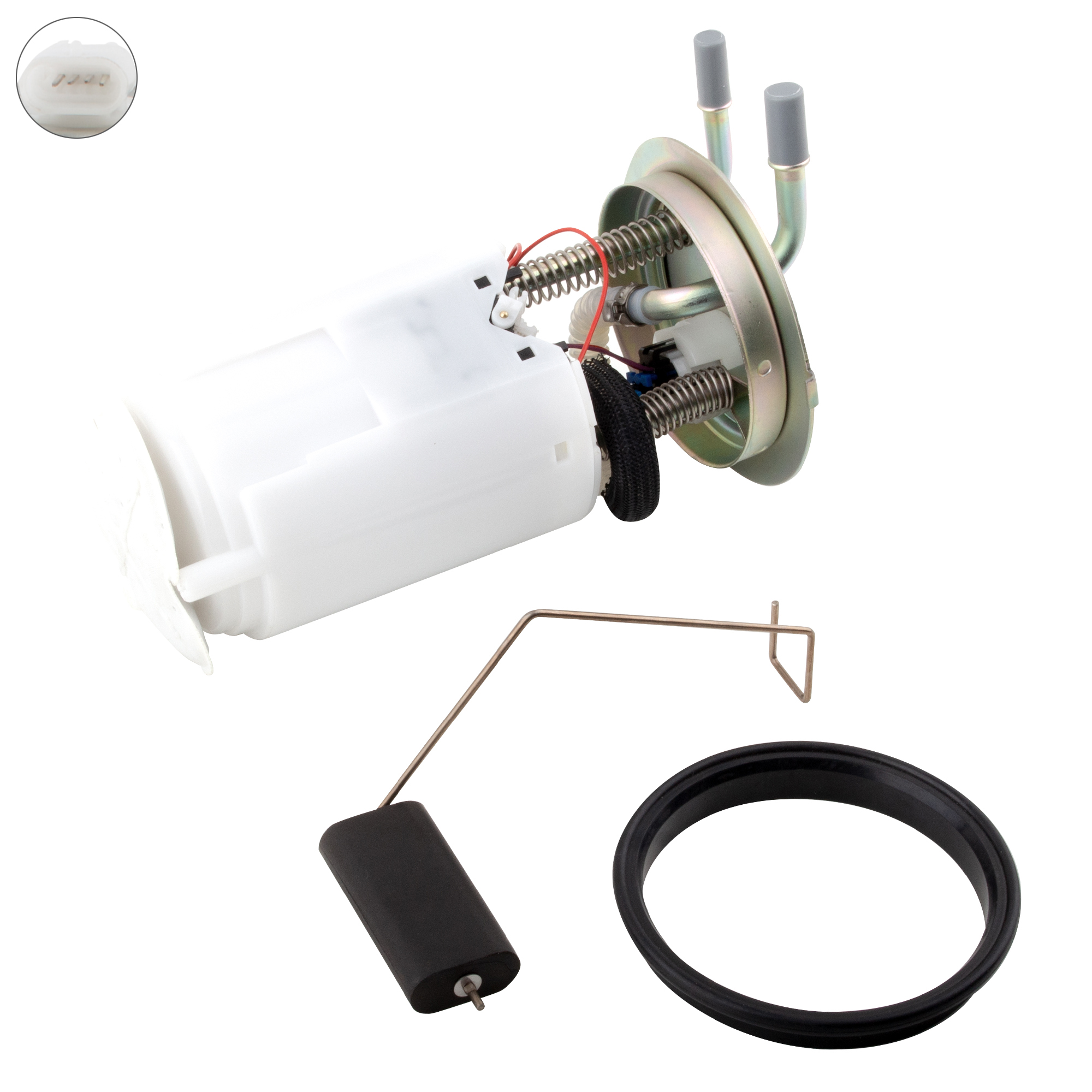

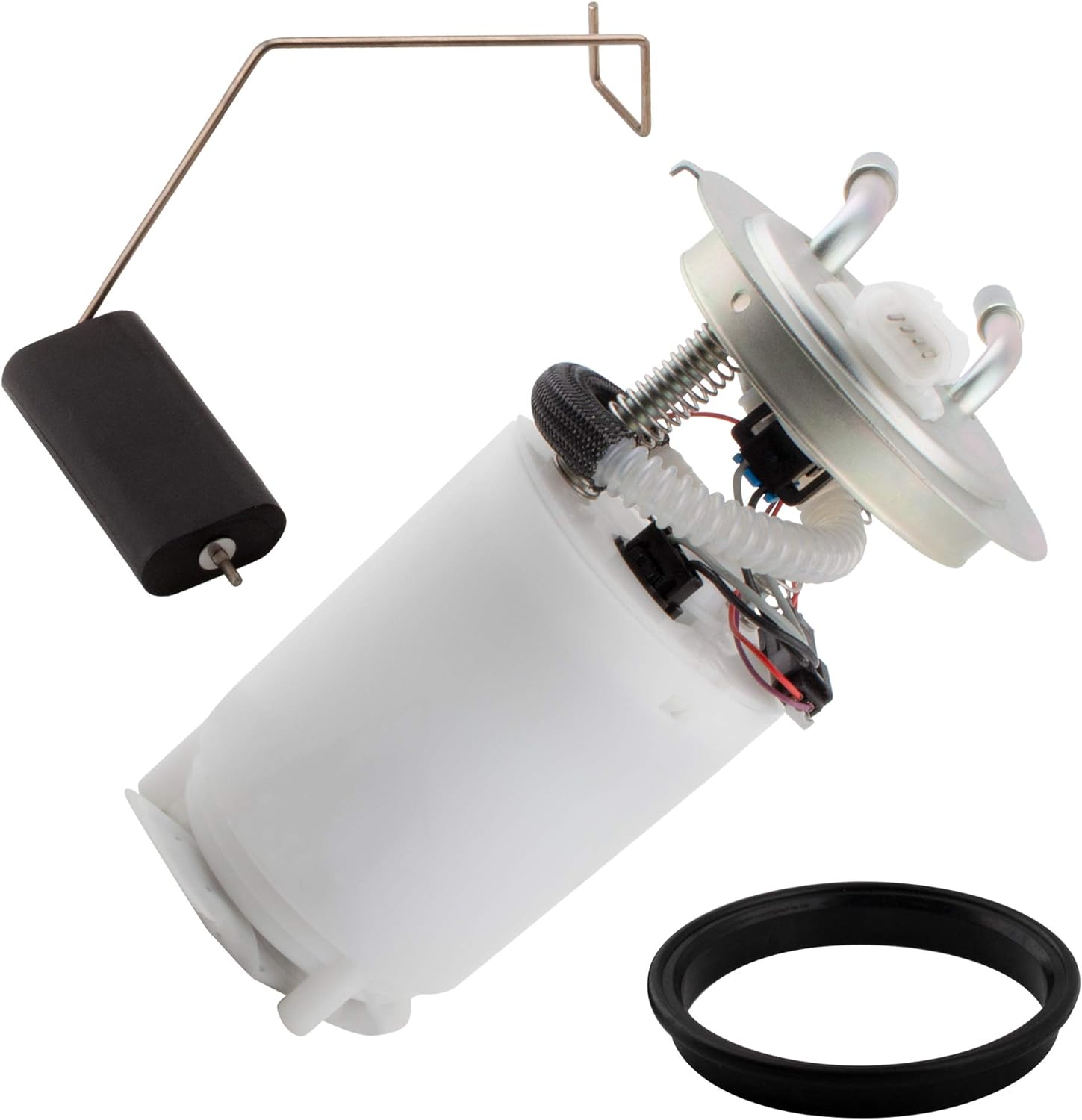

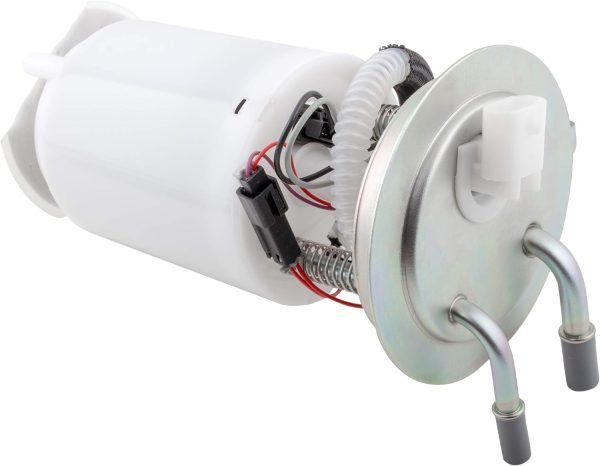

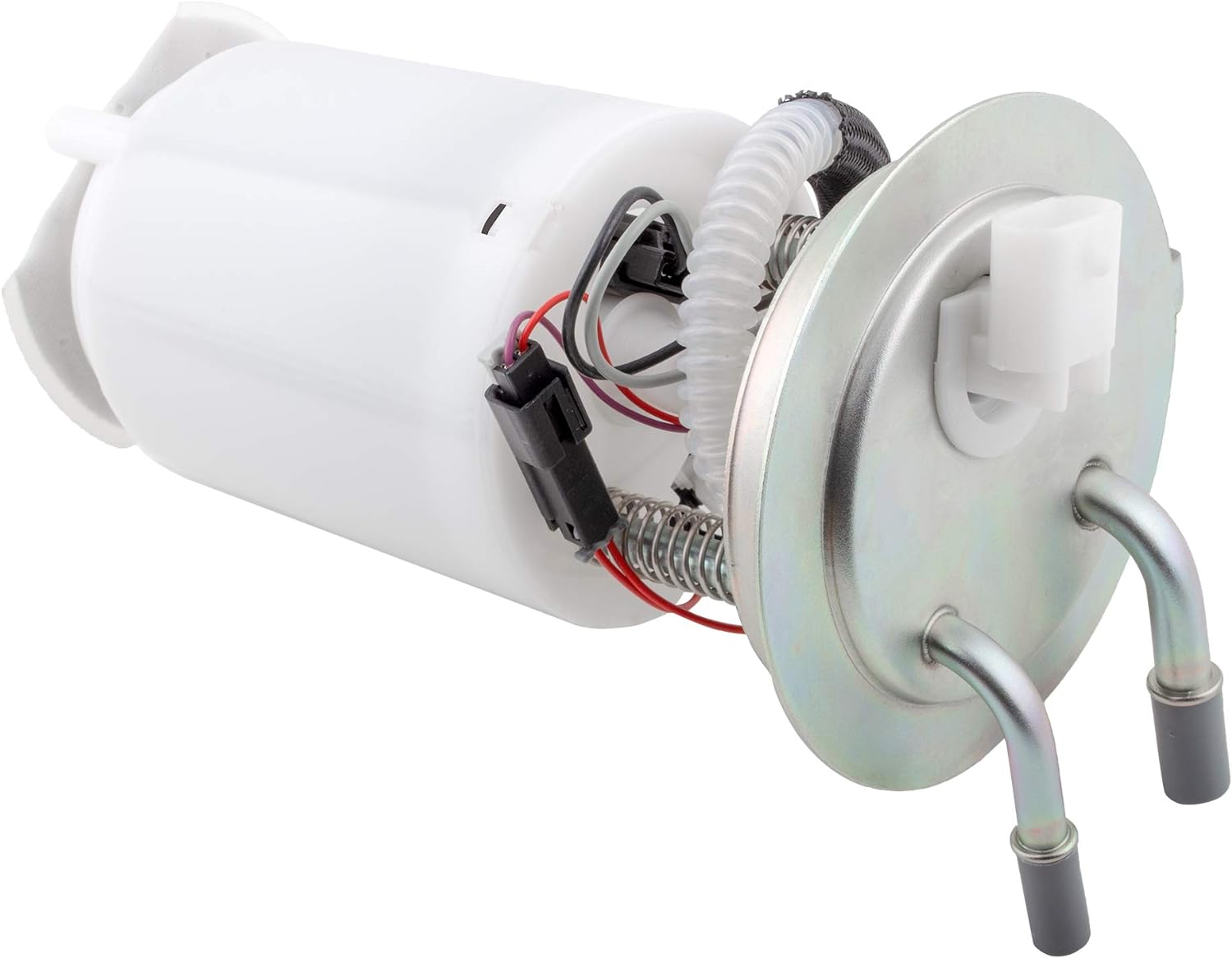

BOXI Electric Fuel Pump Module Assembly Fits for Chevy Trailblazer for GMC Envoy 2002-2004 / Chevy SSR for Isuzu Ascender 2003-2004 / for Buick Rainier 2004 (Replaces E3549M 15077623 FG0387 FG0411)
BOXI SKU#: BX01100020-1
$45.75
BOXI electric fuel pump module assembly fits 2002-2004 Chevy Trailblazer/GMC Envoy, 2003-2004 Chevy SSR/Isuzu Ascender, and 2004 Buick Rainier. Interchange part numbers: E3549M, 15077623, FG0387, FG0411, and more. Verify fitment before ordering.
OE / Interchange Part Numbers: 15013514, 15050444, 15077623, 19206120, 19206124, 25331861, 67415, 9535132, 9535134, E3549M, FG0387, FG0411
113 in stock
Package Included:1x New Fuel Pump Assembly
Fitment:
2004 for BUICK RAINIER V8-5.3L
2004 for BUICK RAINIER L6-4.2L
2003-2004 for CHEVROLET SSR V8-5.3L
2002-2004 for CHEVROLET TRAILBLAZER L6-4.2L
2002-2004 for GMC ENVOY L6-4.2L
2003-2004 for ISUZU ASCENDER V8-5.3L
2003-2004 for ISUZU ASCENDER L6-4.2L
Interchange Part Number: E3549M MU1837 MU1835 MU1334 19206120 19206124 67415 E3549M FG0387 FG0411 P75053M 9535132 9535134 15013514, 15050444, 15077623, 25331861
Pacakge Includes:1x New Fuel Pump Assembly.
| Weight | 2.64 lbs |
|---|---|
| Dimensions | 16.1 × 6.69 × 7.67 in |
| Brand | BOXI |
| Condition | New |
| Voltage (V) | 12 Volt |
| Material | Plastic |
| Electric Or Mechanical | Electric |
| Negative Ground | Yes |
| Gasket Or Seal Included | Yes |
| Outlet Diameter (in) | 3/8 Inch |
| Fuel Sending Unit Included | Yes |
| Pressure Rating (psi) | 85 To 100 psi |
| Strainer Included | Yes |
| Minimum Flow Rate (GPH) | 40 GPH |
| In-Tank Or External | In-Tank |
| Terminal Type | Blade |

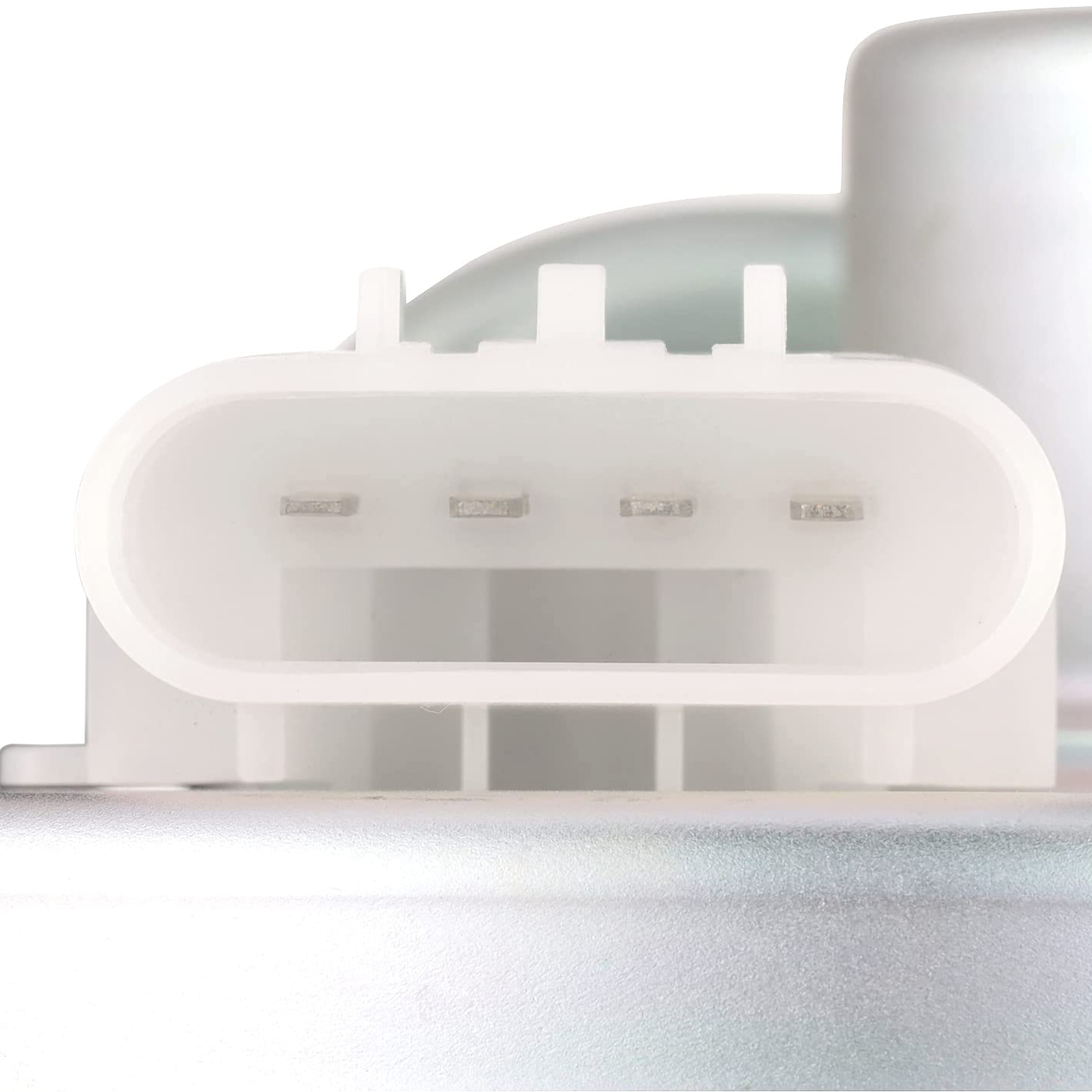

| Connector Shape | Oval |
| Number Of Terminals | 4 |
| Terminal Gender | Female |
| Number Of Ports | 1 |
| Internal Or External Strainer | External |
| Unit of Measure | Each |
| Warranty Terms | One Year |
| Interchange Part Number | 8150504440, F2550A, HP2550A, CFG0387, P75053M, FG0387-11B1, 530-2110, 747GE, 009GE, MPA33014, 1001-00483, A33014, PN3030, SP3549M, AP4-3549-M, FG0387, 953-5132, 67415, 1AMFP00028, 15077623, 15050444 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2004 | Buick | Rainier | CXL CXL Plus | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2003 – 2004 | Chevrolet | SSR | Base | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV |
| 2004 | Chevrolet | Trailblazer | A B | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2003 – 2004 | Chevrolet | Trailblazer | Base | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2004 | Chevrolet | Trailblazer EXT | B | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2003 – 2004 | Chevrolet | Trailblazer EXT | Base | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| LS | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC | |||
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2002 – 2004 | Chevrolet | Trailblazer EXT | LT North Face | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2002 – 2004 | Chevrolet | Trailblazer | LS LT North Face | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2002 – 2003 | Chevrolet | Trailblazer | LTZ | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2002 – 2004 | GMC | Envoy | SLE SLT | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| 2002 – 2004 | GMC | Envoy XL | SLE SLT | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2004 | GMC | Envoy XUV | SLE SLT | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2003 | Isuzu | Ascender | Base | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2003 – 2004 | Isuzu | Ascender | LS Limited | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
| V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV | ||||
| 2004 | Isuzu | Ascender | S | L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC |
