BOXI Cooling Fan Assembly | Replaces OE #BX00400059-1
BOXI SKU#: BX00400059-1
$20.58
16 in stock
BOXIDirect-Fit OE ReplacementCooling Fan Assembly
Fitment list not published for this part yet
Cross-check the OE / interchange numbers below, or pick your vehicle and we will show parts that fit it.
Ship to Home
Available (16 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Two Years Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Placement on Vehicle
- Front
- Color
- Black
- Fan Size
- 10"
- Thickness
- 2.5"
- Maximum Fan CFM
- 800 CFM
Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Placement on Vehicle
Front
Color
Black
Fan Size
10"
Thickness
2.5"
Maximum Fan CFM
800 CFM
Maximum Fan RPM
2500±10% RPM
Quantity of Blades
6 Blades
Wattage
‎80 watts
Voltage
12 Volts
DRAW
5-7 AMP
Step 1
Confirm the width and depth of your radiator
Step 2
Compare the fan diameter and depth with radiator
Step 3
Choose the right size fan
Application Note

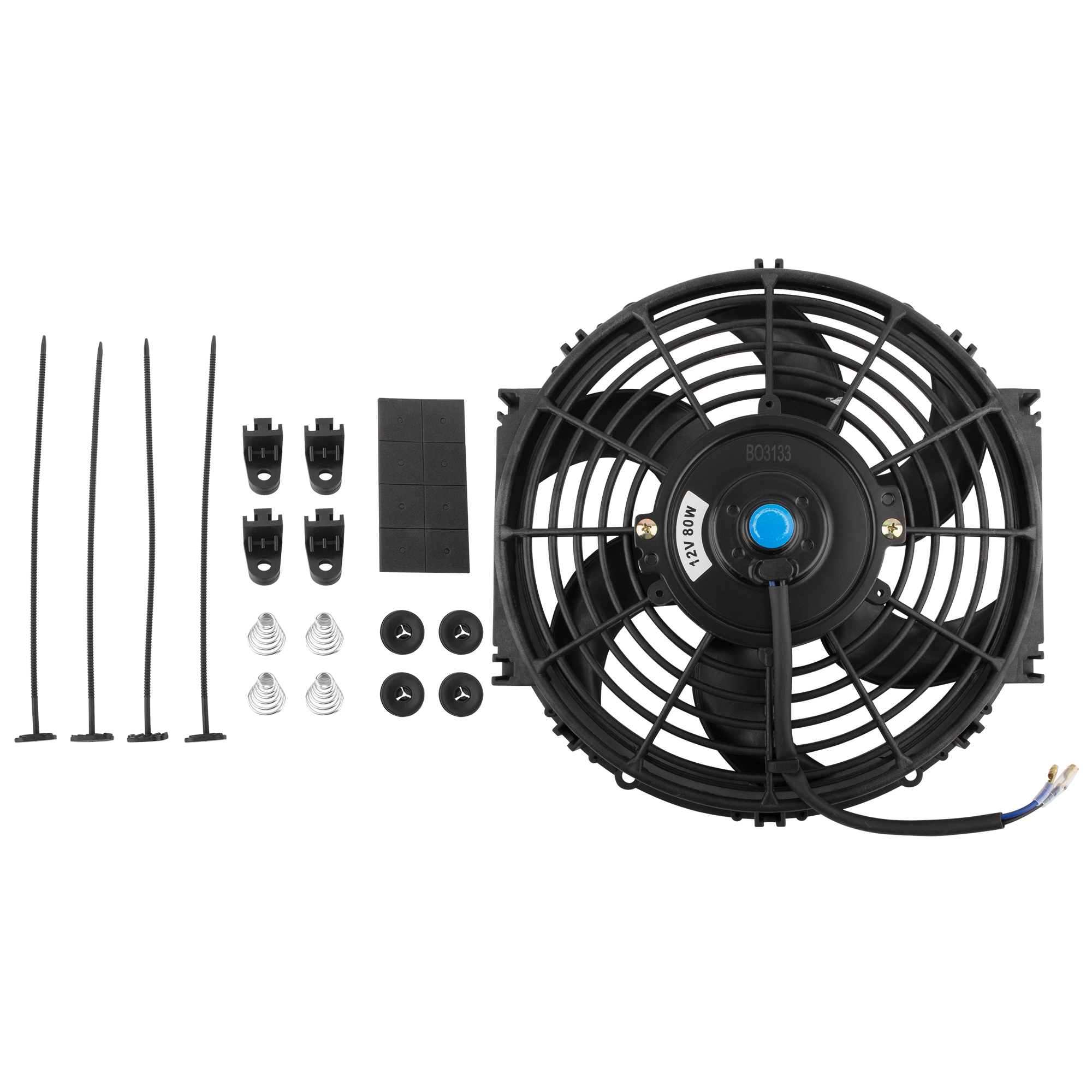

1X Radiator fan
Application Note

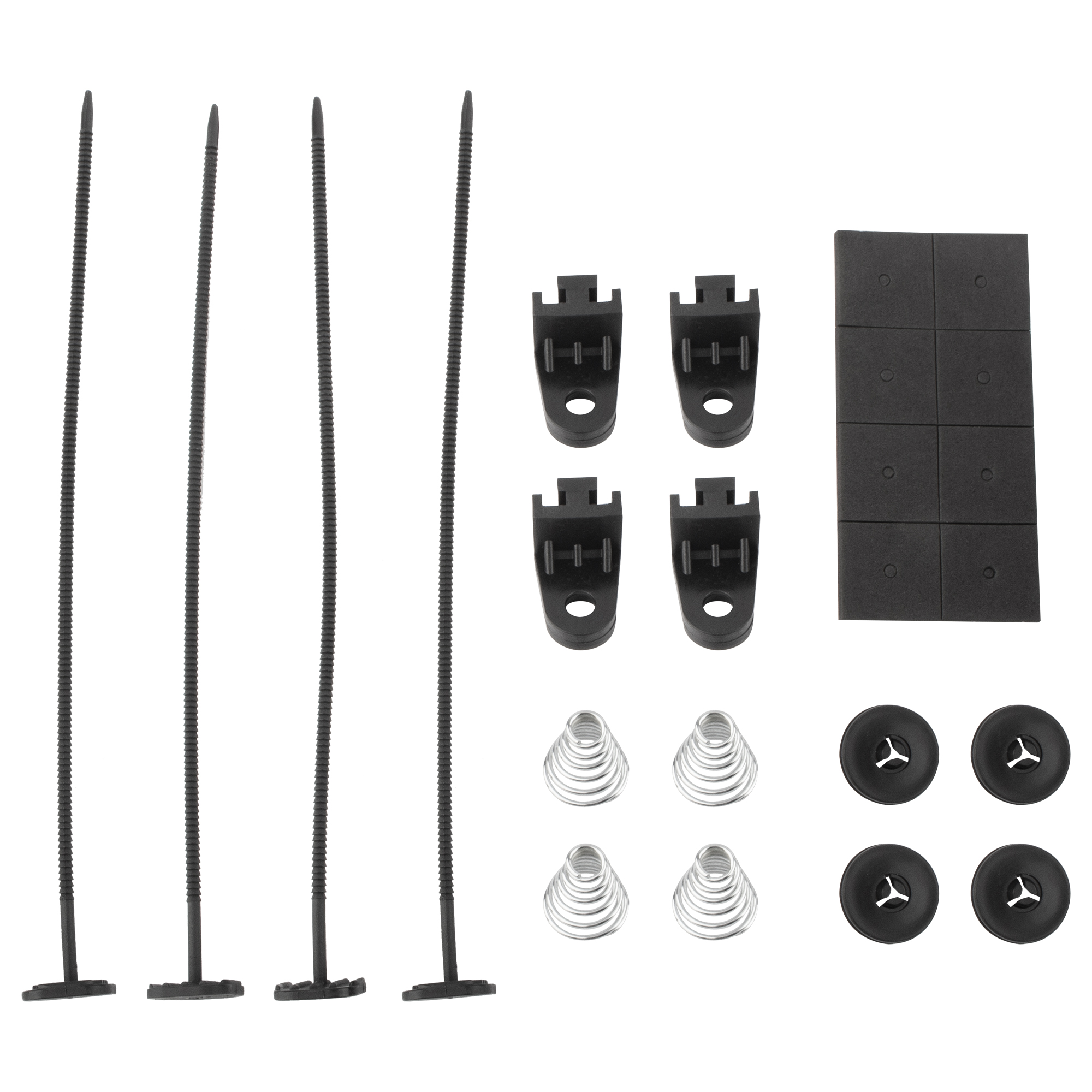

1X Fan mount Kits
Application Note
Brand new radiator cooling fan blade for Universal use. Professional Installer is Highly Recommended.
Application Note
Easy direct installation, require NO modification
Application Note
OE Fitment or Replacement, Pull Type
Application Note
Universally fits any vehicle and radiator
Application Note
Modification (cut) might be required for some vehicles
Application Note
Make sure the fan size is correct with your original .
Application Note
How to choose the right fan size?
Application Note
Function Introduction
Application Note
Pusher Fans
Application Note
Pusher Fans mount on the grille side(front) of the radiator core and push air through the radiator core. Fresh airflow enters through the grille, then is pushed through the radiator core, and exits out the back side of the radiator. Pusher fans are used typically where there is a limited amount of space for a properly sized puller fan.
Application Note
Puller Fans
Application Note
Puller fans mount on the engine side(back) of the radiator core and pull air through the radiator core. The fresh airflow is pulled through the grille, then pulled through the core, and exits out of the back side of the radiator. Puller fans are the desired and most common way of mounting a fan when space is not a limitation between the front of the engine and the back of the radiator core.
| Weight | 2.71 lbs |
|---|---|
| Dimensions | 11.69 × 11.06 × 2.76 in |
| Brand | BOXI |
| Condition | New |
| CFM Rating | 470 cfm |
| Voltage (V) | 12 Volt |
| Fan Blade Material | Nylon |
| Fitment Type | Direct Replacement |
| Depth (in) | 2.36 Inch |
| Number Of Terminals | 2 |
| Height (in) | 2.36 Inch |
| Number Of Bolt Holes | 4 |
| Width (in) | 2.36 Inch |
| Number Of Connectors | 1 |
| Hardware Included | No |
| Control Module Included | No |
| Bracket Included | No |
| Hardwired Or Plug-In | Plug-In |
| Number Of Blades – Fan 1 | 6 |
| Warranty Terms | Two Years |
| Interchange Part Number |
