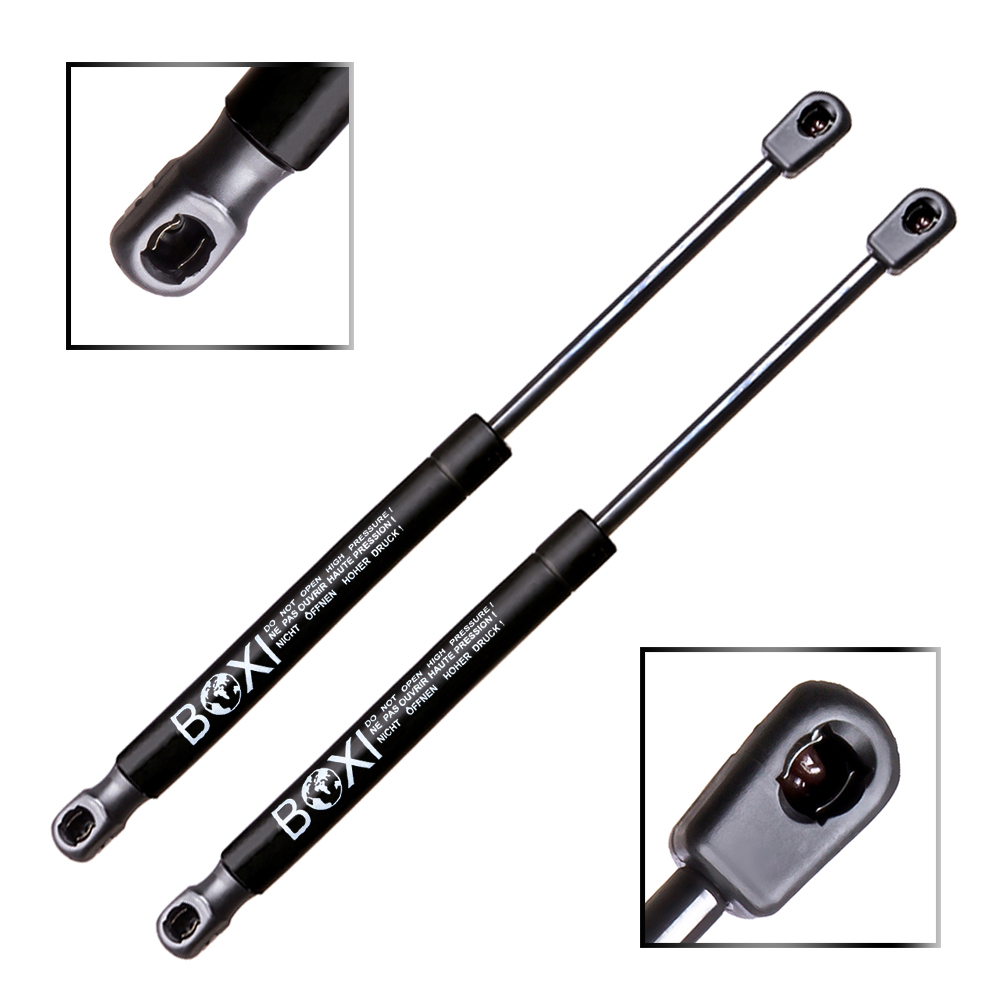

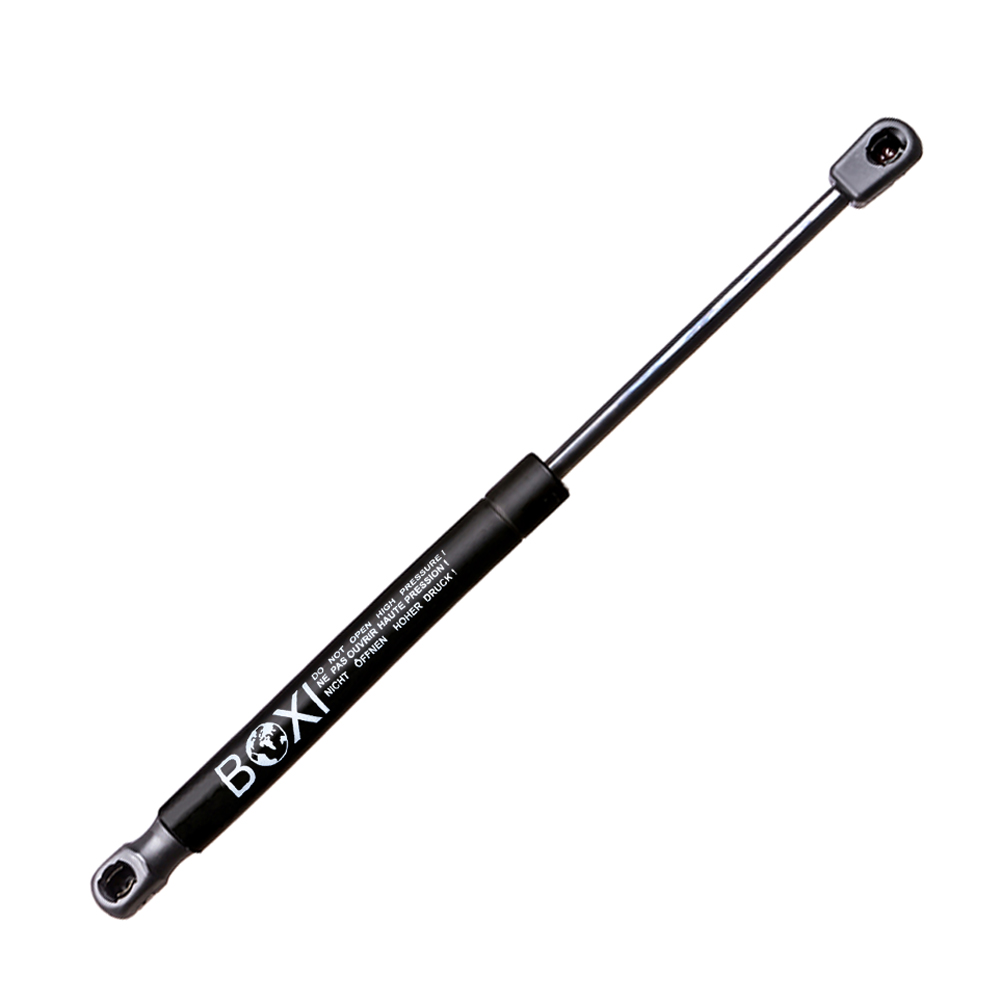

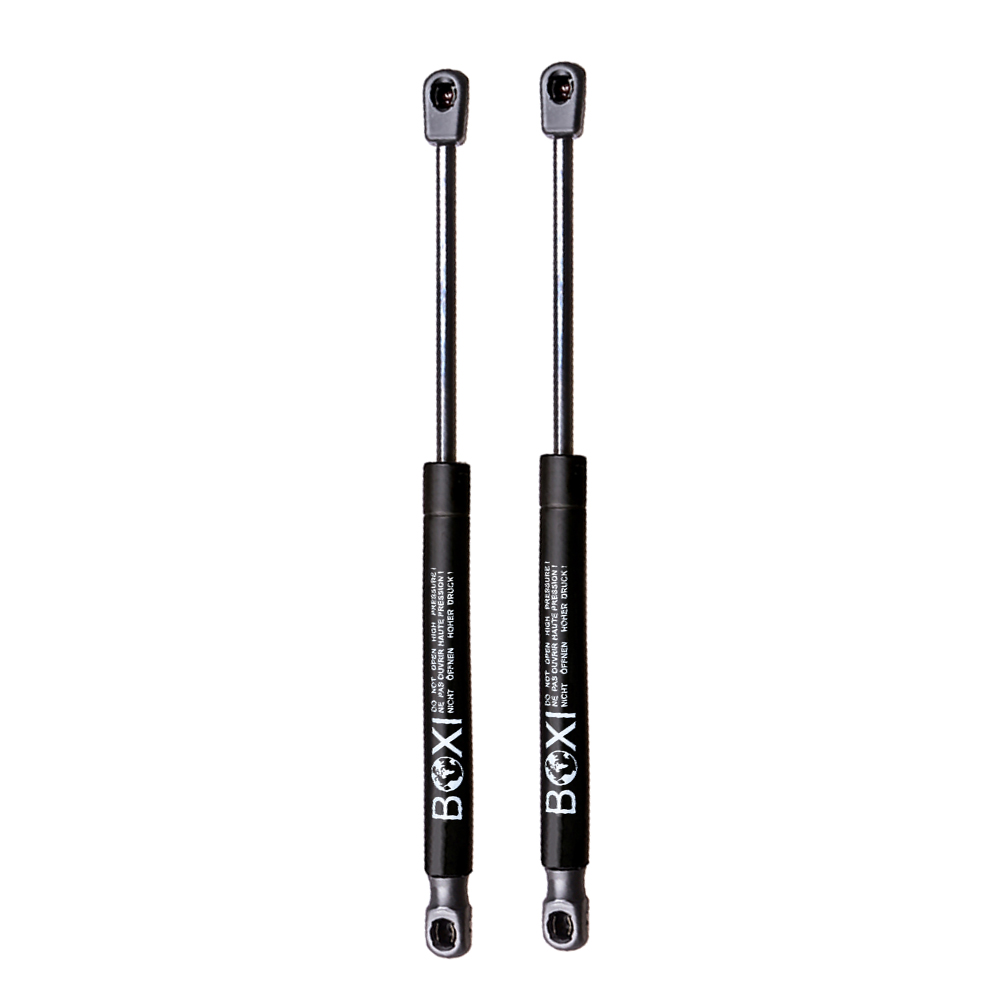

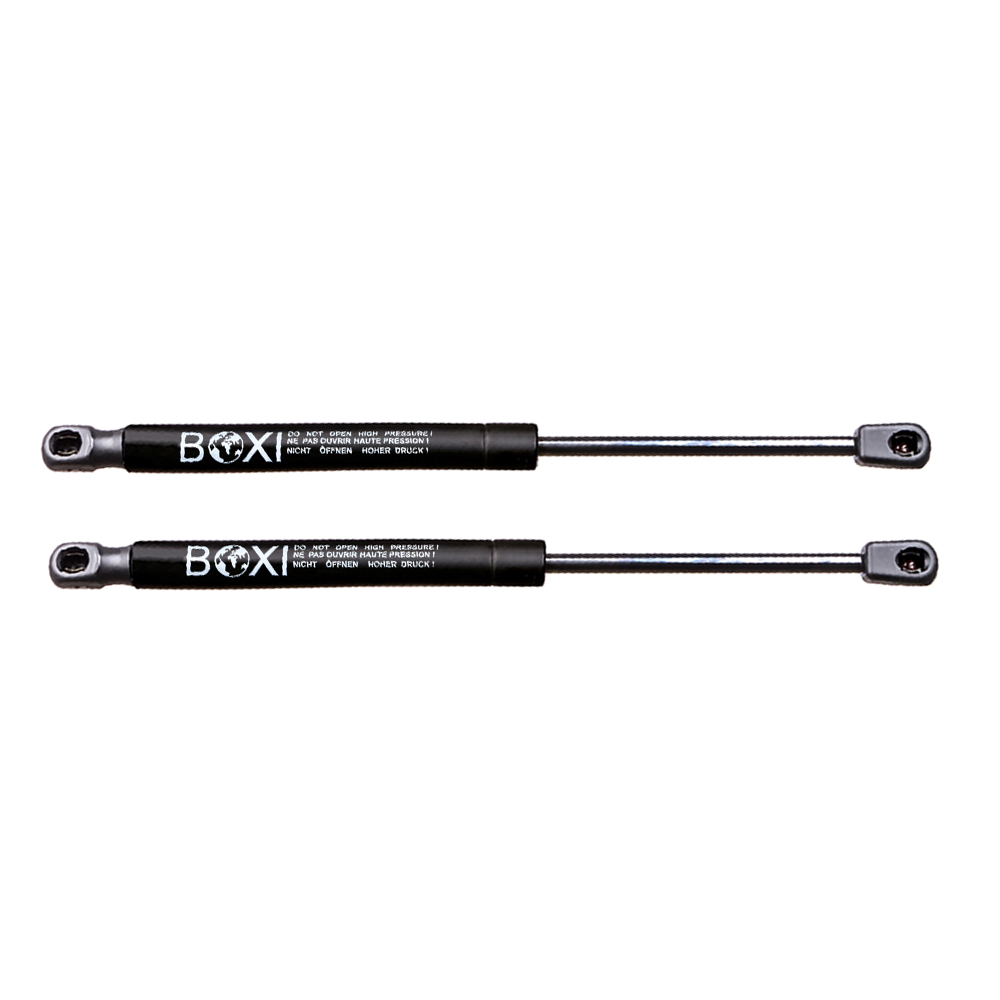

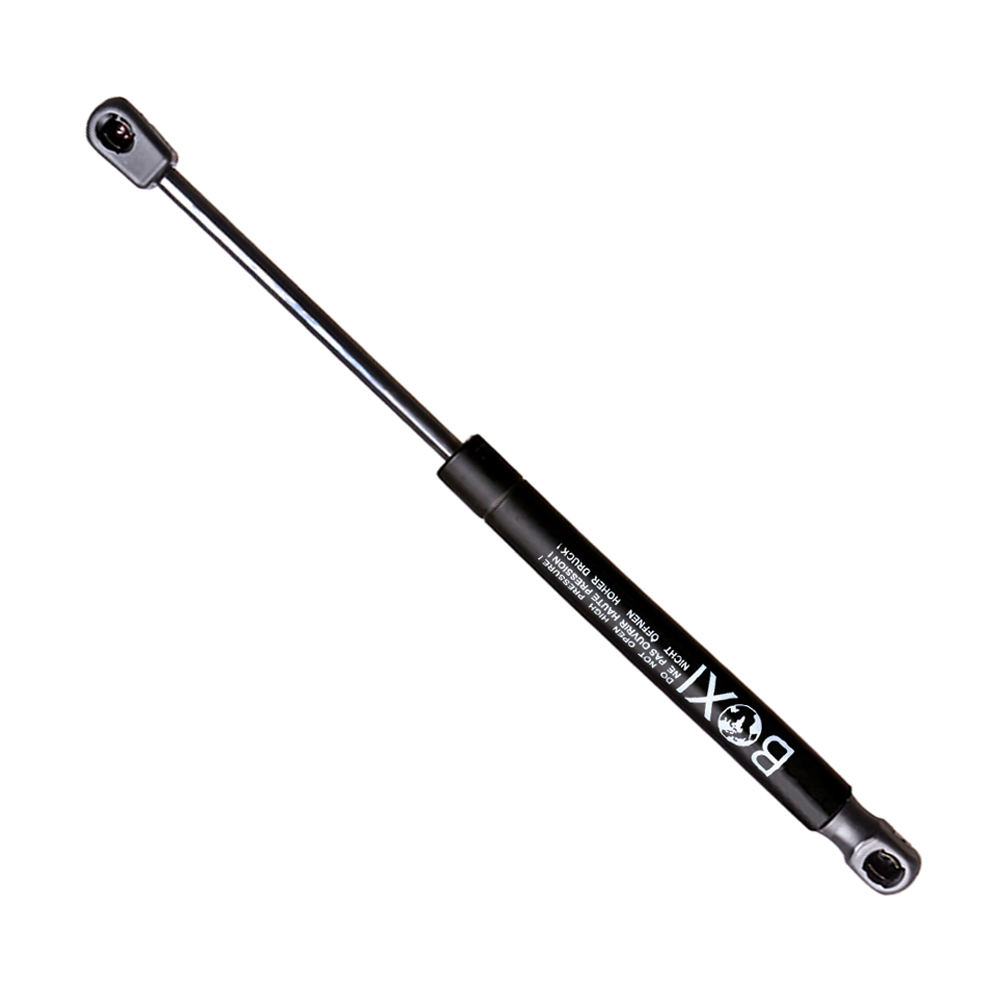

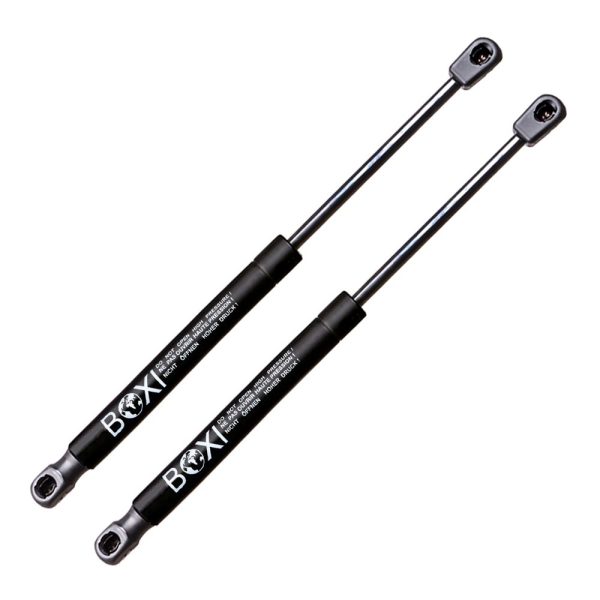

BOXI Qty (2) Liftgate Lift Supports Gas Shocks Springs Struts Fit for Toyota Venza 2009 2010 2011 2012 2013 2014 2015 2016 4-Door Liftgate-with Power Liftgate | Replaces SG229040 PM3600 689600T012

BOXI SKU#: BXC300035177-2

$26.59

BOXI Qty (2) liftgate lift supports for 2009-2016 Toyota Venza with power liftgate. Replaces OE numbers SG229040, PM3600, 689600T012. Verify fitment before ordering.

OE / Interchange Part Numbers: 4B866653, 4B866653W, SG229040

  • 5 Years Warranty

86 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Why Choose BOXI Liftgate Lift Supports Gas Shocks Springs Struts Fit?

  • ➤ Superior Lift Support: Provides robust lift capability, especially important for power liftgate applications.
  • ➤ Smooth & Quiet Operation: Gas-charged mechanism ensures controlled, noise-free liftgate motion.
  • ➤ Effortless Installation: Designed as a direct-fit replacement with simple ball-socket connections.
  • ➤ Excellent Performance: Features an extended length of 19.8 in and compressed length of 11.73 in, offering precise fit and performance.

BOXI FAQs

1. What vehicles are compatible with these liftgate lift supports?

+

Compatible with 2009–2015 Toyota Venza models, including AWD V6, AWD, Base, LE, Limited, V6, and XLE with V6 3.5L or L4 2.7L engines.

2. What type and material are these lift supports?

+

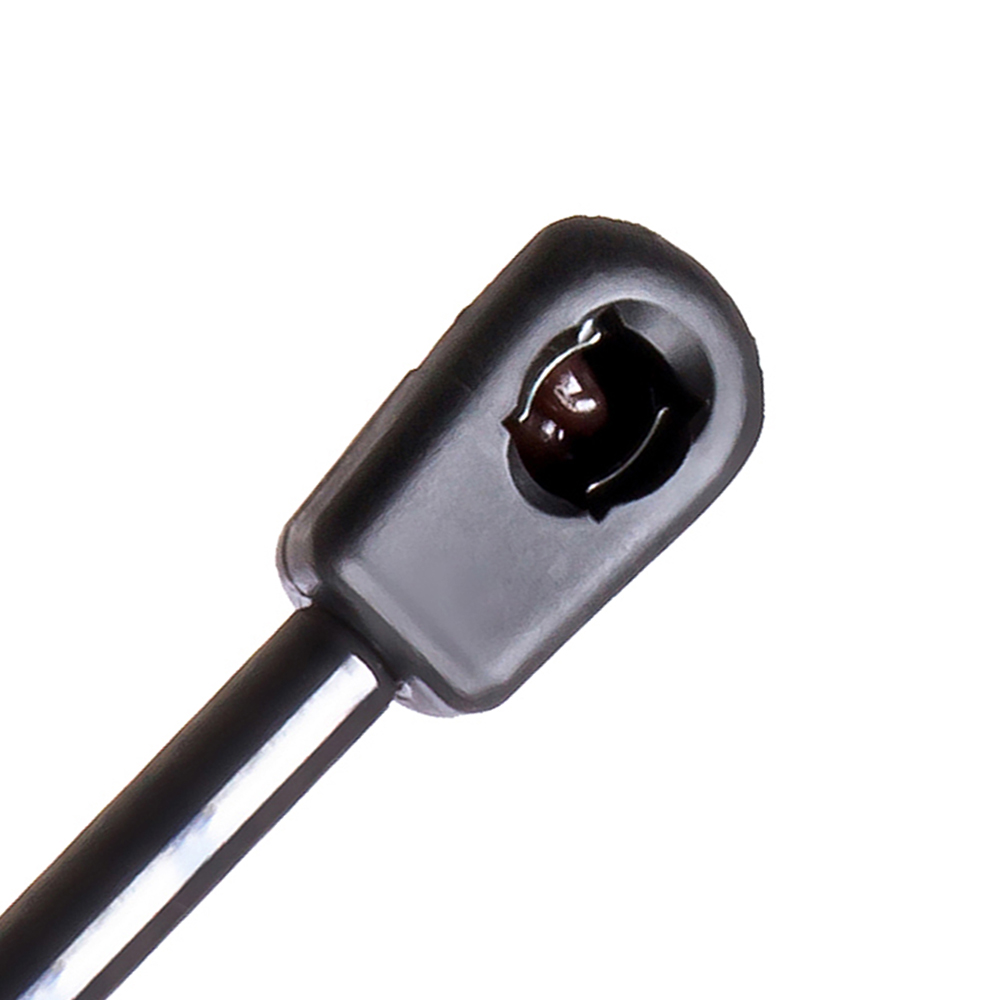

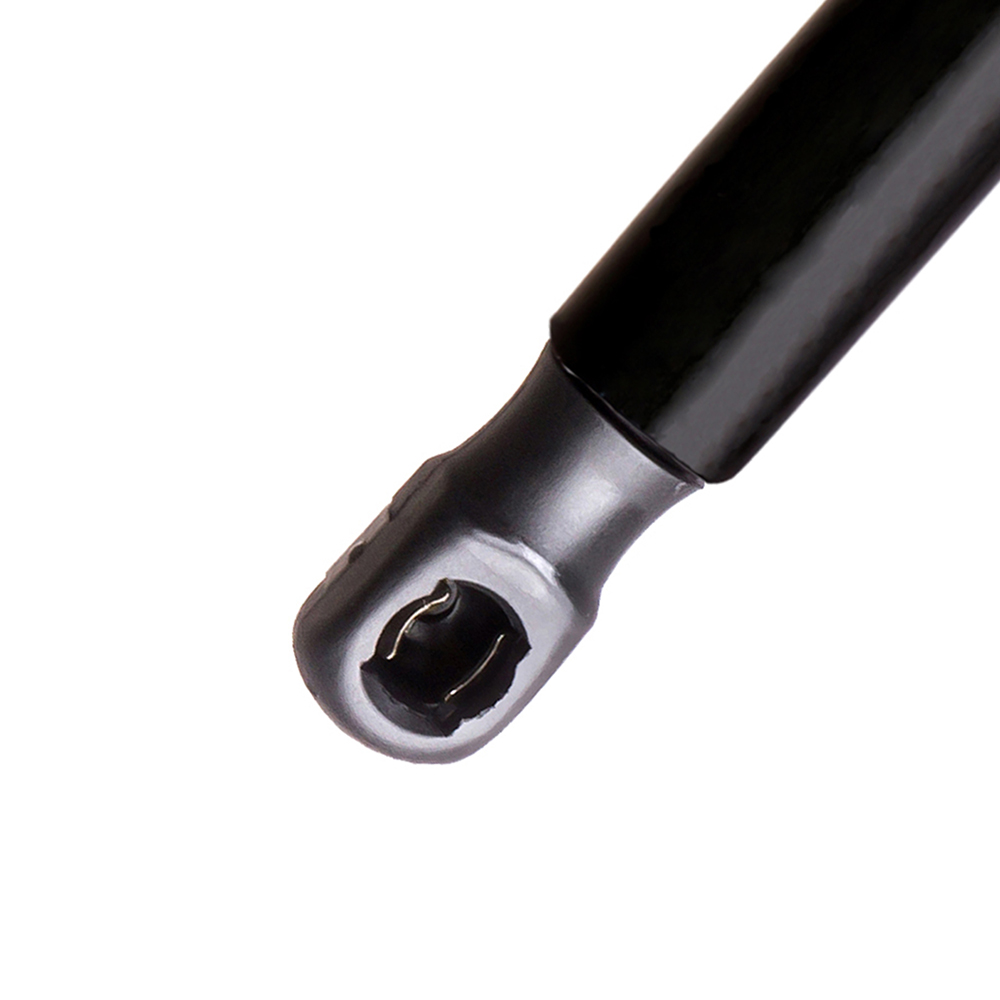

These are gas-type liftgate lift supports made of steel with ball socket connections on both ends.

3. What are the dimensions and force specifications?

+

Extended length: 19.8 in (503 mm), stroke: 8.07 in (205 mm), compressed length: 11.73 in (298 mm), force: 139 lbs (620 N).

4. Does this package include installation hardware?

+

No, hardware is not included, but the supports are designed for direct-fit replacement of the rear liftgate.

5. What is the warranty and interchange part numbers?

+

Comes with a 5-year warranty. Interchange part numbers include 68950-0T012, 68960- 0T013, 689600T010, 689600T011, 819-6847, D96680, 900935, SG229040, D6680.

Fits the following vehicles:
2009-2016 for Toyota Venza AWD Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza AWD V6 Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza AWD V6 Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza AWD Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza Base Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza Base Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza LE Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza LE Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza Limited Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza Limited Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza V6 Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza V6 Wagon 4-Door Liftgate-With Power Liftgate
2009-2016 for Toyota Venza XLE Sport Utility 4-Door Liftgate-With Power Liftgate
2009-2015 for Toyota Venza XLE Wagon 4-Door Liftgate-With Power Liftgate

Weight 1.6 lbs
Dimensions 21.65 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

503
Stroke (in):

8.07
Stroke (mm):

205
Compressed Length (in)

Compressed Length (mm):

298
Force (Lbs)

Force (Newtons)

620
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10
Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

68950-0T012, 68960-0T013, 689600T010, 689600T011, 819-6847, D96680, 900935, SG229040, D6680
YearMakeModelSubmodelEngine
2012 – 2015ToyotaVenzaAWD
LE
XLE		L4 – 2.7L 2672cc 163ci GAS MFI type 1AR-FE – 4 valve DOHC
V6 – 3.5L 3456cc GAS MFI type 2GRFE – 4 valve DOHC
LimitedV6 – 3.5L 3456cc GAS MFI type 2GRFE – 4 valve DOHC
2012ToyotaVenzaAWD V6
V6		V6 – 3.5L 3456cc GAS MFI type 2GRFE – 4 valve DOHC
2009 – 2015ToyotaVenzaBaseL4 – 2.7L 2672cc 163ci GAS MFI type 1AR-FE – 4 valve DOHC
V6 – 3.5L 3456cc GAS MFI type 2GRFE – 4 valve DOHC
