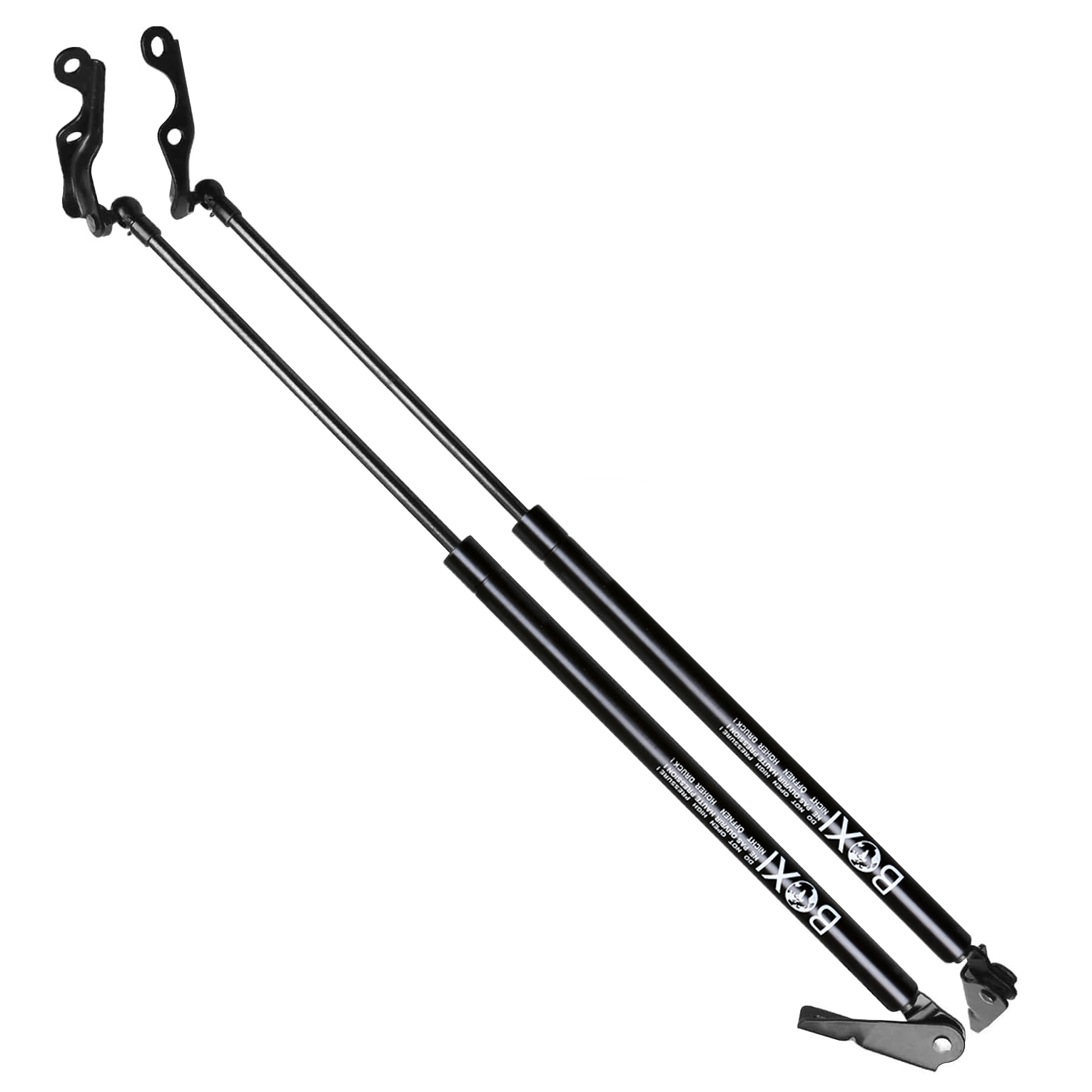

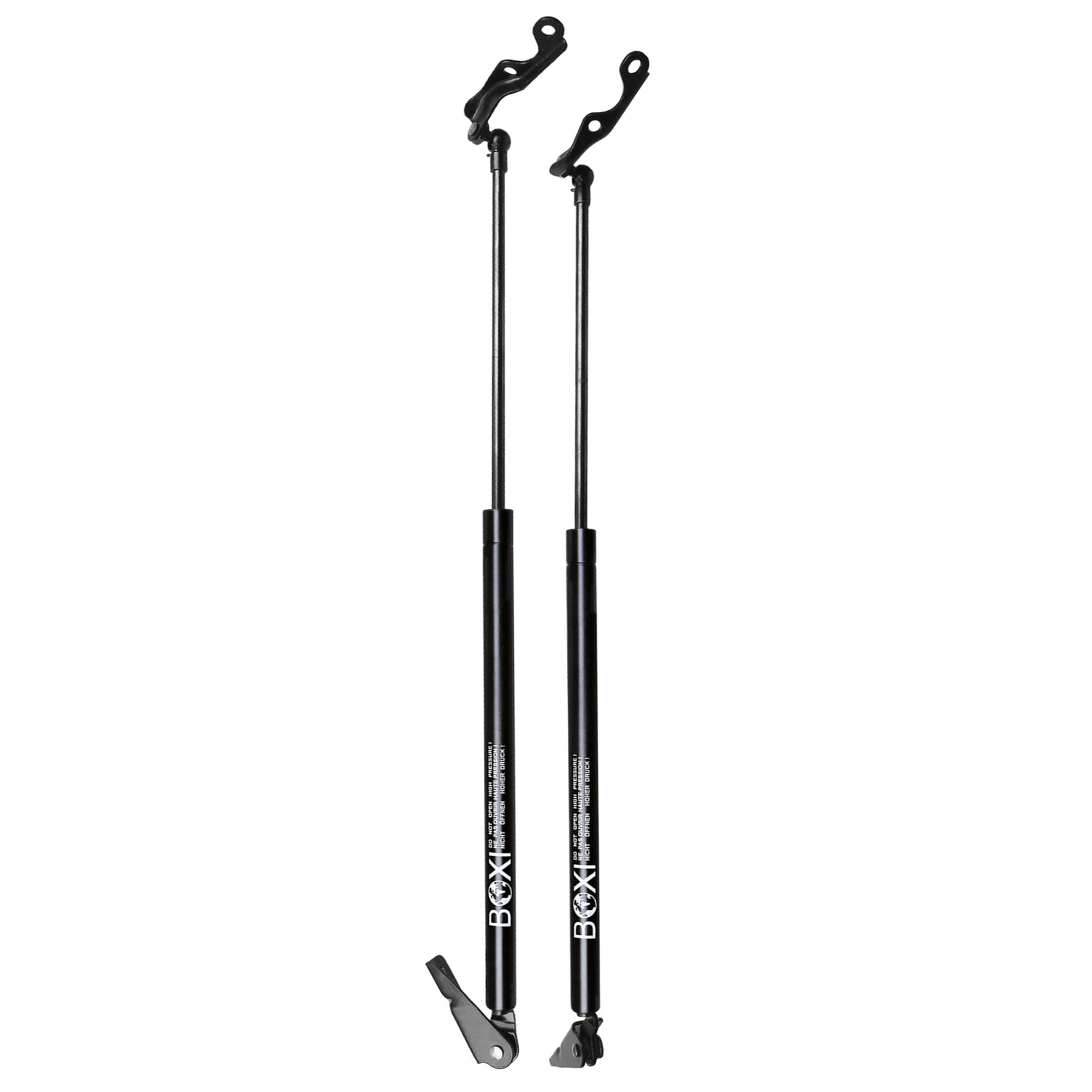

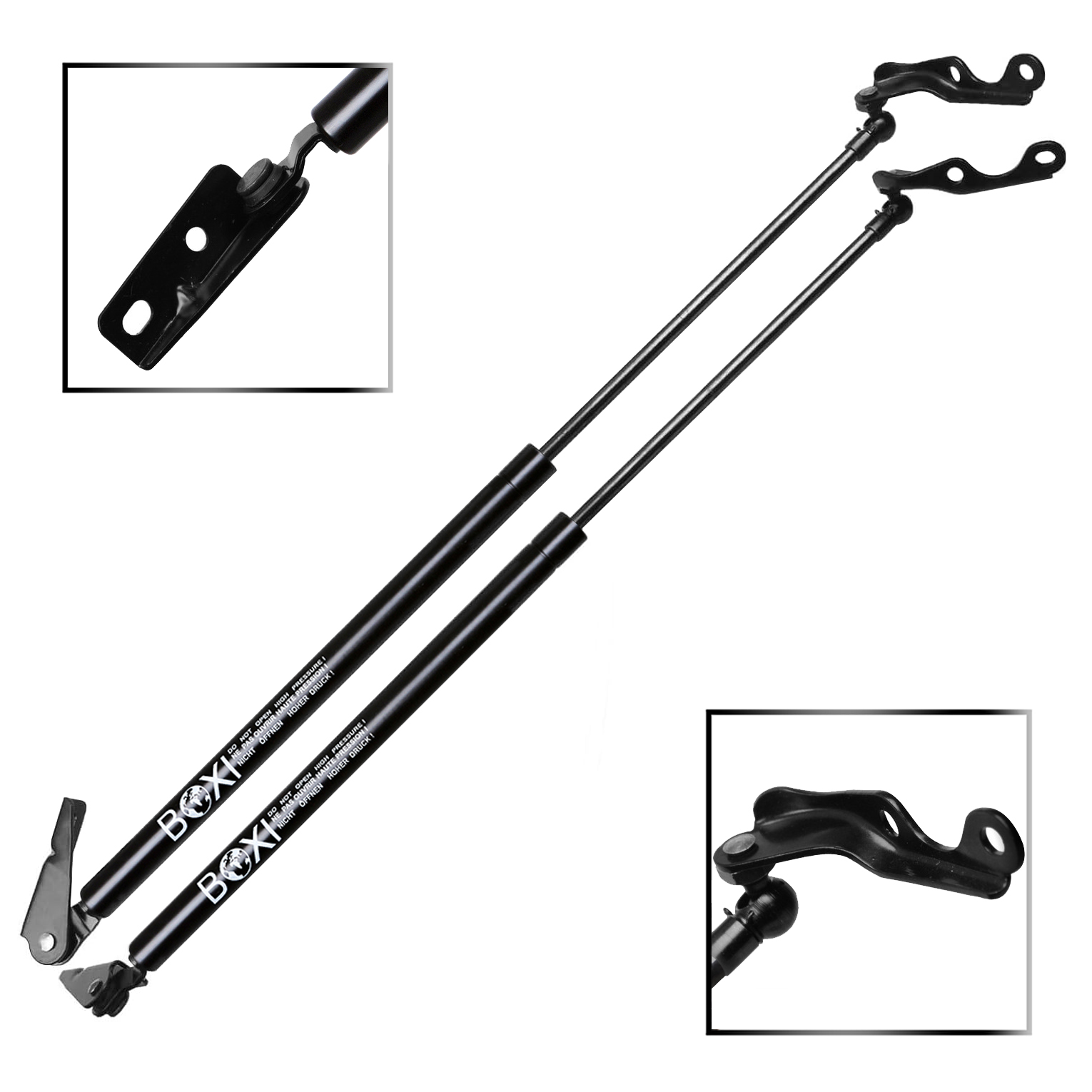

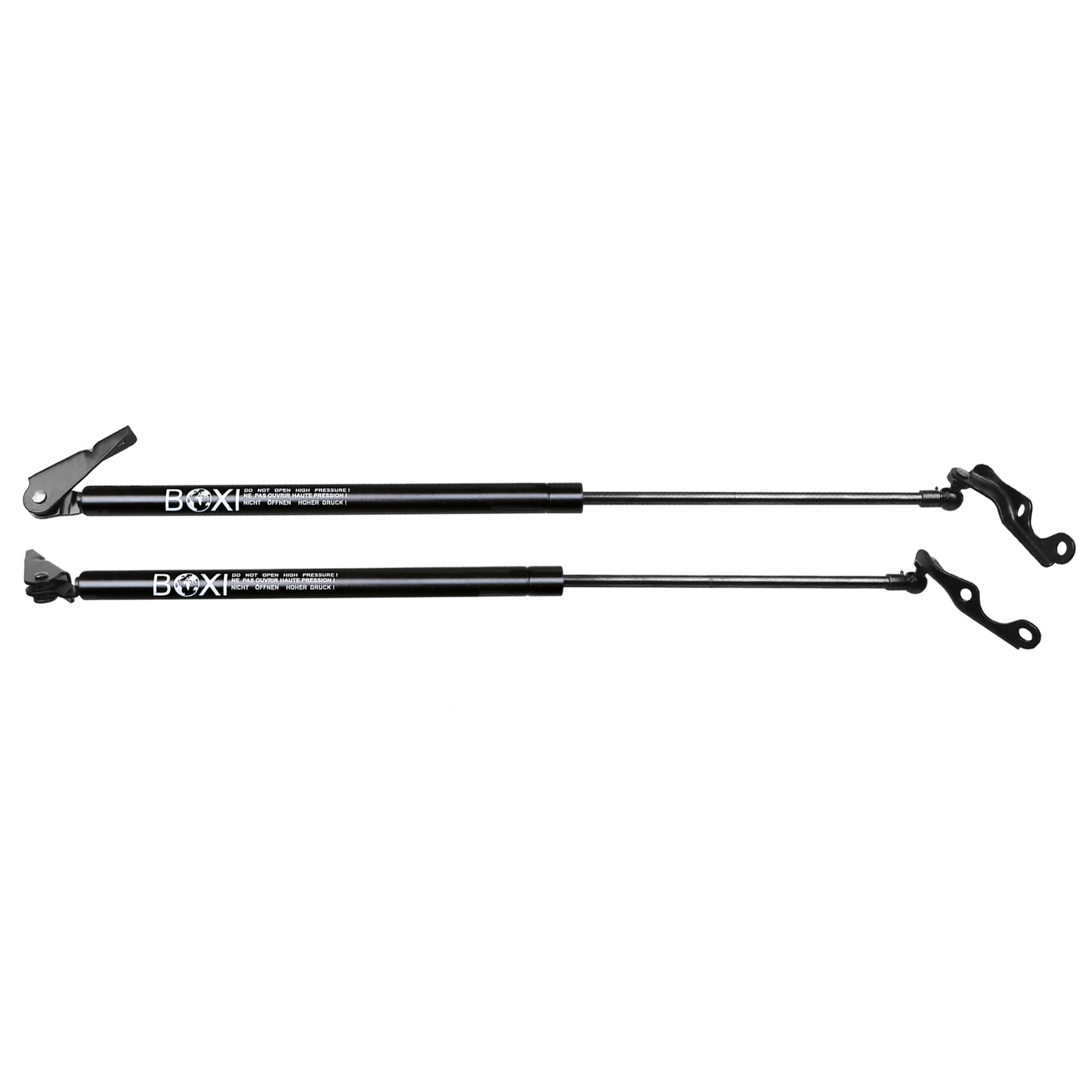

BOXI Lift Support for 2004-2006 Scion xA | Replaces OE #6895005925
BOXI SKU#: BXC300054306-2
$35.18
2 in stock
BOXIDirect-Fit OE ReplacementLift Support
Check if this part fits your vehicle
Select your vehicle to check fitment (1 compatible configurations)
Ship to Home
Available (2 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (6) →
Replaces OE #: 6895005925, 689500D010, 68950-0D011, 6895059076, 6896059046 +1 more
5 Years Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Placement on Vehicle
- Rear Hatch
- Package Included
- 2pcs Rear Hatch Lift Supports
- Interchangable OEM Numbers
- 6895005925, 68950-05925, 689500D010, 68950-0D010, 68950-0D011, 689500D011, 6895059076, 68950-59076, 6896059046, 68960-59046, PM3263LR, PM3263L-R
- Hardware Included:
- No
- Extended Length (in)
- 20.51
Direct-fit BOXI replacement part compatible with 2004-2006 Scion xA Base Hatchback 4-Door. Replaces OE / interchange part numbers: 6895005925, 689500D010, 68950-0D011, 6895059076, 6896059046, PM3263LR. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Placement on Vehicle
Rear Hatch
Package Included
2pcs Rear Hatch Lift Supports
Interchangable OEM Numbers
6895005925, 68950-05925, 689500D010, 68950-0D010, 68950-0D011, 689500D011, 6895059076, 68950-59076, 6896059046, 68960-59046, PM3263LR, PM3263L-R
Application Note
Extended Length [Inches]: 20.51''
Application Note
Compressed Length [Inches]: 12.76''
Application Note
2pcs Rear Hatch Lift Supports
Position & Application Summary
See Full Submodel & Engine Table →- Scion xA 2004-2006 Base Hatchback 4-Door Hatch
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 21.65 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 521 |
| Stroke (in): | 8.07 |
| Stroke (mm): | 205 |
| Compressed Length (in) | |
| Compressed Length (mm): | 316 |
| Force (Lbs) | |
| Force (Newtons) | 351 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |
| Body Connection: | Bracket |
| Shaft Connection: | Bracket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Scion (OEM) | 6895005925, 68950-0D011, 6895059076, 6896059046 | BXC300054306-2, 689500D010, PM3263LR |
| Aftermarket Interchange | 6895005925, 68950-0D011, 6895059076 | 689500D010, PM3263LR |
