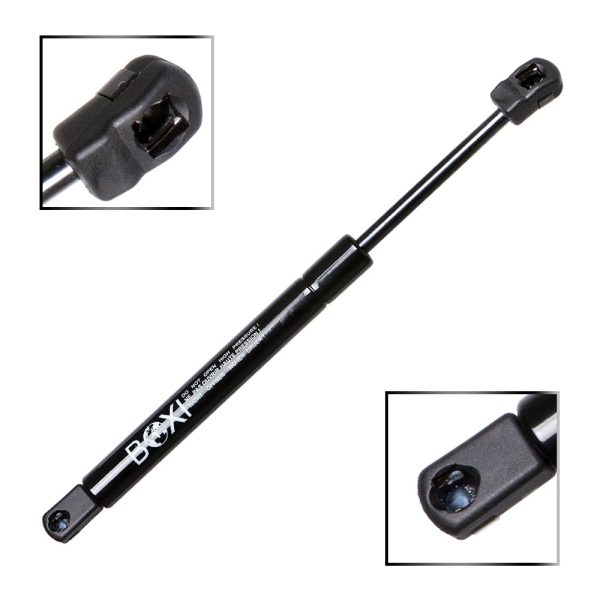

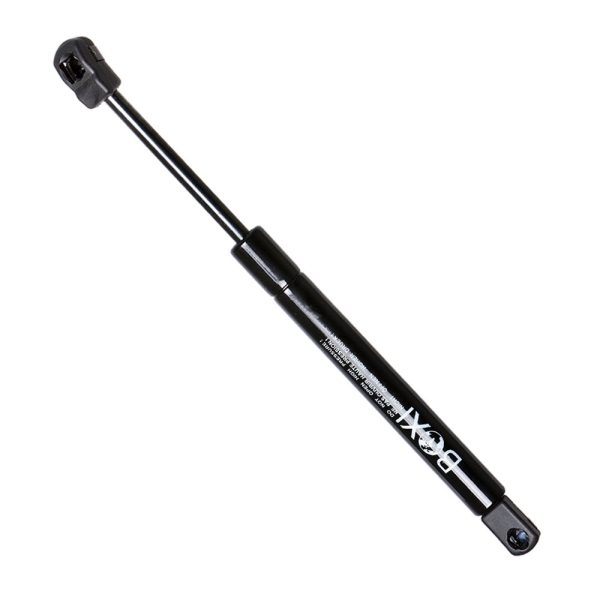

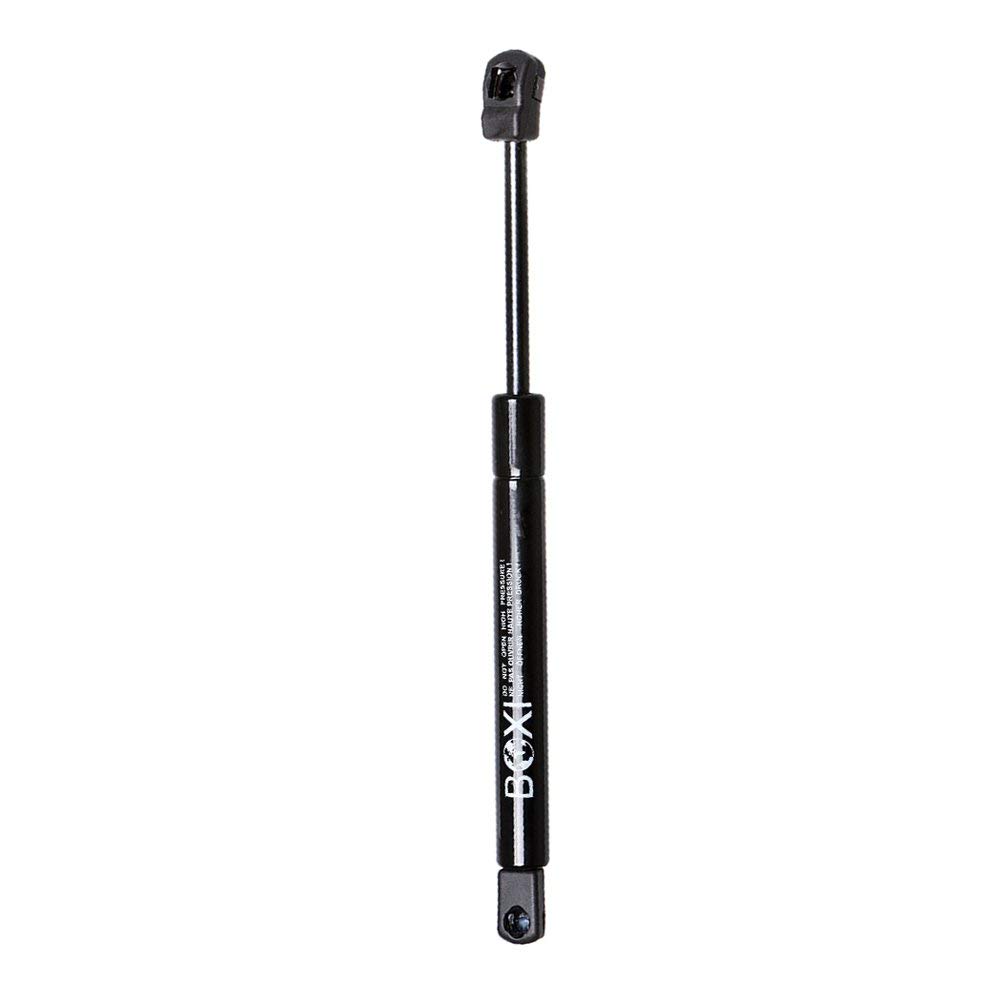

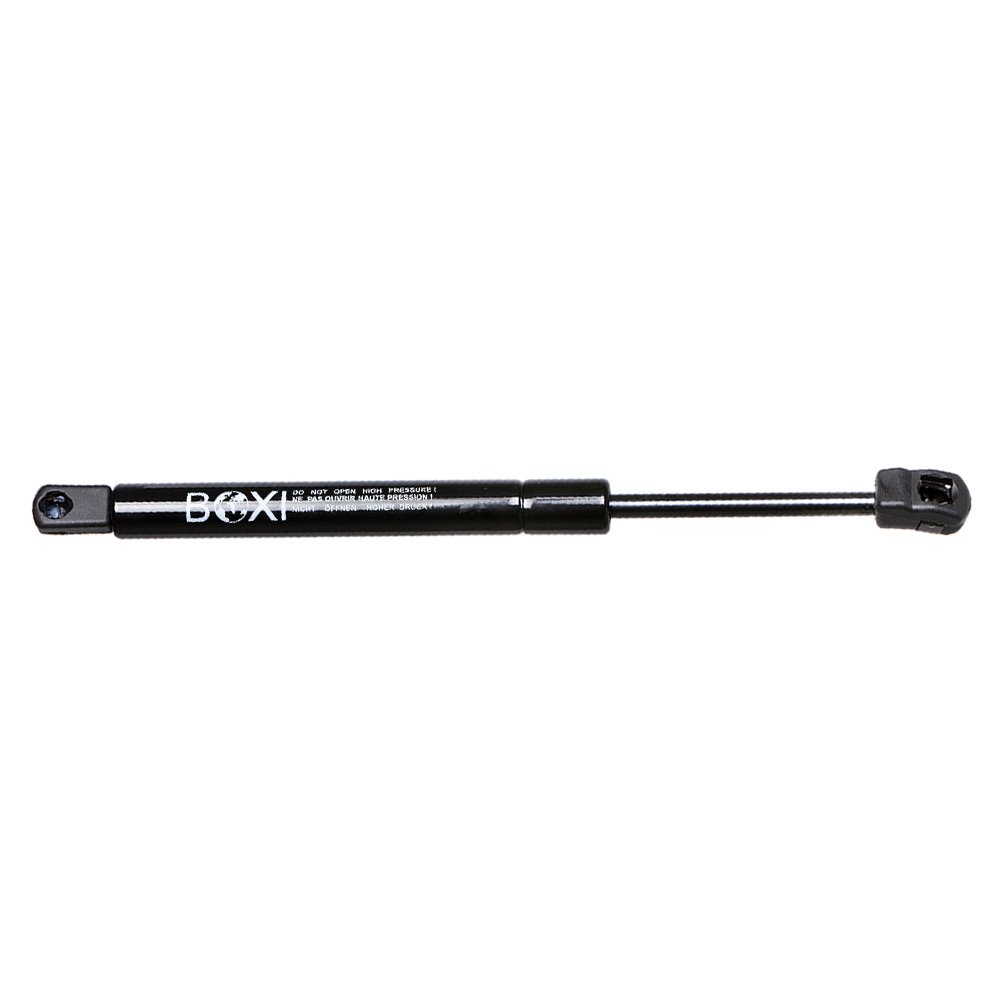

Qty(1) BOXI 6470 Front Hood Lift Support Strut Shock Gas Strut Shock Spring Support for Chevy Equinox 2010-2017 / for GMC Terrain 2010 2011 2012 2013 2014 2015 2016 2017 Hood/Replace SG230124 935246
BOXI SKU#: BXC300027052-1
$23.01
BOXI front hood lift support strut compatible with 2010-2017 Chevrolet Equinox and 2010-2017 GMC Terrain. Replaces OE numbers SG230124 and 935246. Verify fitment before ordering.
OE / Interchange Part Numbers: 20819720, 792056, 96470, C96470, SG230124
93 in stock
Placement on Vehicle: Front Hood
Package Included:1pcs Front Hood Lift Support
Why Choose BOXI Front Hood Lift Supports?
- ➤ Long-Lasting Performance: Designed with strong pressure resistance and corrosion-resistant materials to extend the service life.
- ➤ Easy Installation: Direct bolt-on design with no special tools required—simply remove the old struts and install the new ones.
- ➤ Quiet and Strong Operation: Uses a gas-charged mechanism to deliver consistent lifting performance with quiet, strong, and controlled movement.
- ➤ Lightweight and Compact: Weighing only 0.8 lbs and built with a compact body, it is easy to handle and install while maintaining strong durability.
BOXI FAQs
1. What vehicles are compatible with this lift support?
This lift support fits the 2010–2012 Chevrolet Equinox trims LS, LT, and LTZ with 2.4L 4-
cylinder or 3.0L V6 engines. It is also compatible with GMC Terrain models using the same
interchange part numbers
cylinder or 3.0L V6 engines. It is also compatible with GMC Terrain models using the same
interchange part numbers
2. What does this lift support do?
The front hood lift support (gas strut) assists in lifting and holding the hood open safely,
providing smooth opening and reliable support without manual effort.
providing smooth opening and reliable support without manual effort.
3. What are the specifications of this hood lift support?
- Extended Length: 23.18 in (589 mm)
- Compressed Length: 14.53 in (369 mm)
- Stroke: 8.65 in (220 mm)
- Force: 100 lbs (444 N)
- Cylinder Diameter: 0.71 in (18 mm)
- Rod Diameter: 0.31 in (8 mm)
4. How is it installed?

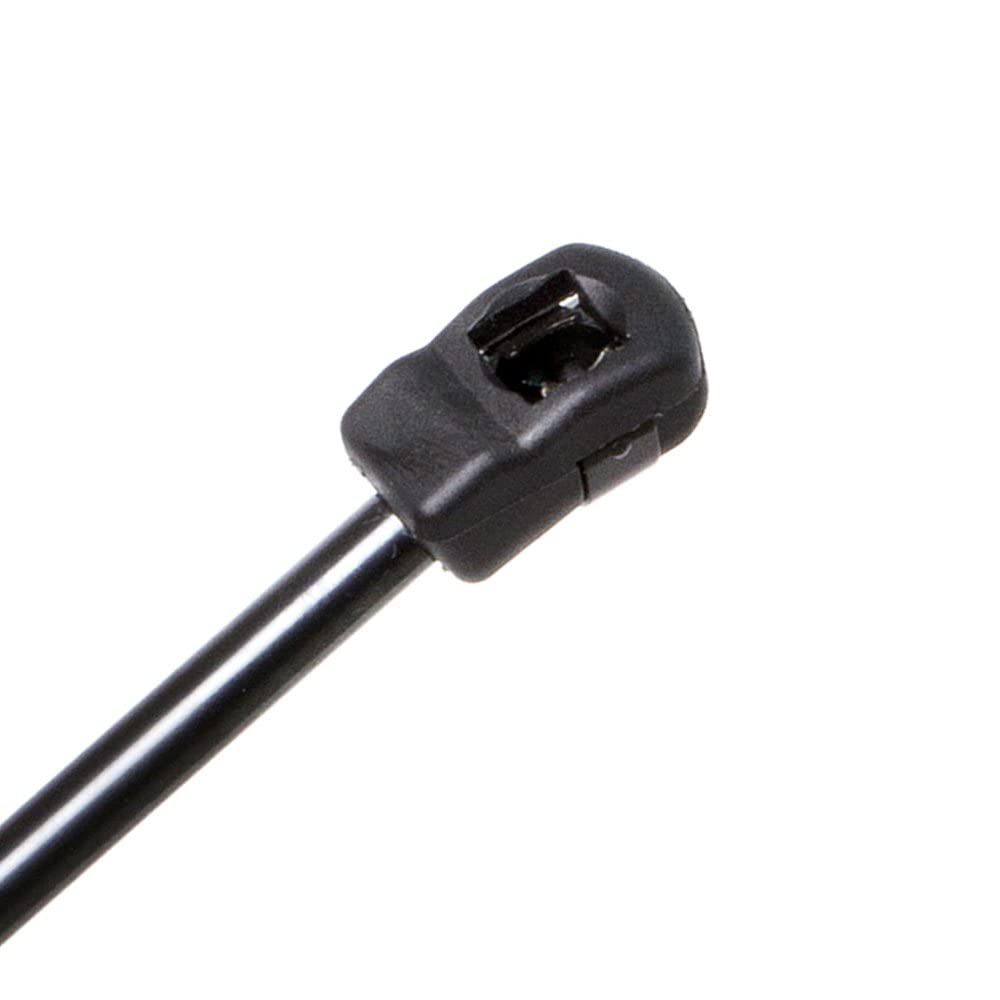

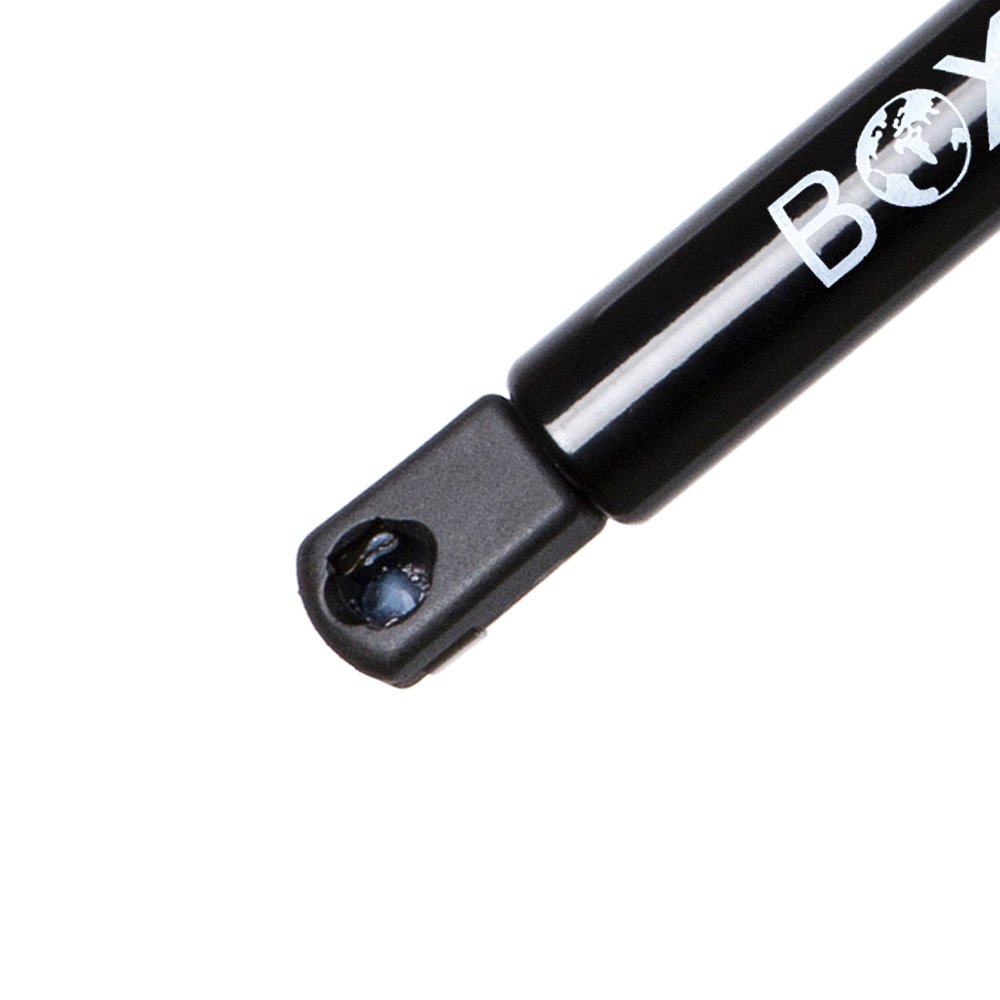

The strut features ball socket connections on both the rod and body ends, making it a direct
replacement. No additional hardware is included, so the original mounting points are used.
replacement. No additional hardware is included, so the original mounting points are used.
5. What warranty does this product have?
The BOXI hood lift support comes with a 5-year warranty, ensuring long-lasting performance
and reliability.
and reliability.
Fitment:
2010-2017 for Chevrolet Equinox Base Sport Utility 4-Door Hood
2015-2016 for Chevrolet Equinox L Sport Utility 4-Door Hood
2010-2017 for Chevrolet Equinox LS Sport Utility 4-Door Hood
2010-2017 for Chevrolet Equinox LT Sport Utility 4-Door Hood
2010-2017 for Chevrolet Equinox LTZ Sport Utility 4-Door Hood
2010-2015 for GMC Terrain Base Sport Utility 4-Door Hood
2010-2017 for GMC Terrain Denali Sport Utility 4-Door Hood
2010-2017 for GMC Terrain SLE Sport Utility 4-Door Hood
2010-2017 for GMC Terrain SLT Sport Utility 4-Door Hood
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 11.81 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 589 |
| Stroke (in): | 8.65 |
| Stroke (mm): | 220 |
| Compressed Length (in) | |
| Compressed Length (mm): | 369 |
| Force (Lbs) | |
| Force (Newtons) | 444 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |
| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 6470, TFS611344, 819-6903, C96470, SG230134, SG230124, C6470, 900165, 510-1233, 23408396, 20819720 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2010 – 2012 | Chevrolet | Equinox | LS | L4 – 2.4L 2384cc 145ci FLEX DI vin K type LEA – 4 valve DOHC |
| L4 – 2.4L 2384cc 145ci GAS DI vin K type LEA – 4 valve DOHC | ||||
| L4 – 2.4L 2384cc 145ci GAS MFI vin C type LAF – 4 valve DOHC | ||||
| L4 – 2.4L 2384cc 145ci GAS MFI vin W type LAF – 4 valve DOHC | ||||
| LT LTZ | L4 – 2.4L 2384cc 145ci FLEX DI vin K type LEA – 4 valve DOHC | |||
| L4 – 2.4L 2384cc 145ci GAS DI vin K type LEA – 4 valve DOHC | ||||
| L4 – 2.4L 2384cc 145ci GAS MFI vin C type LAF – 4 valve DOHC | ||||
| L4 – 2.4L 2384cc 145ci GAS MFI vin W type LAF – 4 valve DOHC | ||||
| V6 – 3.0L 182ci FLEX DI vin 5 type LFW – 4 valve DOHC | ||||
| V6 – 3.0L 182ci GAS DI vin 5 type LFW – 4 valve DOHC | ||||
| V6 – 3.0L 182ci GAS DI vin Y type LF1 – 4 valve DOHC |
