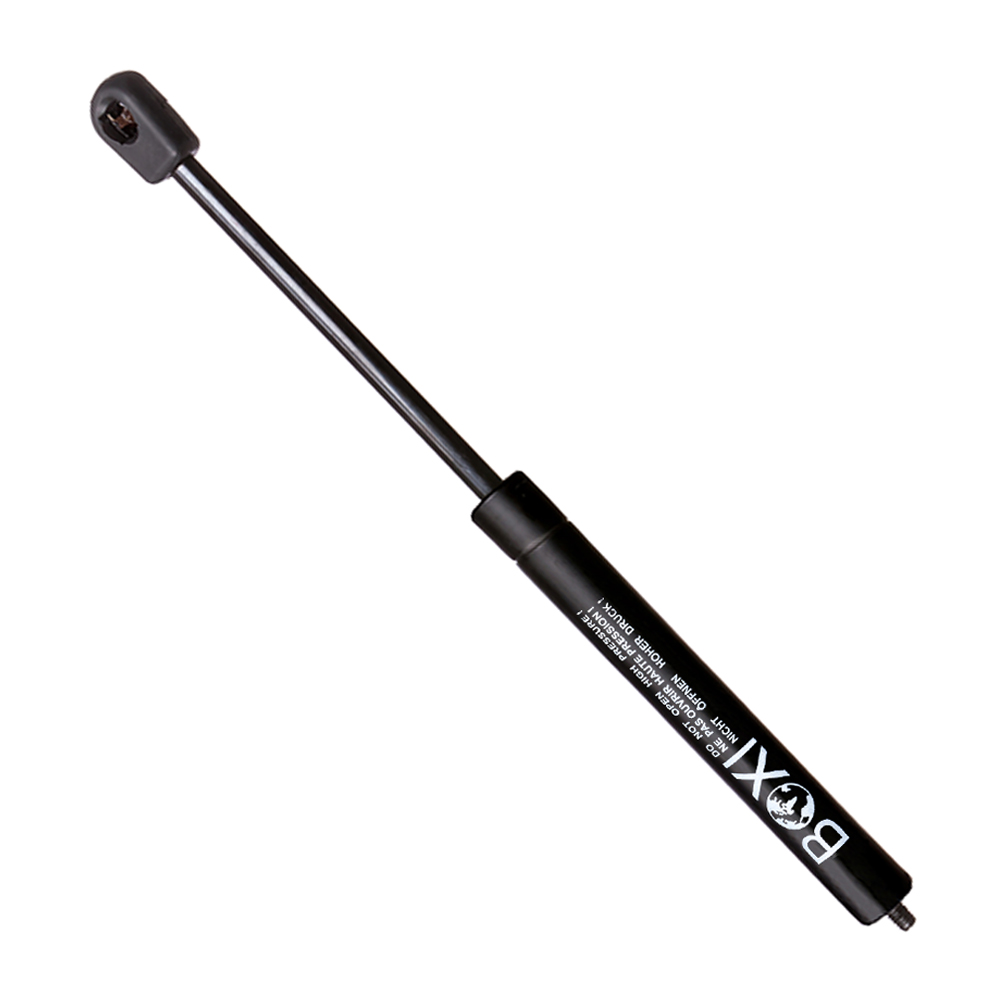

BOXI Lift Support BXC300005016-1

BOXI SKU#: BXC300005016-1

$12.99

Direct-fit BOXI Lift Support (SKU: BXC300005016-1) engineered for 2001-2005 Mercedes-Benz C320, 2002-2009 Mercedes-Benz C230, 2006-2009 Mercedes-Benz C280, 2001-2005 Mercedes-Benz C240.

  • 5 Years Warranty

1 in stock

Placement on Vehicle:Front Hood
Package Included:1pcs Front Hood Lift Support

Weight 1 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

563
Stroke (in):

9.64
Stroke (mm):

245
Compressed Length (in)

Compressed Length (mm):

318
Force (Lbs)

Force (Newtons)

280
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

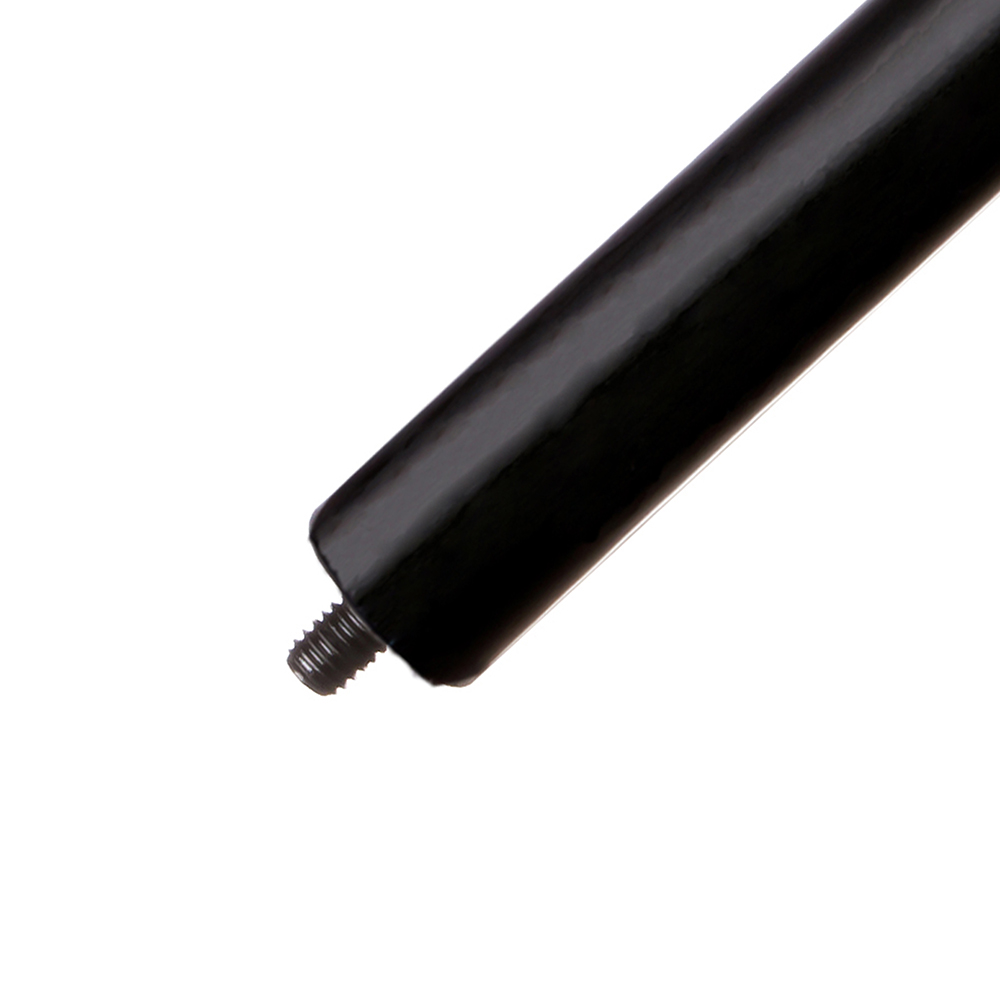

Body Connection:

Threaded

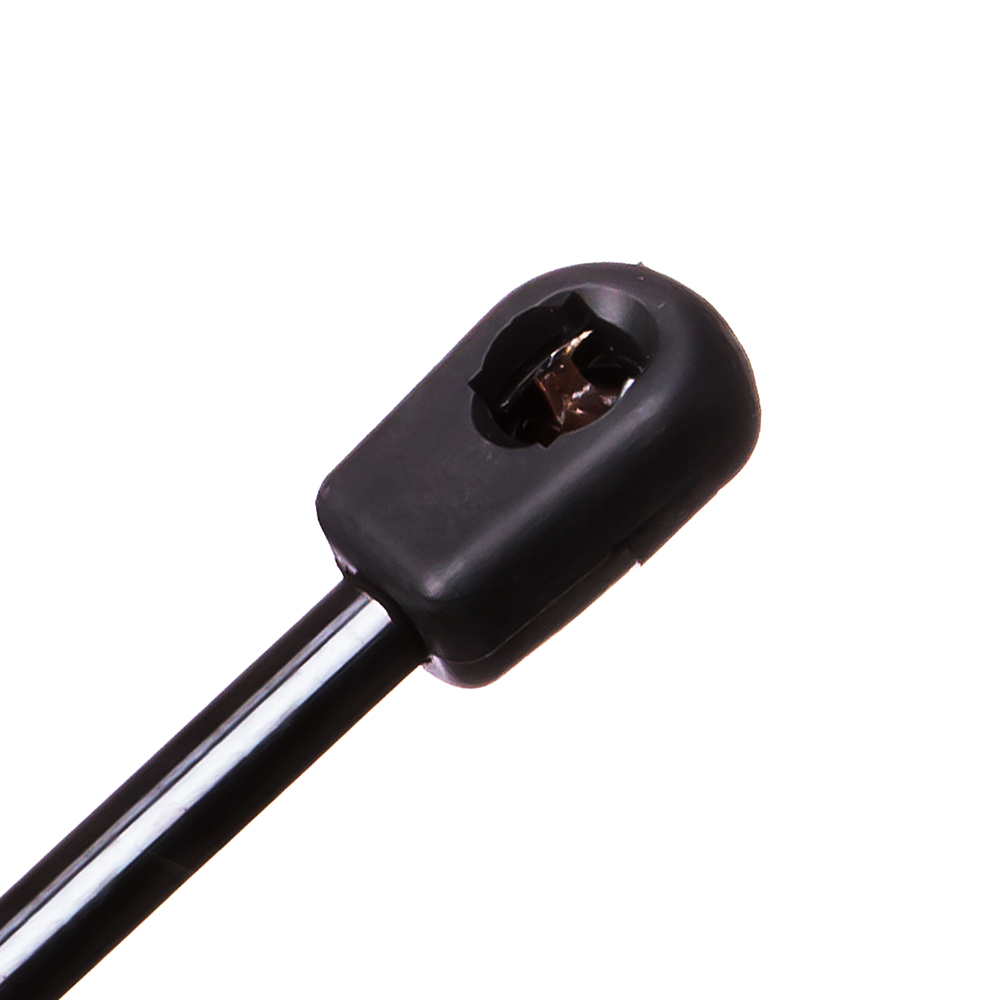

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

TFS611399, BXC300005016-2, BXC300005017-2, 95679, 611399, 612046, 612046L, SG203007, C95679, C6360, 6360
YearMakeModelSubmodelEngine
2001 – 2003Mercedes-BenzC200Kompressor AvantgardeL4 – 1.8L 1796cc 110ci GAS MPI Supercharged – 4 valve DOHC
L4 – 2.0L 1998cc 122ci GAS MFI Supercharged – 4 valve DOHC
2002 – 2004Mercedes-BenzC200Kompressor ClassicL4 – 1.8L 1796cc 110ci GAS MPI Supercharged – 4 valve DOHC
L4 – 2.0L 1998cc 122ci GAS MFI Supercharged – 4 valve DOHC
2009Mercedes-BenzC2304MaticV6 – 2.5L 2496cc GAS MFI type 272.911 – 4 valve DOHC
BaseV6 – 2.5L 2496cc GAS MFI type 272.921 – 4 valve DOHC
2002 – 2005Mercedes-BenzC230KompressorL4 – 1.8L 1796cc GAS MFI Supercharged type 271.948 – 4 valve DOHC
L4 – 2.3L 2295cc GAS MFI Supercharged type 111.981 – 4 valve DOHC
2004 – 2005Mercedes-BenzC230Kompressor Classic
Kompressor Elegance
Kompressor Sport		L4 – 1.8L 1796cc 110ci GAS MPI Supercharged – 4 valve DOHC
2006 – 2007Mercedes-BenzC230SportV6 – 2.5L 2496cc FLEX MFI type 272.920 – 4 valve DOHC
V6 – 2.5L 2496cc GAS MFI type 272.920 – 4 valve DOHC
2003 – 2005Mercedes-BenzC2404MaticV6 – 2.6L 2597cc GAS MFI type 112.916 – 3 valve SOHC
2001 – 2005Mercedes-BenzC240BaseV6 – 2.6L 2597cc GAS MFI type 112.912 – 3 valve SOHC
2001 – 2002Mercedes-BenzC240EleganceV6 – 2.6L 2597cc GAS MFI type 112.912 – 3 valve SOHC
2006 – 2007Mercedes-BenzC2804MaticV6 – 3.0L 2996cc GAS MFI type 272.941 – 4 valve DOHC
LuxuryV6 – 3.0L 2996cc GAS MFI type 272.940 – 4 valve DOHC
2006 – 2009Mercedes-BenzC280Classic
Elegance
Sport		V6 – 3.0L 2996cc 183ci GAS MPI – 4 valve DOHC
V6 – 3.0L 2996cc GAS MFI type 272.940 – 4 valve DOHC
2002 – 2004Mercedes-BenzC32 AMGBaseV6 – 3.2L 3199cc GAS MFI Supercharged type 112.961 – 3 valve SOHC
2003 – 2005Mercedes-BenzC3204MaticV6 – 3.2L 3199cc GAS MFI type 112.953 – 3 valve SOHC
2001 – 2002Mercedes-BenzC320AvantgardeV6 – 3.2L 3199cc GAS MFI type 112.946 – 3 valve SOHC
V6 – 3.2L 3199cc GAS MFI type 112.947 – 3 valve SOHC
2001 – 2005Mercedes-BenzC320BaseV6 – 3.2L 3199cc FLEX MFI type 112.946 – 3 valve SOHC
V6 – 3.2L 3199cc GAS MFI type 112.946 – 3 valve SOHC
V6 – 3.2L 3199cc GAS MFI type 112.947 – 3 valve SOHC
EleganceV6 – 3.2L 3199cc GAS MFI type 112.946 – 3 valve SOHC
V6 – 3.2L 3199cc GAS MFI type 112.947 – 3 valve SOHC
2002 – 2003Mercedes-BenzC320ClassicV6 – 3.2L 3199cc GAS MFI type 112.946 – 3 valve SOHC
2006 – 2007Mercedes-BenzC3504MaticV6 – 3.5L 3498cc GAS MFI type 272.970 – 4 valve DOHC
Elegance
Luxury
Sport		V6 – 3.5L 3498cc GAS MFI type 272.960 – 4 valve DOHC
2005 – 2007Mercedes-BenzC55 AMGBaseV8 – 5.4L 5439cc 332ci GAS MPI – 3 valve SOHC
V8 – 5.5L 5439cc 332ci GAS MFI type 113.988 – 3 valve SOHC
2007 – 2009Mercedes-BenzCLK280BaseV6 – 3.0L 2996cc 183ci GAS MPI – 4 valve DOHC
2003 – 2005Mercedes-BenzCLK320BaseV6 – 3.2L 3199cc GAS MFI type 112.940 – 3 valve SOHC
V6 – 3.2L 3199cc GAS MFI type 112.955 – 3 valve SOHC
2006 – 2009Mercedes-BenzCLK350BaseV6 – 3.5L 3498cc GAS MFI type 272.960 – 4 valve DOHC
2003 – 2009Mercedes-BenzCLK500BaseV8 – 5.0L 4966cc GAS MFI type 113.968 – 3 valve SOHC
V8 – 5.0L 4973cc GAS MFI type 113.968 – 3 valve SOHC
V8 – 5.5L 5461cc 333ci GAS MFI type 273.967 – 4 valve DOHC
2003 – 2006Mercedes-BenzCLK55 AMGBaseV8 – 5.4L 5439cc 332ci GAS MPI – 3 valve SOHC
V8 – 5.5L 5439cc 332ci GAS MFI type 113.987 – 3 valve SOHC
2007 – 2009Mercedes-BenzCLK550BaseV8 – 5.5L 5461cc 333ci GAS MFI type 273.967 – 4 valve DOHC
2007 – 2009Mercedes-BenzCLK63 AMGBaseV8 – 6.3L 6208cc GAS MFI type 156.982 – 4 valve DOHC
2008Mercedes-BenzCLK63 AMGBlack SeriesV8 – 6.3L 6208cc GAS MFI type 156.982 – 4 valve DOHC
