BOXI Lift Support BXC300054674-2
BOXI SKU#: BXC300054674-2
$13.68
147 in stock
Package included:

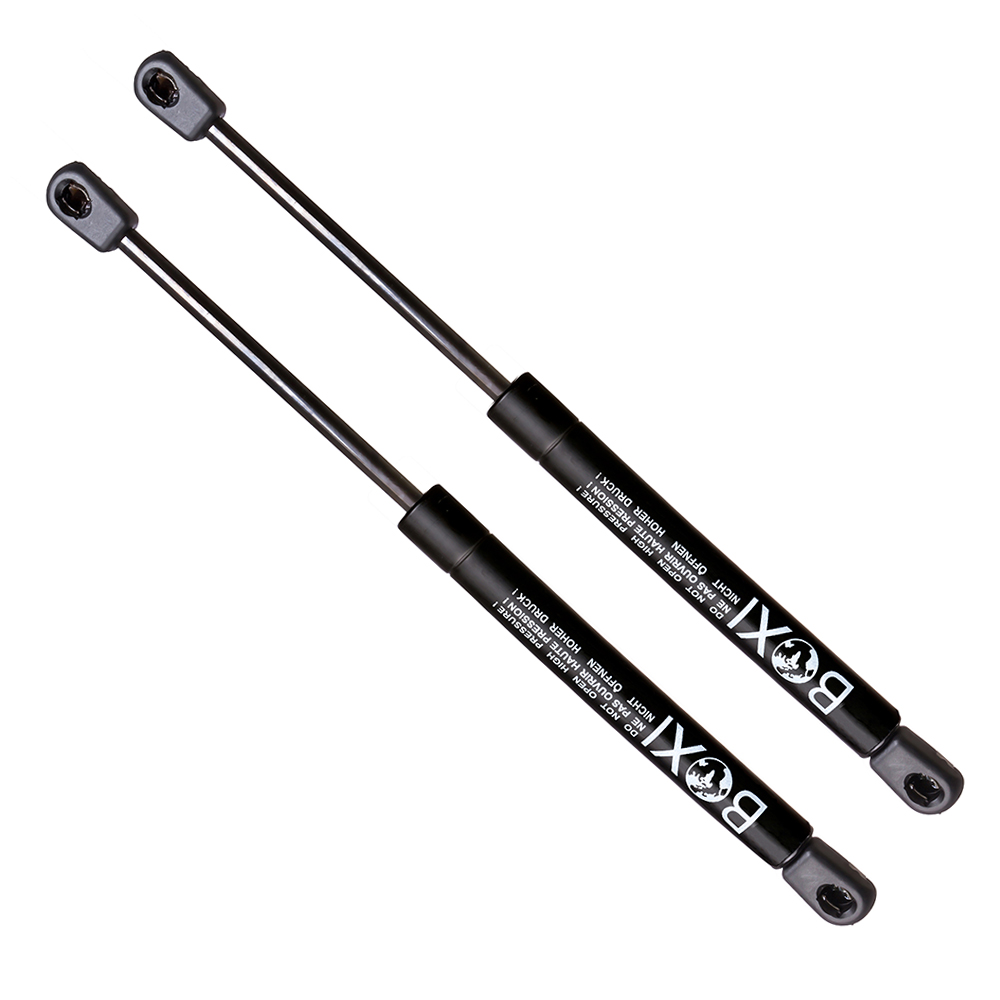

2pcs Universal Lift Supports
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 17.72 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 381 |
| Stroke (in): | 5.66 |
| Stroke (mm): | 144 |
| Compressed Length (in) | |
| Compressed Length (mm): | 237 |
| Force (Lbs) | |
| Force (Newtons) | 156 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |
| Body Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Shaft Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 95685, 515035, 6925, 987074, AHP65535, CS150035, CS1500-35, E95685, FTR35, GP51535, GS515035, ML1335, ML13-35, ML-13-35, ML3335, ML33-35, ML-33-35, P5047, SL1335, SL13-35, SL-1335, SL-13-35, SL13351, SL13-35-1, SL-13351 |
