BOXI (Set of 5) Front Steering Pitman Arm + Idler Arm + Idler Arm Bracket Fit for Chevrolet Express GMC Savana 1500 2500 3500 1996 1997 1998 1999 2000 2001 2002 | Replace K6533 K6512 K6653

BOXI SKU#: BXM600070155-5

$84.46

BOXI 5-piece front steering kit with pitman arm, idler arms, and brackets fits 1996-2002 Chevrolet Express and GMC Savana 1500/2500/3500. Replaces OE numbers K6533, K6512, K6653. Verify fitment before ordering.

  • Two Year Warranty

22 in stock

Placement on Vehicle:Front, Left, Right

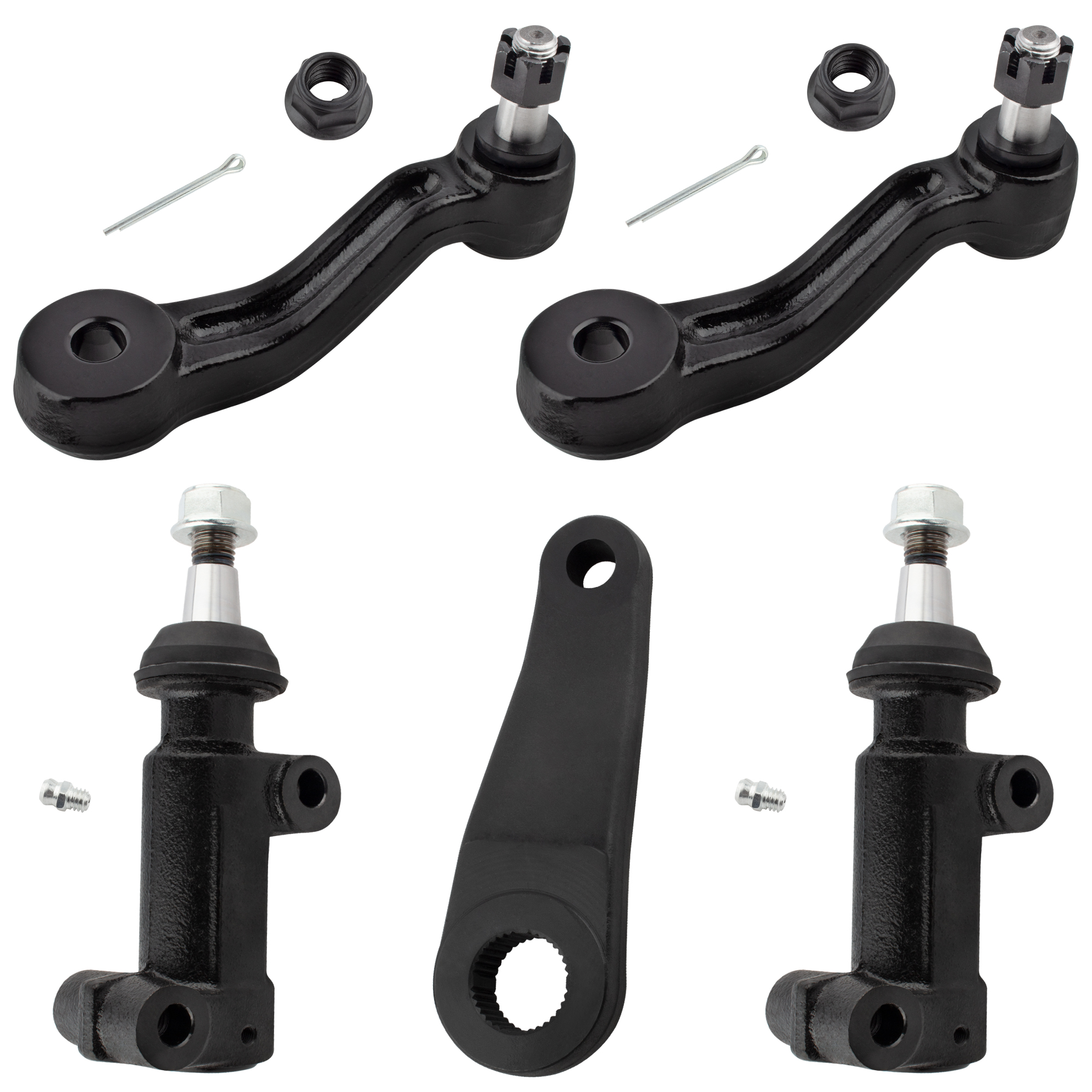

Package Included:

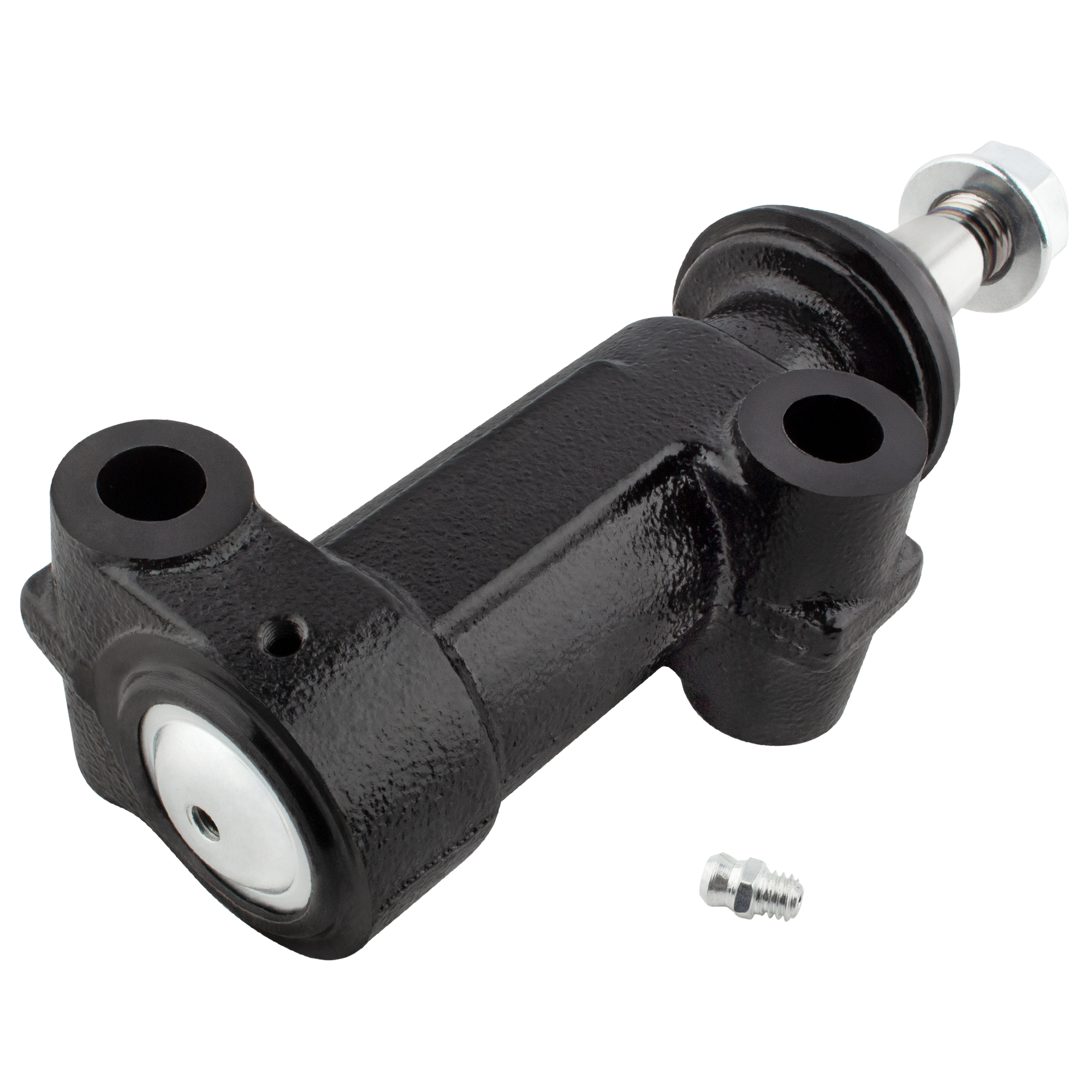

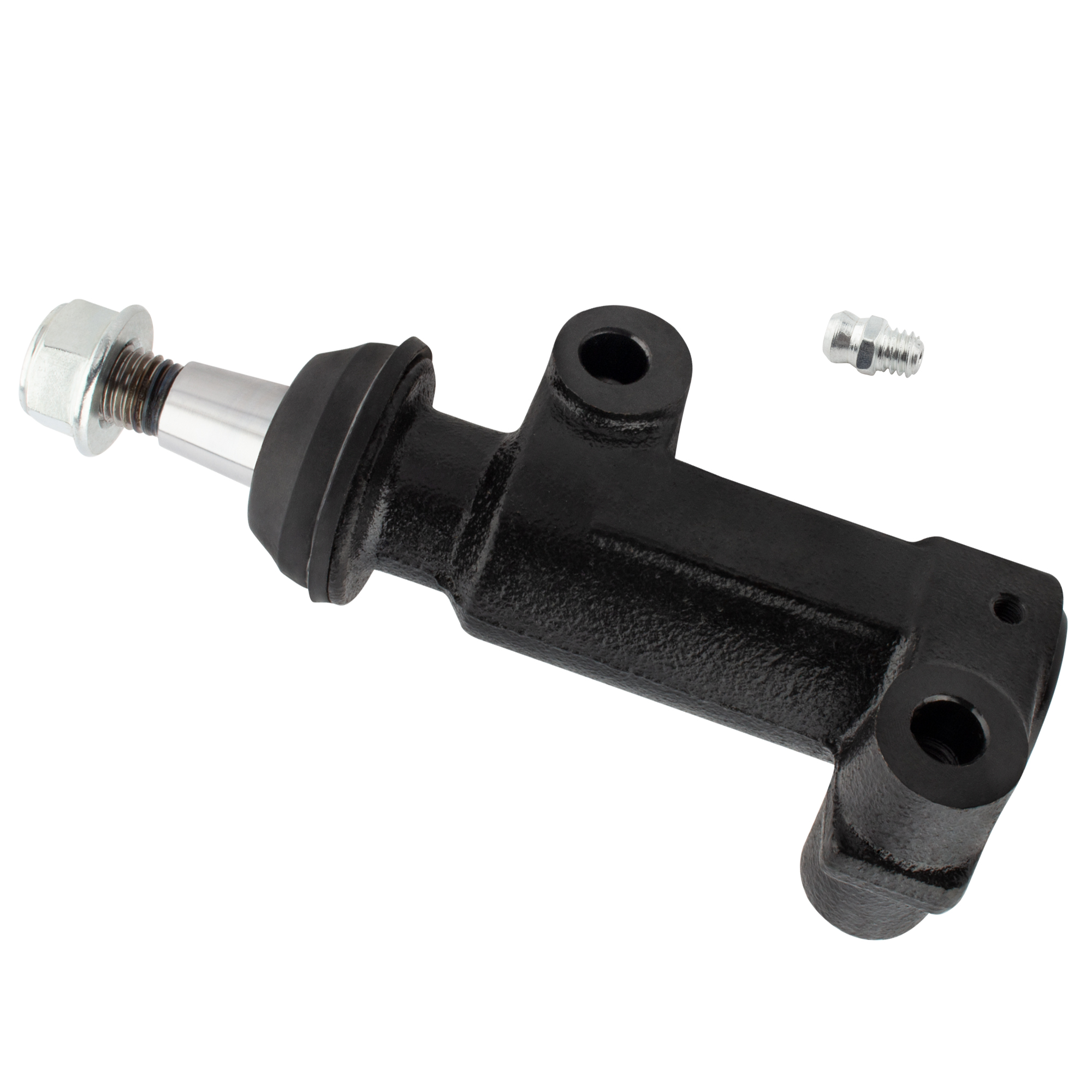

2x Front Steering Idler Arm Bracket Assembly – K6533

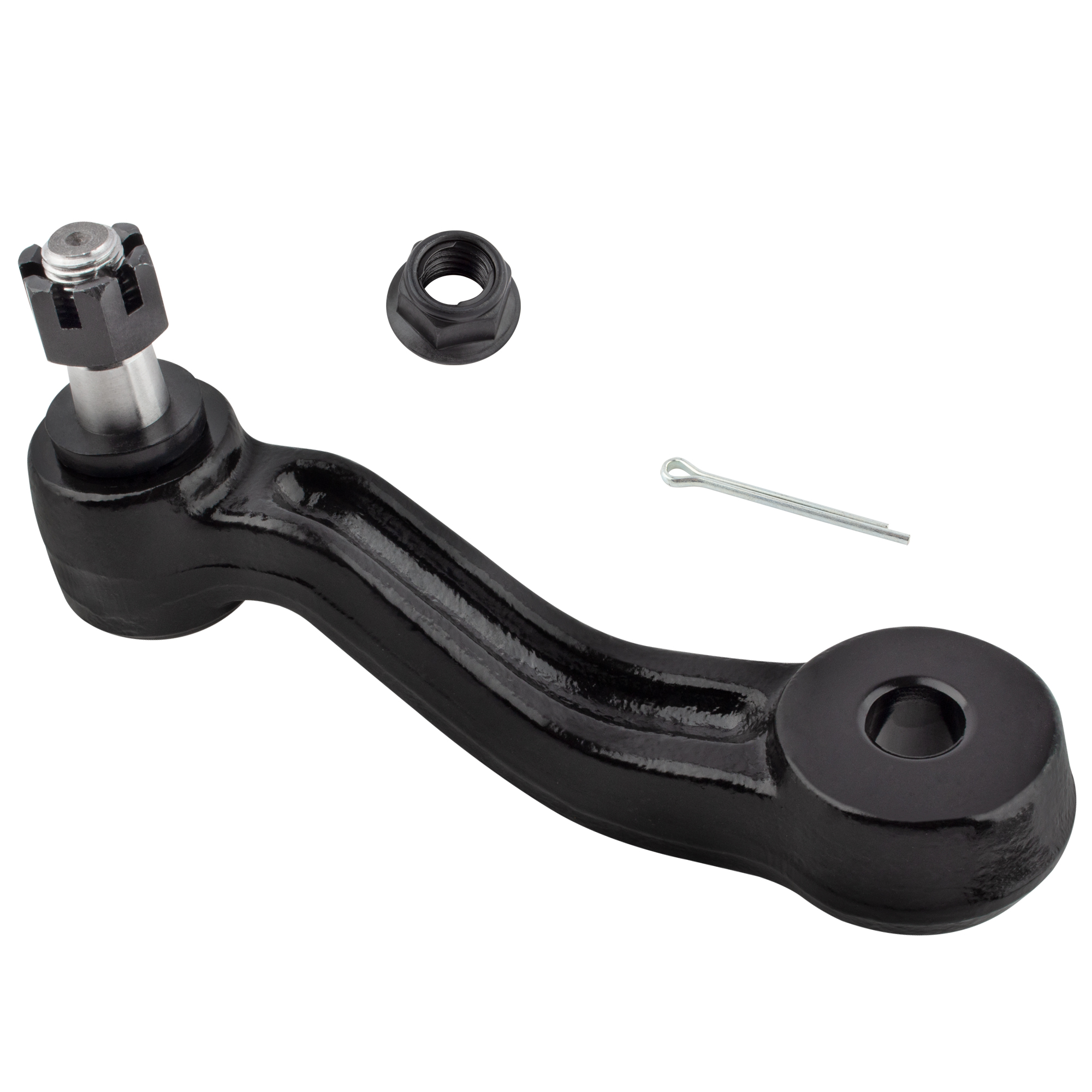

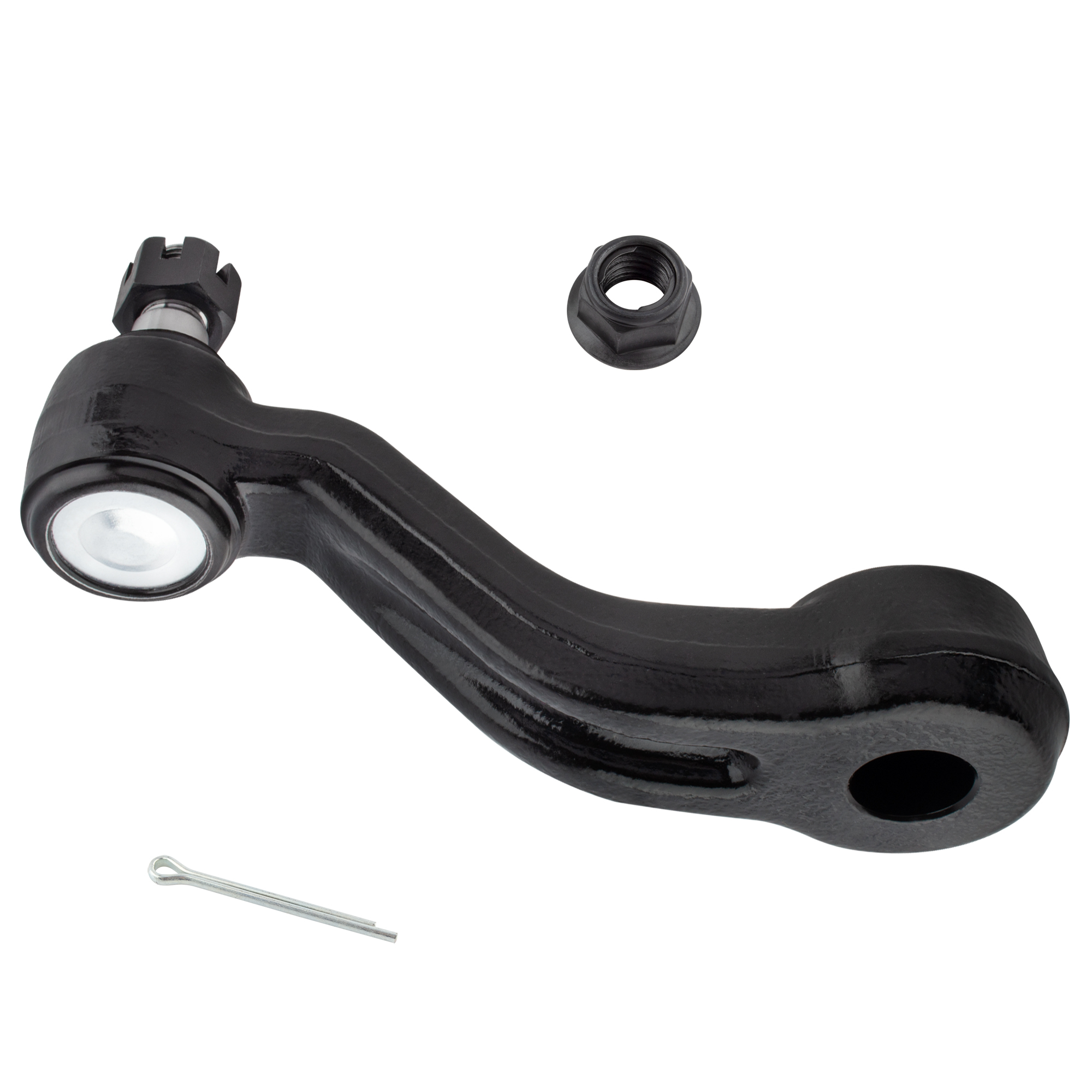

2x Front Steering Idler Arm – K6512

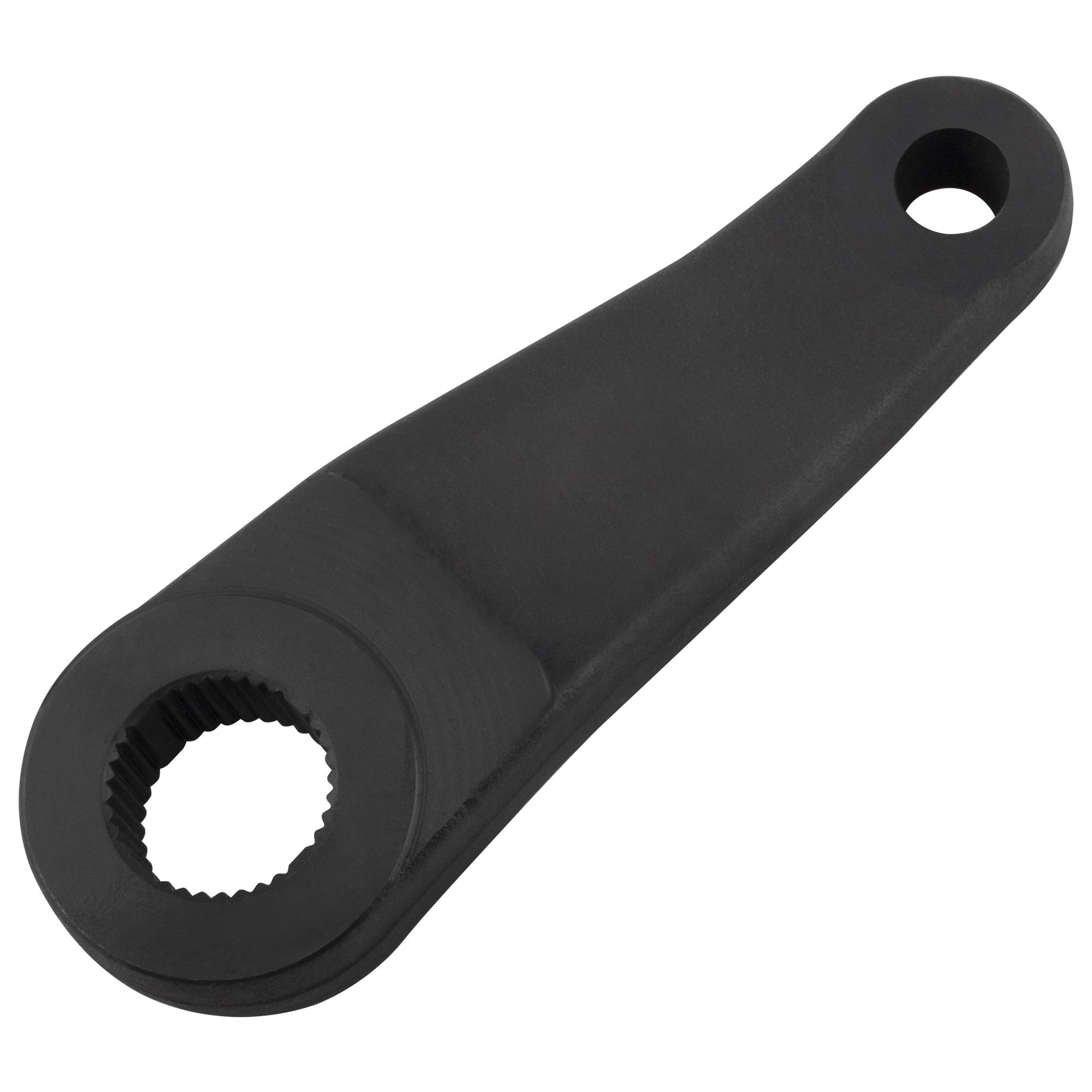

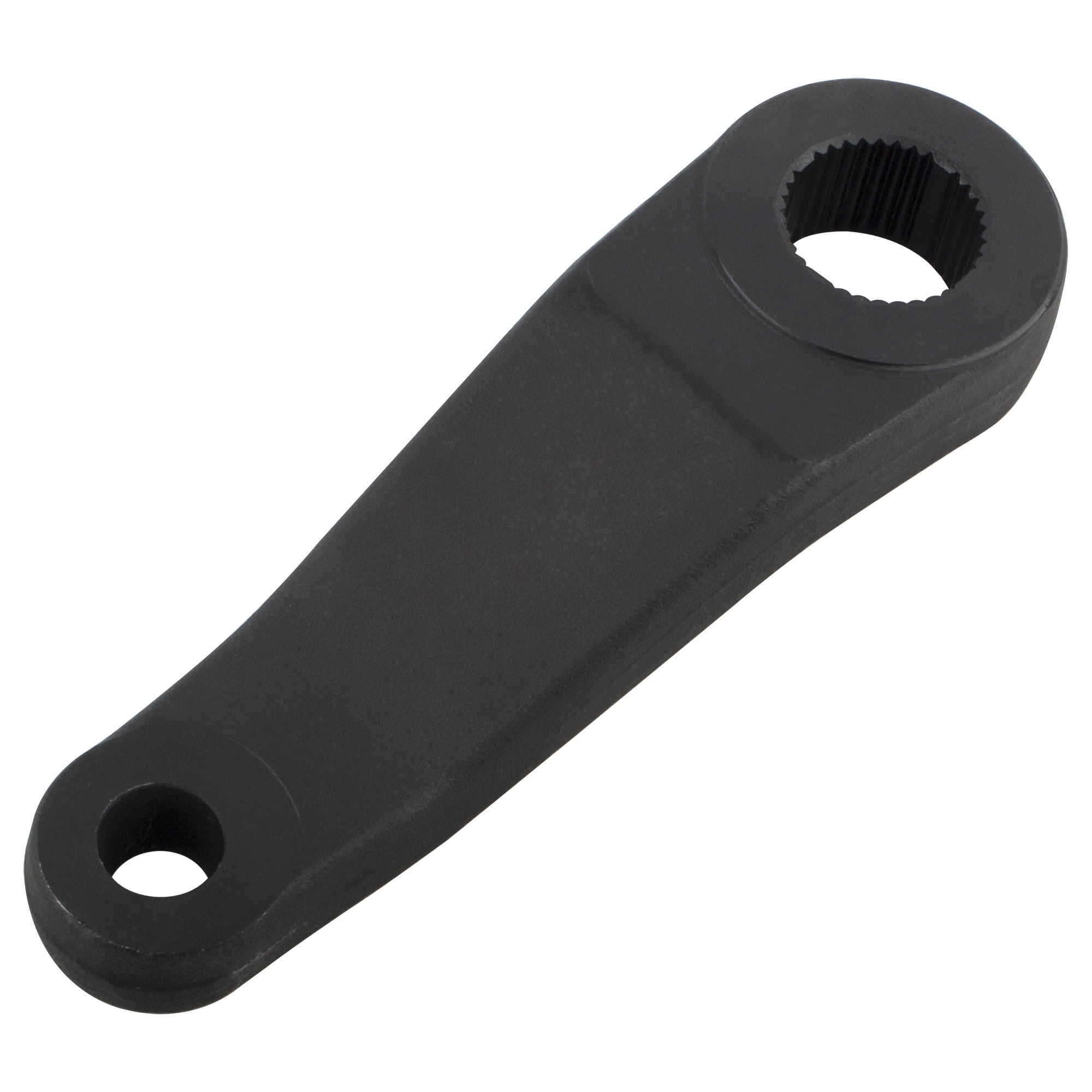

1x Front Steering Pitman Arm – K6653

Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.

Fitment:
Fit for Chevrolet Express 1500 1996-2002
Fit for Chevrolet Express 2500 1996-2002
Fit for Chevrolet Express 3500 1996-2002
Fit for GMC Savana 1500 1996-2002
Fit for GMC Savana 2500 1996-2002
Fit for GMC Savana 3500 1996-2002

Replacement OEM ( Original Equipment Part) Number: K6533 K6512 K6653
Placement on Vehicle: Front, Left, Right
Package Included:
2x Front Steering Idler Arm Bracket Assembly – K6533
2x Front Steering Idler Arm – K6512
1x Front Steering Pitman Arm – K6653

Weight 18.04 lbs
Dimensions 9.33 × 6.61 × 4.72 in
Warranty Terms

Two Year
YearMakeModelSubmodelEngine
1996 – 2002ChevroletExpress 1500Base
LS		V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
2001 – 2002ChevroletExpress 1500LTV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
1996 – 2002ChevroletExpress 2500BaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci CNG MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
LSV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.0L 305ci GAS TBI vin H type L03 – 2 valve OHV
V8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci CNG MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
1996 – 2002ChevroletExpress 3500Base
LS		V8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci CNG MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
V8 – 7.4L 454ci GAS MFI vin J type L29 – 2 valve OHV
V8 – 8.1L 496ci GAS MFI vin G type L18 – 2 valve OHV
1996GMCG3500Magnavan
Rally
Rally STX
Vandura		V8 – 5.7L 350ci CNG TBI vin K – 2 valve OHV
V8 – 5.7L 350ci GAS TBI vin K – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI vin Y type L57 – 2 valve OHV
V8 – 7.4L 454ci GAS MFI vin J type L29 – 2 valve OHV
Rally Camper Special
Vandura Special		V8 – 5.7L 350ci GAS TBI vin K – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI vin Y type L57 – 2 valve OHV
V8 – 7.4L 454ci GAS MFI vin J type L29 – 2 valve OHV
1996 – 2002GMCSavana 1500BaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
1996 – 2000GMCSavana 1500SLEV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
2001 – 2002GMCSavana 1500SLTV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
1996 – 2002GMCSavana 2500BaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
1996 – 2000GMCSavana 2500SLEV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
2001 – 2002GMCSavana 2500SLTV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
V8 – 5.0L 305ci GAS MFI vin M type L30 – 2 valve OHV
V8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
1996 – 2002GMCSavana 3500BaseV8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
V8 – 7.4L 454ci GAS MFI vin J type L29 – 2 valve OHV
V8 – 8.1L 496ci GAS MFI vin G type L18 – 2 valve OHV
1996 – 2000GMCSavana 3500SLEV8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
V8 – 7.4L 454ci GAS MFI vin J type L29 – 2 valve OHV
2001 – 2002GMCSavana 3500SLTV8 – 5.7L 350ci BI-FUEL MFI vin R type L31 – 2 valve OHV
V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV
V8 – 6.5L 395ci DIESEL MFI Turbocharged vin F type L65 – 2 valve OHV
V8 – 8.1L 496ci GAS MFI vin G type L18 – 2 valve OHV
