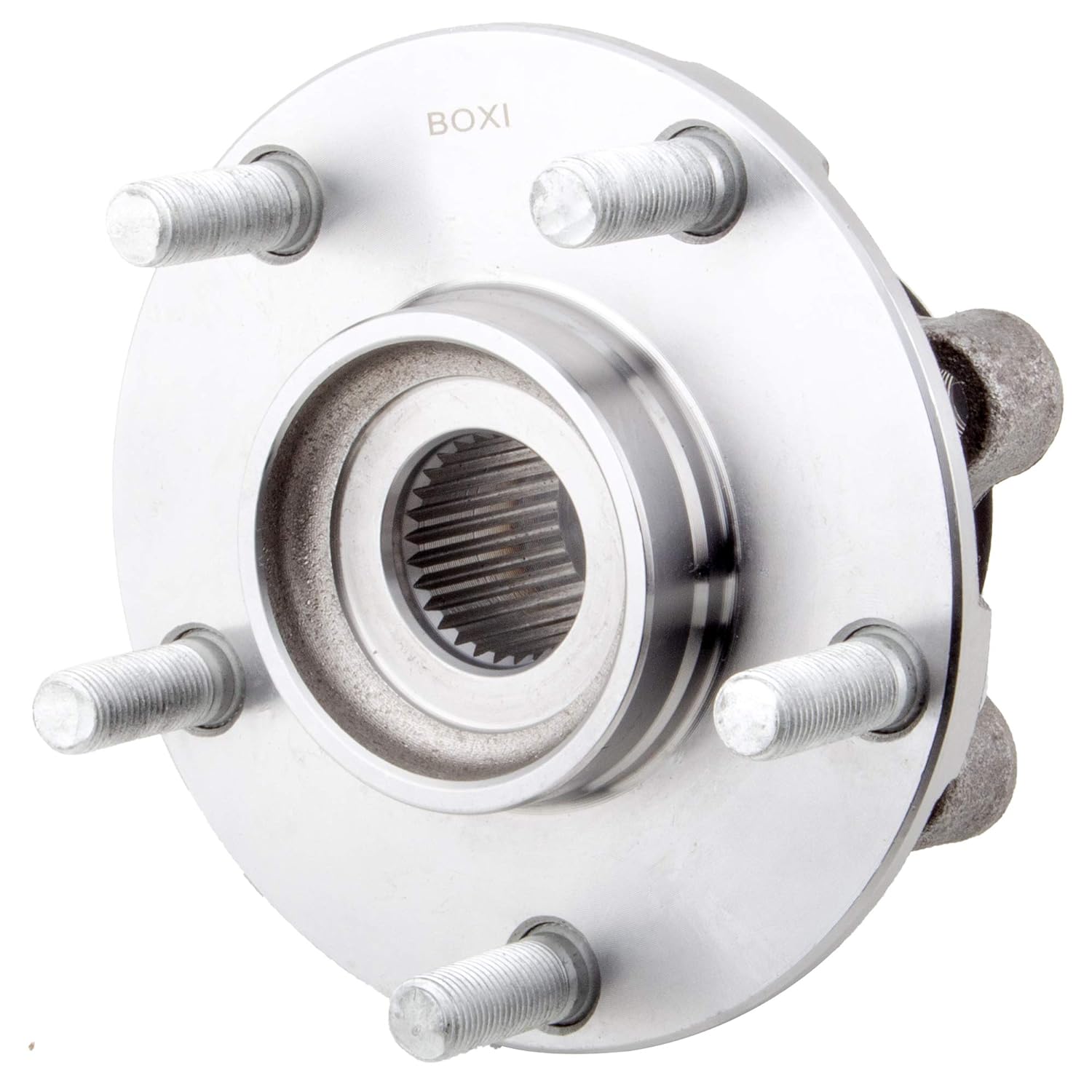

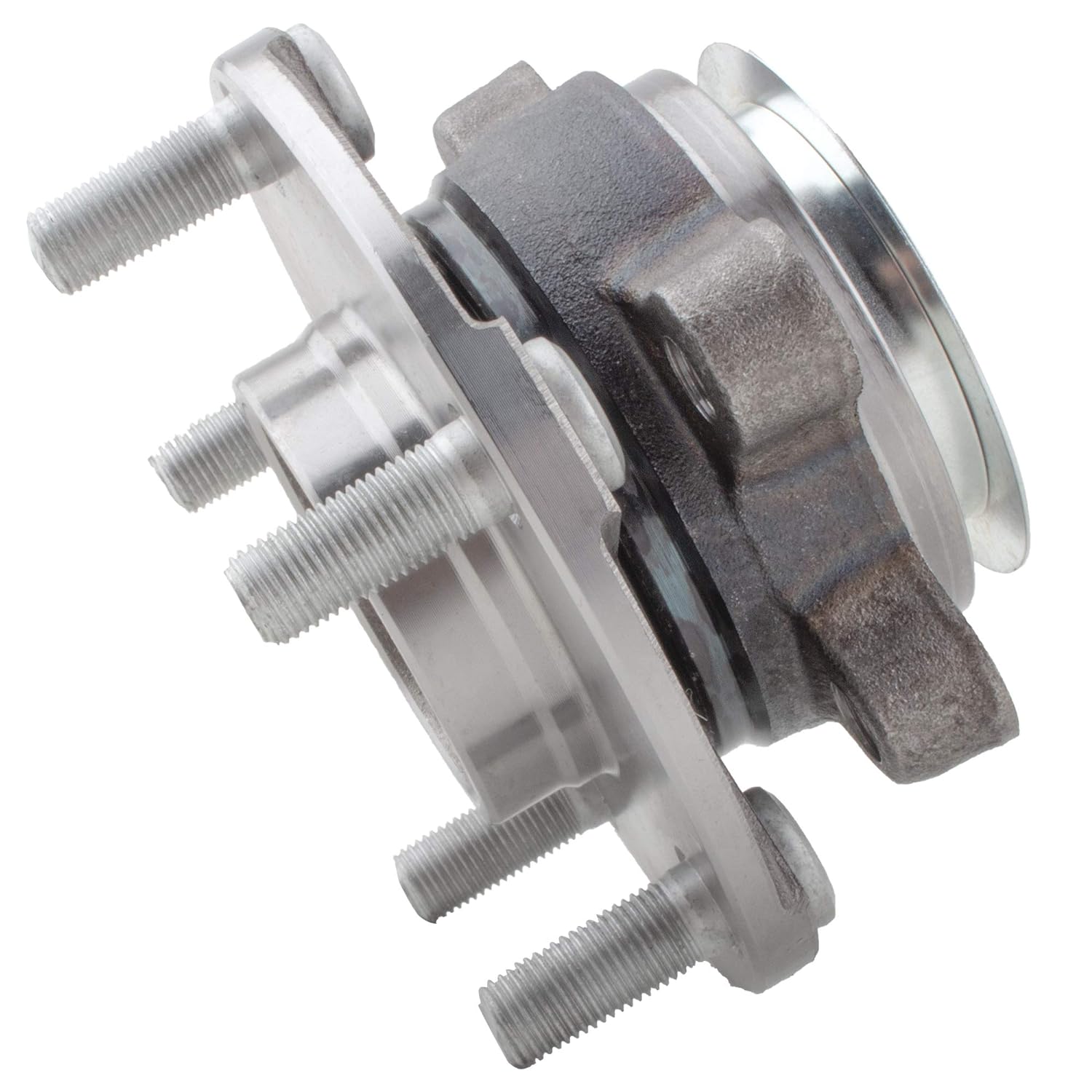

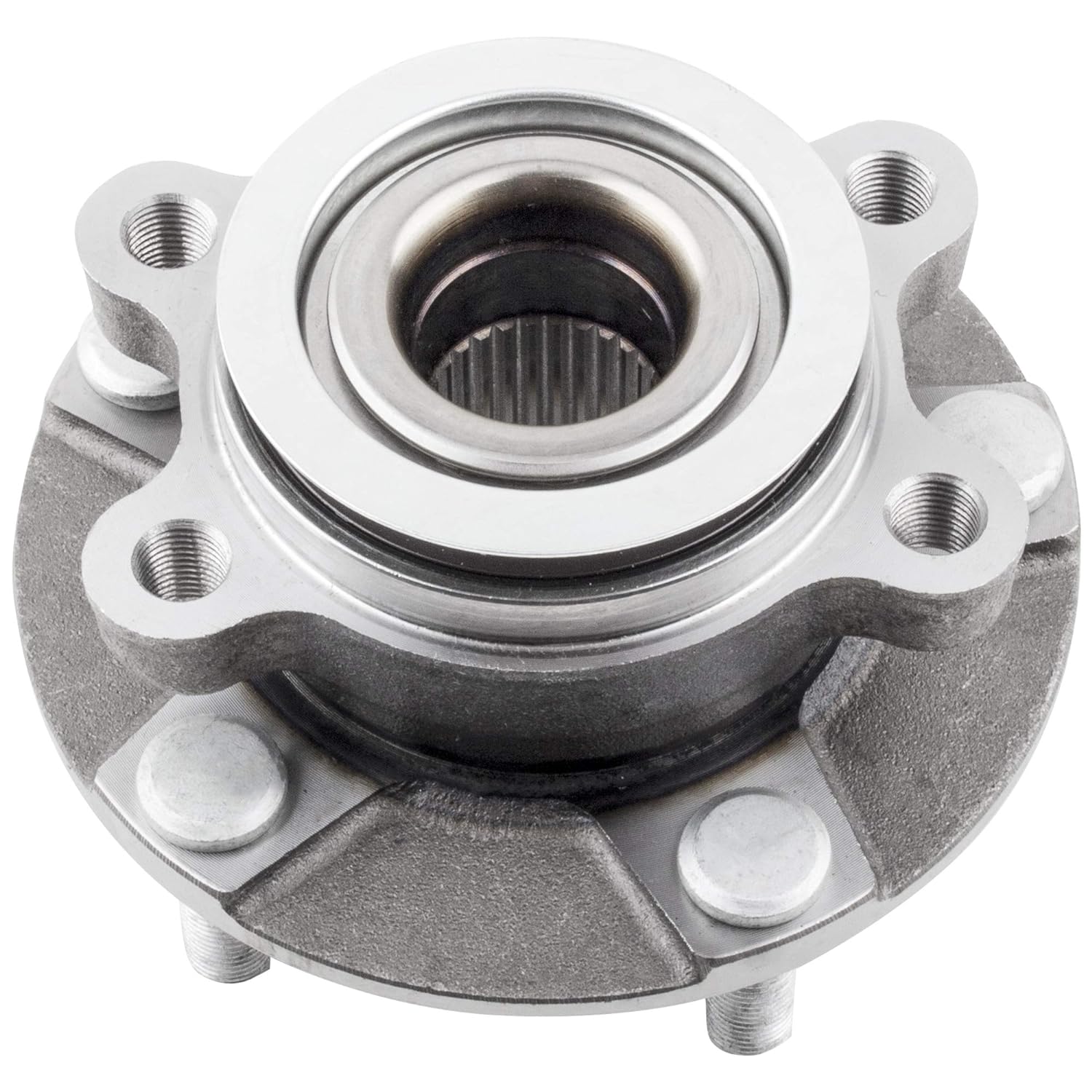

BOXI Hub Assembly BX03200033-1
BOXI SKU#: BX03200033-1
$24.86
1 in stock
Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly
| Weight | 6.47 lbs |
|---|---|
| Dimensions | 6.88 × 6.29 × 6.29 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Rectangle |
| Wiring Harness Included | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.354 Inch |
| Flange Diameter (mm) | 136mm |
| Flange Offset (in) | 1.602 Inch |
| Flange Offset (mm) | 40.7mm |
| Hub Pilot Diameter (in) | 3.149 Inch |
| Hub Pilot Diameter (mm) | 80mm |
| Total Hub Diameter (in) | 5.350 Inch |
| Total Hub Diameter (mm) | 136mm |
| Hub Centerbore Diameter (in) | 4.500 Inch |
| Hub Centerbore Diameter (mm) | 114.3mm |
| Total Hub Height (in) | 3.590 Inch |
| Total Hub Height (mm) | 91.2mm |
| Flange Bolt Size (in) | 1.300 Inch |
| Flange Bolt Size (mm) | 33mm |
| Number Of Splines | 29 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.25 |
| Flange Bolt Thread Size | M12-1.25 |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2008 – 2013 | Nissan | Rogue | Advance, Exclusive, Krom, S Krom, S, SL, SV, Sense | L4 – 2.5L 2488cc 152ci GAS MFI type QR25DE – 4 valve DOHC |
| 2014 – 2015 | Nissan | Rogue Select | S | L4 – 2.5L 2488cc 152ci GAS MFI type QR25DE – 4 valve DOHC |
| 2007 – 2012 | Nissan | Sentra | SE-R Spec V, SE-R | L4 – 2.5L 2488cc 152ci GAS MFI type QR25DE – 4 valve DOHC |
