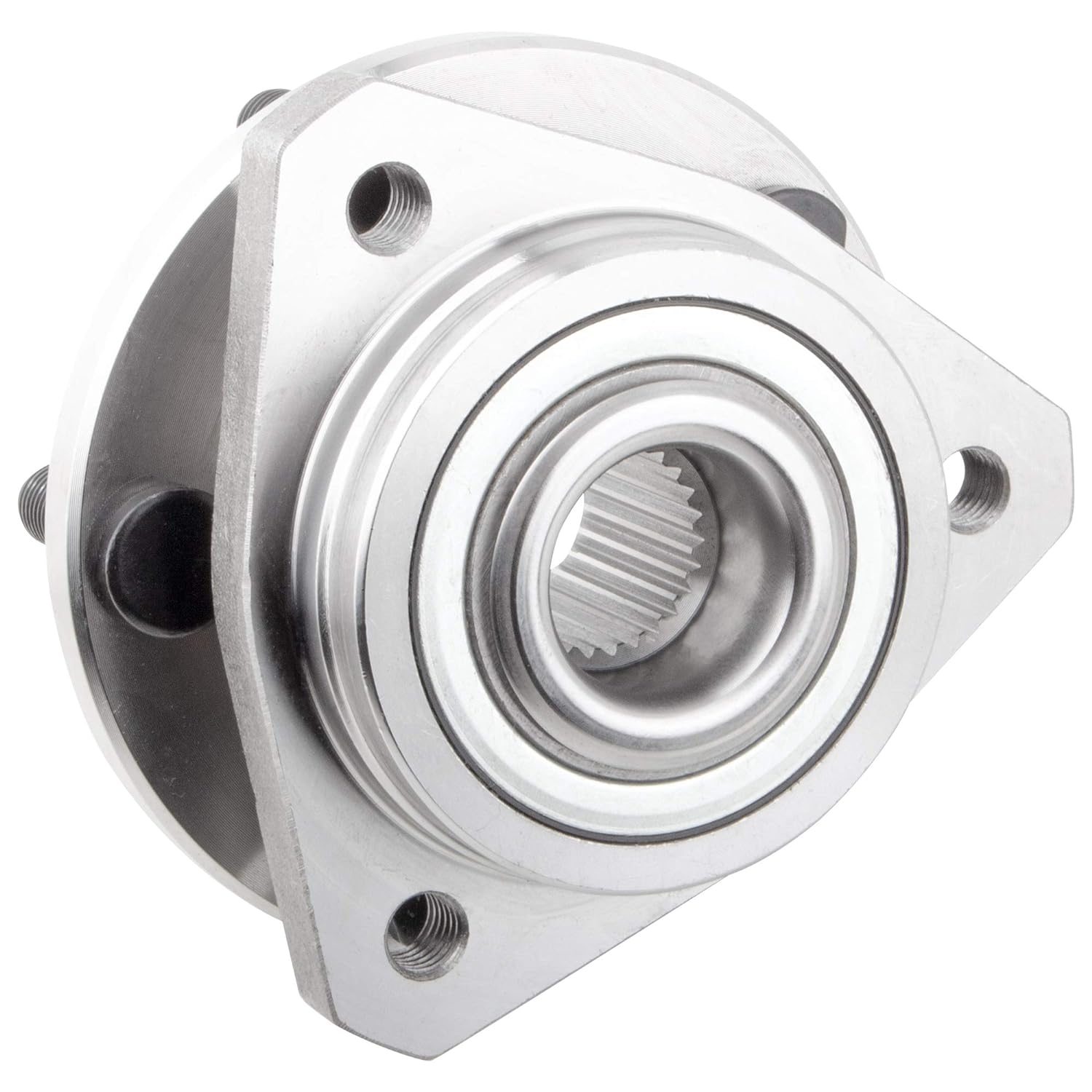

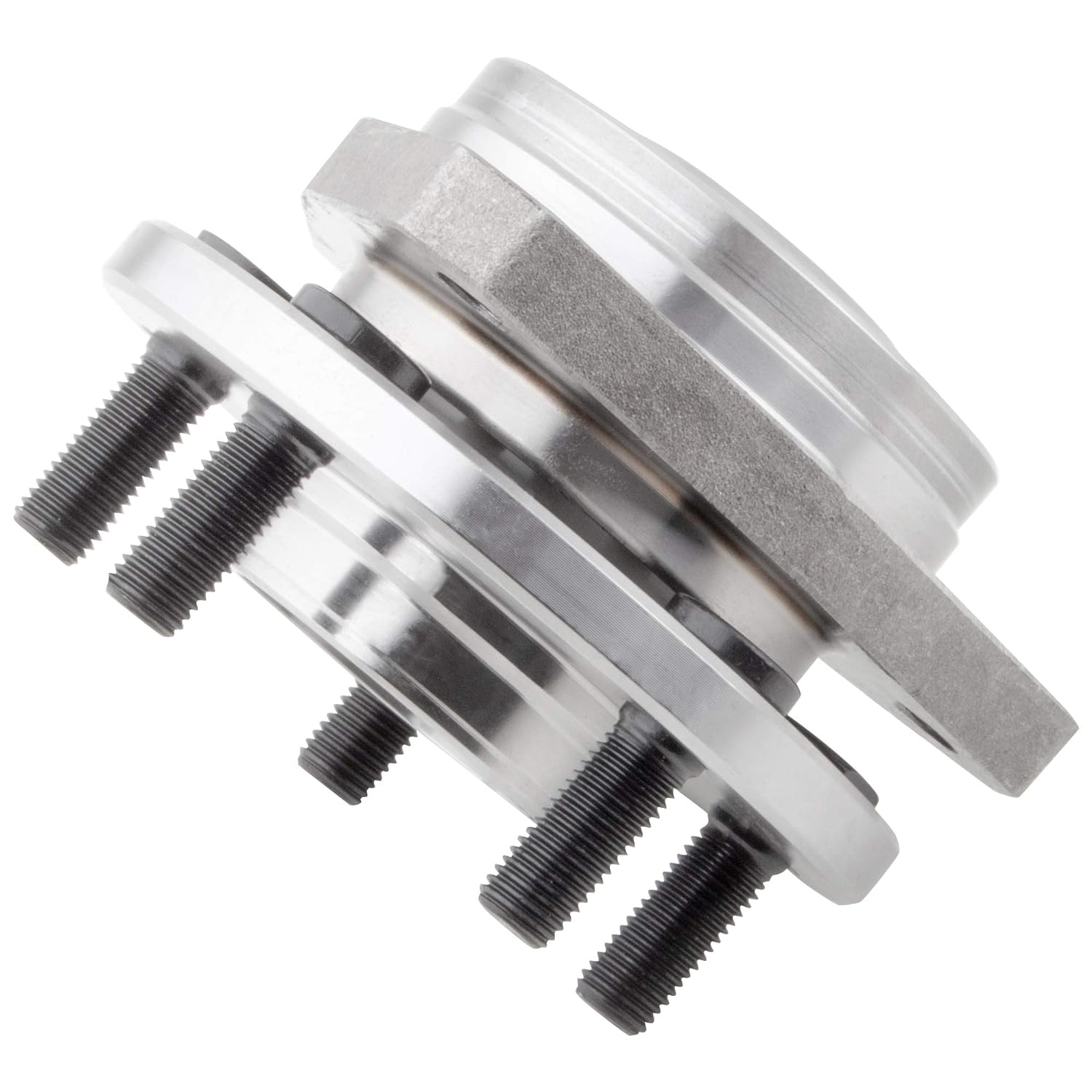

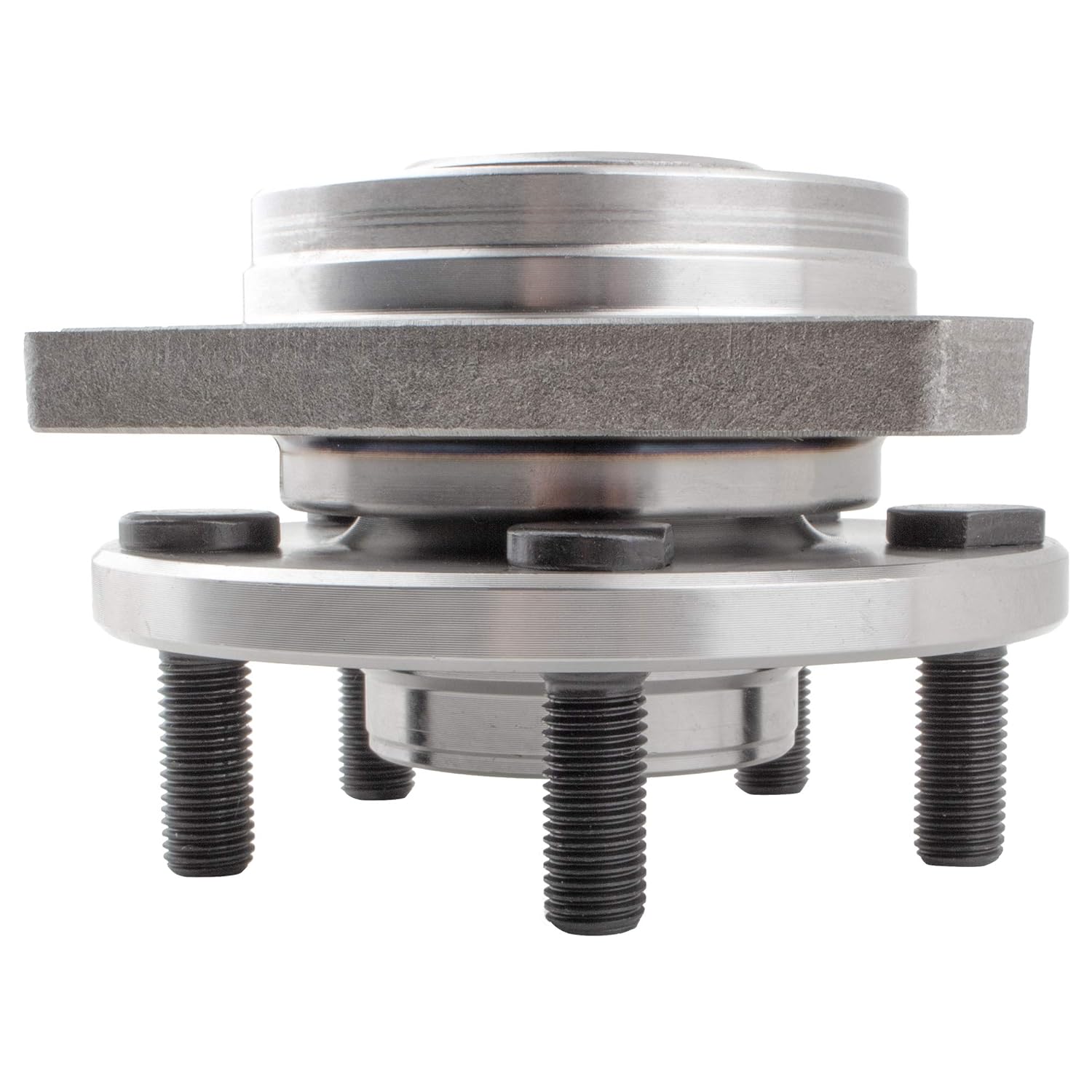

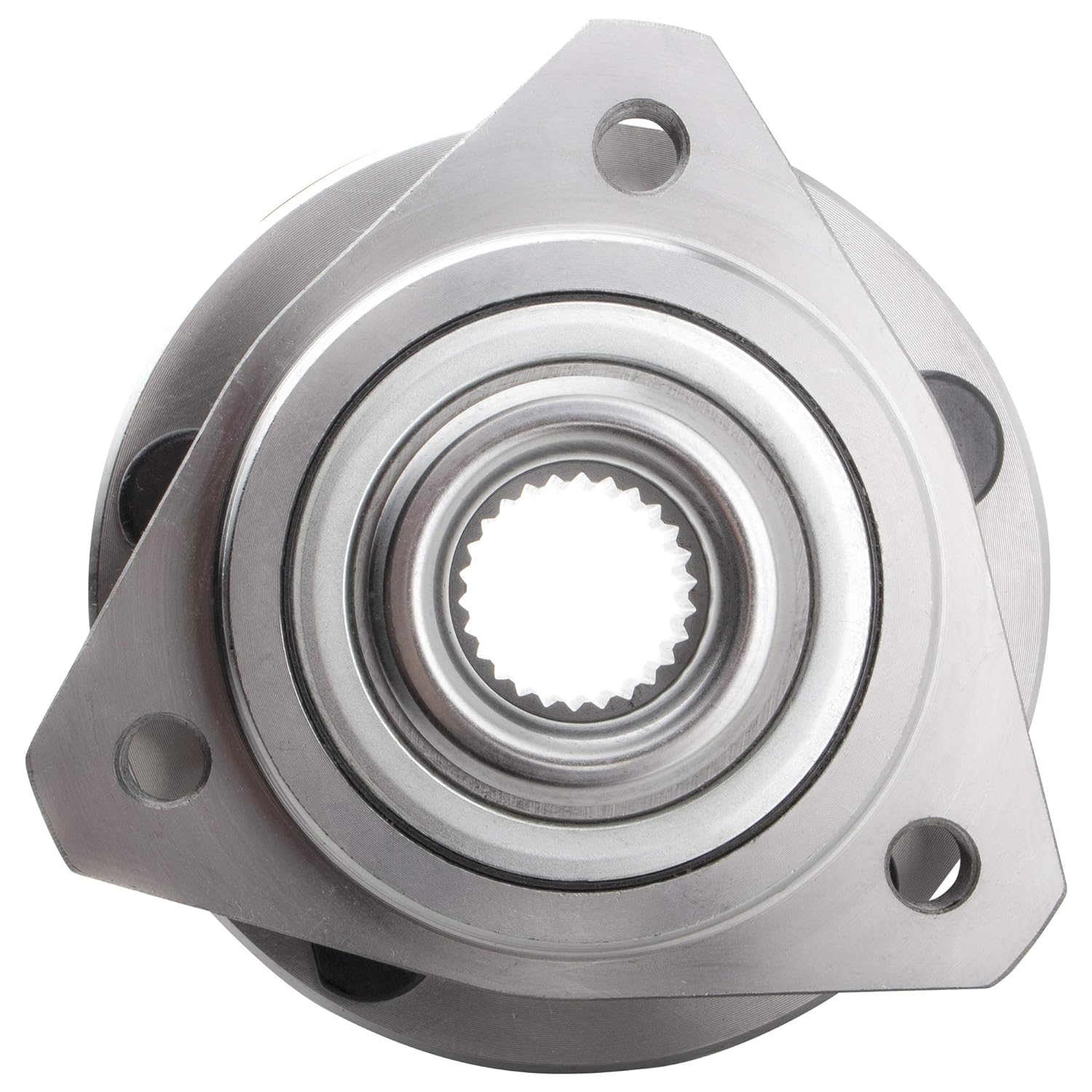

BOXI Hub Assembly BX03200022-1
BOXI SKU#: BX03200022-1
$21.94
3 in stock
Placement on Vehicle:Front Driver or Passenger Side
Package Included:1pc Wheel Hub and Bearing Assembly
| Weight | 6.69 lbs |
|---|---|
| Dimensions | 6.69 × 6.29 × 4.52 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Triangle |
| Wiring Harness Included | No |
| Greaseable | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.031 Inch |
| Flange Diameter (mm) | 128mm |
| Flange Offset (in) | 1.480 Inch |
| Flange Offset (mm) | 38mm |
| Hub Pilot Diameter (in) | 3.425 Inch |
| Hub Pilot Diameter (mm) | 87mm |
| Flange Outside Diameter (in) | 5.030 Inch |
| Flange Outside Diameter (mm) | 127.8mm |
| Total Hub Diameter (in) | 5.030 Inch |
| Total Hub Diameter (mm) | 127mm |
| Hub Centerbore Diameter (in) | 3.940 Inch |
| Hub Centerbore Diameter (mm) | 100mm |
| Total Hub Height (in) | 3.700 Inch |
| Total Hub Height (mm) | 93.9mm |
| Flange Bolt Size (in) | 1.421 Inch |
| Flange Bolt Size (mm) | 36.1mm |
| Number Of Splines | 26 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.50 |
| Flange Bolt Thread Size | M12-1.75 |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 1995 – 2006 | Chrysler | Cirrus | Base, LX, LXi, Limited | V6 – 2.5L 2497cc 152ci GAS MFI vin H type EEB – 4 valve SOHC, L4 – 2.0L 1996cc 122ci GAS MFI vin C type ECB – 4 valve SOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin X type EDZ – 4 valve DOHC, L4 – 2.4L 2429cc 148ci GAS MPI Turbocharged – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin R type EER – 4 valve DOHC, L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin U – 4 valve DOHC |
| 1996 – 2006 | Chrysler | Sebring | Base, GTC, JX, JXi, LX, LXi, Limited, TSI, Touring | L4 – 2.4L 2351cc GAS MFI vin G – 4 valve SOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin J type ED2 – 4 valve DOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin X type EDZ – 4 valve DOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin T – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin R type EER – 4 valve DOHC, V6 – 2.5L 2497cc 152ci GAS MFI vin H type EEB – 4 valve SOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin U – 4 valve DOHC, V6 – 3.0L 2972cc 181ci GAS MFI vin H type 6G72 – 4 valve SOHC |
| 1995 – 2006 | Dodge | Stratus | Base, ES, LE, LX, R/T, SE Plus, SE, SXT | L4 – 2.0L 1996cc 122ci GAS MFI vin C type ECB – 4 valve SOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin X type EDZ – 4 valve DOHC, V6 – 2.5L 2497cc 152ci GAS MFI vin H type EEB – 4 valve SOHC, V6 – 2.7L 2736cc 167ci FLEX MFI vin T – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin R type EER – 4 valve DOHC, V6 – 2.7L 2736cc 167ci GAS MFI vin U – 4 valve DOHC, L4 – 2.4L 2429cc 148ci GAS MFI Turbocharged – 4 valve DOHC, V6 – 3.0L 2972cc 181ci GAS MFI vin H type 6G72 – 4 valve SOHC, L4 – 2.0L 1995cc 122ci GAS MPI – 4 valve DOHC, L4 – 2.4L 2351cc GAS MFI vin G – 4 valve SOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin J type ED2 – 4 valve DOHC, L4 – 2.4L 2429cc 148ci GAS MPI – 4 valve DOHC |
| 1996 – 2000 | Plymouth | Breeze | Base, Expresso | L4 – 2.0L 1996cc 122ci GAS MFI vin C type ECB – 4 valve SOHC, L4 – 2.4L 2429cc 148ci GAS MFI vin X type EDZ – 4 valve DOHC |
