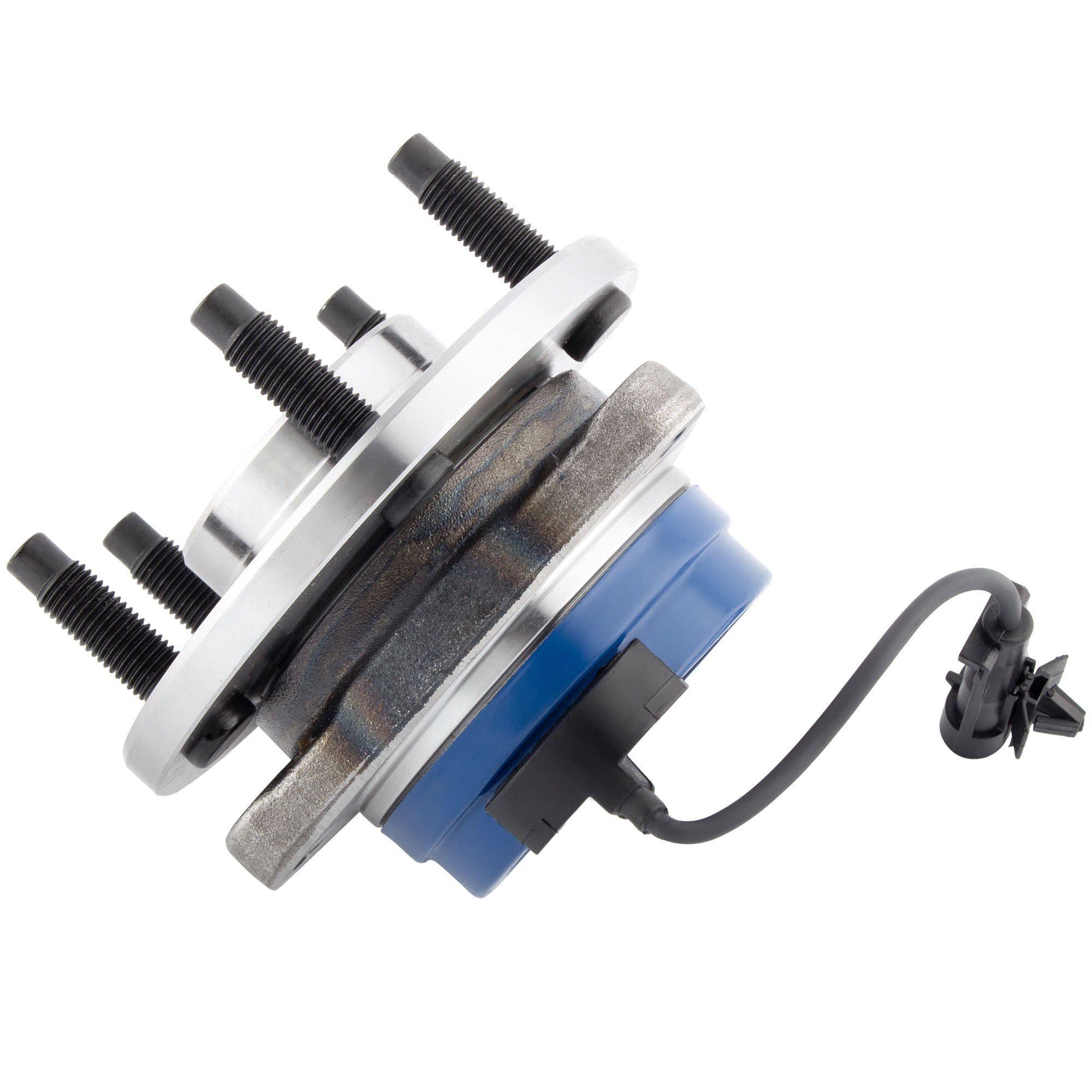

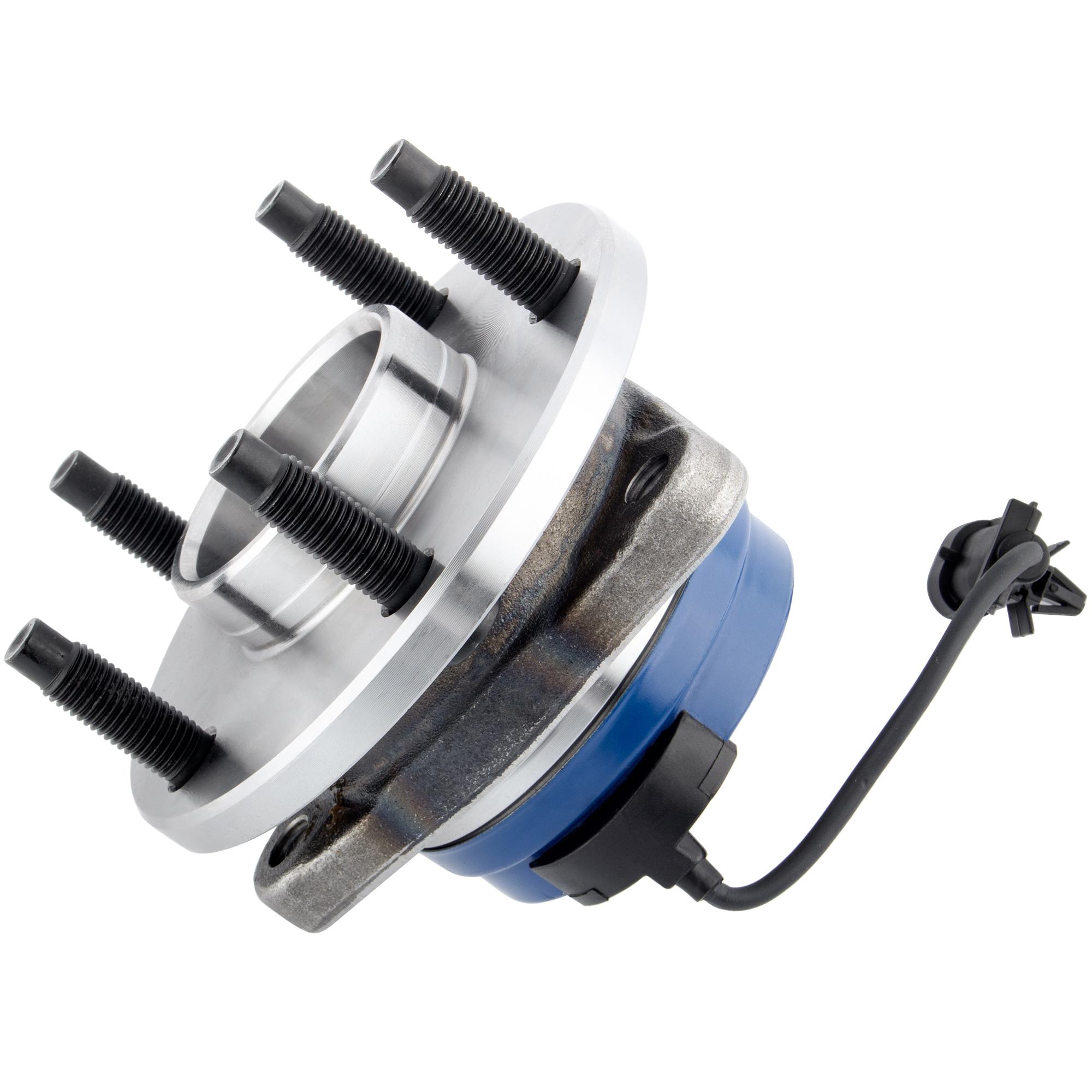

BOXI Hub Assembly BX03200010-1
BOXI SKU#: BX03200010-1
$49.11
1 in stock
Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly
| Weight | 8.06 lbs |
|---|---|
| Dimensions | 6.69 × 6.29 × 6.51 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | Yes |
| Terminal Gender | Male |
| Flange Shape | Round |
| Wiring Harness Included | Yes |
| Greaseable | Yes |
| Bearing Type | Ball |
| Flange Diameter (in) | 2.580 Inch |
| Flange Diameter (mm) | 65.45mm |
| Flange Offset (in) | 1.540 Inch |
| Flange Offset (mm) | 39mm |
| Hub Pilot Diameter (in) | 3.540 Inch |
| Hub Pilot Diameter (mm) | 90mm |
| Total Hub Diameter (in) | 5.390 Inch |
| Total Hub Diameter (mm) | 137mm |
| Hub Centerbore Diameter (in) | 4.330 Inch |
| Hub Centerbore Diameter (mm) | 110mm |
| Total Hub Height (in) | 4.450 Inch |
| Total Hub Height (mm) | 113mm |
| Flange Bolt Size (in) | 1.510 Inch |
| Flange Bolt Size (mm) | 38.3mm |
| Number Of Splines | 30 |
| Number Of Terminals | 1 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.75 |
| Flange Bolt Thread Size | M12-1.50 |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2007 – 2008 | Cadillac | BLS | Luxury, Premium | L4 – 2.0L 1998cc 122ci GAS MPI Turbocharged type LQ8 – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MPI Turbocharged type LK9 – 4 valve DOHC |
| 2008 – 2010 | Chevrolet | Cobalt | SS | L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin X – 4 valve DOHC |
| 2008 – 2010 | Chevrolet | HHR | Comfort LT, Elegance LT, LS Panel, LS, LT Panel, LT, SS Panel, SS | L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, L4 – 2.2L 2198cc 134ci FLEX MFI vin B type LE8 – 4 valve DOHC, L4 – 2.2L 2198cc 134ci GAS MFI vin D – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FLEX MFI vin V type LE9 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin P – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin X – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin M type LNF – 4 valve DOHC |
| 2004 – 2012 | Chevrolet | Malibu | Base, Classic LS, Classic LT, Hybrid, LS, LT, LTZ, Maxx LS, Maxx LT, Maxx LTZ, Maxx SS, Maxx, SS | L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, V6 – 3.5L 3498cc 213ci GAS MPI type LZ4 – 2 valve OHV, V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV, L4 – 2.4L 2384cc 145ci FULL HYBRID EV-GAS MFI vin 5 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FULL HYBRID EV-GAS MFI vin Z – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FLEX MFI vin 0 type LE9 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FLEX MFI vin U type LE9 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin 0 type LE5 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin 1 type LE5 – 4 valve DOHC, V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV, V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV, V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC, V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV |
| 2005 – 2010 | Pontiac | G6 | Base, GT, GTP, GXP, SE | L4 – 2.4L 2384cc 145ci FLEX MFI vin 0 type LE9 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV, V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV, V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV, V6 – 3.5L 3498cc 213ci GAS MPI type LX9 – 2 valve OHV, V6 – 3.5L 3498cc 213ci GAS MPI type LZ4 – 2 valve OHV, V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV, V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
| 2007 – 2009 | Saturn | Aura | Green Line, Hybrid, XE, XR | L4 – 2.4L 2384cc 145ci FULL HYBRID EV-GAS MFI vin 5 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV, V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
