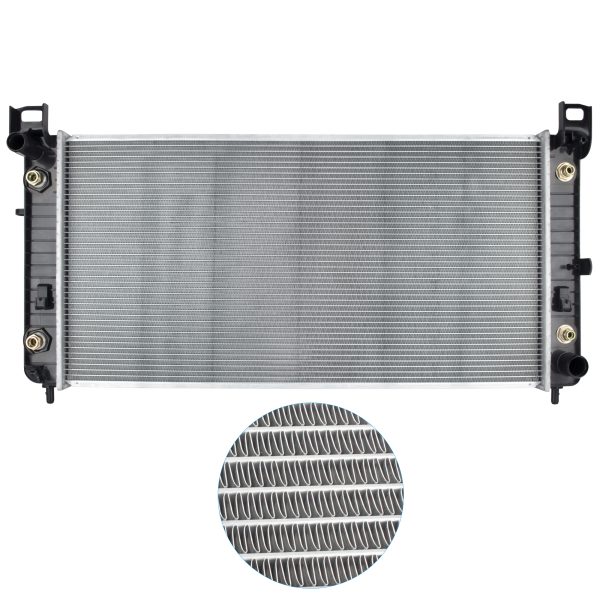

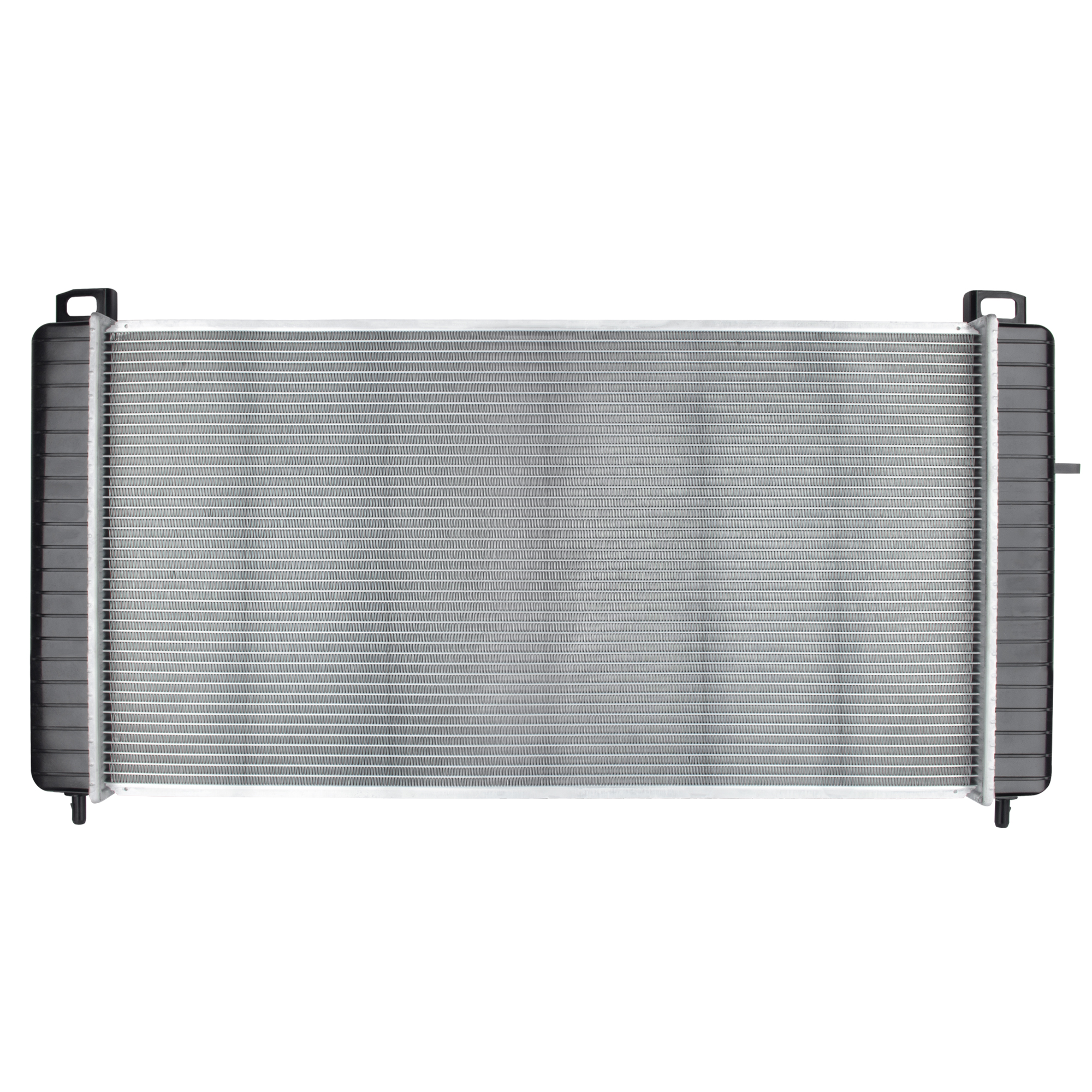

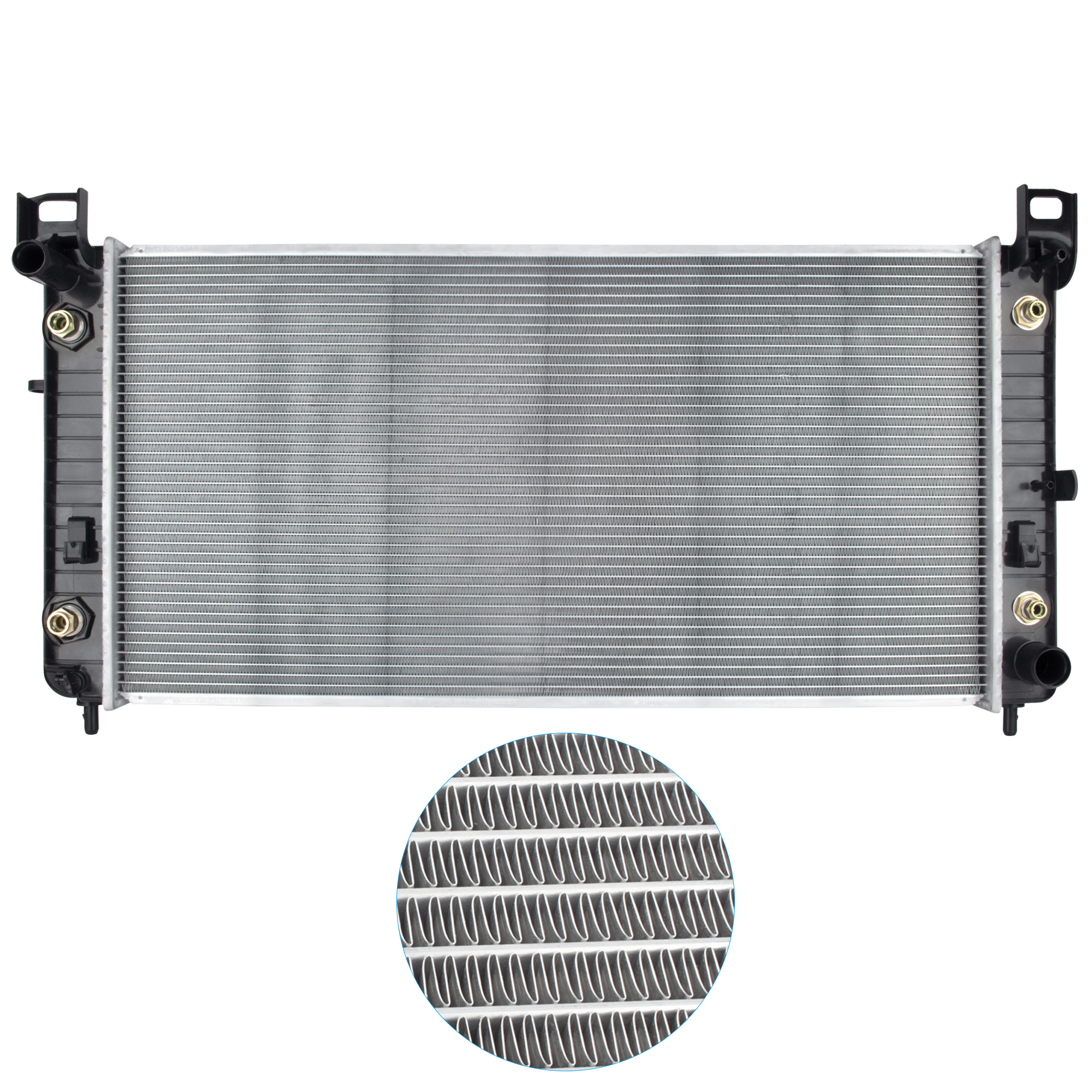

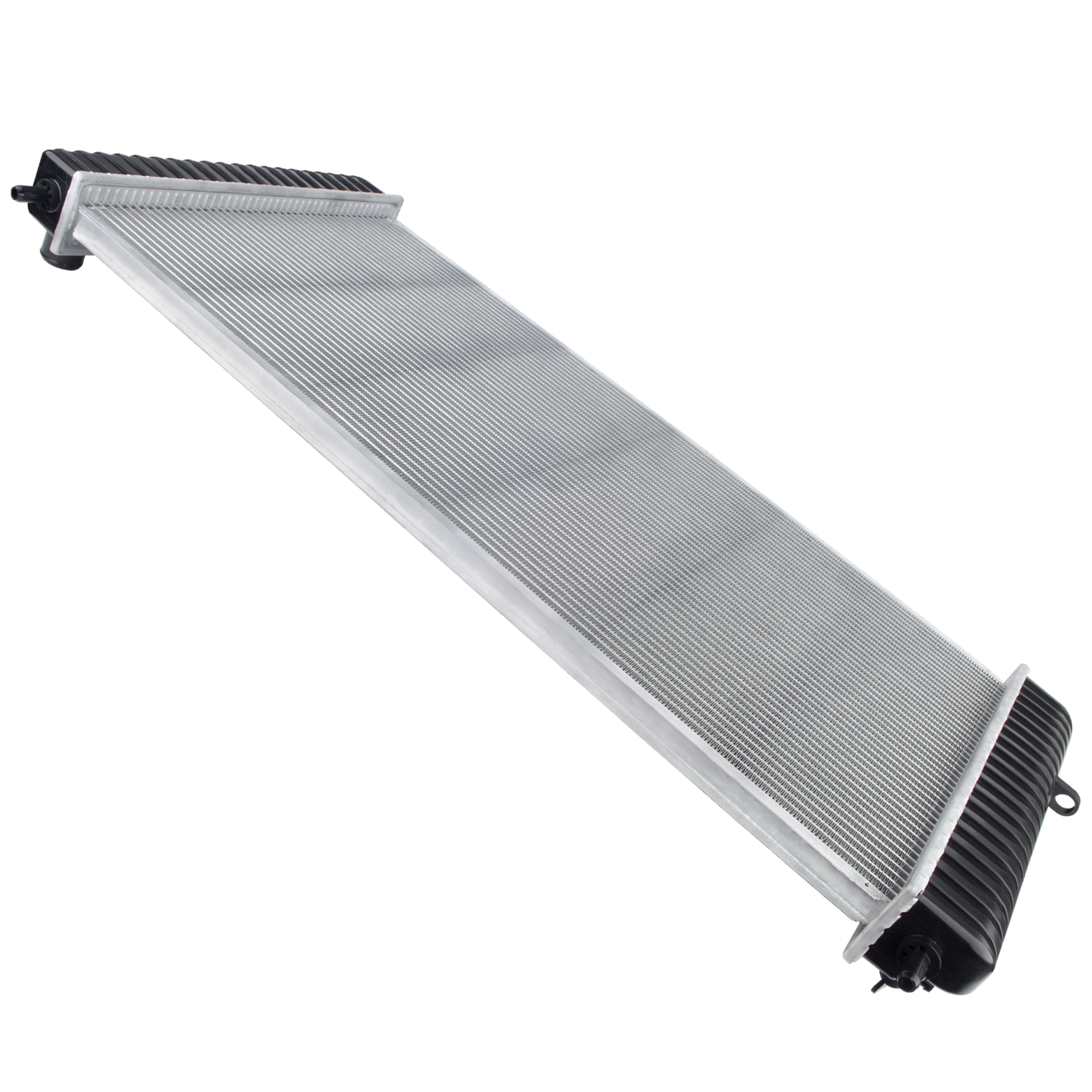

BOXI Radiator BX01300006-1
BOXI SKU#: BX01300006-1
$116.31
1 in stock
Placement on Vehicle:Front
Package Included:1 x Radiator
| Weight | 14.7 lbs |
|---|---|
| Dimensions | 41.3 × 22 × 6.69 in |
| Brand | BOXI |
| Condition | New |
| Core Material | Aluminum |
| Engine Oil Cooler Included | Yes |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate |
| Cap Included | No |
| Inlet Location | Top Driver Side |
| Outlet Location | Bottom Passenger Side |
| Flow Type | Cross-Flow |
| Number Of Rows | 2 |
| Core Height (in) | 17-1/4 Inch |
| Core Height (mm) | 438mm |
| Core Width (in) | 34-1/8 Inch |
| Core Width (mm) | 866mm |
| Core Depth (in) | 1 Inch |
| Core Depth (mm) | 26mm |
| Inlet Hose Diameter (in) | 1-5/16 Inch |
| Inlet Hose Diameter (mm) | 33mm |
| Outlet Hose Diameter (in) | 1-9/16 Inch |
| Outlet Hose Diameter (mm)Terms | 40mm |
| Placement on Vehicle | Front |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2002 – 2014 | Cadillac | Escalade | Base, Hybrid Platinum, Hybrid, Luxury, Platinum, Premium, Special Edition | V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin F type L94 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FULL HYBRID EV-FLEX MFI vin J type LZ1 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin F type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MPI type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MPI type L94 – 2 valve OHV |
| 2003 – 2014 | Cadillac | Escalade ESV | Base, Lujo, Luxury, Platinum, Premium, Special Edition | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin F type L94 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MPI type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MPI type L94 – 2 valve OHV |
| 2002 – 2013 | Cadillac | Escalade EXT | Base, Luxury, Premium | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin F type L94 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MPI type L92 – 2 valve OHV |
| 2007 – 2013 | Chevrolet | Avalanche | Base, Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ | V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin Y type L76 – 2 valve OHV |
| 2002 – 2006 | Chevrolet | Avalanche 1500 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 1999 – 2013 | Chevrolet | Silverado 1500 | Base, Custom, Hybrid, LS, LT, LTZ, SS, WT, XFE, Z71 Off-Road | V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV, V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FULL HYBRID EV-GAS MFI vin 5 type LFA – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin Y type L76 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid, LS, LT, SS, WT | V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV |
| 2001 – 2006 | Chevrolet | Silverado 1500 HD | Base, LS, LT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | Chevrolet | Silverado 1500 HD Classic | LT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 1999 – 2013 | Chevrolet | Silverado 2500 | 400 SS, Base, CHEYENNE, LS, LT, WT | V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV, V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2010 | Chevrolet | Silverado 2500 HD | Base, LS, LT, LTZ, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LS, LT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2010 | Chevrolet | Silverado 3500 | Base, HD, LS, LT, WT | V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MPI type LY6 – 2 valve OHV |
| 2007 | Chevrolet | Silverado 3500 Classic | LS, LT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 – 2010 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2003 – 2006 | Chevrolet | Sonora | Base | V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2014 | Chevrolet | Suburban | LT | V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV |
| 2000 – 2014 | Chevrolet | Suburban 1500 | 75 Aniversario Diamond Edition, Base, LS, LT, LTZ, Z71 | V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin Y type L76 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2000 – 2013 | Chevrolet | Suburban 2500 | Base, LS, LT, LTZ | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV |
| 2000 – 2014 | Chevrolet | Tahoe | Base, LS, LT, LTZ, PPV, Police, SSV, Z71 | V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV |
| 2007 – 2013 | GMC | Sierra | Base, Denali, SLE, SLT | V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV |
| 1999 – 2013 | GMC | Sierra 1500 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT, XFE | V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV, V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FULL HYBRID EV-FLEX MFI vin J type LZ1 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FULL HYBRID EV-GAS MFI vin 5 type LFA – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin Y type L76 – 2 valve OHV |
| 2007 | GMC | Sierra 1500 Classic | Denali, Hybrid, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V6 – 4.3L 262ci GAS MFI vin X type LU3 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2001 – 2006 | GMC | Sierra 1500 HD | SLE, SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | GMC | Sierra 1500 HD Classic | SLE, SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 1999 – 2004 | GMC | Sierra 2500 | Base, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2001 – 2010 | GMC | Sierra 2500 HD | Base, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2007 | GMC | Sierra 2500 HD Classic | SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2006 | GMC | Sierra 3500 | Base, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | GMC | Sierra 3500 Classic | SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 – 2010 | GMC | Sierra 3500 HD | SLE, SLT, WT | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 1995 – 2014 | GMC | Yukon | Base, Denali, SL, SLE, SLT | V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.7L 350ci GAS TBI vin K – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin F type L94 – 2 valve OHV, V8 – 5.7L 350ci GAS MFI vin R type L31 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV |
| 2000 – 2014 | GMC | Yukon XL | 1500 Denali, 1500 SL, 1500 SLE, 1500 SLT, 2500 SLE, 2500 SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin F type L94 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 3 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin Y type L76 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2003 – 2009 | Hummer | H2 | Adventure, Base, Luxury, Special Edition | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.2L 376ci FLEX MFI type L9H – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin 8 type L92 – 2 valve OHV, V8 – 6.2L 6162cc 376ci FLEX MFI vin 2 type L9H – 2 valve OHV |
