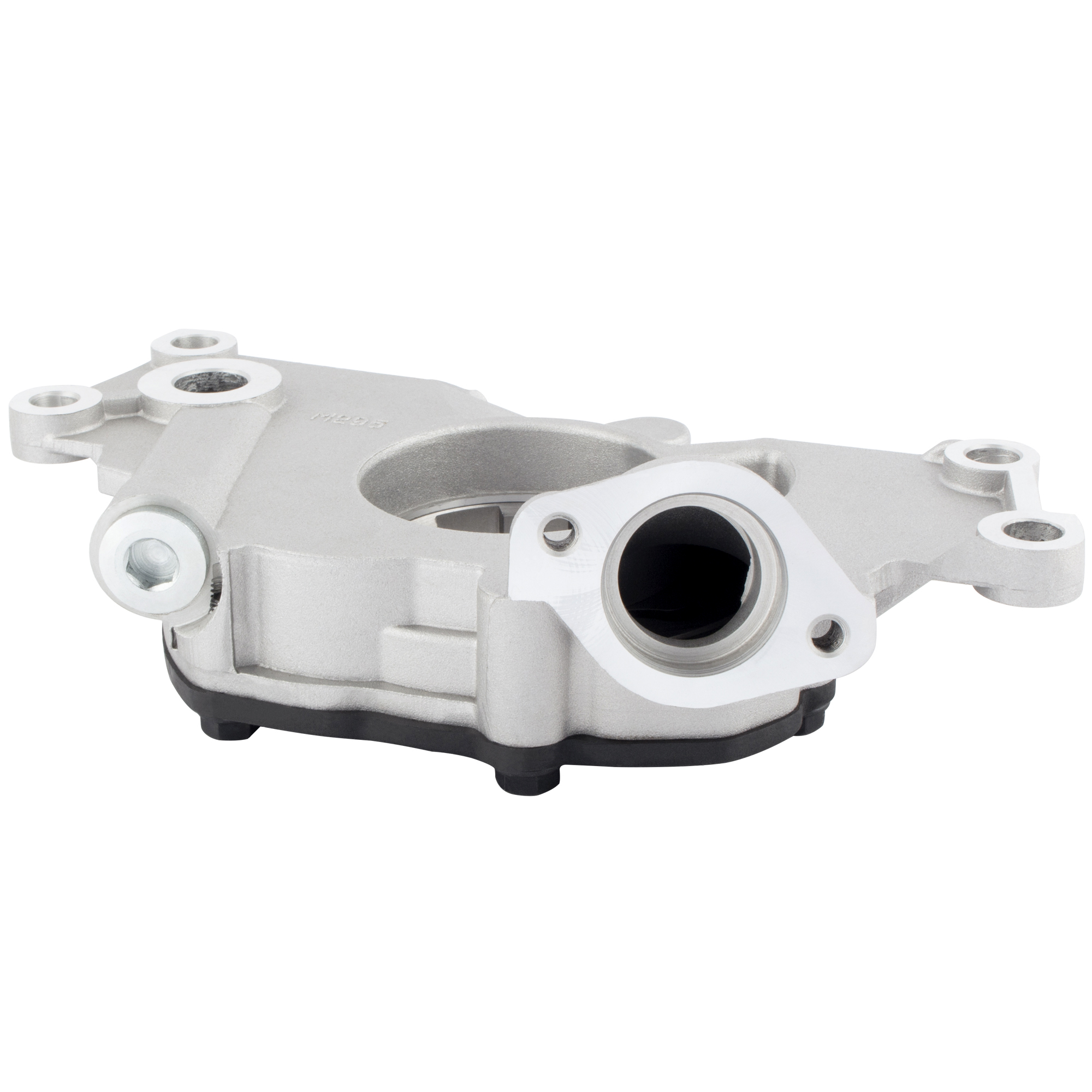

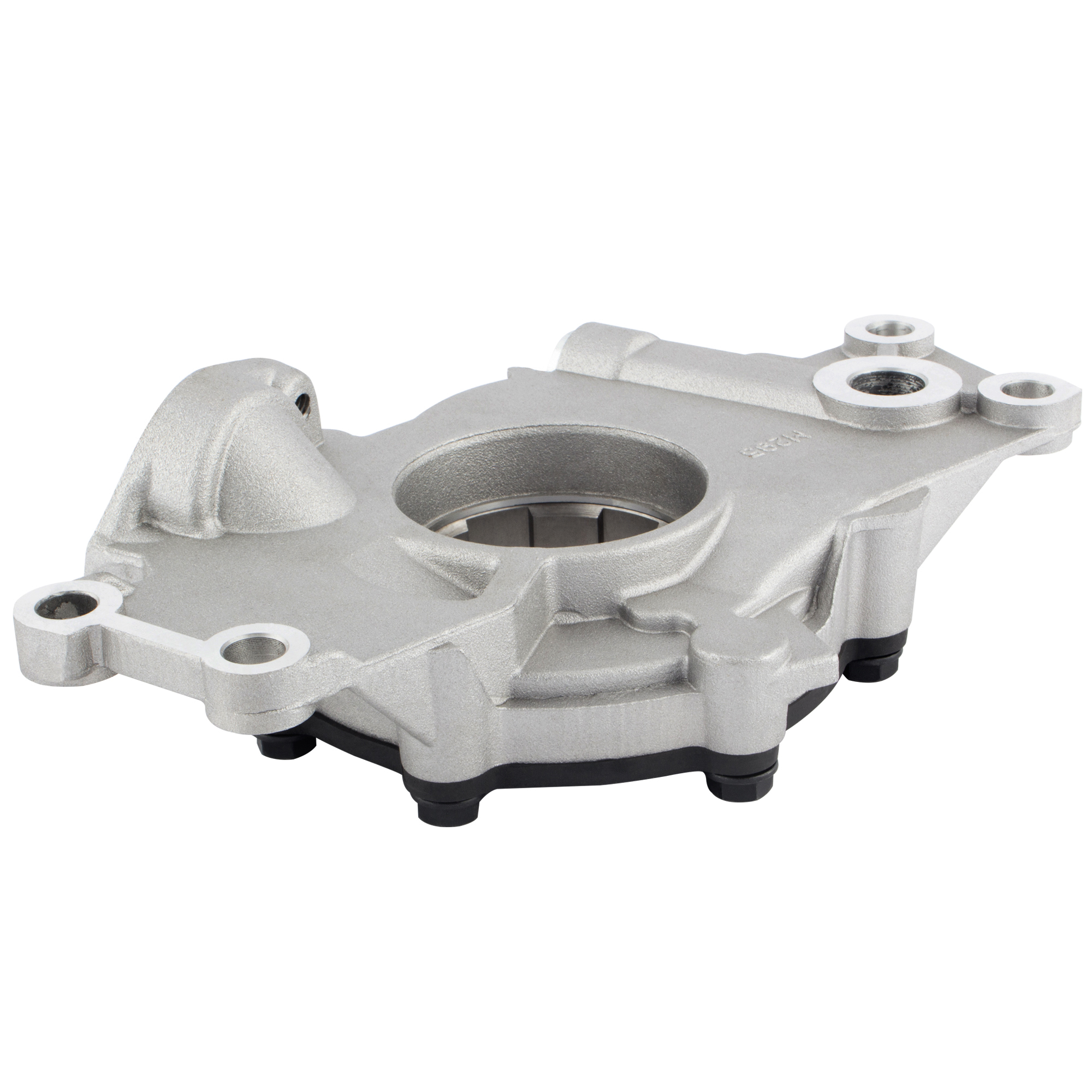

BOXI Oil Pump BX05800004-1
BOXI SKU#: BX05800004-1
$26.23
1 in stock
Placement on Vehicle: Front
Package Included: 1x Oil Pump
| Weight | 2.68 lbs |
|---|---|
| Dimensions | 8.07 × 7.48 × 2.55 in |
| Brand | BOXI |
| Condition | New |
| Finish | Rust Preventative |
| Cotter Pin Included | No |
| Rotor Material | Powdered Metal |
| Springs Included | No |
| Cover Material | Cast Aluminum |
| High Volume | No |
| Pump Pressure | Standard |
| Governor Spinner Included | No |
| Drive Style | Crankshaft |
| Intermediate Shaft Included | No |
| Pump Volume | Standard |
| Pump Cover Included | Yes |
| Housing Material | Aluminum |
| Hardware Included | No |
| Number Of Mounting Holes | 4 |
| Gears Included | Yes |
| Height (in) | 4.660 Inch |
| Height (mm) | 118mm |
| Width (in) | 8 Inch |
| Width (mm) | 203mm |
| Inlet Size (in) | 0.875 Inch |
| Inlet Size (mm) | 22mm |
| Mounting Hole Diameter (in) | 0.360 Inch |
| Mounting Hole Diameter (mm) | 10mm |
| Pick Up Tube Diameter (in) | 0.875 Inch |
| Pick Up Tube Diameter (mm) | 22mm |
| Guide Included | No |
| Bolts Included | No |

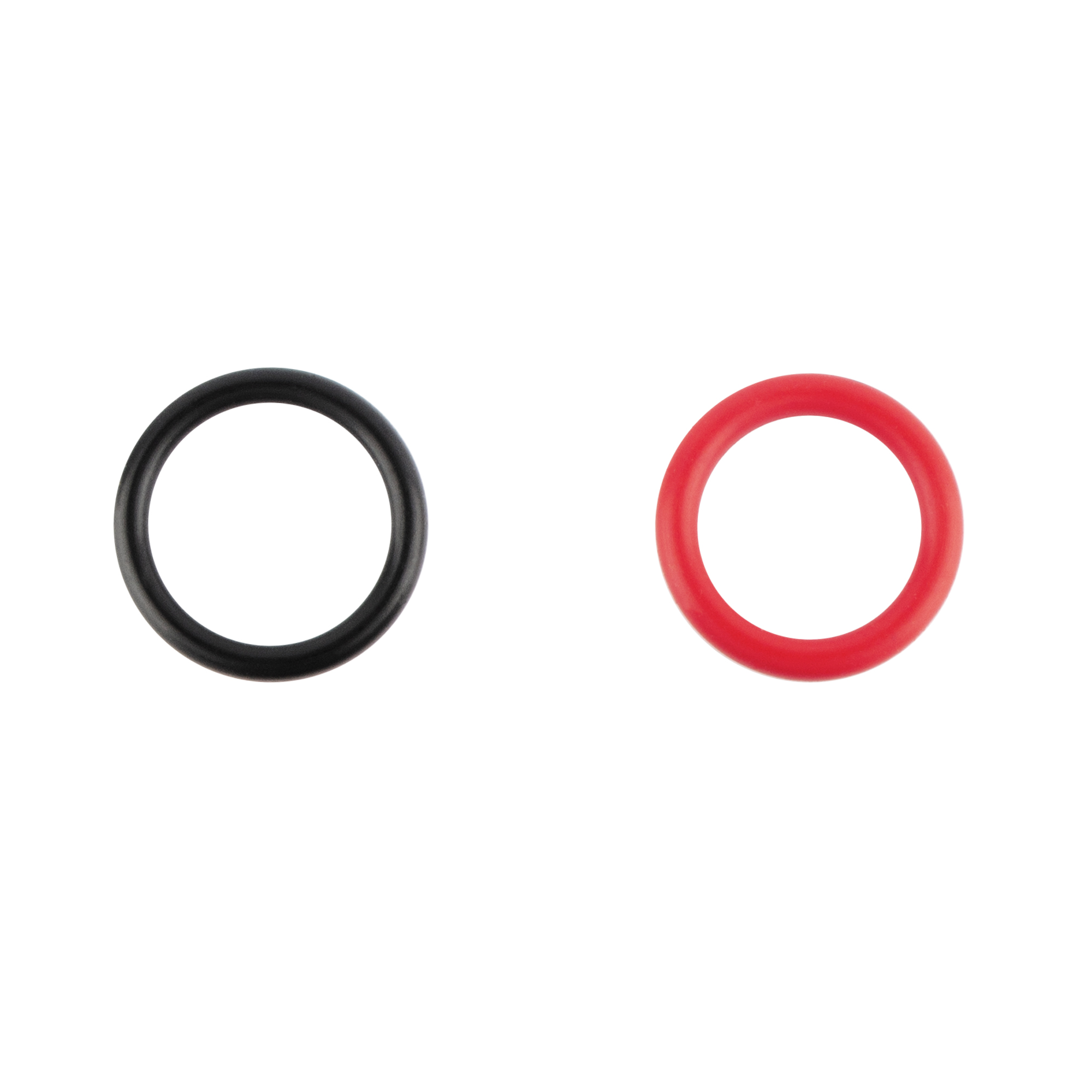

| O-Ring Included | Yes |
| Adjustable Relief Valve Included | No |
| Nylon Bushing Included | No |
| Washers Included | No |
| Pickup Screen Included | No |
| Timing Cover Included | No |
| Drive Shaft Included | No |
| Bushing Included | No |
| High Pressure | No |
| Spacer Included | No |
| Gasket Or Seal Included | Yes |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2001 – 2004 | Avanti | II | Base | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 2004 | Buick | Rainier | CXL Plus, CXL | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV |
| 2004 – 2007 | Cadillac | CTS | V | V8 – 5.7L 346ci GAS MFI vin S – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LS2 – 2 valve OHV |
| 2002 – 2006 | Cadillac | Escalade | Base | V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV |
| 2003 – 2006 | Cadillac | Escalade ESV | Base | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV |
| 2002 – 2006 | Cadillac | Escalade EXT | Base | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV |
| 2007 – 2013 | Chevrolet | Avalanche | Base, Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ | V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV |
| 2002 – 2006 | Chevrolet | Avalanche 1500 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 1998 – 2015 | Chevrolet | Camaro | 1SS, 2SS, SS, Z28 SS, Z28 | V8 – 6.2L 6162cc 376ci GAS MFI vin W type LS3 – 2 valve OHV, V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 1997 – 2013 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car, 50th Anniversary Edition, Base, Indianapolis 500 Pace Car, Z06 | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LS2 – 2 valve OHV, V8 – 6.2L 6162cc 376ci GAS MFI vin W type LS3 – 2 valve OHV, V8 – 5.7L 350ci GAS MFI vin S – 2 valve OHV |
| 2003 – 2014 | Chevrolet | Express 1500 | Base, LS, LT | V8 – 5.3L 5328cc 325ci FLEX MFI vin 4 type LMF – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin 4 type LMF – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2003 – 2020 | Chevrolet | Express 2500 | Base, LS, LT | V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin F type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2003 – 2020 | Chevrolet | Express 3500 | Base, LS, LT | V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin F type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2009 – 2020 | Chevrolet | Express 4500 | Base | V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2016 – 2019 | Chevrolet | LCF 3500 | Base | V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV |
| 2014 – 2017 | Chevrolet | SS | Base | V8 – 6.2L 6162cc 376ci GAS MFI vin W type LS3 – 2 valve OHV |
| 2003 – 2006 | Chevrolet | SSR | Base | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV |
| 1999 – 2013 | Chevrolet | Silverado 1500 | Base, Hybrid, LS, LT, LTZ, SS, WT, Z71 Off-Road | V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV |
| 2007 | Chevrolet | Silverado 1500 Classic | Hybrid, LS, LT, SS, WT | V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV |
| 2001 – 2006 | Chevrolet | Silverado 1500 HD | Base, LS, LT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | Chevrolet | Silverado 1500 HD Classic | LT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 1999 – 2013 | Chevrolet | Silverado 2500 | Base, LS, LT, WT | V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2019 | Chevrolet | Silverado 2500 HD | Base, High Country, LS, LT, LTZ, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LS, LT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2006 | Chevrolet | Silverado 3500 | Base, LS, LT, WT | V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | Chevrolet | Silverado 3500 Classic | LS, LT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 – 2019 | Chevrolet | Silverado 3500 HD | High Country, LT, LTZ, WT | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2000 – 2014 | Chevrolet | Suburban 1500 | Base, LS, LT, LTZ, Z71 | V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2000 – 2013 | Chevrolet | Suburban 2500 | Base, LS, LT, LTZ | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV |
| 2016 – 2019 | Chevrolet | Suburban 3500 HD | LS, LT | V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV |
| 2000 – 2014 | Chevrolet | Tahoe | Base, LS, LT, LTZ, PPV, Police, SSV, Z71 | V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV |
| 2006 – 2009 | Chevrolet | Trailblazer | SS | V8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV |
| 2003 – 2004 | Chevrolet | Trailblazer EXT | LS, LT, North Face | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV |
| 2003 – 2004 | GMC | Envoy XL | SLE, SLT | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV |
| 2004 | GMC | Envoy XUV | SLE, SLT | V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV |
| 2003 – 2014 | GMC | Savana 1500 | Base, LS, LT, SL, SLE | V8 – 5.3L 5328cc 325ci FLEX MFI vin 4 type LMF – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin 4 type LMF – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2003 – 2020 | GMC | Savana 2500 | Base, LS, LT, SL, SLE | V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin F type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2003 – 2020 | GMC | Savana 3500 | Base, LS, LT, SL, SLE | V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin F type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2009 – 2020 | GMC | Savana 4500 | Base | V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG vin G type L96 – 2 valve, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 1999 – 2013 | GMC | Sierra 1500 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci FLEX MFI vin A type L20 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV |
| 2007 | GMC | Sierra 1500 Classic | Denali, Hybrid, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin N type LQ9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FULL HYBRID EV-GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin B type L33 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2001 – 2006 | GMC | Sierra 1500 HD | SLE, SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | GMC | Sierra 1500 HD Classic | SLE, SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 1999 – 2004 | GMC | Sierra 2500 | Base, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV |
| 2001 – 2019 | GMC | Sierra 2500 HD | Base, Denali, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci BI-FUEL MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2007 | GMC | Sierra 2500 HD Classic | SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2001 – 2006 | GMC | Sierra 3500 | Base, SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci CNG MFI vin U type LQ4 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 | GMC | Sierra 3500 Classic | SL, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2007 – 2019 | GMC | Sierra 3500 HD | Base, Denali, SLE, SLT, WT | V8 – 6.0L 5967cc 364ci CNG MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin B type LC8 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2000 – 2014 | GMC | Yukon | Base, Denali, SL, SLE, SLT | V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin V – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 4.8L 294ci GAS MFI vin C – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV |
| 2000 – 2014 | GMC | Yukon XL | 1500 Denali, 1500 SL, 1500 SLE, 1500 SLT, 2500 SLE, 2500 SLT | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin Z type L59 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin T type LM7 – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 0 type LMG – 2 valve OHV, V8 – 5.3L 5328cc 325ci FLEX MFI vin 7 type LC9 – 2 valve OHV, V8 – 5.3L 5328cc 325ci GAS MFI vin J type LY5 – 2 valve OHV, V8 – 6.0L 5967cc 364ci FLEX MFI vin G type L96 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin K – 2 valve OHV |
| 2003 – 2007 | Hummer | H2 | Adventure, Base, Luxury, Special Edition | V8 – 6.0L 5967cc 364ci GAS MFI vin U type LQ4 – 2 valve OHV |
| 2008 – 2009 | Hummer | H3 | Alpha, Championship Series | V8 – 5.3L 5328cc 325ci GAS MFI vin L type LH8 – 2 valve OHV |
| 2009 | Hummer | H3T | Alpha | V8 – 5.3L 5328cc 325ci GAS MFI vin L type LH8 – 2 valve OHV |
| 1998 – 2002 | Pontiac | Firebird | Formula, Trans Am | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV |
| 2009 | Pontiac | G8 | GXP | V8 – 6.2L 6162cc 376ci GAS MFI vin W type LS3 – 2 valve OHV |
| 2004 – 2006 | Pontiac | GTO | Base | V8 – 5.7L 350ci GAS MFI vin G type LS1 – 2 valve OHV, V8 – 6.0L 5967cc 364ci GAS MFI vin U type LS2 – 2 valve OHV |
| 2008 – 2009 | Saab | 9-7x | Aero | V8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV |
