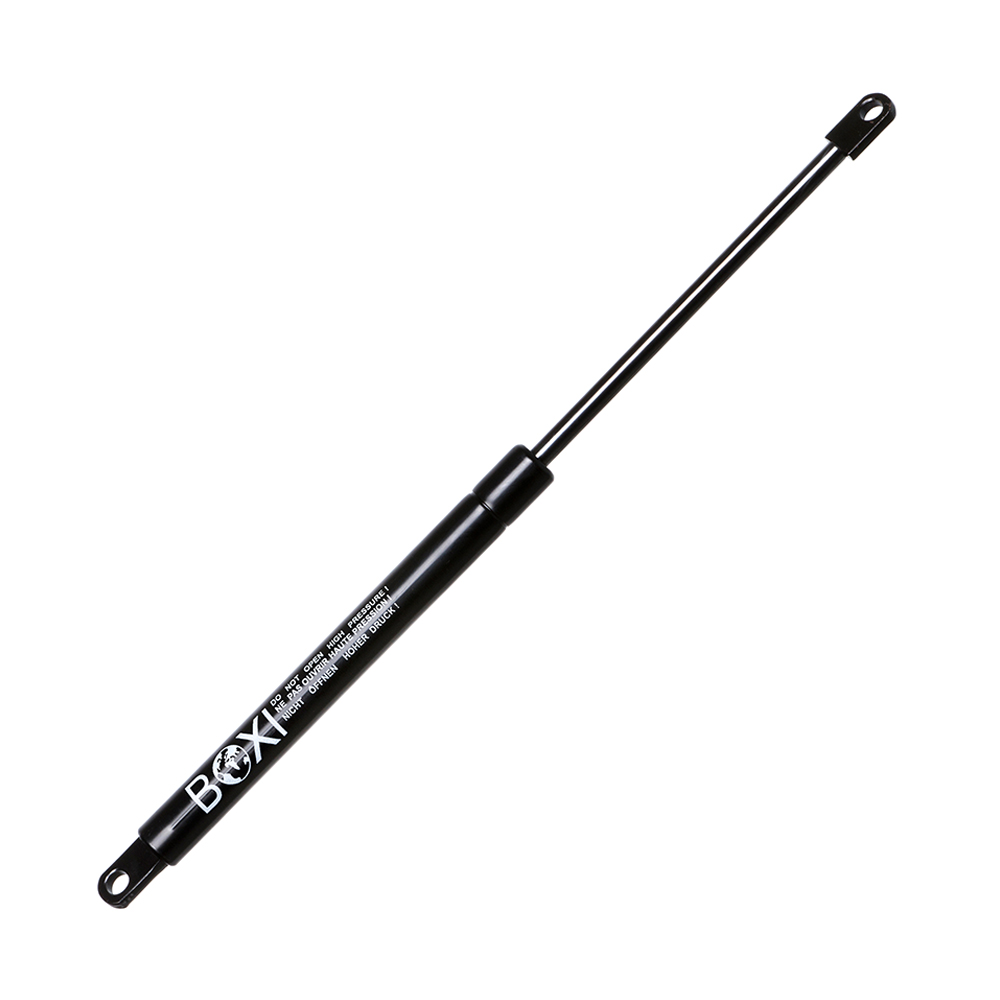

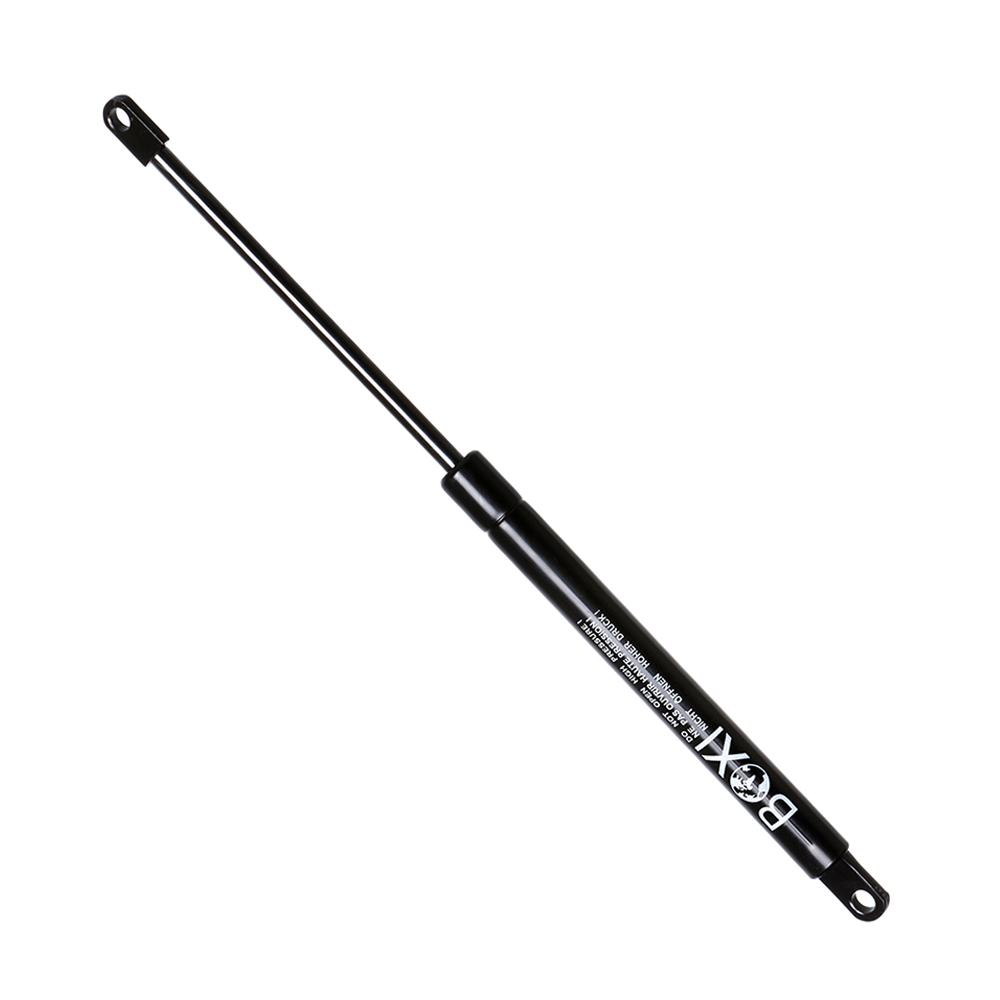

BOXI Lift Support BXC300042020-2
BOXI SKU#: BXC300042020-2
$16.09
1 in stock
Placement on Vehicle:Hatchback

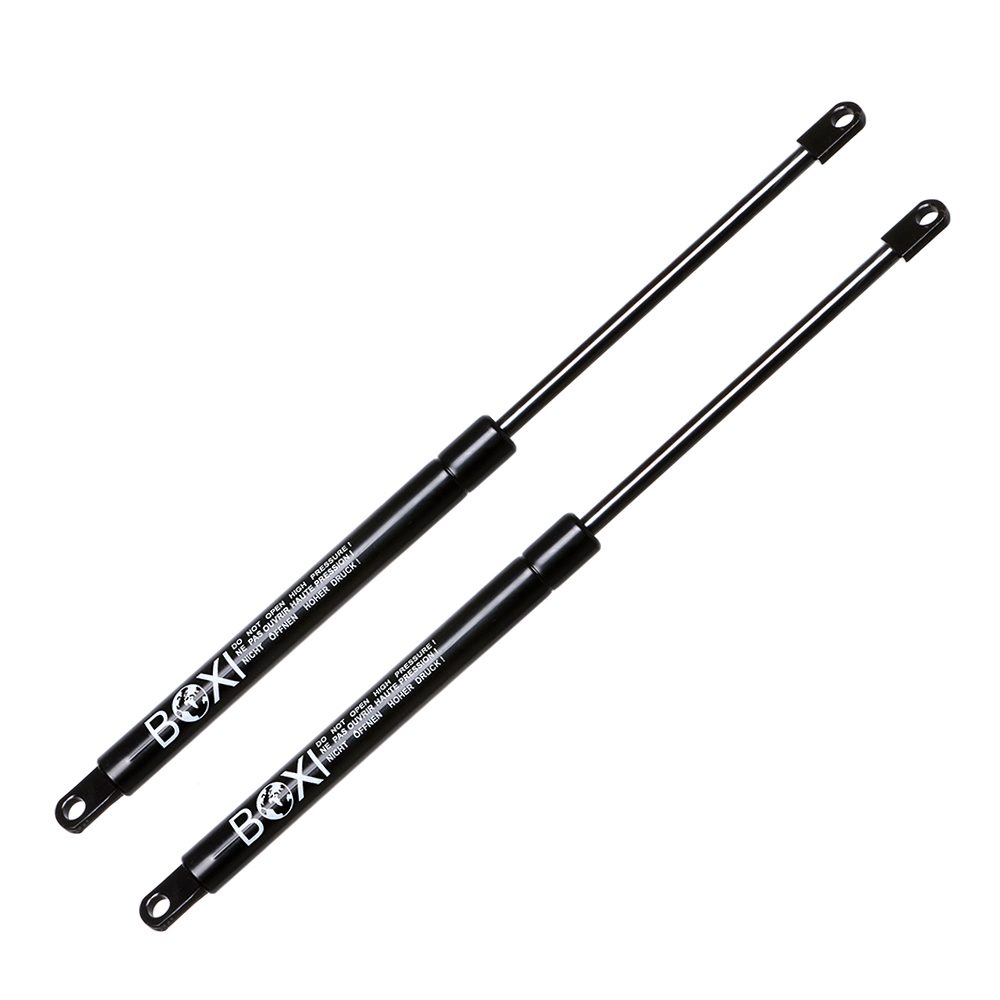

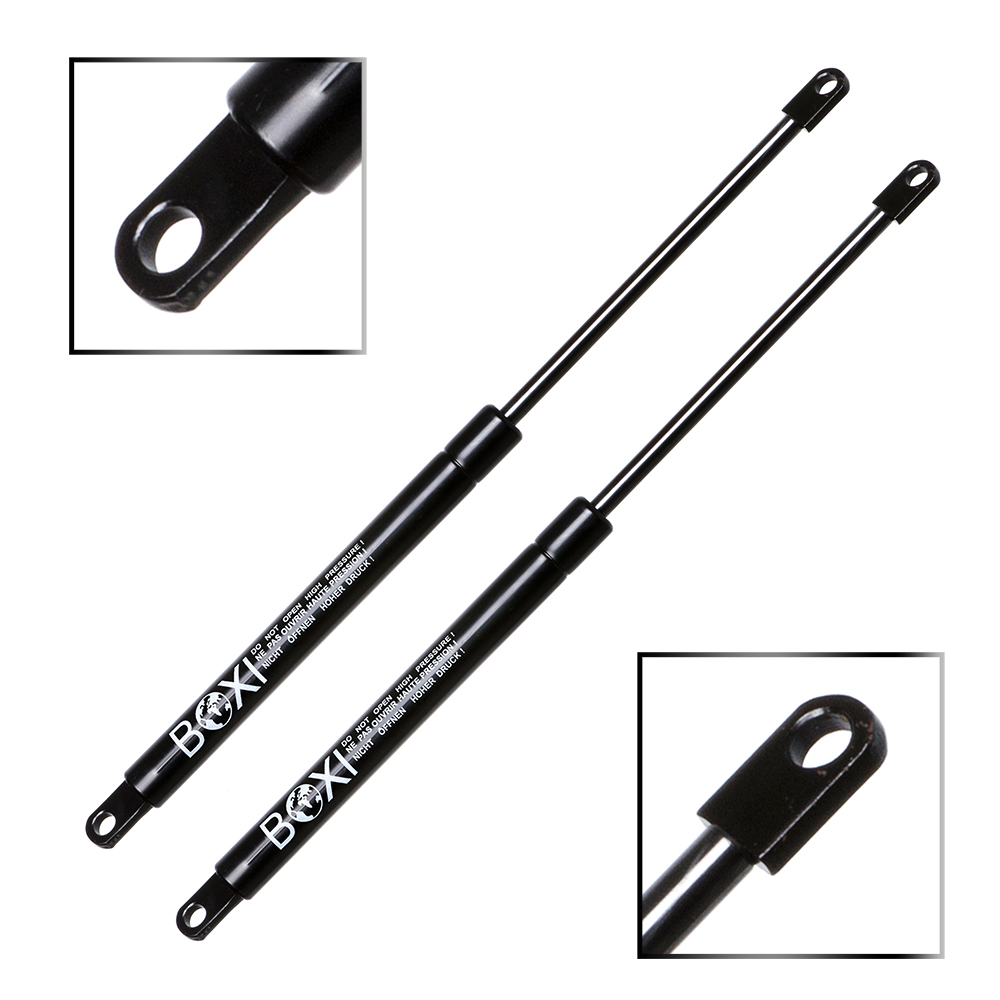

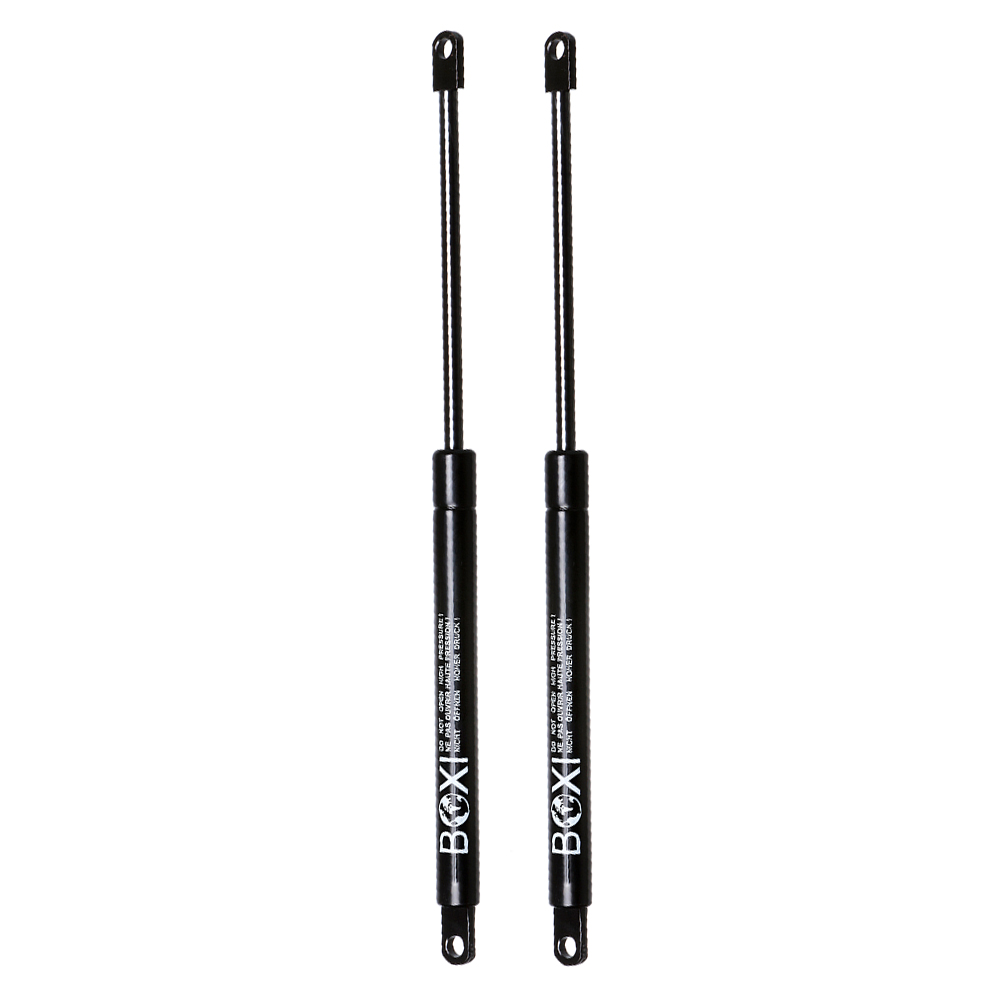

Package Included:2pcs Hatchback Lift Supports
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 19.69 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 426 |
| Stroke (in): | 6.89 |
| Stroke (mm): | 175 |
| Compressed Length (in) | |
| Compressed Length (mm): | 265 |
| Force (Lbs) | |
| Force (Newtons) | 472 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

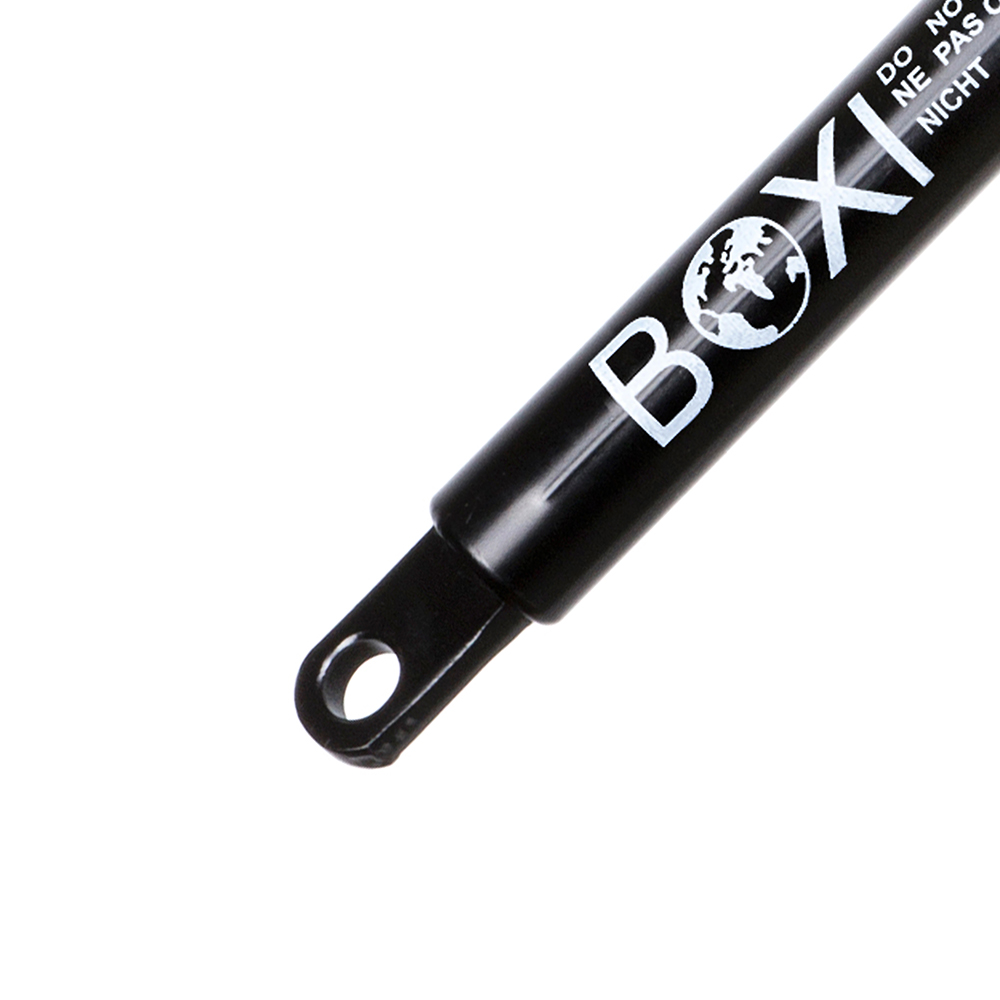

| Body Connection: | Eyelet Hole |

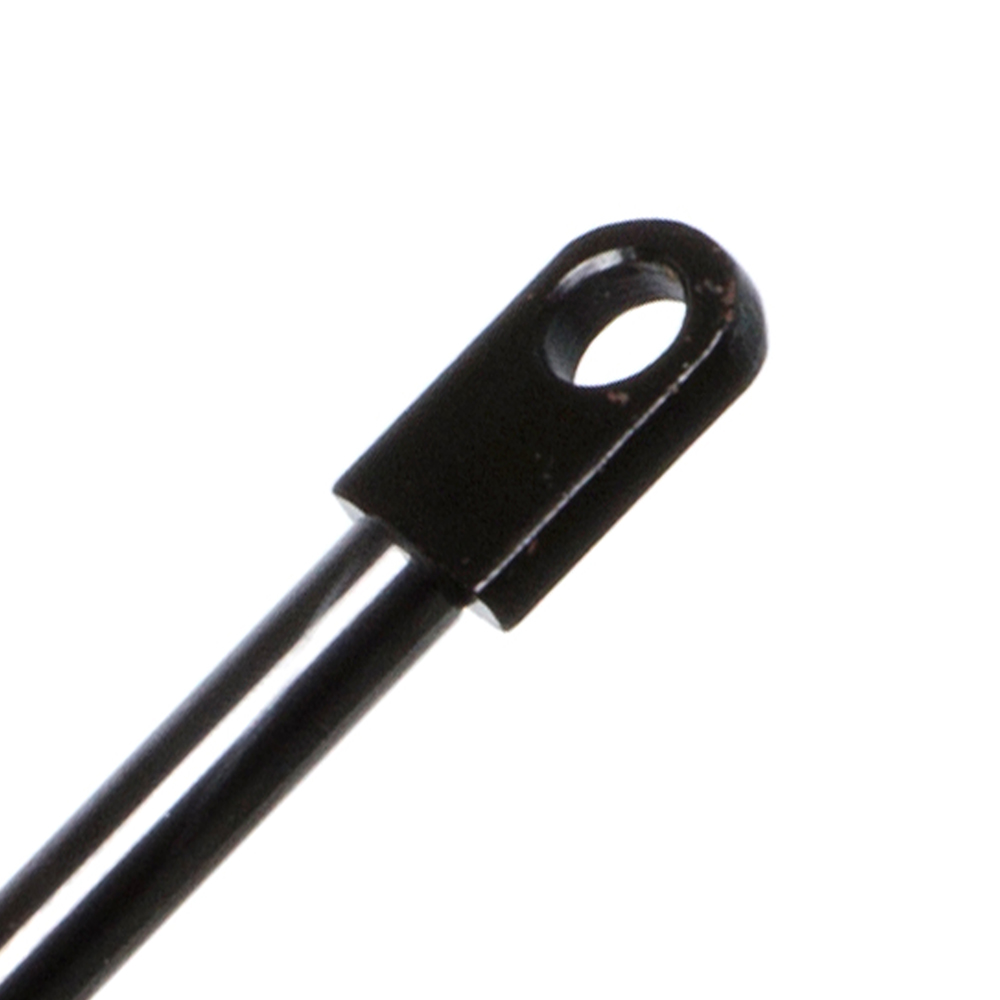

| Shaft Connection: | Eyelet Hole |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | SACSG314003, TFS613337, 613337, SG314003, D95060, D4618, 901208, 819-5614, 6895029425, 510-535, 4618 |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 1983 – 1987 | Dodge | Charger | 2.2, Base, Shelby | L4 – 2.2L 135ci GAS 2BBL vin 8 – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC, L4 – 1.6L 1595cc 97ci GAS 2BBL vin A – 2 valve SOHC, L4 – 1.7L 105ci GAS 2BBL vin B – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin F – 2 valve SOHC, L4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC |
| 1978 – 1989 | Dodge | Omni | 024 Charger 2.2, 024 Miser, 024, AMERICA, Base, Custom, E-Type, Expo, GLH, Miser, SE | L4 – 1.7L 105ci GAS 2BBL vin A – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin B – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC, L4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC, L4 – 1.6L 1595cc 97ci GAS 2BBL vin A – 2 valve SOHC, L4 – 1.7L 105ci GAS 2BBL vin B – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin 8 – 2 valve SOHC, L4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC |
| 1978 – 1990 | Plymouth | Horizon | AMERICA, Base, Custom, E-Type, Miser, SE, TC3 | L4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC, L4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC, L4 – 1.6L 1595cc 97ci GAS 2BBL vin A – 2 valve SOHC, L4 – 1.6L 1597cc 98ci GAS 2BBL vin 3 – 2 valve SOHC, L4 – 1.7L 105ci GAS 2BBL vin A – 2 valve SOHC, L4 – 1.7L 105ci GAS 2BBL vin B – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin 8 – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin B – 2 valve SOHC |
| 1983 – 1986 | Plymouth | Turismo | Base | L4 – 1.6L 1595cc 97ci GAS 2BBL vin A – 2 valve SOHC, L4 – 1.6L 1595cc 97ci GAS vin A, L4 – 1.6L 1597cc 98ci GAS 2BBL vin 3 – 2 valve SOHC, L4 – 1.7L 105ci GAS 2BBL vin B – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC |
| 1983 – 1986 | Plymouth | Turismo 2.2 | Base | L4 – 2.2L 135ci GAS 2BBL vin 8 – 2 valve SOHC, L4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC |
