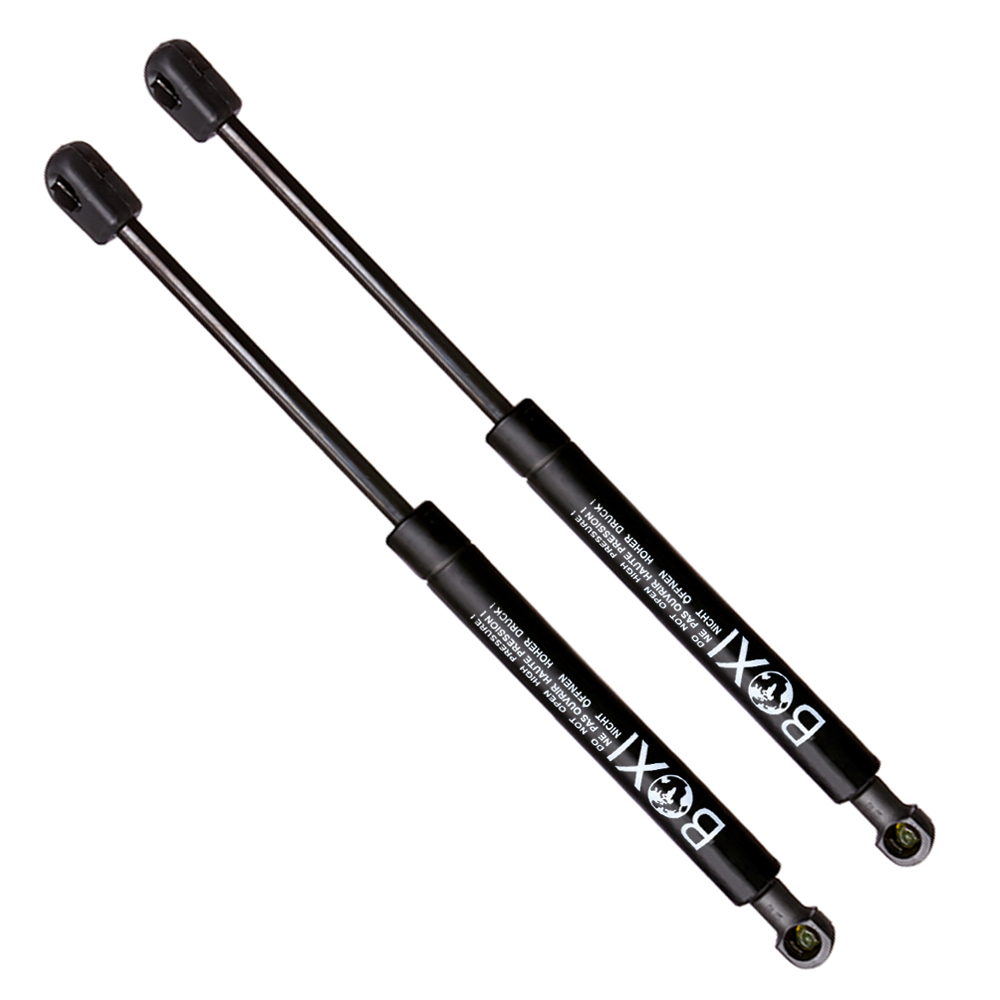

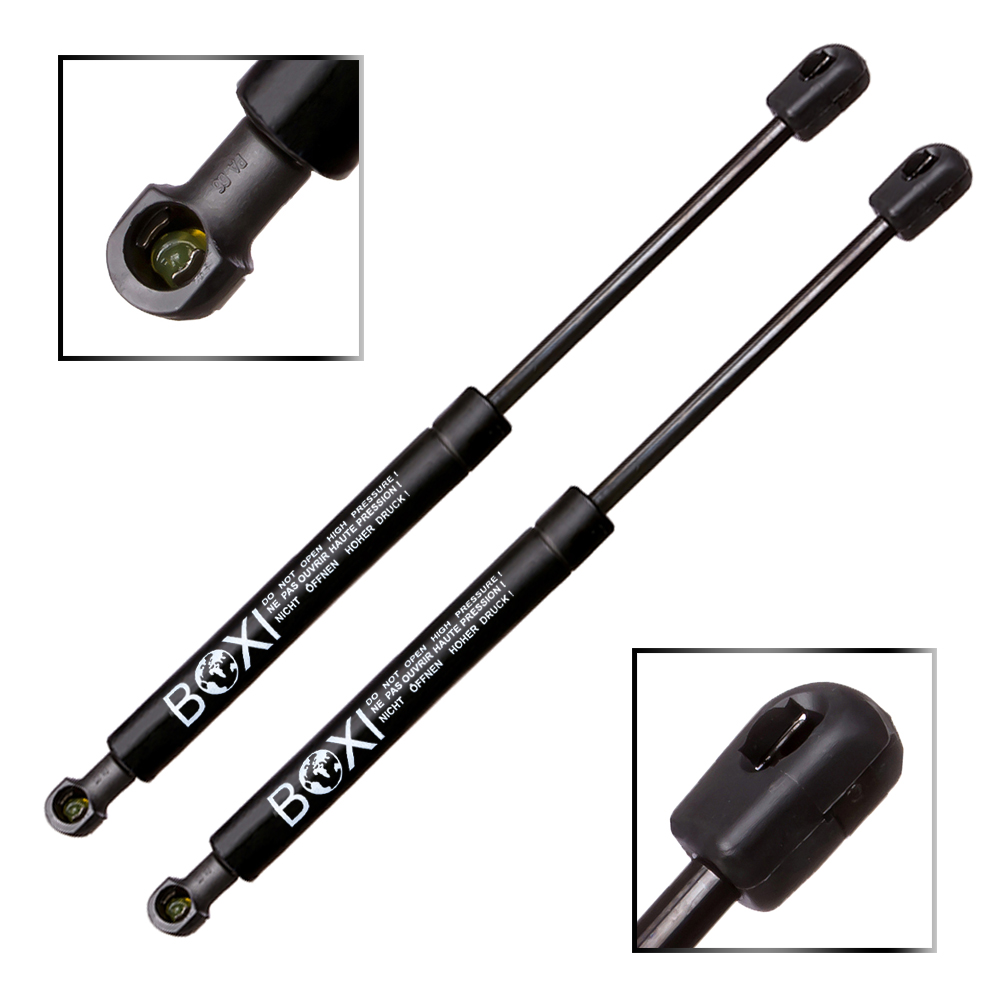

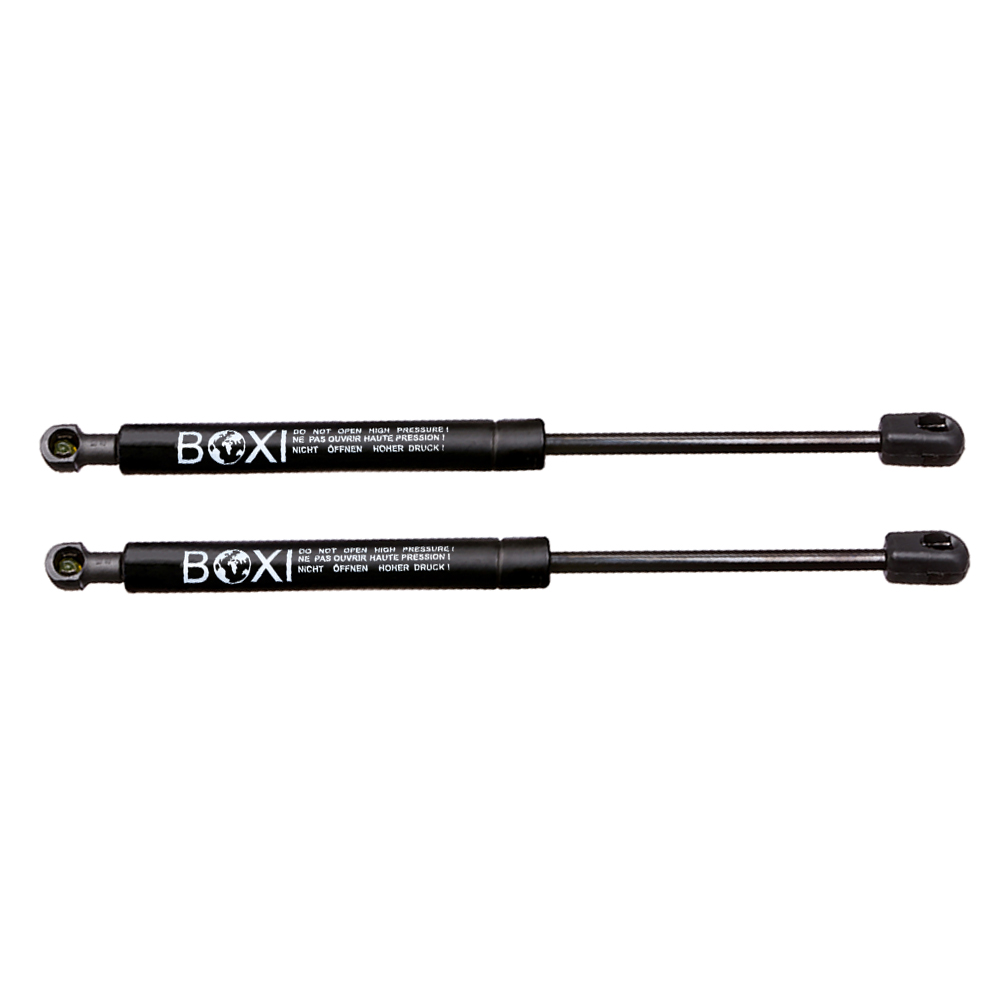

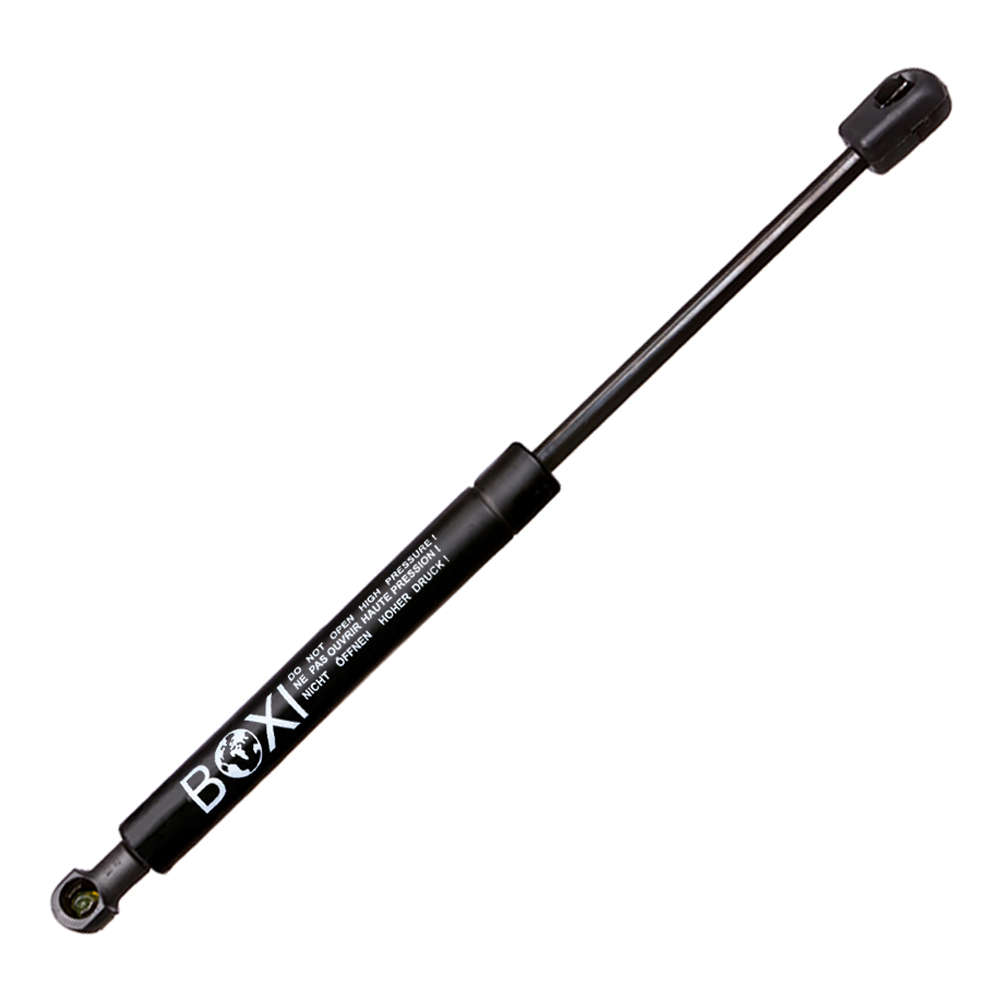

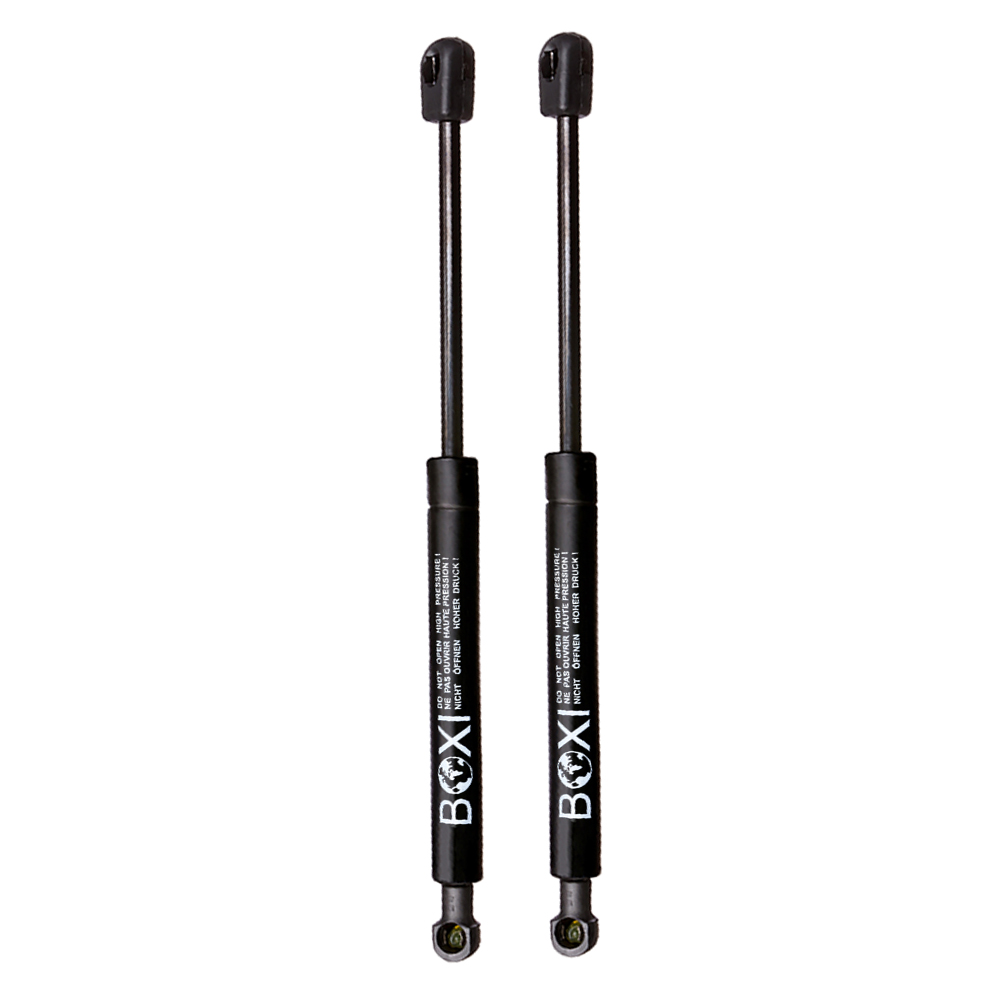

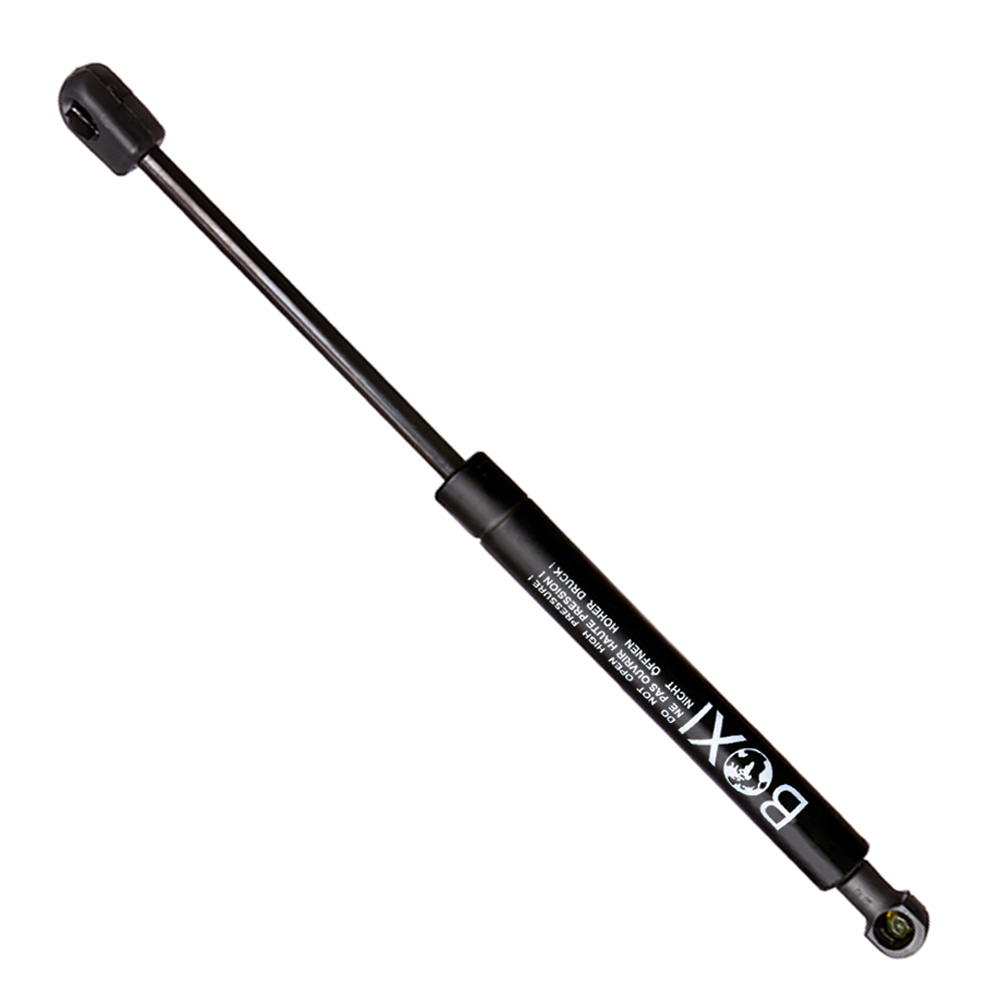

BOXI Lift Support BXC300038069-2
BOXI SKU#: BXC300038069-2
$24.88
35 in stock
Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports
| Weight | 1 lbs |
|---|---|
| Dimensions | 23.62 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |

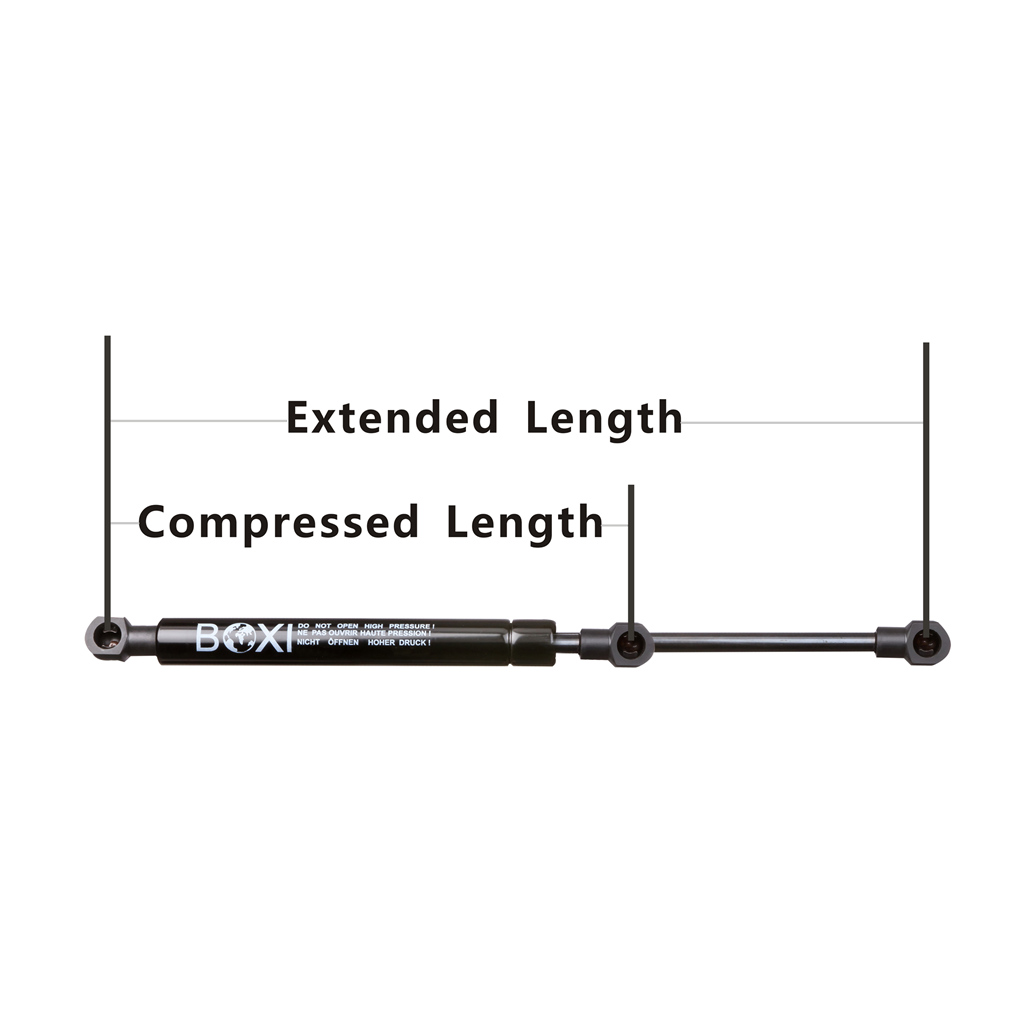

| Extended Length (in) | |
| Extended Length (mm): | 529 |
| Stroke (in): | 8.48 |
| Stroke (mm): | 215 |
| Compressed Length (in) | |
| Compressed Length (mm): | 314 |
| Force (Lbs) | |
| Force (Newtons) | 489 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

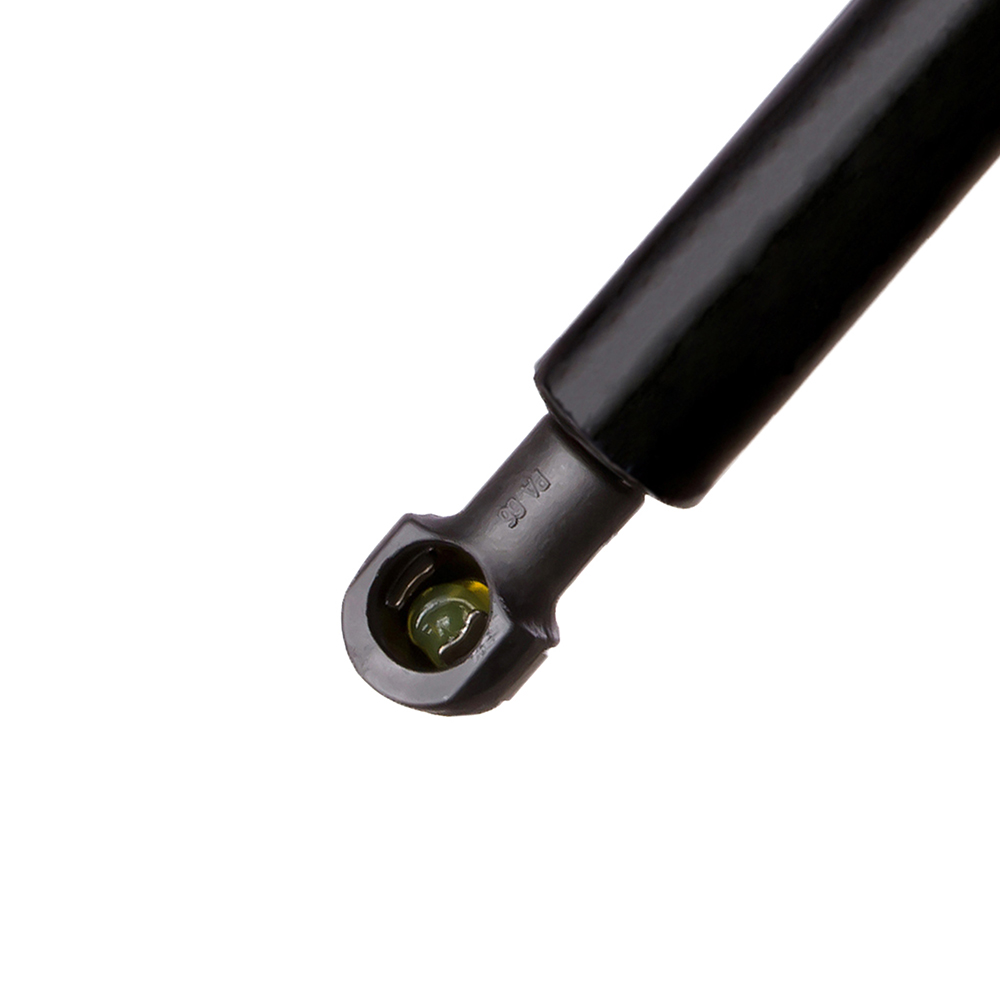

| Body Connection: | Ball Socket |

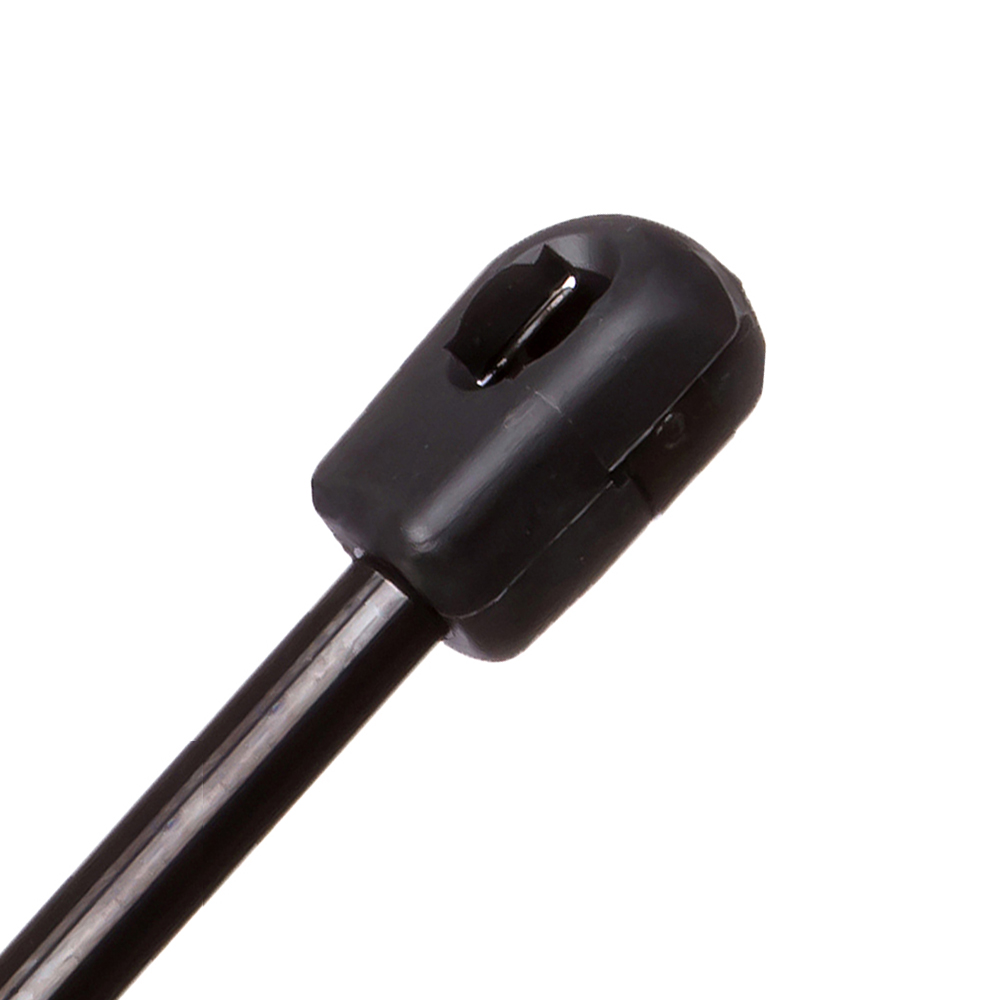

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 81161-2C001, 81771-2C000, TFS612079, 612079, SG367005, C95356, C4587, 926 23008 810, 901711, 819-6128, 81161-2C000, 4587 |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2003 – 2008 | Hyundai | Tiburon | Base, GS, GT Limited, GT, GTP, SE | L4 – 2.0L 1975cc GAS MFI – 4 valve DOHC, L4 – 2.0L 1975cc GAS MFI vin D – 4 valve DOHC, V6 – 2.7L 2656cc GAS MFI vin F – 4 valve DOHC |
