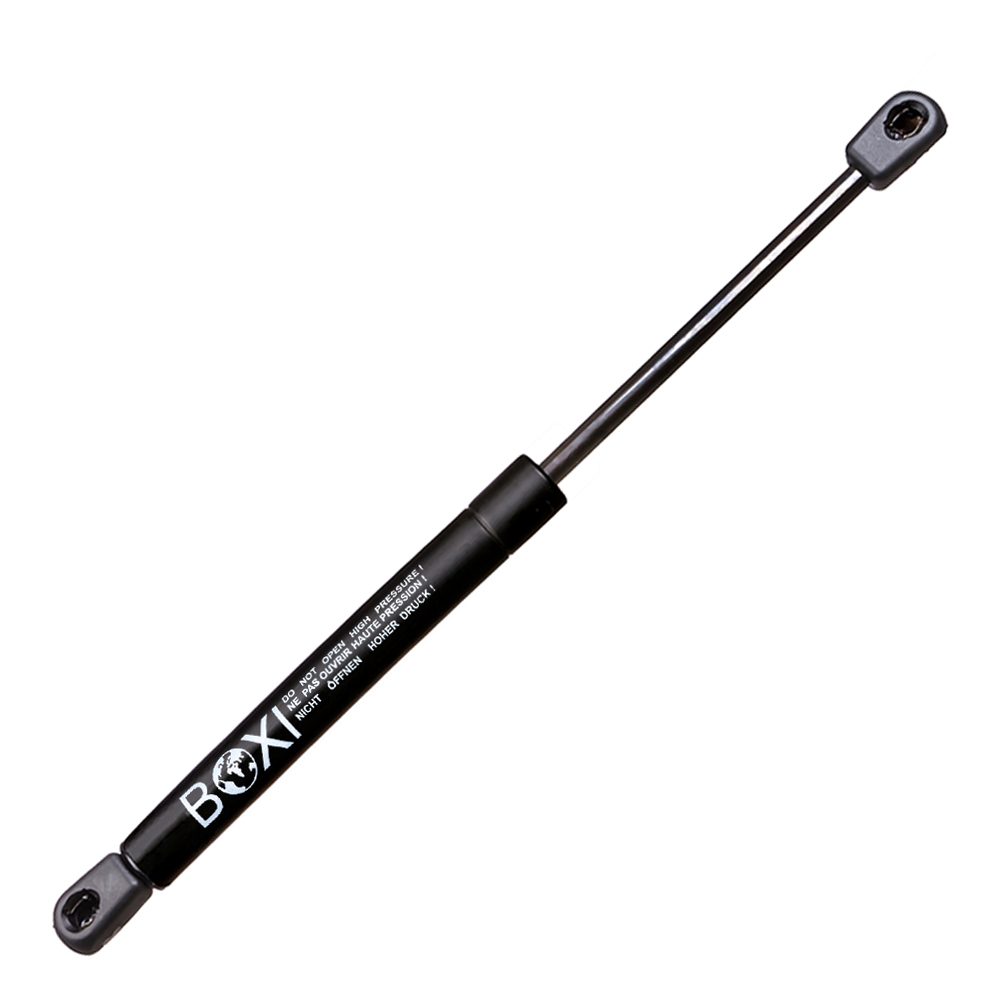

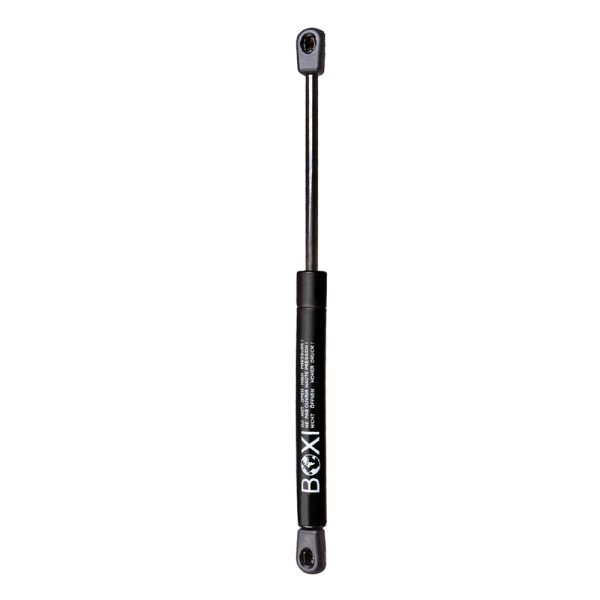

BOXI Lift Support BXC300054664-1
BOXI SKU#: BXC300054664-1
$8.81
33 in stock
Package included:
1pcs Universal Lift Supports
| Weight | 0.29 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 254 |
| Stroke (in): | 3.4 |
| Stroke (mm): | 86 |
| Compressed Length (in) | |
| Compressed Length (mm): | 168 |
| Force (Lbs) | |
| Force (Newtons) | 111 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |
| Body Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Shaft Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 12169, 4057, 8195583, 870110, CS10030SA, CS100-30SA, ML1025, ML10-25, ML-10-25, ML125, ML1-25, ML-1-25, ML3025, ML30-25, ML-30-25, SL1025, SL10-25, SL-1025, SL-10-25, SL10251, SL10-25-1, SL-10251, SL-10-25-1, SL10255 |
