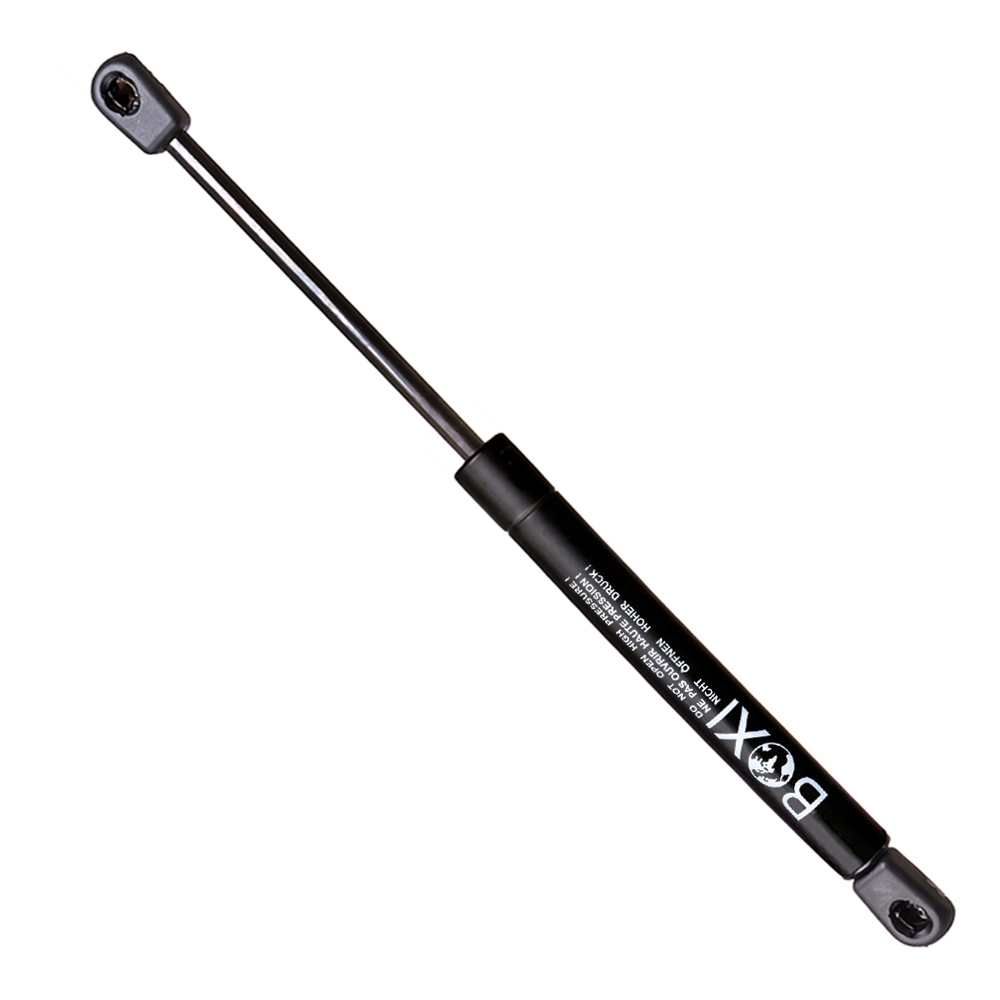

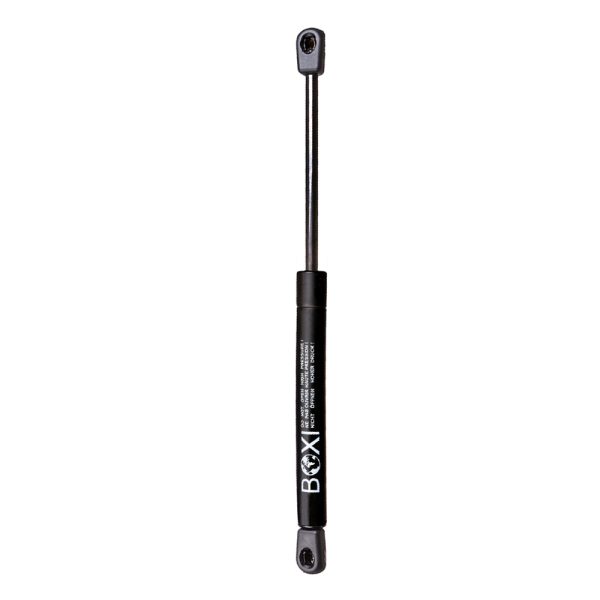

BOXI Lift Support BXC300054660-1
BOXI SKU#: BXC300054660-1
$5.92
11 in stock
Package included:
1pcs Universal Lift Support
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 15.75 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 330 |
| Stroke (in): | 4.6 |
| Stroke (mm): | 117 |
| Compressed Length (in) | |
| Compressed Length (mm): | 213 |
| Force (Lbs) | |
| Force (Newtons) | 111 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |
| Body Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Shaft Connection: | Ball Socket U Band (Nylon)=10mm=3/8"=.39" |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 95975, 4125, 752754, 8196306, 870625, C1615091, C16-15091, E95975 |
