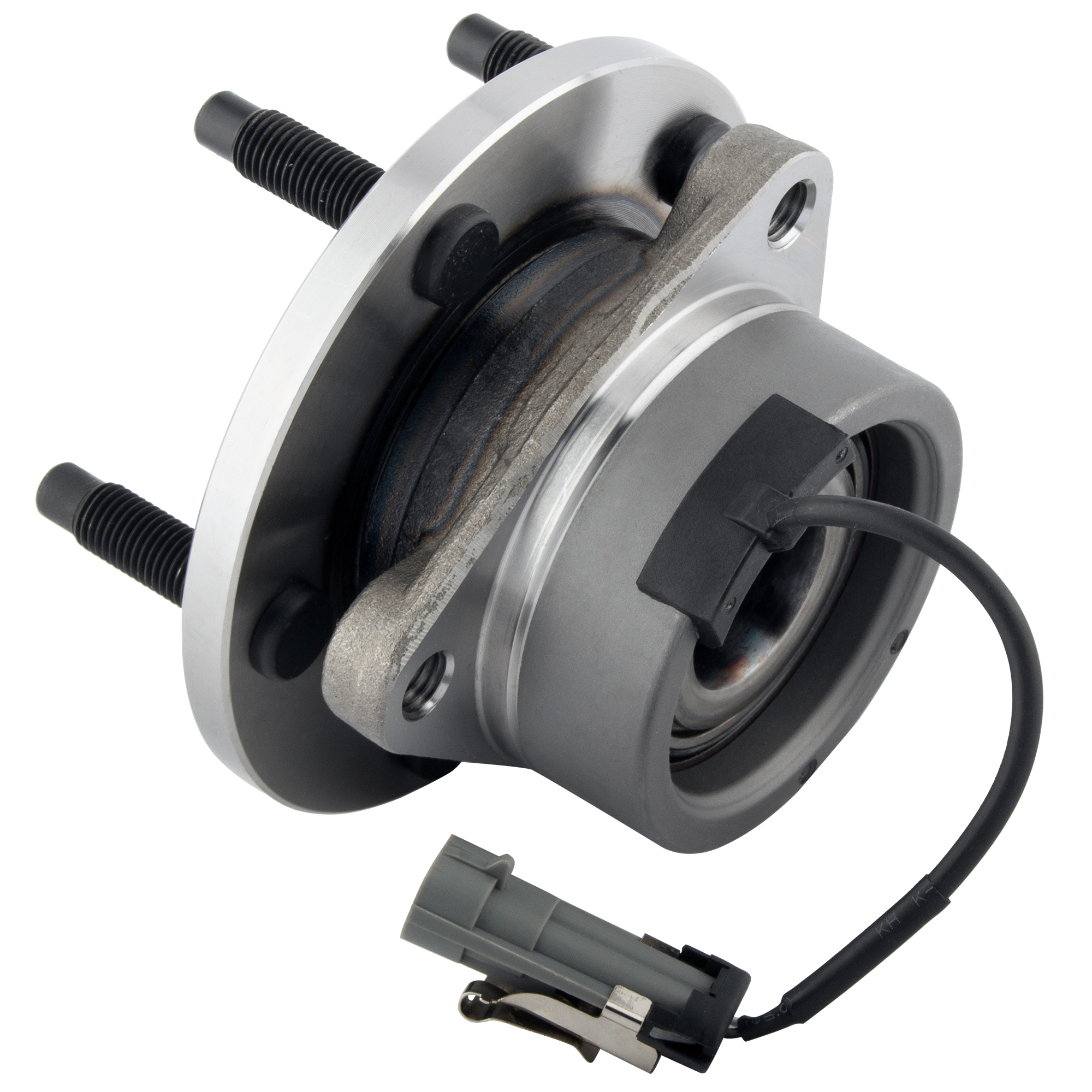

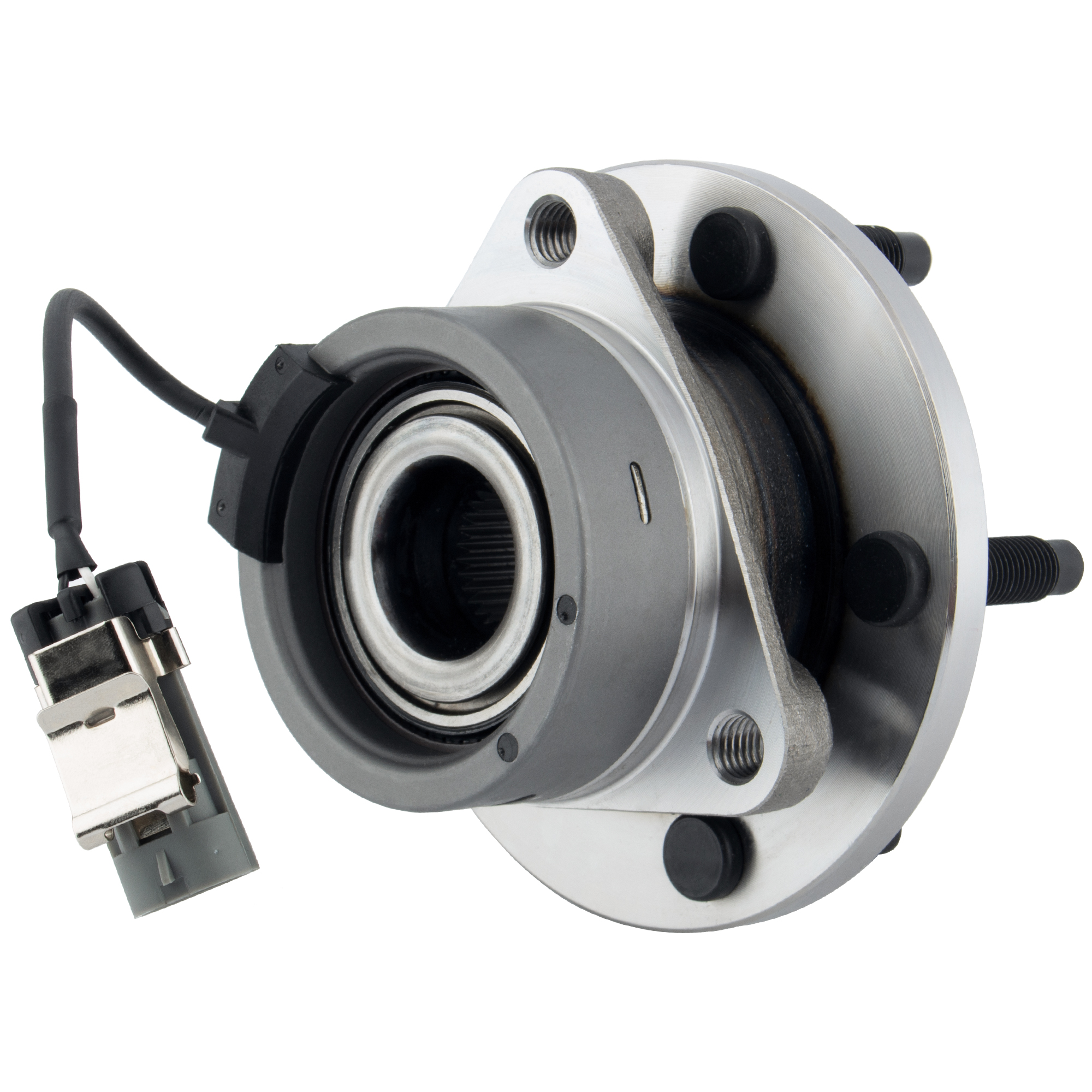

BOXI Hub Assembly BX03200030-1
BOXI SKU#: BX03200030-1
$30.58
2 in stock
Placement on Vehicle:Front Driver or Passenger Side
Package Included:1pc Wheel Hub and Bearing Assembly
| Weight | 7.44 lbs |
|---|---|
| Dimensions | 6.29 × 6.1 × 5.7 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | Yes |
| Terminal Gender | Female |
| Flange Shape | Triangle |

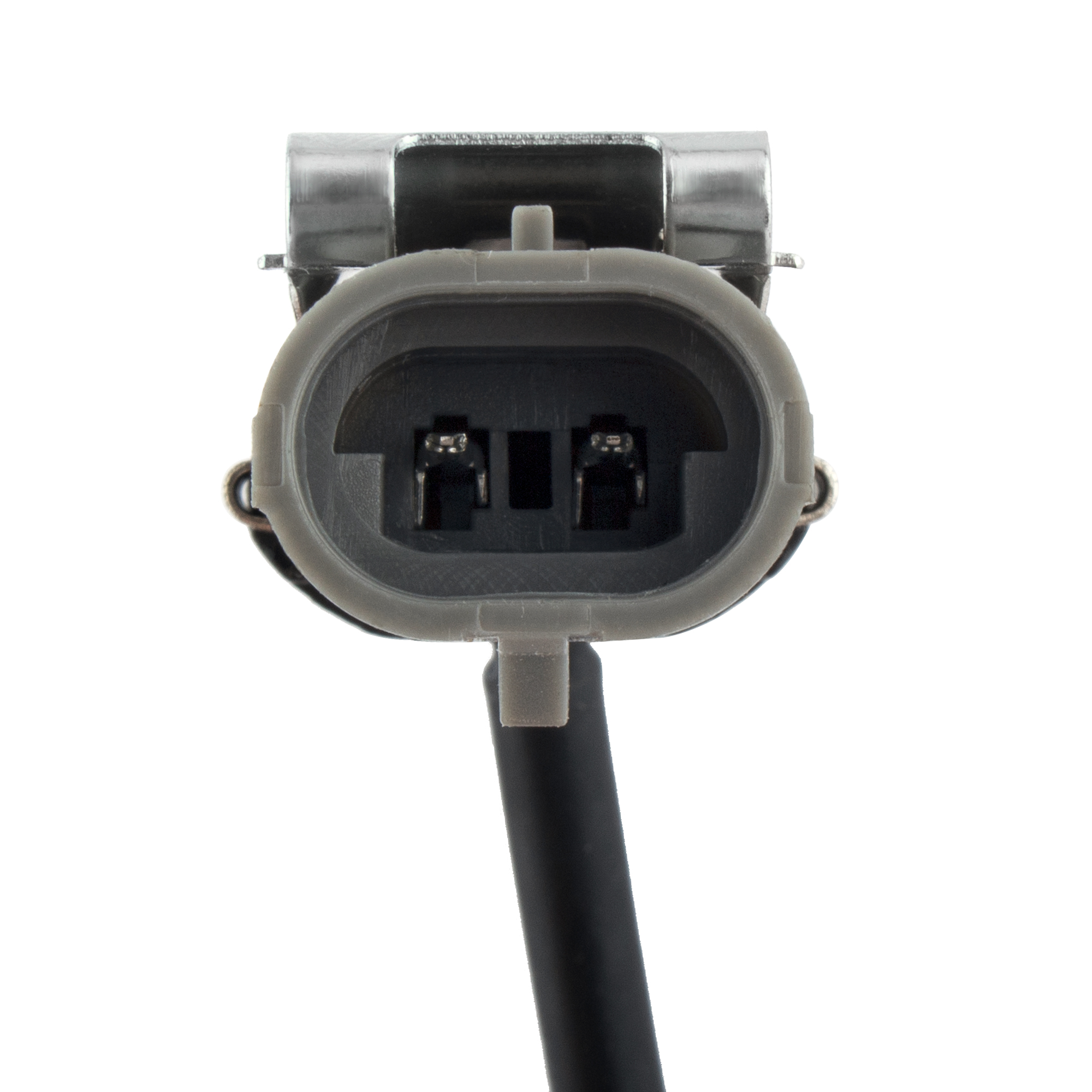

| Wiring Harness Included | Yes |
| Greaseable | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.390 Inch |
| Flange Diameter (mm) | 137mm |
| Flange Offset (in) | 1.540 Inch |
| Flange Offset (mm) | 39mm |
| Hub Pilot Diameter (in) | 4.330 Inch |
| Hub Pilot Diameter (mm) | 110mm |
| Flange Outside Diameter (in) | 5.390 Inch |
| Flange Outside Diameter (mm) | 137mm |
| Total Hub Diameter (in) | 5.390 Inch |
| Total Hub Diameter (mm) | 137mm |
| Hub Centerbore Diameter (in) | 4.330 Inch |
| Hub Centerbore Diameter (mm) | 110mm |
| Total Hub Height (in) | 4.330 Inch |
| Total Hub Height (mm) | 109.9mm |
| Flange Bolt Size (in) | 1.515 Inch |
| Flange Bolt Size (mm) | 38.5mm |
| Number Of Splines | 33 |
| Number Of Terminals | 1 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.50 |
| Flange Bolt Thread Size | M12-1.75 |
| Warranty Terms | Two Year |
| year | Make | Model | submodel | engines |
|---|---|---|---|---|
| 2005 – 2010 | Chevrolet | Cobalt | Base, LS, LT Team Canada, LT, LTZ, SS, Sport | L4 – 2.2L 2198cc 134ci GAS MFI vin 5 type LAP – 4 valve DOHC, L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC, L4 – 2.2L 2198cc 134ci GAS MFI vin H type LAP – 4 valve DOHC, L4 – 2.0L 122ci GAS MFI Supercharged vin P type LSJ – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin X – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC |
| 2006 – 2011 | Chevrolet | HHR | Comfort LT, Edicion Especial, Elegance LT, LS Panel, LS, LT Panel, LT, SS Panel, SS | L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, L4 – 2.2L 2198cc 134ci FLEX MFI vin B type LE8 – 4 valve DOHC, L4 – 2.2L 2198cc 134ci FLEX MFI vin W type LE8 – 4 valve DOHC, L4 – 2.2L 2198cc 134ci GAS MFI vin D – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FLEX MFI vin V type LE9 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin P – 4 valve DOHC, L4 – 2.4L 2384cc 145ci FLEX MFI vin U type LE9 – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin X – 4 valve DOHC, L4 – 2.0L 1998cc 122ci GAS MFI Turbocharged vin M type LNF – 4 valve DOHC |
| 2007 – 2010 | Pontiac | G5 | Base, Basico, GT, LS, SE | L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC, L4 – 2.2L 2198cc 134ci GAS MFI vin H type LAP – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC |
| 2004 – 2007 | Saturn | Ion | 1, 2, 3, Red Line | L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC, L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC, L4 – 2.0L 122ci GAS MFI Supercharged vin P type LSJ – 4 valve DOHC |
